2-25A — SPEEDOMETER DRIVEN GEAR (#67954) — 74 parça

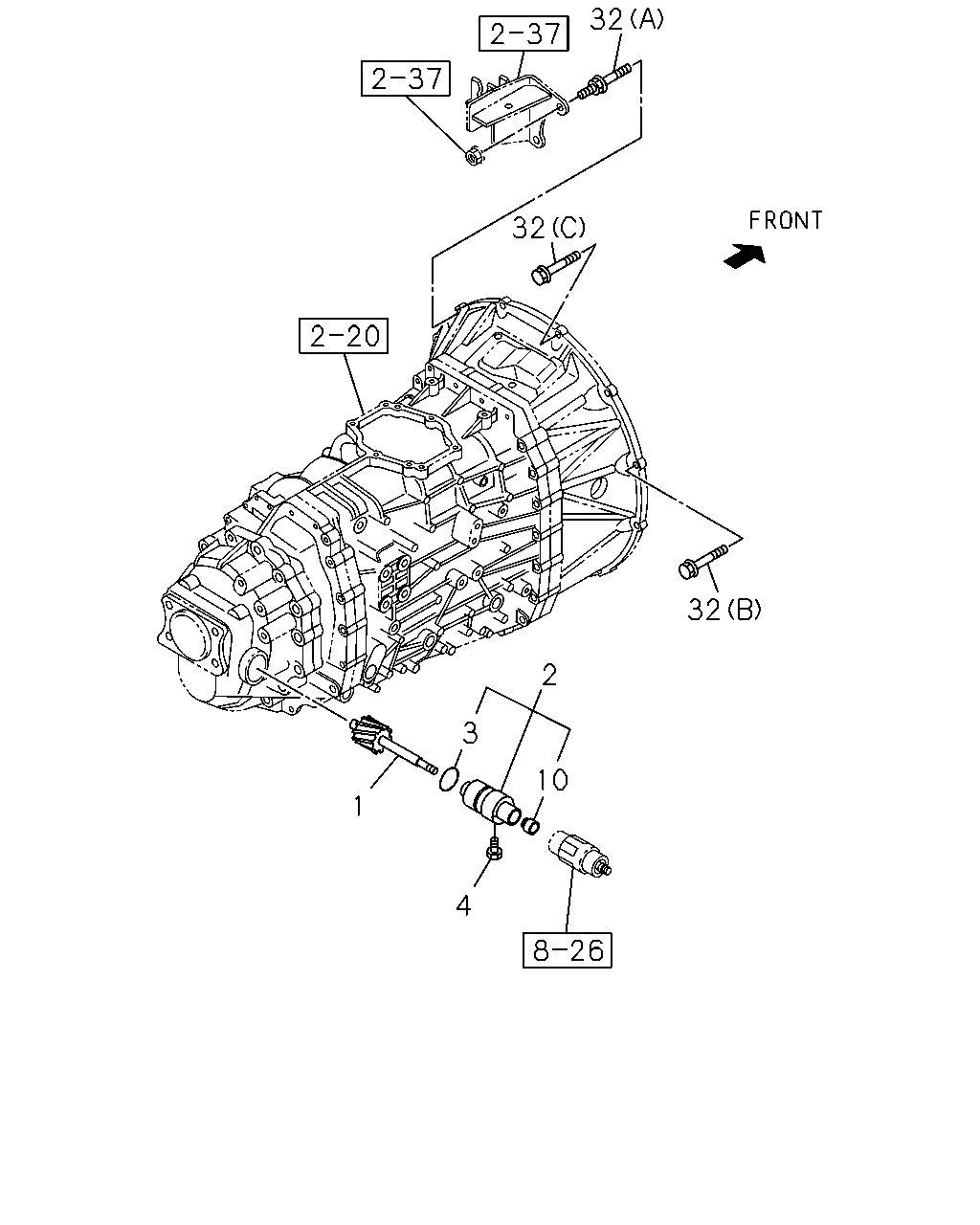

32 32 32 3 2 10 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0803-0805	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0806-0906	●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0907-	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0806-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0803-0906	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0907-	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0803-0805	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0806-0906	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0907-	●	●	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0803-0906	●
4	BOLT; RET,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0907-	●		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0803-0805	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0806-0906	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0907-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0806-0808		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0809	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0809		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	8-98116-723-0	02	1	0810-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0810-0906		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	1210-1211	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98234-150-0	02	1	1212-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X30 FLANGE	0-28151-030-0	08	1	0803-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X30 FLANGE	0-28151-030-0	08	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X30 FLANGE	0-28151-030-0	08	1	0907-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	0803-0808	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0803-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0907-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0810-0905	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0906-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0907-1209	●		●

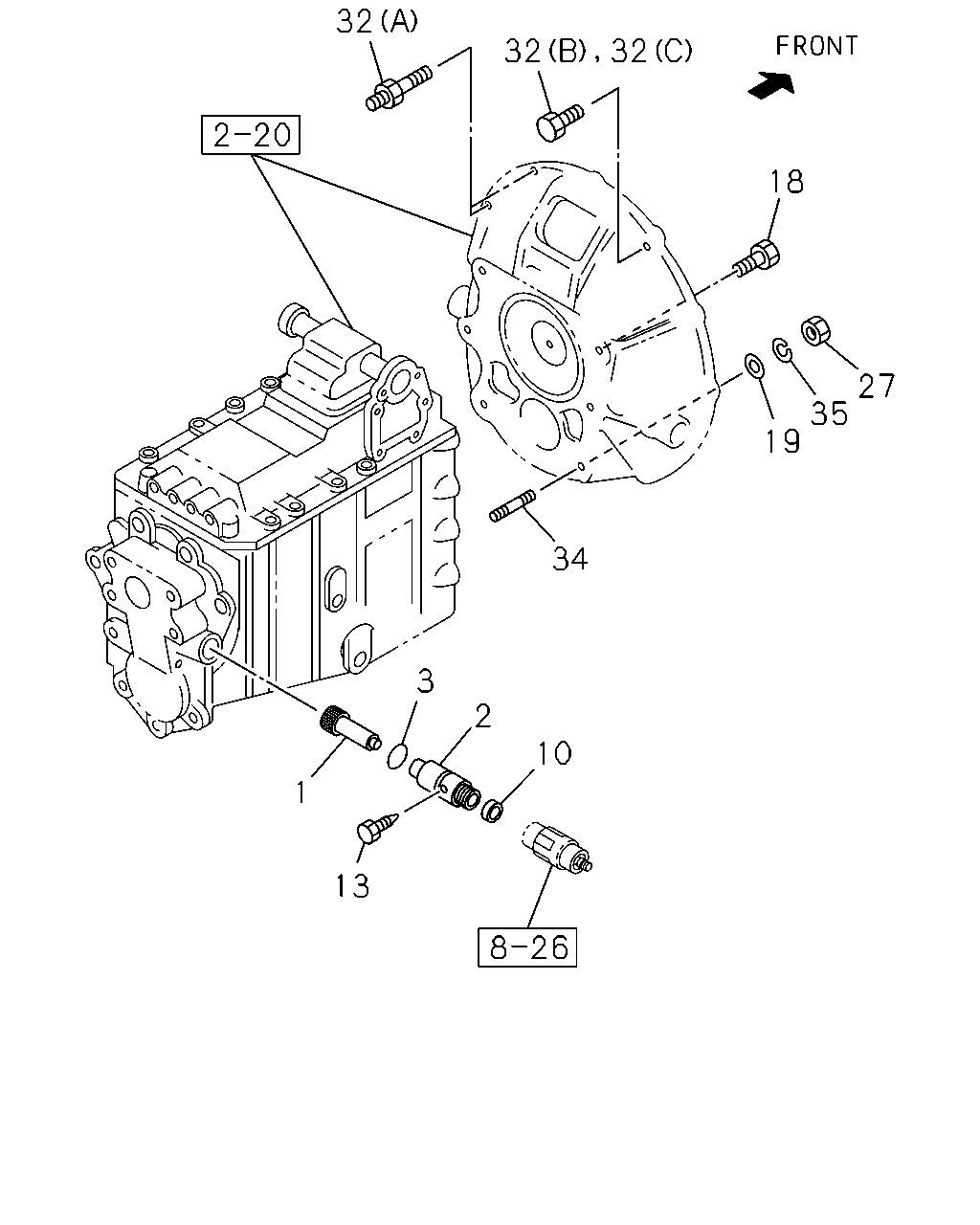

32 32 32 18 27 35 19 34 3 2 10 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0803-0805	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0806-0906	●	●
1	GEAR; DRIVEN,SPD Z=15	1-33372-133-5	01	1	0907-	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-058-3	01	1	0806-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0803-0906	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-98000-271-0	01	1	0907-	●		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0803-0805	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0806-0906	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0907-	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0803-0805	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0806-0906	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0907-	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-		●
18	BOLT; CLU HSG TO TRANS M16X40 W/LK&PL WASHER	0-50651-640-0	06	1	0806-		●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0806-		●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0806-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0806-0808		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2> (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0809	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0809-0809		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	8-98116-723-0	02	1	0810-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0810-0906		●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209	●		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	0907-1209		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98116-723-0	02	1	1210-1211	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	8-98234-150-0	02	1	1212-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X30 FLANGE	0-28151-030-0	08	1	0803-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X30 FLANGE	0-28151-030-0	08	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M10X30 FLANGE	0-28151-030-0	08	1	0907-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	0803-0808	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0803-0805	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0806-0906	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M10X20,M10X26 L=56	8-98010-334-0	02	1	0907-	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0809-0809	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0810-0905	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0906-0906	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EURO4 SPECIFICATION<NT4> (B) M10X45 FLANGE	0-28151-045-0	02	1	0907-1209	●		●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0806-		●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0806-		●
