Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#67952) — 239 parça

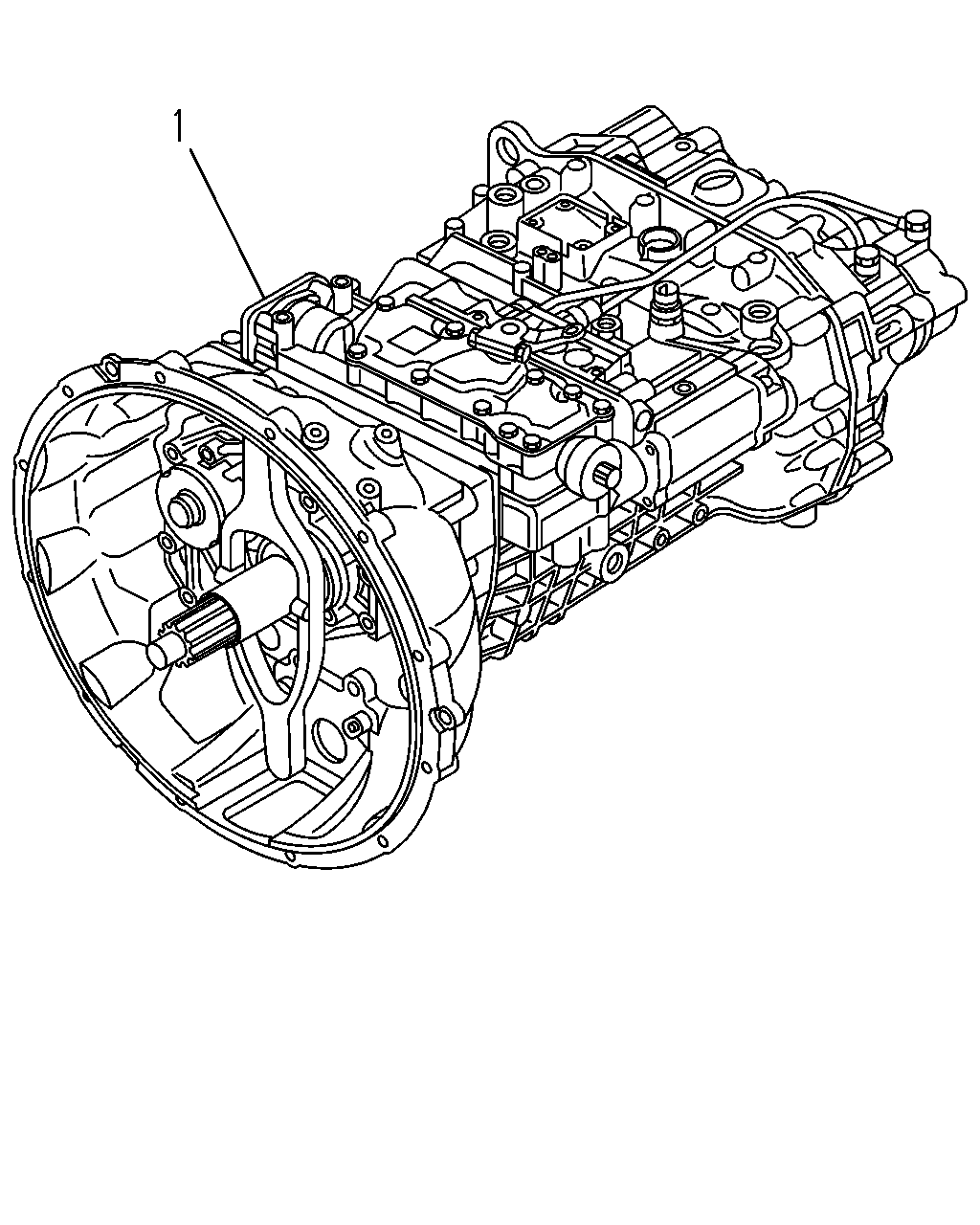

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33044-084-1	01	1	0803-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98083-335-2	01	1	0803-
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33043-933-1	01	1	0803-
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	8-98083-334-2	01	1	0803-
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	0803-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-

265 353 271 399 439 406 303 511 265 353 271 353 265 406 399 439 265 353 439 406 353

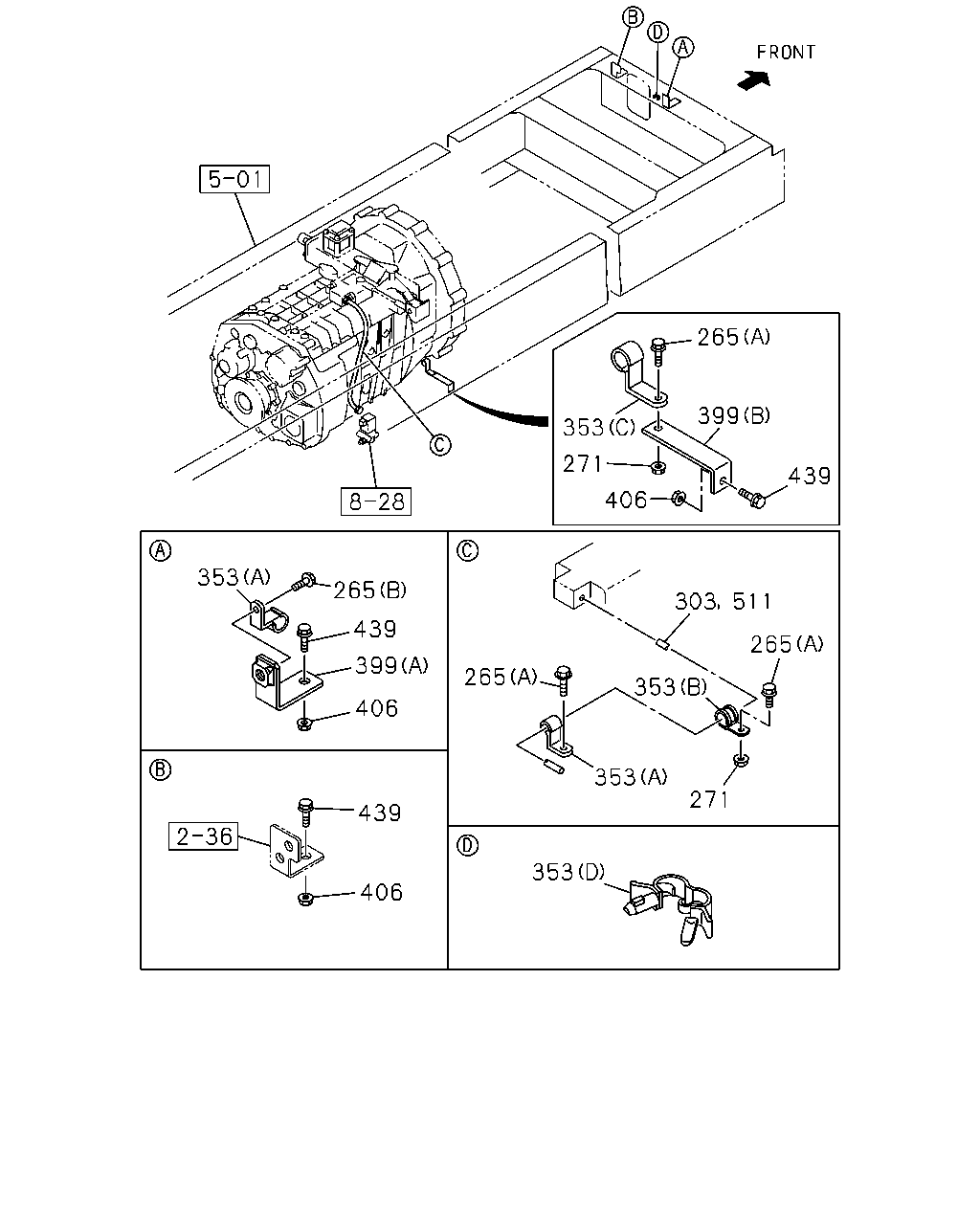

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	0803-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28050-820-0	03	1	0803-0803
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-0907
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	03	1	0908-1211
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	03	1	1212-
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-1111
265	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	02	1	1112-
265	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	02	1	1112-
265	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0807
265	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	0808-0810
265	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M8X20 FLANGE	0-28650-820-0	01	1	0811-1111
265	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	1112-
265	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	1112-
265	BOLT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	1112-
271	NUT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0803-0807
271	NUT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	0808-0810
271	NUT; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8 FLANGE	0-91180-108-0	01	1	0811-
303	TUBE; NYLON EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0808-0812
303	TUBE; NYLON EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0901-1008
303	TUBE; NYLON BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1011
303	TUBE; NYLON FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1012-
303	TUBE; NYLON FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1012-
303	TUBE; NYLON FVR WIDE SGL CAB(FG****) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1012-
303	TUBE; NYLON WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEELBASE 6000MM(60W) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0803-0803
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0804-0807
303	TUBE; NYLON ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0808-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1201-1211
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> EXC. CAB SUSPENSION FULL FLOATING<W16> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1212-
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0903-1011
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1012-
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1012-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	01	1	0803-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	03	1	0803-0907
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	03	1	0908-1211
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 L=20	0-95235-035-0	03	1	1212-
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	02	1	0803-1111
353	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	02	1	1112-
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	02	1	1112-
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) ID=18 L=28	1-09701-067-0	01	1	0803-0902
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	0903-1008
353	CLIP; NYLON TUBE FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1009-1009
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1010-1011
353	CLIP; NYLON TUBE FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1012-1111
353	CLIP; NYLON TUBE FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1012-1111
353	CLIP; NYLON TUBE BRK SYSTEM FULL AIR DUAL CIRC(Z06) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1112-
399	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	01	1	1012-
399	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	01	1	0808-0902
399	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=95	1-82699-085-0	01	1	0903-1011
399	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (B) L=95	1-82699-085-0	01	1	1012-
399	BRACKET; CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> (B) L=95	1-82699-085-0	01	1	1012-
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-674-0	01	1	0803-0907
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-674-0	01	1	0908-1211
399	BRACKET; CLIP ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-674-0	01	1	1212-
406	NUT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	0808-
406	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	0803-
439	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	01	1	0808-0907
439	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	01	1	0908-1211
439	BOLT; BRKT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	01	1	1212-
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0803-0907
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0908-1206
439	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1212-
511	TUBE; CORRUGATE EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0808-0812
511	TUBE; CORRUGATE EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0901-1008
511	TUBE; CORRUGATE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1009-1011
511	TUBE; CORRUGATE FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
511	TUBE; CORRUGATE FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-
511	TUBE; CORRUGATE FVR WIDE SGL CAB(FG****) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1012-

82 322 321 321 435 186 82 50 430 73 71 72 332 186 82 186 446 437 83 82

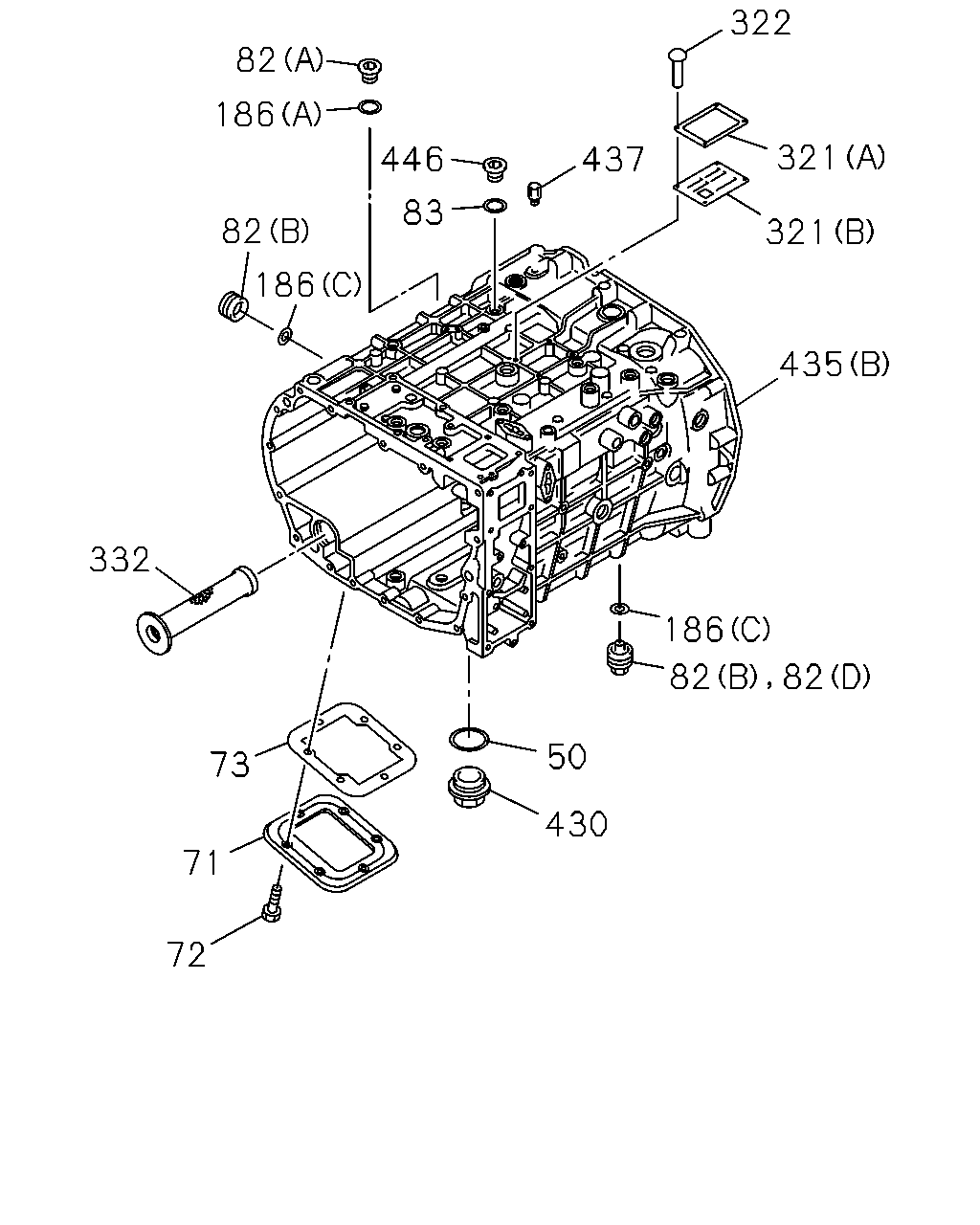

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	0803-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	0803-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	0803-1305
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	0803-1305
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1306-
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	0803-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	0803-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	0803-1305
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	0803-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0803-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	0803-1305
83	GASKET; PLUG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	0803-1305
186	RING; SEAL (A)	1-33119-249-0	01	1	0803-
186	RING; SEAL (B)	1-33119-286-0	02	1	0803-
186	RING; SEAL (C)	1-33119-435-0	02	1	0803-
321	PLATE; NAME (A)	1-33119-519-0	01	1	0803-
321	PLATE; NAME (B)	1-33119-520-0	01	1	0803-
322	RIVET; NAME PLATE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-556-0	04	1	0904-0912
322	RIVET; NAME PLATE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-556-0	04	1	1001-1305
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	0803-0903
322	RIVET; NAME PLATE PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	0904-0912
322	RIVET; NAME PLATE EXC. PTO ZF TRANS RR(BDM)	1-33119-398-0	04	1	0904-0912
322	RIVET; NAME PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33119-398-0	04	1	1001-1305
332	FILTER; OIL	1-33119-437-0	01	1	0803-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	0803-1305
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	0904-0912
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1001-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	0803-1305
435	CASE; TRANS (A)	1-33111-368-0	01	1	0803-0903
435	CASE; TRANS PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM) (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1001-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	1306-
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	0803-
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	0803-1305
437	BREATHER; TRANS	1-36122-004-0	01	1	0803-1305
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-
446	PLUG; CASE,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-171-0	01	1	0803-1305

468 329 245 478 477 27 27 561 561 330 29 82 186 314 435 315 33 113 28 463 413 561 36 36 37 343 412 561 2

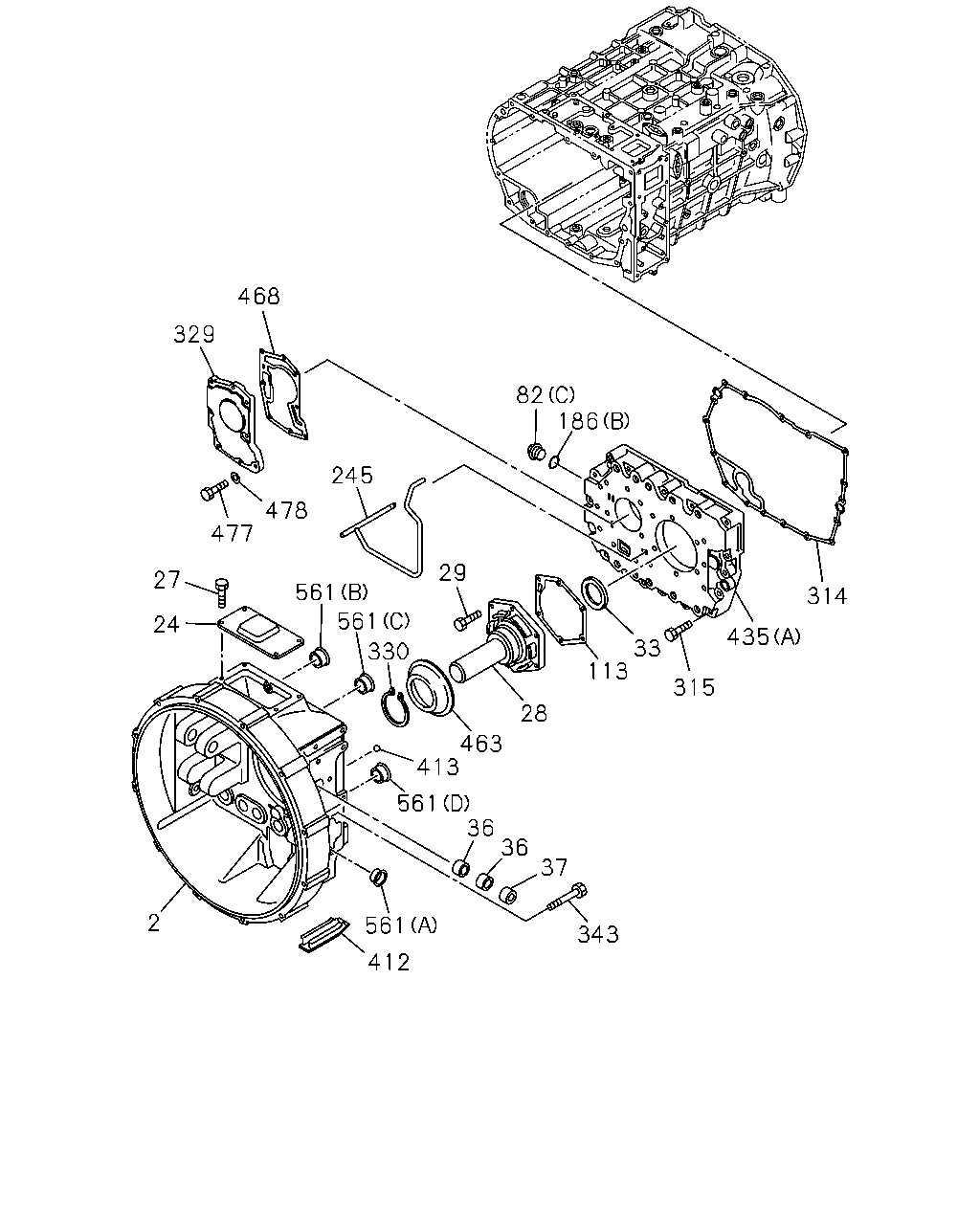

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	0803-
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	0803-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	0803-1305
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1306-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	0803-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	0803-1305
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	0803-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	0803-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0803-0805
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-0907
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0908-1211
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1212-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	01	1	0803-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE ASSISTOR SHIFT CONTROL<WX8> (D)	1-33119-376-0	01	1	0803-1305
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	0803-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	0803-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-268-0	02	1	0803-1305
113	GASKET; FRT COVER TO TRANS CASE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	0904-0912
113	GASKET; FRT COVER TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33122-024-0	01	1	1001-1305
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-
113	GASKET; FRT COVER TO TRANS CASE	1-33122-023-0	01	1	0803-0903
113	GASKET; FRT COVER TO TRANS CASE PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	0904-0912
113	GASKET; FRT COVER TO TRANS CASE EXC. PTO ZF TRANS RR(BDM)	1-33122-023-0	01	1	0904-0912
113	GASKET; FRT COVER TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33122-023-0	01	1	1001-1305
186	RING; SEAL (A)	1-33119-249-0	01	1	0803-
186	RING; SEAL (B)	1-33119-286-0	02	1	0803-
186	RING; SEAL (C)	1-33119-435-0	02	1	0803-
245	PIPE; OIL	1-33119-517-0	01	1	0803-
314	GASKET; CASE	1-33112-052-0	01	1	0803-
315	BOLT; CASE PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	17	1	0803-1305
315	BOLT; CASE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	17	1	0803-1305
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-
315	BOLT; CASE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	17	1	0803-1305
329	PUMP ASM; OIL PTO ZF TRANS RR(BDM)	1-34150-121-0	01	1	0803-1305
329	PUMP ASM; OIL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-34150-121-0	01	1	0803-1305
329	PUMP ASM; OIL	1-34150-123-0	01	1	1306-
329	PUMP ASM; OIL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-34150-120-0	01	1	0803-1305
330	RING; RET	1-33129-005-0	01	1	0803-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	0803-
412	CAP; CLU HSG	1-31119-026-0	01	1	0803-
413	BALL; CLU HSG	1-31119-014-0	04	1	0803-
435	CASE; TRANS PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	0904-0912
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-373-0	01	1	1001-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	0803-1305
435	CASE; TRANS (A)	1-33111-368-0	01	1	0803-0903
435	CASE; TRANS PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM) (A)	1-33111-368-0	01	1	0904-0912
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33111-368-0	01	1	1001-1305
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-371-0	01	1	1306-
435	CASE; TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33111-372-0	01	1	0803-
435	CASE; TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	0803-1305
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	0803-1305
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-
468	GASKET; OIL PUMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34159-122-0	01	1	0904-0912
468	GASKET; OIL PUMP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34159-122-0	01	1	1001-1305
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1306-
468	GASKET; OIL PUMP	1-34159-063-0	01	1	0803-0903
468	GASKET; OIL PUMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-34159-063-0	01	1	0904-0912
468	GASKET; OIL PUMP EXC. PTO ZF TRANS RR(BDM)	1-34159-063-0	01	1	0904-0912
468	GASKET; OIL PUMP ASSISTOR SHIFT CONTROL<WX8>	1-34159-063-0	01	1	1001-1305
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	0803-1305
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	0803-1305
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-
561	PLUG (A)	1-31119-044-0	02	1	0803-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-31119-044-0	02	1	1306-
561	PLUG (B)	1-31119-045-0	03	1	0803-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-31119-045-0	03	1	1306-
561	PLUG (C)	1-31119-046-0	02	1	0803-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-31119-046-0	02	1	1306-
561	PLUG (D)	1-31119-047-0	01	1	0803-1305
561	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-31119-047-0	01	1	1306-

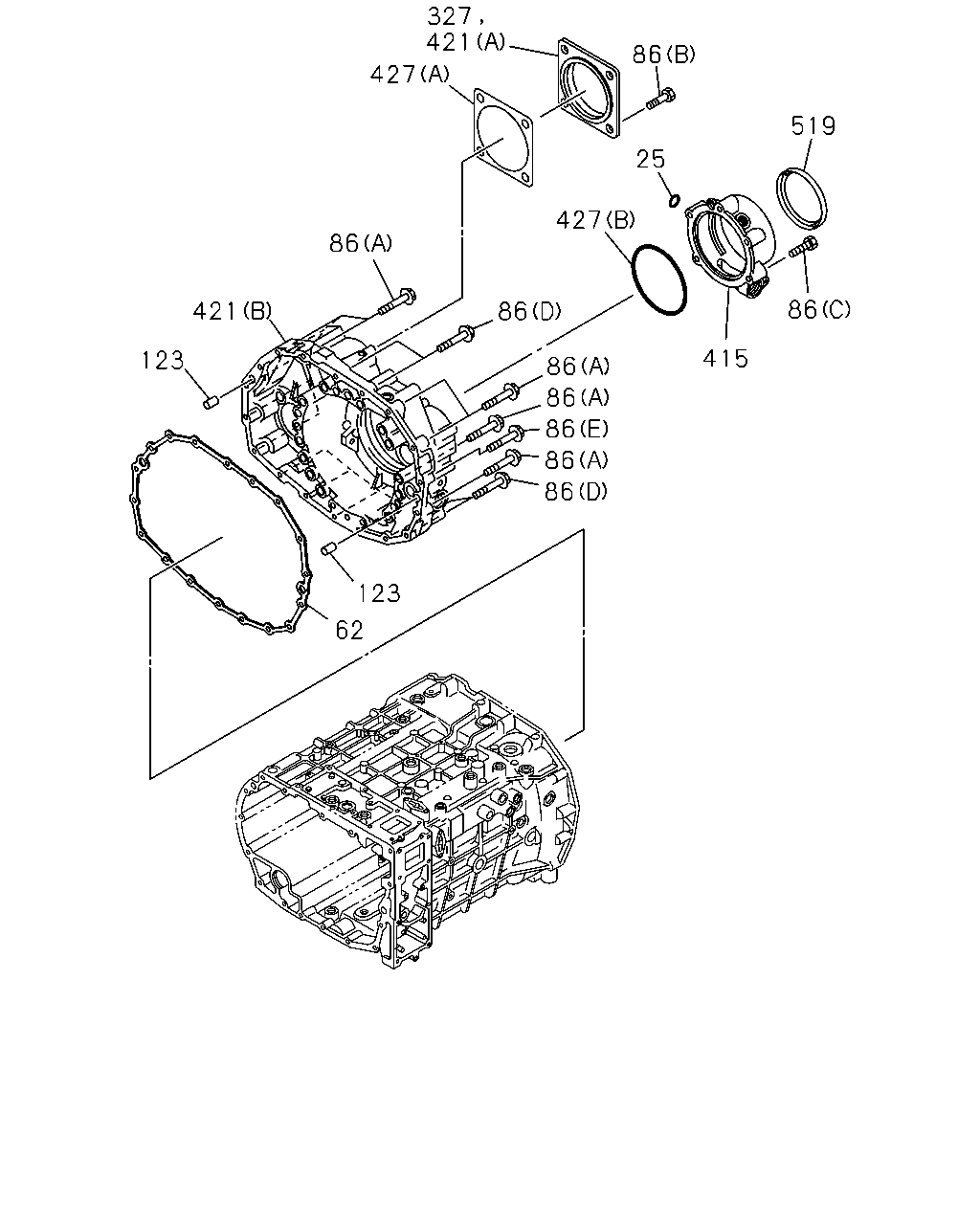

327 421 427 86 421 123 62 123 86 86 86 86 86 86 427 25 86 519 86 415

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	0803-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-
25	GASKET; COVER	1-33139-060-0	01	1	0803-
62	GASKET; RR COVER	1-33132-087-0	01	1	0803-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	07	1	0803-1305
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER (C) M10X60	1-33139-118-0	05	1	0803-1305
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (D) M10X110	1-33139-057-0	05	1	0803-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (D) M10X110	1-33139-057-0	05	1	0803-1305
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (E) M10X50	1-33139-058-0	01	1	0803-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (E) M10X50	1-33139-058-0	01	1	0803-1305
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X70	1-33119-522-0	12	1	0803-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A) M10X70	1-33119-518-0	12	1	0803-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B) M12X28	1-33139-051-0	04	1	0803-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (D) M10X110	1-33139-210-0	05	1	0803-1305
86	BOLT; RR COVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (E) M10X50	1-33139-211-0	01	1	0803-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B) M12X25	1-33119-400-0	04	1	0803-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (B) M12X25	1-33119-594-0	04	1	1306-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	0803-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33131-165-0	01	1	0803-1305
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-273-0	01	1	1306-
415	COVER; BRG PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-269-0	01	1	0904-0912
415	COVER; BRG EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33131-269-0	01	1	1001-1305
415	COVER; BRG	1-33131-269-0	01	1	1306-
415	COVER; BRG PTO ZF TRANS RR(BDM)	1-33131-262-0	01	1	0803-0912
415	COVER; BRG EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	0803-0912
415	COVER; BRG PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33131-262-0	01	1	1001-1305
415	COVER; BRG ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33131-260-0	01	1	0803-1305
421	COVER; RR,TRANS PTO ZF TRANS RR(BDM) (B)	1-33131-261-0	01	1	0803-1305
421	COVER; RR,TRANS EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33131-261-0	01	1	0803-1305
421	COVER; RR,TRANS (B)	1-33131-275-0	01	1	1306-
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33131-165-0	01	1	0803-1305
421	COVER; RR,TRANS ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33131-214-0	01	1	0803-1305
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	0803-1305
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	0803-
519	GASKET; SHAFT	1-33139-059-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
