◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#6795) — 28 parça

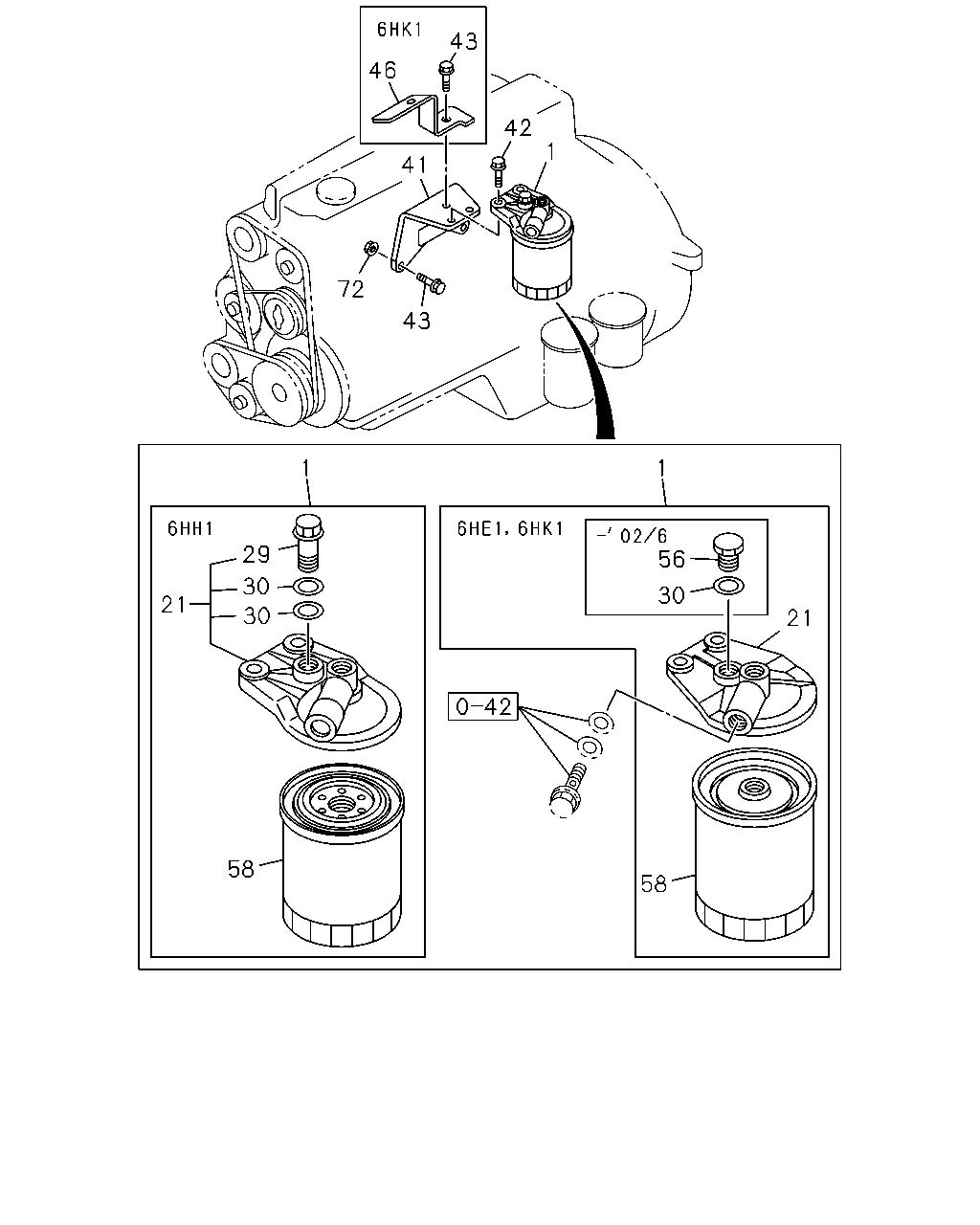

çizim 26350
43 46 42 1 41 72 43 1 1 56 29 30 30 21 30 21 58 58
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FILTER ASM; FUEL 1-13200-890-0 01 1 9806-9911 ●
1 FILTER ASM; FUEL 1-13200-890-2 01 1 9912-0512 ●
1 FILTER ASM; FUEL 8-98036-863-0 01 1 0601- ●
1 FILTER ASM; FUEL 8-94393-449-1 01 1 9806-9911 ●
21 COVER; UPR,FUEL FILTER 1-13212-108-1 01 1 9806-9911 ●
21 COVER; UPR,FUEL FILTER 1-13212-108-1 01 1 9912-0512 ●
21 COVER; UPR,FUEL FILTER 1-13212-159-2 01 1 0601- ●
21 COVER; UPR,FUEL FILTER 8-94396-669-0 01 1 9806-9911 ●
29 VALVE; OVERFLOW 8-94399-170-0 01 1 9806-9911 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9806-9911 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9912-0206 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9806-9911 ●
41 BRACKET; FUEL FILTER 8-94396-159-0 01 1 9806-9911 ● ●
41 BRACKET; FUEL FILTER 8-97600-356-0 01 1 9912- ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 9806-9911 ● ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 9912-0512 ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
43 BOLT; BRKT
M10X22 FLANGE 		0-28181-022-0 02 1 9806-9911 ● ●
43 BOLT; BRKT
M10X22 FLANGE 		0-28181-022-0 02 1 9912- ●
43 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 01 1 9912-0512 ●
43 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
46 BRACKET 8-97600-355-0 01 1 9912- ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 9806-9911 ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 9912-0206 ●
58 ELEMENT; FUEL FILTER 1-13240-079-1 01 1 9806-9911 ● ●
58 ELEMENT; FUEL FILTER 1-13240-079-1 01 1 9912-0512 ●
58 ELEMENT; FUEL FILTER 8-98038-241-0 01 1 0601- ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-110-0 01 1 9806-9911 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
