Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#67945) — 765 parça

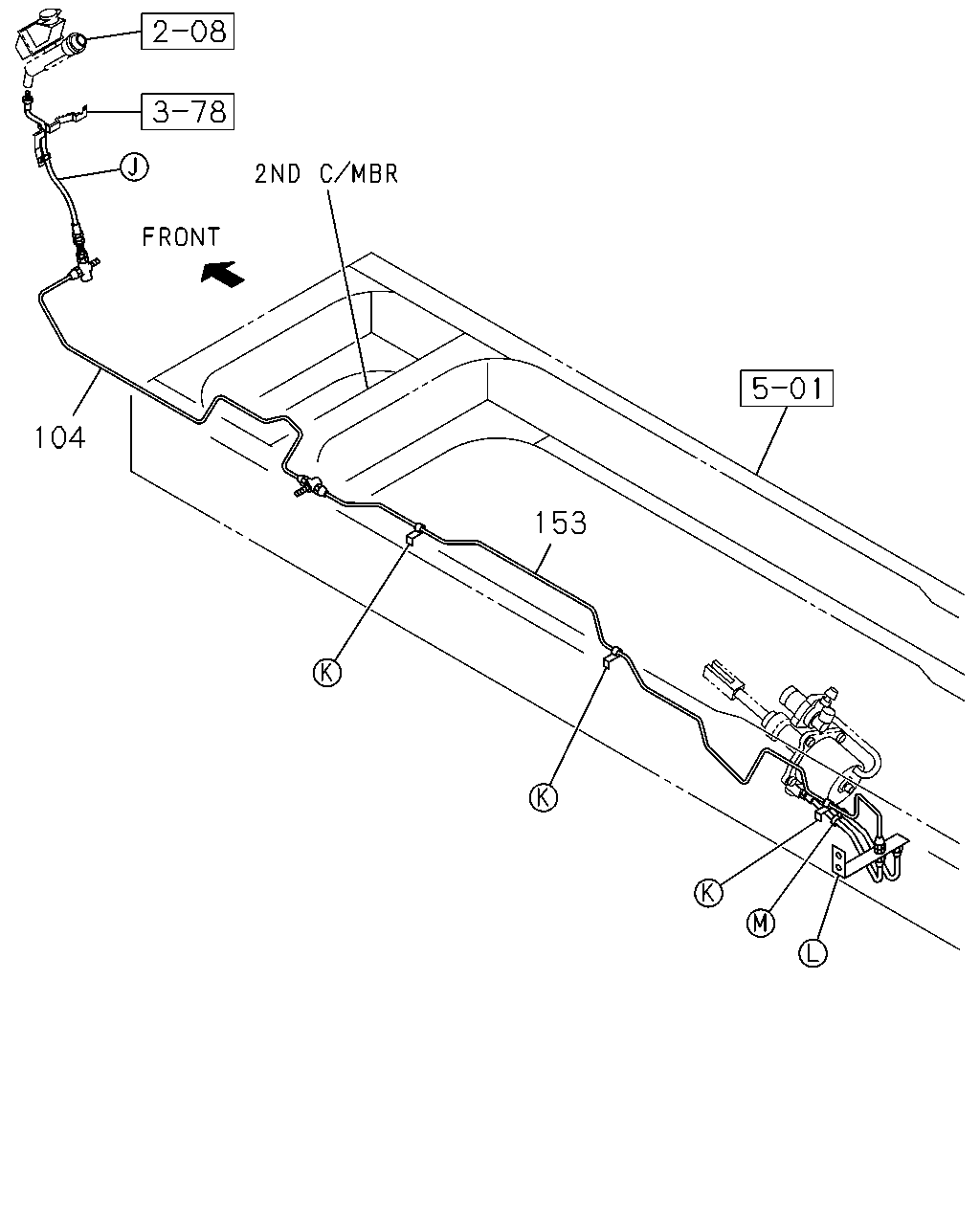

109 153 47 47 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT (G) L=390	1-09363-629-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT (D) L=370	1-09364-646-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=400	1-09364-262-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0804-0804		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0804-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0803-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0803-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0907-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	0803-		●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0803-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=244	8-98092-621-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0810-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0807		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0808-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0907-1101		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2786 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> EURO4 SPECIFICATION<NT4> L=2796	8-98152-244-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0803		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743	8-98152-245-0	01	1	0908-	●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	0908-		●

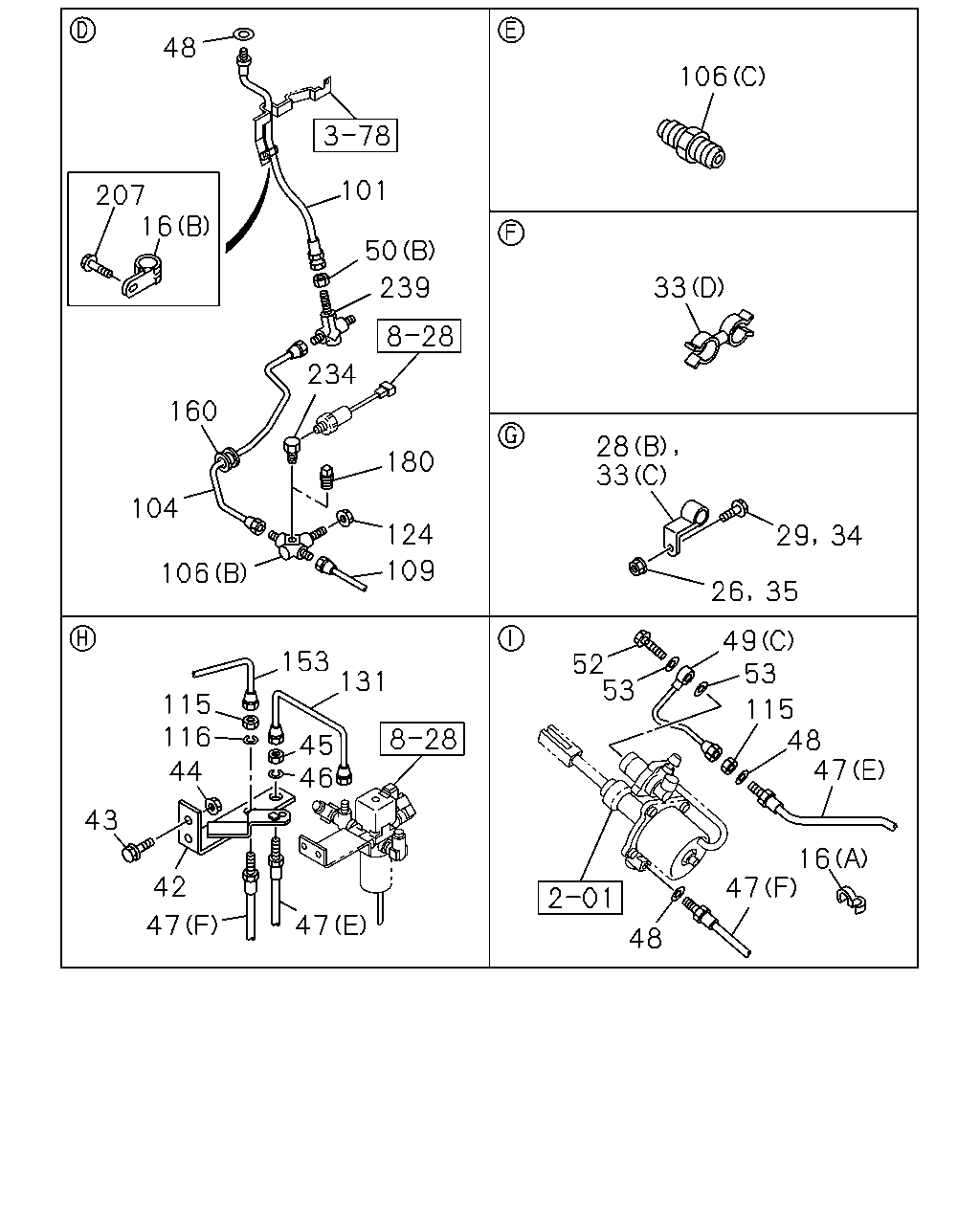

104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0803-0805		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0806-0906		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0907-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0803-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0803-0810		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0807		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0808-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0907-1101		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2786 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> EURO4 SPECIFICATION<NT4> L=2796	8-98152-244-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0803		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743	8-98152-245-0	01	1	0908-	●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	0908-		●

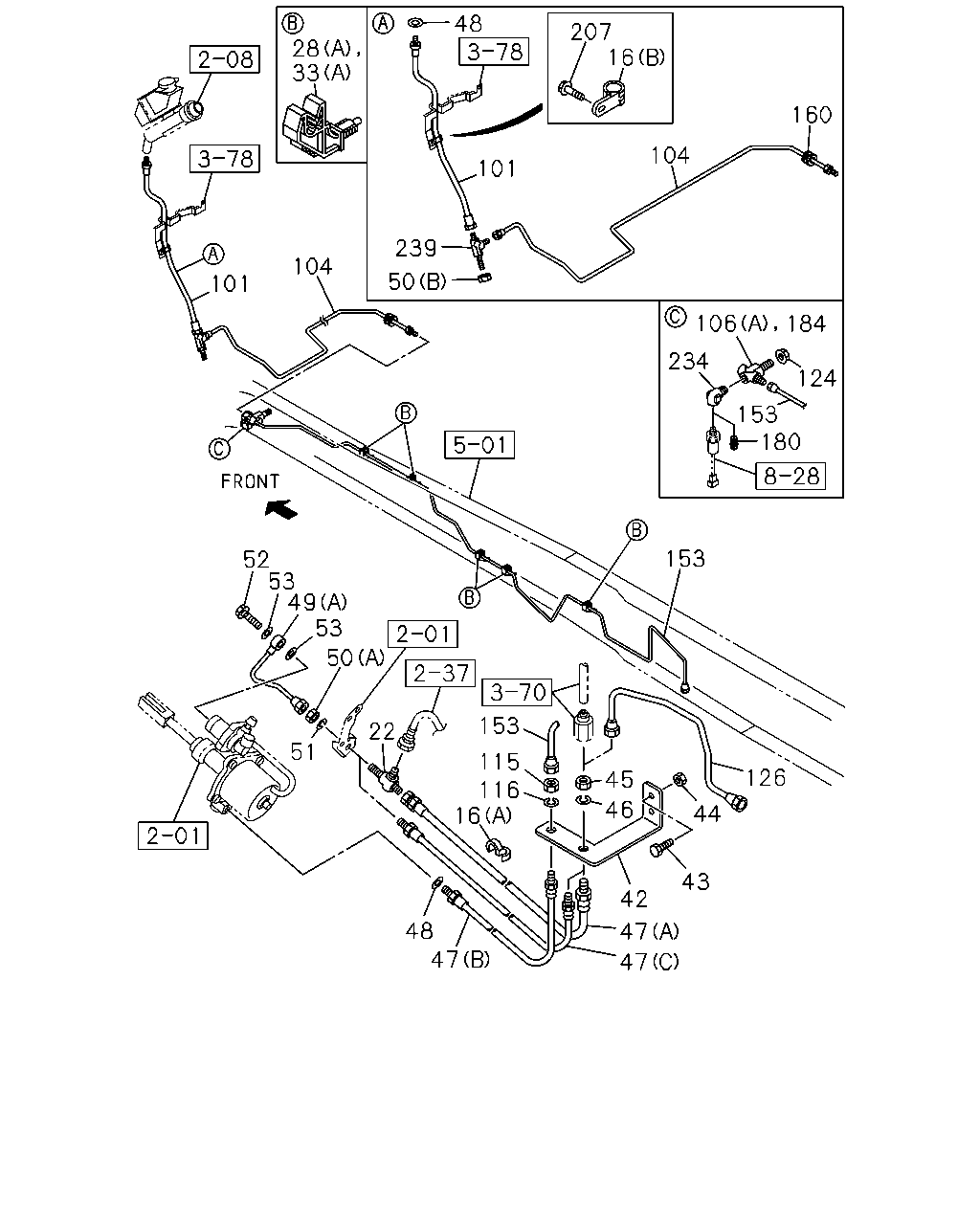

28 33 48 207 16 160 104 101 239 50 104 101 52 53 49 53 50 51 22 153 115 116 16 48 47 47 47 42 43 44 126 46 45 153 234 153 180 124 106 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0804-0907		●
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0908-	●	●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0803-0907		●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0908-	●	●
22	UNION; CLU PIPE MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0803-0805		●
22	UNION; CLU PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0806-0906		●
22	UNION; CLU PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0907-		●
28	CLIP; OIL PIPE MZX6P M/T(RSW) (A) ID=6.35	1-09701-247-1	01	1	0803-0805		●
28	CLIP; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	0806-0906		●
28	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	0907-		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0803-0803		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0803-0907		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0908-		●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0908-	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	0804-		●
33	CLIP; OIL PIPE MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	06	1	0803-0803		●
33	CLIP; OIL PIPE MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0803-0805		●
33	CLIP; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0806-0906		●
33	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0907-		●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0803-0907		●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0908-		●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0908-	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0803-		●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (D) ID=8.3 & 10	8-94176-792-0	01	1	0803-		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98034-744-0	01	1	0806-1005		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98077-571-0	01	1	1006-		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW)	8-98105-654-0	01	1	0803-0805		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW)	8-98105-654-0	01	1	0806-0906		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	0806-0906		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98105-654-0	01	1	0907-		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	0907-		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0803-0907		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0908-		●
42	BRACKET; FLEX HOSE,CLU CONT	8-98100-603-0	01	1	0908-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0803-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0803-0907		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0908-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0803-0907		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0803-0907		●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0908-		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0908-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0803-0803		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW) M12	9-09840-280-0	01	1	0803-0805		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0806-0906		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0907-		●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0803-0907		●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0908-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0908-1009	●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW) ID=12.2	0-91510-512-0	01	1	0803-0805		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0806-0906		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0907-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-812-0	01	1	1010-1011		●
47	HOSE; FLEX,CLU CONT (G) L=390	1-09363-629-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT (D) L=370	1-09364-646-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=400	1-09364-262-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0804-0804		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0804-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0803-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0803-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0907-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	0803-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-0907		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0908-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (D)	1-49124-974-0	01	1	0908-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW) (A) L=239	1-49117-401-0	01	1	0803-0805		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	0806-0906		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	0907-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	0803-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	0803-		●
50	NUT; UNION MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0803-0803		●
50	NUT; UNION MZX6P M/T(RSW) (A) M12	9-09840-280-0	01	1	0804-0805		●
50	NUT; UNION MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	0806-0906		●
50	NUT; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	0907-		●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0803-0907		●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0908-	●	●
51	WASHER; LK MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0803-0803		●
51	WASHER; LK MZX6P M/T(RSW) ID=12.2	0-91510-512-0	01	1	0804-0805		●
51	WASHER; LK MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0806-0906		●
51	WASHER; LK MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0907-1009		●
51	WASHER; LK MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-812-0	01	1	1010-1011		●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1012-	●	●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0803-0805		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0806-0906		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0907-0907		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0908-		●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0908-	●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0805		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0806-0906		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0907-0907		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312	●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> L=530	8-98072-348-0	01	1	1008-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0803-0803		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	0803-0806		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0807-0907		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0908-0910	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=480	8-98072-349-0	01	1	0911-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0803-0805		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0806-0906		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0907-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0803-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0803-0810		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-		●
106	UNION; OIL PIPE MZX6P M/T(RSW) (A) M12 3WAY	8-98051-113-0	01	1	0803-0805		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12 3WAY	8-98051-113-0	01	1	0806-0906		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12 3WAY	8-98051-113-0	01	1	0907-0910		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	0911-		●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0803-0907		●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0908-		●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0908-	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	0803-		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW) M12	9-09840-280-0	01	1	0803-0805		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0806-0906		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0907-		●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0803-0907		●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0908-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0908-	●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW) ID=12.2	0-91510-512-0	01	1	0803-0805		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0806-0906		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0907-1009		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-812-0	01	1	1010-1011		●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0803-0907		●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0908-1011		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0908-1011	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-0907		●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0908-	●	●
126	PIPE; AIR,UNION TO UNION BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=350	8-98110-637-0	01	1	0804-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0807		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0808-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0907-1101		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2786 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> EURO4 SPECIFICATION<NT4> L=2796	8-98152-244-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0803		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743	8-98152-245-0	01	1	0908-	●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	0908-		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-0907		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0908-	●	●
180	PLUG; PIPE MZX6P M/T(RSW) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0803-0805		●
180	PLUG; PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0806-0906		●
180	PLUG; PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0907-0910		●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0803-0907		●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0908-		●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0908-	●
184	UNION; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	0911-		●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0804-0907		●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0908-	●	●
234	CONNECTOR; ELBOW MZX6P M/T(RSW) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0803-0805		●
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0806-0906		●
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0907-		●
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0803-0907		●
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0908-		●
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0908-	●
239	UNION; CLU HOSE MZX6P M/T(RSW) M12 2WAY	1-09654-059-2	01	1	0803-0805		●
239	UNION; CLU HOSE MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	0806-0906		●
239	UNION; CLU HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	0907-		●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0803-0907		●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0908-		●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0908-	●

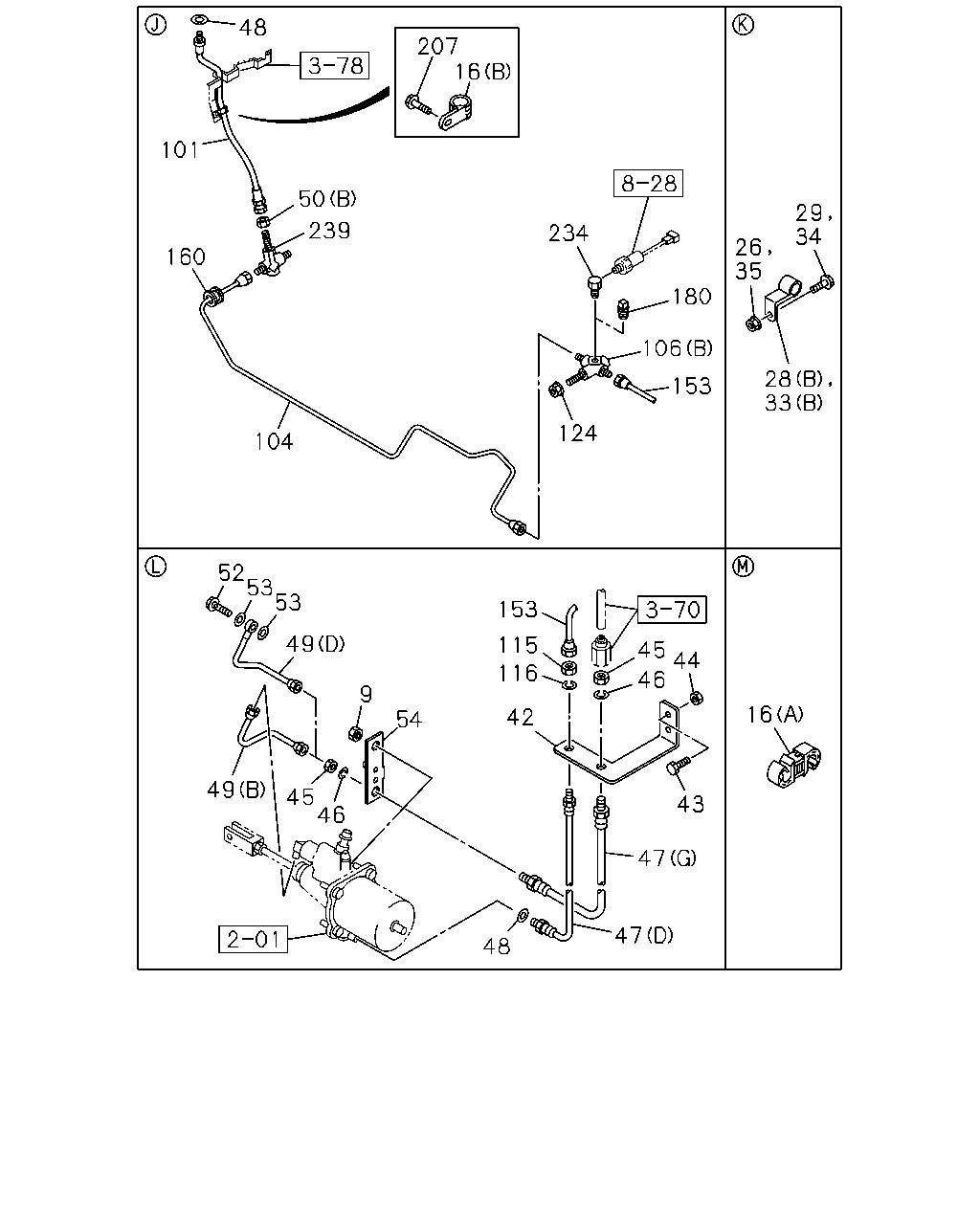

48 207 16 101 50 239 234 160 104 106 180 124 109 153 131 115 116 44 43 42 47 47 46 45 106 33 28 33 29 34 26 35 52 53 49 53 115 48 47 16 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0804-0907		●
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0908-	●	●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0803-0907		●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0908-	●	●
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	0803-0907		●
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	0908-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0908-	●
28	CLIP; OIL PIPE MZX6P M/T(RSW) (A) ID=6.35	1-09701-247-1	01	1	0803-0805		●
28	CLIP; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	0806-0906		●
28	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	0907-		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0803-0803		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0803-0907		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0908-		●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0908-	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-		●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	01	1	0803-0811		●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0812-0907		●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0908-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0908-	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	0804-		●
33	CLIP; OIL PIPE MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	06	1	0803-0803		●
33	CLIP; OIL PIPE MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0803-0805		●
33	CLIP; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0806-0906		●
33	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0907-		●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0803-0907		●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0908-		●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0908-	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0803-		●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (D) ID=8.3 & 10	8-94176-792-0	01	1	0803-		●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0803-0907		●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0908-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	05	1	0908-	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0803-		●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0803-0907		●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0908-		●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0908-	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0803-		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98034-744-0	01	1	0806-1005		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98077-571-0	01	1	1006-		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW)	8-98105-654-0	01	1	0803-0805		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW)	8-98105-654-0	01	1	0806-0906		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	0806-0906		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98105-654-0	01	1	0907-		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	0907-		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0803-0907		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0908-		●
42	BRACKET; FLEX HOSE,CLU CONT	8-98100-603-0	01	1	0908-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0803-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0803-0907		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0908-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0803-0907		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0803-0907		●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0908-		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0908-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0803-0803		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW) M12	9-09840-280-0	01	1	0803-0805		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0806-0906		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0907-		●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0803-0907		●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0908-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0908-1009	●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW) ID=12.2	0-91510-512-0	01	1	0803-0805		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0806-0906		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0907-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-812-0	01	1	1010-1011		●
47	HOSE; FLEX,CLU CONT (G) L=390	1-09363-629-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT (D) L=370	1-09364-646-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=400	1-09364-262-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0804-0804		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0804-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0803-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0803-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0907-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	0803-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-0907		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0908-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (D)	1-49124-974-0	01	1	0908-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW) (A) L=239	1-49117-401-0	01	1	0803-0805		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	0806-0906		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	0907-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	0803-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	0803-		●
50	NUT; UNION MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0803-0803		●
50	NUT; UNION MZX6P M/T(RSW) (A) M12	9-09840-280-0	01	1	0804-0805		●
50	NUT; UNION MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	0806-0906		●
50	NUT; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	0907-		●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0803-0907		●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0908-	●	●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0803-0805		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0806-0906		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0907-0907		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0908-		●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0908-	●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0805		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0806-0906		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0907-0907		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312	●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> L=530	8-98072-348-0	01	1	1008-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0803-0803		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	0803-0806		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0807-0907		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0908-0910	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=480	8-98072-349-0	01	1	0911-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0803-0805		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0806-0906		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0907-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0803-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0803-0810		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-		●
106	UNION; OIL PIPE MZX6P M/T(RSW) (A) M12 3WAY	8-98051-113-0	01	1	0803-0805		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12 3WAY	8-98051-113-0	01	1	0806-0906		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12 3WAY	8-98051-113-0	01	1	0907-0910		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	0911-		●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0803-0907		●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0908-		●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0908-	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	0803-		●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	0803-		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW) M12	9-09840-280-0	01	1	0803-0805		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0806-0906		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0907-		●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0803-0907		●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0908-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0908-	●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW) ID=12.2	0-91510-512-0	01	1	0803-0805		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0806-0906		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0907-1009		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-812-0	01	1	1010-1011		●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0803-0907		●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0908-1011		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0908-1011	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-0907		●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0908-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-0809		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=244	8-98092-621-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0810-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0810-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0807		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0808-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0907-1101		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2786 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> EURO4 SPECIFICATION<NT4> L=2796	8-98152-244-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0803		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743	8-98152-245-0	01	1	0908-	●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	0908-		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-0907		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0908-	●	●
180	PLUG; PIPE MZX6P M/T(RSW) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0803-0805		●
180	PLUG; PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0806-0906		●
180	PLUG; PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0907-0910		●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0803-0907		●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0908-		●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0908-	●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0804-0907		●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0908-	●	●
234	CONNECTOR; ELBOW MZX6P M/T(RSW) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0803-0805		●
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0806-0906		●
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0907-		●
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0803-0907		●
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0908-		●
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0908-	●
239	UNION; CLU HOSE MZX6P M/T(RSW) M12 2WAY	1-09654-059-2	01	1	0803-0805		●
239	UNION; CLU HOSE MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	0806-0906		●
239	UNION; CLU HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	0907-		●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0803-0907		●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0908-		●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0908-	●

48 101 160 50 239 207 16 234 180 106 153 124 104 26 35 29 34 28 33 16 45 44 46 43 47 47 48 42 116 115 153 52 53 53 49 9 54 46 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0908-	●
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	0803-		●
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0804-0907		●
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0908-	●	●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0803-0907		●
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0908-	●	●
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	0803-0907		●
26	NUT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	01	1	0908-		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0908-	●
28	CLIP; OIL PIPE MZX6P M/T(RSW) (A) ID=6.35	1-09701-247-1	01	1	0803-0805		●
28	CLIP; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	0806-0906		●
28	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=6.35	1-09701-247-1	01	1	0907-		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0803-0803		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0803-0907		●
28	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0908-		●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0908-	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-		●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	01	1	0803-0811		●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0812-0907		●
29	BOLT; CLIP,OIL PIPE FULLER FSO5206B OD M/T(Y4V) M8X25 FLANGE	0-28650-825-0	01	1	0908-		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0908-	●
33	CLIP; OIL PIPE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=6.35	1-09701-247-1	03	1	0804-		●
33	CLIP; OIL PIPE MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	06	1	0803-0803		●
33	CLIP; OIL PIPE MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0803-0805		●
33	CLIP; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0806-0906		●
33	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) ID=6.35	1-09701-247-1	05	1	0907-		●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0803-0907		●
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0908-		●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0908-	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0803-		●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (D) ID=8.3 & 10	8-94176-792-0	01	1	0803-		●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0803-0907		●
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	0908-		●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	05	1	0908-	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0803-		●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0803-0907		●
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	0908-		●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0908-	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0803-		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98034-744-0	01	1	0806-1005		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98077-571-0	01	1	1006-		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW)	8-98105-654-0	01	1	0803-0805		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW)	8-98105-654-0	01	1	0806-0906		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	0806-0906		●
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-98105-654-0	01	1	0907-		●
42	BRACKET; FLEX HOSE,CLU CONT MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98105-654-0	01	1	0907-		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0803-0907		●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	0908-		●
42	BRACKET; FLEX HOSE,CLU CONT	8-98100-603-0	01	1	0908-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0803-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0803-0907		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0908-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0803-0907		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0803-0907		●
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0908-		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0908-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0803-0803		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW) M12	9-09840-280-0	01	1	0803-0805		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0806-0906		●
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0907-		●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0803-0907		●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0908-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0908-1009	●
46	WASHER; LK,FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW) ID=12.2	0-91510-512-0	01	1	0803-0805		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0806-0906		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0907-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-812-0	01	1	1010-1011		●
47	HOSE; FLEX,CLU CONT (G) L=390	1-09363-629-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT (D) L=370	1-09364-646-0	01	1	0908-	●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=400	1-09364-262-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	0806-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=340	1-09363-622-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=320	1-09363-656-0	01	1	0804-0804		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0804-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ASSISTOR SHIFT CONTROL<WX8> (A) L=320	1-09363-656-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0803-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=330	1-09364-332-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0803-0803		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0804-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) L=380	1-09363-884-0	01	1	0907-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0803-0805		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0806-0906		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	0907-0912		●
47	HOSE; FLEX,CLU CONT MLD6W M/T(Y2C) (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) L=375	1-09364-407-0	01	1	1001-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (G) L=430	1-09363-726-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (E) L=500	1-09363-720-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	0803-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-0907		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0908-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (D)	1-49124-974-0	01	1	0908-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW) (A) L=239	1-49117-401-0	01	1	0803-0805		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	0806-0906		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) L=239	1-49117-401-0	01	1	0907-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V) (B)	1-49116-838-0	01	1	0803-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (C) L=232	1-49124-795-0	01	1	0803-		●
50	NUT; UNION MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) M12	9-09840-280-0	01	1	0803-0803		●
50	NUT; UNION MZX6P M/T(RSW) (A) M12	9-09840-280-0	01	1	0804-0805		●
50	NUT; UNION MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	0806-0906		●
50	NUT; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	0907-		●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0803-0907		●
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0908-	●	●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0803-0805		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0806-0906		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0907-0907		●
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0908-		●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0908-	●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0805		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0806-0906		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0907-0907		●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1312	●
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
54	BRACKET; AIR,FLEX HOSE	8-98081-247-0	01	1	0908-	●
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	0803-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> L=530	8-98072-348-0	01	1	1008-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0803-0803		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	0803-0806		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0807-0907		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	0908-0910	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=480	8-98072-349-0	01	1	0911-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0803-0805		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0806-0906		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=1270 SERVICED BY L=1370	1-47428-734-0	01	1	0907-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0803-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1235 SERVICED BY L=1250	1-47428-764-0	01	1	0908-0908	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	0908-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=379	8-98094-857-0	01	1	0803-0810		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=510 SERVICED BY L=550	1-47428-753-0	01	1	0811-0907		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	0908-		●
106	UNION; OIL PIPE MZX6P M/T(RSW) (A) M12 3WAY	8-98051-113-0	01	1	0803-0805		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M12 3WAY	8-98051-113-0	01	1	0806-0906		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12 3WAY	8-98051-113-0	01	1	0907-0910		●
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> (A) M12 3WAY	8-98051-113-0	01	1	0911-		●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0803-0907		●
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0908-		●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0908-	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (C) M14 STRAIGHT	0-92113-008-0	01	1	0803-		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW) M12	9-09840-280-0	01	1	0803-0805		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0806-0906		●
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	0907-		●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0803-0907		●
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0908-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0908-	●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW) ID=12.2	0-91510-512-0	01	1	0803-0805		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0806-0906		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-512-0	01	1	0907-1009		●
116	WASHER; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.2	0-91510-812-0	01	1	1010-1011		●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0803-0907		●
116	WASHER; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0908-1011		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0908-1011	●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0803-0907		●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0908-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0804-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2688 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0807		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0808-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2676	8-98126-919-0	01	1	0907-1101		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) L=2686	8-98185-616-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2786 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> EURO4 SPECIFICATION<NT4> L=2796	8-98152-244-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0803		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907		●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0908-0908	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX L=2743	8-98152-245-0	01	1	0908-	●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0803-0805		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0806-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0812-0906		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 3900MM(39W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2738 SERVICED BY L=2900	1-47428-744-0	01	1	0907-0907		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> L=2749	8-98152-243-0	01	1	0908-		●
153	PIPE ASM; CLU,UNION TO FLEX MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=2749	8-98152-243-0	01	1	0908-		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0803-0907		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0908-	●	●
180	PLUG; PIPE MZX6P M/T(RSW) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0803-0805		●
180	PLUG; PIPE MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0806-0906		●
180	PLUG; PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0907-0910		●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0803-0907		●
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0908-		●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0908-	●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0804-0907		●
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0908-	●	●
234	CONNECTOR; ELBOW MZX6P M/T(RSW) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0803-0805		●
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0806-0906		●
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	0907-		●
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0803-0907		●
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0908-		●
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0908-	●
239	UNION; CLU HOSE MZX6P M/T(RSW) M12 2WAY	1-09654-059-2	01	1	0803-0805		●
239	UNION; CLU HOSE MZX6P M/T(RSW),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	0806-0906		●
239	UNION; CLU HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	0907-		●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0803-0907		●
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0908-		●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0908-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
