◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01C - CLUTCH ▶
2-01C — CLUTCH (#67943) — 349 parça

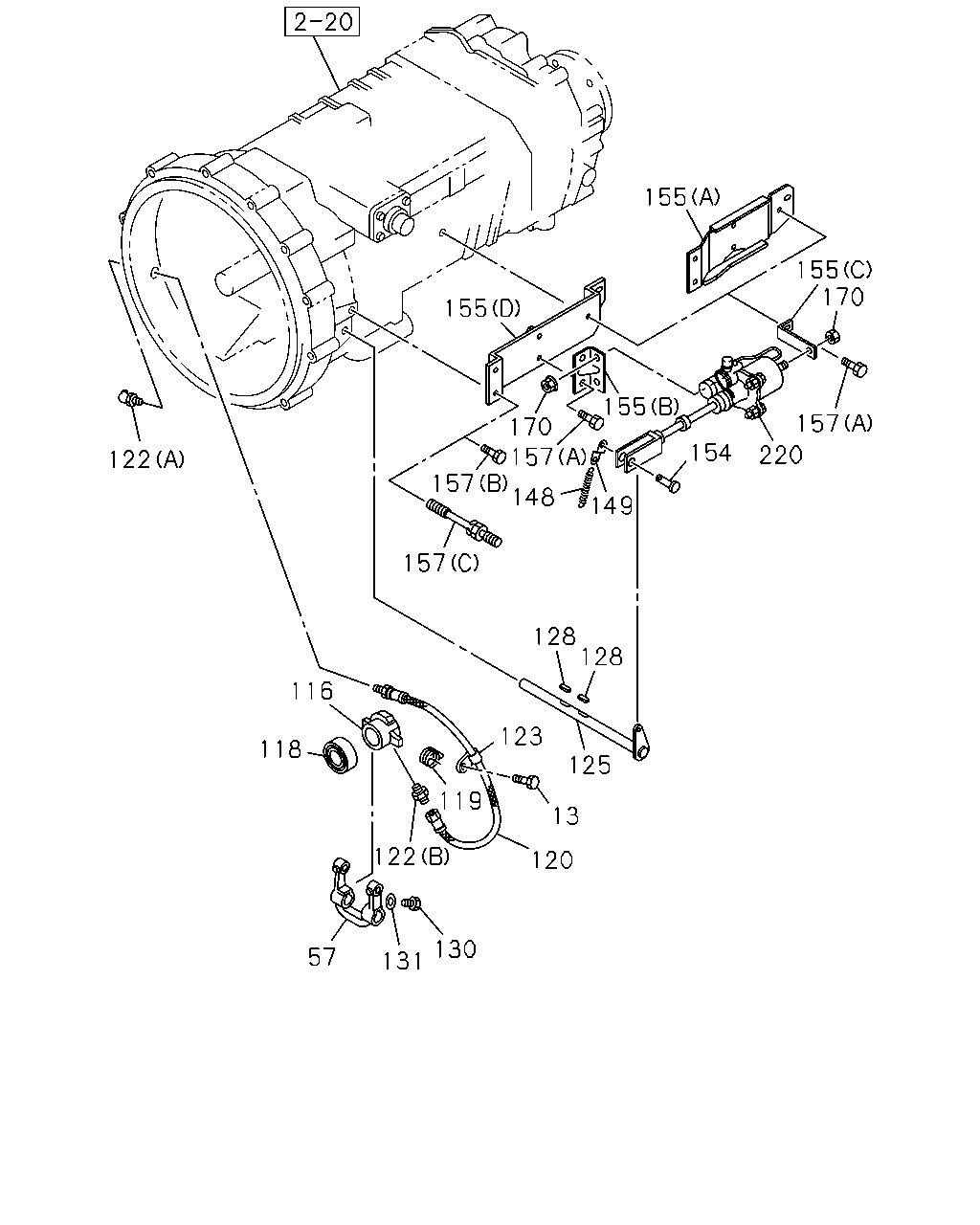

çizim 97972
122 155 155 155 170 157 220 154 155 170 157 157 148 149 157 128 128 123 125 13 120 119 116 118 122 130 131 57
BalonParca AdiParca NoAdetTipApplied Date A B C
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0803-0805 ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0806-0907 ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0908-1211 ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1212- ● ● ●
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 0803-0907 ●
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 0908-1211 ● ●
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 1212- ● ● ●
116 BLOCK; SHIFT,CLU 1-31321-077-0 01 1 0803-0907 ●
116 BLOCK; SHIFT,CLU 1-31321-077-1 01 1 0908-1211 ● ●
116 BLOCK; SHIFT,CLU 1-31321-077-1 01 1 1212- ● ● ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0810-0907 ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0908-1211 ● ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 1212- ● ● ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0803-0805 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0806-0907 ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0908-1211 ● ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 1212- ● ● ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 0803-0907 ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 0908-1211 ● ●
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 1212- ● ● ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 0803-0907 ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 0908-1211 ● ●
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 1212- ● ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0803-0805 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0806-0907 ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0908-1211 ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 1212- ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0803-0805 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0806-0907 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0908-1211 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1212- ● ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0803-0805 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0806-0907 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0908-1211 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 1212- ● ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0803-0805 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0806-0907 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0908-1211 ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 1212- ● ● ●
125 SHAFT; CLU 1-31342-338-0 01 1 0908-1211 ●
125 SHAFT; CLU 1-31342-338-0 01 1 1212- ● ●
125 SHAFT; CLU 1-31342-300-0 01 1 0803- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0803-0805 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0806-0906 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0907-0907 ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0908-1211 ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1212- ● ● ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 0803-0907 ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 0908-1211 ● ●
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 1212- ● ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0803-0805 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0806-0906 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0907-0907 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0908-1211 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1212- ● ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0803-0805 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0806-0906 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0907-0907 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0908-1211 ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1212- ● ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 0803-0907 ●
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 0908-1211 ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 1212- ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0803-0906 ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0907-0907 ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0908-1211 ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 1212- ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-479-1 01 1 0908-1211 ●
155 BRACKET; MINIPACK
(A) 		1-31429-479-1 01 1 1212- ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-480-1 01 1 0908-1211 ●
155 BRACKET; MINIPACK
(B) 		1-31429-480-1 01 1 1212- ● ●
155 BRACKET; MINIPACK
(C) 		1-31429-481-0 01 1 0908-1211 ●
155 BRACKET; MINIPACK
(C) 		1-31429-481-0 01 1 1212- ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-066-0 01 1 0803- ●
155 BRACKET; MINIPACK
(C) 		1-31429-322-0 01 1 0803- ●
155 BRACKET; MINIPACK
(D) 		1-31429-390-0 01 1 0803- ●
157 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 0908-1211 ●
157 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1212- ● ●
157 BOLT; BRKT
(A) M10X25 FLANGE 		0-28151-025-0 04 1 0803-0907 ●
157 BOLT; BRKT
(A) M10X25 FLANGE 		0-28151-025-0 04 1 0908-1211 ● ●
157 BOLT; BRKT
(A) M10X25 FLANGE 		0-28151-025-0 04 1 1212- ● ● ●
157 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 0803- ●
157 BOLT; BRKT
(C) M10X18,M12X25 L=54.7 		1-09029-087-0 01 1 0803- ●
170 NUT; BOOSTER FIX
M8 FLANGE 		0-91180-208-0 03 1 0803- ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 0908-1211 ●
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 1212- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-525-1 01 1 0803- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-0 01 1 0908-1211 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-1 01 1 1212- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-159-0 01 1 0810- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-089-0 01 1 0908- ●

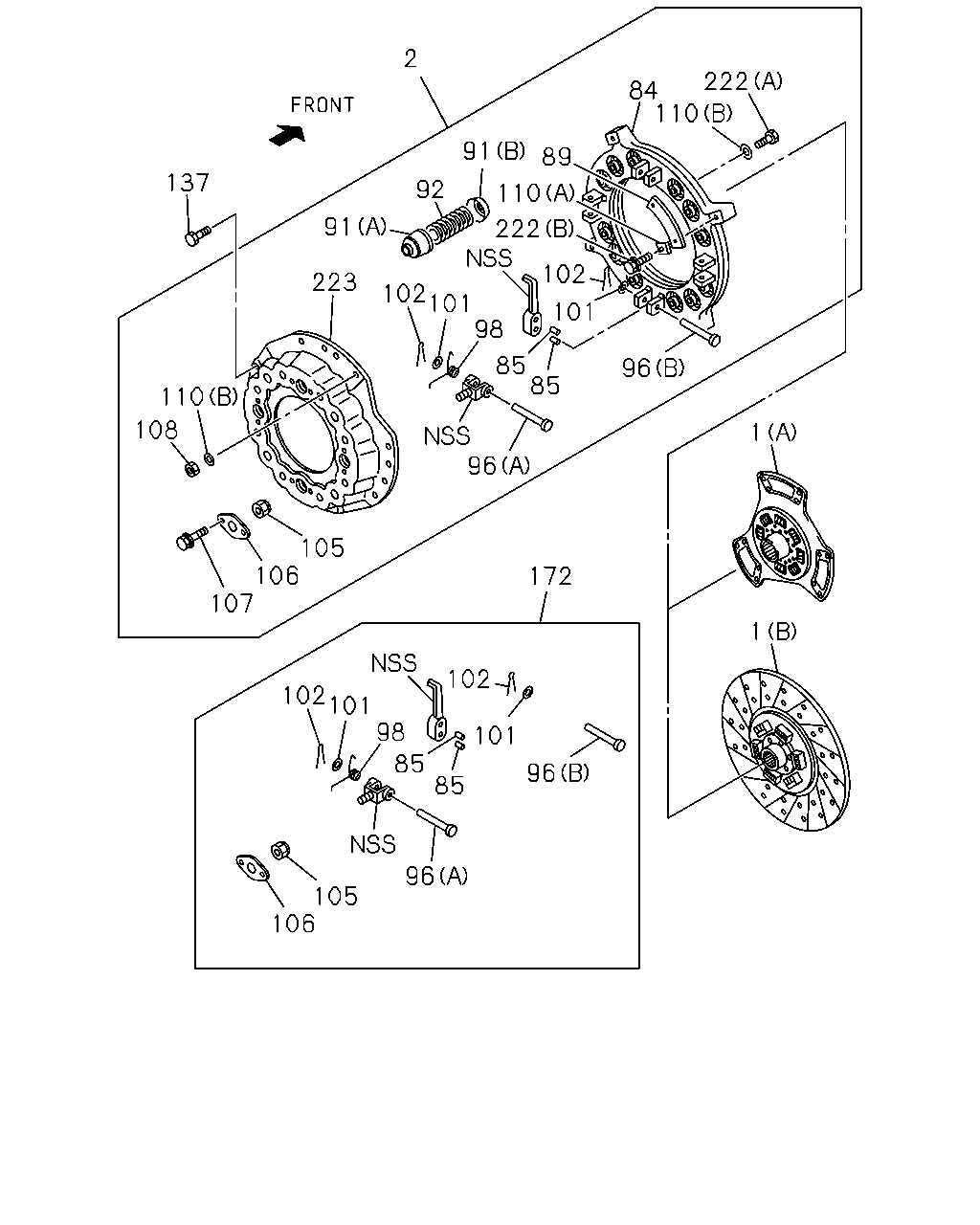

çizim 193593
2 137 110 108 107 106 105 91 223 102 101 98 85 85 96 96 101 102 222 110 89 91 92 84 222 110 1 1 172 102 101 96 102 101 98 85 85 96 105 106
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DISC; CLUTCH
(A) 15" 		1-31240-977-1 01 1 0908-1110 ●
1 DISC; CLUTCH
(B) 15" 		1-31240-972-0 01 1 1111-1202 ●
1 DISC; CLUTCH
(B) 15" 		1-31240-972-1 01 1 1203- ● ●
1 DISC; CLUTCH
(B) 15" 		1-31240-851-1 01 1 0803-0808 ●
1 DISC; CLUTCH
(B) 15" 		1-31240-851-2 01 1 0809- ●
1 DISC; CLUTCH
(B) BEST VALUE PARTS 		1-87610-119-0 01 1 0810- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-380-2 01 1 0908-1211 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-380-2 01 1 1212- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0803-0805 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0806-0808 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0809-0906 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0907-1009 ●
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31220-377-2 01 1 1010- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-146-0 01 1 0810-0906 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-146-0 01 1 0907-1009 ●
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BEST VALUE PARTS 		1-87610-146-0 01 1 1010- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-145-0 01 1 0908-1211 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-145-0 01 1 1212- ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0803-0805 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0806-0906 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0907-0907 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0908-1211 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 1212- ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0803-0805 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0806-0906 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0907-0907 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0908-1211 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1212- ● ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 0803-0805 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0806-0906 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0907-0907 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0908-1211 ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 1212- ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0803-0805 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0806-0906 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0907-0907 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0908-1211 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1212- ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0803-0805 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0806-0906 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0907-0907 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0908-1211 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1212- ● ● ●
92 SPRING; CLU 1-31214-053-0 12 1 0908-1211 ●
92 SPRING; CLU 1-31214-053-0 12 1 1212- ● ●
92 SPRING; CLU 1-31214-066-0 12 1 0803-0805 ●
92 SPRING; CLU 1-31214-066-0 12 1 0806-0808 ●
92 SPRING; CLU 1-31214-066-0 12 1 0809-0906 ●
92 SPRING; CLU 1-31214-066-0 12 1 0907-1009 ●
92 SPRING; CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31214-066-0 12 1 1010- ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0803-0805 ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0806-0906 ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0907-0907 ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0908-1211 ● ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1212- ● ● ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0803-0805 ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0806-0906 ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0907-0907 ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0908-1211 ● ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1212- ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0803-0805 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0806-0906 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0907-0907 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0908-1211 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 1212- ● ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0803-0805 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0806-0906 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0907-0907 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0908-1211 ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1212- ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0803-0805 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0806-0906 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0907-0907 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0908-1211 ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 1212- ● ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0803-0805 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0806-0906 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0907-0907 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0908-1211 ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 1212- ● ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0803-0805 ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0806-0906 ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0907-0907 ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0908-1211 ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 1212- ● ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0803-0805 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0806-0906 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0907-0907 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0908-1211 ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 1212- ● ● ●
108 NUT; STRAP 1-09449-036-0 04 1 0803-0805 ●
108 NUT; STRAP 1-09449-036-0 04 1 0806-0906 ●
108 NUT; STRAP 1-09449-036-0 04 1 0907-0907 ●
108 NUT; STRAP 1-09449-036-0 04 1 0908-1211 ● ●
108 NUT; STRAP 1-09449-036-0 04 1 1212- ● ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0803-0805 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0806-0906 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0907-0907 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0908-1211 ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 1212- ● ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0803-0805 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0806-0906 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0907-0907 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0908-1211 ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 1212- ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0803-0907 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0908-1211 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 1212- ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 0908-1211 ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 1212- ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0803-0805 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0806-0808 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0809-0906 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0907- ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0803-0805 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0806-0906 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0907-0907 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0908-1211 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 1212- ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0803-0805 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0806-0906 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0907-0907 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0908-1211 ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1212- ● ● ●
223 COVER; CLU 1-31211-019-1 01 1 0803-0805 ●
223 COVER; CLU 1-31211-019-1 01 1 0806-0906 ●
223 COVER; CLU 1-31211-019-1 01 1 0907-0907 ●
223 COVER; CLU 1-31211-019-1 01 1 0908-1211 ● ●
223 COVER; CLU 1-31211-019-1 01 1 1212- ● ● ●

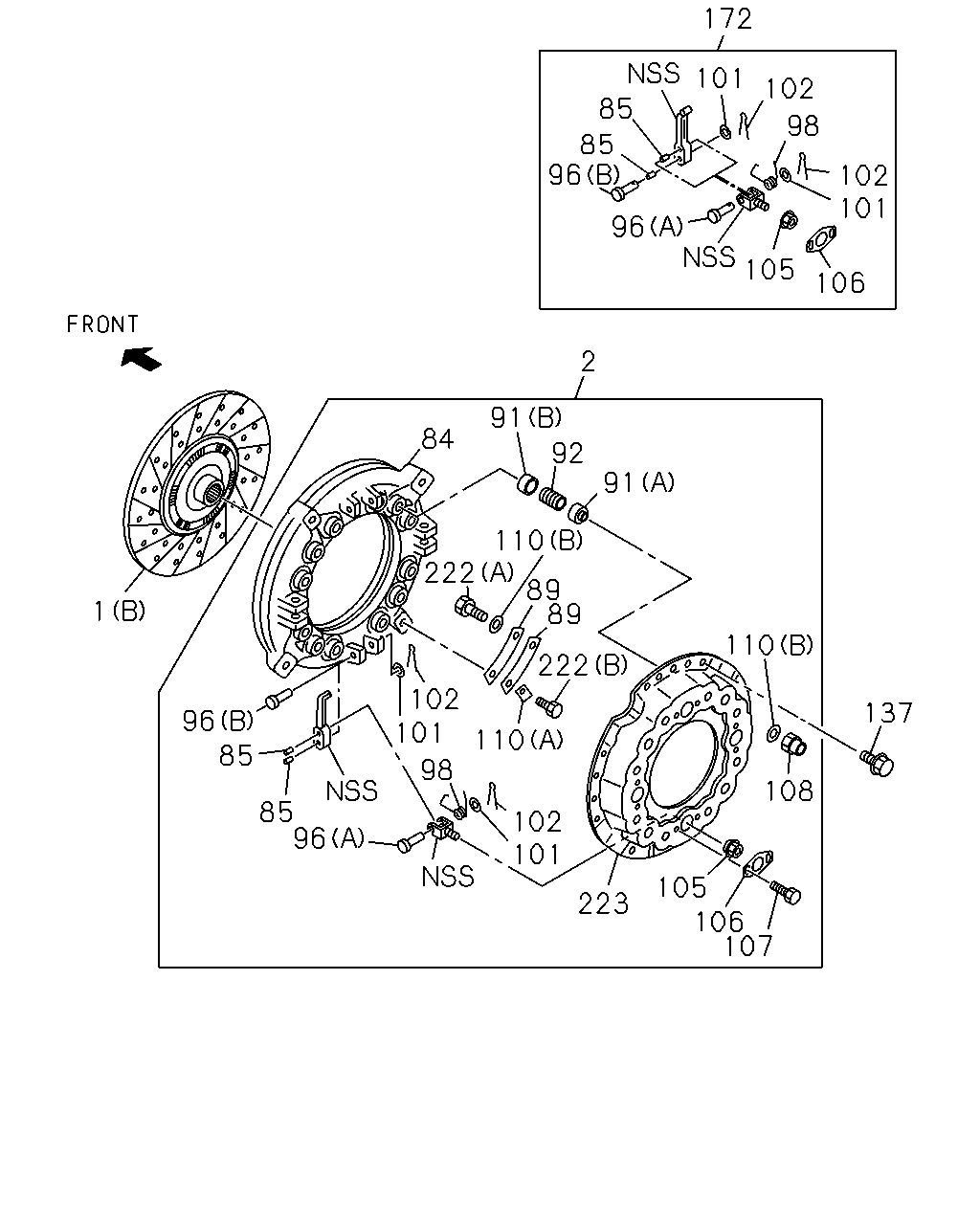

çizim 193597
137 108 105 106 107 223 101 102 98 101 102 110 110 222 89 89 110 91 222 91 92 2 84 1 96 85 85 96 106 101 102 105 98 102 101 172 85 85 96 96
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DISC; CLUTCH
(A) 15" 		1-31240-977-1 01 1 0908-1110 ●
1 DISC; CLUTCH
(B) 15" 		1-31240-972-0 01 1 1111-1202 ●
1 DISC; CLUTCH
(B) 15" 		1-31240-972-1 01 1 1203- ● ●
1 DISC; CLUTCH
(B) 15" 		1-31240-851-1 01 1 0803-0808 ●
1 DISC; CLUTCH
(B) 15" 		1-31240-851-2 01 1 0809- ●
1 DISC; CLUTCH
(B) BEST VALUE PARTS 		1-87610-119-0 01 1 0810- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-380-2 01 1 0908-1211 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-380-2 01 1 1212- ● ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0803-0805 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0806-0808 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0809-0906 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0907-1009 ●
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31220-377-2 01 1 1010- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-146-0 01 1 0810-0906 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-146-0 01 1 0907-1009 ●
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BEST VALUE PARTS 		1-87610-146-0 01 1 1010- ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-145-0 01 1 0908-1211 ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-145-0 01 1 1212- ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0803-0805 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0806-0906 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0907-0907 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0908-1211 ● ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 1212- ● ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0803-0805 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0806-0906 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0907-0907 ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0908-1211 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1212- ● ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 0803-0805 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0806-0906 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0907-0907 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0908-1211 ● ●
89 PLATE; STRAP 1-31229-050-0 16 1 1212- ● ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0803-0805 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0806-0906 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0907-0907 ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0908-1211 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1212- ● ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0803-0805 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0806-0906 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0907-0907 ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0908-1211 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1212- ● ● ●
92 SPRING; CLU 1-31214-053-0 12 1 0908-1211 ●
92 SPRING; CLU 1-31214-053-0 12 1 1212- ● ●
92 SPRING; CLU 1-31214-066-0 12 1 0803-0805 ●
92 SPRING; CLU 1-31214-066-0 12 1 0806-0808 ●
92 SPRING; CLU 1-31214-066-0 12 1 0809-0906 ●
92 SPRING; CLU 1-31214-066-0 12 1 0907-1009 ●
92 SPRING; CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31214-066-0 12 1 1010- ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0803-0805 ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0806-0906 ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0907-0907 ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0908-1211 ● ●
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1212- ● ● ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0803-0805 ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0806-0906 ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0907-0907 ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0908-1211 ● ●
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1212- ● ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0803-0805 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0806-0906 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0907-0907 ●
98 SPRING; RETURN 1-31233-003-0 04 1 0908-1211 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 1212- ● ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0803-0805 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0806-0906 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0907-0907 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0908-1211 ● ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1212- ● ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0803-0805 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0806-0906 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0907-0907 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0908-1211 ● ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 1212- ● ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0803-0805 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0806-0906 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0907-0907 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0908-1211 ● ●
105 NUT; SUPPORT 1-31235-014-0 04 1 1212- ● ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0803-0805 ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0806-0906 ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0907-0907 ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0908-1211 ● ●
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 1212- ● ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0803-0805 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0806-0906 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0907-0907 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0908-1211 ● ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 1212- ● ● ●
108 NUT; STRAP 1-09449-036-0 04 1 0803-0805 ●
108 NUT; STRAP 1-09449-036-0 04 1 0806-0906 ●
108 NUT; STRAP 1-09449-036-0 04 1 0907-0907 ●
108 NUT; STRAP 1-09449-036-0 04 1 0908-1211 ● ●
108 NUT; STRAP 1-09449-036-0 04 1 1212- ● ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0803-0805 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0806-0906 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0907-0907 ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0908-1211 ● ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 1212- ● ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0803-0805 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0806-0906 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0907-0907 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0908-1211 ● ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 1212- ● ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0803-0907 ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0908-1211 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 1212- ● ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 0908-1211 ●
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 1212- ● ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0803-0805 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0806-0808 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0809-0906 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0907- ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0803-0805 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0806-0906 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0907-0907 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0908-1211 ● ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 1212- ● ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0803-0805 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0806-0906 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0907-0907 ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0908-1211 ● ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1212- ● ● ●
223 COVER; CLU 1-31211-019-1 01 1 0803-0805 ●
223 COVER; CLU 1-31211-019-1 01 1 0806-0906 ●
223 COVER; CLU 1-31211-019-1 01 1 0907-0907 ●
223 COVER; CLU 1-31211-019-1 01 1 0908-1211 ● ●
223 COVER; CLU 1-31211-019-1 01 1 1212- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
