2-01B — CLUTCH (#67942) — 204 parça

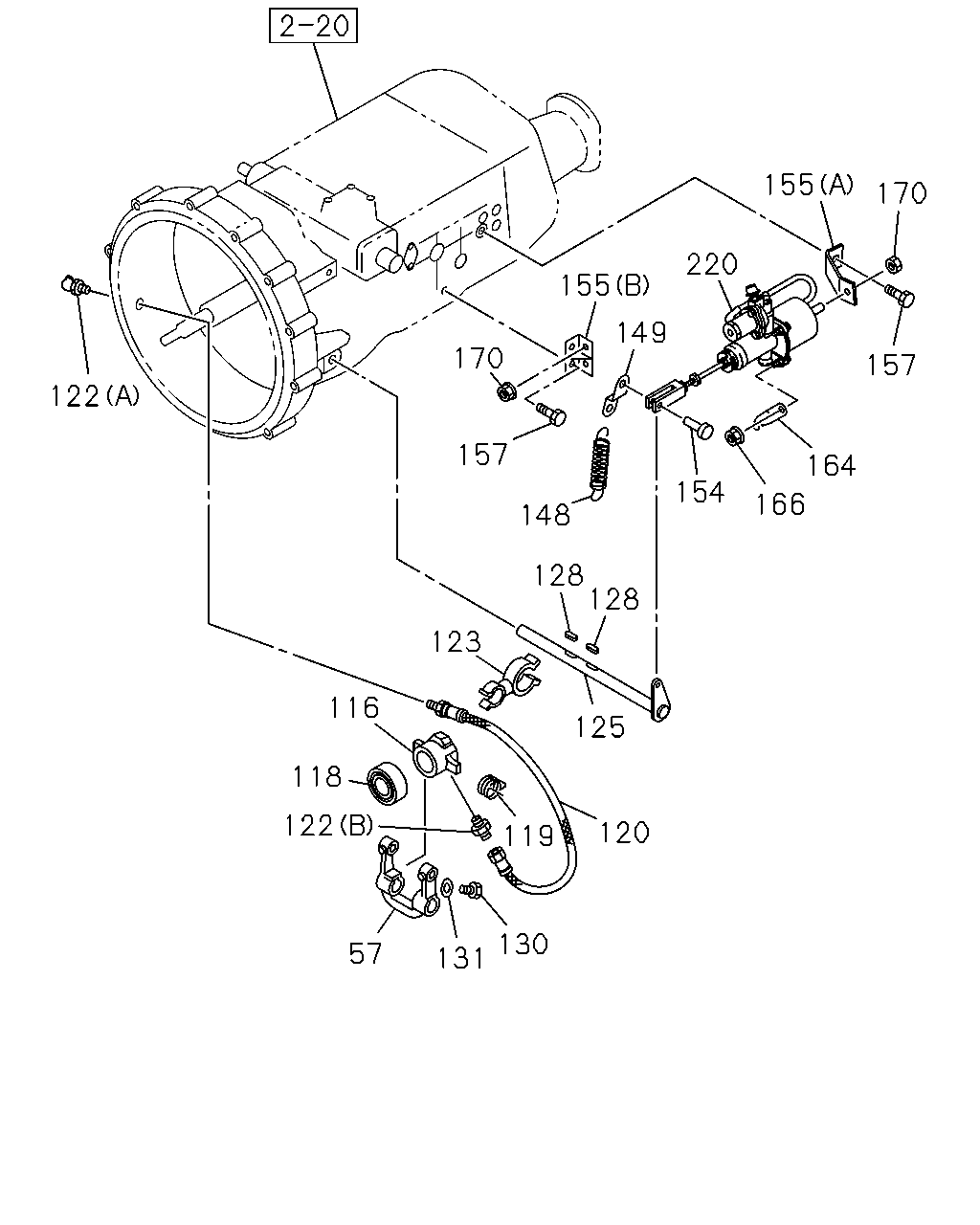

çizim 97775
122 170 157 148 128 128 154 166 164 157 170 155 220 155 149 123 125 120 119 130 131 57 122 118 116
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 0803-0907
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 0908-1211
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 1212-
116 BLOCK; SHIFT,CLU 1-31321-086-1 01 1 0803-
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0810-0907
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0908-1211
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 1212-
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0803-0805
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0806-0907
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0908-1211
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 1212-
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 0803-0907
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 0908-1211
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 1212-
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 0803-0907
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 0908-1211
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 1212-
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=360 		1-09364-881-0 01 1 0803-
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0803-0805
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0806-0907
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0908-1211
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 1212-
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 0803-
123 CLIP; FLEX HOSE,SHIFT BLOCK 8-97010-484-0 01 1 0803-
125 SHAFT; CLU 1-31342-336-0 01 1 0803-
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0803-0805
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0806-0906
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0907-0907
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0908-1211
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1212-
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 0803-0907
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 0908-1211
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 1212-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0803-0805
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0806-0906
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0907-0907
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0908-1211
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1212-
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0803-0805
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0806-0906
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0907-0907
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0908-1211
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1212-
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 0803-0907
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 0908-1211
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 1212-
154 PIN; JAW JOINT 1-31424-009-0 01 1 0803-0906
154 PIN; JAW JOINT 1-31424-009-0 01 1 0907-0907
154 PIN; JAW JOINT 1-31424-009-0 01 1 0908-1211
154 PIN; JAW JOINT 1-31424-009-0 01 1 1212-
155 BRACKET; MINIPACK
(B) 		1-31429-472-1 01 1 0803-
155 BRACKET; MINIPACK
(A) 		1-31429-473-0 01 1 0803-
157 BOLT; BRKT
M10X25 FLANGE 		0-28151-025-0 03 1 0803-
164 EYE; SPRING 1-31426-050-0 01 1 0803-
166 NUT; SPRING EYE
M10 FLANGE 		0-91180-210-0 01 1 0803-
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 0803-0907
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 0908-1211
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 1212-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-0 01 1 0803-0805
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-0 01 1 0806-0907
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-0 01 1 0908-1211
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-1 01 1 1212-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-089-0 01 1 0810-0906
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-089-0 01 1 0907-0907
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-089-0 01 1 0908-

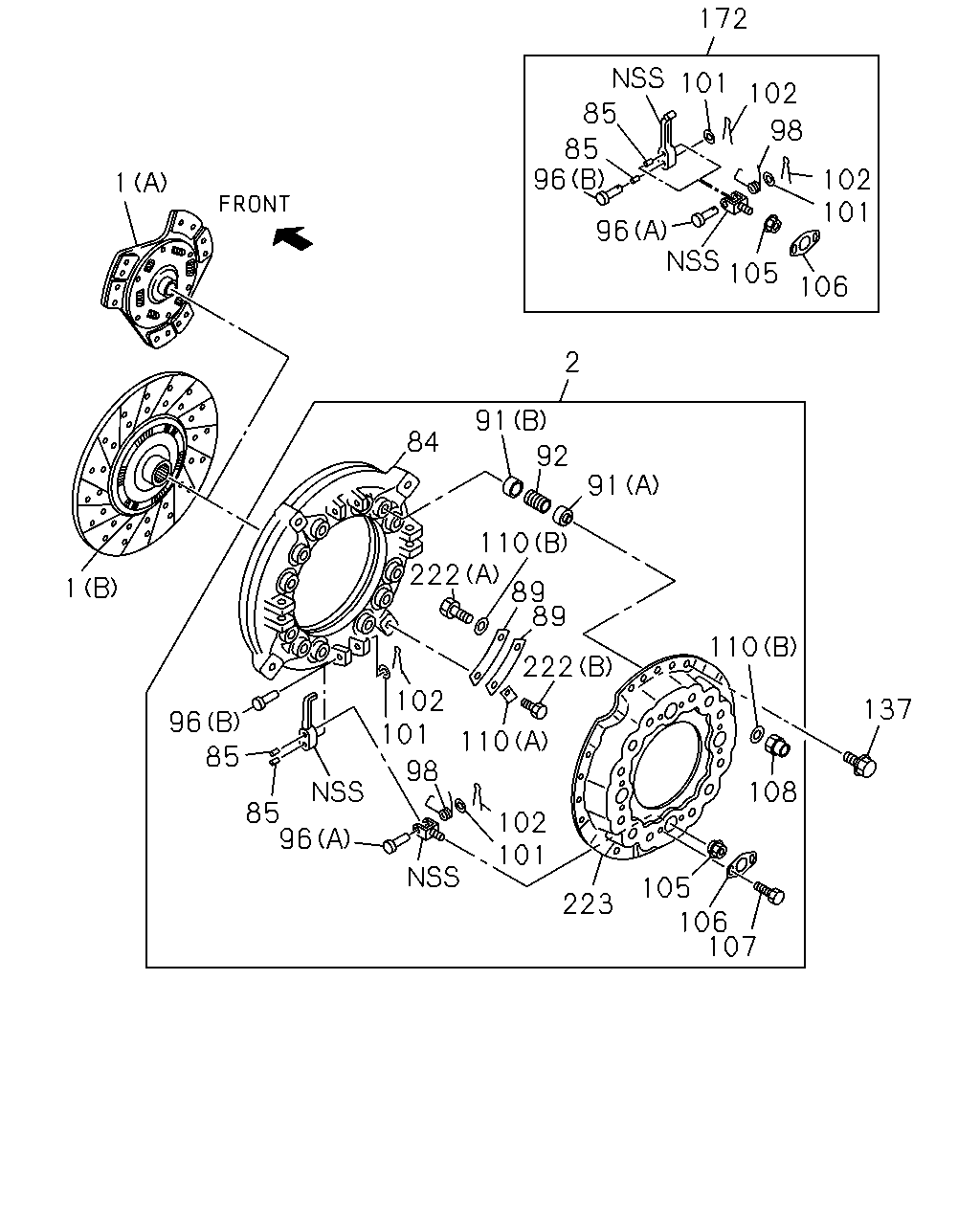

çizim 193598
137 110 108 105 106 107 223 101 102 110 222 89 89 91 92 2 91 84 110 222 102 101 98 96 85 85 96 1 1 172 102 98 102 101 106 105 96 96 85 85 101
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
6HK1-TCS ENG(80L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) 15" 		1-31240-977-2 01 1 1203-
1 DISC; CLUTCH
6HK1-TCS ENG(80L) (A) 15" 		1-31240-977-1 01 1 0809-0907
1 DISC; CLUTCH
6HK1-TCS ENG(80L) (A) 15" 		1-31240-977-1 01 1 0908-1110
1 DISC; CLUTCH
6HK1-TCS ENG(80L) (B) 15" 		1-31240-972-0 01 1 1111-1202
1 DISC; CLUTCH
6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (B) 15" 		1-31240-972-1 01 1 1203-
1 DISC; CLUTCH
(B) 15" 		1-31240-851-1 01 1 0803-0808
1 DISC; CLUTCH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) 15" 		1-31240-851-2 01 1 0809-
1 DISC; CLUTCH
6HK1-TCS ENG(80L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) BEST VALUE PARTS 		1-87610-143-0 01 1 1411-
1 DISC; CLUTCH
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) BEST VALUE PARTS 		1-87610-119-0 01 1 0810-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCN ENG(82L) 		1-31220-374-2 01 1 1010-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCS ENG(80L) 		1-31220-380-2 01 1 0809-0907
2 PLATE ASM; PRESSURE,CLU
6HK1-TCS ENG(80L) 		1-31220-380-2 01 1 0908-1211
2 PLATE ASM; PRESSURE,CLU
6HK1-TCS ENG(80L) 		1-31220-380-2 01 1 1212-
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0803-0805
2 PLATE ASM; PRESSURE,CLU 1-31220-377-2 01 1 0806-0808
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31220-377-2 01 1 0809-0906
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31220-377-2 01 1 0907-1009
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L) 		1-31220-377-2 01 1 1010-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BEST VALUE PARTS 		1-87610-146-0 01 1 0810-0906
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) BEST VALUE PARTS 		1-87610-146-0 01 1 0907-1009
2 PLATE ASM; PRESSURE,CLU
6HK1-TCC ENG(81L) BEST VALUE PARTS 		1-87610-146-0 01 1 1010-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCS ENG(80L) BEST VALUE PARTS 		1-87610-145-0 01 1 0810-0907
2 PLATE ASM; PRESSURE,CLU
6HK1-TCS ENG(80L) BEST VALUE PARTS 		1-87610-145-0 01 1 0908-1211
2 PLATE ASM; PRESSURE,CLU
6HK1-TCS ENG(80L) BEST VALUE PARTS 		1-87610-145-0 01 1 1212-
2 PLATE ASM; PRESSURE,CLU
6HK1-TCN ENG(82L) BEST VALUE PARTS 		1-87610-120-0 01 1 1010-
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0803-0805
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0806-0906
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0907-0907
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0908-1211
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 1212-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0803-0805
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0806-0906
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0907-0907
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0908-1211
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1212-
89 PLATE; STRAP 1-31229-050-0 16 1 0803-0805
89 PLATE; STRAP 1-31229-050-0 16 1 0806-0906
89 PLATE; STRAP 1-31229-050-0 16 1 0907-0907
89 PLATE; STRAP 1-31229-050-0 16 1 0908-1211
89 PLATE; STRAP 1-31229-050-0 16 1 1212-
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0803-0805
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0806-0906
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0907-0907
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0908-1211
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1212-
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0803-0805
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0806-0906
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0907-0907
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0908-1211
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1212-
92 SPRING; CLU
6HK1-TCN ENG(82L) 		1-31214-086-0 12 1 1010-
92 SPRING; CLU
6HK1-TCS ENG(80L) 		1-31214-053-0 12 1 0809-0907
92 SPRING; CLU
6HK1-TCS ENG(80L) 		1-31214-053-0 12 1 0908-1211
92 SPRING; CLU
6HK1-TCS ENG(80L) 		1-31214-053-0 12 1 1212-
92 SPRING; CLU 1-31214-066-0 12 1 0803-0805
92 SPRING; CLU 1-31214-066-0 12 1 0806-0808
92 SPRING; CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31214-066-0 12 1 0809-0906
92 SPRING; CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-31214-066-0 12 1 0907-1009
92 SPRING; CLU
6HK1-TCC ENG(81L) 		1-31214-066-0 12 1 1010-
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0803-0805
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0806-0906
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0907-0907
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0908-1211
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1212-
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0803-0805
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0806-0906
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0907-0907
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0908-1211
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1212-
98 SPRING; RETURN 1-31233-003-0 04 1 0803-0805
98 SPRING; RETURN 1-31233-003-0 04 1 0806-0906
98 SPRING; RETURN 1-31233-003-0 04 1 0907-0907
98 SPRING; RETURN 1-31233-003-0 04 1 0908-1211
98 SPRING; RETURN 1-31233-003-0 04 1 1212-
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0803-0805
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0806-0906
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0907-0907
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0908-1211
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1212-
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0803-0805
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0806-0906
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0907-0907
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0908-1211
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 1212-
105 NUT; SUPPORT 1-31235-014-0 04 1 0803-0805
105 NUT; SUPPORT 1-31235-014-0 04 1 0806-0906
105 NUT; SUPPORT 1-31235-014-0 04 1 0907-0907
105 NUT; SUPPORT 1-31235-014-0 04 1 0908-1211
105 NUT; SUPPORT 1-31235-014-0 04 1 1212-
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0803-0805
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0806-0906
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0907-0907
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0908-1211
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 1212-
107 BOLT; LK PLATE 1-31239-061-0 08 1 0803-0805
107 BOLT; LK PLATE 1-31239-061-0 08 1 0806-0906
107 BOLT; LK PLATE 1-31239-061-0 08 1 0907-0907
107 BOLT; LK PLATE 1-31239-061-0 08 1 0908-1211
107 BOLT; LK PLATE 1-31239-061-0 08 1 1212-
108 NUT; STRAP 1-09449-036-0 04 1 0803-0805
108 NUT; STRAP 1-09449-036-0 04 1 0806-0906
108 NUT; STRAP 1-09449-036-0 04 1 0907-0907
108 NUT; STRAP 1-09449-036-0 04 1 0908-1211
108 NUT; STRAP 1-09449-036-0 04 1 1212-
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0803-0805
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0806-0906
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0907-0907
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0908-1211
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 1212-
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0803-0805
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0806-0906
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0907-0907
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0908-1211
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 1212-
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0803-0907
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0908-1211
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 1212-
172 LEVER KIT; RELEASE,CLU
6HK1-TCS ENG(80L) 		1-87831-172-1 01 1 0809-0907
172 LEVER KIT; RELEASE,CLU
6HK1-TCS ENG(80L) 		1-87831-172-1 01 1 0908-1211
172 LEVER KIT; RELEASE,CLU
6HK1-TCS ENG(80L) 		1-87831-172-1 01 1 1212-
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0803-0805
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0806-0808
172 LEVER KIT; RELEASE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-87831-170-1 01 1 0809-0906
172 LEVER KIT; RELEASE,CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) 		1-87831-170-1 01 1 0907-
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0803-0805
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0806-0906
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0907-0907
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0908-1211
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 1212-
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0803-0805
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0806-0906
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0907-0907
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0908-1211
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1212-
223 COVER; CLU 1-31211-019-1 01 1 0803-0805
223 COVER; CLU 1-31211-019-1 01 1 0806-0906
223 COVER; CLU 1-31211-019-1 01 1 0907-0907
223 COVER; CLU 1-31211-019-1 01 1 0908-1211
223 COVER; CLU 1-31211-019-1 01 1 1212-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
