Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#67941) — 397 parça

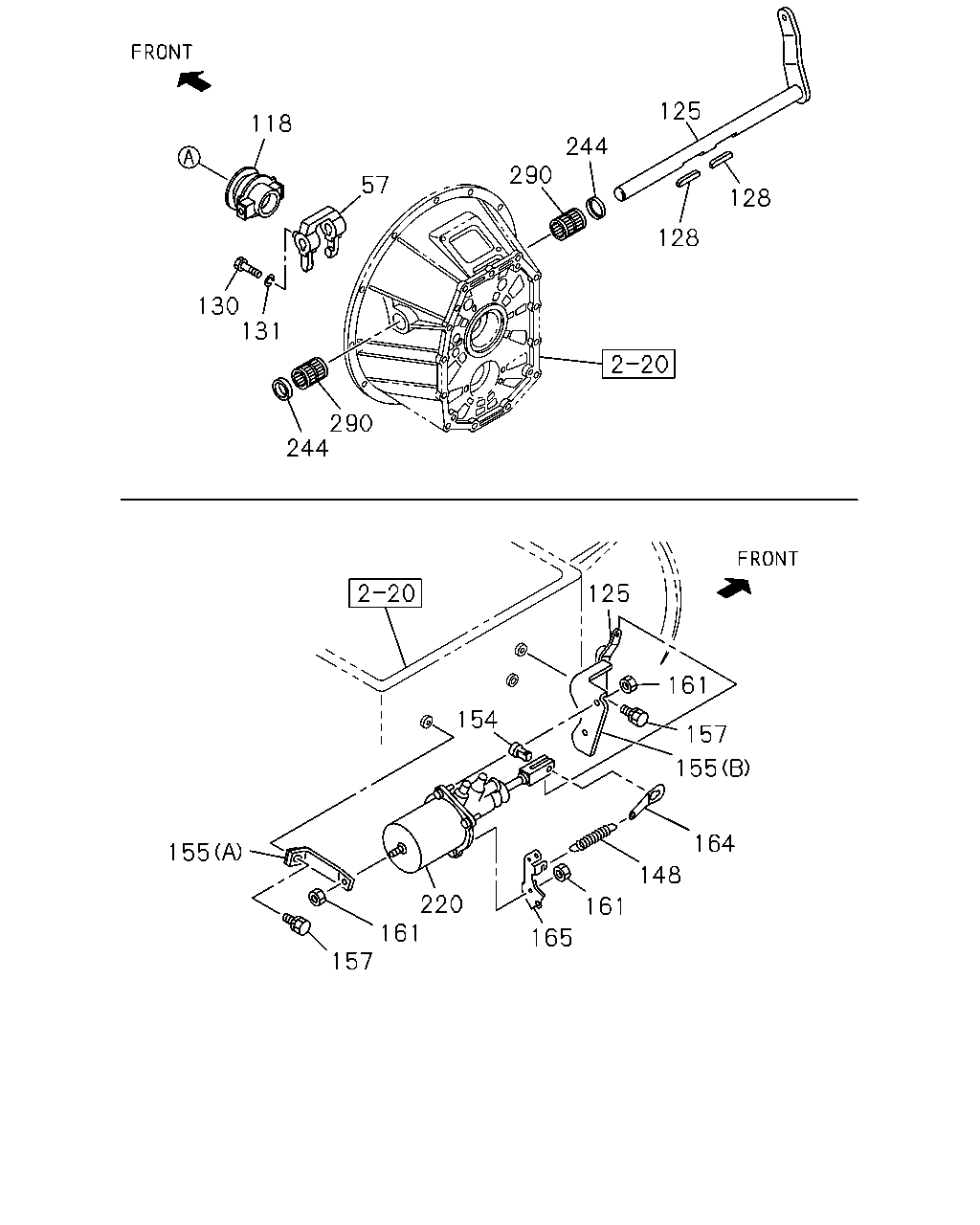

125 161 157 155 164 148 161 165 220 161 157 155 244 290 131 130 57 118 290 244 125 128 128 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0803-0906		●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0907-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0810-0906		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0810-0907	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0908-1211	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	1212-	●
118	BEARING; CLU RELEASE	1-31310-017-1	01	1	0803-0806		●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0807-0906		●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-0907	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0908-1211	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	1212-	●
125	SHAFT; CLU	1-31342-343-0	01	1	0806-	●
125	SHAFT; CLU	1-31342-335-0	01	1	0803-0906		●
125	SHAFT; CLU	1-31342-335-0	01	1	0907-		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0803-0805		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0906	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-0907	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0908-1211	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1212-	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0803-0805		●
130	SCREW; SHIFT FORK FVR WIDE SGL CAB(FG****) M8X14	0-61200-814-0	01	1	0806-0906	●	●
130	SCREW; SHIFT FORK FVR WIDE SGL CAB(FG****) M8X14	0-61200-814-0	01	1	0907-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0803-0805		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0906	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-0907	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0908-1211	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1212-	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0803-0805		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0906	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-0907	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0908-1211	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1212-	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0803-0906		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0907-0907		●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0908-1211		●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1212-	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-507-0	01	1	0806-	●
155	BRACKET; MINIPACK (B)	1-31429-508-0	01	1	0806-	●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0803-0906		●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0907-		●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0803-0906		●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0907-		●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0803-0805		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0906	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0806-	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0803-0906		●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0907-		●	●
164	EYE; SPRING	1-31426-041-0	01	1	0803-0805		●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0906	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0803-0805		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0906	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0803-0906		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	0907-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-0	01	1	0806-0907	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-0	01	1	0908-1211	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	1212-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0810-0906	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-0907	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0908-	●	●	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0803-0906		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0907-		●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	0803-0906		●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	0907-		●	●

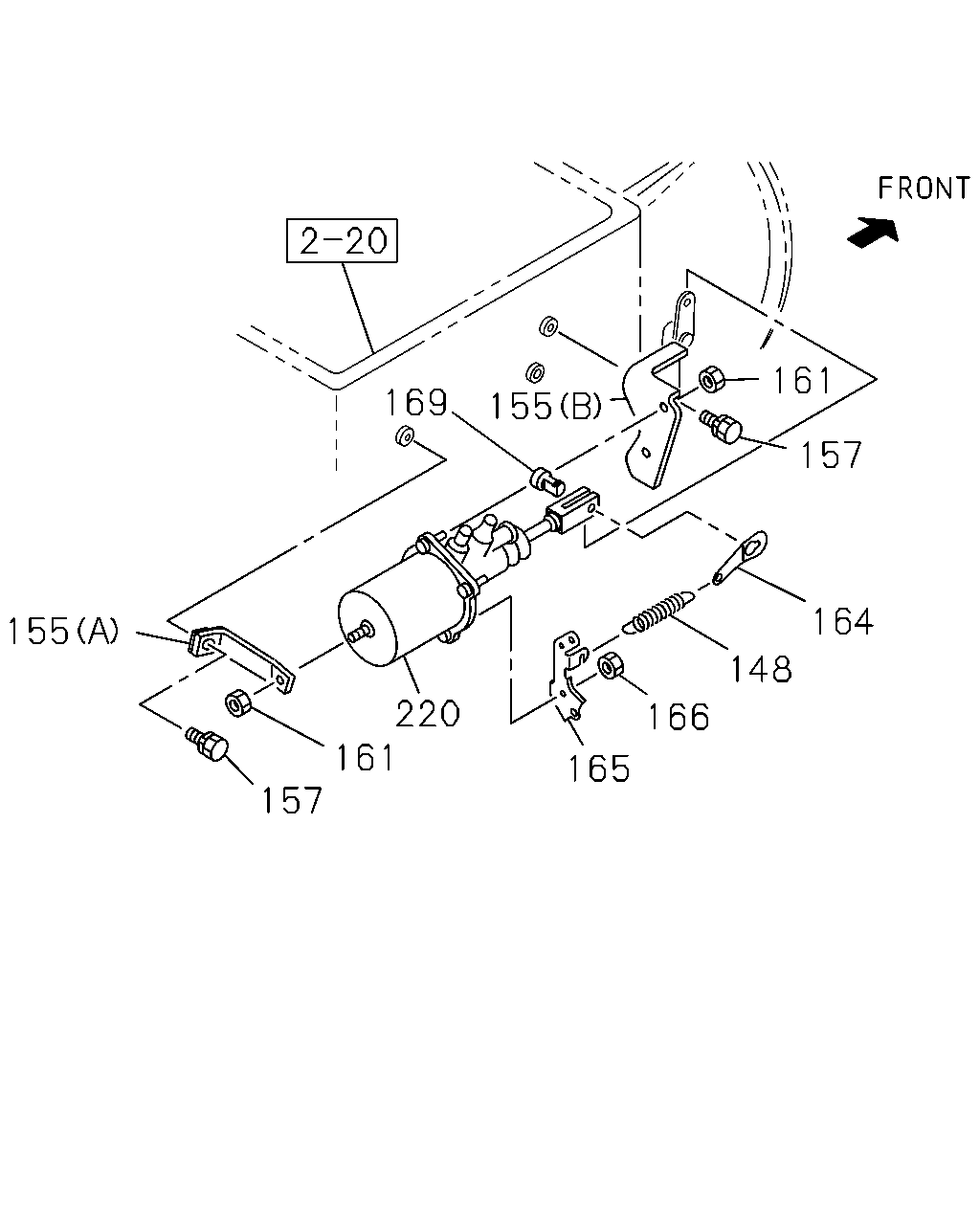

164 148 166 165 220 161 157 155 169 155 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0803-0805		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0806-0906	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-0907	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0908-1211	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1212-	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-507-0	01	1	0806-	●
155	BRACKET; MINIPACK (B)	1-31429-508-0	01	1	0806-	●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0803-0906		●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0907-		●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0803-0906		●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0907-		●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0803-0805		●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0806-0906	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0806-	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0803-0906		●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0907-		●	●
164	EYE; SPRING	1-31426-041-0	01	1	0803-0805		●
164	EYE; SPRING	1-31426-041-0	01	1	0806-0906	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0803-0805		●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0806-0906	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-	●	●	●
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	02	1	0806-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0806-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0803-0906		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	0907-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-0	01	1	0806-0907	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-0	01	1	0908-1211	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	1212-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0810-0906	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-0907	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0908-	●	●	●

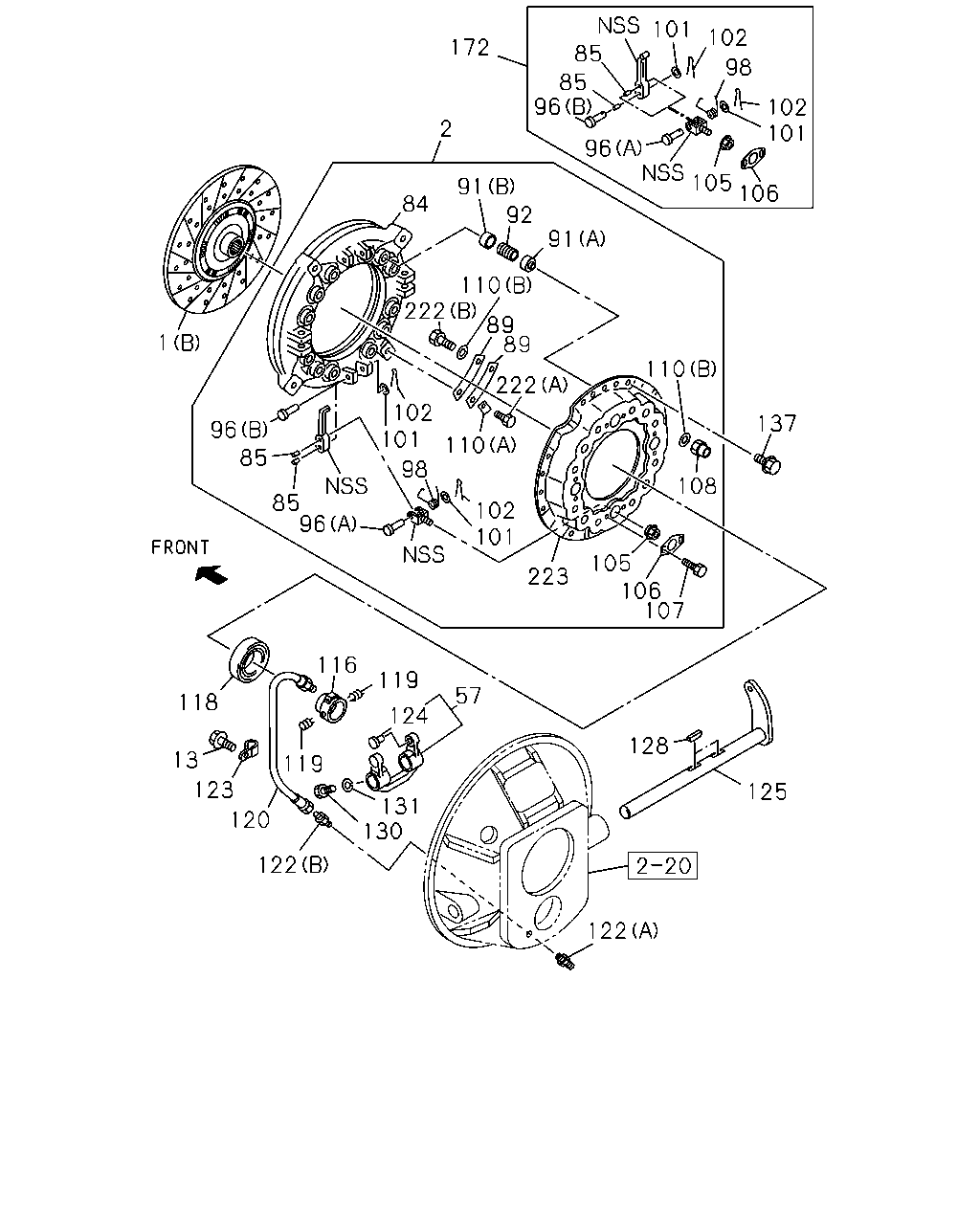

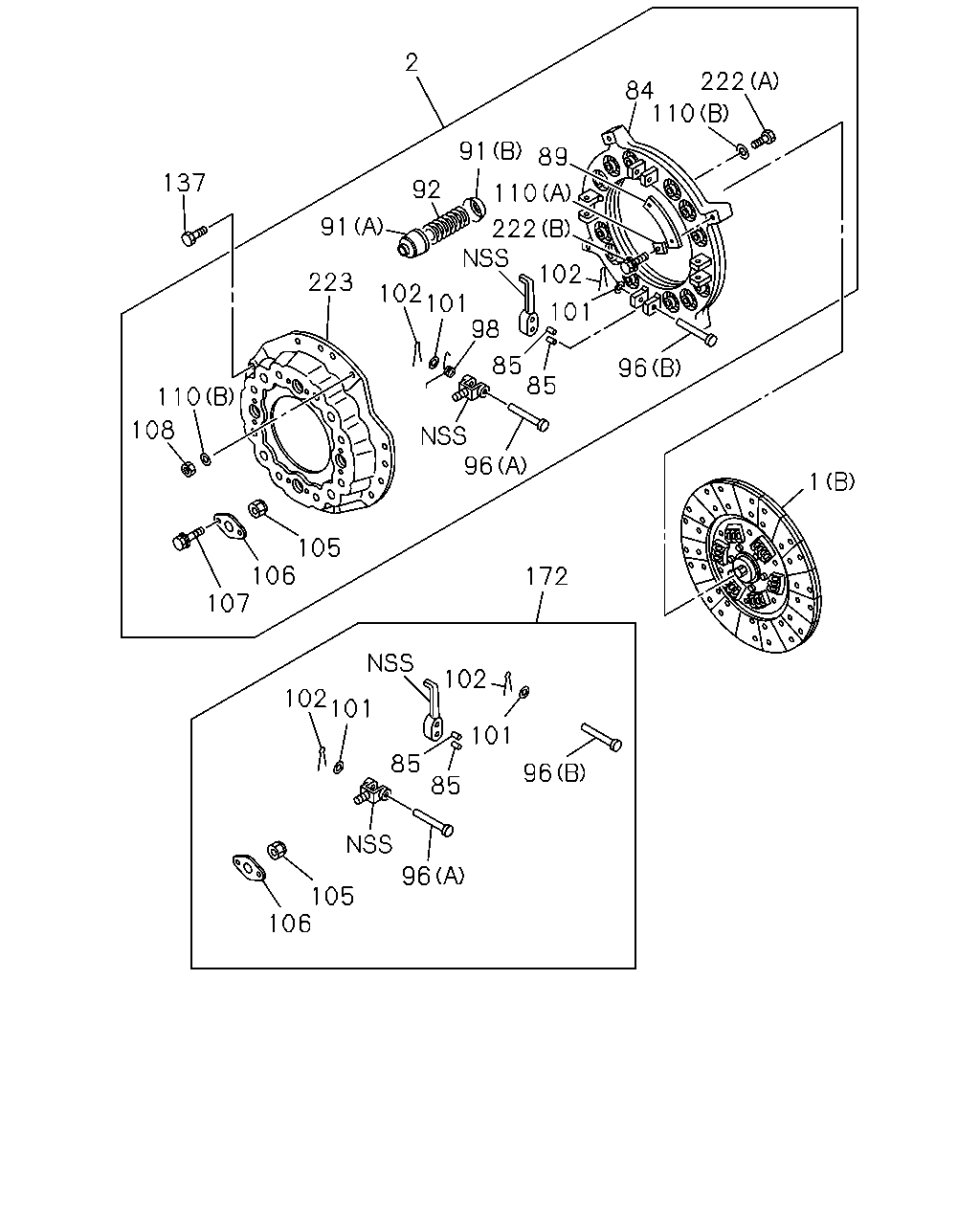

1 172 96 101 102 102 101 85 85 96 105 106 96 96 105 106 107 108 110 137 91 223 102 101 98 85 85 101 102 222 110 92 91 89 84 222 110 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH (B) 15"	1-31240-851-1	01	1	0803-0808	●	●
1	DISC; CLUTCH (B) 15"	1-31240-851-2	01	1	0809-	●	●	●
1	DISC; CLUTCH (B) BEST VALUE PARTS	1-87610-119-0	01	1	0810-	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0803-0805		●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0806-0808	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0809-0906	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L)	1-31220-377-2	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0810-0906	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) BEST VALUE PARTS	1-87610-146-0	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0803-0805		●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0806-0906	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0907-0907	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0908-1211	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1212-	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0803-0805		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0806-0906	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-0907	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0908-1211	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1212-	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0803-0805		●
89	PLATE; STRAP	1-31229-050-0	16	1	0806-0906	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0907-0907	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0908-1211	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	1212-	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0803-0805		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0806-0906	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0907-0907	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0908-1211	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1212-	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0803-0805		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0806-0906	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0907-0907	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0908-1211	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1212-	●	●	●
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1010-	●	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0803-0805		●
92	SPRING; CLU	1-31214-066-0	12	1	0806-0808	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0809-0906	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0907-1009	●	●	●
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	1010-	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0803-0805		●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0806-0906	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-0907	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0908-1211	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1212-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0803-0805		●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0806-0906	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-0907	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0908-1211	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1212-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0803-0805		●
98	SPRING; RETURN	1-31233-003-0	04	1	0806-0906	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0907-0907	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0908-1211	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	1212-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0803-0805		●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0806-0906	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-0907	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0908-1211	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1212-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0803-0805		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0806-0906	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0907-0907	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0908-1211	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1212-	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0803-0805		●
105	NUT; SUPPORT	1-31235-014-0	04	1	0806-0906	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-0907	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0908-1211	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1212-	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0803-0805		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0806-0906	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0907-0907	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0908-1211	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	1212-	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0803-0805		●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0806-0906	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-0907	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0908-1211	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1212-	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0803-0805		●
108	NUT; STRAP	1-09449-036-0	04	1	0806-0906	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0907-0907	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0908-1211	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	1212-	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0803-0805		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0806-0906	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0907-0907	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0908-1211	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	1212-	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0803-0805		●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0806-0906	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0907-0907	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0908-1211	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	1212-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0803-0907	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0908-1211	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1212-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0803-0805		●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0806-0808	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0809-0906	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0907-	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0803-0805		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0806-0906	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0907-0907	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0908-1211	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1212-	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0803-0805		●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0806-0906	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-0907	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0908-1211	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1212-	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0803-0805		●
223	COVER; CLU	1-31211-019-1	01	1	0806-0906	●	●
223	COVER; CLU	1-31211-019-1	01	1	0907-0907	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0908-1211	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	1212-	●	●	●

125 128 107 106 105 223 101 102 108 137 110 110 222 89 89 222 110 91 92 91 102 101 98 96 85 85 96 1 84 2 172 85 85 96 96 105 106 101 102 98 102 101 57 124 119 116 118 13 123 120 122 130 131 119 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH (B) 15"	1-31240-851-1	01	1	0803-0808	●	●
1	DISC; CLUTCH (B) 15"	1-31240-851-2	01	1	0809-	●	●	●
1	DISC; CLUTCH (B) BEST VALUE PARTS	1-87610-119-0	01	1	0810-	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0803-0805		●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0806-0808	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0809-0906	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L)	1-31220-377-2	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0810-0906	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) BEST VALUE PARTS	1-87610-146-0	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0806-0907	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0908-1211	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	1212-	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0806-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0803-0906		●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0907-		●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0803-0805		●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0806-0906	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0907-0907	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0908-1211	●	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1212-	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0803-0805		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0806-0906	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-0907	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0908-1211	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1212-	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0803-0805		●
89	PLATE; STRAP	1-31229-050-0	16	1	0806-0906	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0907-0907	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0908-1211	●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	1212-	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0803-0805		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0806-0906	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0907-0907	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0908-1211	●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1212-	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0803-0805		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0806-0906	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0907-0907	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0908-1211	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1212-	●	●	●
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1010-	●	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0803-0805		●
92	SPRING; CLU	1-31214-066-0	12	1	0806-0808	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0809-0906	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0907-1009	●	●	●
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	1010-	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0803-0805		●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0806-0906	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-0907	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0908-1211	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1212-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0803-0805		●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0806-0906	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-0907	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0908-1211	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1212-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0803-0805		●
98	SPRING; RETURN	1-31233-003-0	04	1	0806-0906	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0907-0907	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0908-1211	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	1212-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0803-0805		●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0806-0906	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-0907	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0908-1211	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1212-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0803-0805		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0806-0906	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0907-0907	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0908-1211	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1212-	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0803-0805		●
105	NUT; SUPPORT	1-31235-014-0	04	1	0806-0906	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-0907	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0908-1211	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	1212-	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0803-0805		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0806-0906	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0907-0907	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0908-1211	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	1212-	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0803-0805		●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0806-0906	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-0907	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0908-1211	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	1212-	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0803-0805		●
108	NUT; STRAP	1-09449-036-0	04	1	0806-0906	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0907-0907	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0908-1211	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	1212-	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0803-0805		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0806-0906	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0907-0907	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0908-1211	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	1212-	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0803-0805		●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0806-0906	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0907-0907	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0908-1211	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	1212-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0806-1204	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0810-0906		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0810-0907	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0908-1211	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	1212-	●
118	BEARING; CLU RELEASE	1-31310-017-1	01	1	0803-0806		●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0807-0906		●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0806-0907	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0908-1211	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	1212-	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0806-	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0806-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0806-0907	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0908-1211	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	1212-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0806-0907	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0908-1211	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1212-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0806-0907	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0908-1211	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	1212-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0806-0907	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0908-1211	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	1212-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0806-	●
125	SHAFT; CLU	1-31342-343-0	01	1	0806-	●
125	SHAFT; CLU	1-31342-335-0	01	1	0803-0906		●
125	SHAFT; CLU	1-31342-335-0	01	1	0907-		●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0803-0805		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0806-0906	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-0907	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0908-1211	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1212-	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0803-0805		●
130	SCREW; SHIFT FORK FVR WIDE SGL CAB(FG****) M8X14	0-61200-814-0	01	1	0806-0906	●	●
130	SCREW; SHIFT FORK FVR WIDE SGL CAB(FG****) M8X14	0-61200-814-0	01	1	0907-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0803-0805		●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0806-0906	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-0907	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0908-1211	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1212-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0803-0907	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0908-1211	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1212-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0803-0805		●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0806-0808	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0809-0906	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0907-	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0803-0805		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0806-0906	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0907-0907	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0908-1211	●	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1212-	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0803-0805		●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0806-0906	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-0907	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0908-1211	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1212-	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0803-0805		●
223	COVER; CLU	1-31211-019-1	01	1	0806-0906	●	●
223	COVER; CLU	1-31211-019-1	01	1	0907-0907	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0908-1211	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	1212-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
