◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#67940) — 406 parça

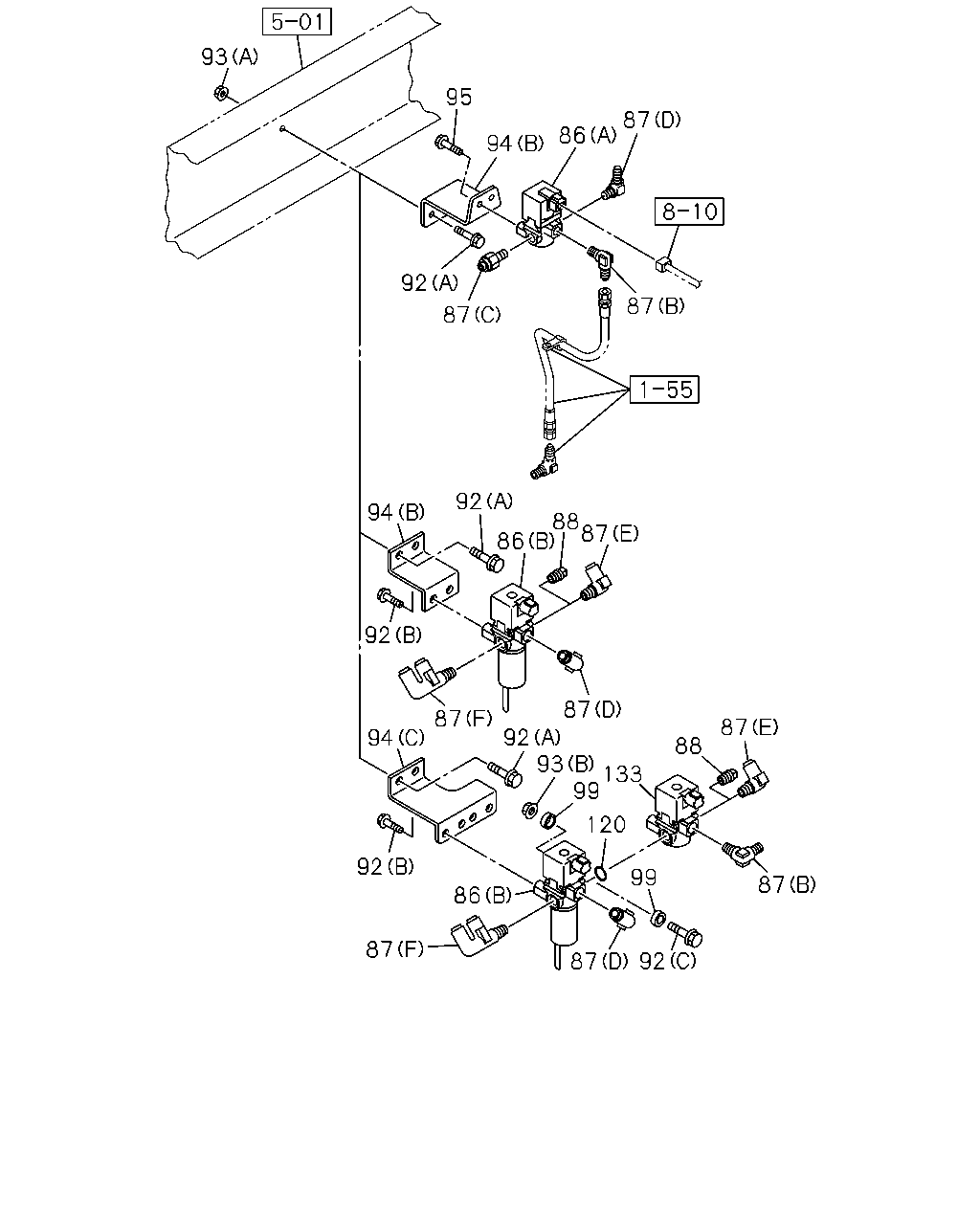

çizim 97069
93 95 94 86 87 92 87 87 92 94 86 88 87 92 87 94 92 87 93 133 99 120 88 87 87 99 92 87 86 92 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		1-82563-871-2 02 1 0810- ● ● ●
86 VALVE; MAG,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0803-0807 ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0808-0809 ● ● ●
86 VALVE; MAG,EXH BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-82563-871-2 01 1 0810- ● ● ●
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0810- ● ● ●
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0810- ● ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (F) DIN13X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0810-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0810-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012- ● ● ●
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0809 ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ,EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0807 ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0808-0809 ● ● ●
87 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0810- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0803-0805 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0803-0805 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0806-0808 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0806-0808 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
92 BOLT; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0809 ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0810-1008 ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1011 ● ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0803-0809 ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0810- ● ● ●
93 NUT; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0807 ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0803-0807 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-1011 ● ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-1011 ● ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
93 NUT; MAG VLV
GVR WIDE CAB(GG****) (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47471-374-1 01 1 0803-0809 ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47471-374-1 01 1 0810-1004 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		8-98154-633-0 01 1 1005-1111 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		8-98154-633-0 01 1 1112- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0803-0809 ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0810- ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0807 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0808-0809 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ● ●
99 WASHER; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
120 GASKET; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●

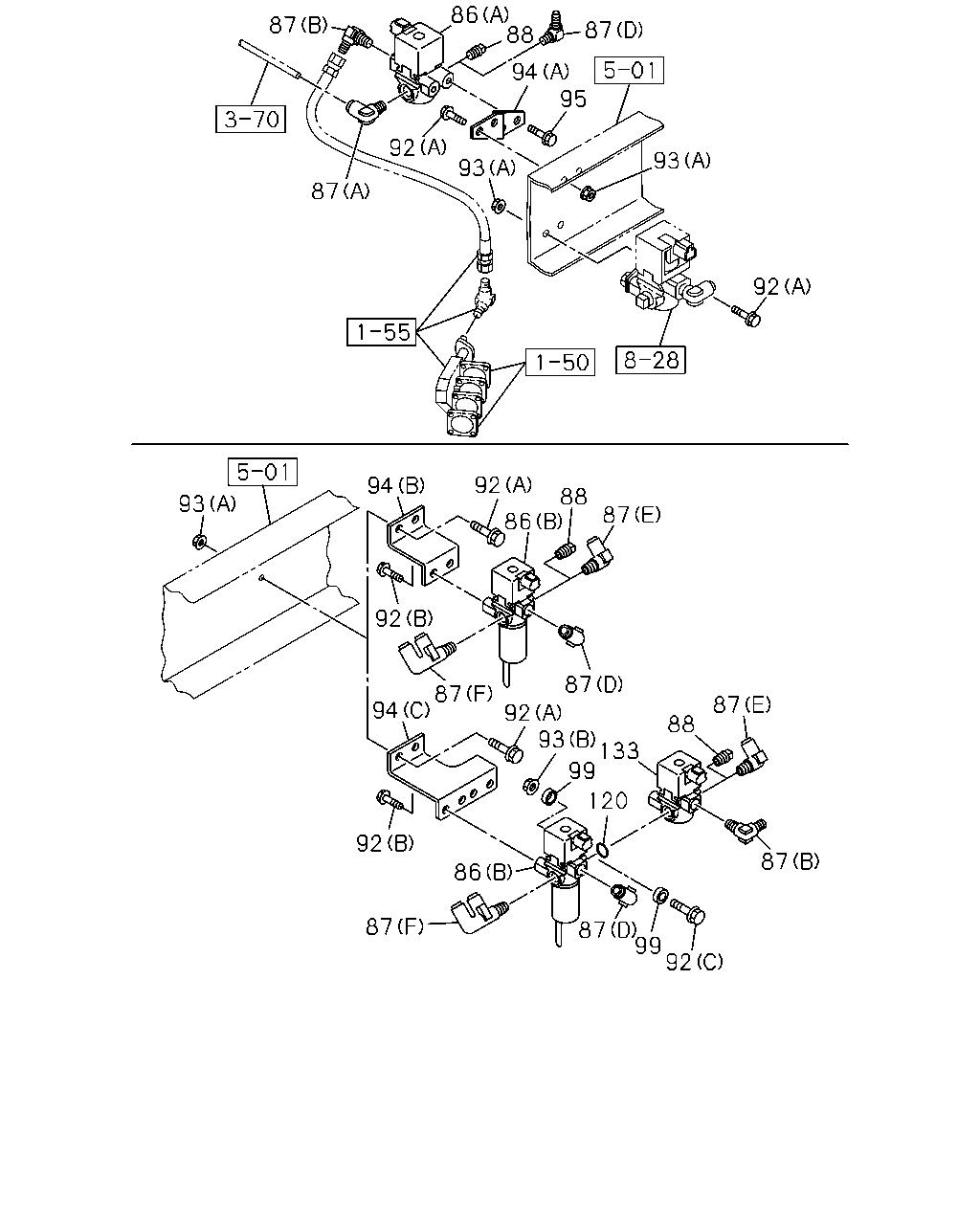

çizim 193589
87 86 88 87 94 95 93 92 93 92 87 93 94 92 86 88 87 92 87 94 87 92 93 133 88 87 99 120 87 87 99 92 87 86 92
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		1-82563-871-2 02 1 0810- ● ● ●
86 VALVE; MAG,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (B) 		8-97633-075-0 01 1 1112- ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0803-0807 ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 0808-0809 ● ● ●
86 VALVE; MAG,EXH BRK
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		1-82563-871-2 01 1 0810- ● ● ●
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0810- ● ● ●
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0810- ● ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (F) DIN13X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1112- ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112- ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0810-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0810-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1012- ● ● ●
87 CONNECTOR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0809 ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0901-0902 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0903-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0907-0907 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0908-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1012-1111 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-1211 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (D) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1212- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0803-0807 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0808-0808 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809-0809 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0810-0812 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0901-0906 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0907-1008 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ,EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1009-1011 ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> (A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1012- ● ● ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803-0807 ●
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0808-0809 ● ● ●
87 CONNECTOR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0810- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0803-0805 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0803-0805 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0806-0808 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0806-0808 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0809-0809 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0810-0812 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0901-0902 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0903-0906 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0907-0907 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 0908-1011 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 1012-1111 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A) PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-1211 ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
GVR WIDE CAB(GG****) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> BRAKE REGULATION ECE(TDV) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> ASSISTOR SHIFT CONTROL<WX8> EXC. BRAKE REGULATION ECE(TDV),VIN MODEL YEAR 2011<VZB> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
88 PLUG
FVR WIDE SGL CAB(FG****) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1212- ● ● ●
92 BOLT; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112- ● ●
92 BOLT; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0803-0809 ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0810-1008 ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1011 ● ● ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ●
92 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB> (A) M8X30 FLANGE 		0-28650-830-0 02 1 1012- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0803-0809 ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0810- ● ● ●
93 NUT; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112- ● ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0803-0807 ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0803-0807 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0808-0809 ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-1011 ● ● ●
93 NUT; MAG VLV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-1011 ● ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
93 NUT; MAG VLV
GVR WIDE CAB(GG****) (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
93 NUT; MAG VLV
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ●
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47471-374-1 01 1 0803-0809 ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		1-47471-374-1 01 1 0810-1004 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		8-98154-633-0 01 1 1005-1111 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
FVR WIDE SGL CAB(FG****) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		8-98154-633-0 01 1 1112- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0803-0809 ●
94 BRACKET; MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-98057-863-0 01 1 0810- ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0807 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0808-0809 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE 		0-28650-820-0 02 1 0810- ● ● ●
99 WASHER; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112- ● ●
120 GASKET; MAG VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112- ● ●
133 VALVE; MAG,PTO CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
