Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#6794) — 408 parça

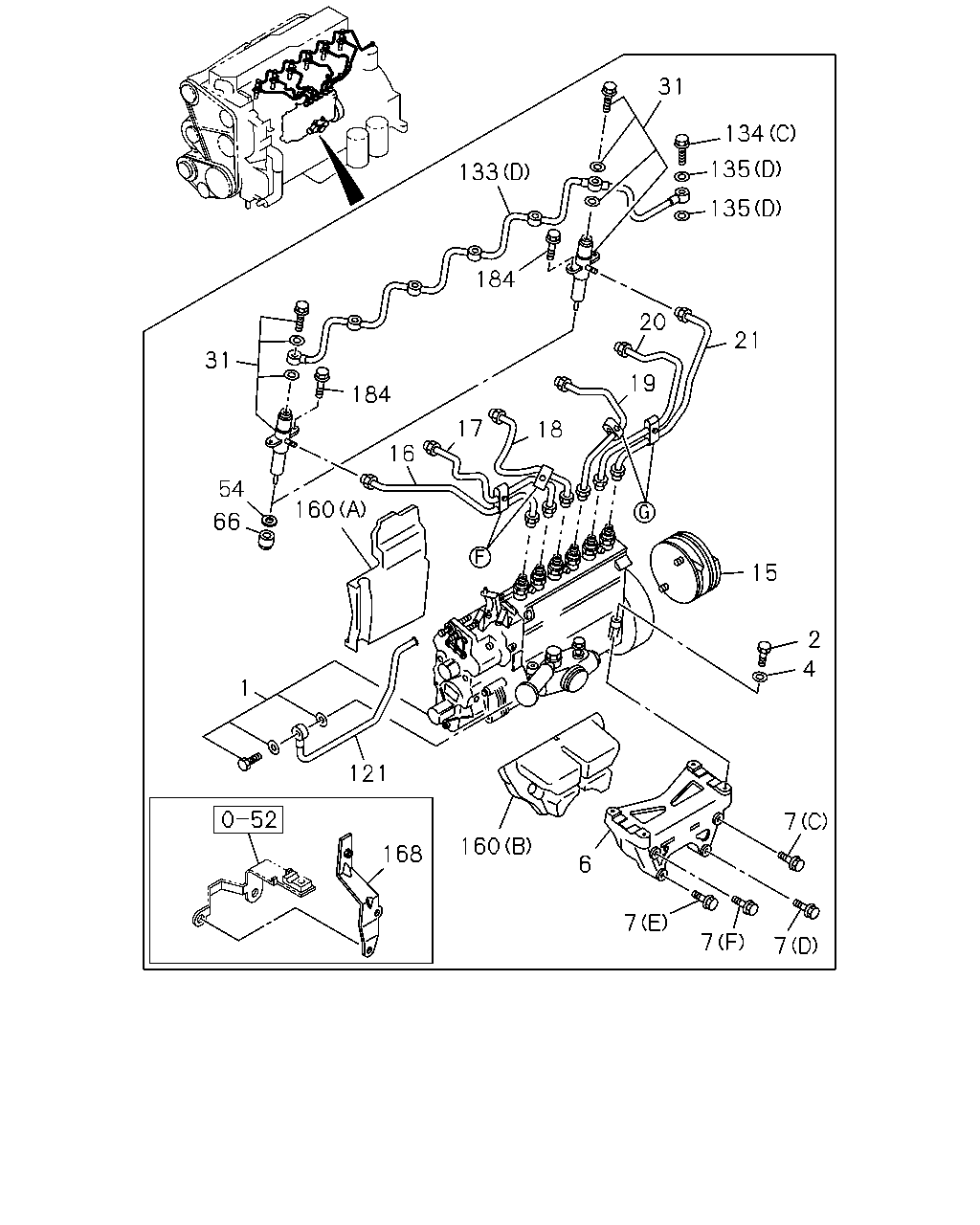

31 134 135 133 135 184 20 21 31 19 184 17 18 16 54 160 66 15 2 4 1 121 7 160 168 6 7 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-439-0	01	1	9806-9911	●
1	PUMP ASM; INJ	8-94392-714-6	01	1	9912-		●
1	PUMP ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>,INJ PUMP Q SET SPECIAL +5%Q(T1A),OVERHEAD COOLING SYSTEMW/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-977-4	01	1	9807-9911			●
1	PUMP ASM; INJ INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-975-3	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-2	01	1	9806-9806			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-4	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-976-3	01	1	9807-9911			●
1	PUMP ASM; INJ EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-2	01	1	9806-9806			●
1	PUMP ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-4	01	1	9807-9911			●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9806-9911	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9912-0512		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9806-9911			●
4	WASHER; INJ PUMP OR ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9806-9911			●
4	WASHER; INJ PUMP ID=8.5 KAWASAKI	9-09851-983-0	04	1	9806-9911			●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	9806-9911	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	9806-9911	●
7	BOLT; INJ PUMP BRKT (A) M10X100 FLANGE	0-28181-000-0	02	1	9912-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	9806-9911	●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28181-060-0	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28181-060-0	03	1	9912-0512		●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (D) M10X80 FLANGE	0-28181-080-0	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (E) M10X75 FLANGE	8-94399-669-1	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (F) M10X55 FLANGE	8-94399-863-1	01	1	9806-9911			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	9806-9911	●
15	COUPLING ASM; INJ PUMP DENSO	8-94391-467-0	01	1	9912-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9806-9911			●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	9806-9911	●
16	PIPE; INJ NO.1	8-94390-230-6	01	1	9912-		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9806-9806			●
16	PIPE; INJ NO.1 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-845-1	01	1	9807-9911			●
16	PIPE; INJ NO.1 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-007-2	01	1	9807-9911			●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	9806-9911	●
17	PIPE; INJ NO.2	8-94390-231-6	01	1	9912-		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9806-9806			●
17	PIPE; INJ NO.2 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-846-1	01	1	9807-9911			●
17	PIPE; INJ NO.2 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-008-3	01	1	9807-9911			●
18	PIPE; INJ NO.3	8-94391-693-0	01	1	9806-9911	●
18	PIPE; INJ NO.3	8-94390-232-6	01	1	9912-		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9806-9806			●
18	PIPE; INJ NO.3 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-897-1	01	1	9807-9911			●
18	PIPE; INJ NO.3 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-009-3	01	1	9807-9911			●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	9806-9911	●
19	PIPE; INJ NO.4	8-94390-233-6	01	1	9912-		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9806-9806			●
19	PIPE; INJ NO.4 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-145-0	01	1	9807-9911			●
19	PIPE; INJ NO.4 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-010-4	01	1	9807-9911			●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	9806-9911	●
20	PIPE; INJ NO.5	8-94390-234-6	01	1	9912-		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9806-9806			●
20	PIPE; INJ NO.5 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-146-0	01	1	9807-9911			●
20	PIPE; INJ NO.5 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-011-2	01	1	9807-9911			●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	9806-9911	●
21	PIPE; INJ NO.6	8-94390-235-6	01	1	9912-		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9806-9806			●
21	PIPE; INJ NO.6 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-147-0	01	1	9807-9911			●
21	PIPE; INJ NO.6 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-494-3	01	1	9807-9911			●
31	NOZZLE ASM; INJ	8-94392-261-4	06	1	9912-		●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	9806-9911	●
31	NOZZLE ASM; INJ	8-94390-499-0	06	1	9806-9806			●
31	NOZZLE ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-499-1	06	1	9807-9911			●
31	NOZZLE ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-511-2	06	1	9807-9911			●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9806-9911			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 H=4.6	8-94391-472-0	06	1	9806-9911	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 H=8.1	1-15315-013-1	06	1	9912-0006		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 H=8.1	1-15315-013-1	06	1	9806-9911			●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94391-138-0	01	1	9806-9911	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97600-056-0	01	1	9912-0504		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97608-773-0	01	1	0505-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-229-0	01	1	9806-9911			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	8-94390-071-0	01	1	9806-9911	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	9912-		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	8-94395-970-0	01	1	9806-9911			●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94391-356-1	01	1	9912-		●
134	BOLT; JOINT,LEAK OFF PIPE (C) M8X18 EYE BOLT	1-09675-037-1	01	1	9806-9911			●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE BOLT	1-09675-037-1	06	1	9912-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	9912-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	13	1	9806-9911	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9912-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.2 OD=13.2	1-09630-082-0	02	1	9806-9911			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	9912-		●
160	SPACER; INJ PUMP (A)	8-94390-169-0	01	1	9806-9911			●
160	SPACER; INJ PUMP (B)	8-94395-673-1	01	1	9806-9911			●
168	BRACKET; FUEL PIPE	8-94390-011-0	01	1	9806-9911			●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	9806-9911			●

31 154 52 287 288 211 290 199 199 288 289 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	8-94392-261-4	06	1	9912-		●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	9806-9911	●
31	NOZZLE ASM; INJ	8-94390-499-0	06	1	9806-9806			●
31	NOZZLE ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-499-1	06	1	9807-9911			●
31	NOZZLE ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-511-2	06	1	9807-9911			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	9912-		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	9912-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97602-218-0	02	1	9912-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-15619-501-0	02	1	9912-		●
211	RAIL ASM; COMMON	8-94392-863-0	01	1	9912-0101		●
211	RAIL ASM; COMMON	8-97601-512-2	01	1	0102-		●
216	BOLT; EYE (A)	8-97351-388-0	01	1	9912-0101		●
216	BOLT; EYE (A)	8-97602-173-0	01	1	0102-		●
216	BOLT; EYE (B)	5-15759-003-0	01	1	9912-		●
287	DAMPER; FUEL FLOW	8-97601-514-0	06	1	9912-		●
288	GASKET ID=11 OD=16.3	1-15641-046-0	07	1	9912-		●
289	LIMITER; FUEL PRESS	1-15641-047-1	01	1	9912-0101		●
289	LIMITER; FUEL PRESS	8-97601-515-0	01	1	0102-0110		●
289	LIMITER; FUEL PRESS	8-97602-325-0	01	1	0111-		●
290	SENSOR; PRESS	1-80220-012-0	01	1	9912-		●

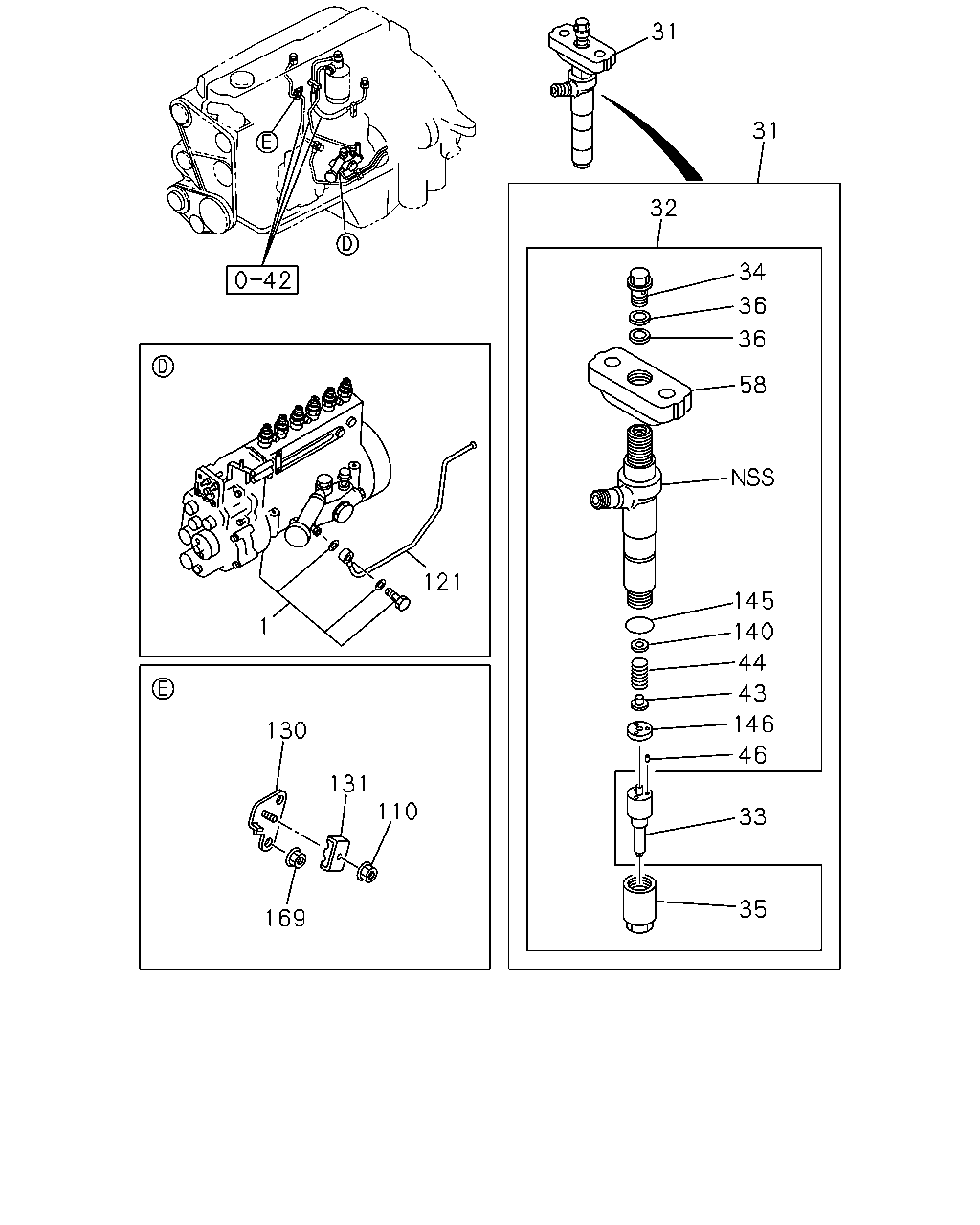

31 31 32 34 36 36 58 121 145 1 140 44 43 146 130 46 131 110 33 35 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-439-0	01	1	9806-9911	●
1	PUMP ASM; INJ	8-94392-714-6	01	1	9912-		●
1	PUMP ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>,INJ PUMP Q SET SPECIAL +5%Q(T1A),OVERHEAD COOLING SYSTEMW/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-977-4	01	1	9807-9911			●
1	PUMP ASM; INJ INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-975-3	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-2	01	1	9806-9806			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-4	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-976-3	01	1	9807-9911			●
1	PUMP ASM; INJ EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-2	01	1	9806-9806			●
1	PUMP ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-4	01	1	9807-9911			●
31	NOZZLE ASM; INJ	8-94392-261-4	06	1	9912-		●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	9806-9911	●
31	NOZZLE ASM; INJ	8-94390-499-0	06	1	9806-9806			●
31	NOZZLE ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-499-1	06	1	9807-9911			●
31	NOZZLE ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-511-2	06	1	9807-9911			●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	9806-9911	●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9806-9911			●
33	NOZZLE; INJ	8-94394-699-0	06	1	9806-9911	●
33	NOZZLE; INJ	8-94390-535-0	06	1	9806-9806			●
33	NOZZLE; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-535-0	06	1	9807-9911			●
33	NOZZLE; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-383-0	06	1	9807-9911			●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9806-9911	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9806-9911	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9806-9911			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9806-9911	●		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	9806-9911	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9806-9911	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9806-9911			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	9806-9911	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	9806-9911	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9806-9911	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94391-138-0	01	1	9806-9911	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97600-056-0	01	1	9912-0504		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97608-773-0	01	1	0505-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-229-0	01	1	9806-9911			●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	9806-9911	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9806-9911	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9806-9911	●
145	GASKET; RET NUT	8-94128-915-0	06	1	9806-9911	●
146	SPACER; NOZZLE	1-15339-095-0	06	1	9806-9911	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911	●

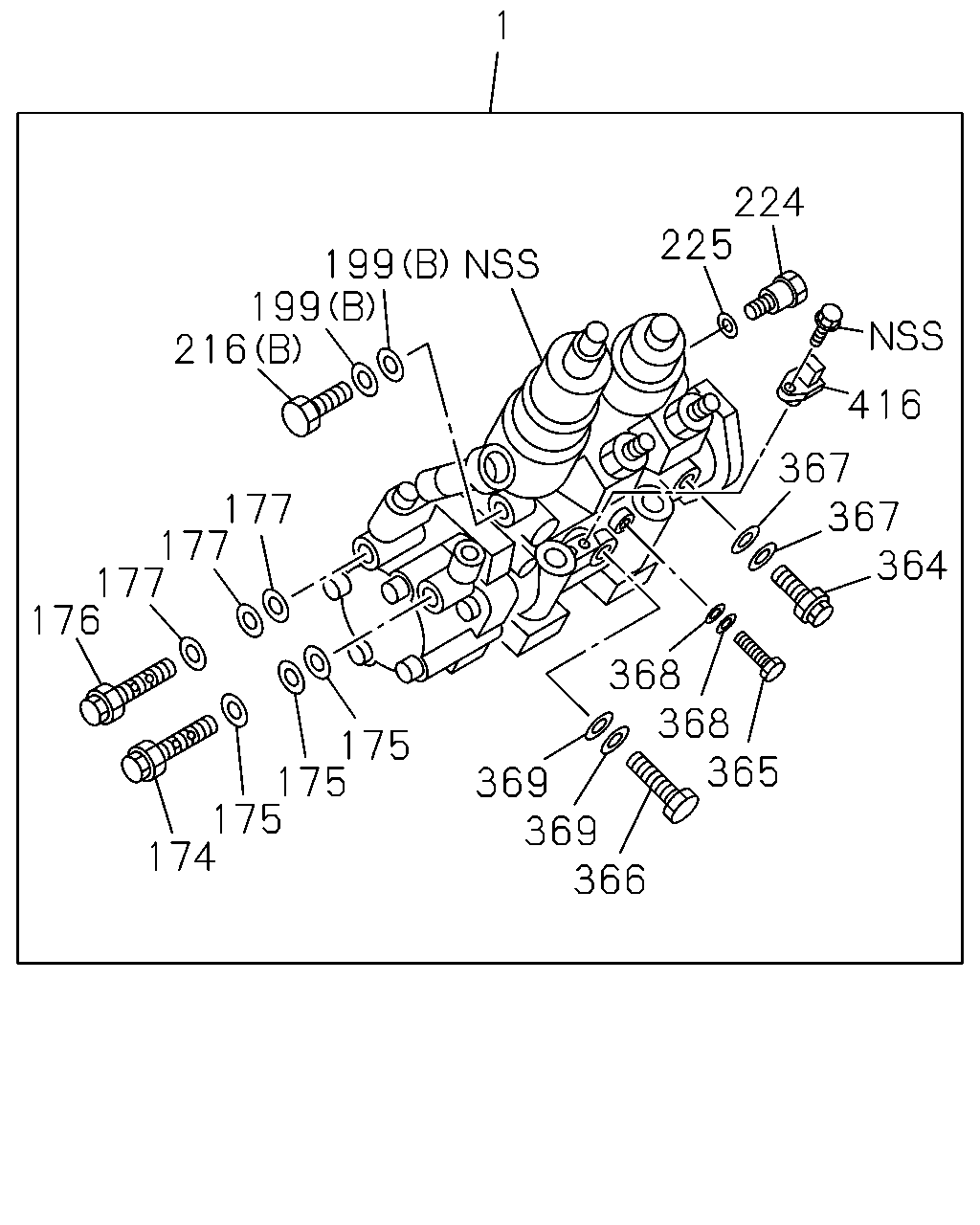

1 224 225 199 216 416 367 367 364 177 177 177 176 368 368 365 175 175 175 174 369 369 366 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-439-0	01	1	9806-9911	●
1	PUMP ASM; INJ	8-94392-714-6	01	1	9912-		●
1	PUMP ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>,INJ PUMP Q SET SPECIAL +5%Q(T1A),OVERHEAD COOLING SYSTEMW/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-977-4	01	1	9807-9911			●
1	PUMP ASM; INJ INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-975-3	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-2	01	1	9806-9806			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-4	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-976-3	01	1	9807-9911			●
1	PUMP ASM; INJ EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-2	01	1	9806-9806			●
1	PUMP ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-4	01	1	9807-9911			●
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	1-15619-499-0	01	1	9912-		●
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP	1-15619-501-0	03	1	9912-		●
176	BOLT; EYE,FEED PUMP	1-15619-498-0	01	1	9912-		●
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP	1-15619-501-0	03	1	9912-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97602-218-0	02	1	9912-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-15619-501-0	02	1	9912-		●
216	BOLT; EYE (A)	8-97351-388-0	01	1	9912-0101		●
216	BOLT; EYE (A)	8-97602-173-0	01	1	0102-		●
216	BOLT; EYE (B)	5-15759-003-0	01	1	9912-		●
224	PLUG; INJ PUMP	1-15619-500-0	01	1	9912-		●
225	GASKET; PLUG	1-15619-502-0	01	1	9912-		●
364	VALVE; OVER FLOW,INJ PUMP	1-15619-496-0	01	1	9912-		●
365	BOLT; EYE,OIL INLET	9-88130-088-0	01	1	9912-		●
366	BOLT; EYE,OIL OUTLET	1-15619-497-0	01	1	9912-		●
367	GASKET; VALVE,OVER FLOW	1-15619-501-0	02	1	9912-		●
368	GASKET; EYE BOLT,OIL INLET	1-15619-503-0	02	1	9912-		●
369	GASKET; EYE BOLT,OIL OUTLET	1-15619-504-0	02	1	9912-		●
416	SENSOR; POSITION,PUMP	8-97174-899-0	01	1	9912-		●

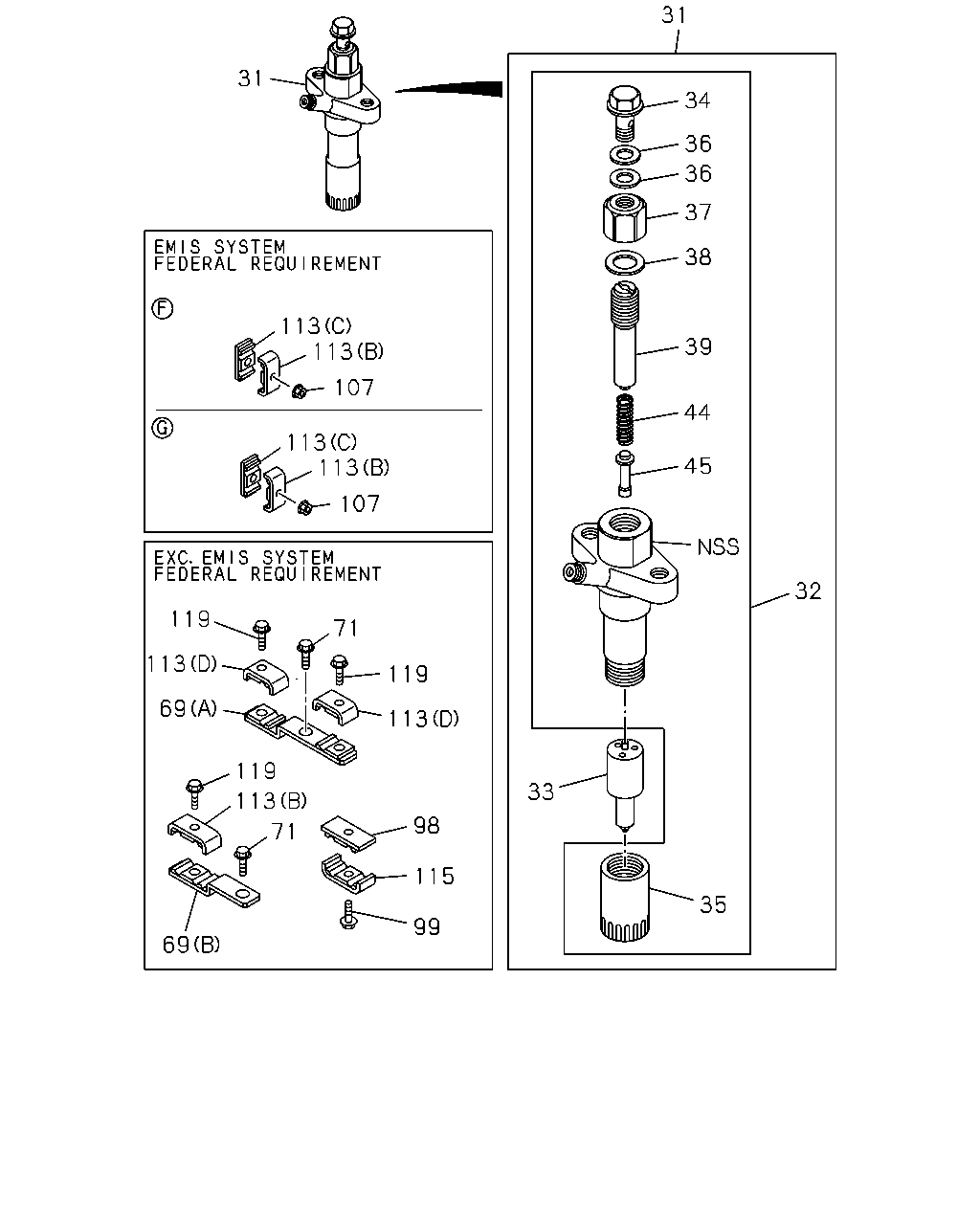

31 31 34 36 36 37 38 113 113 39 107 44 113 113 45 107 32 119 71 113 119 69 113 119 33 113 98 71 115 35 99 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	8-94392-261-4	06	1	9912-		●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	9806-9911	●
31	NOZZLE ASM; INJ	8-94390-499-0	06	1	9806-9806			●
31	NOZZLE ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-499-1	06	1	9807-9911			●
31	NOZZLE ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-511-2	06	1	9807-9911			●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	9806-9911	●
32	HOLDER ASM; NOZZLE	8-94390-384-0	06	1	9806-9911			●
33	NOZZLE; INJ	8-94394-699-0	06	1	9806-9911	●
33	NOZZLE; INJ	8-94390-535-0	06	1	9806-9806			●
33	NOZZLE; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-535-0	06	1	9807-9911			●
33	NOZZLE; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-383-0	06	1	9807-9911			●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9806-9911	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9806-9911	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	9806-9911			●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9806-9911	●		●
37	NUT; CAP,NOZZLE HOLDER	1-15349-136-0	06	1	9806-9911			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9806-9911			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9806-9911			●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9806-9911	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9806-9911			●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9806-9911			●
69	BRACKET; INJ PIPE CLIP EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94396-086-0	01	1	9807-9911			●
69	BRACKET; INJ PIPE CLIP EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94396-087-0	01	1	9807-9911			●
71	BOLT; BRKT EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M8X12 FLANGE	0-28080-812-0	02	1	9807-9911			●
98	CLIP; "A",INJ PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94397-445-0	03	1	9807-9911			●
99	BOLT; CLIP,INJ,PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M6X22 FLANGE	8-94365-129-0	03	1	9807-9911			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	9806-9911	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	9806-9806			●
107	NUT; INJ PIPE CLIP EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M6 FLANGE	0-91150-106-0	04	1	9807-9911			●
113	CLIP; INJ PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94397-444-0	04	1	9807-9911			●
113	CLIP; INJ PIPE (A)	1-09701-132-0	10	1	9806-9911	●
113	CLIP; INJ PIPE (C)	8-94396-793-0	04	1	9806-9806			●
113	CLIP; INJ PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C)	8-94396-793-0	04	1	9807-9911			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	9806-9806			●
113	CLIP; INJ PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94397-444-0	01	1	9807-9911			●
113	CLIP; INJ PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D)	1-09701-091-0	02	1	9807-9911			●
115	CLIP; "B",INJ PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94397-444-0	03	1	9807-9911			●
119	BOLT; CLIP,INJ PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M6X22 FLANGE	0-28080-622-0	03	1	9807-9911			●

107 113 113 124 124 135 135 113 113 107 135 135 31 124 21 62 135 135 20 135 62 19 18 31 62 17 31 16 57 66 15 2 1 113 113 107 169 6 10 7 7 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-439-0	01	1	9806-9911	●
1	PUMP ASM; INJ	8-94392-714-6	01	1	9912-		●
1	PUMP ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>,INJ PUMP Q SET SPECIAL +5%Q(T1A),OVERHEAD COOLING SYSTEMW/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-977-4	01	1	9807-9911			●
1	PUMP ASM; INJ INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-975-3	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-2	01	1	9806-9806			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-4	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-976-3	01	1	9807-9911			●
1	PUMP ASM; INJ EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-2	01	1	9806-9806			●
1	PUMP ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-4	01	1	9807-9911			●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9806-9911	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9912-0512		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9806-9911			●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	9806-9911	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	9806-9911	●
7	BOLT; INJ PUMP BRKT (A) M10X100 FLANGE	0-28181-000-0	02	1	9912-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	9806-9911	●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28181-060-0	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28181-060-0	03	1	9912-0512		●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (D) M10X80 FLANGE	0-28181-080-0	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (E) M10X75 FLANGE	8-94399-669-1	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (F) M10X55 FLANGE	8-94399-863-1	01	1	9806-9911			●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9806-9911	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	9806-9911	●
15	COUPLING ASM; INJ PUMP DENSO	8-94391-467-0	01	1	9912-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9806-9911			●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	9806-9911	●
16	PIPE; INJ NO.1	8-94390-230-6	01	1	9912-		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9806-9806			●
16	PIPE; INJ NO.1 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-845-1	01	1	9807-9911			●
16	PIPE; INJ NO.1 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-007-2	01	1	9807-9911			●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	9806-9911	●
17	PIPE; INJ NO.2	8-94390-231-6	01	1	9912-		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9806-9806			●
17	PIPE; INJ NO.2 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-846-1	01	1	9807-9911			●
17	PIPE; INJ NO.2 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-008-3	01	1	9807-9911			●
18	PIPE; INJ NO.3	8-94391-693-0	01	1	9806-9911	●
18	PIPE; INJ NO.3	8-94390-232-6	01	1	9912-		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9806-9806			●
18	PIPE; INJ NO.3 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-897-1	01	1	9807-9911			●
18	PIPE; INJ NO.3 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-009-3	01	1	9807-9911			●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	9806-9911	●
19	PIPE; INJ NO.4	8-94390-233-6	01	1	9912-		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9806-9806			●
19	PIPE; INJ NO.4 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-145-0	01	1	9807-9911			●
19	PIPE; INJ NO.4 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-010-4	01	1	9807-9911			●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	9806-9911	●
20	PIPE; INJ NO.5	8-94390-234-6	01	1	9912-		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9806-9806			●
20	PIPE; INJ NO.5 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-146-0	01	1	9807-9911			●
20	PIPE; INJ NO.5 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-011-2	01	1	9807-9911			●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	9806-9911	●
21	PIPE; INJ NO.6	8-94390-235-6	01	1	9912-		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9806-9806			●
21	PIPE; INJ NO.6 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-147-0	01	1	9807-9911			●
21	PIPE; INJ NO.6 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-494-3	01	1	9807-9911			●
31	NOZZLE ASM; INJ	8-94392-261-4	06	1	9912-		●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	9806-9911	●
31	NOZZLE ASM; INJ	8-94390-499-0	06	1	9806-9806			●
31	NOZZLE ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-499-1	06	1	9807-9911			●
31	NOZZLE ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-511-2	06	1	9807-9911			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	9806-9911	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9806-9911	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 H=4.6	8-94391-472-0	06	1	9806-9911	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 H=8.1	1-15315-013-1	06	1	9912-0006		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 H=8.1	1-15315-013-1	06	1	9806-9911			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	9806-9911	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	9806-9806			●
107	NUT; INJ PIPE CLIP EMIS SYSTEM FEDERAL REQUIREMENT<NA5> M6 FLANGE	0-91150-106-0	04	1	9807-9911			●
113	CLIP; INJ PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94397-444-0	04	1	9807-9911			●
113	CLIP; INJ PIPE (A)	1-09701-132-0	10	1	9806-9911	●
113	CLIP; INJ PIPE (C)	8-94396-793-0	04	1	9806-9806			●
113	CLIP; INJ PIPE EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C)	8-94396-793-0	04	1	9807-9911			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	9806-9806			●
113	CLIP; INJ PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94397-444-0	01	1	9807-9911			●
113	CLIP; INJ PIPE EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (D)	1-09701-091-0	02	1	9807-9911			●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE BOLT	1-09675-037-1	05	1	9806-9911	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9806-9911	●
133	PIPE; INJ NOZZLE LEAK OFF (C)	8-94390-071-0	01	1	9806-9911	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	9912-		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	8-94395-970-0	01	1	9806-9911			●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94391-356-1	01	1	9912-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	13	1	9806-9911	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9912-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.2 OD=13.2	1-09630-082-0	02	1	9806-9911			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	9912-		●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9806-9911	●

134 135 135 133 134 135 61 135 134 21 133 20 19 135 213 94 15 212 16 18 17 31 210 211 66 212 210 1 2 121 213 212 5 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-439-0	01	1	9806-9911	●
1	PUMP ASM; INJ	8-94392-714-6	01	1	9912-		●
1	PUMP ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>,INJ PUMP Q SET SPECIAL +5%Q(T1A),OVERHEAD COOLING SYSTEMW/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-977-4	01	1	9807-9911			●
1	PUMP ASM; INJ INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>, OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-975-3	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-2	01	1	9806-9806			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-980-4	01	1	9807-9911			●
1	PUMP ASM; INJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-976-3	01	1	9807-9911			●
1	PUMP ASM; INJ EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-2	01	1	9806-9806			●
1	PUMP ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94395-979-4	01	1	9807-9911			●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9806-9911	●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	9912-0512		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9806-9911			●
5	BRACKET; INJ PUMP	8-94390-661-0	01	1	9912-		●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	9806-9911	●
7	BOLT; INJ PUMP BRKT (A) M10X100 FLANGE	0-28181-000-0	02	1	9912-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	9806-9911	●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28181-060-0	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28181-060-0	03	1	9912-0512		●
7	BOLT; INJ PUMP BRKT (C) M10X60 FLANGE	0-28151-060-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (D) M10X80 FLANGE	0-28181-080-0	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (E) M10X75 FLANGE	8-94399-669-1	01	1	9806-9911			●
7	BOLT; INJ PUMP BRKT (F) M10X55 FLANGE	8-94399-863-1	01	1	9806-9911			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	9806-9911	●
15	COUPLING ASM; INJ PUMP DENSO	8-94391-467-0	01	1	9912-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	9806-9911			●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	9806-9911	●
16	PIPE; INJ NO.1	8-94390-230-6	01	1	9912-		●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	9806-9806			●
16	PIPE; INJ NO.1 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-845-1	01	1	9807-9911			●
16	PIPE; INJ NO.1 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-007-2	01	1	9807-9911			●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	9806-9911	●
17	PIPE; INJ NO.2	8-94390-231-6	01	1	9912-		●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	9806-9806			●
17	PIPE; INJ NO.2 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-846-1	01	1	9807-9911			●
17	PIPE; INJ NO.2 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-008-3	01	1	9807-9911			●
18	PIPE; INJ NO.3	8-94391-693-0	01	1	9806-9911	●
18	PIPE; INJ NO.3	8-94390-232-6	01	1	9912-		●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	9806-9806			●
18	PIPE; INJ NO.3 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94393-897-1	01	1	9807-9911			●
18	PIPE; INJ NO.3 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-009-3	01	1	9807-9911			●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	9806-9911	●
19	PIPE; INJ NO.4	8-94390-233-6	01	1	9912-		●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	9806-9806			●
19	PIPE; INJ NO.4 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-145-0	01	1	9807-9911			●
19	PIPE; INJ NO.4 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-010-4	01	1	9807-9911			●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	9806-9911	●
20	PIPE; INJ NO.5	8-94390-234-6	01	1	9912-		●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	9806-9806			●
20	PIPE; INJ NO.5 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-146-0	01	1	9807-9911			●
20	PIPE; INJ NO.5 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-011-2	01	1	9807-9911			●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	9806-9911	●
21	PIPE; INJ NO.6	8-94390-235-6	01	1	9912-		●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	9806-9806			●
21	PIPE; INJ NO.6 EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94394-147-0	01	1	9807-9911			●
21	PIPE; INJ NO.6 EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94396-494-3	01	1	9807-9911			●
31	NOZZLE ASM; INJ	8-94392-261-4	06	1	9912-		●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	9806-9911	●
31	NOZZLE ASM; INJ	8-94390-499-0	06	1	9806-9806			●
31	NOZZLE ASM; INJ EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94390-499-1	06	1	9807-9911			●
31	NOZZLE ASM; INJ EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5>	8-94395-511-2	06	1	9807-9911			●
61	BOLT; CLAMP NOZZLE HOLDER	8-94390-989-1	06	1	9912-0412		●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	06	1	0501-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 H=4.6	8-94391-472-0	06	1	9806-9911	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 H=8.1	1-15315-013-1	06	1	9912-0006		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 H=8.1	1-15315-013-1	06	1	9806-9911			●
94	BRACKET; INJ NOZZLE	8-94390-988-0	06	1	9912-0410		●
94	BRACKET; INJ NOZZLE	8-97306-074-1	06	1	0411-0606		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	0607-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94391-138-0	01	1	9806-9911	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97600-056-0	01	1	9912-0504		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-97608-773-0	01	1	0505-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-229-0	01	1	9806-9911			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	8-94390-071-0	01	1	9806-9911	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	9912-		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	8-94395-970-0	01	1	9806-9911			●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94391-356-1	01	1	9912-		●
134	BOLT; JOINT,LEAK OFF PIPE (C) M8X18 EYE BOLT	1-09675-037-1	01	1	9806-9911			●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE BOLT	1-09675-037-1	06	1	9912-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	9912-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	13	1	9806-9911	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9912-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=8.2 OD=13.2	1-09630-082-0	02	1	9806-9911			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	9912-		●
210	PIPE; INJ,C/R (A)	8-97600-090-1	01	1	9912-		●
210	PIPE; INJ,C/R (B)	8-97600-091-1	01	1	9912-		●
211	RAIL ASM; COMMON	8-94392-863-0	01	1	9912-0101		●
211	RAIL ASM; COMMON	8-97601-512-2	01	1	0102-		●
212	BOLT; RAIL ASM (A) M8X130 FLANGE	0-28085-813-0	02	1	9912-0512		●
212	BOLT; RAIL ASM (A) M8X130 FLANGE	0-28055-813-0	02	1	0601-		●
212	BOLT; RAIL ASM (B) M8X130	1-09000-200-1	02	1	9912-		●
213	WASHER; RAIL ASM ID=8.4 OD=18	9-09160-608-0	02	1	9912-0605		●
213	WASHER; RAIL ASM ID=8.4 OD=18	0-91610-608-0	02	1	0606-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
