24 |
CLIP; FUEL HOSE
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1010-1107 |
● |
|
| |
24 |
CLIP; FUEL HOSE
ID=20 L=70
|
1-09701-033-0 |
02 |
1 |
0908-0910 |
|
● |
| |
24 |
CLIP; FUEL HOSE
ID=20 L=70
|
1-09701-033-0 |
03 |
1 |
0911- |
|
● |
| |
24 |
CLIP; FUEL HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
ID=20 L=70
|
1-09701-033-0 |
01 |
1 |
0810-0905 |
● |
|
| |
24 |
CLIP; FUEL HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
ID=20 L=70
|
1-09701-033-0 |
01 |
1 |
0906- |
● |
|
| |
24 |
CLIP; FUEL HOSE
EURO2 SPECIFICATION<NT2>
FUEL TANK 400L<SDH>
EXC. BRAKE REGULATION ECE(TDV)
ID=20 L=70
|
1-09701-033-0 |
01 |
1 |
0906- |
● |
|
| |
29 |
HOSE; FUEL
FUEL TANK 400L<SDH>
(C)
L=60
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0810-0907 |
● |
|
| |
29 |
HOSE; FUEL
FUEL TANK 400L<SDH>
(C)
L=60
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0908- |
● |
|
| |
29 |
HOSE; FUEL
(C)
L=60
SERVICED BY L=3000
|
0-01259-300-0 |
01 |
1 |
0908- |
|
● |
| |
29 |
HOSE; FUEL
(A)
|
8-98078-196-2 |
01 |
1 |
0803-0907 |
● |
|
| |
29 |
HOSE; FUEL
(A)
|
8-98078-196-2 |
01 |
1 |
0908- |
● |
● |
| |
29 |
HOSE; FUEL
(B)
|
8-98078-197-1 |
01 |
1 |
0803-0907 |
● |
|
| |
29 |
HOSE; FUEL
(B)
|
8-98078-197-1 |
01 |
1 |
0908- |
● |
● |
| |
39 |
PIPE; FUEL
EURO2 SPECIFICATION<NT2>
(A)
|
8-97358-699-0 |
02 |
1 |
0809-0809 |
● |
|
| |
39 |
PIPE; FUEL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
|
8-97358-699-0 |
02 |
1 |
0810-0903 |
● |
|
| |
39 |
PIPE; FUEL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
NPTF3/8-18 OD=10
|
8-98122-953-0 |
02 |
1 |
0904-0907 |
● |
|
| |
39 |
PIPE; FUEL
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
NPTF3/8-18 OD=10
|
8-98122-953-0 |
02 |
1 |
0908- |
● |
|
| |
39 |
PIPE; FUEL
(A)
NPTF3/8-18 OD=10
|
8-98122-953-0 |
02 |
1 |
0908- |
|
● |
| |
39 |
PIPE; FUEL
FUEL TANK 400L<SDH>
(B)
|
8-98009-438-1 |
01 |
1 |
0810-0907 |
● |
|
| |
39 |
PIPE; FUEL
FUEL TANK 400L<SDH>
(B)
|
8-98009-438-1 |
01 |
1 |
0908- |
● |
|
| |
39 |
PIPE; FUEL
(B)
|
8-98009-438-1 |
01 |
1 |
0908- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(F)
ID=14X29 H=30 L=25
|
1-09701-101-0 |
01 |
1 |
1108- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
1010- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
1010- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
1010- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0809-0809 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0810-0907 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0810-0907 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0908-1009 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0908-1009 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0908-1009 |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
1010- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 200L FRAME SIDE<N20>
(E)
L=250
|
5-09707-030-1 |
03 |
1 |
0809- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
0809-1009 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
1010- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
1010- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
(C)
ID=14
|
1-09704-102-0 |
04 |
1 |
0809- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
02 |
1 |
0809- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
(A)
ID=13
|
8-94238-571-0 |
08 |
1 |
0809- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
0803-0808 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
0809-0809 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
0810-0907 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
0908-1009 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
02 |
1 |
0908-1009 |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
1010- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
(B)
ID=11 & 9 L=17.5 & 17.5
|
1-09700-747-0 |
03 |
1 |
1010- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
04 |
1 |
0803-0808 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
0809-0809 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
0810-0907 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
0908- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(C)
ID=14
|
1-09704-102-0 |
06 |
1 |
0908- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
02 |
1 |
0803-0803 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(E)
L=250
|
5-09707-030-1 |
03 |
1 |
0804-0808 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
0809-0809 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
0810-1009 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(E)
L=250
|
5-09707-030-1 |
04 |
1 |
1010-1107 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(E)
L=250
|
5-09707-030-1 |
05 |
1 |
1108- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
0803-0907 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(D)
ID=16
|
8-94238-568-0 |
02 |
1 |
0908- |
● |
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCC ENG(81L)
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0803-0808 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0809-0809 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0809-0809 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0810-0907 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0810-0907 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0908- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0908- |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
(A)
ID=13
|
8-94238-571-0 |
06 |
1 |
0908- |
|
● |
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
0809-0809 |
● |
|
| |
41 |
CLIP; FUEL PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(E)
L=250
|
5-09707-030-1 |
01 |
1 |
0810- |
● |
|
| |
47 |
PIPE; FUEL,RETURN
IRAN EQUIPMENT(D8T)
(A)
L=688
|
8-98129-921-0 |
01 |
1 |
1010- |
● |
|
| |
47 |
PIPE; FUEL,RETURN
(A)
L=657
SERVICED BY L=660
|
1-47428-842-0 |
01 |
1 |
0908- |
|
● |
| |
47 |
PIPE; FUEL,RETURN
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
(B)
|
8-98127-647-0 |
01 |
1 |
0809- |
● |
|
| |
47 |
PIPE; FUEL,RETURN
EURO2 SPECIFICATION<NT2>
(A)
L=539
|
8-98117-709-0 |
01 |
1 |
0809-0809 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
L=539
|
8-98117-709-0 |
01 |
1 |
0810-1009 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
(A)
L=539
|
8-98117-709-0 |
01 |
1 |
1010- |
● |
|
| |
47 |
PIPE; FUEL,RETURN
(A)
L=717
|
8-98086-241-0 |
01 |
1 |
0803-0808 |
● |
|
| |
47 |
PIPE; FUEL,RETURN
EURO4 SPECIFICATION<NT4>
(A)
L=717
|
8-98086-241-0 |
01 |
1 |
0809- |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1010-1107 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1010-1107 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1010-1107 |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 200L FRAME SIDE<N20>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
03 |
1 |
0809- |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0803-0803 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
03 |
1 |
0804-0808 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0809-0809 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0810-0907 |
● |
|
| |
55 |

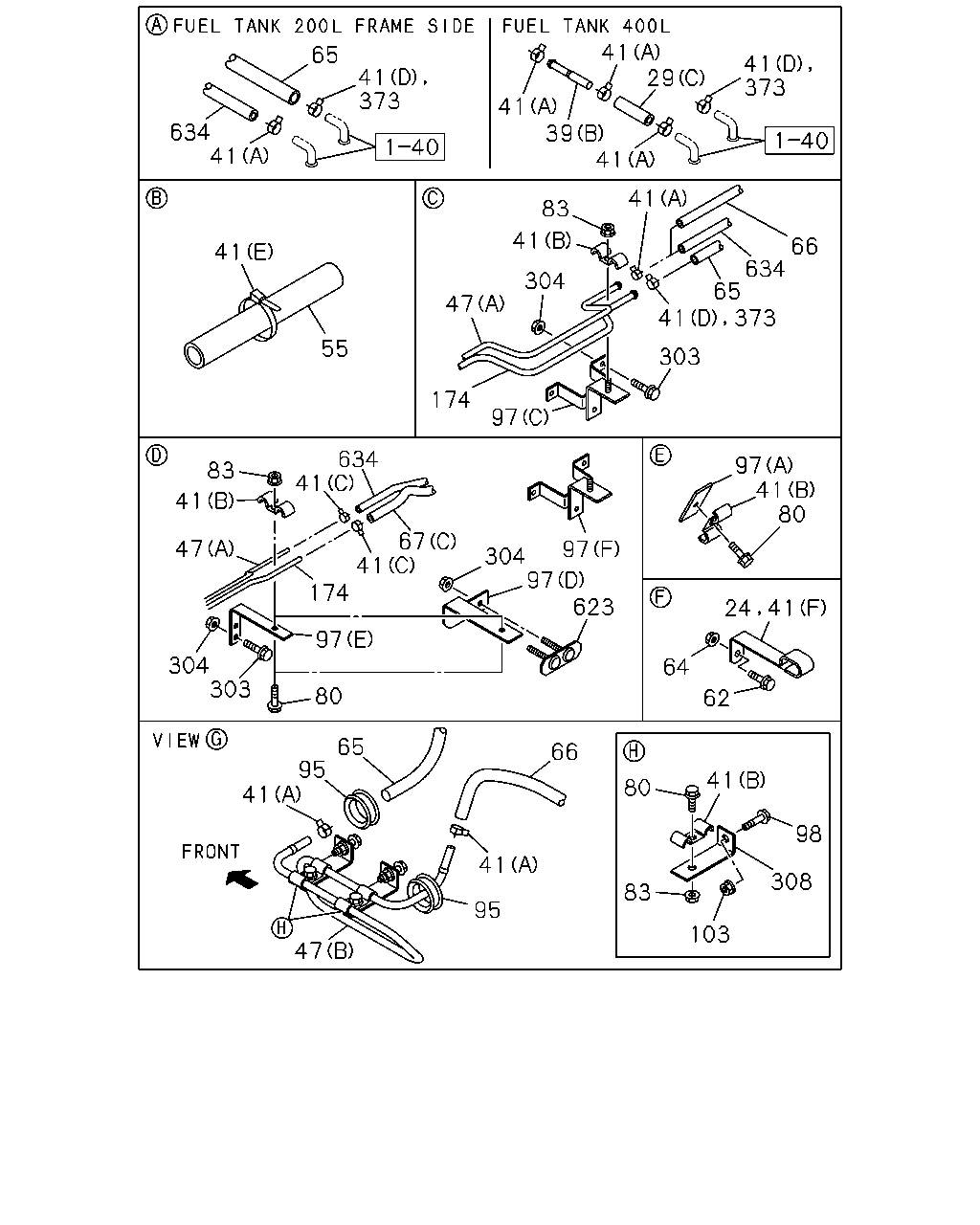

COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0810-0907 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0908-1009 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0908-1009 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
0908-1009 |
|
● |
| |
55 |
COVER; PIPE,FUEL TANK
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
04 |
1 |
1010-1107 |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1108- |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1108- |
● |
|
| |
55 |
COVER; PIPE,FUEL TANK
L=150
SERVICED BY L=1300
|
1-09360-677-1 |
02 |
1 |
1108- |
|
● |
| |
62 |
BOLT; CLIP FIX
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0908-0910 |
|
● |
| |
62 |
BOLT; CLIP FIX
M8X30 FLANGE
|
0-28650-830-0 |
03 |
1 |
0911- |
|
● |
| |
62 |
BOLT; CLIP FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0810-0905 |
● |
|
| |
62 |
BOLT; CLIP FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0906-1009 |
● |
|
| |
62 |
BOLT; CLIP FIX
EURO2 SPECIFICATION<NT2>
FUEL TANK 400L<SDH>
EXC. BRAKE REGULATION ECE(TDV)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0906-1009 |
● |
|
| |
62 |
BOLT; CLIP FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1010-1107 |
● |
|
| |
62 |
BOLT; CLIP FIX
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1010-1107 |
● |
|
| |
62 |
BOLT; CLIP FIX
EURO2 SPECIFICATION<NT2>
FUEL TANK 400L<SDH>
EXC. IRAN EQUIPMENT(D8T),BRAKE REGULATION ECE(TDV)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1010-1107 |
● |
|
| |
62 |
BOLT; CLIP FIX
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1108- |
● |
|
| |
62 |
BOLT; CLIP FIX
EURO2 SPECIFICATION<NT2>
FUEL TANK 400L<SDH>
EXC. IRAN EQUIPMENT(D8T),BRAKE REGULATION ECE(TDV)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1108- |
● |
|
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908-0910 |
|
● |
| |
64 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0911- |
|
● |
| |
64 |
NUT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0810-0905 |
● |
|
| |
64 |
NUT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0906- |
● |
|
| |
64 |
NUT; CLIP
EURO2 SPECIFICATION<NT2>
FUEL TANK 400L<SDH>
EXC. BRAKE REGULATION ECE(TDV)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0906- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=1050
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0810- |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
L=860
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0803-0808 |
● |
|
| |
65 |
HOSE; FUEL,DELIVERY PIPE
EURO4 SPECIFICATION<NT4>
FUEL TANK 200L FRAME SIDE<N20>
L=860
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0809- |
● |
|
| |
66 |
HOSE; FUEL,RETURN PIPE
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
L=150
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0809- |
● |
|
| |

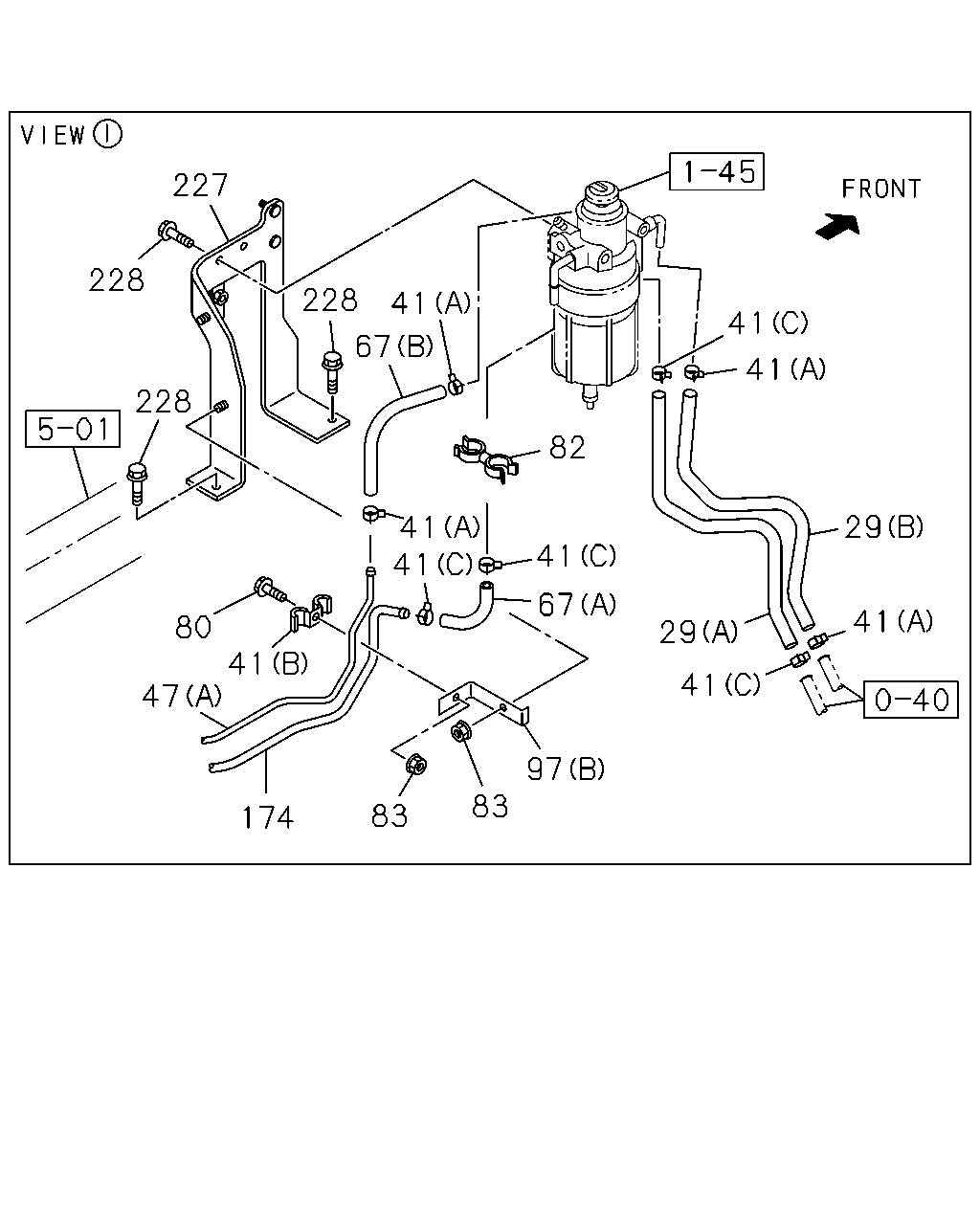

67 |
HOSE; FUEL,DELIVERY
(A)
L=110
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0803-0907 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
(A)
L=110
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
0908- |
● |
● |
| |
67 |
HOSE; FUEL,DELIVERY
(B)
L=210
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0803-0907 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
(B)
L=210
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0908- |
● |
● |
| |
67 |
HOSE; FUEL,DELIVERY
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(C)
L=300
|
8-98128-210-0 |
01 |
1 |
0809-0910 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(C)
L=300
|
8-98157-878-0 |
01 |
1 |
0911-1009 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
(C)
L=300
|
8-98157-878-0 |
01 |
1 |
1010- |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
FUEL TANK 400L<SDH>
(D)
L=960
|
8-98128-785-0 |
01 |
1 |
0810-0910 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
FUEL TANK 400L<SDH>
(D)
L=960
|
8-98157-880-0 |
01 |
1 |
0911- |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20>
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(D)
L=900
|
8-98128-211-0 |
01 |
1 |
0809-0910 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20>
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(D)
L=900
|
8-98157-879-0 |
01 |
1 |
0911-1010 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20>
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
(D)
L=900
|
8-98157-879-0 |
01 |
1 |
1011- |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
(C)
|
8-98141-593-0 |
01 |
1 |
0908-0910 |
|
● |
| |
67 |
HOSE; FUEL,DELIVERY
(C)
|
8-98157-883-0 |
01 |
1 |
0911- |
|
● |
| |
67 |
HOSE; FUEL,DELIVERY
(D)
|
8-98141-595-0 |
01 |
1 |
0908-0910 |
|
● |
| |
67 |
HOSE; FUEL,DELIVERY
(D)
|
8-98157-884-0 |
01 |
1 |
0911- |
|
● |
| |
67 |
HOSE; FUEL,DELIVERY
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(A)
L=760
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1010-1107 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(C)
L=710
|
8-98186-527-0 |
01 |
1 |
1108- |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(A)
L=1300
SERVICED BY L=3000
|
0-01260-300-0 |
01 |
1 |
1010-1107 |
● |
|
| |
67 |
HOSE; FUEL,DELIVERY
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(D)
L=1380
|
8-98186-528-0 |
01 |
1 |
1108- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1108- |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0803-0808 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0809-0907 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0809-0907 |
● |
|
| |
80 |
BOLT; CLIP,FUEL TANK
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0908- |
● |
● |
| |
80 |
BOLT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0908- |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0809-1009 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1010- |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1010- |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1010- |
|
● |
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0803-0808 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809-0809 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809-0809 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0810-0907 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0810-0907 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908-1009 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908-1009 |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0908-1009 |
|
● |
| |
83 |
NUT; CLIP,FUEL TANK
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1010- |
● |
|
| |
83 |
NUT; CLIP,FUEL TANK
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1010- |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
ID=28 OD=35 T=25
|
1-09332-011-1 |
02 |
1 |
0809- |
● |
|
| |
95 |
BUSHING; PIPE,FUEL TANK
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
ID=28 OD=35 T=17
|
9-09956-256-2 |
02 |
1 |
0809- |
● |
|
| |
97 |
BRACKET; CLIP
IRAN EQUIPMENT(D8T)
(F)
|
8-98129-922-0 |
01 |
1 |
1010- |
● |
|
| |
97 |
BRACKET; CLIP
(E)
|
8-98117-696-0 |
01 |
1 |
0908- |
|
● |
| |
97 |
BRACKET; CLIP
MZX6P M/T(RSW),MLD6W M/T(Y2C)
EURO2 SPECIFICATION<NT2>
(E)
|
8-98117-696-0 |
01 |
1 |
0809-0809 |
● |
|
| |
97 |
BRACKET; CLIP
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)
EURO2 SPECIFICATION<NT2>
(E)
|
8-98117-696-0 |
01 |
1 |
0810-0810 |
● |
|
| |
97 |
BRACKET; CLIP
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(E)
|
8-98117-696-0 |
01 |
1 |
0810-0812 |
● |
|
| |
97 |
BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
EURO2 SPECIFICATION<NT2>
(D)
|
8-98126-612-0 |
01 |
1 |
0809-0809 |
● |
|
| |
97 |
BRACKET; CLIP
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
EURO2 SPECIFICATION<NT2>
(D)
|
8-98126-612-0 |
01 |
1 |
0810-0810 |
● |
|
| |
97 |
BRACKET; CLIP
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(D)
|
8-98126-612-0 |
01 |
1 |
0810-0812 |
● |
|
| |
97 |
BRACKET; CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(D)
|
8-98126-612-0 |
01 |
1 |
0901-1009 |
● |
|
| |
97 |
BRACKET; CLIP
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
(D)
|
8-98126-612-0 |
01 |
1 |
1010- |
● |
|
| |
97 |
BRACKET; CLIP
(A)
L=50
|
1-47475-299-2 |
01 |
1 |
0803-0808 |
● |
|
| |
97 |
BRACKET; CLIP
EURO4 SPECIFICATION<NT4>
(A)
L=50
|
1-47475-299-2 |
01 |
1 |
0809-1009 |
● |
|
| |
97 |
BRACKET; CLIP
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
(A)
L=50
|
1-47475-299-2 |
01 |
1 |
1010- |
● |
|
| |
97 |
BRACKET; CLIP
EURO4 SPECIFICATION<NT4>
(A)
L=50
|
1-47475-299-2 |
01 |
1 |
1010- |
● |
|
| |
97 |
BRACKET; CLIP
(B)
|
8-98053-654-0 |
01 |
1 |
0803-0907 |
● |
|
| |
97 |
BRACKET; CLIP
(B)
|
8-98053-654-0 |
01 |
1 |
0908- |
● |
● |
| |
97 |
BRACKET; CLIP
(C)
|
8-98076-024-0 |
01 |
1 |
0803-0808 |
● |
|
| |
97 |
BRACKET; CLIP
EURO4 SPECIFICATION<NT4>
(C)
|
8-98076-024-0 |
01 |
1 |
0809- |
● |
|
| |
98 |
BOLT; BRKT,FUEL PIPE
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0809- |
● |
|
| |
103 |
NUT; BRKT
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809- |
● |
|
| |

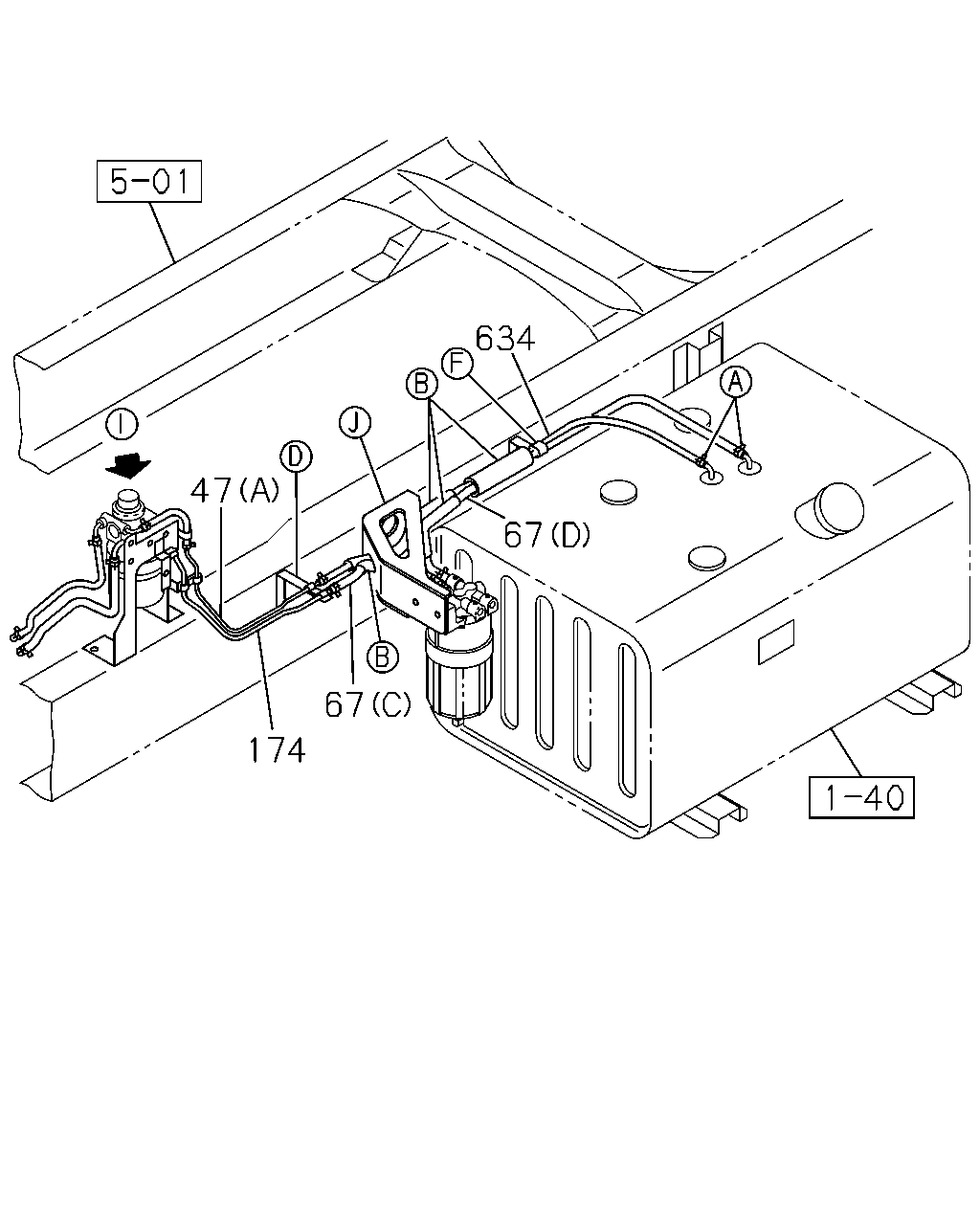

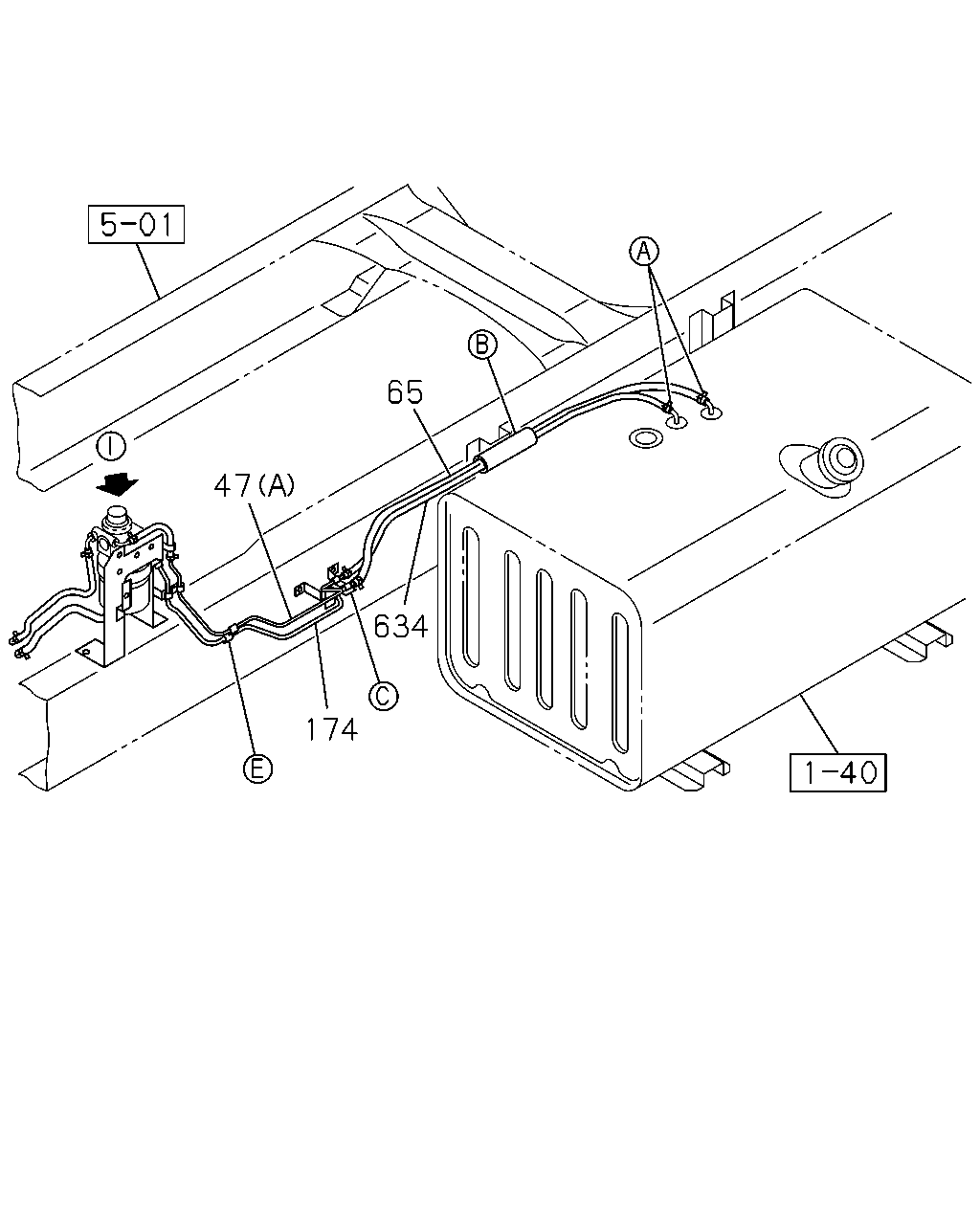

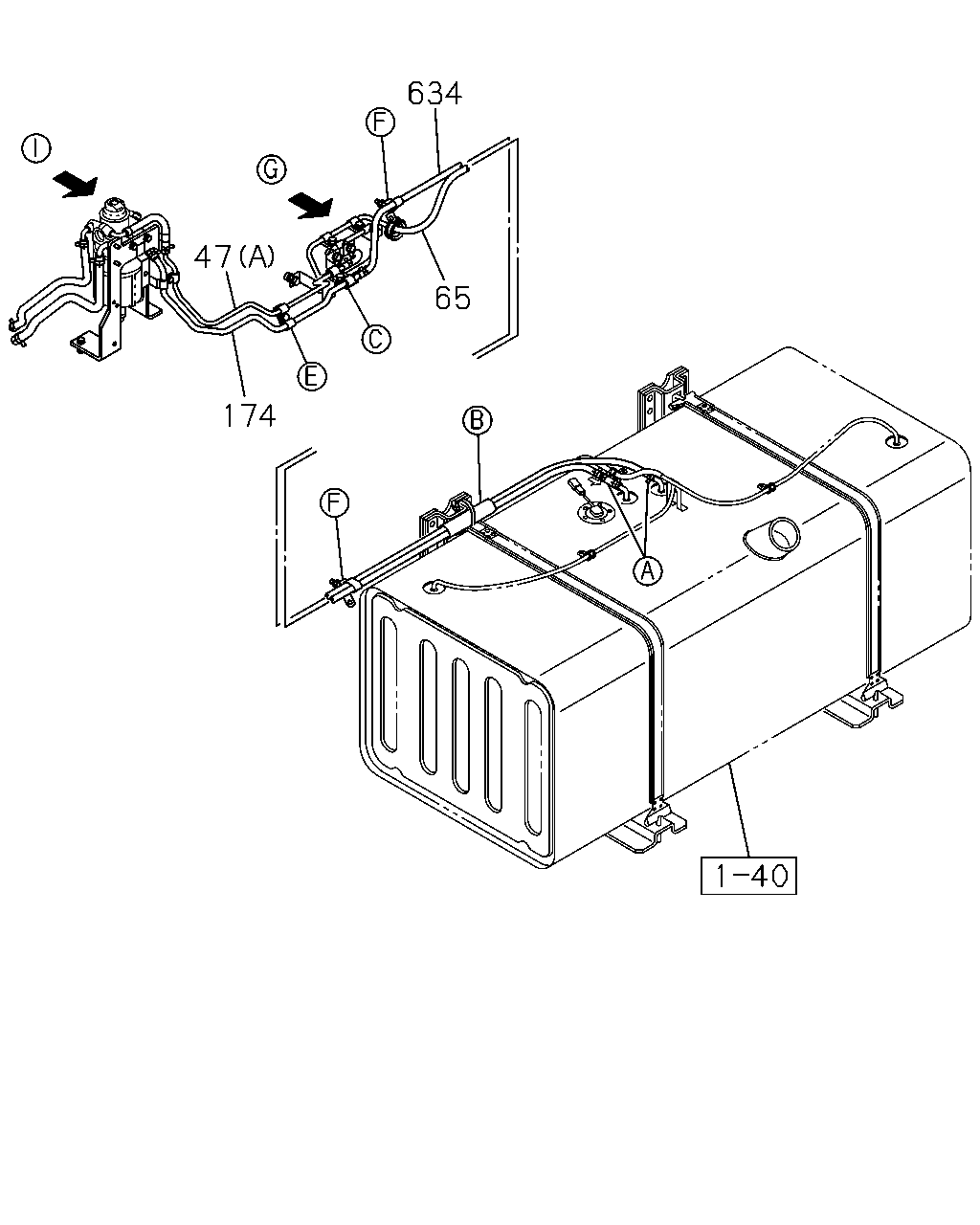

174 |
PIPE; FUEL,FEED,FRT
IRAN EQUIPMENT(D8T)
L=685
|
8-98129-920-0 |
01 |
1 |
1010- |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
|
8-98141-585-0 |
01 |
1 |
0908- |
|
● |
| |
174 |
PIPE; FUEL,FEED,FRT
EURO2 SPECIFICATION<NT2>
L=548
|
8-98117-708-0 |
01 |
1 |
0809-0809 |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
L=548
|
8-98117-708-0 |
01 |
1 |
0810-1009 |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
L=548
|
8-98117-708-0 |
01 |
1 |
1010- |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
L=724
|
8-98086-240-0 |
01 |
1 |
0803-0808 |
● |
|
| |
174 |
PIPE; FUEL,FEED,FRT
EURO4 SPECIFICATION<NT4>
L=724
|
8-98086-240-0 |
01 |
1 |
0809- |
● |
|
| |

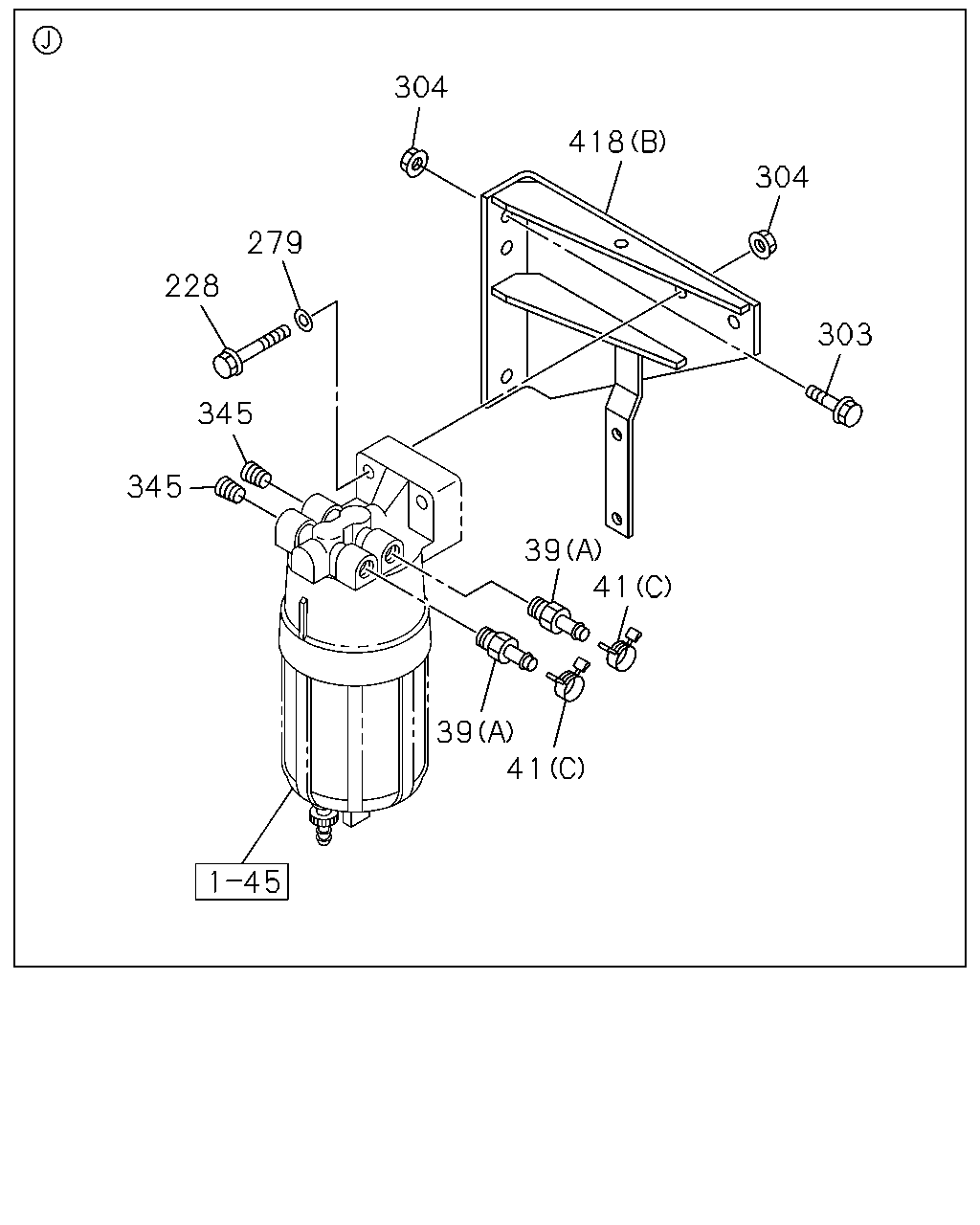

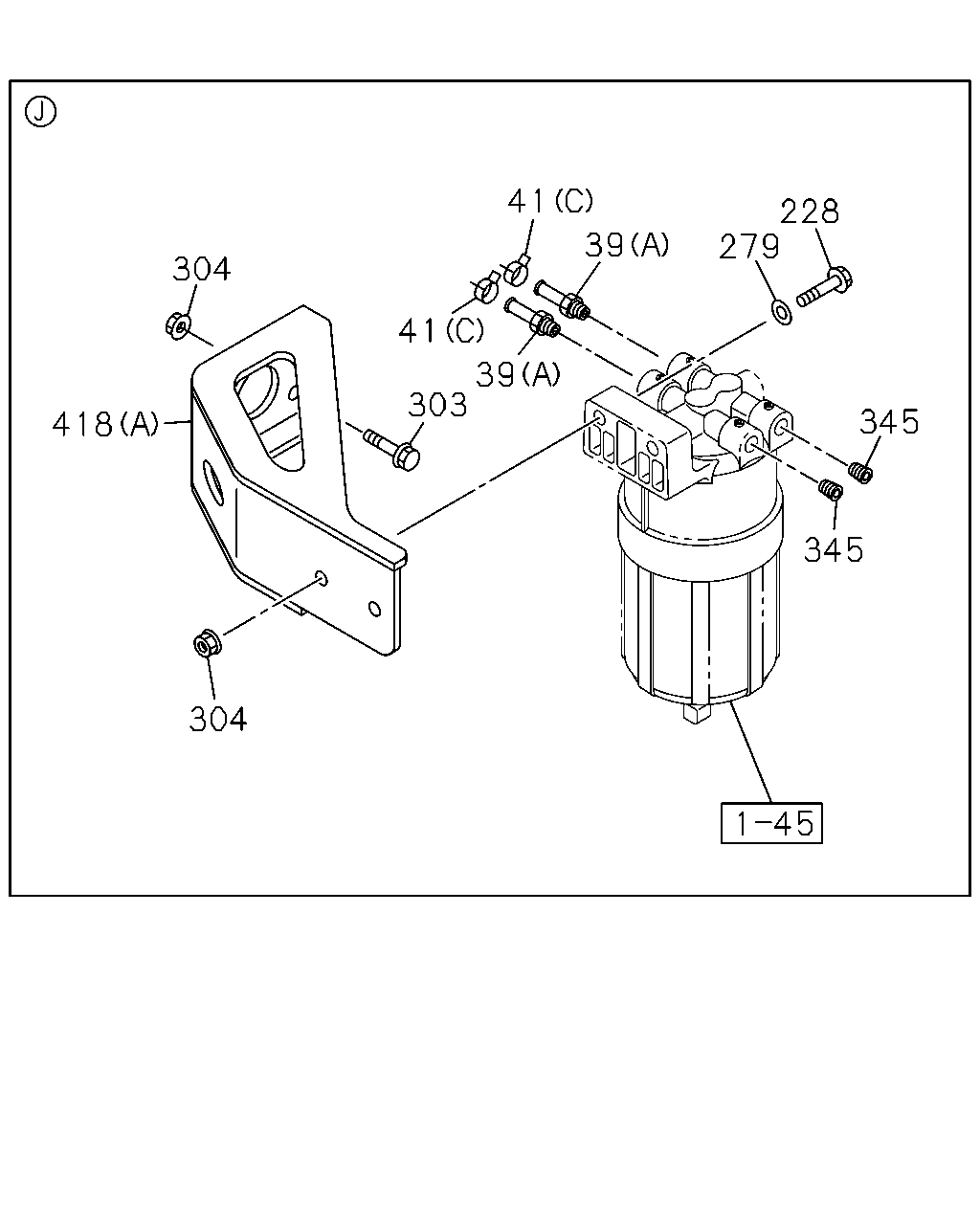

303 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0809-0809 |
● |
|
| |
303 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0810-0907 |
● |
|
| |
303 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1009 |
● |
|
| |
303 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0908-1009 |
|
● |
| |
303 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1010- |
● |
|
| |
303 |
BOLT; BRKT
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
1010- |
|
● |
| |
303 |
BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0803-0808 |
● |
|
| |
303 |
BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C)
EURO2 SPECIFICATION<NT2>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0809-0809 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0809-0809 |
● |
|
| |
303 |
BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)
EURO2 SPECIFICATION<NT2>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0810-0810 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0810-0810 |
● |
|
| |
303 |
BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0810-0812 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0810-0812 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
0901-1008 |
● |
|
| |
303 |
BOLT; BRKT
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1009-1009 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1009-1009 |
● |
|
| |
303 |
BOLT; BRKT
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1009- |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1009- |
● |
|
| |
303 |
BOLT; BRKT
M8X35 FLANGE
|
0-28650-835-0 |
02 |
1 |
1009- |
|
● |
| |
303 |
BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0803-0808 |
● |
|
| |
303 |
BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C)
EURO2 SPECIFICATION<NT2>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0809-0809 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0809-0809 |
● |
|
| |
303 |
BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)
EURO2 SPECIFICATION<NT2>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0810-0810 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0810-0810 |
● |
|
| |
303 |
BOLT; BRKT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0810-0812 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0810-0812 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0901-0907 |
● |
|
| |
303 |
BOLT; BRKT
EURO4 SPECIFICATION<NT4>
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0908-1008 |
● |
|
| |
303 |
BOLT; BRKT
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0908-1008 |
|
● |
| |
304 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1010-1106 |
● |
|
| |
304 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1010-1106 |
|
● |
| |
304 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1107- |
● |
|
| |
304 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
01 |
1 |
1107- |
|
● |
| |
304 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
0809-0809 |
● |
|
| |
304 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
0810-0907 |
● |
|
| |
304 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
0908-1009 |
● |
|
| |
304 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
03 |
1 |
0908-1009 |
|
● |
| |
304 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1010-1106 |
● |
|
| |
304 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1010-1106 |
|
● |
| |
304 |
NUT; BRKT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1107- |
● |
|
| |
304 |
NUT; BRKT
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1107- |
● |
|
| |
304 |
NUT; BRKT
6HK1-TCS ENG(80L)
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1107- |
|
● |
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0803-0907 |
● |
|
| |
304 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0908- |
● |
● |
| |
308 |
BRACKET; FUEL PIPE
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
L=75
|
1-47478-323-0 |
02 |
1 |
0809- |
● |
|
| |
373 |
CLAMP; HOSE,FUEL
FUEL TANK 400L<SDH>
ID=16
|
8-94238-568-0 |
02 |
1 |
0810-0907 |
● |
|
| |
373 |
CLAMP; HOSE,FUEL
FUEL TANK 400L<SDH>
ID=16
|
8-94238-568-0 |
02 |
1 |
0908- |
● |
|
| |
373 |
CLAMP; HOSE,FUEL
ID=16
|
8-94238-568-0 |
02 |
1 |
0908- |
|
● |
| |
623 |
PLATE; STUD BOLT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
EURO2 SPECIFICATION<NT2>
|
8-98126-633-0 |
01 |
1 |
0809-0809 |
● |
|
| |
623 |
PLATE; STUD BOLT
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
EURO2 SPECIFICATION<NT2>
|
8-98126-633-0 |
01 |
1 |
0810-0810 |
● |
|
| |
623 |
PLATE; STUD BOLT
BRK SYSTEM FULL AIR DUAL CIRC(Z06)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
|
8-98126-633-0 |
01 |
1 |
0810-0812 |
● |
|
| |
623 |
PLATE; STUD BOLT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
|
8-98126-633-0 |
01 |
1 |
0901-1009 |
● |
|
| |
623 |
PLATE; STUD BOLT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
|
8-98126-633-0 |
01 |
1 |
1010- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
L=810
|
8-98186-973-0 |
01 |
1 |
1108- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
L=800
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0908- |
|
● |
| |
634 |
HOSE; RUBBER RETURN
EURO2 SPECIFICATION<NT2>
L=1050
|
8-98128-212-0 |
01 |
1 |
0809-0809 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
L=1050
|
8-98128-212-0 |
01 |
1 |
0810-1009 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
EXC. IRAN EQUIPMENT(D8T)
L=1050
|
8-98128-212-0 |
01 |
1 |
1010- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=1200
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0810- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0803-0808 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
EURO4 SPECIFICATION<NT4>
FUEL TANK 200L FRAME SIDE<N20>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0809-0809 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0810-1009 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
EURO4 SPECIFICATION<NT4>
FUEL TANK 200L FRAME SIDE<N20>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
0810-1009 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1010-1107 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
IRAN EQUIPMENT(D8T)
EURO2 SPECIFICATION<NT2>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1010-1107 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
EURO4 SPECIFICATION<NT4>
FUEL TANK 200L FRAME SIDE<N20>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1010-1107 |
● |
|
| |
634 |
HOSE; RUBBER RETURN
6HK1-TCS ENG(80L)
EURO4 SPECIFICATION<NT4>
FUEL TANK 400L<SDH>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1108- |
● |
|
| |
634 |
HOSE; RUBBER RETURN
EURO4 SPECIFICATION<NT4>
FUEL TANK 200L FRAME SIDE<N20>
L=900
SERVICED BY L=3000
|
0-01558-300-0 |
01 |
1 |
1108- |
● |
|
