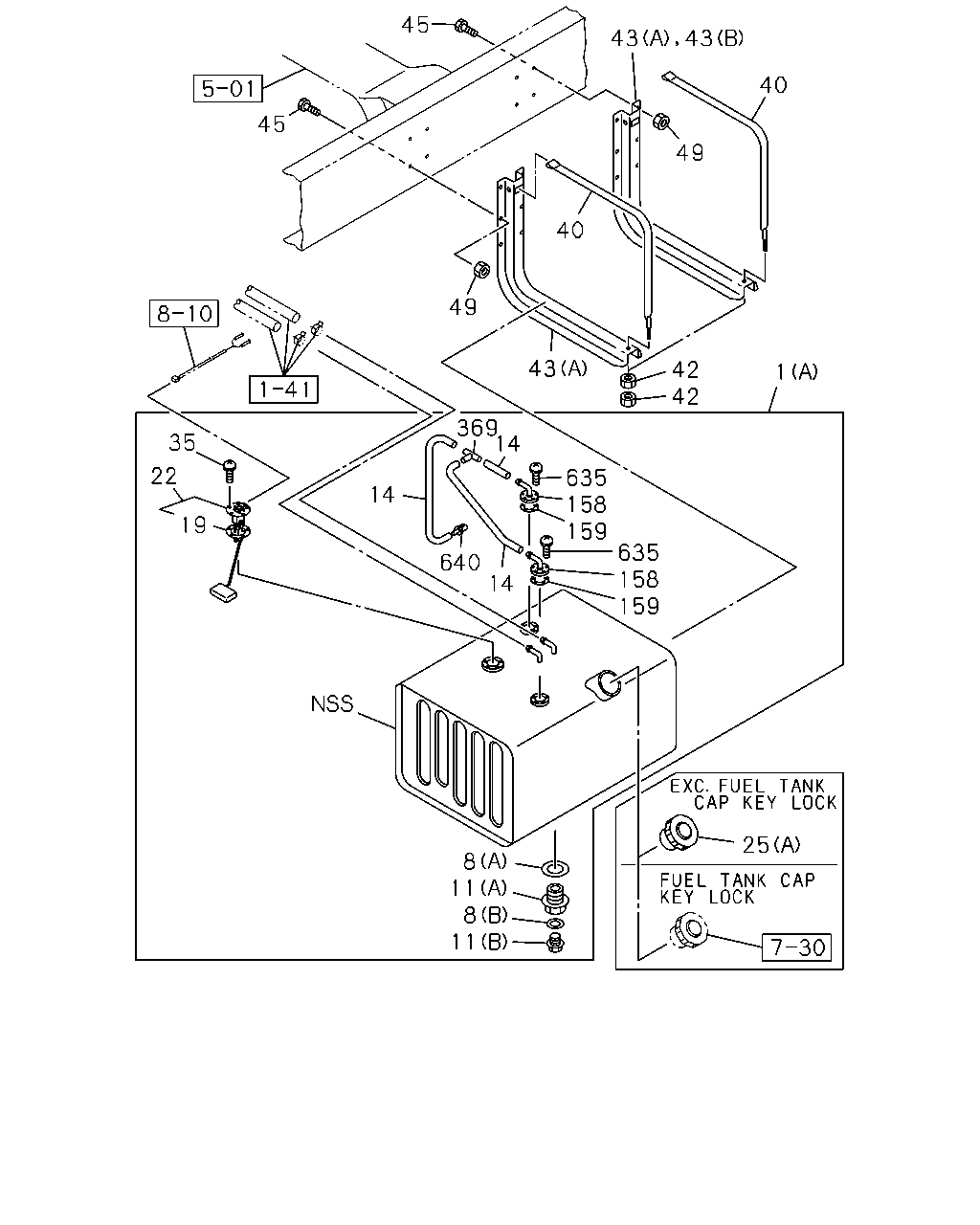

1 |
TANK; FUEL
IRAN EQUIPMENT(D8T)
FUEL TANK 200L FRAME SIDE<N20>
(A)
855X603X453 183L
|
8-98122-996-1 |
01 |
1 |
1010-1103 |
● |
|
| |
1 |
TANK; FUEL
IRAN EQUIPMENT(D8T)
FUEL TANK 200L FRAME SIDE<N20>
(A)
855X603X453 200L
|
8-98170-958-0 |
01 |
1 |
1104-1106 |
● |
|
| |
1 |
TANK; FUEL
IRAN EQUIPMENT(D8T)
FUEL TANK 200L FRAME SIDE<N20>
(A)
885X603X453 200L
|
8-98187-002-0 |
01 |
1 |
1107-1211 |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
(A)
885X603X453 200L
|
8-98187-002-1 |
01 |
1 |
1212- |
● |
|
| |
1 |

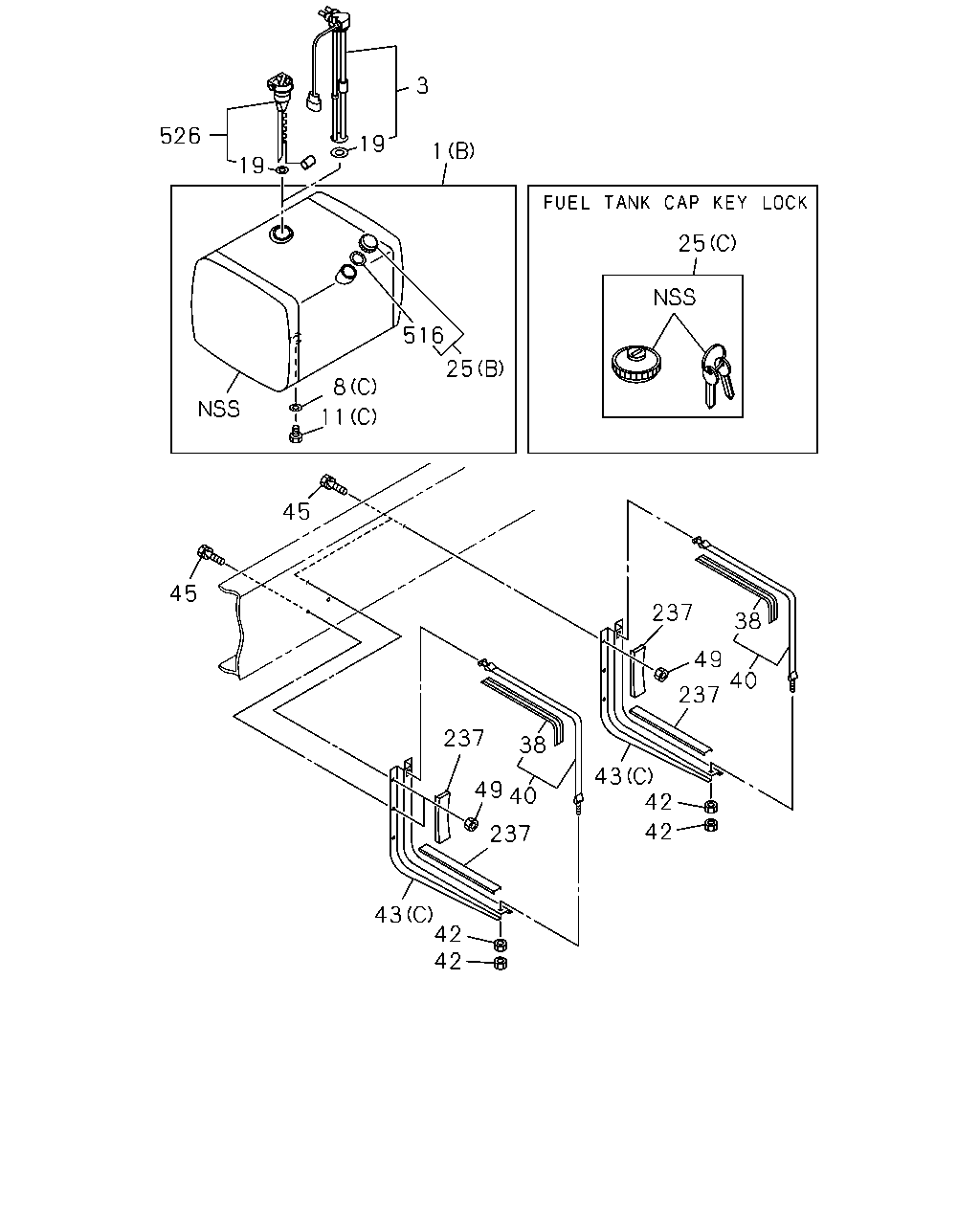

TANK; FUEL
FUEL TANK 400L<SDH>
(B)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0810-0907 |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
(B)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0908-1003 |
● |
|
| |
1 |
TANK; FUEL
(B)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0908-1003 |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
(B)
1020X685X625 400L
|
1-87412-052-0 |
01 |
1 |
1004- |
● |
|
| |
1 |
TANK; FUEL
(B)
1020X685X625 400L
|
1-87412-052-0 |
01 |
1 |
1004- |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
(A)
855X603X453 200L
|
8-98099-833-0 |
01 |
1 |
0803-0809 |
● |
|
| |
1 |
TANK; FUEL
(A)
855X603X453 200L
|
8-98122-995-1 |
01 |
1 |
0810-1009 |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
EXC. IRAN EQUIPMENT(D8T)
(A)
855X603X453 200L
|
8-98122-995-1 |
01 |
1 |
1010-1211 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH>
(C)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0810-0907 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH>
(C)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0908- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(C)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0908- |
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
ID=30
|
8-98067-041-0 |
01 |
1 |
0803- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0803- |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH>
(C)
M18X12
|
0-92002-418-0 |
01 |
1 |
0810-0907 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH>
(C)
M18X12
|
0-92002-418-0 |
01 |
1 |
0908- |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(C)
M18X12
|
0-92002-418-0 |
01 |
1 |
0908- |
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
M30
|
8-98067-038-0 |
01 |
1 |
0803- |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
M14X14
|
9-09862-156-0 |
01 |
1 |
0803- |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
L=170
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0810-1211 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=170
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1212- |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=270
SERVICED BY L=3000
|
0-01256-300-0 |
02 |
1 |
0803-0809 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
L=90
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0810-1211 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=90
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1212- |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=600
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
0803-1003 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=540
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1004- |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>
ID=58
|
1-83149-005-0 |
01 |
1 |
0810-0907 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>
ID=58
|
1-83149-005-0 |
01 |
1 |
0908-1210 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
ID=58
|
1-83149-005-0 |
01 |
1 |
0908-1210 |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1211- |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1211- |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0803- |
● |
|
| |
22 |
UNIT; FUEL TANK
IRAN EQUIPMENT(D8T)
FUEL TANK 200L FRAME SIDE<N20>
|
8-98113-182-0 |
01 |
1 |
1010-1103 |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98099-321-0 |
01 |
1 |
0803-1009 |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
EXC. IRAN EQUIPMENT(D8T)
|
8-98099-321-0 |
01 |
1 |
1010-1103 |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98099-321-0 |
01 |
1 |
1104- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
FUEL TANK 400L<SDH>
(C)
|
1-22440-057-2 |
01 |
1 |
0906-0907 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
FUEL TANK 400L<SDH>
(C)
|
1-22440-057-2 |
01 |
1 |
0908- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
(C)
|
1-22440-057-2 |
01 |
1 |
0908- |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(B)
|
1-22440-056-0 |
01 |
1 |
0810-0901 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
EXC. FUEL TANK CAP KEY LOCK<N05>
(B)
|
1-22440-056-0 |
01 |
1 |
0810-0901 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(B)
|
1-22440-056-0 |
01 |
1 |
0902-0907 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(B)
|
1-22440-056-0 |
01 |
1 |
0908- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
(B)
|
1-22440-056-0 |
01 |
1 |
0908- |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
EXC. FUEL TANK CAP KEY LOCK<N05>
(A)
|
8-97387-179-0 |
01 |
1 |
0803- |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
0803- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
L=1210
|
1-22550-261-0 |
02 |
1 |
0810-0907 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
L=1210
|
1-22550-261-0 |
02 |
1 |
0908-1110 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1210
|
1-22550-261-0 |
02 |
1 |
0908-1110 |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
L=1210
|
8-98202-448-0 |
02 |
1 |
1111- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1210
|
8-98202-448-0 |
02 |
1 |
1111- |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-501-1 |
02 |
1 |
0803- |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 400L<SDH>
M10
|
0-91110-510-0 |
04 |
1 |
0810-0907 |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 400L<SDH>
M10
|
0-91110-510-0 |
04 |
1 |
0908- |
● |
|
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
0908- |
|
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>
M12
|
0-91110-512-0 |
04 |
1 |
0803- |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
|
8-98122-884-0 |
01 |
1 |
0810- |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
(C)
|
1-53461-525-1 |
02 |
1 |
0810-0907 |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
(C)
|
1-53461-525-1 |
02 |
1 |
0908- |
● |
|
| |
43 |
BRACKET; FUEL TANK
(C)
|
1-53461-525-1 |
02 |
1 |
0908- |
|
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
|
8-98010-733-0 |
02 |
1 |
0803-0809 |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
|
8-98010-733-0 |
01 |
1 |
0810- |
● |
|
| |
45 |
BOLT; BRKT,FUEL TANK
FUEL TANK 400L<SDH>
M12X40 FLANGE
|
0-28051-240-0 |
12 |
1 |
0810-0907 |
● |
|
| |
45 |
BOLT; BRKT,FUEL TANK
FUEL TANK 400L<SDH>
M12X40 FLANGE
|
0-28051-240-0 |
12 |
1 |
0908- |
● |
|
| |
45 |
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
|
0-28051-240-0 |
12 |
1 |
0908- |
|
● |
| |
45 |
BOLT; BRKT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0803- |
● |
|
| |
49 |
NUT; BRKT
6HK1-TCS ENG(80L)
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0811- |
● |
|
| |
49 |
NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
FULLER FSO5206B OD M/T(Y4V)
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0811- |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
M12
|
0-91110-512-0 |
12 |
1 |
0810-0907 |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
M12
|
0-91110-512-0 |
12 |
1 |
0908- |
● |
|
| |
49 |
NUT; BRKT
M12
|
0-91110-512-0 |
12 |
1 |
0908- |
|
● |
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0803-0810 |
● |
|
| |
49 |
NUT; BRKT
6HK1-TCS ENG(80L)
MZX6P M/T(RSW),MLD6W M/T(Y2C)
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0811-0906 |
● |
|
| |
49 |
NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
MZX6P M/T(RSW),MLD6W M/T(Y2C),ZF9S1110 M/T(Y5E)
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0811-0906 |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0811-0906 |
● |
|
| |
49 |
NUT; BRKT
6HK1-TCS ENG(80L)
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0907- |
● |
|
| |
49 |
NUT; BRKT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C),
ZF9S1110 M/T(Y5E)
ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0907- |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>
EXC. ANTI NOISE EQUIPMENT-ECE R51.02<JCA>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0907- |
● |
|
| |
158 |
VALVE; ROLL OVER & FLOAT
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-039-0 |
02 |
1 |
0803- |
● |
|
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
ID=45 OD=67
|
1-83149-003-0 |
02 |
1 |
0803- |
● |
|
| |
369 |
JOINT; HOSE
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-080-0 |
01 |
1 |
0803- |
● |
|
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
0803- |
● |
|
| |
640 |
VENTILATOR; HOSE,BREATHER
|
8-98092-398-0 |
01 |
1 |
0810- |
● |
|
