◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#67933) — 159 parça

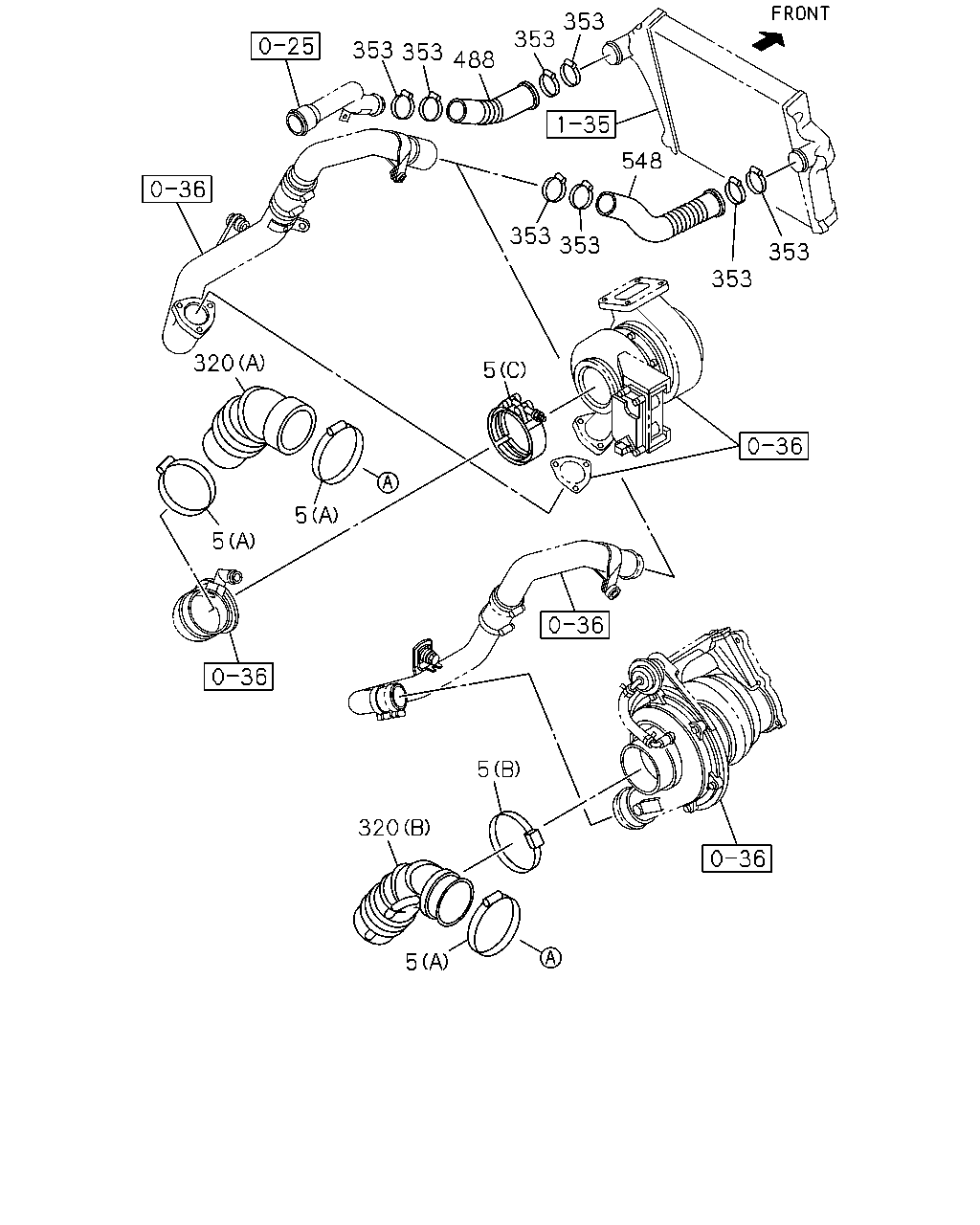

çizim 92235
353 353 488 353 353 548 353 353 353 353 5 5 5 320 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1002-1006 ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116 		1-09707-138-0 01 1 1007- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006 ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006 ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=130-169 		8-98155-950-0 01 1 1002- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001 ● ●
5 CLIP; AIR DUCT
FVR WIDE SGL CAB(FG****) KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
(B) ID=87-113 		1-09707-199-0 01 1 0809-0809 ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> (B) ID=87-113 		1-09707-199-0 01 1 0810-0811 ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> (B) ID=90-110 		8-98133-365-0 01 1 0812-1001 ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1002-1006 ● ●
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> (B) ID=90-110 		8-98133-365-0 01 1 1007- ● ●
5 CLIP; AIR DUCT
(A) ID=130-165 		1-09707-201-0 01 1 0809-0810 ●
5 CLIP; AIR DUCT
(A) ID=130-150 		8-98133-360-0 01 1 0811-1001 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=130-150 		8-98133-360-0 01 1 1002- ●
5 CLIP; AIR DUCT
(C) ID=114 		8-15178-030-0 01 1 0803-0809 ●
5 CLIP; AIR DUCT
(C) ID=114 		8-15178-030-0 01 1 0810-1101 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (C) ID=114 		8-15178-030-0 01 1 0810-1101 ● ●
5 CLIP; AIR DUCT
(C) ID=114 		8-15178-030-0 01 1 1102- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=114 		8-15178-030-0 01 1 1102- ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0803-0808 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0803-0808 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0809-0809 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0809-0809 ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0810-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0810-0812 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (A) ID=104-139 		1-09707-200-0 01 1 0810-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=100-120 		8-98133-366-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (A) ID=100-120 		8-98133-366-0 01 1 0901-1001 ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1002-1006 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1002-1006 ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1007- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=100-120 		8-98133-366-0 01 1 1007- ● ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-98165-424-0 01 1 1007- ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-98167-258-0 01 1 1007- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (B) 		8-98073-259-0 01 1 0809- ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> (A) 		8-98021-990-2 01 1 0810-1006 ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98021-990-2 01 1 1007- ●
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A) 		8-98073-257-0 01 1 0809- ●
320 HOSE; CONN,ACL
(A) 		8-98012-859-2 01 1 0803-0808 ●
320 HOSE; CONN,ACL
(A) 		8-98012-859-2 01 1 0809-1006 ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> (A) 		8-98012-859-2 01 1 0809-1006 ●
320 HOSE; CONN,ACL
(A) 		8-98012-859-2 01 1 1007- ●
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98012-859-2 01 1 1007- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002- ● ● ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0803-0809 ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0810-0811 ● ● ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002- ● ● ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 0803-0809 ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 0810- ● ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> 		8-98181-974-1 01 1 1102- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 0803-0809 ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 0810-1101 ● ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> 		8-98065-044-0 01 1 1102- ● ● ●

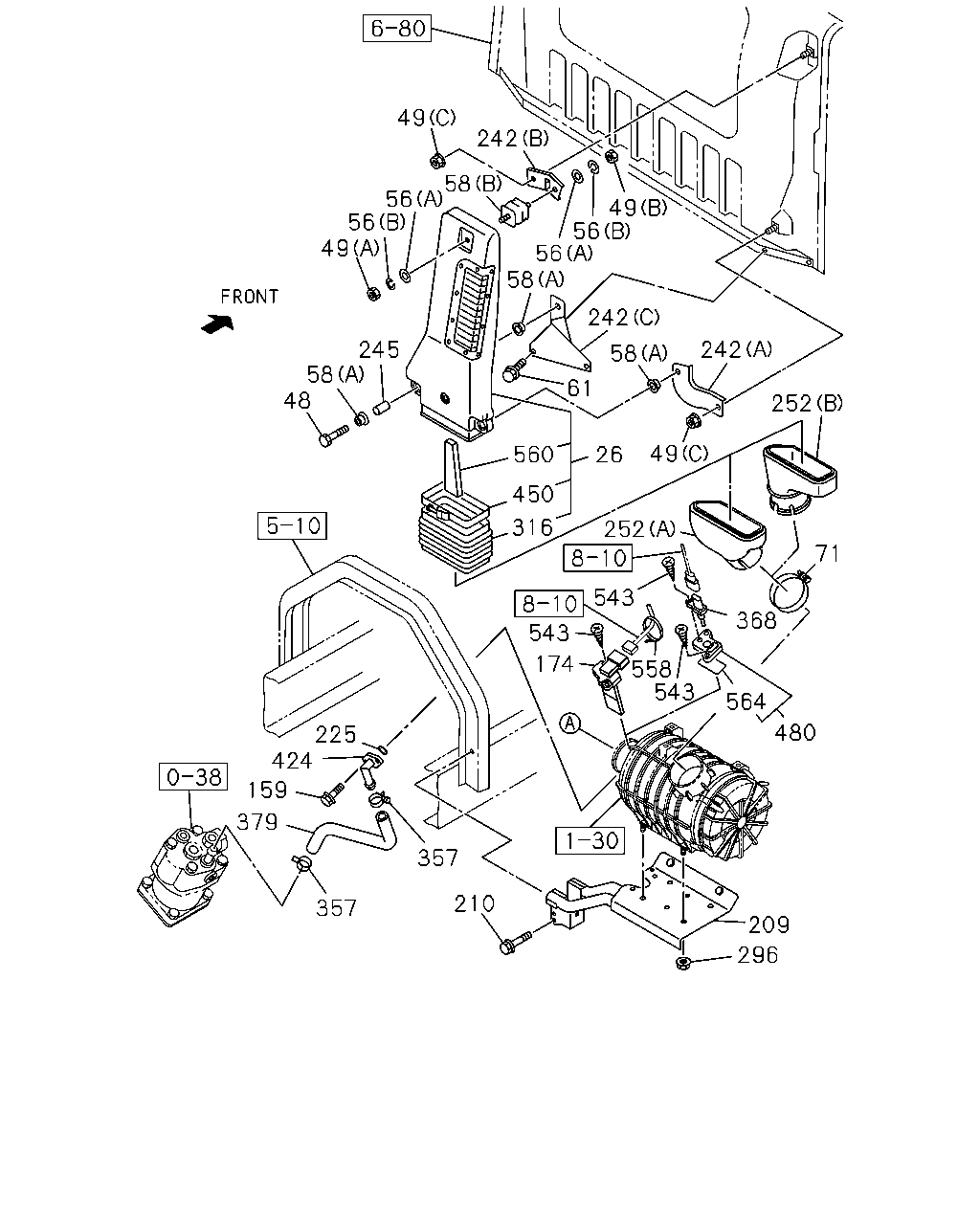

çizim 193730
49 242 58 56 56 49 245 58 48 49 56 56 58 242 58 61 560 450 316 26 49 242 252 71 368 480 564 543 558 543 543 174 209 296 210 357 357 379 159 424 225 252
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT 8-98010-361-2 01 1 0803-0809 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 0810- ● ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 0803-0809 ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 0810- ● ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0803-0809 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0810- ● ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0803-0809 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0810- ● ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0803-0809 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0810- ● ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0803-0809 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0810- ● ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0803-0809 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0810- ● ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0803-0809 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0810- ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0803-0809 ●
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0810-0810 ● ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811- ● ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 0803-0807 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0808-0809 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0810- ● ● ●
71 CLIP; AIR DUCT
ID=130-165 		1-09707-201-0 01 1 0809-0810 ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 0811- ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0803-0808 ●
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0809-0812 ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0803-0809 ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0810- ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0803-0809 ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0810-1112 ●
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> 		8-97601-967-0 01 1 0810-1112 ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1201- ●
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97601-967-0 01 1 1201- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 0803-0809 ●
209 BRACKET; ACL 8-98021-995-1 01 1 0810- ● ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0803-0809 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0810- ● ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0803-0809 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0810- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-2 01 1 0803-0809 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0810- ● ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-0 01 1 0803-0809 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0810- ● ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 0803-0809 ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 0810- ● ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0803-0809 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0810- ● ● ●
252 DUCT; AIR INT
(B) 		8-98021-989-1 01 1 0809- ●
252 DUCT; AIR INT
(A) 		8-98012-861-1 01 1 0803-0809 ●
252 DUCT; AIR INT
(A) 		8-98012-861-1 01 1 0810- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0803-0809 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0810- ● ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908- ● ● ●
357 CLIP; RUBBER HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=26 		1-09707-091-0 01 1 0803-0809 ●
357 CLIP; RUBBER HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=26 		1-09707-091-0 01 1 0810- ● ● ●
357 CLIP; RUBBER HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=29.5 		8-97354-979-0 01 1 0803-0809 ●
357 CLIP; RUBBER HOSE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) ID=29.5 		8-97354-979-0 01 1 0810- ● ● ●
357 CLIP; RUBBER HOSE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=26 		1-09707-091-0 02 1 0803-0809 ●
357 CLIP; RUBBER HOSE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=26 		1-09707-091-0 02 1 0810- ● ● ●
368 SENSOR; TEMP 8-98065-377-0 01 1 0809-0809 ● ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 0810-1112 ● ●
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1201- ● ●
368 SENSOR; TEMP
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98065-377-0 01 1 1201- ● ●
379 HOSE; RUBBER 8-98077-470-0 01 1 0809- ●
379 HOSE; RUBBER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-97619-194-0 01 1 0803-0808 ●
379 HOSE; RUBBER
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-97619-194-0 01 1 0809- ● ●
379 HOSE; RUBBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98077-469-0 01 1 0803-0808 ●
379 HOSE; RUBBER
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98077-469-0 01 1 0809- ● ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 0803-0809 ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 0810- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0803-0809 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0810- ● ● ●
480 ADAPTER 8-98086-417-0 01 1 0809-0809 ● ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 0810-1112 ● ●
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1201- ● ●
480 ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98086-417-0 01 1 1201- ● ●
543 SCREW; SENSOR
M5X14 W/LK WASHER 		0-36220-514-0 01 1 0809-0809 ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M5X14 W/LK WASHER 		0-36220-514-0 01 1 0810-1112 ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201- ● ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201- ● ●
543 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0809-0809 ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0810-1112 ● ●
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201- ● ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201- ● ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0803-0809 ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0810-1112 ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0810-1112 ● ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1201- ●
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1201- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0803-0809 ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0810- ● ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 0803-0809 ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 0810- ● ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0810- ● ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 0803-0809 ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 0809-0809 ● ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 0810-1112 ● ●
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1201- ● ●
564 GASKET; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98071-416-0 01 1 1201- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
