◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#67932) — 23 parça

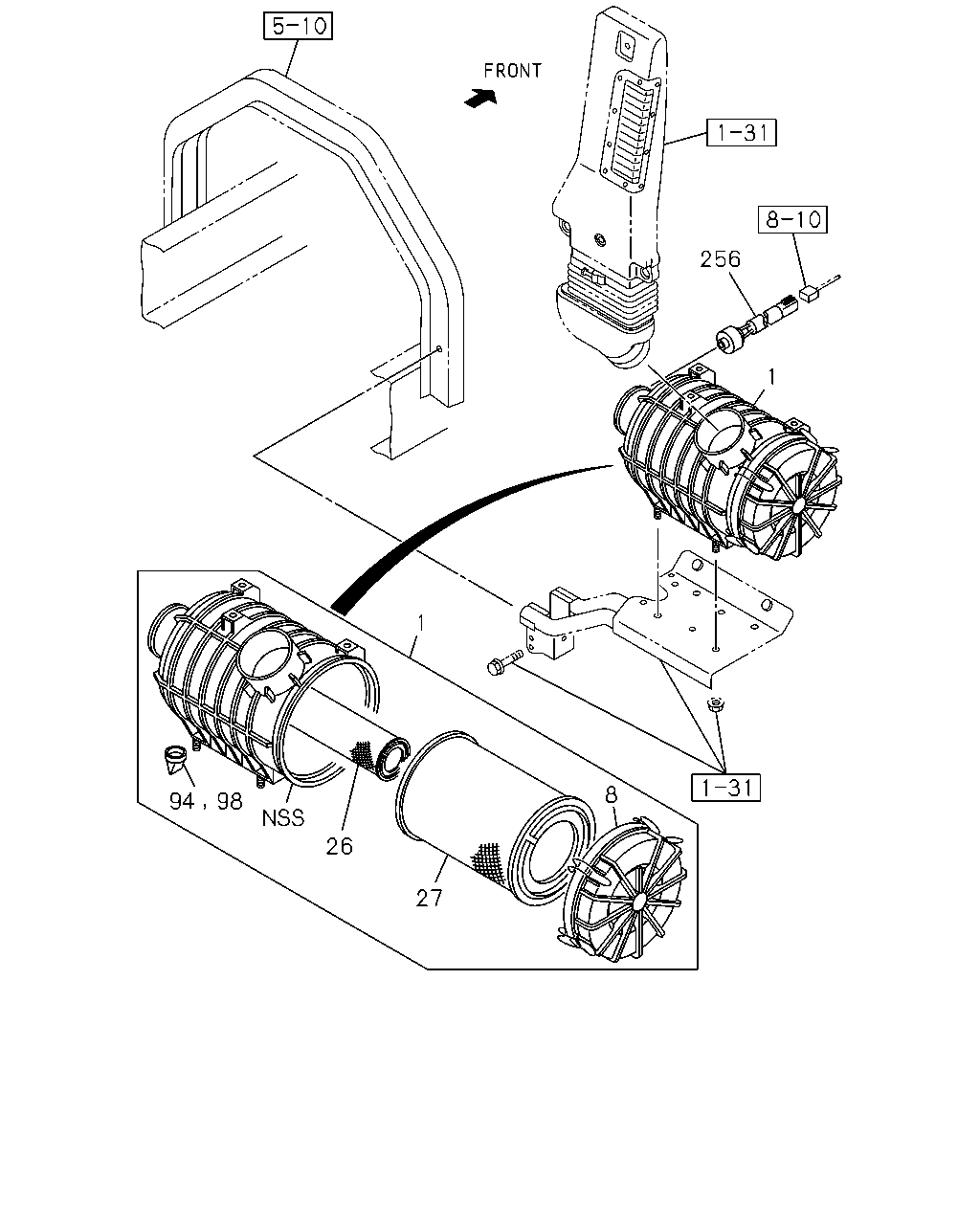

çizim 90939
1 256 8 1 26 27 98 94
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR 8-98057-666-3 01 1 0809- ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0803-0808 ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0809- ● ●
8 COVER ASM; ACL 8-98066-739-0 01 1 0809- ●
8 COVER ASM; ACL 8-98066-740-0 01 1 0803-0808 ●
8 COVER ASM; ACL 8-98066-740-0 01 1 0809- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-116-0 01 1 0810- ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-0 01 1 0810- ● ●
26 FILTER; ACL,INNER 8-98071-424-0 01 1 0809- ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0803-0808 ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0809- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-115-0 01 1 0810- ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-0 01 1 0810- ● ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-423-0 01 1 0809- ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0803-0808 ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0809- ● ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0809-0809 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0810- ● ● ●
98 VALVE ASM; LEAD 1-14219-279-0 01 1 0803-0808 ●
98 VALVE ASM; LEAD 1-14219-279-0 01 1 0809-0809 ● ●
256 SENSOR; AIRFLOW 8-98071-103-1 01 1 0803-0809 ●
256 SENSOR; AIRFLOW 8-98071-103-1 01 1 0810-1002 ● ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1003- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
