Isuzu WW
▶
TRUCKS
▶
FVR
▶
11132 - FVR/GVR-L EURO2/3/4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#67931) — 44 parça
Tümü
A - 6HK1-TCC ENG
B - 6HK1-TCS ENG
C - 6HK1-TCN ENG
◀

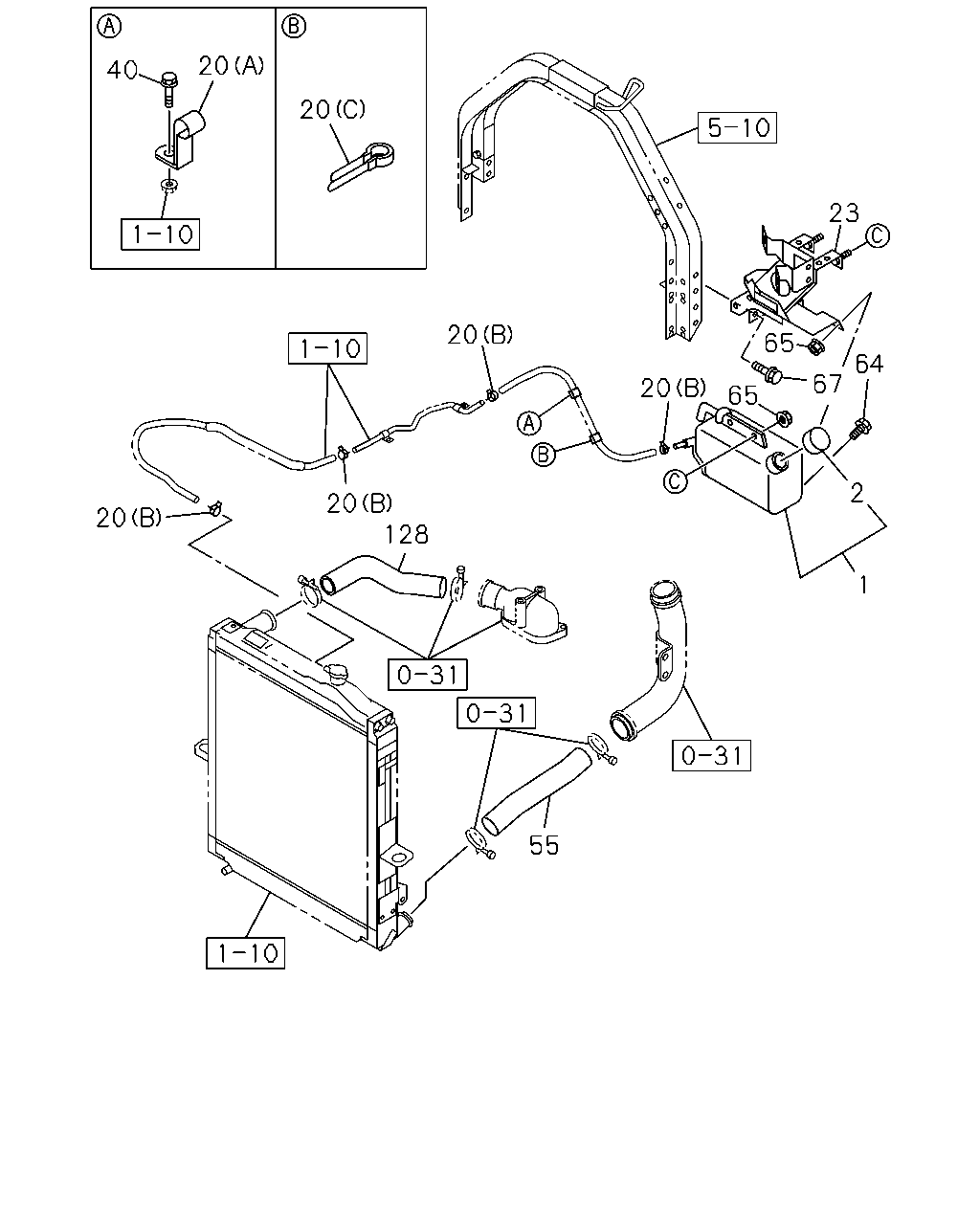

[111A] NO.1 (28 parça)

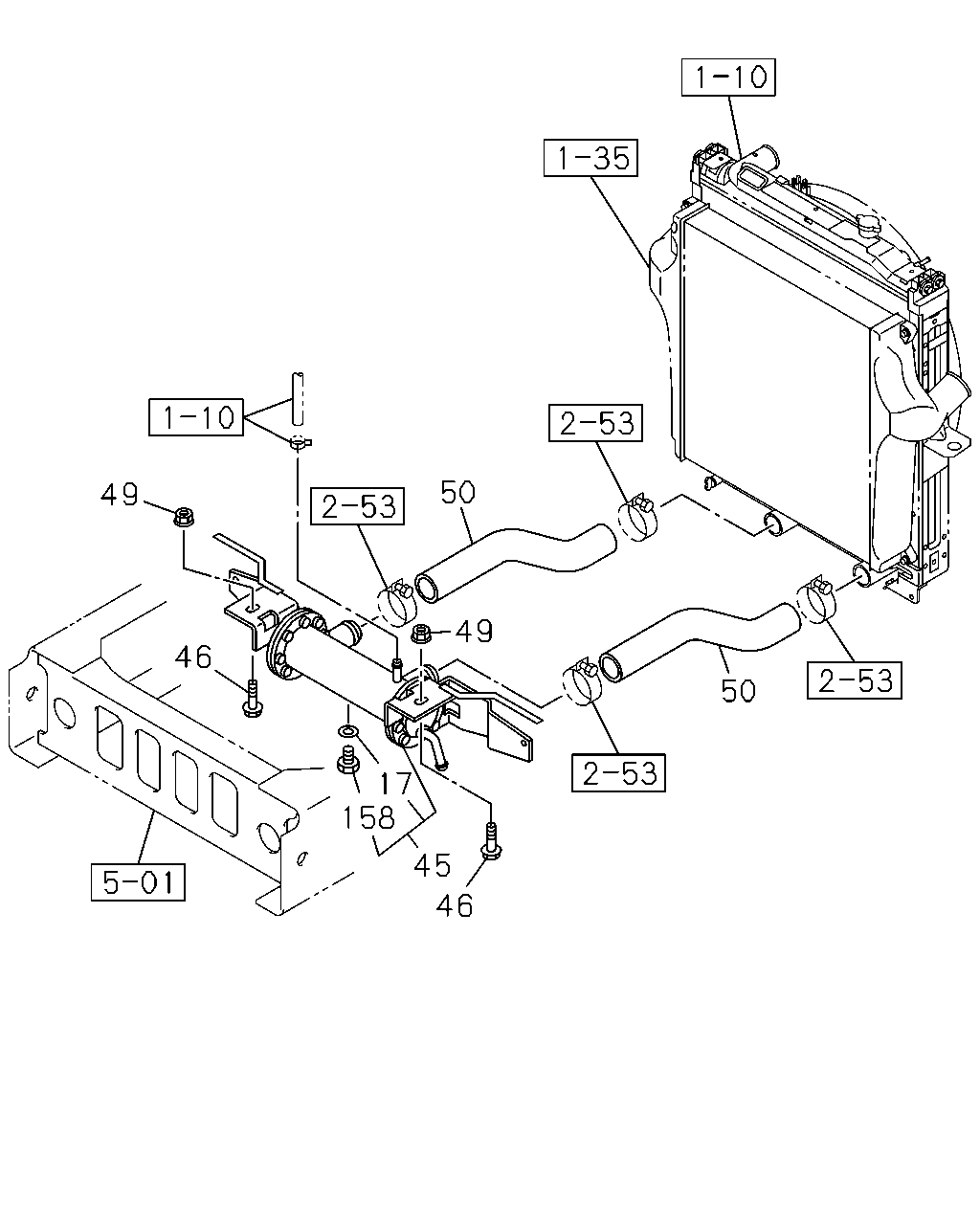

[111A] NO.2 FIRE TRUCK CHASSIS (16 parça)
▶
23
64
67
2
1
65
65
20
20
20
55
128
20
20
20
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
TANK; SURGE,RAD
8-98010-309-1
01
1
0803-0809
●
1
TANK; SURGE,RAD
8-98010-309-2
01
1
0810-1009
●
●
●
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1010-
●
●
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0803-0809
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0810-1009
●
●
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1010-
●
●
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
0803-0809
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
0810-
●
●
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
0803-0809
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
0810-
●
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
0803-0809
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
0810-
●
●
●
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
0803-0809
●
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
0810-
●
●
●
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0803-0809
●
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0810-
●
●
●
55
HOSE; WATER,RAD OUTLET
8-98079-430-1
01
1
0809-
●
55
HOSE; WATER,RAD OUTLET
8-98079-429-1
01
1
0803-0808
●
55
HOSE; WATER,RAD OUTLET
8-98079-429-1
01
1
0809-
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0803-0809
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0810-
●
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
0803-0809
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
0810-
●
●
●
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0803-0809
●
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0810-
●
●
●
128
HOSE; WATER,RAD INL
8-98010-578-1
01
1
0809-
●
128
HOSE; WATER,RAD INL
8-98050-924-1
01
1
0803-0808
●
128
HOSE; WATER,RAD INL
8-98050-924-1
01
1
0809-
●
●
50
49
50
49
46
158
45
46
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
17
GASKET; PLUG
FIRE TRUCK CHASSIS(V4F)
9-09571-114-0
01
1
0803-0809
●
17
GASKET; PLUG
FIRE TRUCK CHASSIS(V4F)
9-09571-114-0
01
1
0810-
●
●
●
45
RADIATOR; SUB
FIRE TRUCK CHASSIS(V4F)
8-98097-906-0
01
1
0803-0803
●
45
RADIATOR; SUB
FIRE TRUCK CHASSIS(V4F)
8-98115-259-0
01
1
0803-0809
●
45
RADIATOR; SUB
FIRE TRUCK CHASSIS(V4F)
8-98115-259-1
01
1
0810-
●
●
●
46
BOLT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) M8X30 FLANGE
0-28650-830-0
02
1
0803-0809
●
46
BOLT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) M8X30 FLANGE
0-28650-830-0
02
1
0810-
●
●
●
49
NUT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) M8 FLANGE
0-91180-108-0
04
1
0803-0809
●
49
NUT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) M8 FLANGE
0-91180-108-0
04
1
0810-
●
●
●
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F)
8-98115-383-0
01
1
0803-0809
●
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F)
8-98115-383-0
01
1
0810-
●
●
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F)
8-98030-410-1
02
1
0803-0803
●
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F)
8-98115-382-0
01
1
0803-0809
●
50
HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F)
8-98115-382-0
01
1
0810-
●
●
158
PLUG; DRAIN
FIRE TRUCK CHASSIS(V4F)
9-99202-214-0
01
1
0803-0809
●
158
PLUG; DRAIN
FIRE TRUCK CHASSIS(V4F)
9-99202-214-0
01
1
0810-
●
●
●
