◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#67930) — 248 parça

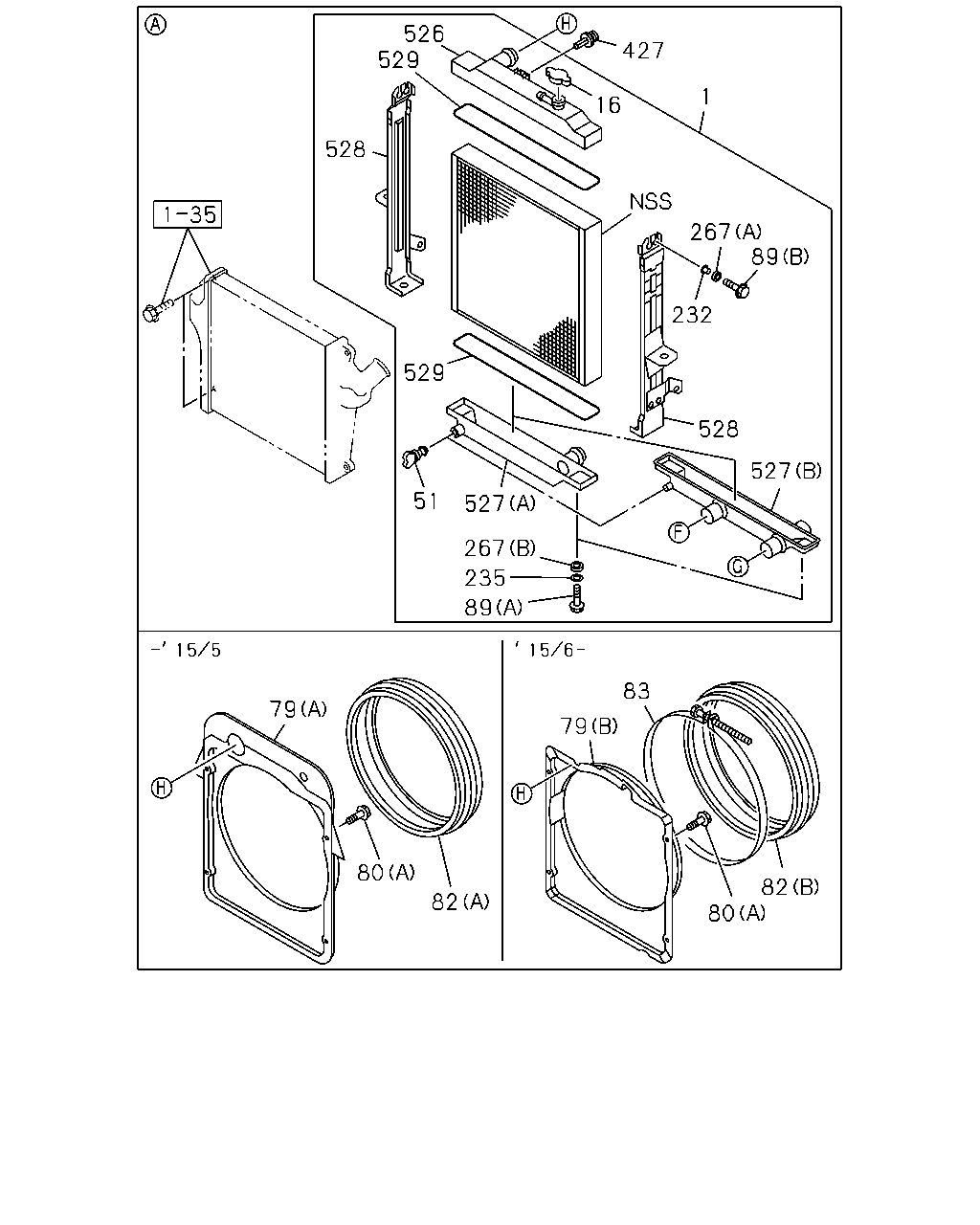

çizim 86079
526 529 528 16 427 267 1 89 232 528 527 527 267 235 89 529 51 79 80 82 79 80 82 83
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
EXC. FIRE TRUCK CHASSIS(V4F),CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98299-728-0 01 1 1506- ● ●
1 RADIATOR ASM
EXC. IRAN EQUIPMENT(D8T),CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> 		8-98299-734-0 01 1 1502- ●
1 RADIATOR ASM
IRAN EQUIPMENT(D8T) 		8-98139-313-0 01 1 1010- ●
1 RADIATOR ASM 8-98010-360-4 01 1 0809-1009 ●
1 RADIATOR ASM
EXC. IRAN EQUIPMENT(D8T) 		8-98010-360-4 01 1 1010-1501 ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98299-735-0 01 1 1502- ●
1 RADIATOR ASM
FIRE TRUCK CHASSIS(V4F) 		8-98053-035-1 01 1 0803-0809 ●
1 RADIATOR ASM
FIRE TRUCK CHASSIS(V4F) 		8-98053-035-1 01 1 0810-1505 ● ●
1 RADIATOR ASM
FIRE TRUCK CHASSIS(V4F) 		8-98299-732-0 01 1 1506- ● ●
1 RADIATOR ASM
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98042-837-3 01 1 0803-0809 ●
1 RADIATOR ASM
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98042-837-3 01 1 0810-1505 ● ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. FIRE TRUCK CHASSIS(V4F) 		8-98299-729-0 01 1 1506- ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. FIRE TRUCK CHASSIS(V4F) 		8-98096-226-0 01 1 0809-1009 ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 0809-1009 ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. FIRE TRUCK CHASSIS(V4F) 		8-98096-226-0 01 1 1010- ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 1010- ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) IRAN EQUIPMENT(D8T) 		8-98096-226-0 01 1 1010- ●
16 CAP; RAD 8-97239-187-0 01 1 0803-0808 ●
16 CAP; RAD
FIRE TRUCK CHASSIS(V4F) 		8-97239-187-0 01 1 0809-1009 ● ●
16 CAP; RAD
EXC. FIRE TRUCK CHASSIS(V4F),CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 0809-1009 ● ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 0809-1009 ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) FIRE TRUCK CHASSIS(V4F) 		8-97239-187-0 01 1 1010- ● ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) EXC. FIRE TRUCK CHASSIS(V4F),CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1010- ● ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) EXC. IRAN EQUIPMENT(D8T),CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1010- ●
16 CAP; RAD
GVR WIDE CAB(GG****) EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1010- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0803-0808 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0809- ● ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 0809-1501 ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1502- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0803-0808 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0809-1505 ● ●
79 GUIDE; FAN,RAD
(A) 		8-98286-937-0 01 1 1506- ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0803-0808 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1501 ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0808 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ● ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0803-0808 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0809-1501 ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0803-0808 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0809- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0803-0808 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0809- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0803-0808 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0809- ● ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0803-0808 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0809- ● ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0803-0808 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0809- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0803-0808 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0809- ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0803-0808 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0809-1501 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ● ●
526 TANK; UPR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) 		8-98010-366-2 01 1 0803-0809 ●
526 TANK; UPR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) 		8-98010-366-2 01 1 0810- ● ●
526 TANK; UPR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98004-202-2 01 1 0803-0808 ●
526 TANK; UPR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98004-202-2 01 1 0809- ● ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0809- ●
527 TANK; LWR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) (B) 		8-98038-558-2 01 1 0803-0809 ●
527 TANK; LWR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) (B) 		8-98038-558-2 01 1 0810- ● ●
527 TANK; LWR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-98004-203-0 01 1 0803-0808 ●
527 TANK; LWR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-98004-203-0 01 1 0809- ● ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-371-3 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0803-0808 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0809- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0803-0808 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0809- ● ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0803-0808 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0809- ● ● ●
çizim 89188
87 96 96 96 87 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B C
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0803-0808 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0809- ● ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0803-0808 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0809- ● ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0803-0808 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0809- ● ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0803-0808 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0803-0808 ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0809- ● ● ●
100 RUBBER; MTG 8-94394-268-1 01 1 0803-0808 ●
100 RUBBER; MTG 8-94394-268-1 01 1 0809-0910 ● ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ● ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0809- ● ● ●

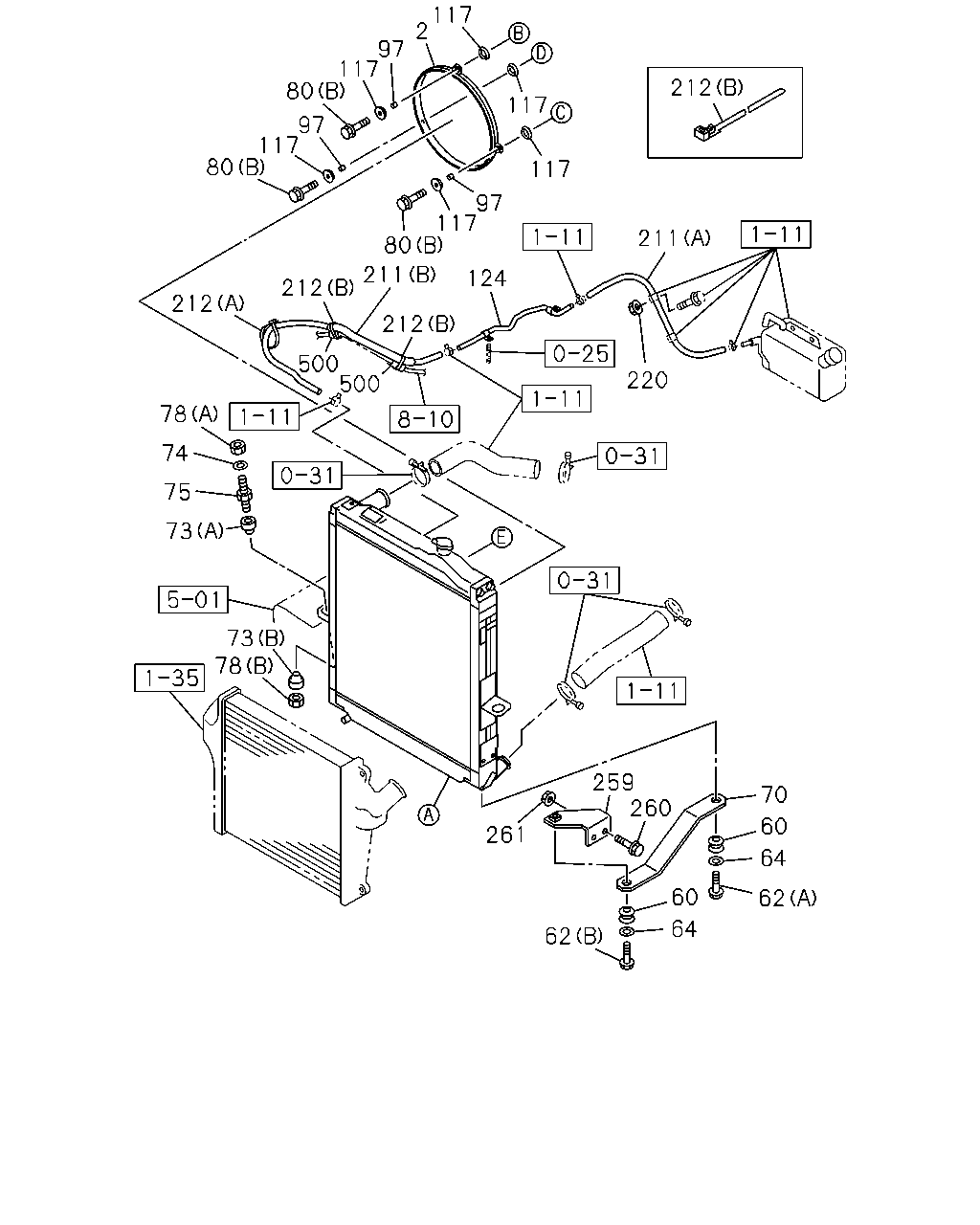

çizim 193726
117 2 97 117 80 97 117 80 117 117 97 117 80 211 212 212 212 124 211 220 500 500 78 74 75 73 73 78 212 261 259 260 70 60 64 62 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GUIDE; FAN 8-94393-779-1 01 1 0803-0808 ●
2 GUIDE; FAN 8-94393-779-1 01 1 0809- ● ● ●
60 GROMMET 1-09332-117-0 04 1 0803-0809 ●
60 GROMMET 1-09332-117-0 04 1 0810- ● ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0803-0809 ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0810- ● ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0803-0809 ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0810- ● ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0803-0809 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0810- ● ● ●
70 STAY; RAD 8-98004-132-2 02 1 0803-0809 ●
70 STAY; RAD 8-98004-132-2 02 1 0810- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0803-0809 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0810- ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0803-0809 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0810- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0803-0809 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0810- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0803-0809 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0810- ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0803-0809 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0810- ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0803-0809 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0810- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0803-0808 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1501 ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0808 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0803-0808 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0809- ● ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0803-0808 ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0809- ● ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0803-0808 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0809- ● ● ●
211 HOSE; RAD TO PIPE
(B) L=970 		8-98073-545-0 01 1 0809- ●
211 HOSE; RAD TO PIPE
(A) 		8-98067-261-2 01 1 0803-0805 ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0806-0809 ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0810- ● ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0803-0808 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0809- ● ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0809-0809 ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0810- ●
212 CLIP; HOSE
EURO3 SPECIFICATION<NT3> (A) L=250 		5-09707-030-1 01 1 0810- ● ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0809-0809 ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0810- ●
212 CLIP; HOSE
EURO3 SPECIFICATION<NT3> (B) L=140 		5-09707-031-1 02 1 0810- ● ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 0803-0808 ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 02 1 0809-0809 ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (A) L=250 		5-09707-030-1 02 1 0810- ● ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 0803-0808 ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 01 1 0809-0809 ●
212 CLIP; HOSE
EURO2 SPECIFICATION<NT2> (B) L=140 		5-09707-031-1 01 1 0810- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0803-0809 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0810- ● ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 0803-0809 ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 0810- ● ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 0803-0809 ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 0810- ● ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0803-0809 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0810- ● ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0803-0809 ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0810- ● ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0803-0809 ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 0810- ●
500 SLEEVE; RUBBER
EURO3 SPECIFICATION<NT3> ID=17 OD=21 L=40 		1-09337-012-0 02 1 0810- ● ●

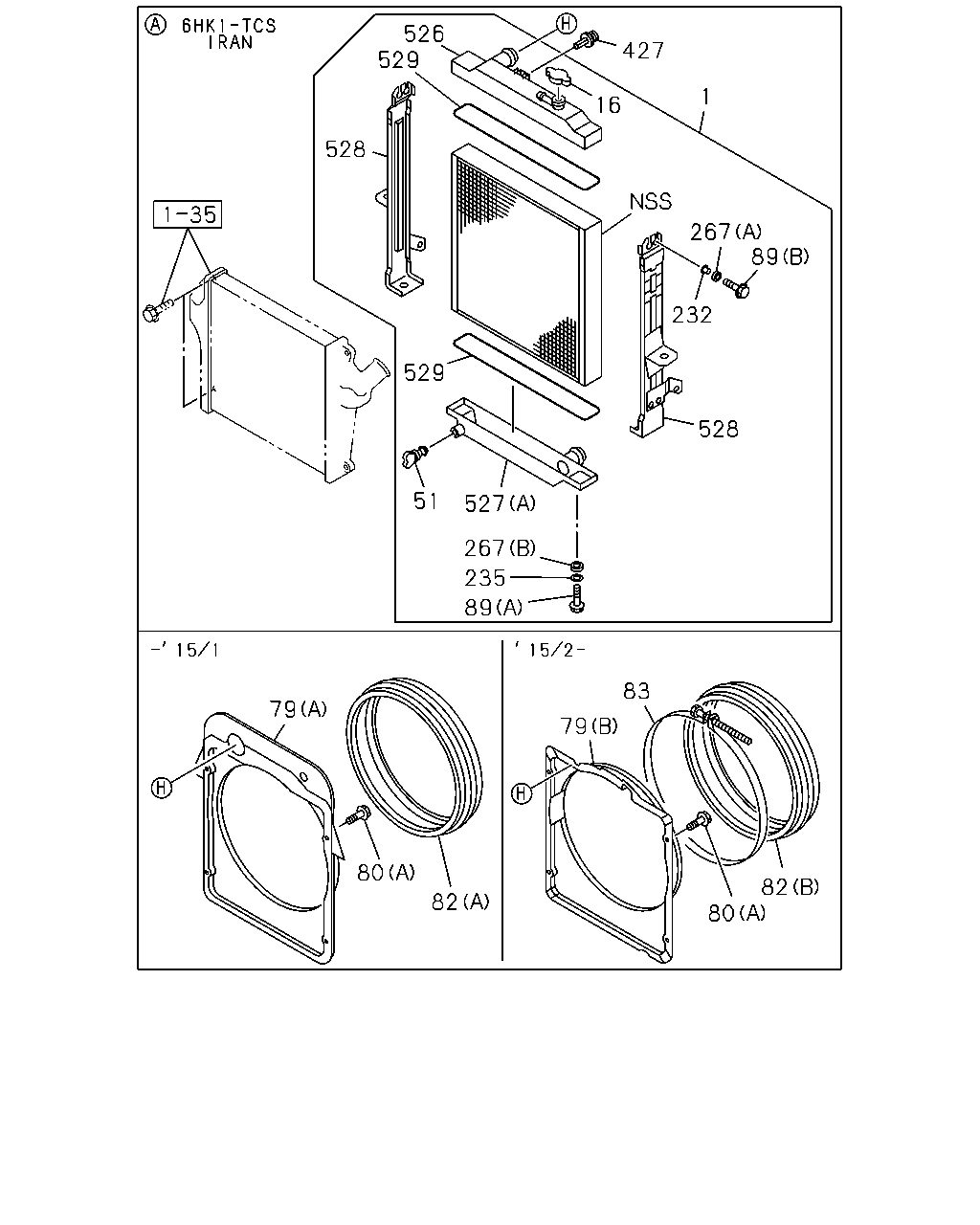

çizim 193727
526 529 528 427 16 267 232 528 527 267 235 89 83 79 80 82 80 82 79 89 529 51 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
EXC. FIRE TRUCK CHASSIS(V4F),CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98299-728-0 01 1 1506- ● ●
1 RADIATOR ASM
EXC. IRAN EQUIPMENT(D8T),CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> 		8-98299-734-0 01 1 1502- ●
1 RADIATOR ASM
IRAN EQUIPMENT(D8T) 		8-98139-313-0 01 1 1010- ●
1 RADIATOR ASM 8-98010-360-4 01 1 0809-1009 ●
1 RADIATOR ASM
EXC. IRAN EQUIPMENT(D8T) 		8-98010-360-4 01 1 1010-1501 ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98299-735-0 01 1 1502- ●
1 RADIATOR ASM
FIRE TRUCK CHASSIS(V4F) 		8-98053-035-1 01 1 0803-0809 ●
1 RADIATOR ASM
FIRE TRUCK CHASSIS(V4F) 		8-98053-035-1 01 1 0810-1505 ● ●
1 RADIATOR ASM
FIRE TRUCK CHASSIS(V4F) 		8-98299-732-0 01 1 1506- ● ●
1 RADIATOR ASM
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98042-837-3 01 1 0803-0809 ●
1 RADIATOR ASM
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98042-837-3 01 1 0810-1505 ● ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. FIRE TRUCK CHASSIS(V4F) 		8-98299-729-0 01 1 1506- ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. FIRE TRUCK CHASSIS(V4F) 		8-98096-226-0 01 1 0809-1009 ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 0809-1009 ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. FIRE TRUCK CHASSIS(V4F) 		8-98096-226-0 01 1 1010- ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 1010- ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) IRAN EQUIPMENT(D8T) 		8-98096-226-0 01 1 1010- ●
16 CAP; RAD 8-97239-187-0 01 1 0803-0808 ●
16 CAP; RAD
FIRE TRUCK CHASSIS(V4F) 		8-97239-187-0 01 1 0809-1009 ● ●
16 CAP; RAD
EXC. FIRE TRUCK CHASSIS(V4F),CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 0809-1009 ● ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 0809-1009 ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) FIRE TRUCK CHASSIS(V4F) 		8-97239-187-0 01 1 1010- ● ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) EXC. FIRE TRUCK CHASSIS(V4F),CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1010- ● ●
16 CAP; RAD
FVR WIDE SGL CAB(FG****) EXC. IRAN EQUIPMENT(D8T),CAUTIONS ARABIAN<WJ7>, CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1010- ●
16 CAP; RAD
GVR WIDE CAB(GG****) EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1010- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0803-0808 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0809- ● ● ●
79 GUIDE; FAN,RAD
(A) 		8-98010-384-0 01 1 0809-1501 ●
79 GUIDE; FAN,RAD
(B) 		8-98273-634-0 01 1 1502- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0803-0808 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0809-1505 ● ●
79 GUIDE; FAN,RAD
(A) 		8-98286-937-0 01 1 1506- ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1502-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0803-0808 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1501 ● ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1502-1505 ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0808 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809- ● ● ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1502-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0803-0808 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0809-1501 ● ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1502-1505 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1502-1505 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0803-0808 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0809- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0803-0808 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0809- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0803-0808 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0809- ● ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0803-0808 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0809- ● ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0803-0808 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0809- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0803-0808 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0809- ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0803-0808 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0809-1501 ● ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1502-1505 ● ●
526 TANK; UPR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) 		8-98010-366-2 01 1 0803-0809 ●
526 TANK; UPR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) 		8-98010-366-2 01 1 0810- ● ●
526 TANK; UPR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98004-202-2 01 1 0803-0808 ●
526 TANK; UPR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-98004-202-2 01 1 0809- ● ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0809- ●
527 TANK; LWR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) (B) 		8-98038-558-2 01 1 0803-0809 ●
527 TANK; LWR,RADIATOR CORE
FIRE TRUCK CHASSIS(V4F) (B) 		8-98038-558-2 01 1 0810- ● ●
527 TANK; LWR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-98004-203-0 01 1 0803-0808 ●
527 TANK; LWR,RADIATOR CORE
EXC. FIRE TRUCK CHASSIS(V4F) (A) 		8-98004-203-0 01 1 0809- ● ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-371-3 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-372-4 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0803-0808 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 0809- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0803-0808 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 0809- ● ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0803-0808 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0809- ● ● ●

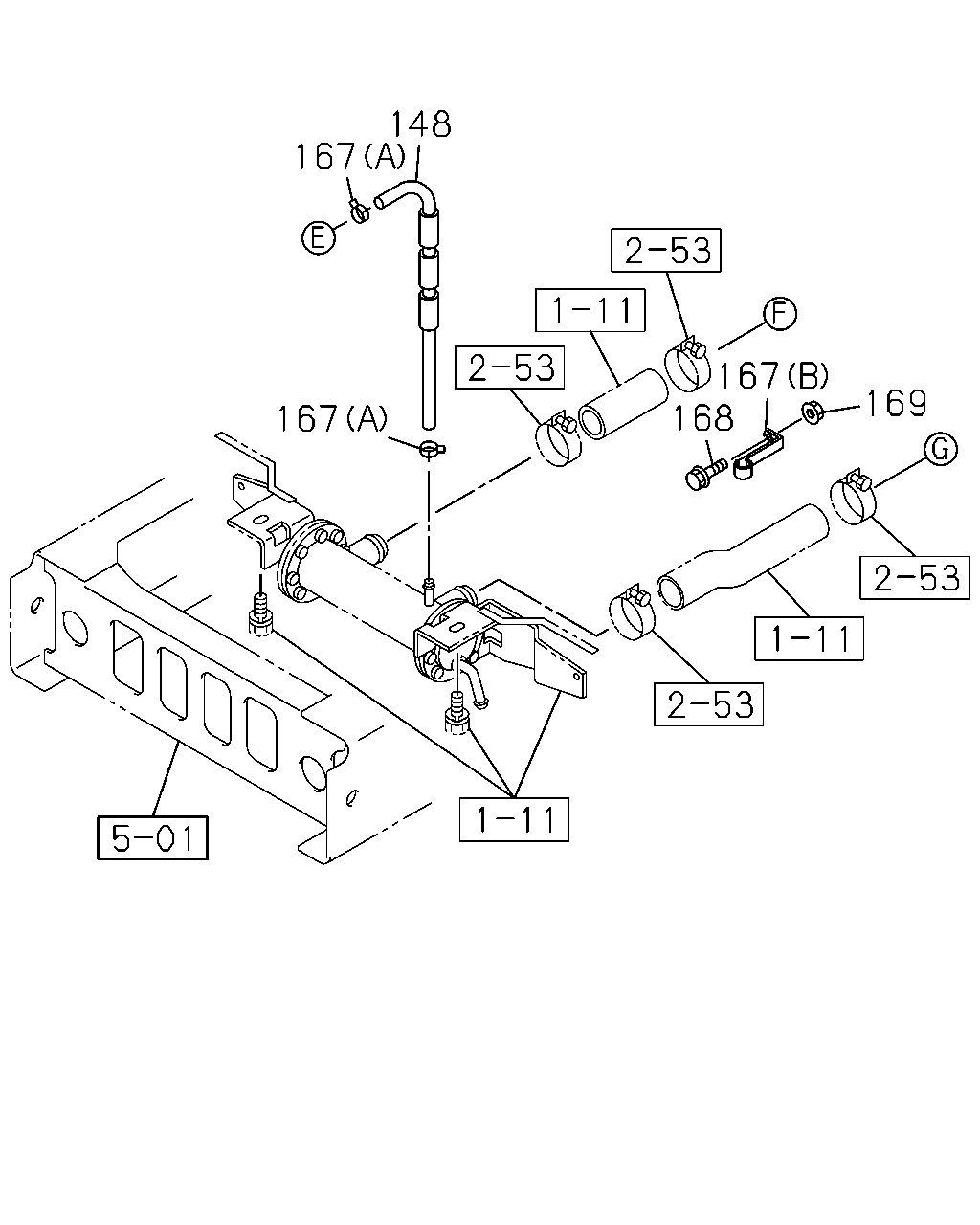

çizim 321190
167 167 148 167 168 169
BalonParca AdiParca NoAdetTipApplied Date A B C
148 HOSE; WATER,BYPASS,SUB RAD
FIRE TRUCK CHASSIS(V4F) 		8-98101-592-0 01 1 0803-0803 ●
148 HOSE; WATER,BYPASS,SUB RAD
FIRE TRUCK CHASSIS(V4F) L=1370 		8-98115-315-1 01 1 0803-0808 ●
148 HOSE; WATER,BYPASS,SUB RAD
FIRE TRUCK CHASSIS(V4F) L=1370 		8-98115-315-1 01 1 0809- ● ●
167 CLIP; BYPASS HOSE
FIRE TRUCK CHASSIS(V4F) (B) ID=13 H=75 L=25 		1-09700-601-0 01 1 0803- ●
167 CLIP; BYPASS HOSE
FIRE TRUCK CHASSIS(V4F) (A) ID=11.5 		8-97375-638-0 02 1 0803- ●
168 BOLT; CLIP,BYPASS HOSE
FIRE TRUCK CHASSIS(V4F) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
169 NUT; CLIP,BYPASS HOSE
FIRE TRUCK CHASSIS(V4F) M8 FLANGE 		0-91180-108-0 01 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
