Sayfa 0-39 - Isuzu EPC

0-39 — AIR COMPRESSOR; BRAKE (#6793) — 246 parça

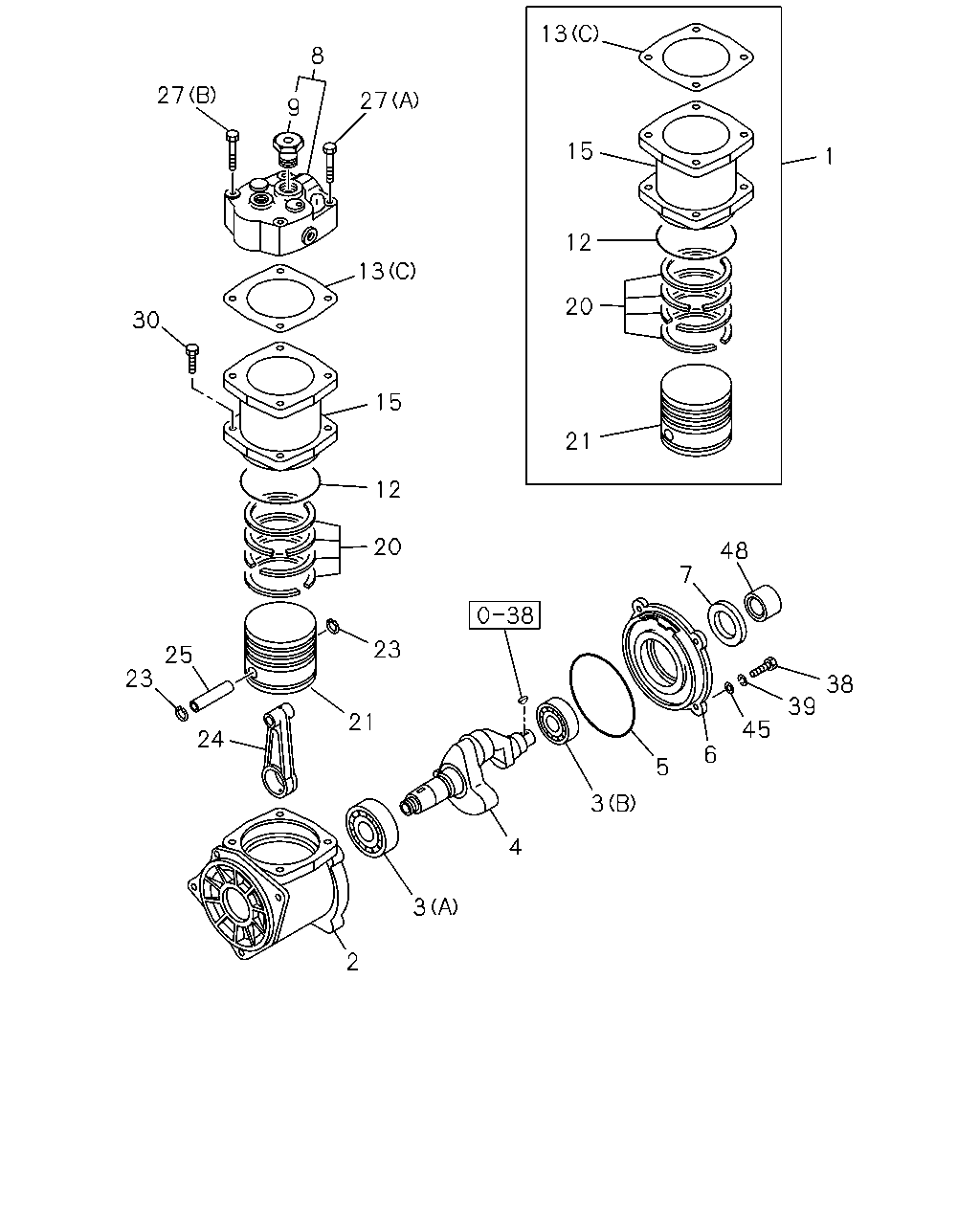

13 8 27 27 9 15 1 12 13 20 30 15 21 12 20 48 7 23 25 23 38 39 21 45 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9806-9911	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9912-		●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	9806-9806			●
1	LINER KIT; CYL,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19163-053-2	01	1	9807-9911			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19163-050-1	01	1	9807-9911			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9806-9911	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9912-		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9806-9911			●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9806-9911	●		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9912-		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9806-9911	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9912-		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9806-9911	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9912-		●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	9806-9806			●
4	CRANKSHAFT; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19171-048-1	01	1	9807-9911			●
4	CRANKSHAFT; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19171-047-1	01	1	9807-9911			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9806-9911	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9912-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9806-9911	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9912-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9806-9911			●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9806-9911			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9806-9911	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9912-		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	9806-9806			●
8	HEAD ASM; CYL,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19110-052-1	01	1	9807-9911			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19110-019-0	01	1	9807-9911			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9806-9809	●		●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9810-9911	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19120-017-1	01	1	9810-9911			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9912-		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9806-9911	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9912-		●
13	GASKET; AIR CMPR (E)	1-19139-016-0	01	1	9912-		●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9806-9911	●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9806-9911	●
13	GASKET; AIR CMPR (C)	1-09623-626-0	01	1	9806-9806			●
13	GASKET; AIR CMPR AIR CMPR HVY DUTY<E1Q> (C)	1-09623-626-0	01	1	9807-9911			●
13	GASKET; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q> (D)	1-19115-006-1	01	1	9807-9911			●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9806-9911	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9912-		●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	9806-9806			●
15	CYLINDER; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19151-219-0	01	1	9807-9911			●
15	CYLINDER; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19151-250-0	01	1	9807-9911			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9806-9806	●		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9807-9911	●
20	RING KIT; PISTON,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19163-051-1	01	1	9807-9911			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9912-		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19163-043-0	01	1	9807-9911			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9806-9806	●		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9807-9911	●
21	PISTON; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19161-016-0	01	1	9807-9911			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9912-		●
21	PISTON; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19161-021-0	01	1	9807-9911			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9806-9911	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9912-		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9806-9911			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9806-9806	●		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9807-9911	●
24	ROD ASM; CONN,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19173-010-0	01	1	9807-9911			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9912-		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19173-017-0	01	1	9807-9911			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9806-9806	●		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9807-9911	●
25	PIN; PISTON,AIR CMPR AIR CMPR HVY DUTY<E1Q>	9-19167-003-0	01	1	9807-9911			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9912-		●
25	PIN; PISTON,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	9-19167-006-0	01	1	9807-9911			●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9806-9809	●		●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9810-9911	●
27	BOLT; HD AIR CMPR HVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9810-9911			●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9912-		●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9806-9809	●		●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9810-9911	●
27	BOLT; HD AIR CMPR HVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9810-9911			●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9912-		●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-9911	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9912-		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-9911			●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9806-9911	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9912-		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9806-9911			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9806-9911	●		●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9912-		●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9806-9911			●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9806-9911			●

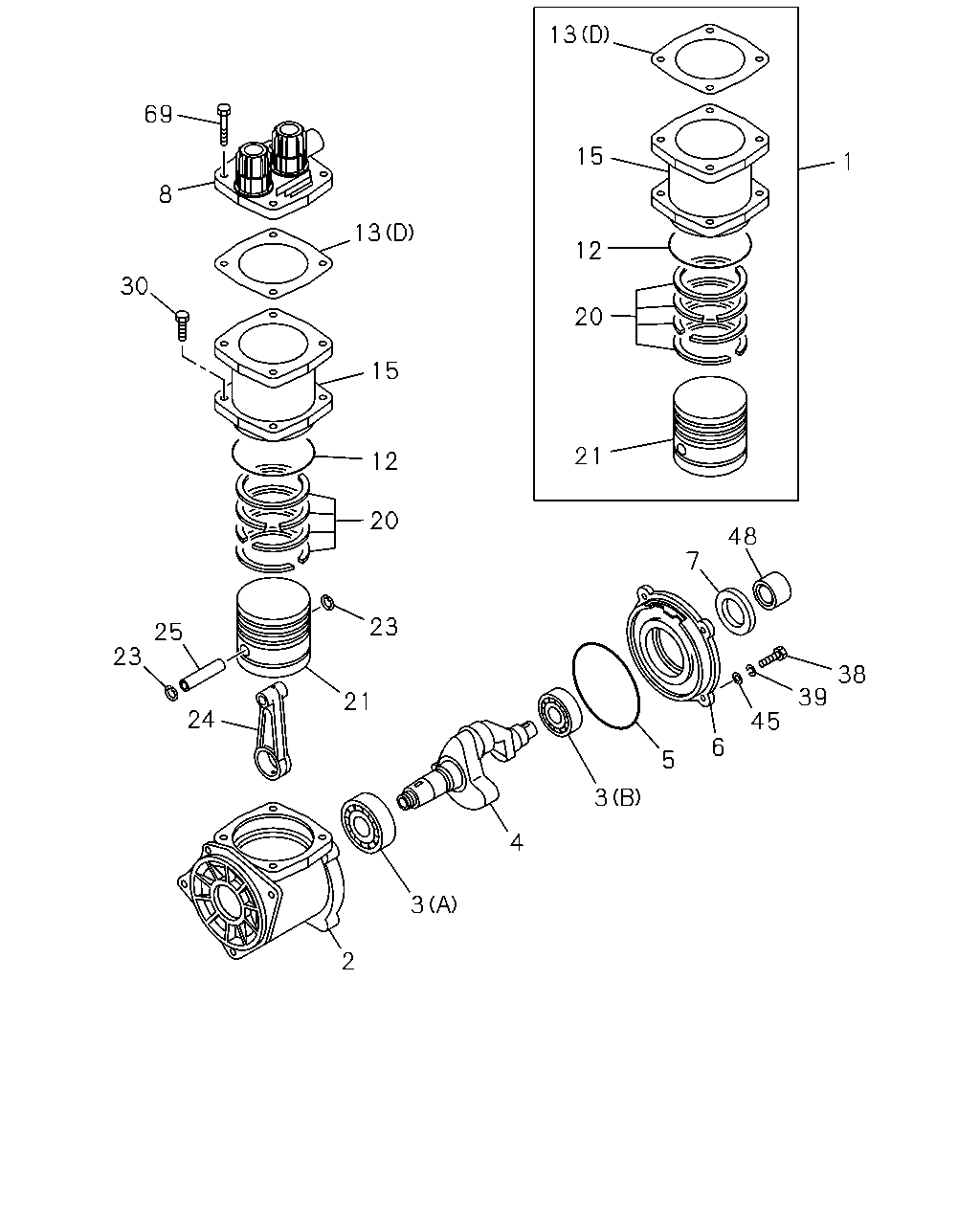

13 69 15 1 8 13 12 30 20 15 21 12 20 48 7 23 25 23 38 39 21 24 45 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9806-9911	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9912-		●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	9806-9806			●
1	LINER KIT; CYL,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19163-053-2	01	1	9807-9911			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19163-050-1	01	1	9807-9911			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9806-9911	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9912-		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9806-9911			●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9806-9911	●		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9912-		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9806-9911	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9912-		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9806-9911	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9912-		●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	9806-9806			●
4	CRANKSHAFT; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19171-048-1	01	1	9807-9911			●
4	CRANKSHAFT; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19171-047-1	01	1	9807-9911			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9806-9911	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9912-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9806-9911	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9912-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9806-9911			●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	9806-9911			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9806-9911	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9912-		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	9806-9806			●
8	HEAD ASM; CYL,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19110-052-1	01	1	9807-9911			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19110-019-0	01	1	9807-9911			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9806-9911	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9912-		●
13	GASKET; AIR CMPR (E)	1-19139-016-0	01	1	9912-		●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9806-9911	●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9806-9911	●
13	GASKET; AIR CMPR (C)	1-09623-626-0	01	1	9806-9806			●
13	GASKET; AIR CMPR AIR CMPR HVY DUTY<E1Q> (C)	1-09623-626-0	01	1	9807-9911			●
13	GASKET; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q> (D)	1-19115-006-1	01	1	9807-9911			●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9806-9911	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9912-		●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	9806-9806			●
15	CYLINDER; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19151-219-0	01	1	9807-9911			●
15	CYLINDER; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19151-250-0	01	1	9807-9911			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9806-9806	●		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9807-9911	●
20	RING KIT; PISTON,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19163-051-1	01	1	9807-9911			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9912-		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19163-043-0	01	1	9807-9911			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9806-9806	●		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9807-9911	●
21	PISTON; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19161-016-0	01	1	9807-9911			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9912-		●
21	PISTON; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19161-021-0	01	1	9807-9911			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9806-9911	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9912-		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9806-9911			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9806-9806	●		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9807-9911	●
24	ROD ASM; CONN,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19173-010-0	01	1	9807-9911			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9912-		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19173-017-0	01	1	9807-9911			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9806-9806	●		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9807-9911	●
25	PIN; PISTON,AIR CMPR AIR CMPR HVY DUTY<E1Q>	9-19167-003-0	01	1	9807-9911			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9912-		●
25	PIN; PISTON,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	9-19167-006-0	01	1	9807-9911			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-9911	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9912-		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-9911			●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9806-9911	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9912-		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9806-9911			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9806-9911	●		●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9912-		●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	9806-9911			●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	9806-9911			●
69	BOLT ASM; AIR COMP EXC. AIR CMPR HVY DUTY<E1Q>	1-19119-031-0	04	1	9807-9911			●

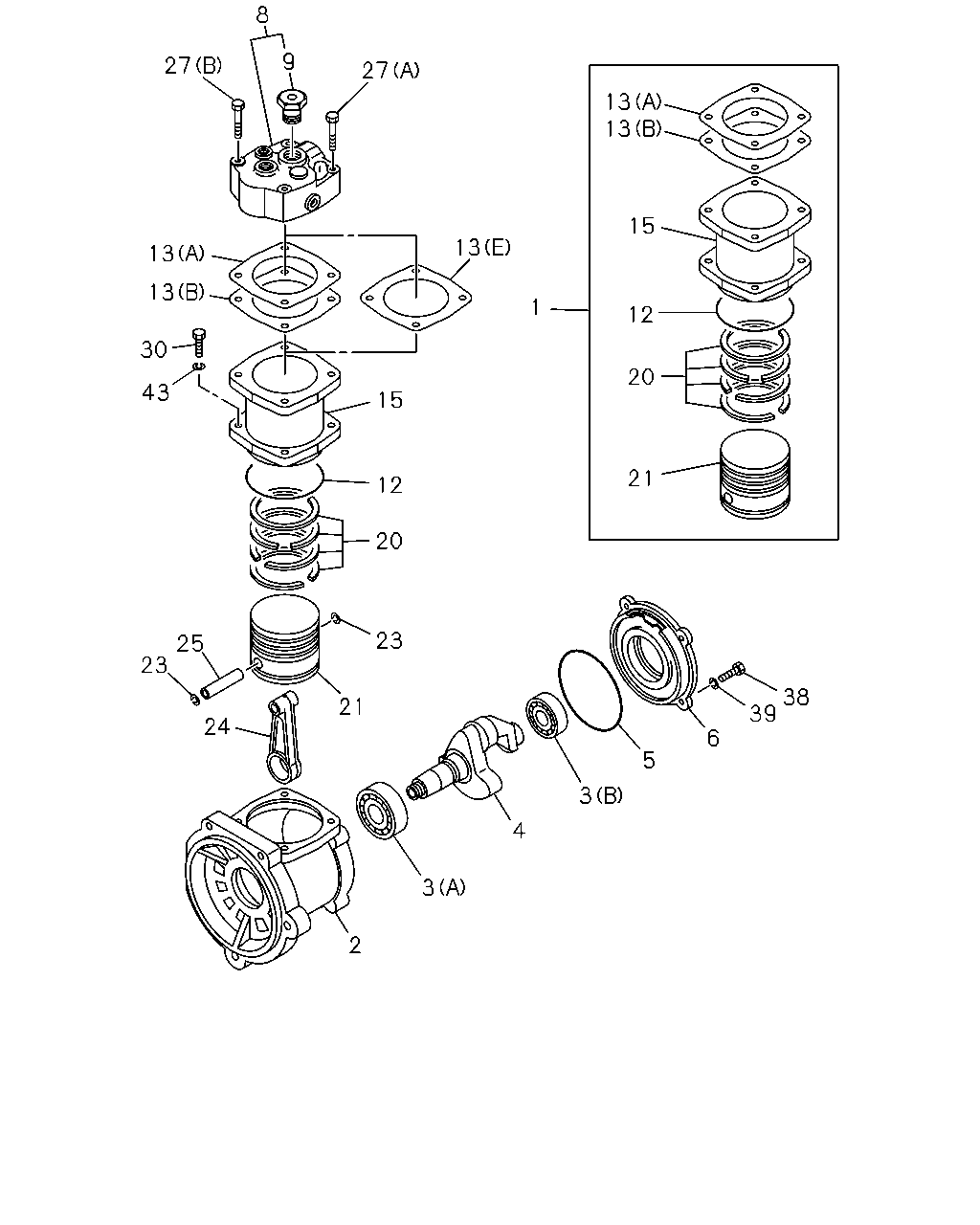

8 9 27 27 13 13 15 13 13 13 1 12 30 20 43 15 21 12 20 23 25 23 38 39 21 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9806-9911	●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	9912-		●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	9806-9806			●
1	LINER KIT; CYL,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19163-053-2	01	1	9807-9911			●
1	LINER KIT; CYL,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19163-050-1	01	1	9807-9911			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9806-9911	●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	9912-		●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	9806-9911			●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9806-9911	●		●
3	BEARING; AIR CMPR (B)	9-00006-206-0	01	1	9912-		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9806-9911	●		●
3	BEARING; AIR CMPR (A)	9-00090-152-0	01	1	9912-		●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9806-9911	●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	9912-		●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	9806-9806			●
4	CRANKSHAFT; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19171-048-1	01	1	9807-9911			●
4	CRANKSHAFT; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19171-047-1	01	1	9807-9911			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9806-9911	●		●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9912-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9806-9911	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9912-		●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	9806-9911			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9806-9911	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	9912-		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	9806-9806			●
8	HEAD ASM; CYL,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19110-052-1	01	1	9807-9911			●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19110-019-0	01	1	9807-9911			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9806-9809	●		●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9810-9911	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19120-017-1	01	1	9810-9911			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	9912-		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9806-9911	●		●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9912-		●
13	GASKET; AIR CMPR (E)	1-19139-016-0	01	1	9912-		●
13	GASKET; AIR CMPR (B)	1-19139-002-0	01	1	9806-9911	●
13	GASKET; AIR CMPR (A) T=0.8	1-19139-004-0	01	1	9806-9911	●
13	GASKET; AIR CMPR (C)	1-09623-626-0	01	1	9806-9806			●
13	GASKET; AIR CMPR AIR CMPR HVY DUTY<E1Q> (C)	1-09623-626-0	01	1	9807-9911			●
13	GASKET; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q> (D)	1-19115-006-1	01	1	9807-9911			●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9806-9911	●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	9912-		●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	9806-9806			●
15	CYLINDER; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19151-219-0	01	1	9807-9911			●
15	CYLINDER; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19151-250-0	01	1	9807-9911			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9806-9806	●		●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9807-9911	●
20	RING KIT; PISTON,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19163-051-1	01	1	9807-9911			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	9912-		●
20	RING KIT; PISTON,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19163-043-0	01	1	9807-9911			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9806-9806	●		●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9807-9911	●
21	PISTON; AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19161-016-0	01	1	9807-9911			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	9912-		●
21	PISTON; AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19161-021-0	01	1	9807-9911			●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9806-9911	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	9912-		●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	9806-9911			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9806-9806	●		●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9807-9911	●
24	ROD ASM; CONN,AIR CMPR AIR CMPR HVY DUTY<E1Q>	1-19173-010-0	01	1	9807-9911			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	9912-		●
24	ROD ASM; CONN,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	1-19173-017-0	01	1	9807-9911			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9806-9806	●		●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9807-9911	●
25	PIN; PISTON,AIR CMPR AIR CMPR HVY DUTY<E1Q>	9-19167-003-0	01	1	9807-9911			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	9912-		●
25	PIN; PISTON,AIR CMPR EXC. AIR CMPR HVY DUTY<E1Q>	9-19167-006-0	01	1	9807-9911			●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9806-9809	●		●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9810-9911	●
27	BOLT; HD AIR CMPR HVY DUTY<E1Q> (A) M10X45	9-01066-045-0	02	1	9810-9911			●
27	BOLT; HD (A) M10X45	9-01066-045-0	02	1	9912-		●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9806-9809	●		●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9810-9911	●
27	BOLT; HD AIR CMPR HVY DUTY<E1Q> (B) M10X60	9-01066-060-0	02	1	9810-9911			●
27	BOLT; HD (B) M10X60	9-01066-060-0	02	1	9912-		●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9806-9911	●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	9912-		●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	9806-9911			●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9806-9911	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9912-		●
38	BOLT; COVER FIX	9-81385-023-0	04	1	9806-9911			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9806-9911	●		●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9912-		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9806-9911	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9912-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
