◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#67928) — 37 parça

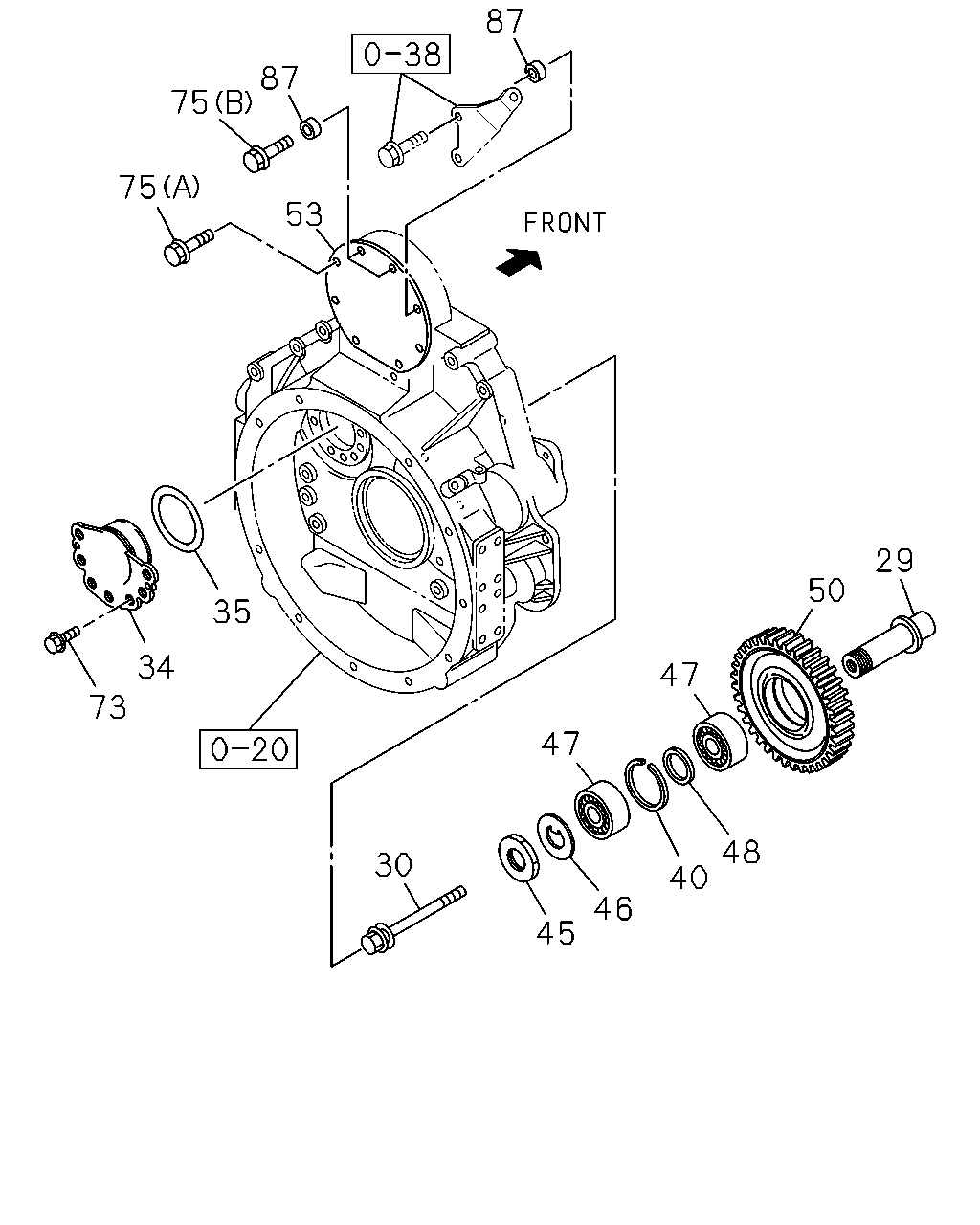

çizim 85158
87 87 53 35 34 73 30 47 47 50 29 48 40 46 45 75 75
BalonParca AdiParca NoAdetTipApplied Date
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		8-94396-895-1 01 1 0803-
30 BOLT; SPINDLE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M14X125 FLANGE W/PL WASHER 		1-09070-043-1 01 1 0803-
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		8-97600-138-0 01 1 0803-
35 GASKET; COVER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		8-94396-903-0 01 1 0803-
40 SPACER; IDLE GEAR
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=3 		1-38226-015-0 01 1 0803-
45 NUT; BRG,IDLE GEAR
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M45 		8-98013-634-0 01 1 0803-
46 WASHER; LK,BRG
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=47 		1-09533-003-0 01 1 0803-
47 BEARING; TAPER ROLLER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=45 OD=85 		9-00032-209-0 02 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.05 		1-38226-016-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.12 		1-38226-017-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.19 		1-38226-018-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.26 		1-38226-019-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.33 		1-38226-020-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.40 		1-38226-021-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.47 		1-38226-022-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.54 		1-38226-023-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.61 		1-38226-024-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.68 		1-38226-025-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.75 		1-38226-026-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.82 		1-38226-027-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.89 		1-38226-028-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=6.96 		1-38226-029-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=7.03 		1-38226-030-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=7.10 		1-38226-031-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=7.17 		1-38226-032-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=7.24 		1-38226-033-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=7.31 		1-38226-034-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=7.38 		1-38226-035-0 01 1 0803-
48 SPACER; INNER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> T=7.45 		1-38226-036-0 01 1 0803-
50 GEAR; IDLE A
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> Z=72 		8-98011-442-0 01 1 0803-
53 COVER; PTO
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		8-94393-097-0 01 1 0803-
73 BOLT; COVER,PTO
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M10X25 FLANGE 		0-28151-025-0 07 1 0803-
75 BOLT; COVER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M10X20 FLANGE 		0-28151-020-0 06 1 0803-0803
75 BOLT; COVER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M10X20 FLANGE 		0-28151-020-0 04 1 0804-
75 BOLT; COVER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M10X30 FLANGE 		0-28151-030-0 02 1 0803-
87 TUBE; DISTANCE,COVER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		9-53319-007-0 02 1 0803-0803
87 TUBE; DISTANCE,COVER
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> 		9-53319-007-0 04 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
