0-60 — ENGINE ELECTRICAL CONTROL PARTS (#67924) — 325 parça

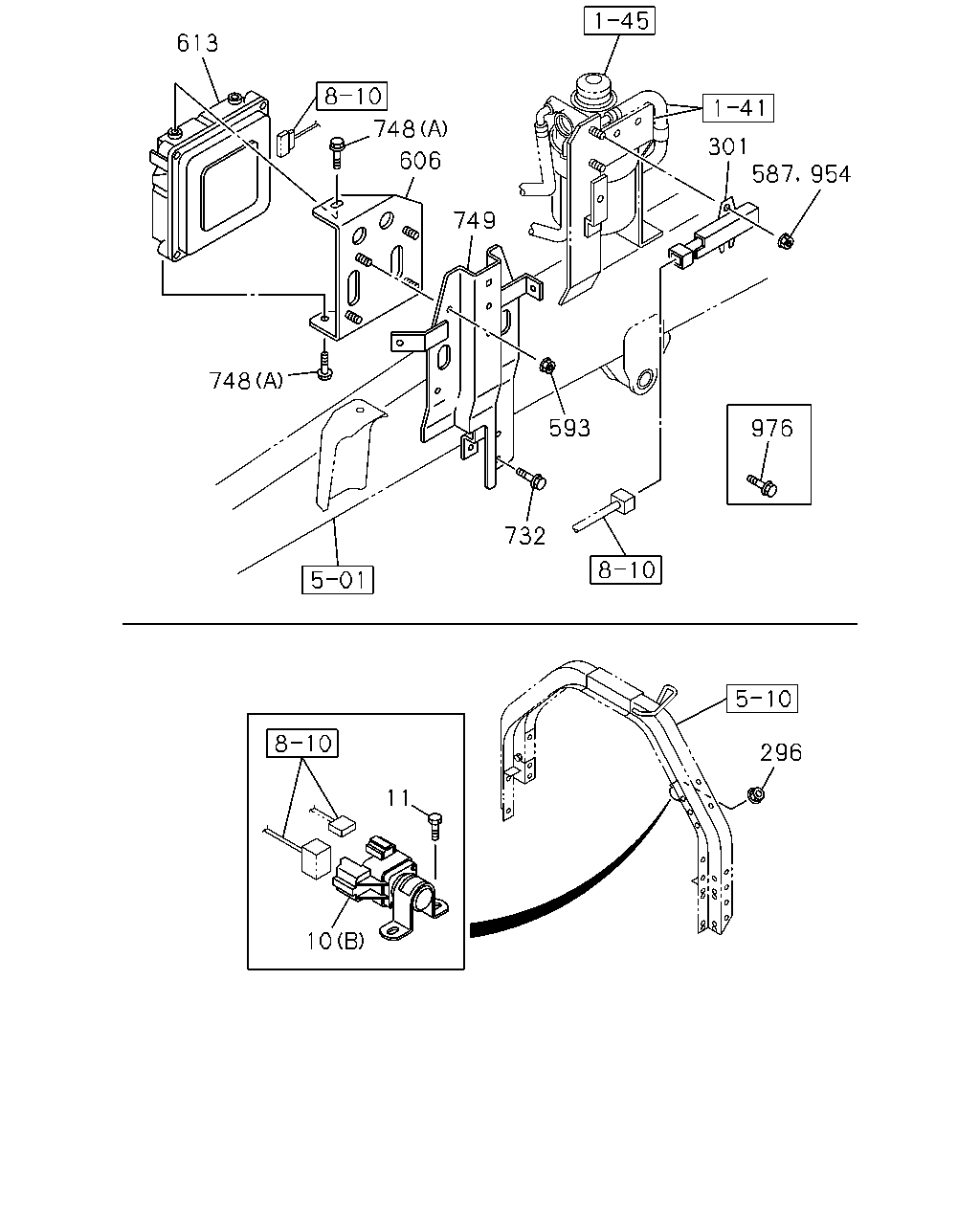

çizim 72516
613 748 606 749 301 587 954 748 593 976 732 296 11 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0907 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0803-0907 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0908- ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0907 ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0908- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0803-0907 ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
301 RESISTOR; DROPPING 8-97357-613-0 01 1 0803-0808 ●
301 RESISTOR; DROPPING
6HK1-TCC ENG(81L) 		8-97357-613-0 01 1 0809-0809 ●
301 RESISTOR; DROPPING
6HK1-TCC ENG(81L) 		8-97357-613-0 01 1 0810-1112 ●
301 RESISTOR; DROPPING
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> 		8-97357-613-0 01 1 0810-1112 ●
301 RESISTOR; DROPPING
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97357-613-0 01 1 1201- ●
301 RESISTOR; DROPPING
EURO4 SPECIFICATION<NT4> 		8-97357-613-0 01 1 1201- ●
587 NUT; RESISTOR & RELAY
M6 FLANGE 		0-91180-106-0 02 1 0803-0808 ●
587 NUT; RESISTOR & RELAY
6HK1-TCC ENG(81L) M6 FLANGE 		0-91180-106-0 02 1 0809-0809 ●
587 NUT; RESISTOR & RELAY
6HK1-TCC ENG(81L) M6 FLANGE 		0-91180-106-0 02 1 0810-1112 ●
587 NUT; RESISTOR & RELAY
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 02 1 0810-1112 ●
587 NUT; RESISTOR & RELAY
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M6 FLANGE 		0-91180-106-0 02 1 1201- ●
587 NUT; RESISTOR & RELAY
EURO4 SPECIFICATION<NT4> M6 FLANGE 		0-91180-106-0 02 1 1201- ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0803-0907 ●
593 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0908- ● ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0803-0907 ●
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 0908- ● ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEMDELETE<7RK> 		8-98216-173-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98216-173-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98257-206-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98216-179-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-205-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98257-207-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEMDELETE<7RK> 		8-98216-177-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98226-854-0 01 1 1208-1301 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98238-781-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98226-853-0 01 1 1208-1301 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98238-782-0 01 1 1302- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98211-060-0 01 1 1201-1207 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98211-060-0 01 1 1208- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98211-059-0 01 1 1201-1207 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98211-059-0 01 1 1208- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98175-536-1 01 1 1010-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-244-0 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-244-0 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-244-0 01 1 0911-1006 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-244-0 01 1 0911-1006 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1007-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1007-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1108-1211 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1108-1211 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1212-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-975-1 01 1 1212-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98170-975-1 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98170-975-1 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-243-0 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98154-243-0 01 1 0911-1006 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-974-1 01 1 1007-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-974-1 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98170-974-1 01 1 1108-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK> 		8-98170-974-1 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98105-582-2 01 1 0906-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98105-582-2 01 1 0907-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98105-582-3 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98105-582-3 01 1 1108- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-913-3 01 1 0809-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-913-3 01 1 0907-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98074-913-4 01 1 0911-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98074-913-4 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3) 		8-98074-911-2 01 1 0809-0809 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98074-911-3 01 1 0810-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98074-911-3 01 1 0907-0907 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 		8-98074-911-3 01 1 0908-0908 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-911-3 01 1 0908-0908 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),COLOMBIA EQUIPMENT(CB7) ,MOROCCO EQUIPMENT(CGA),SPEED LIMITER 85KM(EDX), PERU EQUIPMENT(E07),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) 		8-98074-911-3 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) 		8-98074-911-3 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 0911-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 0911-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ),HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 1108-1211 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 1108-1211 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 1212-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98074-911-4 01 1 1212-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98257-211-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. HIGHLAND ZONE PACKAGE<W02> 		8-98257-211-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-2 01 1 0809-0809 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0810-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0907-0907 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0908-0908 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0908-0908 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),COLOMBIA EQUIPMENT(CB7) ,MOROCCO EQUIPMENT(CGA),SPEED LIMITER 85KM(EDX), PERU EQUIPMENT(E07),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-686-3 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-686-4 01 1 0911-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-686-4 01 1 0911-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02> 		8-98092-686-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-686-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-686-4 01 1 1108-1211 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-686-4 01 1 1108-1211 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-686-4 01 1 1212-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-686-4 01 1 1212-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98216-174-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98216-174-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-890-3 01 1 0809-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) MOROCCO EQUIPMENT(CGA) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-890-3 01 1 0907-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98074-890-4 01 1 0911-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) SPEED LIMITER 85KM(EDX) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> 		8-98074-890-4 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX) 		8-98074-888-2 01 1 0809-0809 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),CHILE EQUIPMENT(KE1) 		8-98074-888-3 01 1 0810-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),CHILE EQUIPMENT(KE1) 		8-98074-888-3 01 1 0907-0908 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. TAIWAN EQUIPMENT(B04),COLOMBIA EQUIPMENT(CB7) ,MOROCCO EQUIPMENT(CGA),SPEED LIMITER 85KM(EDX), PERU EQUIPMENT(E07),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1) 		8-98074-888-3 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98074-888-3 01 1 0911-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ),HIGHLAND ZONE PACKAGE<W02> 		8-98074-888-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98074-888-4 01 1 1108-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-212-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98257-212-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-680-2 01 1 0809-0809 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-680-3 01 1 0810-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),MOROCCO EQUIPMENT(CGA), SPEED LIMITER 85KM(EDX),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-680-3 01 1 0907-0908 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. TAIWAN EQUIPMENT(B04),COLOMBIA EQUIPMENT(CB7) ,MOROCCO EQUIPMENT(CGA),SPEED LIMITER 85KM(EDX), PERU EQUIPMENT(E07),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98092-680-3 01 1 0909-0910 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-680-4 01 1 0911-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02> 		8-98092-680-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98092-680-4 01 1 1108-1311 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 85KM(EDX),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98257-213-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02> 		8-98257-213-0 01 1 1312- ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-908-3 01 1 0810-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-908-3 01 1 0907-1006 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-908-4 01 1 1007-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98074-908-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-908-4 01 1 1108-1207 ●
613 CONTROL UNIT; ENG
6HK1-TCS ENG(80L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98074-908-4 01 1 1208- ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-886-3 01 1 0810-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-886-3 01 1 0907-1006 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-886-4 01 1 1007-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98074-886-4 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98074-886-4 01 1 1108-1207 ●
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),HIGHLAND ZONE PACKAGE<W02> 		8-98074-886-4 01 1 1208- ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98074-891-2 01 1 0803-0804 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),FULLER FSO5206B OD M/T(Y4V), ZF9S1110 M/T(Y5E) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98105-567-0 01 1 0805-0805 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98105-567-0 01 1 0806-0808 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MLD6W M/T(Y2C),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98105-567-1 01 1 0809-0906 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98105-567-1 01 1 0907-1004 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98163-622-0 01 1 1005-1007 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX),SPEED LIMITER 90KM(NMJ) 		8-98163-622-0 01 1 1008-1107 ●
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 85KM(EDX) 		8-98163-622-0 01 1 1108- ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0803-0907 ●
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0908- ● ●

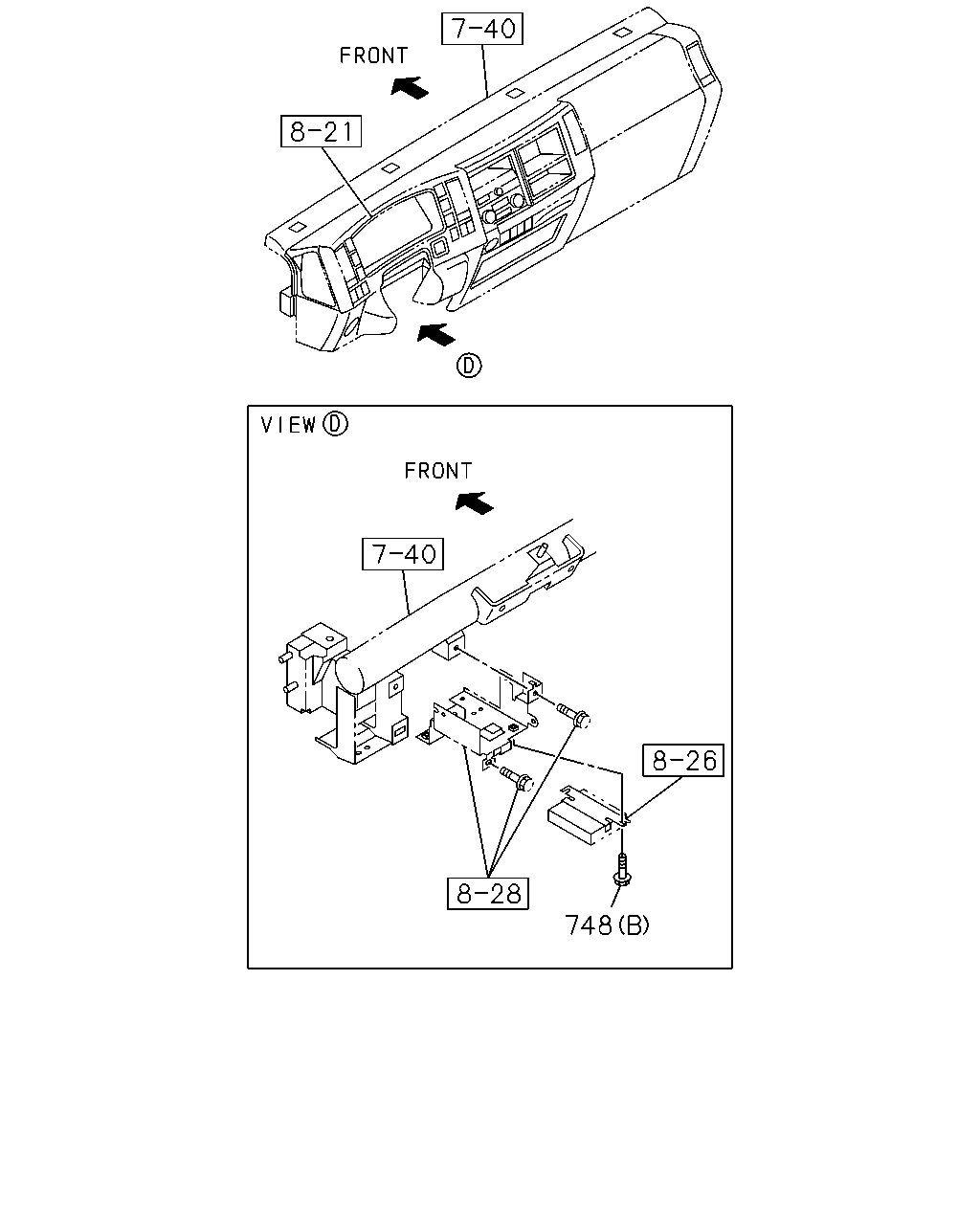

748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0803-0907 ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0908- ● ●
748 BOLT; CONT UNIT
6HK1-TCC ENG(81L) (B) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0808 ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0809-0907 ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0908- ● ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0803-0907 ●
749 STAY; CONT UNIT 1-53194-595-3 01 1 0908- ● ●
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0803-0906 ●
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28050-620-0 02 1 0803-0906 ●

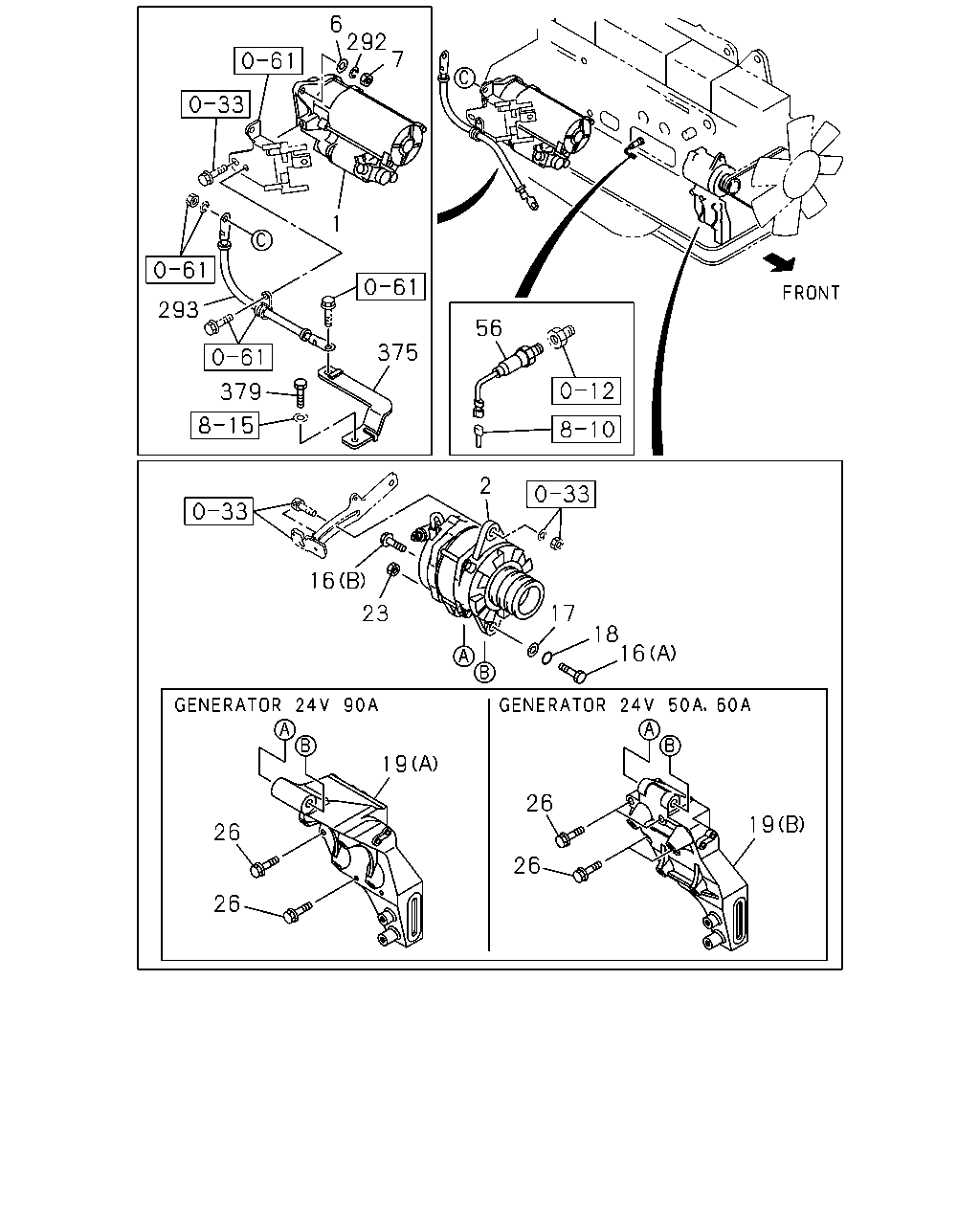

çizim 72557
7 292 6 1 56 375 379 293 16 23 2 17 18 16 19 26 26 19 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0803-0907 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0908-0909 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910-1409 ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-1 01 1 0803-0907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 0908- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-3 01 1 0803- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-1 01 1 0803-0907 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 0908- ● ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 0803-0907 ●
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 0908- ● ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0803-0907 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0908- ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0910- ● ●
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0803-0808 ●
16 BOLT; GEN
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0809-0907 ●
16 BOLT; GEN
6HK1-TCC ENG(81L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0809-0907 ●
16 BOLT; GEN
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0908-0909 ● ●
16 BOLT; GEN
6HK1-TCC ENG(81L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0908-0909 ● ●
16 BOLT; GEN
EURO2 SPECIFICATION<NT2> AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 03 1 0910- ● ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0803-0907 ●
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 0908- ● ●
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0803-0808 ●
16 BOLT; GEN
6HK1-TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 0809-1101 ●
16 BOLT; GEN
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1102-1207 ● ●
16 BOLT; GEN
6HK1-TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1102-1207 ● ●
16 BOLT; GEN
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1208- ●
16 BOLT; GEN
6HK1-TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1208- ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0803-0907 ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0908- ● ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0803-0907 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0908- ● ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-97609-149-0 01 1 0803-0803 ●
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 0804-0808 ●
19 BRACKET; GEN
6HK1-TCC ENG(81L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 0809-0907 ●
19 BRACKET; GEN
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		8-98082-615-1 01 1 0809-0907 ●
19 BRACKET; GEN
6HK1-TCC ENG(81L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 0908-1207 ● ●
19 BRACKET; GEN
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		8-98082-615-1 01 1 0908-1207 ● ●
19 BRACKET; GEN
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) 		8-98082-615-1 01 1 1208- ● ●
19 BRACKET; GEN
6HK1-TCC ENG(81L) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 1208- ●
19 BRACKET; GEN
GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 0803- ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0803-0907 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0908- ● ●
26 BOLT; GEN BRKT
6HK1-TCS ENG(80L) GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> M10X40 FLANGE 		0-28151-040-0 03 1 1405- ●
26 BOLT; GEN BRKT
6HK1-TCS ENG(80L) GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> M10X90 FLANGE 		0-28151-090-0 03 1 1405- ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0803-0907 ●
26 BOLT; GEN BRKT
M10X40 FLANGE 		0-28151-040-0 02 1 0908- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0803-0907 ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28151-080-0 02 1 0908- ● ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X25 FLANGE 		0-28151-025-0 01 1 0803- ●
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) M10X135 		8-94397-139-1 01 1 0803- ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0803-0907 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0908- ● ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 0803-0907 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 0908- ● ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2> COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) L=530 		8-98097-226-0 01 1 0909-0910 ●
293 CABLE; STARTER EARTH
COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) L=530 		8-98097-226-0 01 1 0909-0910 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2> L=420 		8-98131-856-0 01 1 0810-0907 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2> L=420 		8-98131-856-0 01 1 0908-1101 ●
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 0908-1101 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2> L=420 		8-98131-856-0 01 1 1102-1311 ●
293 CABLE; STARTER EARTH
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> L=420 		8-98131-856-0 01 1 1102-1311 ●
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 1102-1311 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR CONDITIONER MANUAL CONTROL(C60) CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) CHILE EQUIPMENT(KE1) GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHILE EQUIPMENT(KE1) GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41) SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),HIGHLAND ZONE PACKAGE<W02>,KD PREPARATORYPACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44), GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHILE EQUIPMENT(KE1) GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHILE EQUIPMENT(KE1) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HIGHLAND ZONE PACKAGE<W02>,KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR CONDITIONER MANUAL CONTROL(C60) PERU EQUIPMENT(E07) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),KD PREPARATORY PACK<6HF>,GL OW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),KD PREPARATORY PACK<6HF>,GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) HEATER & DEFROSTER(C41) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) PERU EQUIPMENT(E07) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) PERU EQUIPMENT(E07) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60),KD PREPARATORYPACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>, GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>,KD PREPARATORYPACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>, GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C), FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>,KD PREPARATORYPACK<6HF>,GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),GLOW SYSTEM DELETE<7RK> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) HIGHLAND ZONE PACKAGE<W02> MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F) L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> KD PREPARATORY PACK<6HF> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02>, KD PREPARATORY PACK<6HF> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRK SYSTEM FULL AIR DUAL CIRC(Z06) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> GLOW SYSTEM DELETE<7RK> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, FIRE TRUCK CHASSIS(V4F),HIGHLAND ZONE PACKAGE<W02> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
6HK1-TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER ES11109 DD M/T(Y5N) GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> L=420 		8-98131-856-0 01 1 1312-1404 ●
293 CABLE; STARTER EARTH
EURO2 SPECIFICATION<NT2> L=420 		8-98131-856-0 01 1 1405- ●
293 CABLE; STARTER EARTH
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> L=420 		8-98131-856-0 01 1 1405- ●
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 1405- ●
293 CABLE; STARTER EARTH
L=430 		8-97621-357-0 01 1 0803-0809 ●
293 CABLE; STARTER EARTH
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> L=430 		8-97621-357-0 01 1 0810-1101 ●
293 CABLE; STARTER EARTH
EURO4 SPECIFICATION<NT4> L=430 		8-97621-357-0 01 1 1102- ●
293 CABLE; STARTER EARTH
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> L=430 		8-97621-357-0 01 1 1102- ●
375 BRACKET
EURO2 SPECIFICATION<NT2> 		8-98131-726-0 01 1 0810-0907 ●
375 BRACKET
EURO2 SPECIFICATION<NT2> 		8-98131-726-0 01 1 0908-1008 ●
375 BRACKET 8-98131-726-0 01 1 0908-1008 ●
375 BRACKET
EURO2 SPECIFICATION<NT2> 		8-98131-726-0 01 1 1009- ●
375 BRACKET
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98131-726-0 01 1 1009- ●
375 BRACKET 8-98131-726-0 01 1 1009- ●
379 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0810-0907 ●
379 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0908-1008 ●
379 BOLT; BRKT
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0908-1008 ●
379 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1009- ●
379 BOLT; BRKT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1009- ●
379 BOLT; BRKT
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1009- ●

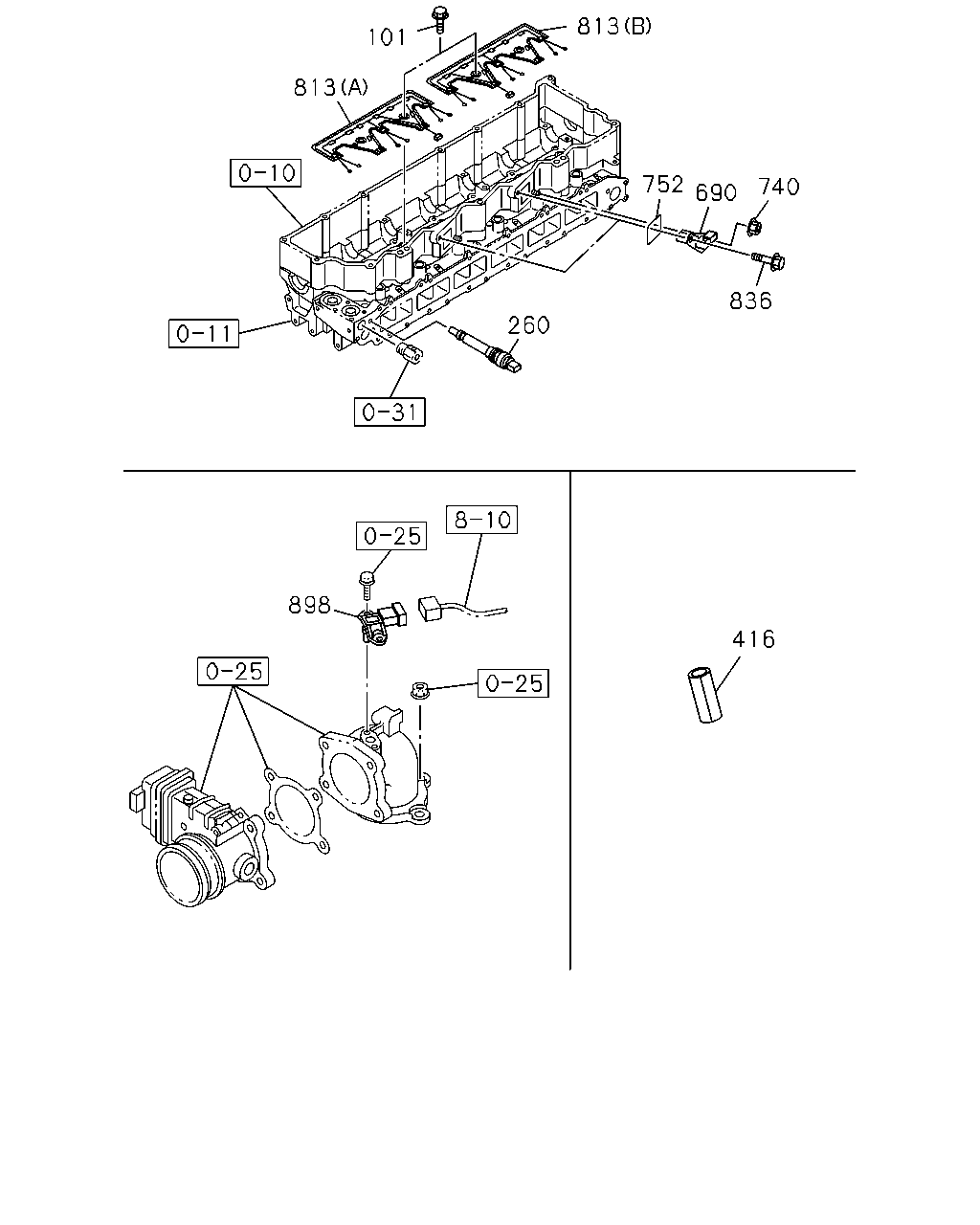

çizim 72637
101 813 813 752 740 690 836 260 416 898
BalonParca AdiParca NoAdetTipApplied Date A B
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0803-0907 ●
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0908- ● ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0803-0907 ●
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 0908-1503 ● ●
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
416 SLEEVE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0803-0808 ●
416 SLEEVE; RUBBER
6HK1-TCC ENG(81L) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0809-1006 ●
416 SLEEVE; RUBBER
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1007- ●
690 CONNECTOR 8-94390-858-1 02 1 0803-0907 ●
690 CONNECTOR 8-94390-858-1 02 1 0908- ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-0907 ●
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0908-1011 ● ●
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0803-0907 ●
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0908- ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0803-0907 ●
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0908-1008 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1009-1112 ● ●
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1201- ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0803-0907 ●
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0908-1008 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1009-1112 ● ●
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1201- ● ●
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0803-0907 ●
898 SENSOR; BOOST 8-98009-418-0 01 1 0908- ● ●
çizim 73096
748
BalonParca AdiParca NoAdetTipApplied Date A B
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0803-0907 ●
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 03 1 0908- ● ●
748 BOLT; CONT UNIT
6HK1-TCC ENG(81L) (B) M6X16 FLANGE 		0-28650-616-0 02 1 0803-0808 ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0809-0907 ●
748 BOLT; CONT UNIT
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0908- ● ●

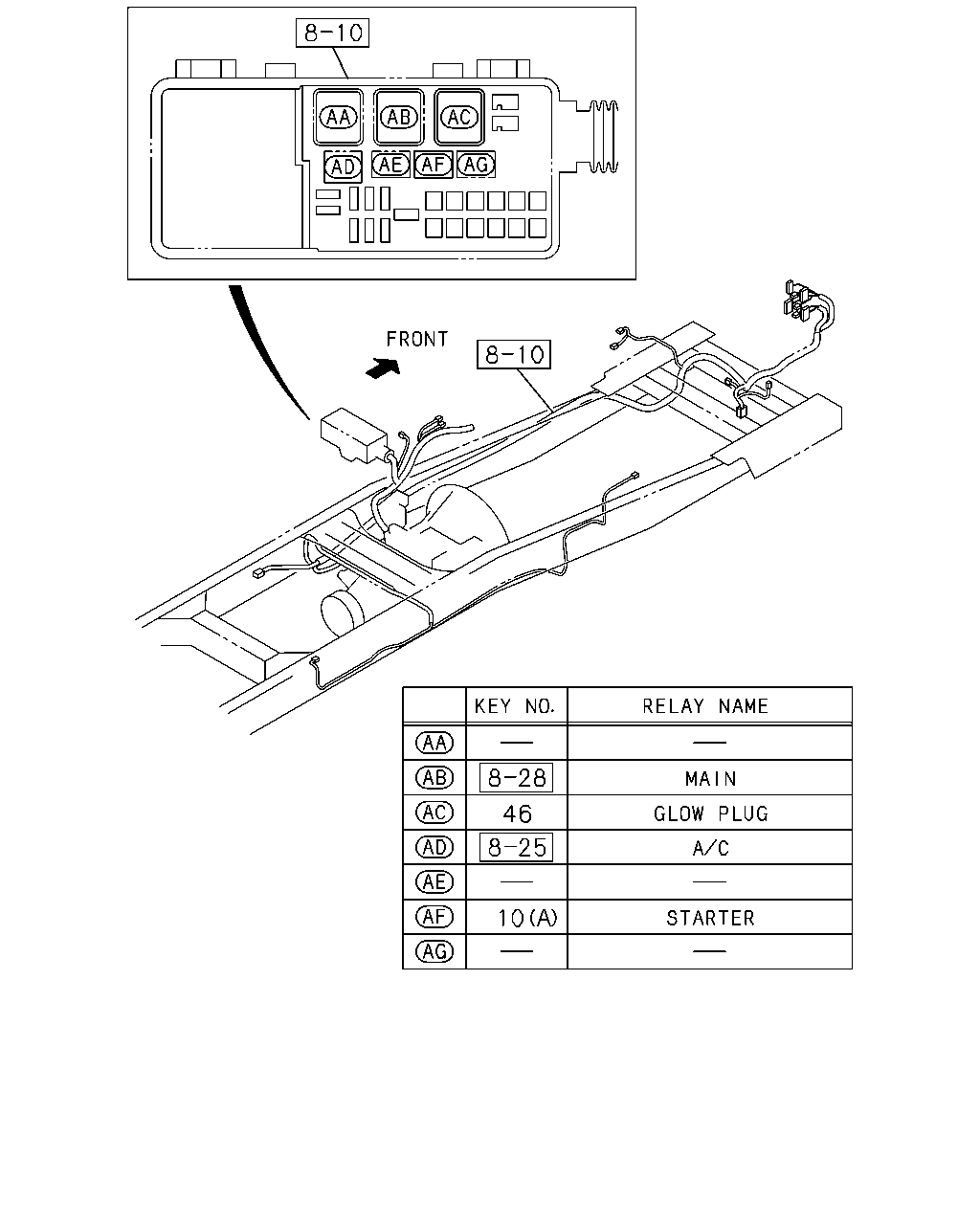

çizim 193724
46 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0803-0907 ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0908-1005 ● ●
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ● ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0803-0907 ●
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 0908- ● ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0803-0907 ●
46 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0908-1311 ● ●
46 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
