0-57 — EMISSION PIPING (#67923) — 176 parça

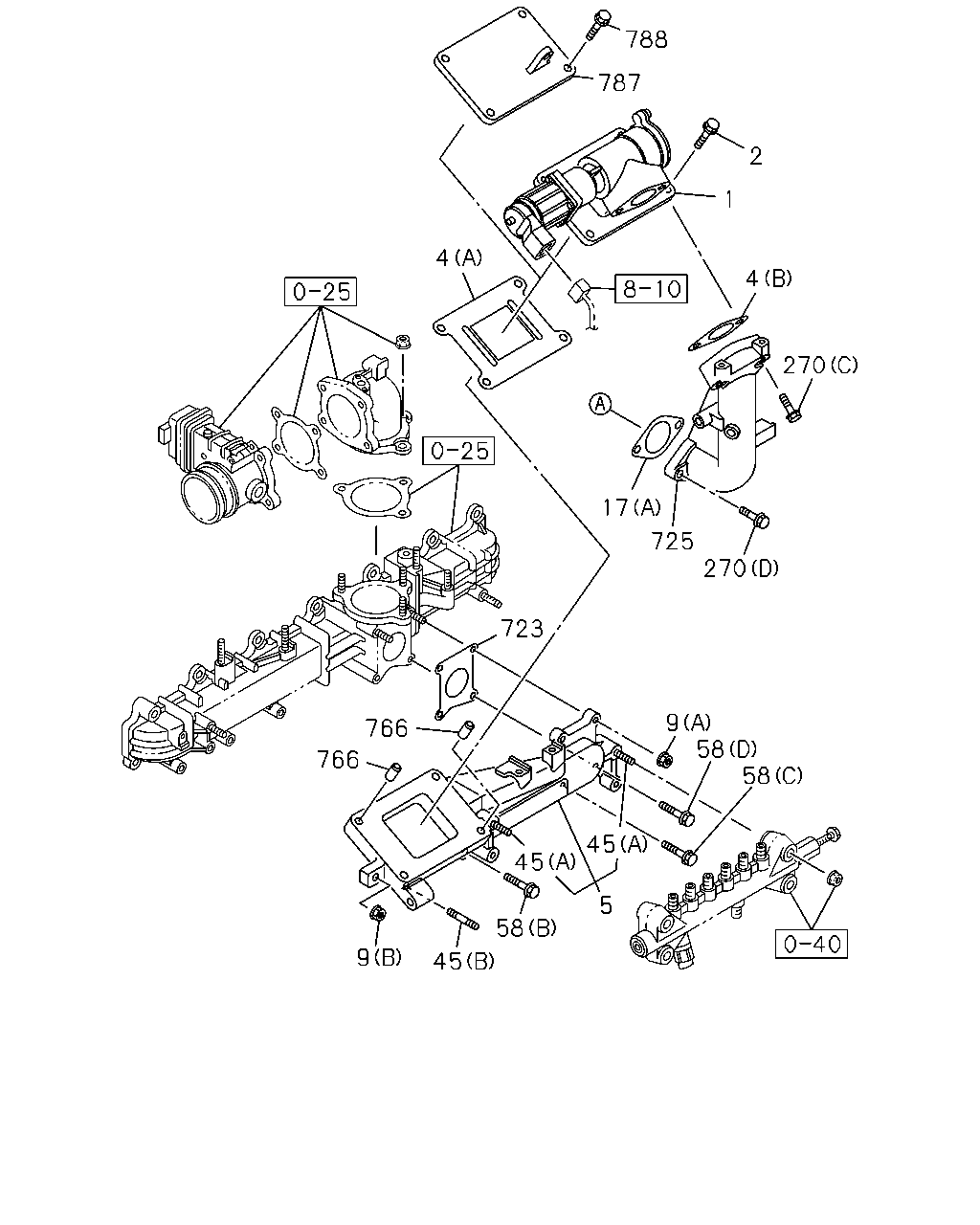

788 787 2 1 4 270 17 725 270 723 4 766 766 9 45 45 5 45 58 58 9 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR	8-97383-005-1	01	1	0803-0809	●
1	VALVE; EGR	8-97383-005-9	01	1	0810-	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-97383-005-9	01	1	0810-		●	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0803-0809	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	0810-	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3> M10X35 FLANGE	0-28751-035-0	04	1	0810-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97603-282-0	01	1	0803-0809	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97603-282-0	01	1	0810-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B)	8-97603-282-0	01	1	0810-		●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	0803-0808	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	0809-	●	●	●
5	ADAPTER ASM	8-97606-201-3	01	1	0803-0808	●
5	ADAPTER ASM	8-97606-201-3	01	1	0809-1305	●	●	●
5	ADAPTER ASM	8-98240-157-0	01	1	1306-	●	●	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	0803-0808	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	0809-	●	●	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	0803-0808	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	0809-	●	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-97600-167-0	01	1	1102-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97601-144-0	02	1	0803-0809	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97601-144-0	02	1	0810-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-97601-144-0	02	1	0810-		●	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	0803-0808	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	0809-	●	●	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	0803-0808	●
45	STUD; ADAPTER,EGR (A) M10X50 L=65	0-44011-050-0	02	1	0809-	●	●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809		●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0803-0809	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0810-	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X60 FLANGE	0-28050-860-0	02	1	0810-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0803-0808	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0803-0808	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0803-0809	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0810-1101	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (E) M10X35 FLANGE	0-28751-035-0	03	1	0810-1101		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	1102-	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E) M10X35 FLANGE	0-28751-035-0	03	1	1102-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0803-0808	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0809-	●	●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0803-0809	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0810-	●
270	BOLT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28050-825-0	02	1	0810-		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0803-0809	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0810-1101	●
270	BOLT EURO3 SPECIFICATION<NT3> (B) M8X35 FLANGE	0-28050-835-0	02	1	0810-1101		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1102-	●
270	BOLT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X35 FLANGE	0-28050-835-0	02	1	1102-		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0803-0809	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0810-	●
270	BOLT EURO3 SPECIFICATION<NT3> (C) M10X45 FLANGE	0-28151-045-0	02	1	0810-		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0803-0809	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0810-1101	●
270	BOLT EURO3 SPECIFICATION<NT3> (A) M8X28 FLANGE	8-98043-528-0	03	1	0810-1101		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1102-	●
270	BOLT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X28 FLANGE	8-98043-528-0	03	1	1102-		●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97605-995-0	01	1	0803-0808	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97605-995-0	01	1	0809-	●	●	●
725	DUCT; EGR VLV	8-97604-972-2	01	1	0803-0809	●
725	DUCT; EGR VLV	8-97604-972-2	01	1	0810-1305	●
725	DUCT; EGR VLV EURO3 SPECIFICATION<NT3>	8-97604-972-2	01	1	0810-1305		●	●
725	DUCT; EGR VLV	8-98240-120-0	01	1	1306-	●
725	DUCT; EGR VLV EURO3 SPECIFICATION<NT3>	8-98240-120-0	01	1	1306-		●	●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	0803-0809	●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	0810-	●
766	DOWEL; EGR VLV EURO3 SPECIFICATION<NT3> OD=14 L=10	9-11319-065-3	02	1	0810-		●	●
787	COVER; DUCT,EGR VLV	8-98058-709-0	01	1	0809-0809		●	●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98058-709-0	01	1	0810-1402		●	●
787	COVER; DUCT,EGR VLV EURO2 SPECIFICATION<NT2>	8-98238-416-0	01	1	1403-		●	●
788	BOLT; COVER M10X35 FLANGE	0-28751-035-0	04	1	0809-0809		●	●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28751-035-0	04	1	0810-1402		●	●
788	BOLT; COVER EURO2 SPECIFICATION<NT2> M10X25 FLANGE	0-28751-025-0	04	1	1403-		●	●

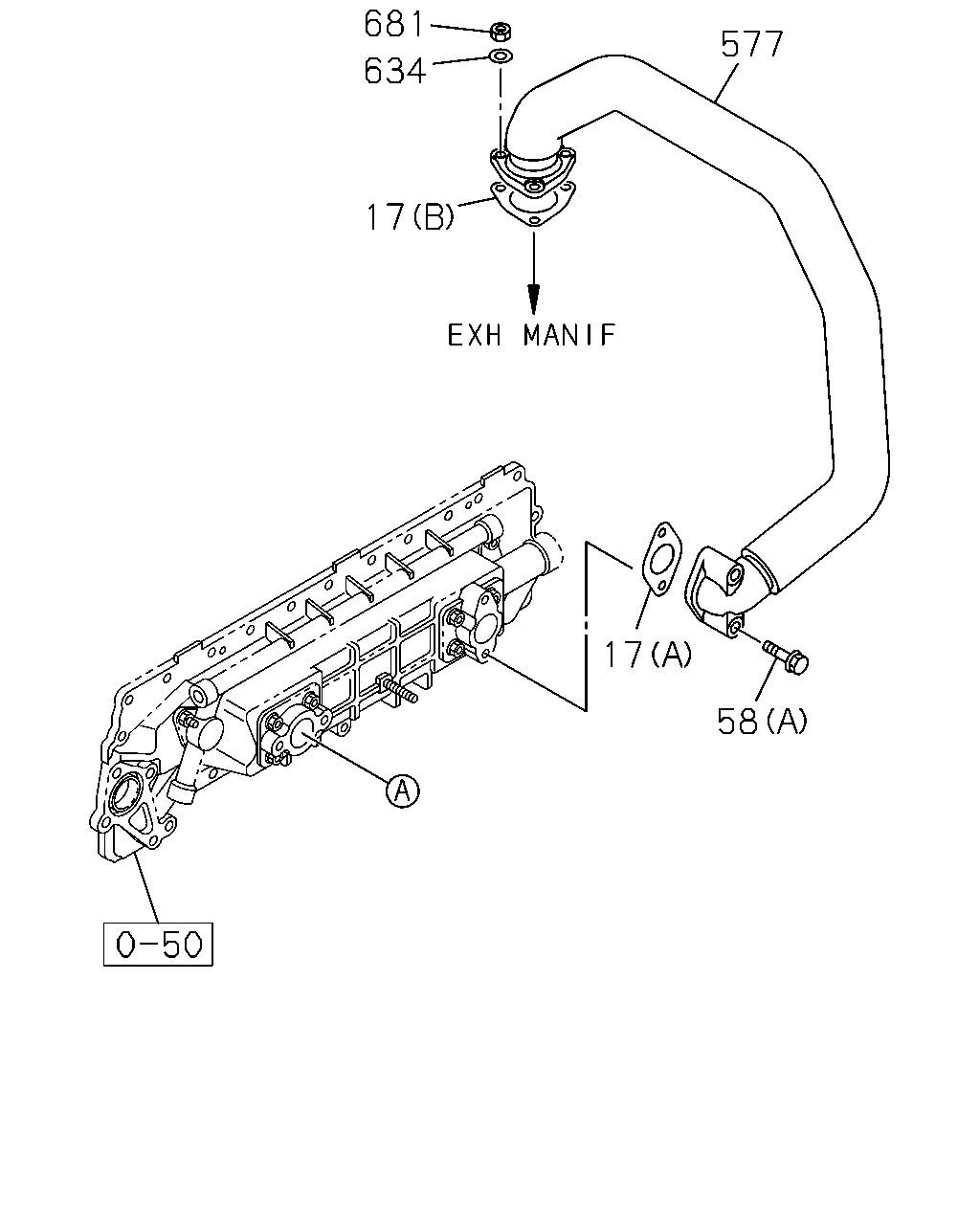

58 17 577 17 634 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-97600-167-0	01	1	1102-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97601-144-0	02	1	0803-0809	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97601-144-0	02	1	0810-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-97601-144-0	02	1	0810-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809		●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0803-0809	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0810-	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X60 FLANGE	0-28050-860-0	02	1	0810-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0803-0808	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0803-0808	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0803-0809	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0810-1101	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (E) M10X35 FLANGE	0-28751-035-0	03	1	0810-1101		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	1102-	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E) M10X35 FLANGE	0-28751-035-0	03	1	1102-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0803-0808	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0809-	●	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97603-452-2	01	1	1102-		●	●
577	PIPE; AIR,EGR	8-98031-049-0	01	1	0803-0809	●
577	PIPE; AIR,EGR	8-98031-049-0	01	1	0810-0909	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3>	8-98031-049-0	01	1	0810-0909		●	●
577	PIPE; AIR,EGR	8-98147-787-0	01	1	0910-1101	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3>	8-98147-787-0	01	1	0910-1101		●	●
577	PIPE; AIR,EGR	8-98147-787-0	01	1	1102-	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98147-787-0	01	1	1102-		●	●
634	WASHER; PL,EGR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=8.4 OD=16	0-91610-508-0	03	1	1102-		●	●
681	NUT; EGR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8	1-09400-118-1	03	1	1102-		●	●

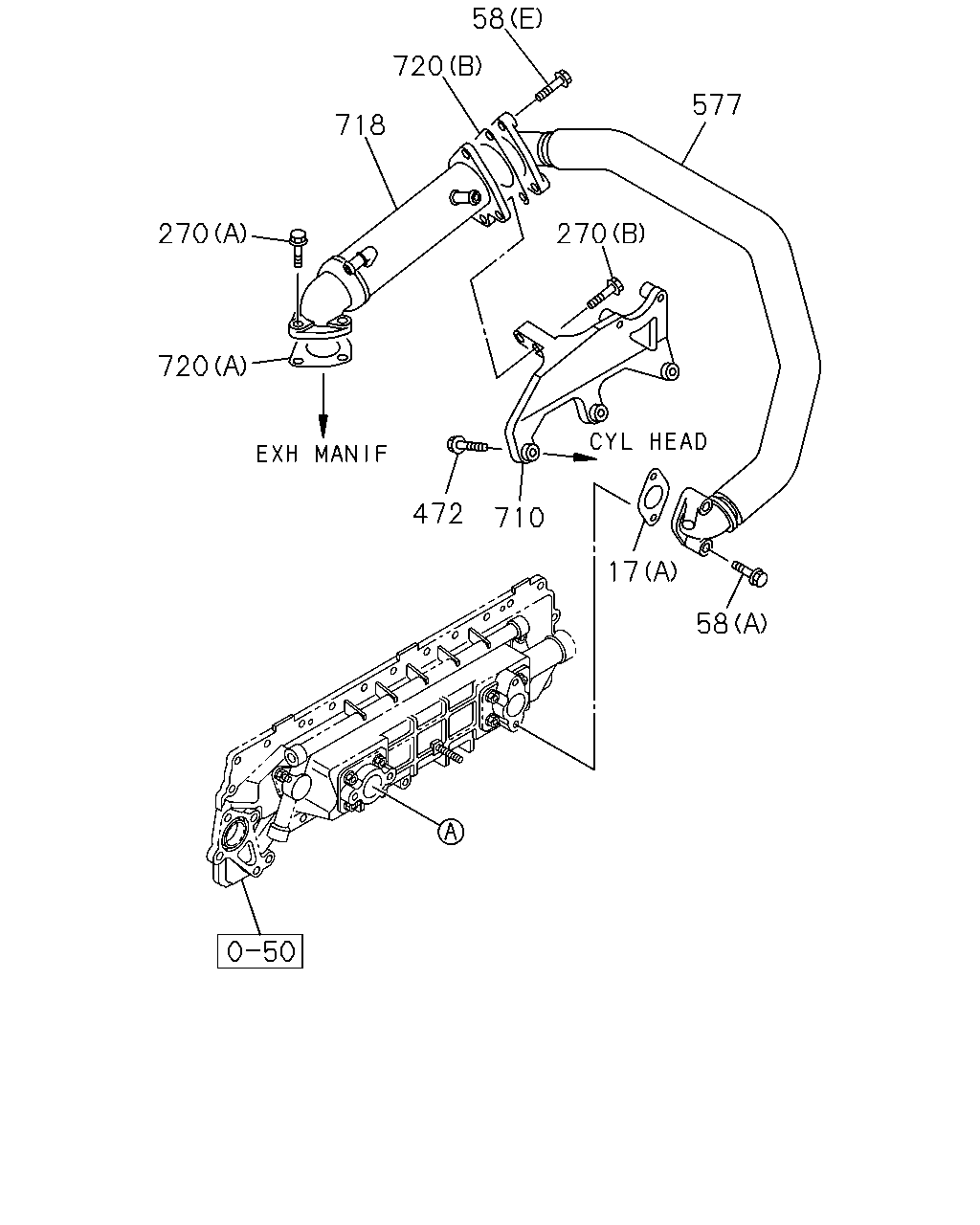

58 577 270 17 58 710 472 720 270 718 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-97600-167-0	01	1	1102-		●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97601-144-0	02	1	0803-0809	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97601-144-0	02	1	0810-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-97601-144-0	02	1	0810-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-0809		●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0803-0809	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	02	1	0810-	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X60 FLANGE	0-28050-860-0	02	1	0810-		●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	04	1	0803-0808	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	0809-	●	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0803-0808	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●	●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0803-0809	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	0810-1101	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (E) M10X35 FLANGE	0-28751-035-0	03	1	0810-1101		●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	03	1	1102-	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E) M10X35 FLANGE	0-28751-035-0	03	1	1102-		●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0803-0808	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	0809-	●	●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0803-0809	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	0810-	●
270	BOLT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28050-825-0	02	1	0810-		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0803-0809	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	0810-1101	●
270	BOLT EURO3 SPECIFICATION<NT3> (B) M8X35 FLANGE	0-28050-835-0	02	1	0810-1101		●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1102-	●
270	BOLT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X35 FLANGE	0-28050-835-0	02	1	1102-		●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0803-0809	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	0810-	●
270	BOLT EURO3 SPECIFICATION<NT3> (C) M10X45 FLANGE	0-28151-045-0	02	1	0810-		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0803-0809	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	0810-1101	●
270	BOLT EURO3 SPECIFICATION<NT3> (A) M8X28 FLANGE	8-98043-528-0	03	1	0810-1101		●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1102-	●
270	BOLT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X28 FLANGE	8-98043-528-0	03	1	1102-		●	●
472	BOLT; BRKT M8X35 FLANGE	0-28060-835-0	03	1	0803-0809	●
472	BOLT; BRKT M8X35 FLANGE	0-28060-835-0	03	1	0810-1101	●
472	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28060-835-0	03	1	0810-1101		●	●
472	BOLT; BRKT M8X35 FLANGE	0-28060-835-0	03	1	1102-	●
472	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8X35 FLANGE	0-28060-835-0	03	1	1102-		●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97603-452-2	01	1	1102-		●	●
577	PIPE; AIR,EGR	8-98031-049-0	01	1	0803-0809	●
577	PIPE; AIR,EGR	8-98031-049-0	01	1	0810-0909	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3>	8-98031-049-0	01	1	0810-0909		●	●
577	PIPE; AIR,EGR	8-98147-787-0	01	1	0910-1101	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3>	8-98147-787-0	01	1	0910-1101		●	●
577	PIPE; AIR,EGR	8-98147-787-0	01	1	1102-	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98147-787-0	01	1	1102-		●	●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0803-0809	●
710	BRACKET; EGR COOLER	8-98030-581-0	01	1	0810-0810	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3>	8-98030-581-0	01	1	0810-0810		●	●
710	BRACKET; EGR COOLER	8-98125-359-0	01	1	0811-1101	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3>	8-98125-359-0	01	1	0811-1101		●	●
710	BRACKET; EGR COOLER	8-98125-359-0	01	1	1102-1202	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98125-359-0	01	1	1102-1202		●	●
710	BRACKET; EGR COOLER	8-98186-437-0	01	1	1203-	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98186-437-0	01	1	1203-		●	●
718	COOLER; EGR	8-98030-582-3	01	1	0803-0809	●
718	COOLER; EGR	8-98030-582-3	01	1	0810-1101	●
718	COOLER; EGR EURO3 SPECIFICATION<NT3>	8-98030-582-3	01	1	0810-1101		●	●
718	COOLER; EGR	8-98030-582-3	01	1	1102-1401	●
718	COOLER; EGR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98030-582-3	01	1	1102-1401		●	●
718	COOLER; EGR	8-98250-860-0	01	1	1402-	●
718	COOLER; EGR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98250-860-0	01	1	1402-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97603-889-0	01	1	0803-0809	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97603-889-0	01	1	0810-1101	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B)	8-97603-889-0	01	1	0810-1101		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97603-889-0	01	1	1102-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97603-889-0	01	1	1102-		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-98046-192-1	01	1	0803-0809	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98046-192-1	01	1	0810-1101	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-98046-192-1	01	1	0810-1101		●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98046-192-1	01	1	1102-	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98046-192-1	01	1	1102-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
