Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#67922) — 300 parça

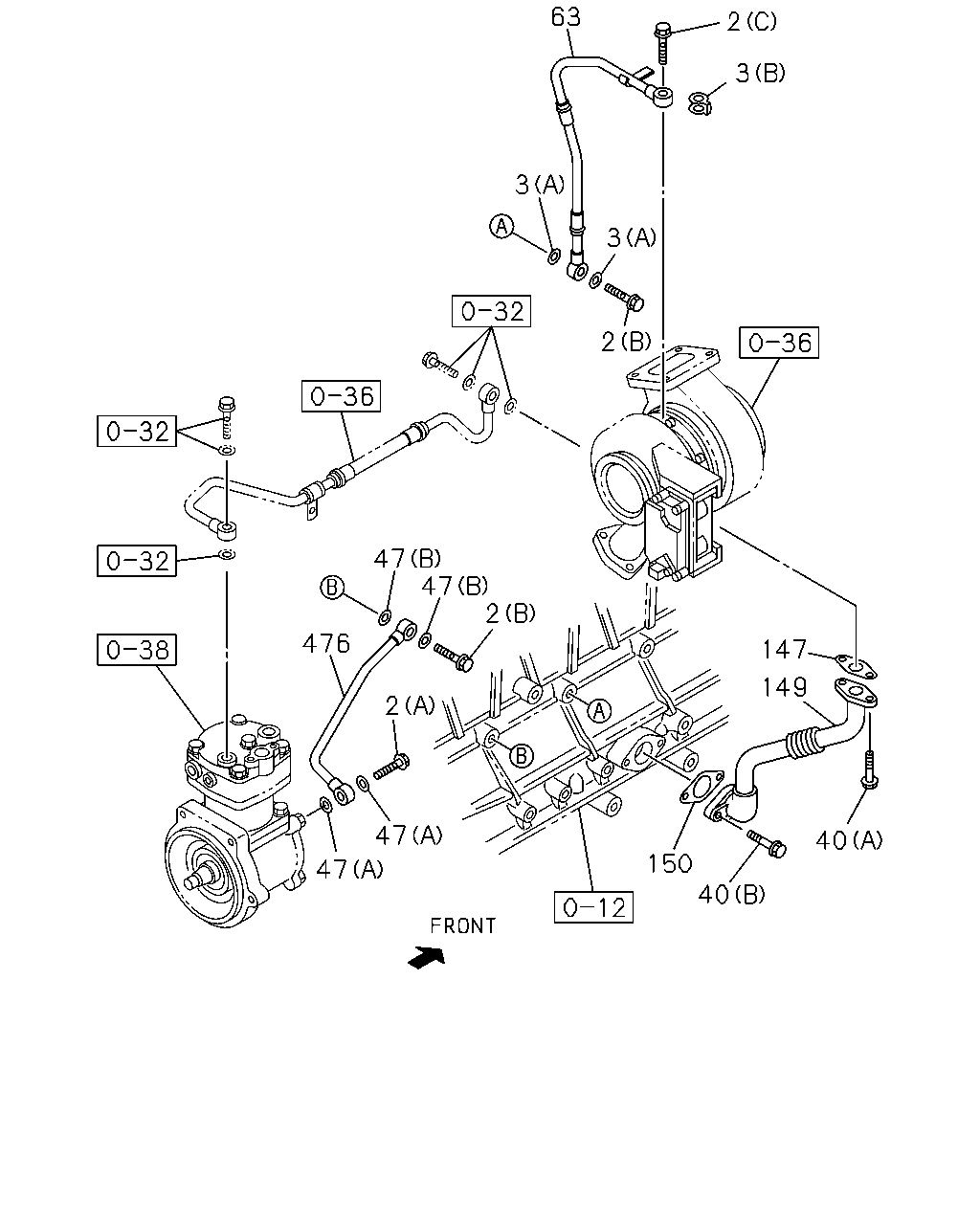

63 2 3 3 3 2 47 47 2 476 2 47 47 150 40 40 149 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	0809-0809	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	0810-1101	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1102-	●	●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M12X25	5-09675-006-1	01	1	1102-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D) M10X21 FLANGE	8-97372-239-0	01	1	0803-			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E) M14X43 EYE-BOLT	8-98037-829-0	01	1	0803-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0803-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-0808			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0809-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0803-0808			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0809-	●	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0803-0803			●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805			●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-0809			●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0810-1101			●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0810-1101	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1102-			●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1102-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0809-0809	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	0810-1101	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	1102-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=12.2	1-09630-084-0	02	1	1102-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0803-0809			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	0810-1101			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=12.6	8-97331-137-1	01	1	0810-1101	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12.6	8-97331-137-1	01	1	1102-	●	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0809	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0810-0906	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-0809	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0810-1101	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1102-	●	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28151-030-0	02	1	1102-	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-0809			●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-0906			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-0906	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0803-0809			●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0810-1101			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	02	1	0810-1101	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1102-			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28650-830-0	02	1	1102-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0803-0808			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0809-	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-98074-254-0	01	1	0809-0809	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0810-1101	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	1102-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98074-254-0	01	1	1102-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0803-0809			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0810-1101			●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3>	8-97606-204-0	01	1	0810-1101	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1102-			●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97606-204-0	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0809-0809	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	0810-1101	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	1-09637-058-2	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0803-0809			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0810-1101			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>	8-94390-641-1	01	1	0810-1101	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	1102-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-94390-641-1	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94394-196-1	01	1	0809-0809	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-94394-196-1	01	1	0810-0906	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	0907-1101	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98147-092-0	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0803-0809			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0810-1101			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3>	8-97606-205-2	01	1	0810-1101	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	1102-			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97606-205-3	01	1	1102-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0803-0808			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0809-	●	●	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0809-	●		●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97610-075-0	01	1	0809-		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0803-0808			●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97608-935-0	01	1	0809-		●

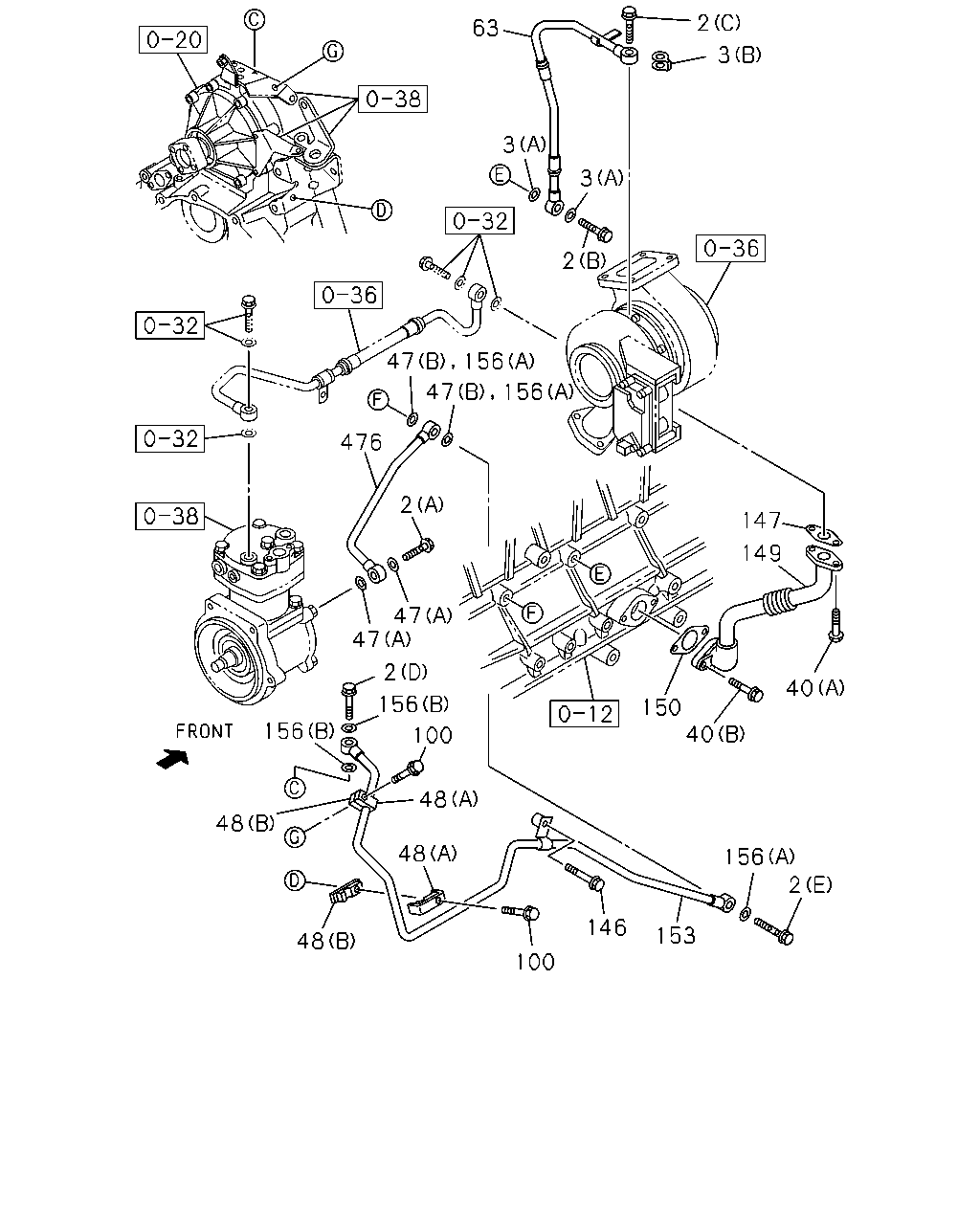

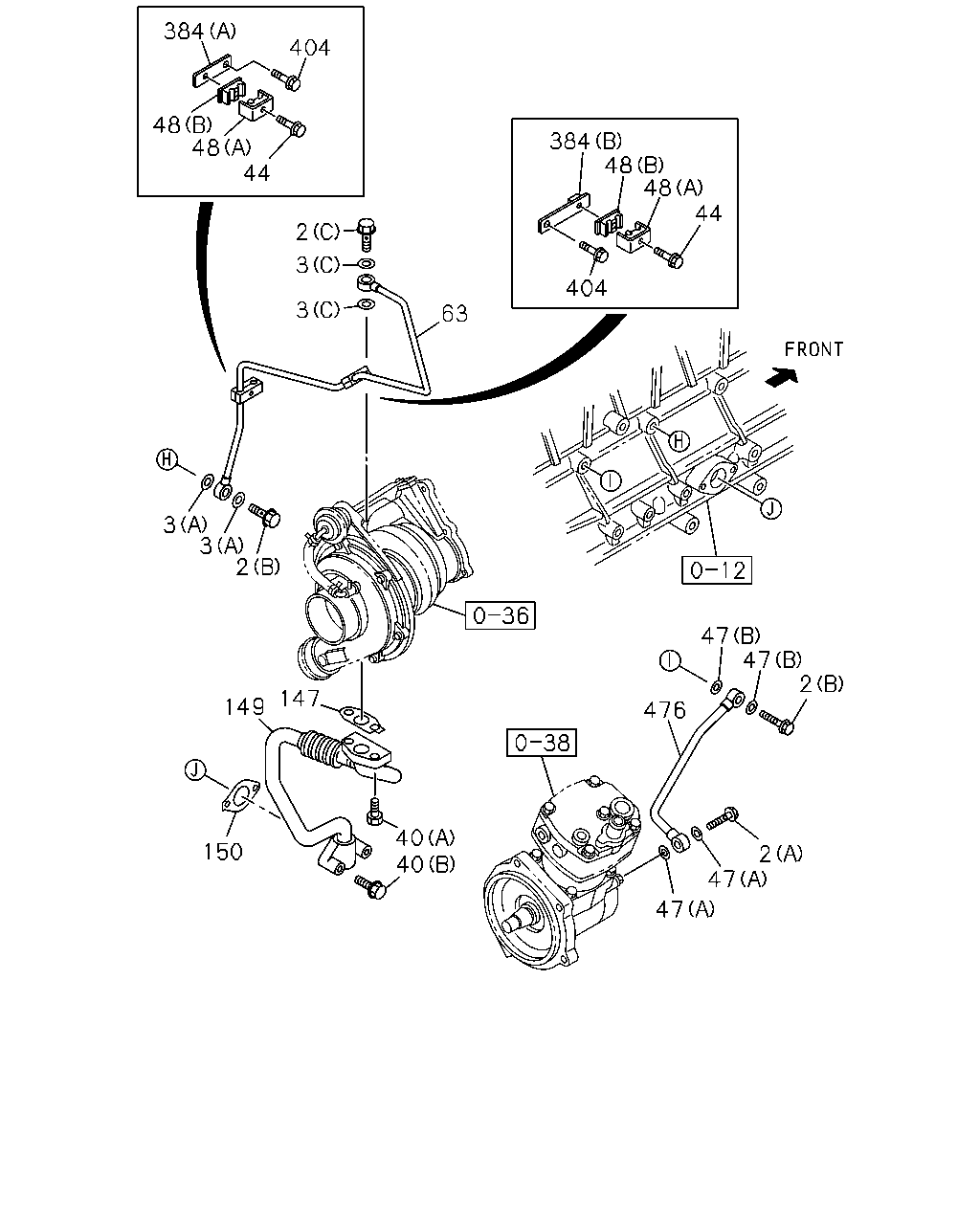

384 404 48 48 44 2 3 3 63 404 44 48 48 384 3 3 2 149 147 150 40 40 47 47 2 2 47 47 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	0809-0809	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	0810-1101	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1102-	●	●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M12X25	5-09675-006-1	01	1	1102-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D) M10X21 FLANGE	8-97372-239-0	01	1	0803-			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E) M14X43 EYE-BOLT	8-98037-829-0	01	1	0803-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0803-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-0808			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0809-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0803-0808			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0809-	●	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0803-0803			●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805			●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-0809			●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0810-1101			●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0810-1101	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1102-			●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1102-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0809-0809	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	0810-1101	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	1102-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=12.2	1-09630-084-0	02	1	1102-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0803-0809			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	0810-1101			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=12.6	8-97331-137-1	01	1	0810-1101	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12.6	8-97331-137-1	01	1	1102-	●	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0809	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0810-0906	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-0809	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0810-1101	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1102-	●	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28151-030-0	02	1	1102-	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-0809			●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-0906			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-0906	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0803-0809			●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0810-1101			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	02	1	0810-1101	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1102-			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28650-830-0	02	1	1102-	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0809-0809	●	●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<NT2> M6X30 FLANGE	0-28050-630-0	02	1	0810-1101	●	●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<NT2> M6X30 FLANGE	0-28050-630-0	02	1	1102-	●	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M6X30 FLANGE	0-28050-630-0	02	1	1102-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0803-0808			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0809-	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	02	1	0809-0809	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-2	02	1	0810-1101	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1102-	●	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1102-	●	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	02	1	0809-0809	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-1	02	1	0810-1101	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1102-	●	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1102-	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97372-487-0	02	1	0803-			●
48	CLIP; OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97372-488-0	02	1	0803-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-98074-254-0	01	1	0809-0809	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0810-1101	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	1102-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98074-254-0	01	1	1102-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0803-0809			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0810-1101			●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3>	8-97606-204-0	01	1	0810-1101	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1102-			●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97606-204-0	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0809-0809	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	0810-1101	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	1-09637-058-2	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0803-0809			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0810-1101			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>	8-94390-641-1	01	1	0810-1101	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	1102-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-94390-641-1	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94394-196-1	01	1	0809-0809	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-94394-196-1	01	1	0810-0906	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	0907-1101	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98147-092-0	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0803-0809			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0810-1101			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3>	8-97606-205-2	01	1	0810-1101	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	1102-			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97606-205-3	01	1	1102-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0803-0808			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0809-	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13319-020-0	01	1	0809-0809	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	1-13319-020-0	01	1	0810-1101	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (A)	1-13319-020-0	01	1	1102-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	1-13319-020-0	01	1	1102-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13319-041-0	01	1	0809-0809	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (B)	1-13319-041-0	01	1	0810-1101	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> (B)	1-13319-041-0	01	1	1102-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	1-13319-041-0	01	1	1102-	●	●
404	BOLT; BRKT M8X15	1-09000-114-0	02	1	0809-0809	●	●
404	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X15	1-09000-114-0	02	1	0810-1101	●	●
404	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X15	1-09000-114-0	02	1	1102-	●	●
404	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X15	1-09000-114-0	02	1	1102-	●	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0809-	●		●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97610-075-0	01	1	0809-		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0803-0808			●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97608-935-0	01	1	0809-		●

63 2 3 3 3 2 156 47 47 156 476 2 47 47 2 156 100 156 48 48 48 48 100 146 153 2 156 40 150 40 149 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	0809-0809	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	0810-1101	●	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<NT2> (C) M12X25	5-09675-006-1	01	1	1102-	●	●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M12X25	5-09675-006-1	01	1	1102-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D) M10X21 FLANGE	8-97372-239-0	01	1	0803-			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E) M14X43 EYE-BOLT	8-98037-829-0	01	1	0803-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0803-0805			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-0808			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0809-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0803-0808			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0809-	●	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0803-0803			●
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805			●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-0809			●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0810-1101			●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0810-1101	●	●
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1102-			●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1102-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0809-0809	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	0810-1101	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	1-09630-084-0	02	1	1102-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=12.2	1-09630-084-0	02	1	1102-1312	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=12.2	8-98251-344-0	02	1	1401-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0803-0809			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	0810-1101			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=12.6	8-97331-137-1	01	1	0810-1101	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12.6	8-97331-137-1	01	1	1102-	●	●
40	BOLT; OIL PIPE (B) M8X40 FLANGE	0-28050-840-0	02	1	0809-0809	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (B) M8X40 FLANGE	0-28050-840-0	02	1	0810-0906	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-0809	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	0810-1101	●	●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE	0-28151-030-0	02	1	1102-	●	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M10X30 FLANGE	0-28151-030-0	02	1	1102-	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0803-0809			●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-0906			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-0906	●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-	●	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0803-0809			●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0810-1101			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	02	1	0810-1101	●	●
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	1102-			●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28650-830-0	02	1	1102-	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0803-0808			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0809-	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	02	1	0809-0809	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-2	02	1	0810-1101	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1102-	●	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=7 & 9 L=25	1-09701-228-3	02	1	1102-	●	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	02	1	0809-0809	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-1	02	1	0810-1101	●	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1102-	●	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=7 & 9 L=25	1-09701-229-2	02	1	1102-	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97372-487-0	02	1	0803-			●
48	CLIP; OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97372-488-0	02	1	0803-			●
63	PIPE; OIL,TURBOCHARGER FEED	8-98074-254-0	01	1	0809-0809	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	0810-1101	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<NT2>	8-98074-254-0	01	1	1102-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98074-254-0	01	1	1102-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0803-0809			●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0810-1101			●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3>	8-97606-204-0	01	1	0810-1101	●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	1102-			●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97606-204-0	01	1	1102-	●	●
100	BOLT; CLIP ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6X30 FLANGE	0-28650-630-0	02	1	0803-			●
146	BOLT; BRKT ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M8X30 FLANGE	0-28650-830-0	01	1	0803-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0809-0809	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	0810-1101	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	1-09637-058-2	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	1-09637-058-2	01	1	1102-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0803-0809			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0810-1101			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>	8-94390-641-1	01	1	0810-1101	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	1102-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-94390-641-1	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94394-196-1	01	1	0809-0809	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-94394-196-1	01	1	0810-0906	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	0907-1101	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98147-092-0	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98147-092-0	01	1	1102-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0803-0809			●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-2	01	1	0810-1101			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3>	8-97606-205-2	01	1	0810-1101	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	1102-			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97606-205-3	01	1	1102-	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0803-0808			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0809-	●	●	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98052-616-0	01	1	0803-			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) ID=14.2 OD=19.2	1-09630-085-0	03	1	0803-1312			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0803-			●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0809-	●		●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97610-075-0	01	1	0809-		●
476	PIPE; OIL,C/BL TO AIR CMPR	8-97610-075-0	01	1	0803-0808			●
476	PIPE; OIL,C/BL TO AIR CMPR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97608-935-0	01	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
