0-51 — OIL PUMP AND OIL STRAINER (#67921) — 35 parça

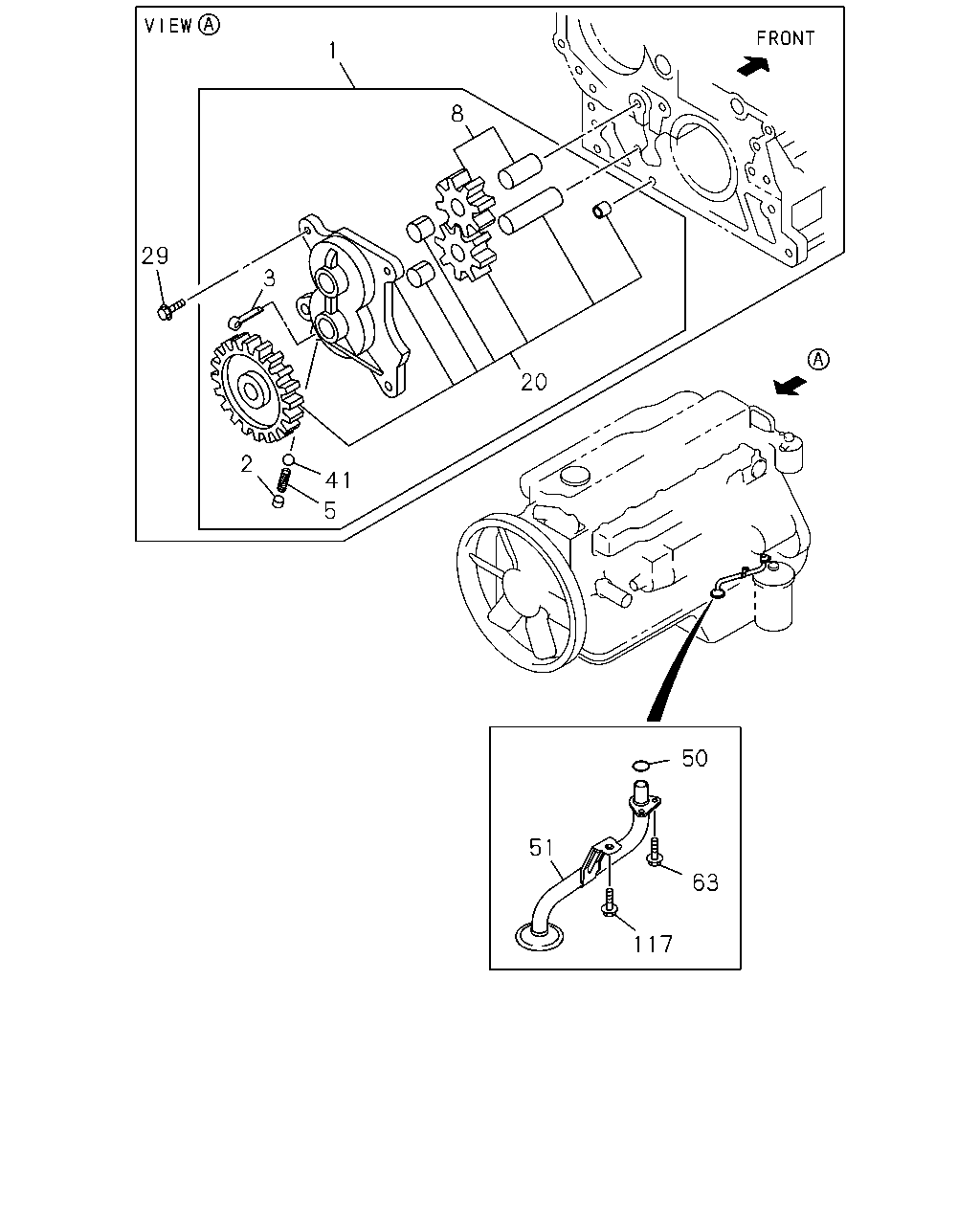

çizim 64298
1 29 3 2 41 5 8 20 51 50 63 117
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; OIL 8-94390-414-2 01 1 0803-0808 ●
1 PUMP ASM; OIL 8-94390-414-3 01 1 0809-1209 ● ● ●
1 PUMP ASM; OIL 8-97641-835-0 01 1 1210- ● ● ●
2 SEAT; SPR 5-13165-004-0 01 1 0803-0808 ●
2 SEAT; SPR 5-13165-004-0 01 1 0809- ● ● ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 0803-0808 ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 0809- ● ● ●
5 SPRING; COIL 5-09580-098-0 01 1 0803-0808 ●
5 SPRING; COIL 5-09580-098-0 01 1 0809- ● ● ●
8 GEAR; DRIVEN,OIL PUMP 8-97602-115-0 01 1 0803-0808 ●
8 GEAR; DRIVEN,OIL PUMP 8-97602-115-0 01 1 0809-1209 ● ● ●
8 GEAR; DRIVEN,OIL PUMP 8-97641-838-0 01 1 1210- ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-97602-132-0 01 1 0803-0808 ●
20 GEAR; DRIVE,OIL PUMP 8-97602-132-1 01 1 0809-1209 ● ● ●
20 GEAR; DRIVE,OIL PUMP 8-97641-839-0 01 1 1210- ● ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0803-0808 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28050-825-0 04 1 0809- ● ● ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 0803-0808 ●
41 BALL; OIL RELIEF VLV 5-09843-003-0 01 1 0809- ● ● ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0803-0808 ●
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0809- ● ● ●
51 STRAINER & PIPE ASM; OIL
COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) 		8-97608-494-1 01 1 0909-0910 ● ●
51 STRAINER & PIPE ASM; OIL 8-98045-646-3 01 1 0803-0808 ●
51 STRAINER & PIPE ASM; OIL 8-98045-646-3 01 1 0809-0908 ● ● ●
51 STRAINER & PIPE ASM; OIL 8-98045-646-3 01 1 0909-0910 ●
51 STRAINER & PIPE ASM; OIL
COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) 		8-98045-646-3 01 1 0909-0910 ● ●
51 STRAINER & PIPE ASM; OIL
EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98045-646-3 01 1 0909-0910 ● ●
51 STRAINER & PIPE ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98045-646-3 01 1 0909-0910 ● ●
51 STRAINER & PIPE ASM; OIL 8-98045-646-3 01 1 0911-1209 ● ● ●
51 STRAINER & PIPE ASM; OIL 8-98204-158-0 01 1 1210- ● ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 0803-0808 ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X14 FLANGE 		0-28080-814-0 02 1 0809-1209 ● ● ●
63 BOLT; OIL PIPE,STRAINER TO PUMP
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1210- ● ● ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 0803-0808 ●
117 BOLT; STAY TO CRANKCASE
M10X75 FLANGE 		8-94399-669-1 01 1 0809- ● ● ●
