Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#67920) — 202 parça

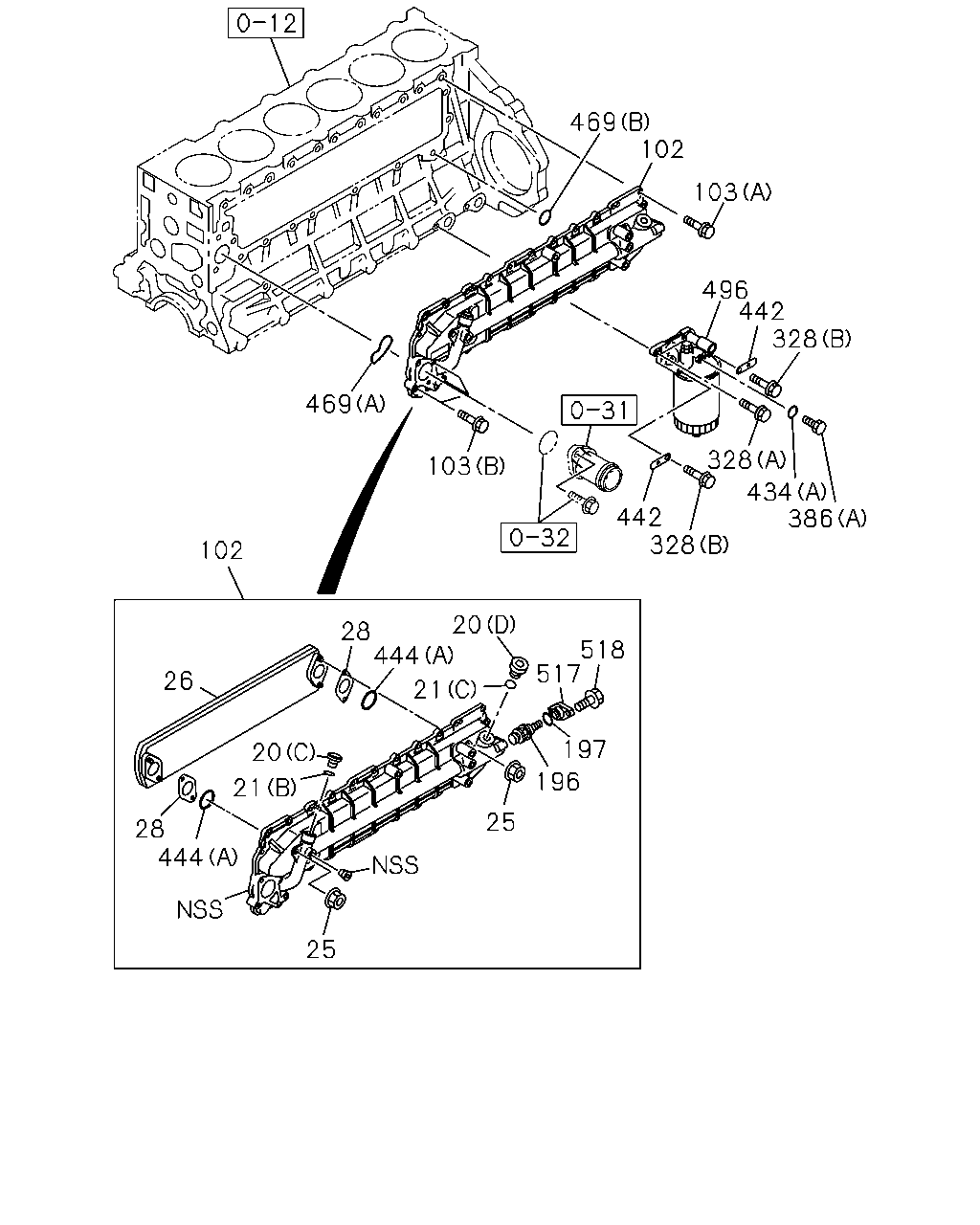

469 102 103 496 442 328 328 434 386 328 442 103 469 102 26 28 444 21 20 28 444 20 518 517 197 196 25 21 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY (C)	8-94393-604-0	01	1	0809-0809	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0810-	●	●
20	PLUG; COOLER BODY (D)	8-94396-753-0	01	1	0809-0809	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0810-	●	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0803-0809			●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0810-			●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (A)	1-13219-240-0	02	1	0810-	●	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0803-0809			●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0810-			●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (B)	8-97608-567-0	02	1	0810-	●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0809-0809	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0810-	●	●
21	GASKET; PLUG (C) M24	8-94396-755-0	01	1	0809-0809	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0810-	●	●
21	GASKET; PLUG (A)	8-97608-568-0	02	1	0803-0809			●
21	GASKET; PLUG (A)	8-97608-568-0	02	1	0810-			●
21	GASKET; PLUG EURO3 SPECIFICATION<NT3> (A)	8-97608-568-0	02	1	0810-	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0803-0808			●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0809-	●	●	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0809-0809	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0810-	●	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0803-0809			●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0810-			●
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98062-207-0	01	1	0810-	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0809-0809	●	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0810-1004	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0803-0809			●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0810-1004			●
28	GASKET; CORE TO BODY EURO3 SPECIFICATION<NT3>	8-98063-865-0	02	1	0810-1004	●	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	0809-0809	●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0810-	●	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0803-0808			●
102	COOLER ASM; OIL	8-98130-995-0	01	1	0809-0809			●
102	COOLER ASM; OIL	8-98130-995-0	01	1	0810-1307			●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98130-995-0	01	1	0810-1307	●	●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1308-			●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98236-650-0	01	1	1308-	●	●
103	BOLT; OIL COOLER (C)	8-98251-758-0	04	1	1309-			●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (C)	8-98251-758-0	04	1	1309-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0803-0808			●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-0809	●	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	0810-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0803-0809			●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0810-			●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	24	1	0810-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0803-0808			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0809-	●	●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0809-0809	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0810-	●	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0803-0809			●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0810-			●
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>	8-94391-728-0	01	1	0810-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0803-0808			●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0803-0808			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0809-	●	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0803-0808			●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0809-	●	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-0808			●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0809-	●	●	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0803-0808			●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0809-1011	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-97601-801-0	02	1	1309-			●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (B)	8-97601-801-0	02	1	1309-	●	●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0809-0809			●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0810-			●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (A) ID=38.7	1-09623-299-0	02	1	0810-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-810-0	02	1	0809-0809	●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	0810-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0803-0808			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0809-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0803-0808			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0809-	●	●	●
496	FILTER ASM; OIL	8-94391-015-6	01	1	0803-0808			●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0809-1307	●	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0809-0809	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0810-	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0803-0809			●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0810-			●
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>	8-94391-731-0	01	1	0810-	●	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0809-0809	●	●
518	BOLT; PLUG,THERMOSTAT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	0810-	●	●

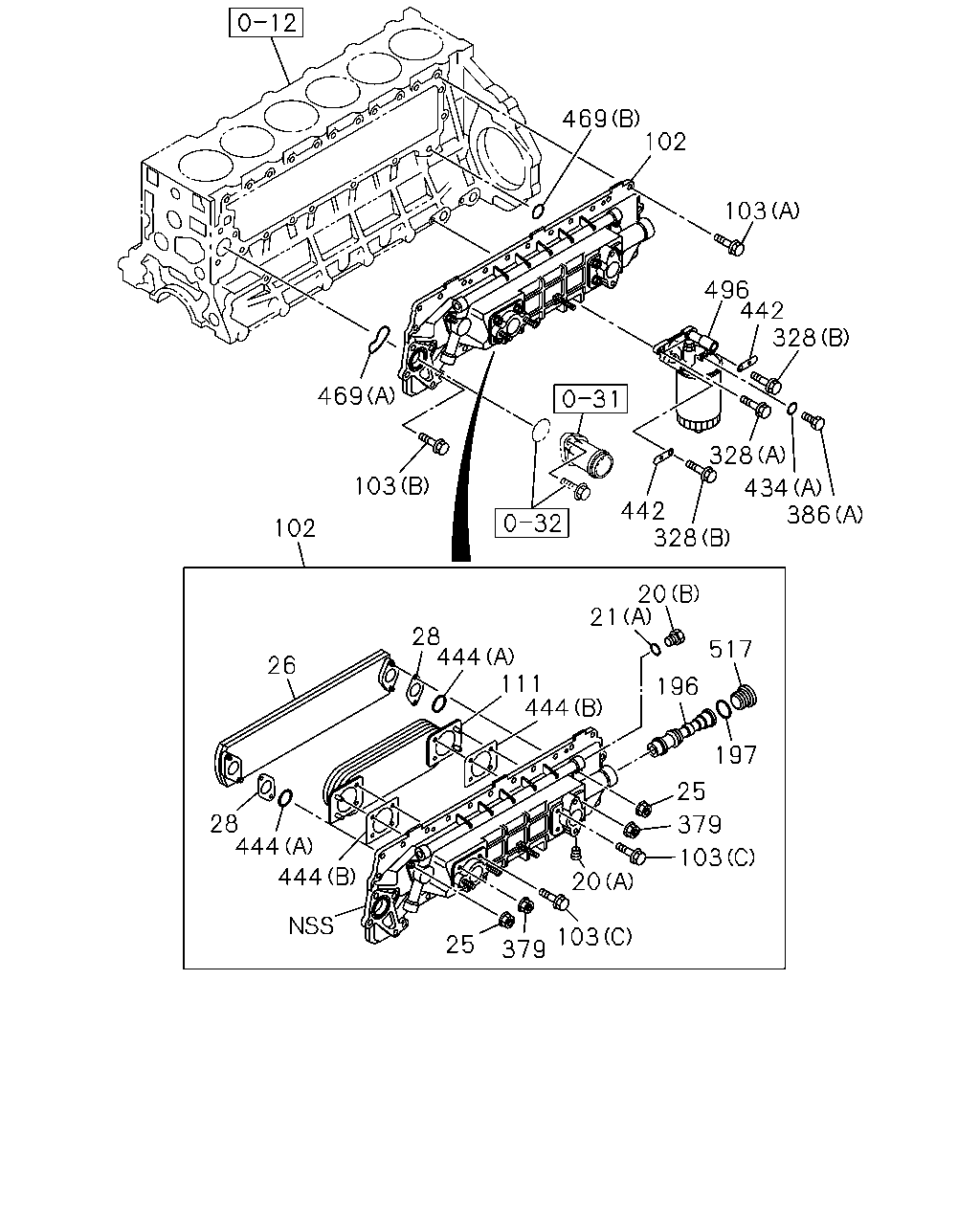

469 103 102 496 442 328 328 434 386 328 442 21 517 196 20 28 108 469 102 26 28 444 444 25 379 103 103 20 25 379 197 111 444 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	PLUG; COOLER BODY (C)	8-94393-604-0	01	1	0809-0809	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (C)	8-94393-604-0	01	1	0810-	●	●
20	PLUG; COOLER BODY (D)	8-94396-753-0	01	1	0809-0809	●	●
20	PLUG; COOLER BODY EURO2 SPECIFICATION<NT2> (D)	8-94396-753-0	01	1	0810-	●	●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0803-0809			●
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	0810-			●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (A)	1-13219-240-0	02	1	0810-	●	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0803-0809			●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	0810-			●
20	PLUG; COOLER BODY EURO3 SPECIFICATION<NT3> (B)	8-97608-567-0	02	1	0810-	●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0809-0809	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (B)	1-13219-253-0	01	1	0810-	●	●
21	GASKET; PLUG (C) M24	8-94396-755-0	01	1	0809-0809	●	●
21	GASKET; PLUG EURO2 SPECIFICATION<NT2> (C) M24	8-94396-755-0	01	1	0810-	●	●
21	GASKET; PLUG (A)	8-97608-568-0	02	1	0803-0809			●
21	GASKET; PLUG (A)	8-97608-568-0	02	1	0810-			●
21	GASKET; PLUG EURO3 SPECIFICATION<NT3> (A)	8-97608-568-0	02	1	0810-	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0803-0808			●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0809-	●	●	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0809-0809	●	●
26	CORE ASM; OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-738-1	01	1	0810-	●	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0803-0809			●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	0810-			●
26	CORE ASM; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98062-207-0	01	1	0810-	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0809-0809	●	●
28	GASKET; CORE TO BODY EURO2 SPECIFICATION<NT2>	8-94394-930-0	02	1	0810-1004	●	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1005-	●	●	●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0803-0809			●
28	GASKET; CORE TO BODY	8-98063-865-0	02	1	0810-1004			●
28	GASKET; CORE TO BODY EURO3 SPECIFICATION<NT3>	8-98063-865-0	02	1	0810-1004	●	●
102	COOLER ASM; OIL	8-97600-156-1	01	1	0809-0809	●	●
102	COOLER ASM; OIL EURO2 SPECIFICATION<NT2>	8-97600-156-1	01	1	0810-	●	●
102	COOLER ASM; OIL	8-98065-861-1	01	1	0803-0808			●
102	COOLER ASM; OIL	8-98130-995-0	01	1	0809-0809			●
102	COOLER ASM; OIL	8-98130-995-0	01	1	0810-1307			●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98130-995-0	01	1	0810-1307	●	●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1308-			●
102	COOLER ASM; OIL EURO3 SPECIFICATION<NT3>	8-98236-650-0	01	1	1308-	●	●
103	BOLT; OIL COOLER (C)	8-98251-758-0	04	1	1309-			●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (C)	8-98251-758-0	04	1	1309-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0803-0808			●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-0809	●	●
103	BOLT; OIL COOLER EURO2 SPECIFICATION<NT2> (A) M8X22 FLANGE	0-28080-822-0	24	1	0810-	●	●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●	●	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0803-0809			●
103	BOLT; OIL COOLER (A) M8X30 FLANGE	0-28650-830-0	24	1	0810-			●
103	BOLT; OIL COOLER EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	24	1	0810-	●	●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1309-			●
111	CORE; OIL COOLER EURO3 SPECIFICATION<NT3>	8-98063-863-0	01	1	1309-	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0803-0808			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0809-	●	●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0809-0809	●	●
197	GASKET; THERMOSTAT EURO2 SPECIFICATION<NT2> ID=25.7	8-94399-279-0	01	1	0810-	●	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0803-0809			●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	0810-			●
197	GASKET; THERMOSTAT EURO3 SPECIFICATION<NT3>	8-94391-728-0	01	1	0810-	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0803-0808			●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●	●	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0803-0808			●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0809-	●	●	●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	04	1	1309-			●
379	NUT; OIL COOLER EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	1309-	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0803-0808			●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0809-	●	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-0808			●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0809-	●	●	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0803-0808			●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0809-1011	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-97601-801-0	02	1	1309-			●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (B)	8-97601-801-0	02	1	1309-	●	●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0809-0809			●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	0810-			●
444	GASKET; ELEMENT TO BODY EURO3 SPECIFICATION<NT3> (A) ID=38.7	1-09623-299-0	02	1	0810-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-810-0	02	1	0809-0809	●	●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<NT2> (A)	8-94396-810-0	02	1	0810-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0803-0808			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0809-	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0803-0808			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0809-	●	●	●
496	FILTER ASM; OIL	8-94391-015-6	01	1	0803-0808			●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0809-1307	●	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0809-0809	●	●
517	PLUG; THERMOSTAT,OIL COOLER EURO2 SPECIFICATION<NT2>	8-94391-740-0	01	1	0810-	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0803-0809			●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	0810-			●
517	PLUG; THERMOSTAT,OIL COOLER EURO3 SPECIFICATION<NT3>	8-94391-731-0	01	1	0810-	●	●

496 386 434 66 13 265 307 308 2 321 321 321 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	0810-1110	●	●	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●	●	●
2	ELEMENT; OIL FILTER	8-94391-049-2	01	1	0803-0808			●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0809-	●	●	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●	●	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●	●	●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0803-0808			●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0809-1307	●	●	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●	●	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0803-0808			●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0809-1307	●	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0803-0808			●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0809-1307	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0803-0808			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0809-	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0803-0808			●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0809-	●	●	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●	●	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0803-0808			●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0809-	●	●	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●	●	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-0808			●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0809-	●	●	●
496	FILTER ASM; OIL	8-94391-015-6	01	1	0803-0808			●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0809-1307	●	●	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
