Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#6792) — 286 parça

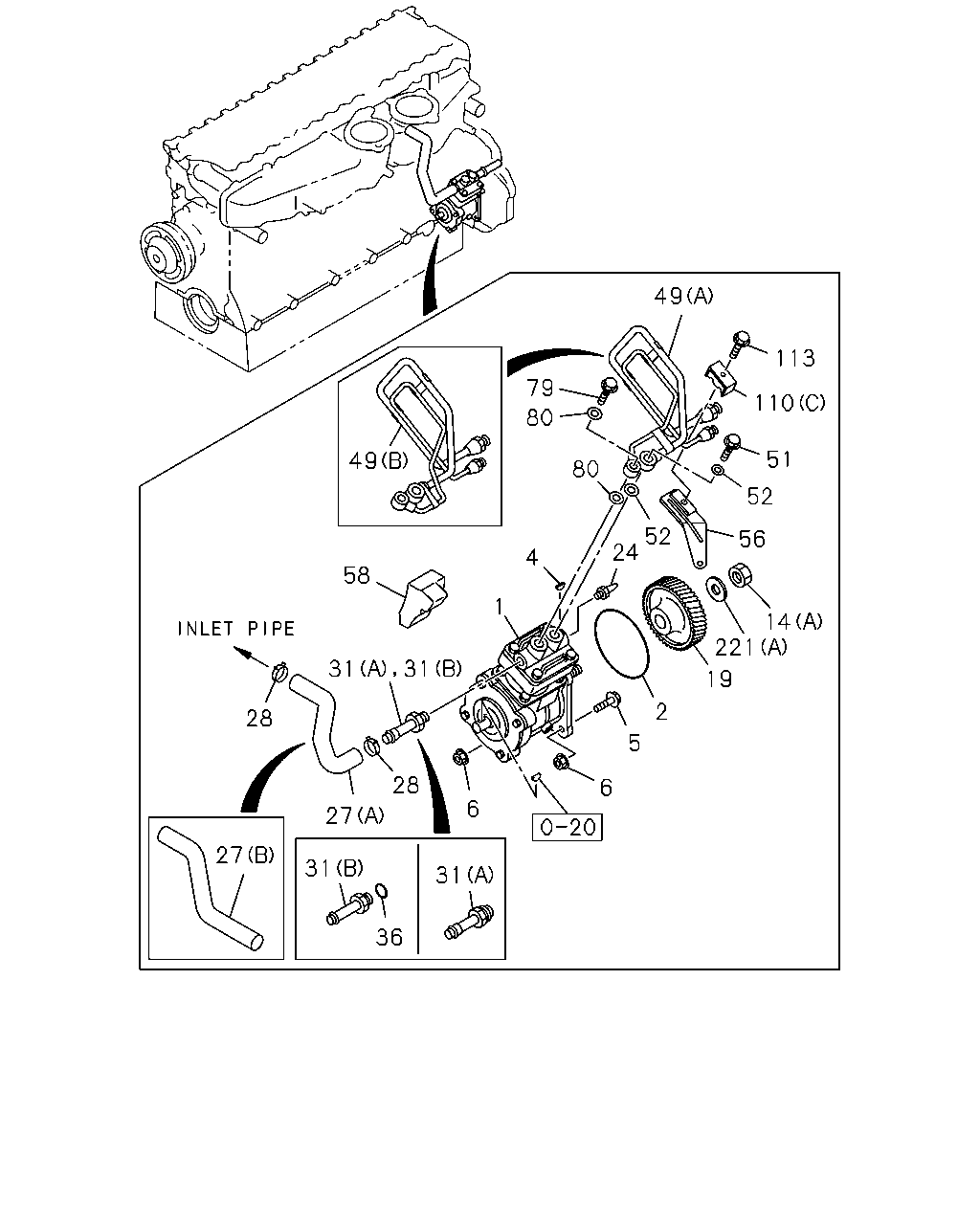

49 113 79 110 80 51 49 80 52 52 24 56 4 58 1 14 221 31 31 19 2 28 5 28 6 6 27 27 31 31 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9806-9911	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9912-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	9806-9806			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CMPR HVY DUTY<E1Q>	8-94396-892-8	01	1	9807-9911			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR CMPR HVY DUTY<E1Q>	8-94396-891-4	01	1	9807-9911			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9806-9911	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9912-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9806-9911			●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9806-9911			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9912-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9806-9911			●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28181-270-0	03	1	9912-0512		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	03	1	0601-		●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9806-9911	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9912-0602		●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0603-		●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9806-9911			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9806-9911			●
14	NUT; GEAR (A) M20	9-99110-520-0	01	1	9912-0512		●
14	NUT; GEAR (A) M20	0-91110-520-0	01	1	0601-		●
14	NUT; GEAR (A) M20	9-99110-520-0	01	1	9806-9911	●		●
14	NUT; GEAR (B) M24	9-99110-524-0	01	1	9912-0512		●
14	NUT; GEAR (B) M24	0-91110-524-0	01	1	0601-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9806-9911			●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	9912-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9806-9911			●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9806-9911	●
27	HOSE; AIR CMPR,SUCTION (D)	8-94394-515-0	01	1	9912-		●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-164-0	01	1	9806-9806			●
27	HOSE; AIR CMPR,SUCTION AIR CMPR HVY DUTY<E1Q> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94395-164-0	01	1	9807-9911			●
27	HOSE; AIR CMPR,SUCTION AIR CMPR HVY DUTY<E1Q> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94396-169-0	01	1	9807-9911			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94396-168-0	01	1	9807-9911			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9806-9806	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9807-9911	●
28	CLIP; HOSE,AIR CMPR EMIS SYSTEM FEDERAL REQUIREMENT<NA5> ID=26	1-09707-091-0	02	1	9807-9911			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9912-		●
28	CLIP; HOSE,AIR CMPR EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> ID=28.5	1-09707-150-0	02	1	9807-9911			●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94391-538-0	01	1	9806-9911	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-97600-086-1	01	1	9912-		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-954-0	01	1	9806-9806			●
31	PIPE; AIR,AIR CMPR SUCTION AIR CMPR HVY DUTY<E1Q> (A)	8-94399-954-0	01	1	9807-9911			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94399-942-1	01	1	9807-9911			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR CMPR HVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	01	1	9807-9911			●
49	PIPE; AIR,CHARGE (C)	8-94391-539-0	01	1	9806-9911	●
49	PIPE; AIR,CHARGE (D)	8-94391-539-0	01	1	9912-		●
49	PIPE; AIR,CHARGE (A)	8-94395-231-0	01	1	9806-9806			●
49	PIPE; AIR,CHARGE AIR CMPR HVY DUTY<E1Q> (A)	8-94395-231-0	01	1	9807-9911			●
49	PIPE; AIR,CHARGE EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94395-232-0	01	1	9807-9911			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9806-9806	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9807-9911	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR CMPR HVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9807-9911			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9912-		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR CMPR HVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9807-9911			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9806-9806	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	9807-9911	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CMPR HVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	02	1	9807-9911			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9912-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR CMPR HVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9807-9911			●
56	BRACKET; AIR PIPE FIX	8-94395-277-0	01	1	9806-9911			●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9806-9911			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9806-9806	●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9807-9911	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR CMPR HVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9807-9911			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9912-		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR CMPR HVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9807-9911			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9806	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9807-9911	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CMPR HVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9807-9911			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR CMPR HVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9807-9911			●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9806-9911	●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9912-		●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9806-9911	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9912-		●
110	CLIP; AIR PIPE (C)	8-94393-037-0	02	1	9806-9911			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9806-9911	●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9912-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
221	WASHER; PL,GEAR (A) ID=21	9-09160-520-0	01	1	9912-0605		●
221	WASHER; PL,GEAR (A) ID=21	0-91610-520-0	01	1	0606-		●
221	WASHER; PL,GEAR (A) ID=21	9-09160-520-0	01	1	9806-9911	●		●
221	WASHER; PL,GEAR (B) ID=25	9-09160-524-0	01	1	9912-		●

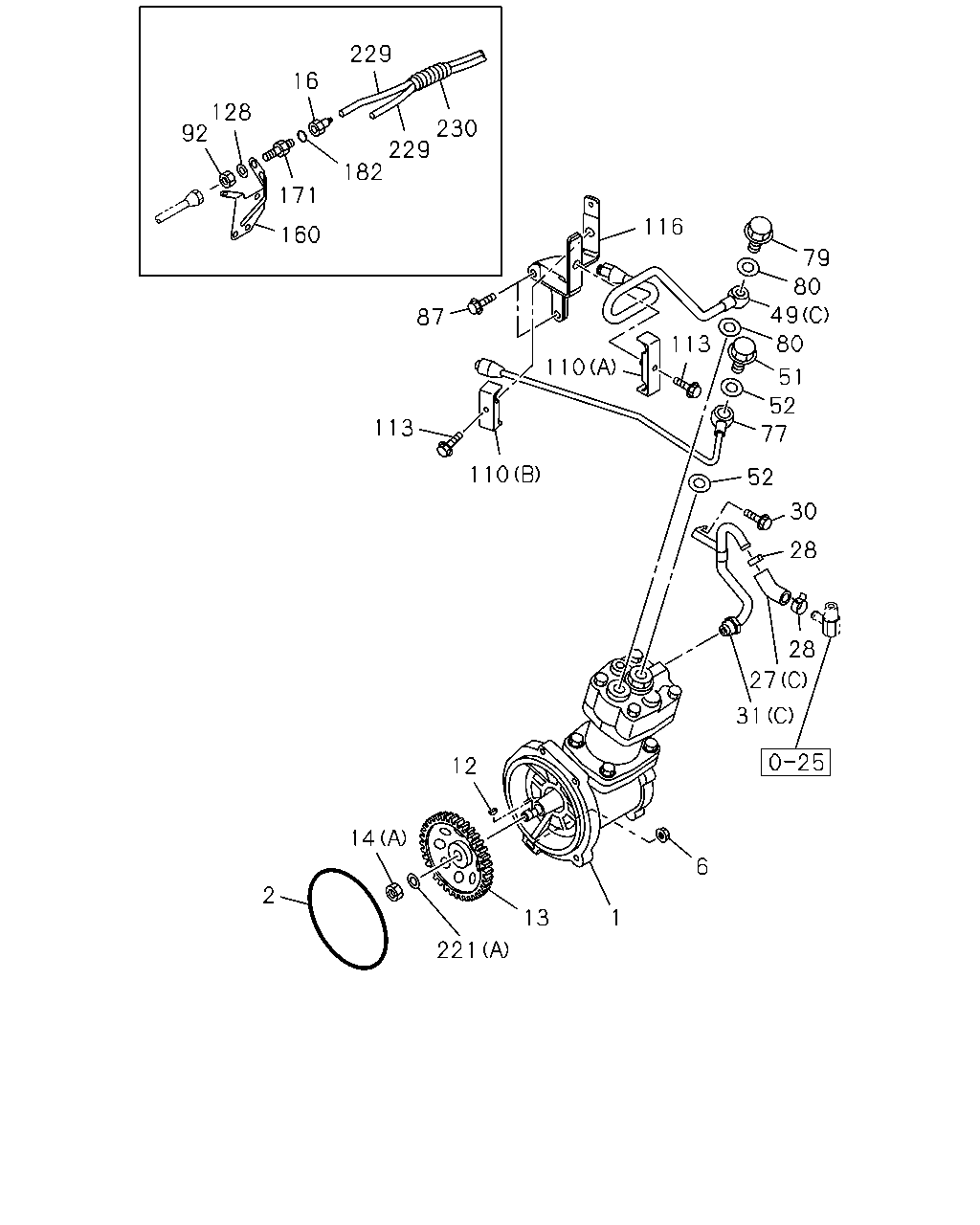

229 16 128 92 230 229 182 171 116 160 79 80 49 87 80 113 110 51 52 113 77 110 52 30 28 28 27 31 12 14 6 2 13 1 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9806-9911	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9912-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	9806-9806			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CMPR HVY DUTY<E1Q>	8-94396-892-8	01	1	9807-9911			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR CMPR HVY DUTY<E1Q>	8-94396-891-4	01	1	9807-9911			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9806-9911	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9912-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9806-9911			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9806-9911	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9912-0602		●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0603-		●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9806-9911			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9806-9911			●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9912-		●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9806-9911	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9912-		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9806-9911	●
14	NUT; GEAR (A) M20	9-99110-520-0	01	1	9912-0512		●
14	NUT; GEAR (A) M20	0-91110-520-0	01	1	0601-		●
14	NUT; GEAR (A) M20	9-99110-520-0	01	1	9806-9911	●		●
14	NUT; GEAR (B) M24	9-99110-524-0	01	1	9912-0512		●
14	NUT; GEAR (B) M24	0-91110-524-0	01	1	0601-		●
16	ADAPTER DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9806-9911	●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9806-9911	●
27	HOSE; AIR CMPR,SUCTION (D)	8-94394-515-0	01	1	9912-		●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-164-0	01	1	9806-9806			●
27	HOSE; AIR CMPR,SUCTION AIR CMPR HVY DUTY<E1Q> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94395-164-0	01	1	9807-9911			●
27	HOSE; AIR CMPR,SUCTION AIR CMPR HVY DUTY<E1Q> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94396-169-0	01	1	9807-9911			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94396-168-0	01	1	9807-9911			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9806-9806	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9807-9911	●
28	CLIP; HOSE,AIR CMPR EMIS SYSTEM FEDERAL REQUIREMENT<NA5> ID=26	1-09707-091-0	02	1	9807-9911			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9912-		●
28	CLIP; HOSE,AIR CMPR EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> ID=28.5	1-09707-150-0	02	1	9807-9911			●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9806-9911	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9912-0512		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94391-538-0	01	1	9806-9911	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-97600-086-1	01	1	9912-		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-954-0	01	1	9806-9806			●
31	PIPE; AIR,AIR CMPR SUCTION AIR CMPR HVY DUTY<E1Q> (A)	8-94399-954-0	01	1	9807-9911			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94399-942-1	01	1	9807-9911			●
49	PIPE; AIR,CHARGE (C)	8-94391-539-0	01	1	9806-9911	●
49	PIPE; AIR,CHARGE (D)	8-94391-539-0	01	1	9912-		●
49	PIPE; AIR,CHARGE (A)	8-94395-231-0	01	1	9806-9806			●
49	PIPE; AIR,CHARGE AIR CMPR HVY DUTY<E1Q> (A)	8-94395-231-0	01	1	9807-9911			●
49	PIPE; AIR,CHARGE EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94395-232-0	01	1	9807-9911			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9806-9806	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9807-9911	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR CMPR HVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9807-9911			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9912-		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR CMPR HVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9807-9911			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9806-9806	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	9807-9911	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CMPR HVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	02	1	9807-9911			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9912-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR CMPR HVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9807-9911			●
77	PIPE; AIR,GOV	8-94391-540-0	01	1	9806-9911	●
77	PIPE; AIR,GOV	8-94391-540-1	01	1	9912-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9806-9806	●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9807-9911	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR CMPR HVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9807-9911			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9912-		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR CMPR HVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9807-9911			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9806	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9807-9911	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CMPR HVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9807-9911			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR CMPR HVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9807-9911			●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9806-9911	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9912-0512		●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
92	NUT; UNION M12	9-09840-280-0	01	1	9806-9911	●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9806-9911	●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9912-		●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9806-9911	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9912-		●
110	CLIP; AIR PIPE (C)	8-94393-037-0	02	1	9806-9911			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9806-9911	●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9912-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
116	BRACKET; AIR PIPE	8-94391-541-1	01	1	9806-9911	●
116	BRACKET; AIR PIPE	8-97600-302-0	01	1	9912-0405		●
116	BRACKET; AIR PIPE	8-97605-487-0	01	1	0406-		●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9806-9911	●
160	BRACKET; AIR PIPE	8-94392-289-0	01	1	9806-9911	●
171	UNION	1-09654-185-1	01	1	9806-9911	●
182	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=18	9-09572-510-0	01	1	9806-9911	●
221	WASHER; PL,GEAR (A) ID=21	9-09160-520-0	01	1	9912-0605		●
221	WASHER; PL,GEAR (A) ID=21	0-91610-520-0	01	1	0606-		●
221	WASHER; PL,GEAR (A) ID=21	9-09160-520-0	01	1	9806-9911	●		●
221	WASHER; PL,GEAR (B) ID=25	9-09160-524-0	01	1	9912-		●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9806-9911	●
230	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9806-9911	●

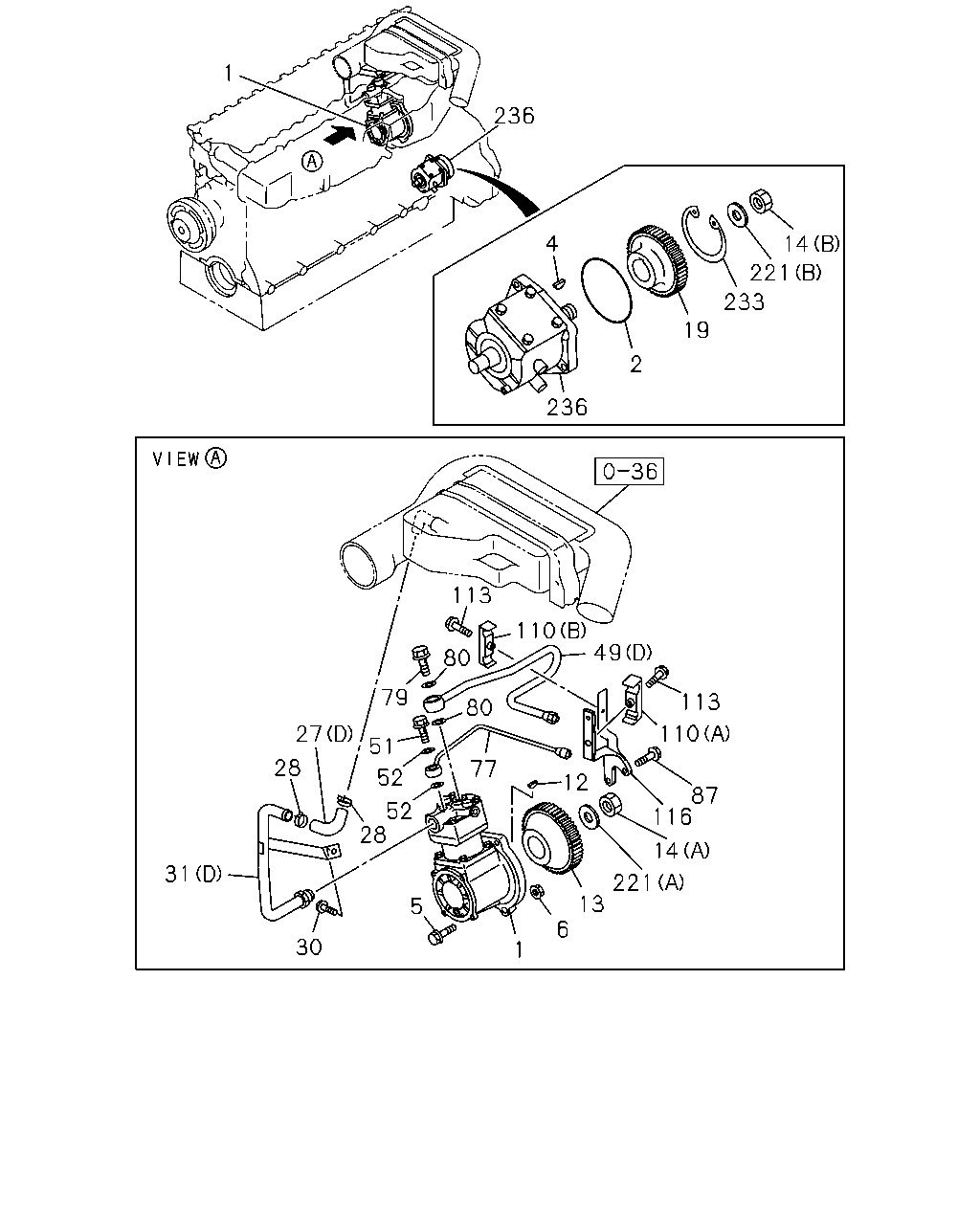

1 236 4 14 221 233 19 2 236 113 110 49 80 79 113 80 110 27 51 28 77 52 12 87 116 52 28 14 31 221 13 5 6 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9806-9911	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	9912-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	9806-9806			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR CMPR HVY DUTY<E1Q>	8-94396-892-8	01	1	9807-9911			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR CMPR HVY DUTY<E1Q>	8-94396-891-4	01	1	9807-9911			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9806-9911	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9912-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9806-9911			●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9806-9911			●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9912-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9806-9911			●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28181-270-0	03	1	9912-0512		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	03	1	0601-		●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9806-9911	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9912-0602		●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0603-		●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9806-9911			●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9806-9911			●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9912-		●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9806-9911	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9912-		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9806-9911	●
14	NUT; GEAR (A) M20	9-99110-520-0	01	1	9912-0512		●
14	NUT; GEAR (A) M20	0-91110-520-0	01	1	0601-		●
14	NUT; GEAR (A) M20	9-99110-520-0	01	1	9806-9911	●		●
14	NUT; GEAR (B) M24	9-99110-524-0	01	1	9912-0512		●
14	NUT; GEAR (B) M24	0-91110-524-0	01	1	0601-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9806-9911			●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	9912-		●
27	HOSE; AIR CMPR,SUCTION (C)	8-94395-724-0	01	1	9806-9911	●
27	HOSE; AIR CMPR,SUCTION (D)	8-94394-515-0	01	1	9912-		●
27	HOSE; AIR CMPR,SUCTION (A)	8-94395-164-0	01	1	9806-9806			●
27	HOSE; AIR CMPR,SUCTION AIR CMPR HVY DUTY<E1Q> EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (A)	8-94395-164-0	01	1	9807-9911			●
27	HOSE; AIR CMPR,SUCTION AIR CMPR HVY DUTY<E1Q> EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B)	8-94396-169-0	01	1	9807-9911			●
27	HOSE; AIR CMPR,SUCTION EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94396-168-0	01	1	9807-9911			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9806-9806	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9807-9911	●
28	CLIP; HOSE,AIR CMPR EMIS SYSTEM FEDERAL REQUIREMENT<NA5> ID=26	1-09707-091-0	02	1	9807-9911			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9912-		●
28	CLIP; HOSE,AIR CMPR EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> ID=28.5	1-09707-150-0	02	1	9807-9911			●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9806-9911	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9912-0512		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
31	PIPE; AIR,AIR CMPR SUCTION (C)	8-94391-538-0	01	1	9806-9911	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-97600-086-1	01	1	9912-		●
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-94399-954-0	01	1	9806-9806			●
31	PIPE; AIR,AIR CMPR SUCTION AIR CMPR HVY DUTY<E1Q> (A)	8-94399-954-0	01	1	9807-9911			●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94399-942-1	01	1	9807-9911			●
49	PIPE; AIR,CHARGE (C)	8-94391-539-0	01	1	9806-9911	●
49	PIPE; AIR,CHARGE (D)	8-94391-539-0	01	1	9912-		●
49	PIPE; AIR,CHARGE (A)	8-94395-231-0	01	1	9806-9806			●
49	PIPE; AIR,CHARGE AIR CMPR HVY DUTY<E1Q> (A)	8-94395-231-0	01	1	9807-9911			●
49	PIPE; AIR,CHARGE EXC. AIR CMPR HVY DUTY<E1Q> (B)	8-94395-232-0	01	1	9807-9911			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9806-9806	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9807-9911	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR CMPR HVY DUTY<E1Q> M24X39	1-09675-132-0	01	1	9807-9911			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	9912-		●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR CMPR HVY DUTY<E1Q> M20X38	1-09675-133-0	01	1	9807-9911			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9806-9806	●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	9807-9911	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR CMPR HVY DUTY<E1Q> ID=24.5 OD=32	9-09571-424-0	02	1	9807-9911			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9912-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR CMPR HVY DUTY<E1Q> ID=20.5 OD=28.0	9-09571-420-0	02	1	9807-9911			●
77	PIPE; AIR,GOV	8-94391-540-0	01	1	9806-9911	●
77	PIPE; AIR,GOV	8-94391-540-1	01	1	9912-		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9806-9806	●		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9807-9911	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR CMPR HVY DUTY<E1Q> M14X27 FLANGE	1-09675-086-0	01	1	9807-9911			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9912-		●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR CMPR HVY DUTY<E1Q> M18X33	1-09675-058-0	01	1	9807-9911			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9806-9806	●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9807-9911	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR CMPR HVY DUTY<E1Q> ID=14.2 OD=19.2	1-09630-085-0	02	1	9807-9911			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9912-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR CMPR HVY DUTY<E1Q> ID=18.2 OD=24.4	1-09630-087-0	02	1	9807-9911			●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9806-9911	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9912-0512		●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9806-9911	●
110	CLIP; AIR PIPE (A)	8-94393-036-0	01	1	9912-		●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9806-9911	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	9912-		●
110	CLIP; AIR PIPE (C)	8-94393-037-0	02	1	9806-9911			●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9806-9911	●		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	02	1	9912-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
116	BRACKET; AIR PIPE	8-94391-541-1	01	1	9806-9911	●
116	BRACKET; AIR PIPE	8-97600-302-0	01	1	9912-0405		●
116	BRACKET; AIR PIPE	8-97605-487-0	01	1	0406-		●
221	WASHER; PL,GEAR (A) ID=21	9-09160-520-0	01	1	9912-0605		●
221	WASHER; PL,GEAR (A) ID=21	0-91610-520-0	01	1	0606-		●
221	WASHER; PL,GEAR (A) ID=21	9-09160-520-0	01	1	9806-9911	●		●
221	WASHER; PL,GEAR (B) ID=25	9-09160-524-0	01	1	9912-		●
233	RING; FRICTION	8-94390-562-0	01	1	9912-0311		●
233	RING; FRICTION	8-97603-297-0	01	1	0312-		●
236	SHAFT; INJ PUMP DRIVE	8-97600-701-0	01	1	9912-		●

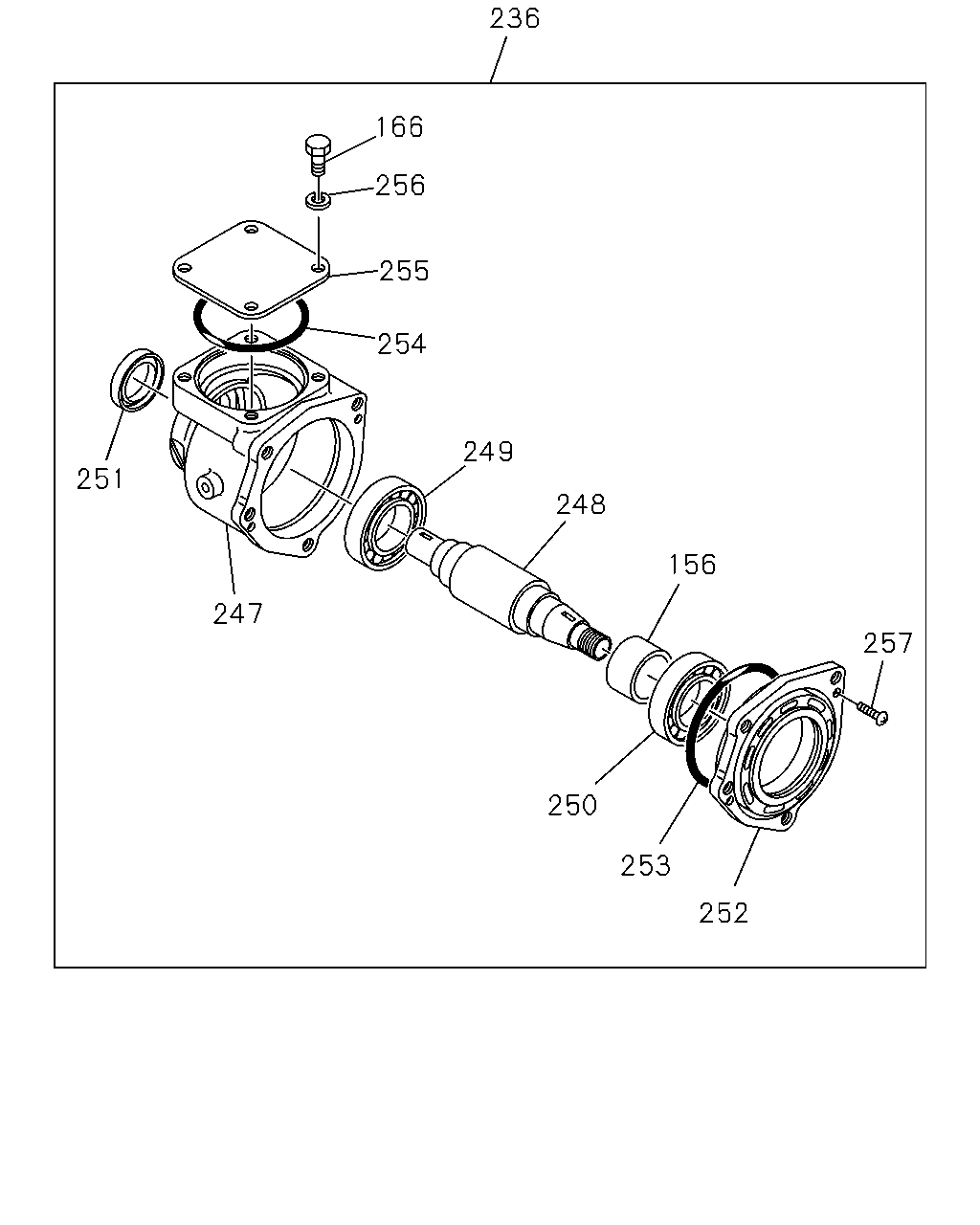

236 166 256 255 254 249 251 248 156 247 257 250 253 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
156	SLEEVE	1-19179-024-0	01	1	9912-	●
166	BOLT; COVER FIX	1-15789-059-0	04	1	9912-	●
236	SHAFT; INJ PUMP DRIVE	8-97600-701-0	01	1	9912-	●
247	CRANKCASE; SHAFT ASM	1-19151-282-2	01	1	9912-	●
248	CRANKSHAFT; SHAFT ASM	1-19171-075-0	01	1	9912-	●
249	BEARING; CRANKSHAFT	1-19177-010-0	01	1	9912-	●
250	BEARING; CRANKSHAFT	1-19177-009-0	01	1	9912-	●
251	SEAL; OIL,SHAFT ASM	1-09625-534-0	01	1	9912-	●
252	COVER; BEARING,CRANKCASE	1-19156-075-1	01	1	9912-	●
253	GASKET; CRANKCASE	1-09623-627-0	01	1	9912-	●
254	GASKET; CRANKCASE	1-09623-539-0	01	1	9912-	●
255	COVER; CRANKCASE	1-15789-058-0	01	1	9912-	●
256	WASHER; SPRING,COVER ID=10.2	9-09150-610-0	04	1	9912-	●
257	SCREW; BEARING COVER	1-09100-018-0	02	1	9912-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
