◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#67918) — 222 parça

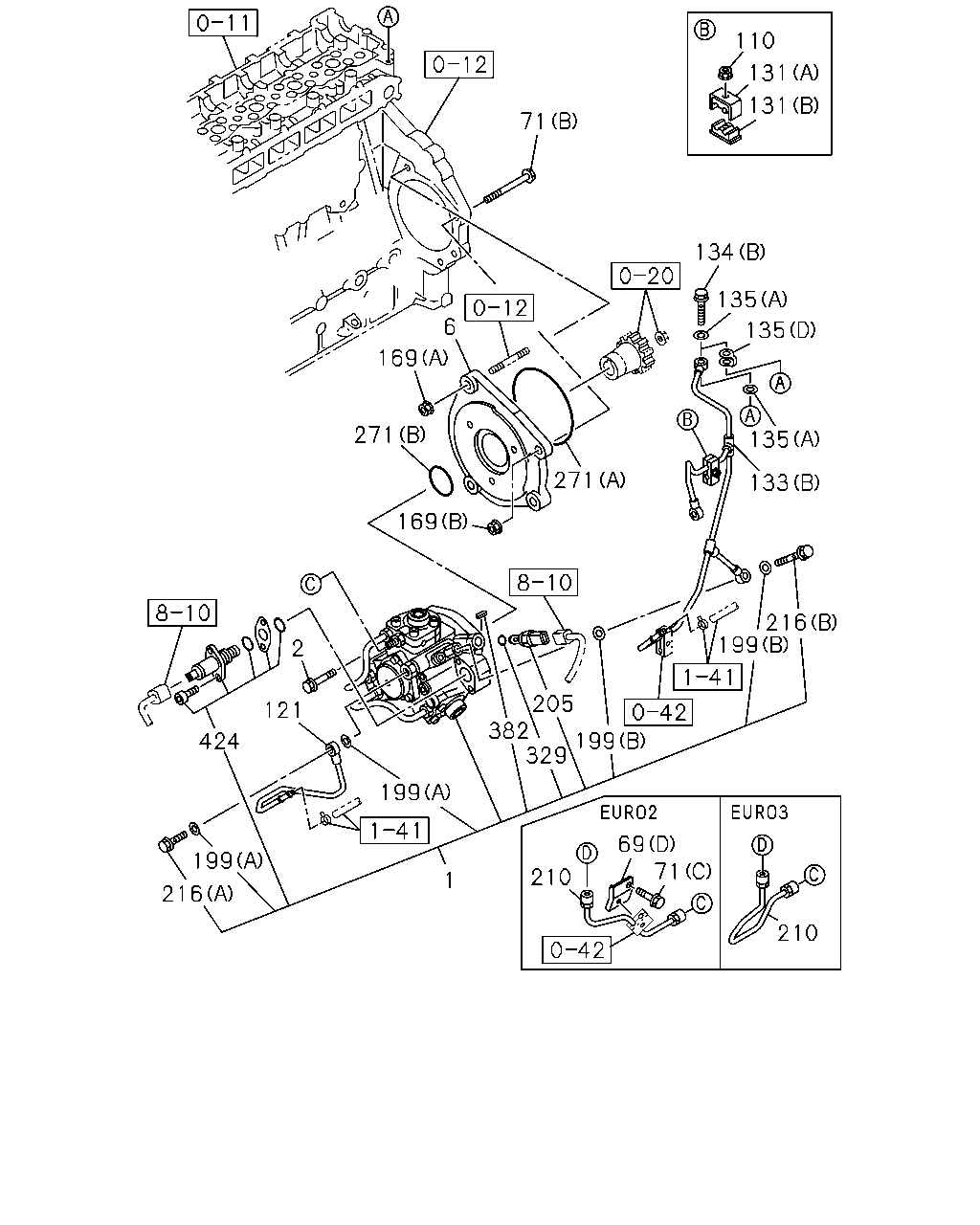

çizim 62530
110 131 131 71 134 135 135 135 133 216 199 271 169 6 271 169 2 121 424 199 382 205 199 329 1 199 216 210 69 71 210
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ 8-97605-946-3 01 1 0803-0808 ●
1 PUMP ASM; INJ 8-97605-946-7 01 1 0809- ● ● ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0803-0808 ●
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0809- ● ● ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-0 01 1 0803-0808 ●
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0809- ● ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 0809-0809 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 0810- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0809- ● ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0809- ● ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0809- ● ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 0809-0809 ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0810- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803-0808 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0803-0808 ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0809- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0803-0808 ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0809- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-502-0 01 1 0803-0808 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97610-502-0 01 1 0809-0809 ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-331-0 01 1 0809- ● ● ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-1 01 1 0803-0808 ●
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 0809- ● ● ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-1 01 1 0803-0808 ●
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 0809- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0803-0808 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 0809-0809 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 0810- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0803-0809 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0810- ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO3 SPECIFICATION<NT3> (B) 		8-97610-504-0 01 1 0810- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0803-0808 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0809- ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0803-0808 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0809- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0803-0808 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0809-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0803-0808 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0809-1301 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0803-0808 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0809-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ● ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0803-0808 ●
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0809- ● ● ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 0803-0808 ●
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 0809- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0803-0808 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0809- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0803-0808 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0809- ● ● ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0803-0808 ●
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0809- ● ● ●
210 PIPE; INJ,C/R 8-98059-805-0 01 1 0809-0809 ● ●
210 PIPE; INJ,C/R
EURO2 SPECIFICATION<NT2> 		8-98059-805-0 01 1 0810- ● ●
210 PIPE; INJ,C/R 8-97608-480-0 01 1 0803-0809 ●
210 PIPE; INJ,C/R 8-97608-480-1 01 1 0810- ●
210 PIPE; INJ,C/R
EURO3 SPECIFICATION<NT3> 		8-97608-480-1 01 1 0810- ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0803-0808 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0809- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-0808 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0809- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0803-0808 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0809- ● ● ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0803-0808 ●
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0809- ● ● ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0803-0808 ●
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0809- ● ● ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0803-0808 ●
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0809-1201 ● ● ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0803-0808 ●
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0809-0910 ● ● ●
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 0911- ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0803-0808 ●
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0809-0905 ● ● ●
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 0906- ● ● ●

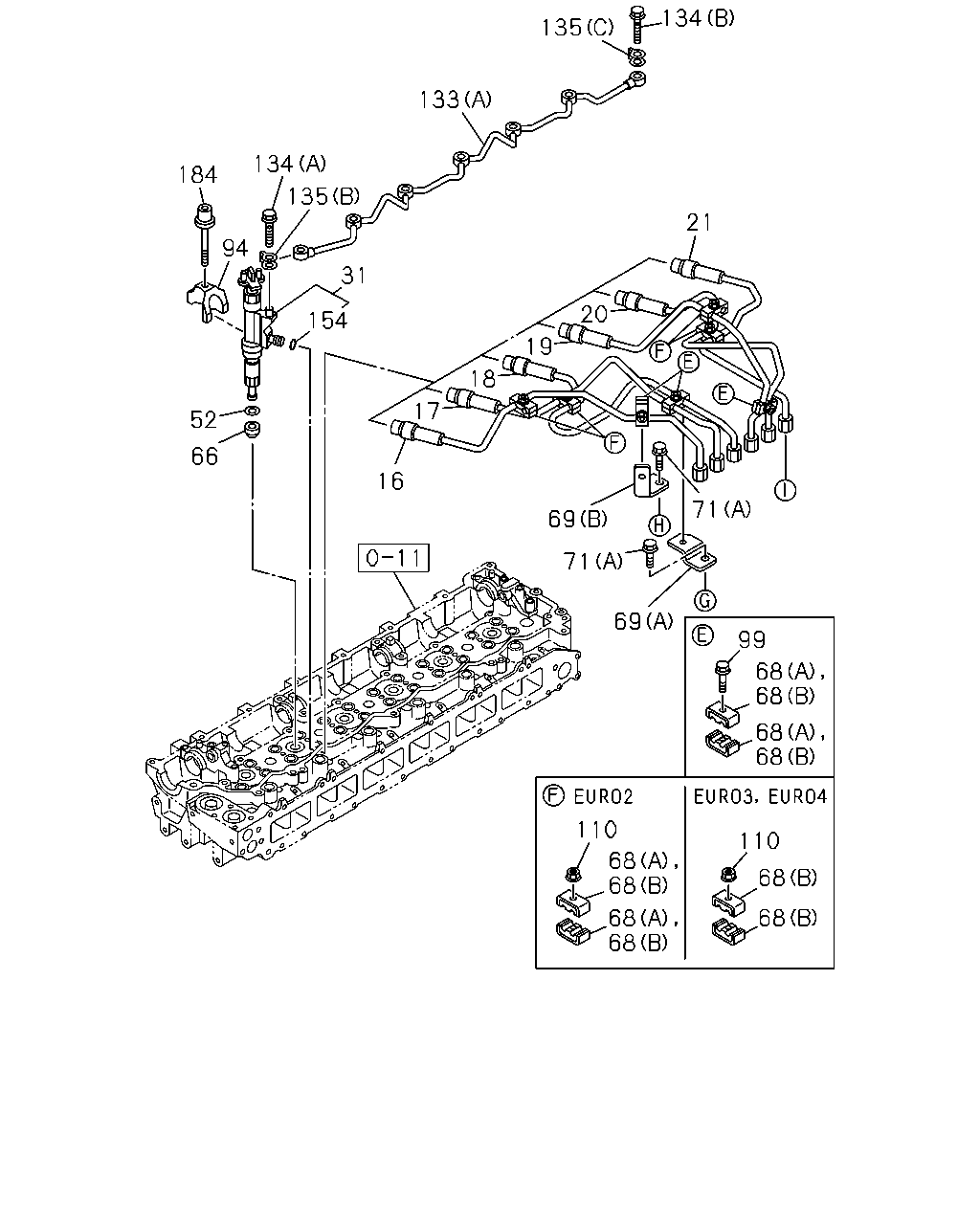

çizim 63188
134 135 133 21 134 184 94 135 31 154 52 66 16 20 19 18 17 69 71 71 69 99 68 68 68 68 110 68 68 110 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0803-0808 ●
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0809-1102 ● ● ●
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403 ● ● ●
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501 ● ● ●
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502- ● ● ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0803-0808 ●
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0809-1102 ● ● ●
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403 ● ● ●
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501 ● ● ●
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502- ● ● ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0803-0808 ●
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0809-1102 ● ● ●
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403 ● ● ●
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501 ● ● ●
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502- ● ● ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0803-0808 ●
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0809-1102 ● ● ●
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403 ● ● ●
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501 ● ● ●
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502- ● ● ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0803-0808 ●
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0809-1102 ● ● ●
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1103-1403 ● ● ●
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1501 ● ● ●
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502- ● ● ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0803-0808 ●
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0809-1102 ● ● ●
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1103-1403 ● ● ●
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501 ● ● ●
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502- ● ● ●
31 NOZZLE ASM; INJ
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98172-046-1 06 1 1102- ● ●
31 NOZZLE ASM; INJ 8-97609-789-3 06 1 0809-0809 ● ●
31 NOZZLE ASM; INJ 8-97609-789-4 06 1 0810-1101 ●
31 NOZZLE ASM; INJ
EURO2 SPECIFICATION<NT2> 		8-97609-789-4 06 1 0810-1101 ●
31 NOZZLE ASM; INJ
EURO2 SPECIFICATION<NT2> 		8-97609-789-6 06 1 1102- ● ●
31 NOZZLE ASM; INJ
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97609-789-6 06 1 1102- ●
31 NOZZLE ASM; INJ 8-97609-788-3 06 1 0803-0809 ●
31 NOZZLE ASM; INJ 8-97609-788-4 06 1 0810-1101 ●
31 NOZZLE ASM; INJ
EURO3 SPECIFICATION<NT3> 		8-97609-788-4 06 1 0810-1101 ●
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 1102- ●
31 NOZZLE ASM; INJ
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97609-788-6 06 1 1102- ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0803-0808 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0809- ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0803-0808 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0809-0909 ● ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ● ● ●
68 CLIP; INJ PIPE
(A) 		8-98039-293-0 10 1 0910-1405 ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98039-293-0 10 1 0910-1405 ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 04 1 0910-1405 ●
68 CLIP; INJ PIPE
EURO3 SPECIFICATION<NT3> (B) ID=11 & 11 L=19 		8-98148-996-2 04 1 0910-1405 ● ●
68 CLIP; INJ PIPE
(B) ID=11 & 11 L=19 		8-98148-996-2 14 1 1406- ● ● ●
68 CLIP; INJ PIPE
(A) 		8-98039-293-0 14 1 0803-0808 ●
68 CLIP; INJ PIPE
(A) 		8-98039-293-0 14 1 0809-0909 ● ● ●
68 CLIP; INJ PIPE
EURO2 SPECIFICATION<NT2> (A) 		8-98039-293-0 14 1 0910-1405 ● ●
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 0809-0809 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 0810- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0809- ● ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0809- ● ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0809- ● ● ●
71 BOLT; BRKT
(C) M10X16 FLANGE 		0-28151-016-0 01 1 0809-0809 ● ●
71 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M10X16 FLANGE 		0-28151-016-0 01 1 0810- ● ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803-0808 ●
71 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ● ● ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0803-0808 ●
71 BOLT; BRKT
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0809- ● ● ●
94 BRACKET; INJ NOZZLE 8-98028-999-0 06 1 0803-0808 ●
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0809- ● ● ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0803-0808 ●
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0809- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0803-0808 ●
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0809- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0803-0808 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 0809-0809 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 0810- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0803-0809 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0810- ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO3 SPECIFICATION<NT3> (B) 		8-97610-504-0 01 1 0810- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0803-0808 ●
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0809- ● ● ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0803-0808 ●
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0809- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0803-0808 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0809-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17 		8-98079-755-0 01 1 0909- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0803-0808 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0809-1301 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302- ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0803-0808 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0809-0908 ● ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909- ● ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0803-0808 ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0809-1106 ● ● ●
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107- ● ● ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0803-0808 ●
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0809- ● ● ●

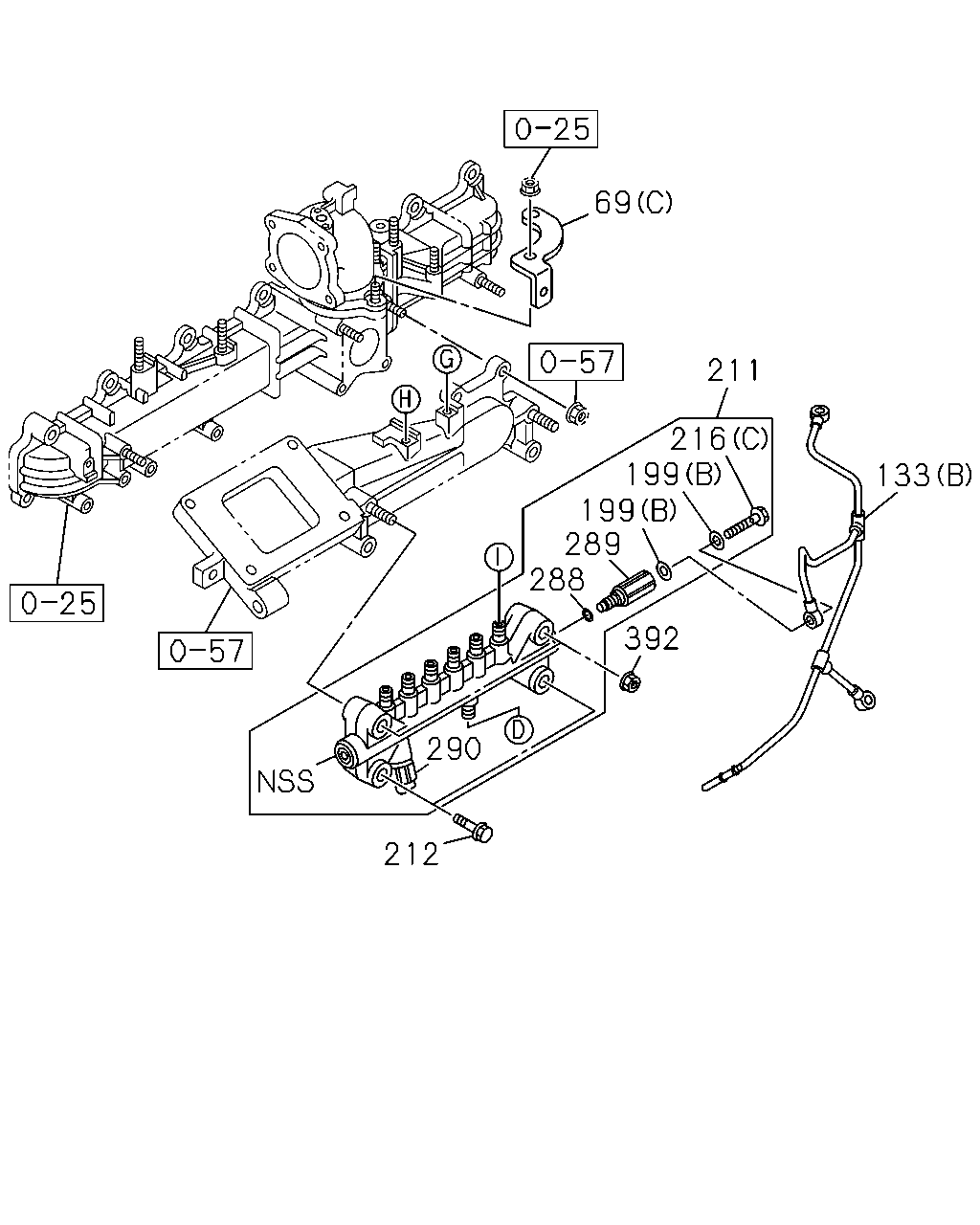

çizim 63326
69 211 133 216 199 199 289 288 392 290 212
BalonParca AdiParca NoAdetTipApplied Date A B C
69 BRACKET; INJ PIPE CLIP
(D) 		8-98059-807-0 01 1 0809-0809 ● ●
69 BRACKET; INJ PIPE CLIP
EURO2 SPECIFICATION<NT2> (D) 		8-98059-807-0 01 1 0810- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0809- ● ● ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0809- ● ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0803-0808 ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0809- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0809-1206 ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0803-0808 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-98059-804-0 01 1 0809-0809 ● ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO2 SPECIFICATION<NT2> (B) 		8-98059-804-0 01 1 0810- ● ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0803-0809 ●
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-504-0 01 1 0810- ●
133 PIPE; INJ NOZZLE LEAK OFF
EURO3 SPECIFICATION<NT3> (B) 		8-97610-504-0 01 1 0810- ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0803-0808 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 0809- ● ● ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0803-0808 ●
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 0809- ● ● ●
211 RAIL ASM; COMMON 8-97609-980-0 01 1 0803-0808 ●
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0809- ● ● ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 0803-0808 ●
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 0809- ● ● ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0803-0808 ●
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 0809- ● ● ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0803-0808 ●
216 BOLT; EYE
(B) 		8-97351-388-0 01 1 0809- ● ● ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0803-0808 ●
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0809- ● ● ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0803-0808 ●
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0809- ● ● ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0803-0808 ●
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0809- ● ● ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0803-0808 ●
290 SENSOR; PRESS 8-97318-684-0 01 1 0809-0809 ● ● ●
290 SENSOR; PRESS 8-98119-790-0 01 1 0809- ● ● ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 0803-0808 ●
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 0809- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
