0-39 — AIR COMPRESSOR; BRAKE (#67917) — 111 parça

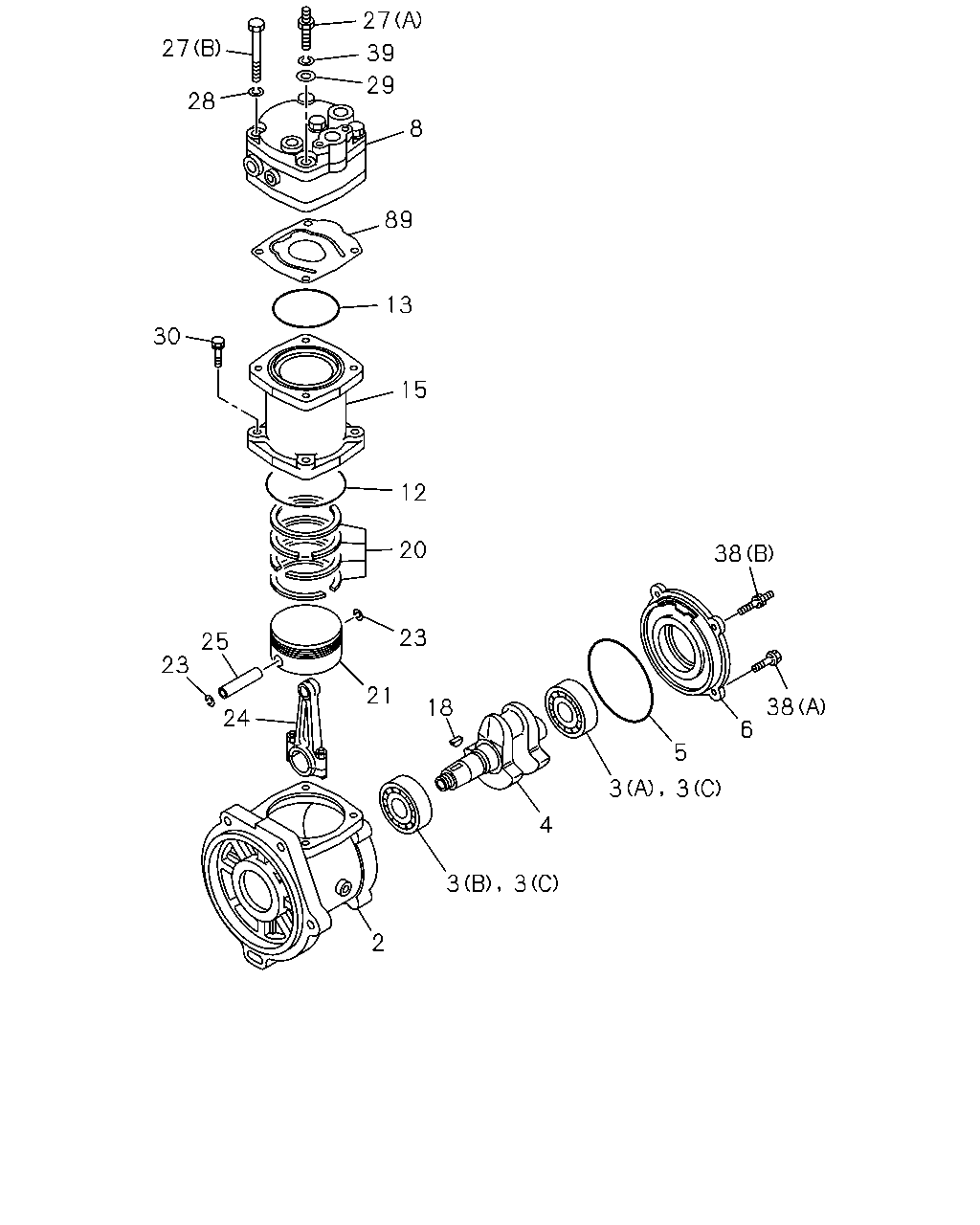

çizim 62754
3 3 2 4 5 3 3 6 38 38 18 21 23 20 12 15 13 89 8 29 24 25 23 30 28 27 27 39
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CRANKCASE; AIR CMPR 8-97614-060-1 01 1 0809- ● ●
2 CRANKCASE; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97614-060-1 01 1 0809- ●
2 CRANKCASE; AIR CMPR 8-97614-060-0 01 1 0803-0808 ●
2 CRANKCASE; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-19151-274-0 01 1 0809- ●
3 BEARING; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		9-00006-206-0 01 1 0809- ●
3 BEARING; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		9-00090-152-0 01 1 0809- ●
3 BEARING; AIR CMPR
(C) 		1-09800-268-0 02 1 0803-0808 ●
3 BEARING; AIR CMPR
(C) 		1-09800-268-0 02 1 0809- ● ●
3 BEARING; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C) 		1-09800-268-0 02 1 0809- ●
4 CRANKSHAFT; AIR CMPR 8-97614-059-1 01 1 0809- ● ●
4 CRANKSHAFT; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97614-059-1 01 1 0809- ●
4 CRANKSHAFT; AIR CMPR 8-97614-059-0 01 1 0803-0808 ●
4 CRANKSHAFT; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-19171-096-0 01 1 0809- ●
5 GASKET; AIR CMPR 1-09623-613-0 01 1 0809-1107 ● ●
5 GASKET; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-09623-613-0 01 1 0809-1107 ●
5 GASKET; AIR CMPR 8-98192-463-0 01 1 1108- ● ●
5 GASKET; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98192-463-0 01 1 1108- ●
5 GASKET; AIR CMPR 1-09623-613-0 01 1 0803-0808 ●
5 GASKET; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-09623-361-0 01 1 0809-1107 ●
5 GASKET; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98192-460-0 01 1 1108- ●
6 COVER ASM; BRG,AIR CMPR 8-97614-058-1 01 1 0809- ● ●
6 COVER ASM; BRG,AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97614-058-1 01 1 0809- ●
6 COVER ASM; BRG,AIR CMPR 8-97614-058-0 01 1 0803-0808 ●
6 COVER ASM; BRG,AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-19156-039-0 01 1 0809- ●
8 HEAD ASM; CYL,AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97619-778-0 01 1 0809-0809 ● ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97619-778-1 01 1 0810-1012 ● ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98167-013-0 01 1 1101-1101 ● ●
8 HEAD ASM; CYL,AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> 		8-98167-013-0 01 1 1102- ● ●
8 HEAD ASM; CYL,AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98167-013-0 01 1 1102- ● ●
8 HEAD ASM; CYL,AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-97619-779-0 01 1 0809-0809 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-97619-779-1 01 1 0810-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98167-014-0 01 1 1101-1101 ●
8 HEAD ASM; CYL,AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> 		8-98167-014-0 01 1 1102- ●
8 HEAD ASM; CYL,AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98167-014-0 01 1 1102- ●
8 HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98038-657-2 01 1 0810-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98167-015-0 01 1 1101-1101 ●
8 HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98167-015-0 01 1 1102- ●
8 HEAD ASM; CYL,AIR CMPR 8-97614-055-0 01 1 0803-0809 ●
8 HEAD ASM; CYL,AIR CMPR 8-97614-055-0 01 1 0810-1012 ●
8 HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97614-055-0 01 1 0810-1012 ● ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-012-0 01 1 1101-1101 ●
8 HEAD ASM; CYL,AIR CMPR
EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98167-012-0 01 1 1101-1101 ● ●
8 HEAD ASM; CYL,AIR CMPR 8-98167-012-0 01 1 1102- ●
8 HEAD ASM; CYL,AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98167-012-0 01 1 1102- ● ●
12 GASKET; AIR CMPR 1-09623-614-0 01 1 0809-1107 ● ●
12 GASKET; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		1-09623-614-0 01 1 0809-1107 ●
12 GASKET; AIR CMPR 8-98048-641-0 01 1 1108- ● ●
12 GASKET; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-98048-641-0 01 1 1108- ●
12 GASKET; AIR CMPR 1-09623-614-0 01 1 0803-0808 ●
12 GASKET; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-09623-539-0 01 1 0809-1107 ●
12 GASKET; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98185-684-0 01 1 1108- ●
13 GASKET; AIR CMPR 1-09623-615-0 01 1 0803-0808 ●
13 GASKET; AIR CMPR 1-09623-615-0 01 1 0809-1107 ● ● ●
13 GASKET; AIR CMPR 8-98048-640-0 01 1 1108- ● ● ●
15 CYLINDER; AIR CMPR 8-97614-056-0 01 1 0809- ● ●
15 CYLINDER; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97614-056-0 01 1 0809- ●
15 CYLINDER; AIR CMPR 8-97614-056-0 01 1 0803-0808 ●
15 CYLINDER; AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-98038-668-0 01 1 0809- ●
18 KEY; AIR CMPR 9-08055-516-0 01 1 0803-0808 ●
18 KEY; AIR CMPR 9-08055-516-0 01 1 0809- ● ●
18 KEY; AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		9-08055-516-0 01 1 0809- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0803-0808 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0809- ● ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0803-0808 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0809- ● ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0803-0808 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0809- ● ● ●
24 ROD ASM; CONN,AIR CMPR 8-97614-057-0 01 1 0809- ● ●
24 ROD ASM; CONN,AIR CMPR
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97614-057-0 01 1 0809- ●
24 ROD ASM; CONN,AIR CMPR 8-97614-057-0 01 1 0803-0808 ●
24 ROD ASM; CONN,AIR CMPR
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-19173-010-0 01 1 0809- ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0803-0808 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0809- ● ● ●
27 BOLT; HD
(B) M10X80 		8-98038-666-0 03 1 0809-1012 ● ●
27 BOLT; HD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M10X80 		8-98038-666-0 03 1 0809-1012 ●
27 BOLT; HD
(B) M10X75 		8-98167-018-0 03 1 1101-1207 ● ●
27 BOLT; HD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M10X75 		8-98167-018-0 03 1 1101-1207 ●
27 BOLT; HD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10X75 		8-98167-018-0 04 1 1208- ●
27 BOLT; HD
(A) 		8-97614-054-0 01 1 0803-0808 ●
27 BOLT; HD
(A) 		8-97614-054-0 01 1 0809- ● ●
27 BOLT; HD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97614-054-0 01 1 0809- ●
27 BOLT; HD
(B) M10X80 		8-98038-666-0 03 1 0803-0808 ●
27 BOLT; HD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10X80 		8-98038-666-0 04 1 0809-1012 ●
27 BOLT; HD
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) M10X75 		8-98167-018-0 04 1 1101-1207 ●
27 BOLT; HD
(B) M10X75 		8-98167-018-0 03 1 1208- ● ●
27 BOLT; HD
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) M10X75 		8-98167-018-0 03 1 1208- ●
28 WASHER; LK,HD BOLT 8-97613-694-0 01 1 0803-0808 ●
28 WASHER; LK,HD BOLT 8-97613-694-0 01 1 0809- ● ●
28 WASHER; LK,HD BOLT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97613-694-0 01 1 0809- ●
29 WASHER; PL,HD BOLT 8-97613-686-0 01 1 0803-0808 ●
29 WASHER; PL,HD BOLT 8-97613-686-0 01 1 0809- ● ●
29 WASHER; PL,HD BOLT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97613-686-0 01 1 0809- ●
30 BOLT; CYL TO CRANKCASE
M10X30 		8-97613-704-0 04 1 0809- ● ●
30 BOLT; CYL TO CRANKCASE
BRK SYSTEM FULL AIR DUAL CIRC(Z06) M10X30 		8-97613-704-0 04 1 0809- ●
30 BOLT; CYL TO CRANKCASE
M10X30 		8-97613-704-0 04 1 0803-0808 ●
30 BOLT; CYL TO CRANKCASE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M10X25 		8-98038-763-0 04 1 0809- ●
38 BOLT; COVER FIX
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) 		8-97617-894-0 02 1 0809- ●
38 BOLT; COVER FIX
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8X20 		8-97617-895-0 02 1 0809- ●
38 BOLT; COVER FIX
(A) M10X30 		8-97613-704-0 02 1 0803-0808 ●
38 BOLT; COVER FIX
(A) M10X30 		8-97613-704-0 02 1 0809- ● ●
38 BOLT; COVER FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) M10X30 		8-97613-704-0 02 1 0809- ●
38 BOLT; COVER FIX
(B) 		8-97617-310-0 02 1 0803-0808 ●
38 BOLT; COVER FIX
(B) 		8-97617-310-0 02 1 0809- ● ●
38 BOLT; COVER FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (B) 		8-97617-310-0 02 1 0809- ●
39 WASHER; LK,COVER FIX 8-97613-694-0 02 1 0809- ● ●
39 WASHER; LK,COVER FIX
BRK SYSTEM FULL AIR DUAL CIRC(Z06) 		8-97613-694-0 02 1 0809- ●
39 WASHER; LK,COVER FIX 8-97613-694-0 02 1 0803-0808 ●
39 WASHER; LK,COVER FIX
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		8-97617-893-0 02 1 0809- ●
89 VALVE; SUCTION 1-19119-045-0 01 1 1312- ● ● ●
89 VALVE; SUCTION 1-19119-045-0 01 1 0803-0808 ●
89 VALVE; SUCTION 1-19119-045-0 01 1 0809- ● ● ●
