Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#67916) — 413 parça

6 1 4 2 13 221 14 5 146 160 36 31 30 87 116 49 52 52 51 53 160 161 55 54 110 110 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97619-243-0	01	1	0809-0809	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97619-243-2	01	1	0810-1101	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-97619-243-2	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97619-243-2	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98187-301-1	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97619-244-0	01	1	0809-0809		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97619-244-2	01	1	0810-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97619-244-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98187-299-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98055-879-2	01	1	0810-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98055-879-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98187-303-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-2	01	1	0803-0809			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-4	01	1	0810-1101			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97613-762-4	01	1	0810-1101	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-4	01	1	1102-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97613-762-4	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98187-304-1	01	1	1108-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0803-0808			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0809-	●	●	●
4	KEY; INJ PUMP GEAR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-08055-516-0	01	1	0809-		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0803-0808			●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0809-	●	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0803-0808			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0809-	●	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0803-0808			●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0809-	●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0803-0808			●
14	NUT; GEAR M20	0-91110-520-0	01	1	0809-	●	●	●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-0808			●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●
30	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	0803-0808			●
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	0809-0908	●		●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97620-948-0	01	1	0809-0908		●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97620-948-0	01	1	0909-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0803-0808			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	0809-	●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	0809-		●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97618-723-0	01	1	0809-0809	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97618-723-0	01	1	0810-1101	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (C)	8-97618-723-0	01	1	1102-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97618-723-0	01	1	1102-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	8-97618-722-0	01	1	0809-0809		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	8-97618-722-0	01	1	0810-1101		●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (C)	8-97618-722-0	01	1	1102-		●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97618-722-0	01	1	1102-		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98042-002-0	01	1	0810-1101		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98042-002-0	01	1	1102-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98052-017-0	01	1	0803-			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	0803-0809			●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	0810-1101	●	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, TURBO - CONVENTIONAL<Q5T> (A)	8-98052-612-0	01	1	1102-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0803-0808			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0809-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0803-0808			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0809-	●	●	●
53	UNION; CHARGE PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98008-887-2	01	1	0803-			●
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0803-0809			●
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0810-1101			●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0810-1101	●	●
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1102-			●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1102-	●	●
54	NUT; PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M26	8-98049-390-0	01	1	0803-			●
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	0803-0809			●
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	0810-1101			●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> M22	0-91111-522-0	01	1	0810-1101	●	●
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	1102-			●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M22	0-91111-522-0	01	1	1102-	●	●
55	WASHER; LK,PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27.5	0-91510-527-0	01	1	0803-			●
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	0803-0809			●
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	0810-1101			●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> ID=22.5	0-91510-522-0	01	1	0810-1101	●	●
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	1102-			●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=22.5	0-91510-522-0	01	1	1102-	●	●
87	BOLT; BRKT FIX EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M8X20 FLANGE	0-28050-820-0	03	1	0803-0809			●
87	BOLT; BRKT FIX EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M8X20 FLANGE	0-28050-820-0	03	1	0810-1101			●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NT3> M8X20 FLANGE	0-28050-820-0	03	1	0810-1101	●	●
87	BOLT; BRKT FIX EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M8X20 FLANGE	0-28050-820-0	03	1	1102-			●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28050-820-0	03	1	1102-	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0809-0809	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	0810-1101	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	1102-	●	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94393-037-0	01	1	1102-	●	●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	0803-0809			●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	0810-1101			●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> (A)	1-09701-284-0	06	1	0810-1101	●	●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	1102-			●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-09701-284-0	06	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0809-0809	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M6X40 FLANGE	0-28050-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28650-640-0	01	1	0809-0809	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0803-0809			●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0810-1101			●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (A) M8X45 FLANGE	0-28050-845-0	03	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	1102-			●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X45 FLANGE	0-28050-845-0	03	1	1102-	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97614-183-1	01	1	0803-0809			●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97614-183-1	01	1	0810-1101			●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3>	8-97614-183-1	01	1	0810-1101	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97614-183-1	01	1	1102-			●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97614-183-1	01	1	1102-	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0803-0808			●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0809-	●	●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D)	8-98047-336-2	01	1	0803-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E)	8-98052-613-1	01	1	0803-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-98052-614-0	01	1	0803-			●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	0803-0808			●
160	BRACKET; AIR PIPE (F)	8-98074-255-0	01	1	0809-0809	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	0810-1101	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	1102-	●	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (F)	8-98074-255-0	01	1	1102-	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	0809-1101			●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0809-1101	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	1102-			●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-97614-182-2	01	1	1102-	●	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97614-182-2	01	1	1102-	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	0803-0809			●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	0810-1101			●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (B)	8-98042-844-1	01	1	0810-1101	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	1102-			●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98042-844-1	01	1	1102-	●	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M10X30 FLANGE	0-28151-030-0	02	1	0803-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X185	8-94393-483-0	01	1	0803-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X128	8-94399-252-0	01	1	0803-			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-0808			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0910			●
161	BOLT; BRKT,AIR PIPE (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0910	●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0911-1105			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	1106-			●
161	BOLT; BRKT,AIR PIPE (C) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0803-0808			●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0809-	●	●	●

2 13 221 14 6 1 31 36 30 5 146 160 79 80 80 52 52 51 49 77 110 113 113 111 161 111 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97619-243-0	01	1	0809-0809	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97619-243-2	01	1	0810-1101	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-97619-243-2	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97619-243-2	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98187-301-1	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97619-244-0	01	1	0809-0809		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97619-244-2	01	1	0810-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97619-244-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98187-299-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98055-879-2	01	1	0810-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98055-879-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98187-303-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-2	01	1	0803-0809			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-4	01	1	0810-1101			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97613-762-4	01	1	0810-1101	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-4	01	1	1102-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97613-762-4	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98187-304-1	01	1	1108-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0803-0808			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0809-	●	●	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0803-0808			●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0809-	●	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0803-0808			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0809-	●	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0803-0808			●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0809-	●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0803-0808			●
14	NUT; GEAR M20	0-91110-520-0	01	1	0809-	●	●	●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-0808			●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●
30	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	0803-0808			●
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	0809-0908	●		●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97620-948-0	01	1	0809-0908		●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97620-948-0	01	1	0909-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0803-0808			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	0809-	●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	0809-		●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97618-723-0	01	1	0809-0809	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97618-723-0	01	1	0810-1101	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (C)	8-97618-723-0	01	1	1102-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97618-723-0	01	1	1102-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	8-97618-722-0	01	1	0809-0809		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	8-97618-722-0	01	1	0810-1101		●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (C)	8-97618-722-0	01	1	1102-		●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97618-722-0	01	1	1102-		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98042-002-0	01	1	0810-1101		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98042-002-0	01	1	1102-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98052-017-0	01	1	0803-			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	0803-0809			●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	0810-1101	●	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, TURBO - CONVENTIONAL<Q5T> (A)	8-98052-612-0	01	1	1102-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0803-0808			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0809-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0803-0808			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0809-	●	●	●
77	PIPE; AIR,GOV BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97618-725-0	01	1	0809-0809	●	●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97618-725-0	01	1	0810-1101	●	●
77	PIPE; AIR,GOV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-97618-725-0	01	1	1102-	●	●
77	PIPE; AIR,GOV BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97618-725-0	01	1	1102-	●	●
77	PIPE; AIR,GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97618-724-0	01	1	0809-0809		●
77	PIPE; AIR,GOV EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97618-724-0	01	1	0810-1101		●
77	PIPE; AIR,GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-97618-724-0	01	1	1102-		●
77	PIPE; AIR,GOV BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97618-724-0	01	1	1102-		●
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	0809-0809	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	0810-1101	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO2 SPECIFICATION<NT2> M10X23	8-98037-824-0	01	1	1102-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10X23	8-98037-824-0	01	1	1102-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	0809-0809	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	0810-1101	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ID=10.2 OD=15.2	1-09630-083-0	02	1	1102-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=10.2 OD=15.2	1-09630-083-0	02	1	1102-	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0809-0809	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	0810-1101	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	1102-	●	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94393-037-0	01	1	1102-	●	●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	0803-0809			●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	0810-1101			●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> (A)	1-09701-284-0	06	1	0810-1101	●	●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	1102-			●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-09701-284-0	06	1	1102-	●	●
111	CLIP; AIR PIPE ID=5.5 L=10.5	8-98029-953-1	02	1	0809-0809	●	●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	0810-1101	●	●
111	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=5.5 L=10.5	8-98029-953-1	02	1	1102-	●	●
111	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=5.5 L=10.5	8-98029-953-1	02	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0809-0809	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M6X40 FLANGE	0-28050-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28650-640-0	01	1	0809-0809	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0803-0809			●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0810-1101			●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (A) M8X45 FLANGE	0-28050-845-0	03	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	1102-			●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X45 FLANGE	0-28050-845-0	03	1	1102-	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0803-0808			●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0809-	●	●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D)	8-98047-336-2	01	1	0803-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E)	8-98052-613-1	01	1	0803-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-98052-614-0	01	1	0803-			●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	0803-0808			●
160	BRACKET; AIR PIPE (F)	8-98074-255-0	01	1	0809-0809	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	0810-1101	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	1102-	●	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (F)	8-98074-255-0	01	1	1102-	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	0809-1101			●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0809-1101	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	1102-			●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-97614-182-2	01	1	1102-	●	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97614-182-2	01	1	1102-	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	0803-0809			●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	0810-1101			●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (B)	8-98042-844-1	01	1	0810-1101	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	1102-			●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98042-844-1	01	1	1102-	●	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M10X30 FLANGE	0-28151-030-0	02	1	0803-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X185	8-94393-483-0	01	1	0803-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X128	8-94399-252-0	01	1	0803-			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-0808			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0910			●
161	BOLT; BRKT,AIR PIPE (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0910	●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0911-1105			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	1106-			●
161	BOLT; BRKT,AIR PIPE (C) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0803-0808			●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0809-	●	●	●

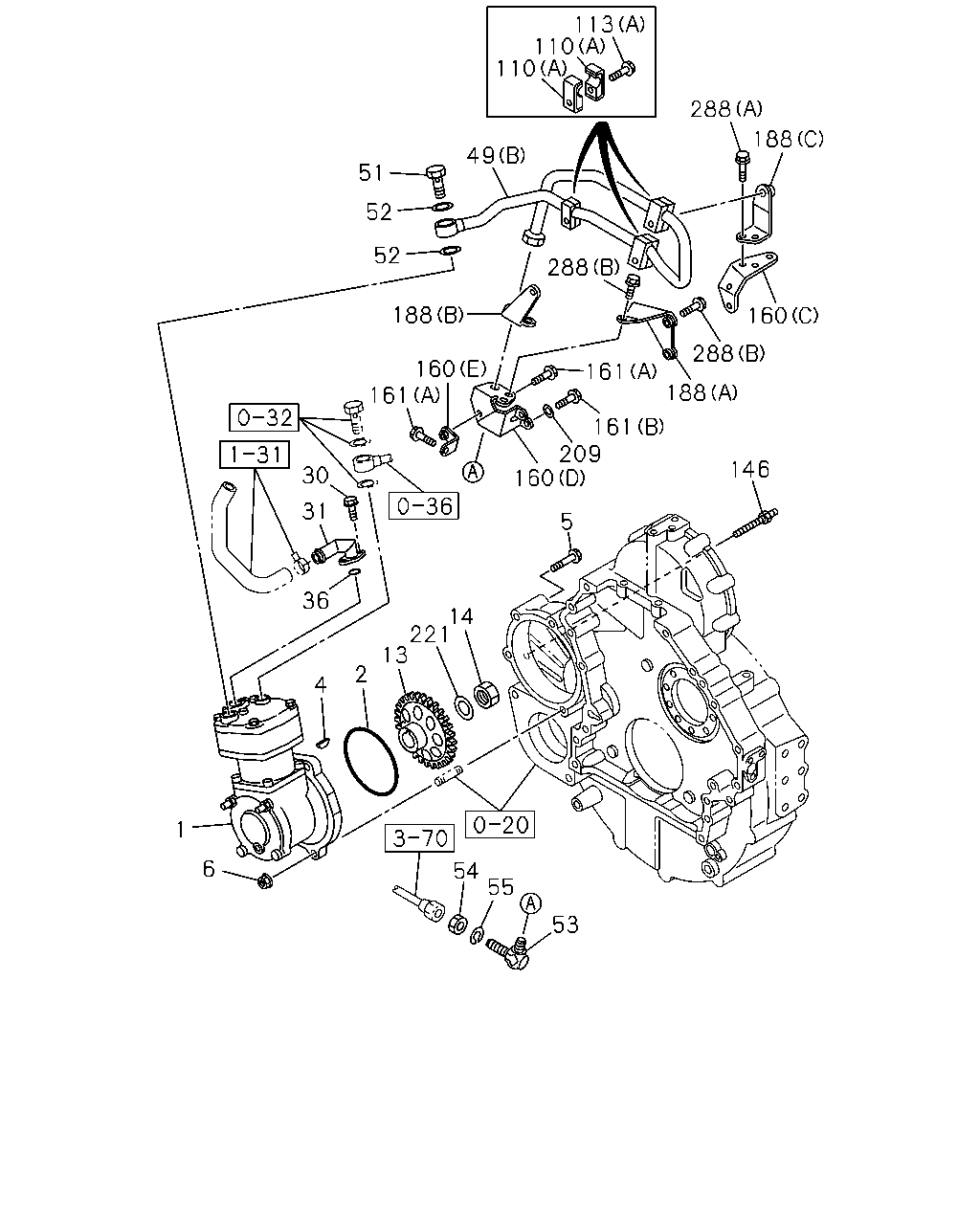

53 55 54 6 1 4 2 13 221 14 5 146 160 209 161 161 188 288 160 188 288 113 110 110 49 51 52 52 188 160 161 30 31 36 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97619-243-0	01	1	0809-0809	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97619-243-2	01	1	0810-1101	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-97619-243-2	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97619-243-2	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2>	8-98187-301-1	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98187-301-1	01	1	1108-	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97619-244-0	01	1	0809-0809		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97619-244-2	01	1	0810-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-97619-244-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97619-244-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2>	8-98187-299-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98187-299-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-98055-879-2	01	1	0810-1101		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98055-879-2	01	1	1102-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98187-303-0	01	1	1108-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-2	01	1	0803-0809			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-4	01	1	0810-1101			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97613-762-4	01	1	0810-1101	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97613-762-4	01	1	1102-1107			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97613-762-4	01	1	1102-1107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1108-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98187-304-1	01	1	1108-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0803-0808			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0809-	●	●	●
4	KEY; INJ PUMP GEAR BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	9-08055-516-0	01	1	0809-		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0803-0808			●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0809-	●	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0803-0808			●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0809-	●	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0803-0808			●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0809-	●	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0803-0808			●
14	NUT; GEAR M20	0-91110-520-0	01	1	0809-	●	●	●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0803-0808			●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-	●		●
30	BOLT; PIPE CLIP BRK SYSTEM FULL AIR DUAL CIRC(Z06) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	0803-0808			●
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	0809-0908	●		●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97620-948-0	01	1	0809-0908		●
31	PIPE; AIR,AIR CMPR SUCTION BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97620-948-0	01	1	0909-	●	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0803-0808			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	0809-	●		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRK SYSTEM FULL AIR DUAL CIRC(Z06) ID=24.4	1-09623-057-0	01	1	0809-		●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97618-723-0	01	1	0809-0809	●	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (C)	8-97618-723-0	01	1	0810-1101	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (C)	8-97618-723-0	01	1	1102-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97618-723-0	01	1	1102-	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	8-97618-722-0	01	1	0809-0809		●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C)	8-97618-722-0	01	1	0810-1101		●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (C)	8-97618-722-0	01	1	1102-		●
49	PIPE; AIR,CHARGE BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97618-722-0	01	1	1102-		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	8-98042-002-0	01	1	0810-1101		●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98042-002-0	01	1	1102-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98052-017-0	01	1	0803-			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	0803-0809			●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-612-0	01	1	0810-1101	●	●	●
49	PIPE; AIR,CHARGE BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>, TURBO - CONVENTIONAL<Q5T> (A)	8-98052-612-0	01	1	1102-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0803-0808			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0809-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0803-0808			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0809-	●	●	●
53	UNION; CHARGE PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98008-887-2	01	1	0803-			●
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0803-0809			●
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0810-1101			●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0810-1101	●	●
53	UNION; CHARGE PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1102-			●
53	UNION; CHARGE PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M16 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1102-	●	●
54	NUT; PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M26	8-98049-390-0	01	1	0803-			●
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	0803-0809			●
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	0810-1101			●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> M22	0-91111-522-0	01	1	0810-1101	●	●
54	NUT; PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M22	0-91111-522-0	01	1	1102-			●
54	NUT; PIPE UNION EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M22	0-91111-522-0	01	1	1102-	●	●
55	WASHER; LK,PIPE UNION ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27.5	0-91510-527-0	01	1	0803-			●
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	0803-0809			●
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	0810-1101			●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> ID=22.5	0-91510-522-0	01	1	0810-1101	●	●
55	WASHER; LK,PIPE UNION EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=22.5	0-91510-522-0	01	1	1102-			●
55	WASHER; LK,PIPE UNION EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=22.5	0-91510-522-0	01	1	1102-	●	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0809-0809	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	0810-1101	●	●
110	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B)	8-94393-037-0	01	1	1102-	●	●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94393-037-0	01	1	1102-	●	●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	0803-0809			●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	0810-1101			●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> (A)	1-09701-284-0	06	1	0810-1101	●	●
110	CLIP; AIR PIPE (A)	1-09701-284-0	06	1	1102-			●
110	CLIP; AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-09701-284-0	06	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0809-0809	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (B) M6X40 FLANGE	0-28050-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M6X40 FLANGE	0-28050-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28650-640-0	01	1	0809-0809	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE EURO2 SPECIFICATION<NT2> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-	●	●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0803-0809			●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	0810-1101			●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> (A) M8X45 FLANGE	0-28050-845-0	03	1	0810-1101	●	●
113	BOLT; CLIP,AIR PIPE (A) M8X45 FLANGE	0-28050-845-0	03	1	1102-			●
113	BOLT; CLIP,AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X45 FLANGE	0-28050-845-0	03	1	1102-	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0803-0808			●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0809-	●	●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D)	8-98047-336-2	01	1	0803-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E)	8-98052-613-1	01	1	0803-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-98052-614-0	01	1	0803-			●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	0803-0808			●
160	BRACKET; AIR PIPE (F)	8-98074-255-0	01	1	0809-0809	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	0810-1101	●	●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (F)	8-98074-255-0	01	1	1102-	●	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (F)	8-98074-255-0	01	1	1102-	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	0809-1101			●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0809-1101	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-97614-182-2	01	1	1102-			●
160	BRACKET; AIR PIPE EURO2 SPECIFICATION<NT2> (A)	8-97614-182-2	01	1	1102-	●	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97614-182-2	01	1	1102-	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	0803-0809			●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	0810-1101			●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> (B)	8-98042-844-1	01	1	0810-1101	●	●
160	BRACKET; AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98042-844-1	01	1	1102-			●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98042-844-1	01	1	1102-	●	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M10X30 FLANGE	0-28151-030-0	02	1	0803-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X185	8-94393-483-0	01	1	0803-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M12X128	8-94399-252-0	01	1	0803-			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-0808			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0910			●
161	BOLT; BRKT,AIR PIPE (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0910	●	●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	0911-1105			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) M8X16 FLANGE	0-28050-816-0	02	1	1106-			●
161	BOLT; BRKT,AIR PIPE (C) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●	●
188	STAY; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98052-615-1	01	1	0803-			●
188	STAY; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98053-882-0	01	1	0803-			●
188	STAY; AIR PIPE ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-98053-883-0	01	1	0803-			●
209	WASHER; PL ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=12.5 OD=22	8-94393-140-1	02	1	0803-			●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0803-0808			●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0809-	●	●	●
288	BOLT; STAY FIX ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) M8X20 FLANGE	0-28050-820-0	03	1	0803-			●
288	BOLT; STAY FIX ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) M10X45 FLANGE	0-28151-045-0	02	1	0803-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
