0-36 — TURBOCHARGER SYSTEM (#67914) — 545 parça

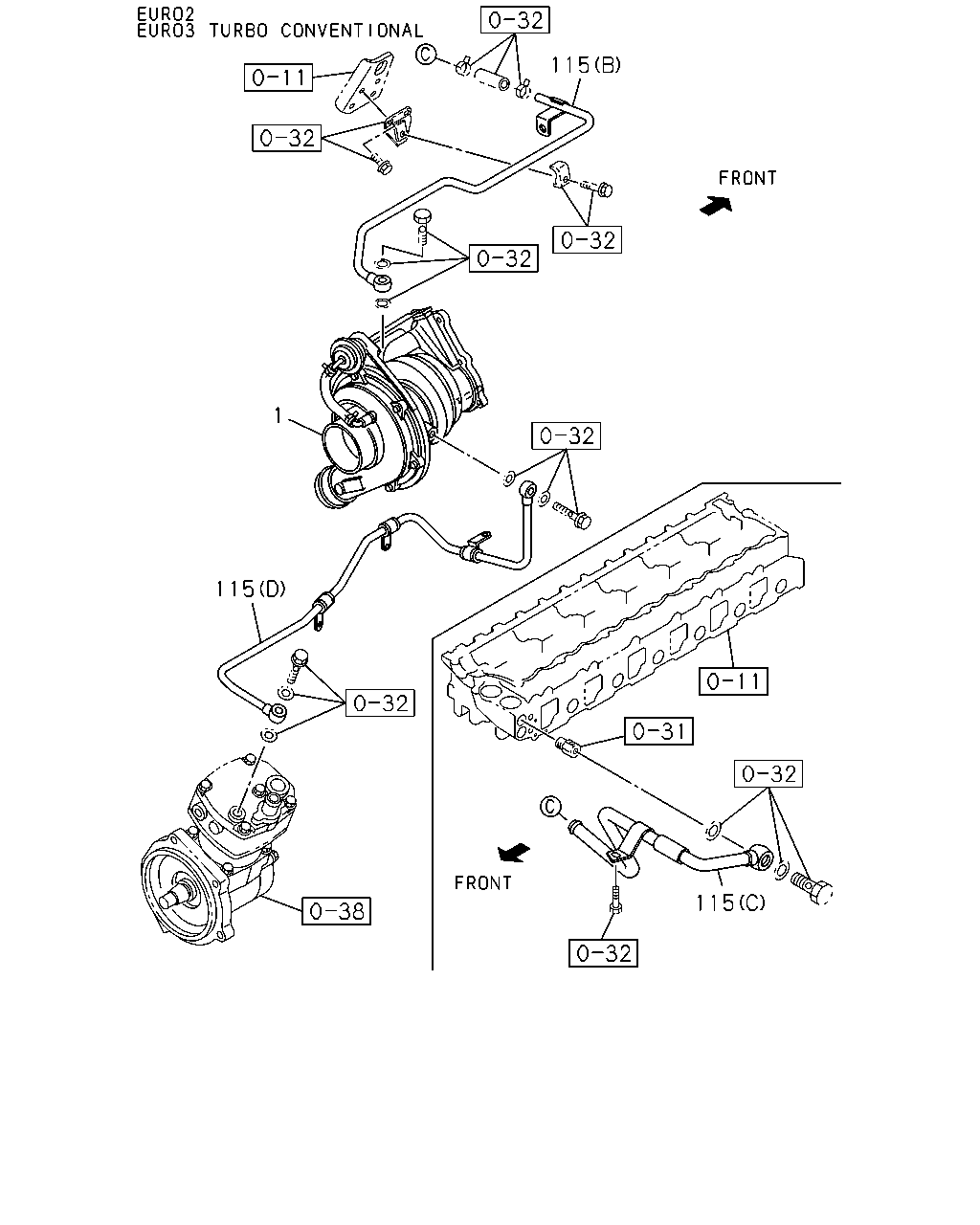

çizim 60695
1 115 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
TURBO - CONVENTIONAL<Q5T> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-401-0 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1102-1207 ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98153-480-0 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-0 01 1 0809-0809 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0810-0908 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ● ●
1 TURBOCHARGER ASM 8-97604-975-4 01 1 0803-0809 ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0810-1101 ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-7 01 1 0810-1101 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1102- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-975-9 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97618-807-0 01 1 0809-0809 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97618-807-0 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-97618-807-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) 		8-97618-808-0 01 1 0809-0809 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) 		8-97618-808-0 01 1 0810-1101 ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-97618-808-0 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 0809-0809 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-94392-950-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 0809-0809 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) 		8-94395-454-4 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-97615-877-0 01 1 0810-1101 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-97615-877-0 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0803-0809 ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 0810-1101 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97610-087-2 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-97610-087-2 01 1 1102- ● ●

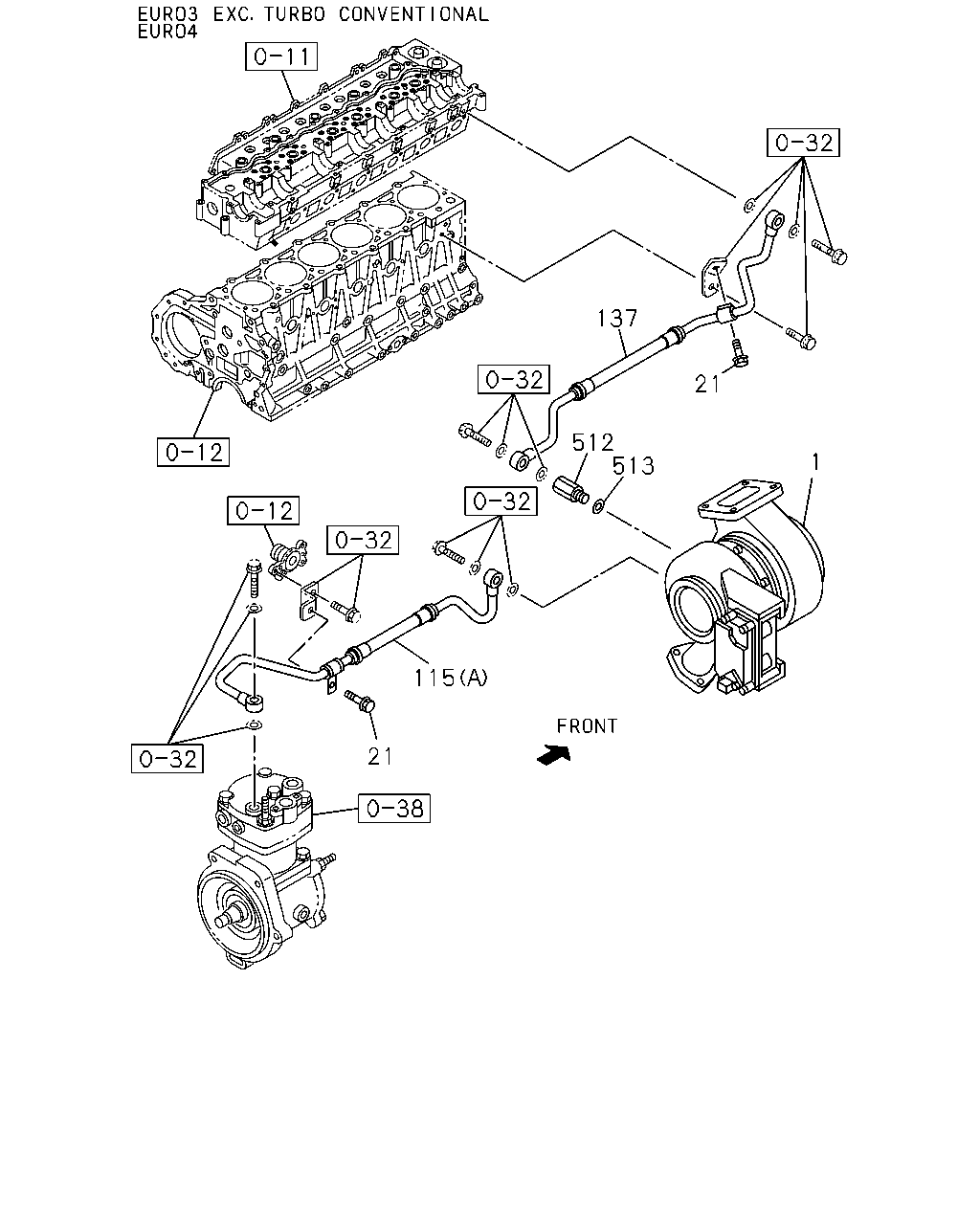

çizim 60842
137 21 512 513 115 21 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
TURBO - CONVENTIONAL<Q5T> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-401-0 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1102-1207 ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98153-480-0 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-0 01 1 0809-0809 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0810-0908 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ● ●
1 TURBOCHARGER ASM 8-97604-975-4 01 1 0803-0809 ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0810-1101 ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-7 01 1 0810-1101 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1102- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-975-9 01 1 1102- ● ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0803-0809 ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ●
21 BOLT; PIPE
EURO3 SPECIFICATION<NT3> M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ● ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1102- ●
21 BOLT; PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97618-807-0 01 1 0809-0809 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (D) 		8-97618-807-0 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-97618-807-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) 		8-97618-808-0 01 1 0809-0809 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) 		8-97618-808-0 01 1 0810-1101 ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO2 SPECIFICATION<NT2> (D) 		8-97618-808-0 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) 		8-97618-808-0 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 0809-0809 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-94392-950-0 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 0809-0809 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) 		8-94395-454-4 01 1 1102- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) 		8-97615-877-0 01 1 0810-1101 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-97615-877-0 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0803-0809 ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 0810-1101 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> BRK SYSTEM FULL AIR DUAL CIRC(Z06) (A) 		8-97610-087-2 01 1 0810-1101 ● ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-2 01 1 1102- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-97610-087-2 01 1 1102- ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0803-0809 ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0810-1101 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION<NT3> 		8-98046-783-0 01 1 0810-1101 ● ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1102- ●
137 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98046-783-0 01 1 1102- ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0803-0809 ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0810-1101 ●
512 CONNECTOR; TURBO
EURO3 SPECIFICATION<NT3> 		8-98031-856-0 01 1 0810-1101 ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 1102- ●
512 CONNECTOR; TURBO
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98031-856-0 01 1 1102- ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0803-0809 ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0810-1101 ●
513 GASKET; CONNECTOR
EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0810-1101 ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 1102-1312 ●
513 GASKET; CONNECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=14.2 OD=19.2 		1-09630-085-0 01 1 1102-1312 ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
513 GASKET; CONNECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●

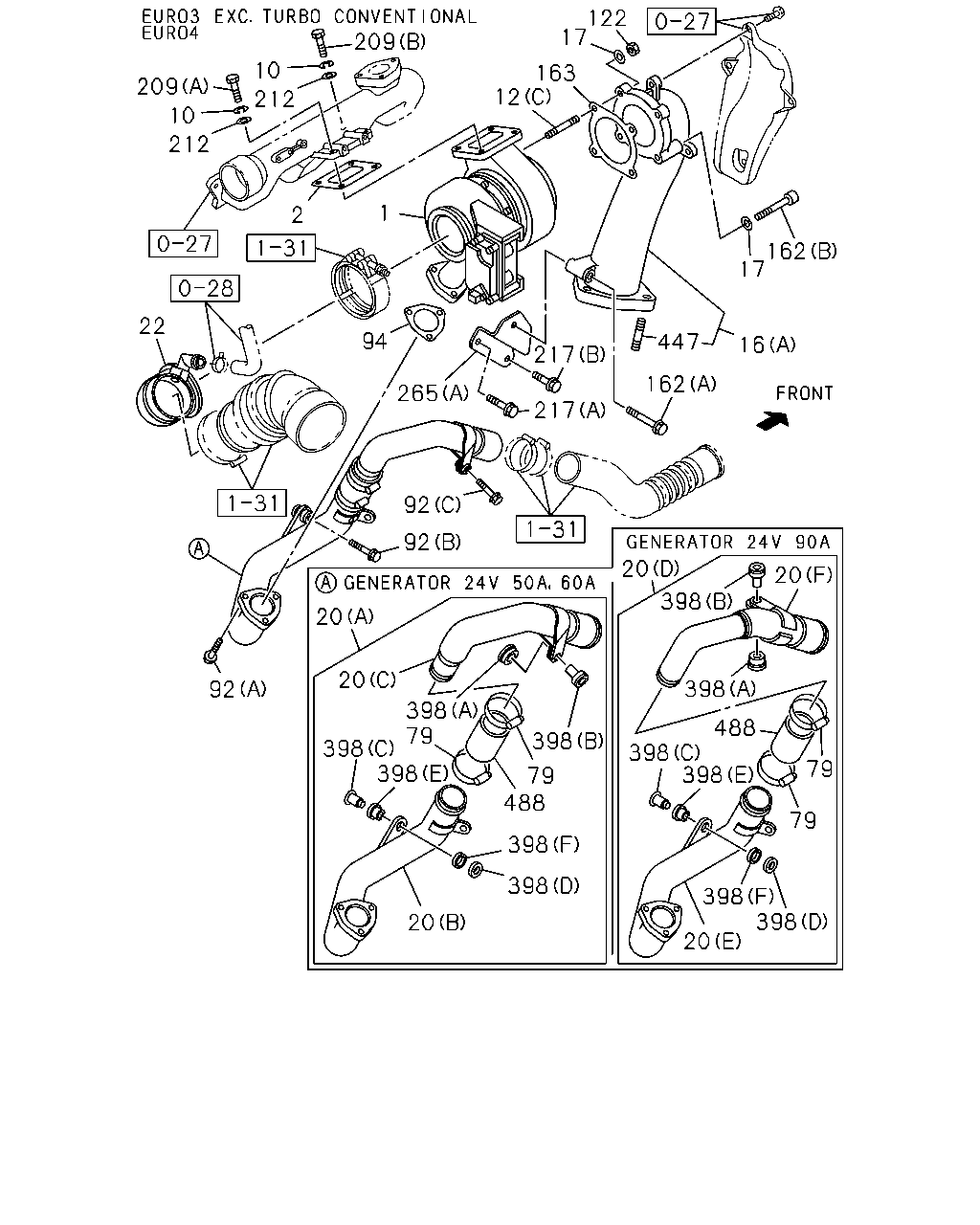

çizim 193720
162 17 16 447 162 20 20 398 398 488 79 398 398 79 398 398 20 398 398 488 79 398 398 79 398 398 20 20 20 92 22 94 265 92 92 217 217 1 2 212 10 209 10 212 209 12 163 17 122
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
TURBO - CONVENTIONAL<Q5T> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-401-0 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1102-1207 ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98153-480-0 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-0 01 1 0809-0809 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0810-0908 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ● ●
1 TURBOCHARGER ASM 8-97604-975-4 01 1 0803-0809 ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0810-1101 ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-7 01 1 0810-1101 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1102- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-975-9 01 1 1102- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0809-0809 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0810-1101 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1102- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-94390-044-0 01 1 1102- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0803-0809 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0810-1101 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> 		8-97024-124-0 01 1 0810-1101 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1102- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97024-124-0 01 1 1102- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0809-0809 ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0810-1101 ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1102- ● ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=2.2 		1-09556-015-0 02 1 1102- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0803-0809 ●

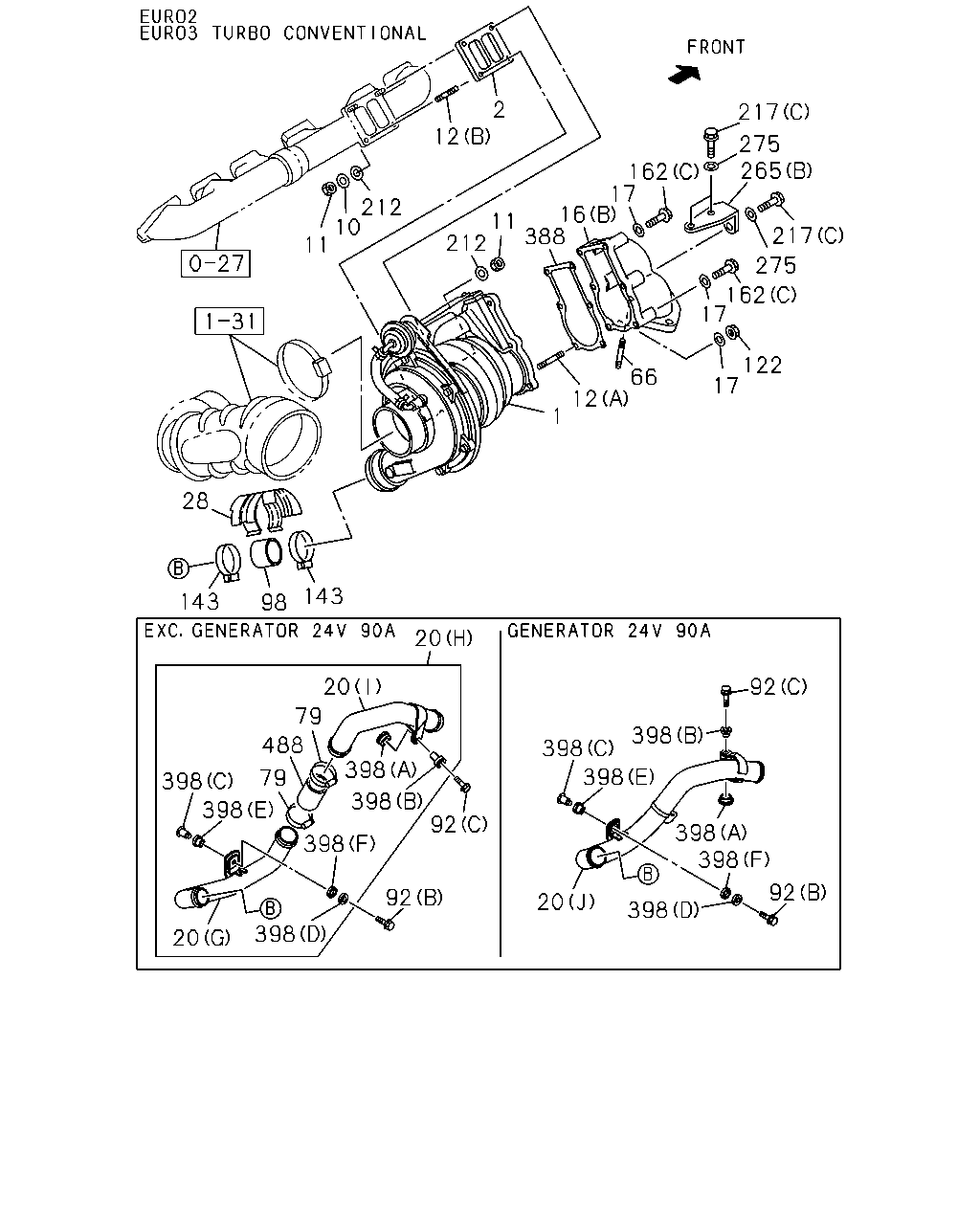

10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0810-1101 ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> T=2.2 		1-09556-015-0 04 1 0810-1101 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1102- ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=2.2 		1-09556-015-0 04 1 1102- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 0809-0809 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0810-1101 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1102- ● ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X25 		9-04130-825-0 01 1 1102- ● ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 0809-0809 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0810-1101 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1102- ● ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M10X80 		9-04731-080-0 02 1 1102- ● ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0803-0809 ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0810-1101 ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> (C) M8X25 L=36 		8-94476-282-0 02 1 0810-1101 ● ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 1102- ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 L=36 		8-94476-282-0 02 1 1102- ● ●
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 0809-0809 ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0810-1101 ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 1102- ● ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-98069-083-0 01 1 1102- ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0803-0809 ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0810-1101 ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98018-241-1 01 1 0810-1101 ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 1102- ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98018-241-1 01 1 1102- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0809-0809 ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0810-1101 ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1102- ● ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=1.9 		5-09500-012-0 06 1 1102- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0803-0809 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0810-1101 ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> T=1.9 		5-09500-012-0 04 1 0810-1101 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1102- ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=1.9 		5-09500-012-0 04 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (J) 		8-98230-568-0 01 1 1405- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) TURBO - CONVENTIONAL<Q5T> (J) 		8-94392-963-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 0809-0809 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (G) 		8-97606-675-1 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 0809-0809 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H) 		8-97618-726-2 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 0809-0809 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (I) 		8-97618-734-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0803-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 1102-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98046-167-4 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0803-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98046-168-1 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0803-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98046-169-2 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-0 01 1 0803-0809 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0810-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1102-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-97617-214-2 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0803-0809 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0810-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (E) 		8-97617-215-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0803-0809 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0810-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (F) 		8-97617-216-0 01 1 1102- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-0 01 1 0803-0809 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 0810-1101 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION<NT3> 		8-98036-164-1 01 1 0810-1101 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 1102- ●
22 DUCT; INL,ACL TO TURBOCHARGER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98036-164-1 01 1 1102- ● ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0803-0808 ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0809-0811 ● ● ●
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902 ● ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0809 ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0810-1101 ●
92 BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0810-1101 ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ●
92 BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0803-0808 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0803-0808 ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0809- ● ● ●
94 GASKET; INL PIPE 8-98053-830-0 01 1 0803-0809 ●
94 GASKET; INL PIPE 8-98053-830-0 01 1 0810- ●
94 GASKET; INL PIPE
EURO3 SPECIFICATION<NT3> 		8-98053-830-0 01 1 0810- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0809-0809 ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0810-1101 ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1102- ● ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8 		1-09400-118-1 01 1 1102- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0803-0809 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0810-1101 ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> M8 		1-09400-118-1 02 1 0810-1101 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1102- ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8 		1-09400-118-1 02 1 1102- ● ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 0809-0809 ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0810-1101 ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 1102- ● ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M8X57 		5-09000-275-0 05 1 1102- ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0803-0809 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0810-1101 ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0810-1101 ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1102- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X60 FLANGE 		0-28051-060-0 01 1 1102- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0803-0809 ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0810-0910 ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M8X60 		1-09000-464-0 02 1 0810-0910 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911-1101 ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M8X60 		8-98158-604-0 02 1 0911-1101 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1102- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X60 		8-98158-604-0 02 1 1102- ● ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-0 01 1 0803-0809 ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-1 01 1 0810-1101 ●
163 GASKET; ADAPTER TO EXH PIPE
EURO3 SPECIFICATION<NT3> 		8-94392-553-1 01 1 0810-1101 ● ●
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-2 01 1 1102- ●
163 GASKET; ADAPTER TO EXH PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-94392-553-2 01 1 1102- ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0803-0809 ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0810-1101 ●
209 BOLT; BRACE,TURBOCHARGER
EURO3 SPECIFICATION<NT3> (B) M10X80 		8-98049-825-0 02 1 0810-1101 ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 1102- ●
209 BOLT; BRACE,TURBOCHARGER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X80 		8-98049-825-0 02 1 1102- ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0803-0809 ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0810-1101 ●
209 BOLT; BRACE,TURBOCHARGER
EURO3 SPECIFICATION<NT3> (A) M10X40 		9-09604-007-0 02 1 0810-1101 ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 1102- ●
209 BOLT; BRACE,TURBOCHARGER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 		9-09604-007-1 02 1 1102- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0803-0808 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0809- ● ● ●
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 0809-0809 ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0810-1101 ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 1102- ● ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M12X30 		8-94394-324-0 03 1 1102- ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0809 ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1101 ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1101 ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1102- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1102- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0803-0809 ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0810-1101 ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0810-1101 ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1102- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1102- ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0810-1101 ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98260-415-0 01 1 0810-1101 ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 1102- ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98260-415-0 01 1 1102- ● ●
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 0809-0809 ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0810-1101 ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 1102- ● ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-94395-764-2 01 1 1102- ● ●
265 BRACKET; EXH PIPE
(A) 		8-97609-517-1 01 1 0803-0809 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0803-0808 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0809- ● ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-0 01 1 0803-0808 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0809- ● ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0803-0808 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0809- ● ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0803-0808 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0809- ● ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0803-0808 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0809- ● ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0803-0808 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0809- ● ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0803-0809 ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0810-1101 ●
447 STUD; ADAPTER
EURO3 SPECIFICATION<NT3> M12X30 L=48 		0-44011-230-0 03 1 0810-1101 ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 1102- ●
447 STUD; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M12X30 L=48 		0-44011-230-0 03 1 1102- ● ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 0809-0809 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0810-1101 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1102-1408 ● ●
488 HOSE; RUBBER
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70 		1-09360-797-1 01 1 1102-1408 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
488 HOSE; RUBBER
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0803-0809 ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0810-1101 ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 		8-98046-356-0 01 1 0810-1101 ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 1102-1408 ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98046-356-0 01 1 1102-1408 ● ●
488 HOSE; RUBBER 8-98245-242-0 01 1 1409- ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98245-242-0 01 1 1409- ● ●
çizim 193752
2 12 212 10 11 28 143 98 143 217 275 265 217 275 162 17 17 122 66 12 1 162 17 16 388 11 212 20 79 488 398 398 92 92 398 398 398 398 20 79 92 398 398 398 398 398 398 20 92 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM
TURBO - CONVENTIONAL<Q5T> HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-401-0 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1102-1207 ● ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1208- ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) 		8-98153-480-0 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-0 01 1 0809-0809 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0810-0908 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0909-0910 ● ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911- ● ●
1 TURBOCHARGER ASM 8-97604-975-4 01 1 0803-0809 ●
1 TURBOCHARGER ASM 8-97604-975-7 01 1 0810-1101 ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> 		8-97604-975-7 01 1 0810-1101 ● ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1102- ●
1 TURBOCHARGER ASM
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-975-9 01 1 1102- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 0809-0809 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0810-1101 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 1102- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-94390-044-0 01 1 1102- ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0803-0809 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0810-1101 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> 		8-97024-124-0 01 1 0810-1101 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1102- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97024-124-0 01 1 1102- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 0809-0809 ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0810-1101 ● ●
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 1102- ● ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=2.2 		1-09556-015-0 02 1 1102- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0803-0809 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0810-1101 ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> T=2.2 		1-09556-015-0 04 1 0810-1101 ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1102- ●
10 WASHER; LK,TURBOCHARGER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=2.2 		1-09556-015-0 04 1 1102- ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 0809-0809 ● ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 0810-1101 ● ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 1102- ● ●
11 NUT; TURBOCHARGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10 		1-09420-005-0 04 1 1102- ● ●
12 STUD; TURBOCHARGER
(A) M8X25 		9-04130-825-0 01 1 0809-0809 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0810-1101 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 1102- ● ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X25 		9-04130-825-0 01 1 1102- ● ●
12 STUD; TURBOCHARGER
(B) M10X80 		9-04731-080-0 02 1 0809-0809 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0810-1101 ● ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 1102- ● ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M10X80 		9-04731-080-0 02 1 1102- ● ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0803-0809 ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0810-1101 ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> (C) M8X25 L=36 		8-94476-282-0 02 1 0810-1101 ● ●
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 1102- ●
12 STUD; TURBOCHARGER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 L=36 		8-94476-282-0 02 1 1102- ● ●
16 ADAPTER; EXH PIPE
(B) 		8-98069-083-0 01 1 0809-0809 ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0810-1101 ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 1102- ● ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-98069-083-0 01 1 1102- ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0803-0809 ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0810-1101 ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98018-241-1 01 1 0810-1101 ● ●
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 1102- ●
16 ADAPTER; EXH PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98018-241-1 01 1 1102- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 0809-0809 ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0810-1101 ● ●
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 1102- ● ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=1.9 		5-09500-012-0 06 1 1102- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0803-0809 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0810-1101 ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> T=1.9 		5-09500-012-0 04 1 0810-1101 ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1102- ●
17 WASHER; PL,ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=1.9 		5-09500-012-0 04 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (J) 		8-98230-568-0 01 1 1405- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) TURBO - CONVENTIONAL<Q5T> (J) 		8-94392-963-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(G) 		8-97606-675-1 01 1 0809-0809 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (G) 		8-97606-675-1 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(H) 		8-97618-726-2 01 1 0809-0809 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H) 		8-97618-726-2 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H) 		8-98251-577-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
(I) 		8-97618-734-0 01 1 0809-0809 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (I) 		8-97618-734-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0803-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 1102-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98046-167-4 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98251-581-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0803-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98046-168-1 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0803-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98046-169-2 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-0 01 1 0803-0809 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0810-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1102-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-97617-214-2 01 1 1102-1408 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (D) 		8-98251-580-0 01 1 1409- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0803-0809 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0810-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (E) 		8-97617-215-0 01 1 1102- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0803-0809 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0810-1101 ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0810-1101 ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1102- ●
20 PIPE; INL,TURBOCHARGER OUT
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (F) 		8-97617-216-0 01 1 1102- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 0809-0809 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 0810-1101 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 1102- ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-94393-182-0 01 1 1102- ● ●
66 STUD; EXH PIPE
M12X30 L=48 		8-98059-951-0 03 1 0809-0809 ● ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 0810-1101 ● ●
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 1102- ● ●
66 STUD; EXH PIPE
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M12X30 L=48 		8-98059-951-0 03 1 1102- ● ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0803-0808 ●
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0809-0811 ● ● ●
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902 ● ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903- ● ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0803-0809 ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0810-1101 ●
92 BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0810-1101 ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ●
92 BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0803-0808 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0803-0808 ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0809- ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70 		1-09360-797-1 01 1 0809-0809 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0810-1101 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1102-1408 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70 		1-09360-797-1 01 1 1102-1408 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 0809-0809 ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0810-1101 ● ●
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 1102- ● ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8 		1-09400-118-1 01 1 1102- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0803-0809 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0810-1101 ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> M8 		1-09400-118-1 02 1 0810-1101 ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1102- ●
122 NUT; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8 		1-09400-118-1 02 1 1102- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-76 		1-09707-203-0 02 1 0809-0809 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-76 		1-09707-203-0 02 1 0810-0902 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 0903-1101 ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 1102- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=58-79 		8-94126-771-0 02 1 1102- ● ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 05 1 0809-0809 ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0810-1101 ● ●
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 1102- ● ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M8X57 		5-09000-275-0 05 1 1102- ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0803-0809 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0810-1101 ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0810-1101 ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1102- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X60 FLANGE 		0-28051-060-0 01 1 1102- ● ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0803-0809 ●
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0810-0910 ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M8X60 		1-09000-464-0 02 1 0810-0910 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 0911-1101 ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M8X60 		8-98158-604-0 02 1 0911-1101 ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1102- ●
162 BOLT; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X60 		8-98158-604-0 02 1 1102- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0803-0808 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0809- ● ● ●
217 BOLT; BRKT
(C) M12X30 		8-94394-324-0 03 1 0809-0809 ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0810-1101 ● ●
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 1102- ● ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M12X30 		8-94394-324-0 03 1 1102- ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0809 ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1101 ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0810-1101 ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1102- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1102- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0803-0809 ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0810-1101 ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0810-1101 ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1102- ●
217 BOLT; BRKT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X25 FLANGE 		0-28751-025-0 01 1 1102- ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0810-1101 ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> (A) 		8-98260-415-0 01 1 0810-1101 ● ●
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 1102- ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98260-415-0 01 1 1102- ● ●
265 BRACKET; EXH PIPE
(B) 		8-94395-764-2 01 1 0809-0809 ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0810-1101 ● ●
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 1102- ● ●
265 BRACKET; EXH PIPE
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) 		8-94395-764-2 01 1 1102- ● ●
265 BRACKET; EXH PIPE
(A) 		8-97609-517-1 01 1 0803-0809 ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 0809-0809 ● ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 0810-1101 ● ●
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 1102- ● ●
275 WASHER; PL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=12.2 		1-09503-008-0 03 1 1102- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-0 01 1 0809-0809 ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-1 01 1 0810-1101 ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 1102- ● ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-94394-248-2 01 1 1102- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0803-0808 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0809- ● ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-0 01 1 0803-0808 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0809- ● ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0803-0808 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0809- ● ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0803-0808 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0809- ● ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0803-0808 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0809- ● ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0803-0808 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0809- ● ● ●
488 HOSE; RUBBER
ID=62 L=70 		1-09360-797-1 01 1 0809-0809 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0810-1101 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 1102-1408 ● ●
488 HOSE; RUBBER
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70 		1-09360-797-1 01 1 1102-1408 ● ●
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
488 HOSE; RUBBER
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70 		8-98245-240-0 01 1 1409- ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0803-0809 ●
488 HOSE; RUBBER 8-98046-356-0 01 1 0810-1101 ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> 		8-98046-356-0 01 1 0810-1101 ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 1102-1408 ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98046-356-0 01 1 1102-1408 ● ●
488 HOSE; RUBBER 8-98245-242-0 01 1 1409- ●
488 HOSE; RUBBER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98245-242-0 01 1 1409- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
