◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11132 - FVR/GVR-L EURO2/3/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶
0-33 — FAN AND FAN BELT (#67912) — 82 parça

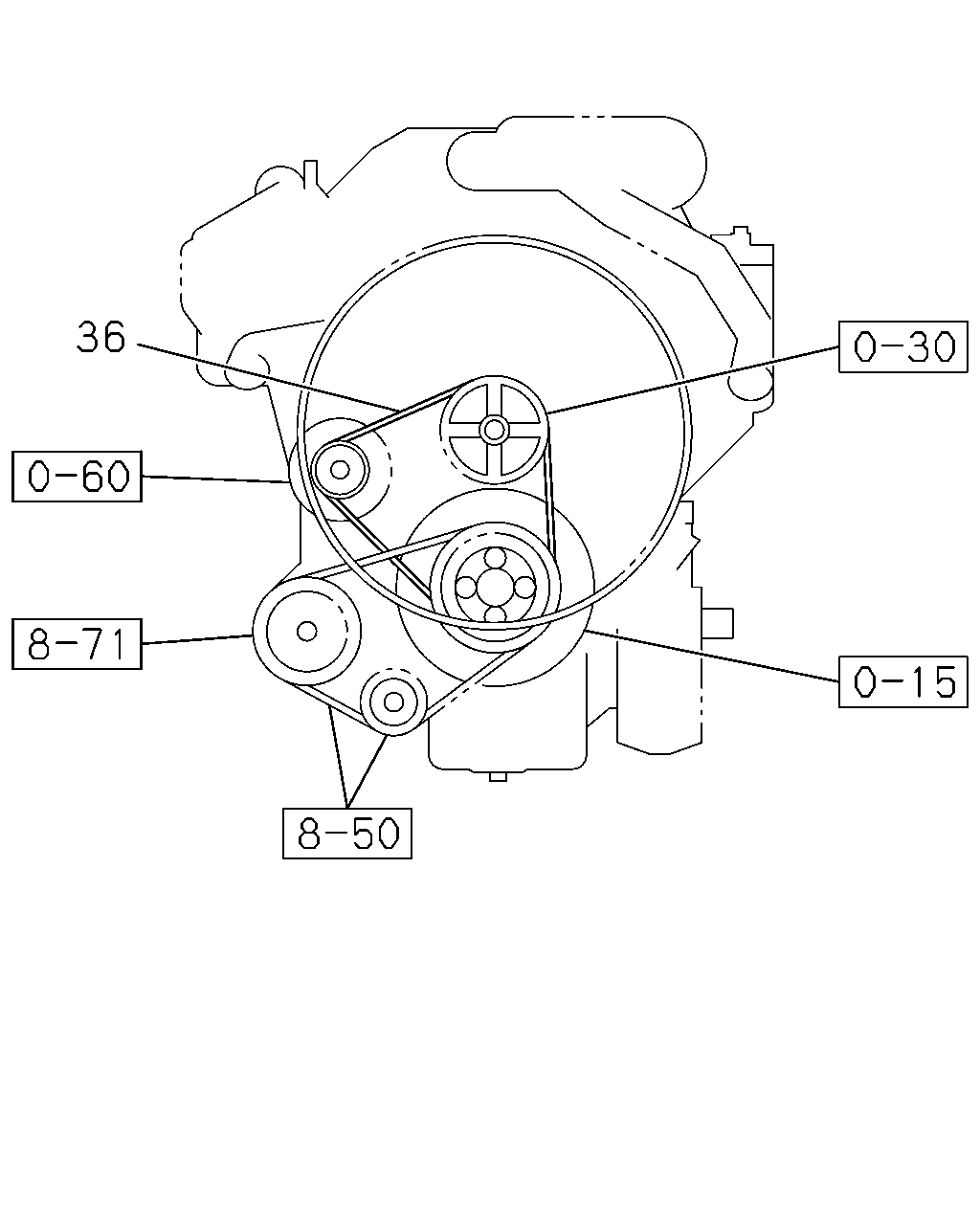

çizim 60795
36
BalonParca AdiParca NoAdetTipApplied Date A B C
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 0810- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 0810- ● ●
36 BELT; COOLING FAN
EURO2 SPECIFICATION<NT2> BEST VALUE PARTS 		1-87610-105-0 01 1 0810- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0803-0808 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0809-0809 ●
36 BELT; COOLING FAN
L=1170 		8-97611-859-1 01 1 0809-0809 ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0810- ● ●
36 BELT; COOLING FAN
EURO2 SPECIFICATION<NT2> L=1170 		8-97611-859-1 01 1 0810- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 		8-97611-860-0 01 1 0803-0809 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 		8-97611-860-0 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) L=1190 		8-97611-860-0 01 1 0810- ● ●

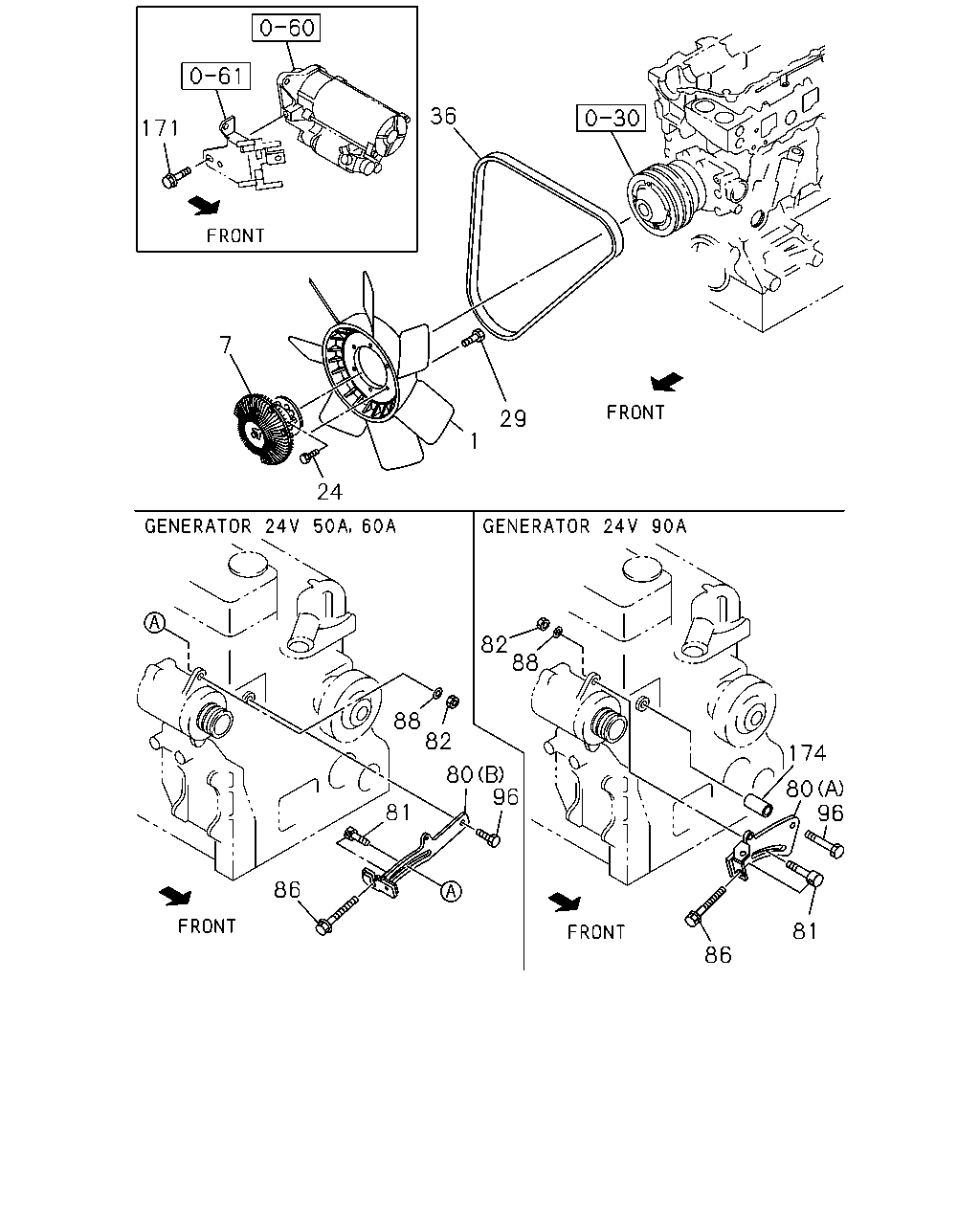

çizim 193718
171 36 29 1 24 7 88 82 80 96 81 86 174 82 88 86 81 96 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
OD=560 		8-98073-467-0 01 1 0803-0808 ●
1 FAN; COOLING
OD=560 		8-98073-467-1 01 1 0809- ● ● ●
7 COUPLING; FAN 8-98003-195-0 01 1 0803-0805 ●
7 COUPLING; FAN 8-98075-290-0 01 1 0806-0808 ●
7 COUPLING; FAN 8-98075-290-1 01 1 0809- ● ● ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 0803-0808 ●
24 BOLT; FAN
M10X25 FLANGE 		0-28151-025-0 04 1 0809- ● ● ●
29 BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE 		0-28050-816-0 06 1 0803-0808 ●
29 BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE 		0-28050-816-0 06 1 0809- ● ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) BEST VALUE PARTS 		1-87610-106-0 01 1 0810- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) BEST VALUE PARTS 		1-87610-105-0 01 1 0810- ● ●
36 BELT; COOLING FAN
EURO2 SPECIFICATION<NT2> BEST VALUE PARTS 		1-87610-105-0 01 1 0810- ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0803-0808 ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0809-0809 ●
36 BELT; COOLING FAN
L=1170 		8-97611-859-1 01 1 0809-0809 ● ●
36 BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) L=1170 		8-97611-859-1 01 1 0810- ● ●
36 BELT; COOLING FAN
EURO2 SPECIFICATION<NT2> L=1170 		8-97611-859-1 01 1 0810- ● ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 		8-97611-860-0 01 1 0803-0809 ●
36 BELT; COOLING FAN
GENERATOR 24V90A(K44) L=1190 		8-97611-860-0 01 1 0810- ●
36 BELT; COOLING FAN
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) L=1190 		8-97611-860-0 01 1 0810- ● ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97601-020-1 01 1 0803-0808 ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97601-020-1 01 1 0809-0809 ●
80 PLATE; ADJ
(A) 		8-97601-020-1 01 1 0809-0809 ● ●
80 PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97601-020-1 01 1 0810- ●
80 PLATE; ADJ
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-97601-020-1 01 1 0810- ● ●
80 PLATE; ADJ
EURO2 SPECIFICATION<NT2> (A) 		8-97601-020-1 01 1 0810- ● ●
80 PLATE; ADJ
GENERATOR 24V90A(K44) (B) 		8-97617-940-0 01 1 0803-0809 ●
80 PLATE; ADJ
GENERATOR 24V90A(K44) (B) 		8-97617-940-0 01 1 0810- ●
80 PLATE; ADJ
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) (B) 		8-97617-940-0 01 1 0810- ● ●
81 PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45 		1-13674-160-0 01 1 0803-0808 ●
81 PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45 		1-13674-160-0 01 1 0809-0809 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0809-0809 ● ●
81 PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45 		1-13674-160-0 01 1 0810- ●
81 PIECE; SLIDING
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X45 		1-13674-160-0 01 1 0810- ● ●
81 PIECE; SLIDING
EURO2 SPECIFICATION<NT2> M12X45 		1-13674-160-0 01 1 0810- ● ●
81 PIECE; SLIDING
GENERATOR 24V90A(K44) M12X59 		1-13674-161-0 01 1 0803-0809 ●
81 PIECE; SLIDING
GENERATOR 24V90A(K44) M12X59 		1-13674-161-0 01 1 0810- ●
81 PIECE; SLIDING
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) M12X59 		1-13674-161-0 01 1 0810- ● ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 0803-0808 ●
82 NUT; ADJ PLATE
M12 FLANGE 		0-91180-112-0 01 1 0809- ● ● ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X155 FLANGE 		1-09009-114-1 01 1 0803-0808 ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X155 FLANGE 		1-09009-114-1 01 1 0809-0809 ●
86 BOLT; ADJ
M10X155 FLANGE 		1-09009-114-1 01 1 0809-0809 ● ●
86 BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X155 FLANGE 		1-09009-114-1 01 1 0810- ●
86 BOLT; ADJ
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X155 FLANGE 		1-09009-114-1 01 1 0810- ● ●
86 BOLT; ADJ
EURO2 SPECIFICATION<NT2> M10X155 FLANGE 		1-09009-114-1 01 1 0810- ● ●
86 BOLT; ADJ
GENERATOR 24V90A(K44) M10X135 		1-09009-113-1 01 1 0803-0809 ●
86 BOLT; ADJ
GENERATOR 24V90A(K44) M10X135 		1-09009-113-1 01 1 0810- ●
86 BOLT; ADJ
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) M10X135 		1-09009-113-1 01 1 0810- ● ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 0803-0808 ●
88 WASHER; PL,ADJ PLATE
ID=12.5 OD=32 		0-91614-712-0 01 1 0809- ● ● ●
96 BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X45 FLANGE 		0-28151-045-0 01 1 0803-0808 ●
96 BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X45 FLANGE 		0-28151-045-0 01 1 0809-0809 ●
96 BOLT; ADJ PLATE
M10X45 FLANGE 		0-28151-045-0 01 1 0809-0809 ● ●
96 BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X45 FLANGE 		0-28151-045-0 01 1 0810- ●
96 BOLT; ADJ PLATE
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M10X45 FLANGE 		0-28151-045-0 01 1 0810- ● ●
96 BOLT; ADJ PLATE
EURO2 SPECIFICATION<NT2> M10X45 FLANGE 		0-28151-045-0 01 1 0810- ● ●
96 BOLT; ADJ PLATE
GENERATOR 24V90A(K44) M10X75 FLANGE 		8-94399-669-1 01 1 0803-0809 ●
96 BOLT; ADJ PLATE
GENERATOR 24V90A(K44) M10X75 FLANGE 		8-94399-669-1 01 1 0810- ●
96 BOLT; ADJ PLATE
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) M10X75 FLANGE 		8-94399-669-1 01 1 0810- ● ●
171 BOLT; HEAT PROTECTOR
M10X20 FLANGE 		0-28051-020-0 01 1 0803-0808 ●
171 BOLT; HEAT PROTECTOR
M10X20 FLANGE 		0-28051-020-0 01 1 0809- ● ● ●
174 SPACER; ADJ PLATE
GENERATOR 24V90A(K44) 		8-98056-785-0 01 1 0803-0809 ●
174 SPACER; ADJ PLATE
GENERATOR 24V90A(K44) 		8-98056-785-0 01 1 0810- ●
174 SPACER; ADJ PLATE
EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) 		8-98056-785-0 01 1 0810- ● ●
