Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#67911) — 421 parça

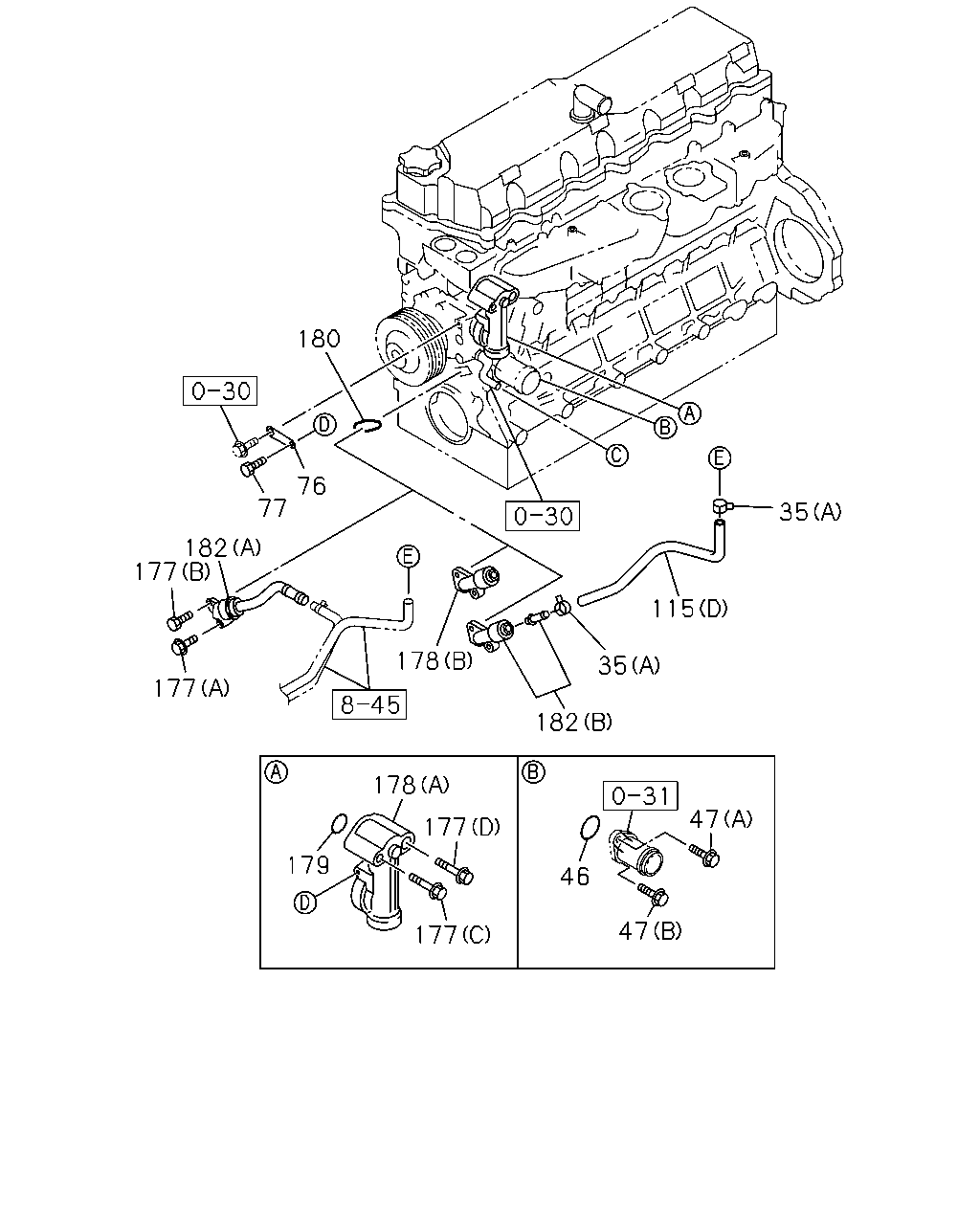

180 76 77 182 177 177 179 178 177 177 46 47 47 182 35 115 35 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	CLIP; RUBBER HOSE (A) ID=20	1-09707-084-1	05	1	0803-0809	●
35	CLIP; RUBBER HOSE (A) ID=20	1-09707-084-1	05	1	0810-0810	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=20	1-09707-084-1	05	1	0810-0810		●	●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	05	1	0811-1101	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=20	8-98127-648-0	05	1	0811-1101		●	●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	05	1	1102-1104	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=20	8-98127-648-0	05	1	1102-1104		●	●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	06	1	1105-	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=20	8-98127-648-0	06	1	1105-		●	●
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0803-0809	●
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0810-0810	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20.8	8-94125-862-1	01	1	0810-0810		●	●
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0803-0809	●
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0810-0810	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0810-0810		●	●
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	8-98127-648-0	02	1	0811-	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	8-98127-648-0	02	1	0811-		●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0803-0808	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0809-	●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0803-0808	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0809-	●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0808	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0809-	●	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0803-0808	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0809-	●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0803-0808	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0809-	●	●	●
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0809-0809		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0810-1101		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1102-		●	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1102-		●	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0803-0809	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1102-		●	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0803-0809	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (B)	8-97606-735-1	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97606-735-1	01	1	1102-		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0803-0809	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98043-192-0	01	1	1102-		●	●
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0803-0809	●
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0810-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0810-		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0803-0808	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0809-	●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-0808	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0809-	●	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0803-0808	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0809-	●	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0803-0808	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0809-	●	●	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-3	01	1	0809-	●	●	●
178	DUCT; WATER,BYPASS (A)	8-94396-627-2	01	1	0803-0808	●
178	DUCT; WATER,BYPASS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	0809-0809		●	●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	0810-1101		●	●
178	DUCT; WATER,BYPASS EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1102-		●	●
178	DUCT; WATER,BYPASS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-644-0	01	1	1102-		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0803-0808	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0809-1408	●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0803-0808	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0809-	●	●	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	0803-0808	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94394-348-5	01	1	0809-	●	●	●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	0803-0809	●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	0810-	●
182	DUCT; WATER,HTR EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-727-3	01	1	0810-		●	●

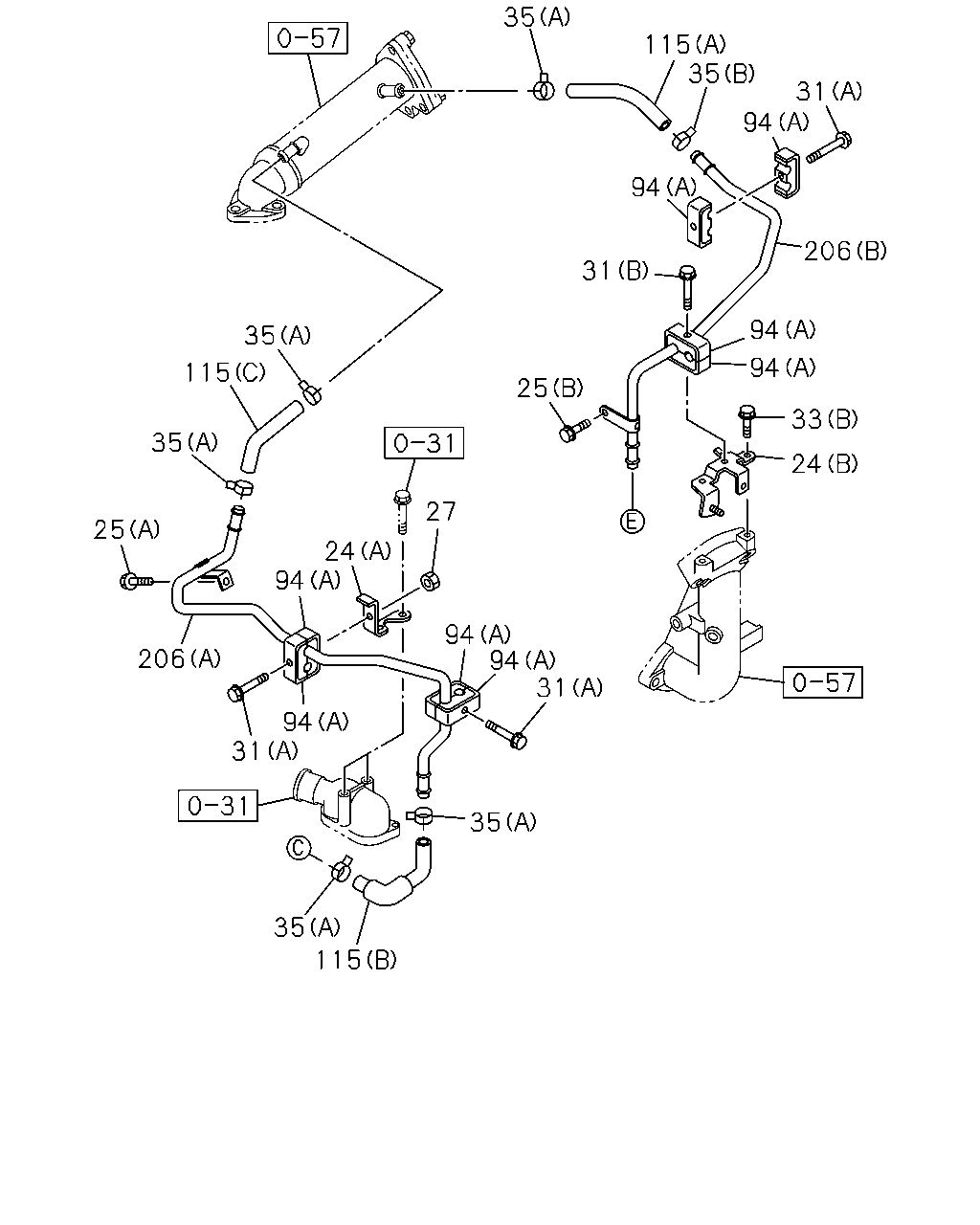

35 115 35 31 94 206 94 31 94 94 33 24 25 35 115 35 25 206 31 94 94 24 27 94 94 31 35 115 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	0803-0809	●
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	0810-1101	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98000-557-2	01	1	0810-1101		●	●
24	BRACKET; WATER PIPE (A)	8-98000-557-2	01	1	1102-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98000-557-2	01	1	1102-		●	●
24	BRACKET; WATER PIPE (B)	8-98051-626-0	01	1	0803-0809	●
24	BRACKET; WATER PIPE (B)	8-98051-626-1	01	1	0810-	●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (B)	8-98051-626-1	01	1	0810-		●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-0809	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-1101	●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-1101		●	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	1102-	●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X12 FLANGE	0-28050-812-0	01	1	1102-		●	●
25	BOLT; WATER PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-0809	●
25	BOLT; WATER PIPE (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-	●
25	BOLT; WATER PIPE EURO3 SPECIFICATION<NT3> (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-		●	●
27	NUT; PIPE FIX M6 FLANGE	0-91180-106-0	01	1	0803-0809	●
27	NUT; PIPE FIX M6 FLANGE	0-91180-106-0	01	1	0810-	●
27	NUT; PIPE FIX EURO3 SPECIFICATION<NT3> M6 FLANGE	0-91180-106-0	01	1	0810-		●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1102-		●	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X35 FLANGE	0-28650-635-0	01	1	1102-		●	●
31	BOLT; CLIP (C) M6X35 FLANGE	0-28650-635-0	01	1	0809-0809		●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	0810-1101		●	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-		●	●
31	BOLT; CLIP (B) M6X45 FLANGE	0-28050-645-0	01	1	0803-0809	●
31	BOLT; CLIP (B) M6X45 FLANGE	0-28050-645-0	01	1	0810-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	0810-		●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	0803-0809	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	0810-1101	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	02	1	0810-1101		●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	1102-1106	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M6X40 FLANGE	0-28650-640-0	02	1	1102-1106		●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-		●	●
33	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	02	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X20 FLANGE	0-28650-820-0	02	1	1102-		●	●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0809		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0810-1101		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
33	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-0809		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0810-1101		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1102-		●	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) M8X20 FLANGE	0-28050-820-0	02	1	1102-		●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0809	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-1101	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-1101		●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-0809	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1101	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1101		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-		●	●
35	CLIP; RUBBER HOSE (A) ID=20	1-09707-084-1	05	1	0803-0809	●
35	CLIP; RUBBER HOSE (A) ID=20	1-09707-084-1	05	1	0810-0810	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=20	1-09707-084-1	05	1	0810-0810		●	●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	05	1	0811-1101	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=20	8-98127-648-0	05	1	0811-1101		●	●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	05	1	1102-1104	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=20	8-98127-648-0	05	1	1102-1104		●	●
35	CLIP; RUBBER HOSE (A) ID=20	8-98127-648-0	06	1	1105-	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=20	8-98127-648-0	06	1	1105-		●	●
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0803-0809	●
35	CLIP; RUBBER HOSE (B) ID=20.8	8-94125-862-1	01	1	0810-0810	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (B) ID=20.8	8-94125-862-1	01	1	0810-0810		●	●
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0803-0809	●
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0810-0810	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	02	1	0810-0810		●	●
35	CLIP; RUBBER HOSE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	8-98127-648-0	02	1	0811-	●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	8-98127-648-0	02	1	0811-		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1102-		●	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94396-860-0	01	1	1102-		●	●
94	CLIP; WATER PIPE (B)	8-94396-860-0	01	1	0809-0809		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	0810-1101		●	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-97605-129-1	04	1	1102-		●	●
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0803-0809	●
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0810-1101	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	08	1	0810-1101		●	●
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	1102-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97605-129-1	08	1	1102-		●	●
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0809-0809		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0810-1101		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1102-		●	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1102-		●	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0803-0809	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1102-		●	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0803-0809	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (B)	8-97606-735-1	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97606-735-1	01	1	1102-		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0803-0809	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98043-192-0	01	1	1102-		●	●
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0803-0809	●
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0810-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0810-		●	●
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	0803-0809	●
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	0810-1101	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (A)	8-97604-928-2	01	1	0810-1101		●	●
206	PIPE; WATER,EGR COOLER (A)	8-97604-928-2	01	1	1102-	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97604-928-2	01	1	1102-		●	●
206	PIPE; WATER,EGR COOLER (B)	8-98000-480-1	01	1	0803-0809	●
206	PIPE; WATER,EGR COOLER (B)	8-98000-480-1	01	1	0810-	●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98000-480-1	01	1	0810-		●	●

127 126 126 63 33 33 126 126 127 126 127 126 33 63 127 126 126 91 91 90 89 90 91 91

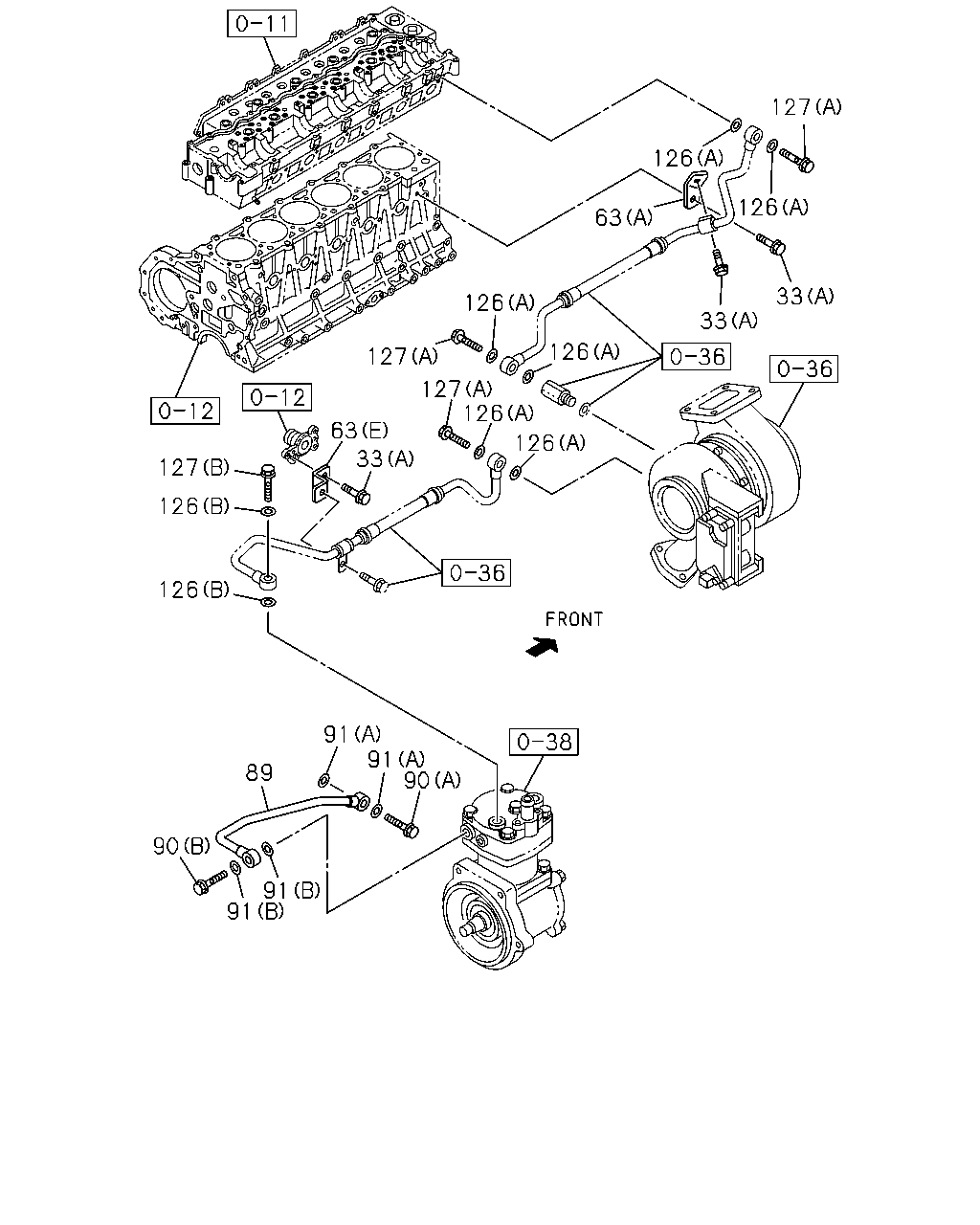

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	02	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X20 FLANGE	0-28650-820-0	02	1	1102-		●	●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0809		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0810-1101		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
33	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-0809		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0810-1101		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1102-		●	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) M8X20 FLANGE	0-28050-820-0	02	1	1102-		●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0809	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-1101	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-1101		●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-0809	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1101	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1101		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	0809-0809		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94392-951-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	0809-0809		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98074-252-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE (D)	8-98074-253-0	01	1	0809-0809		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D)	8-98074-253-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-97615-878-0	01	1	0810-1001			●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-98153-457-0	01	1	1002-1002			●
63	BRACKET; WATER PIPE (E)	8-98153-457-0	01	1	1002-1004	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (E)	8-98153-457-0	01	1	1002-1004		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-98153-457-0	01	1	1005-1101			●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98153-457-0	01	1	1102-			●
63	BRACKET; WATER PIPE (A)	8-98046-784-0	01	1	0803-0809	●
63	BRACKET; WATER PIPE (A)	8-98046-784-0	01	1	0810-1101	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98046-784-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE (A)	8-98046-784-0	01	1	1102-	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98046-784-0	01	1	1102-		●	●
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	0809-	●	●
89	PIPE; WATER,AIR CMPR,IN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97610-086-0	01	1	0809-			●
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	0803-0808	●
89	PIPE; WATER,AIR CMPR,IN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97611-095-0	01	1	0809-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0803-0808	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0809-	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0803-0808	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0809-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0803-0808	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0809-	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0809-0809		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0810-1101		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1102-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1102-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16.2	1-09630-086-0	04	1	0809-0809		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=16.2	1-09630-086-0	04	1	0810-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0803-0809	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	06	1	0810-1101	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0810-1101		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	06	1	1102-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1102-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-345-0	06	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0803-0809	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	0810-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	0810-		●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0809-0809		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0810-1101		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1102-		●	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1102-		●	●
127	BOLT; EYE (D) M16X25	5-09675-028-2	01	1	0809-0809		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (D) M16X25	5-09675-028-2	01	1	0810-1101		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (D) M16X25	5-09675-028-2	01	1	1102-		●	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) M16X25	5-09675-028-2	01	1	1102-		●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0803-0809	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0810-1101	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0810-1101		●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1102-	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1102-		●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0803-0808	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0809-	●	●	●

33 129 63 127 126 126 31 94 127 126 126 63 33 63 129 129 127 126 126 129 91 91 90 89 91 91 90 58 115 58 126 126 127 129

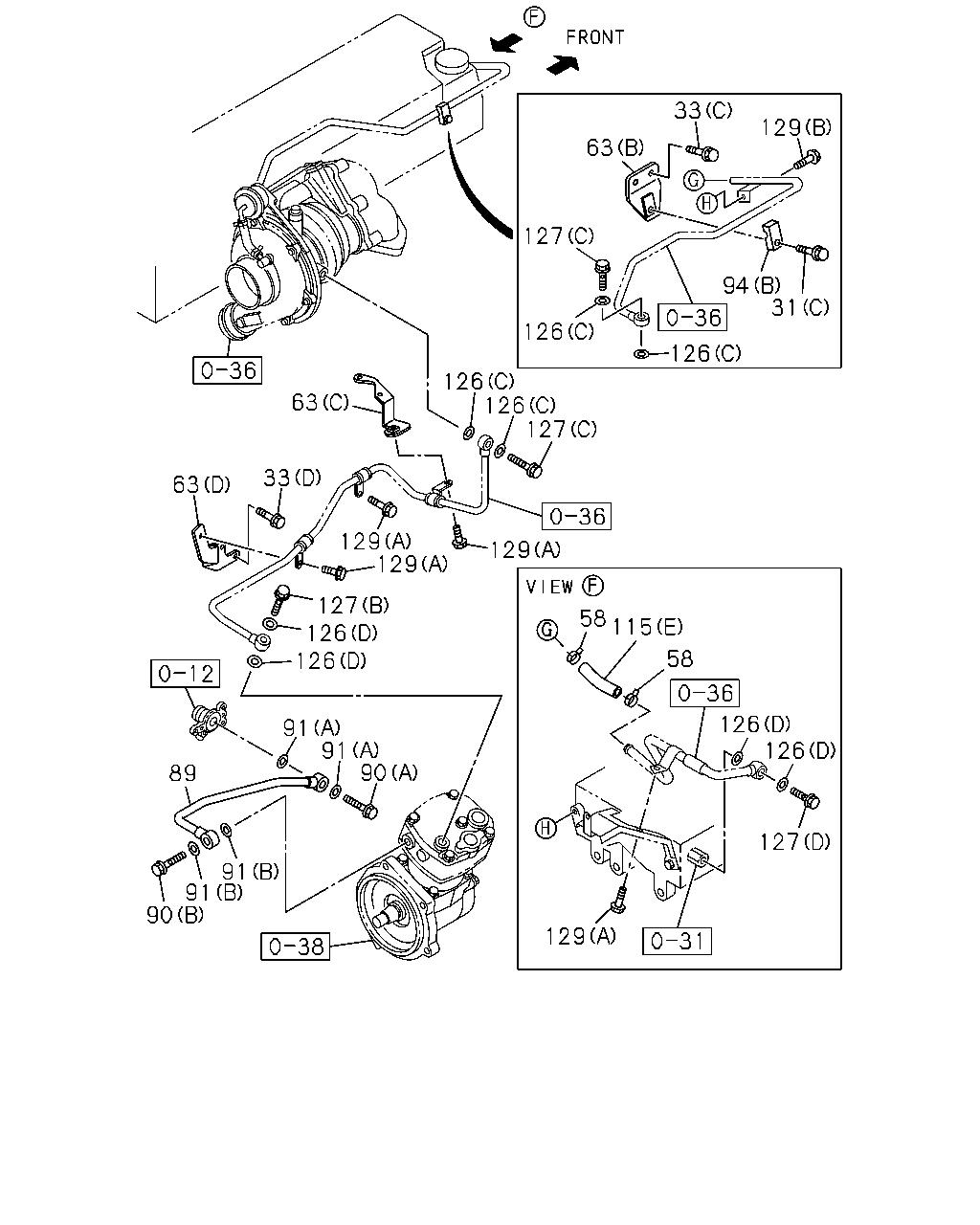

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	1102-		●	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X35 FLANGE	0-28650-635-0	01	1	1102-		●	●
31	BOLT; CLIP (C) M6X35 FLANGE	0-28650-635-0	01	1	0809-0809		●	●
31	BOLT; CLIP EURO2 SPECIFICATION<NT2> (C) M6X35 FLANGE	0-28650-635-0	01	1	0810-1101		●	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X40 FLANGE	0-28650-640-0	01	1	1102-		●	●
31	BOLT; CLIP (B) M6X45 FLANGE	0-28050-645-0	01	1	0803-0809	●
31	BOLT; CLIP (B) M6X45 FLANGE	0-28050-645-0	01	1	0810-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M6X45 FLANGE	0-28050-645-0	01	1	0810-		●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	0803-0809	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	0810-1101	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M6X40 FLANGE	0-28650-640-0	02	1	0810-1101		●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	02	1	1102-1106	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M6X40 FLANGE	0-28650-640-0	02	1	1102-1106		●	●
31	BOLT; CLIP (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-	●
31	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M6X40 FLANGE	0-28650-640-0	03	1	1107-		●	●
33	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	02	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X20 FLANGE	0-28650-820-0	02	1	1102-		●	●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-0809		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	0810-1101		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
33	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-0809		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0810-1101		●	●
33	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1102-		●	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) M8X20 FLANGE	0-28050-820-0	02	1	1102-		●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0809	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-1101	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-1101		●	●
33	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-0809	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1101	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1101		●	●
33	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-		●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0809-0809		●	●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	0810-1101		●	●
58	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=16	8-94392-924-0	02	1	1102-		●	●
58	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=16	8-94392-924-0	02	1	1102-		●	●
63	BRACKET; WATER PIPE (B)	8-94392-951-0	01	1	0809-0809		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94392-951-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94392-951-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE (C)	8-98074-252-0	01	1	0809-0809		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (C)	8-98074-252-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-98074-252-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE (D)	8-98074-253-0	01	1	0809-0809		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2> (D)	8-98074-253-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D)	8-98074-253-0	01	1	1102-		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-97615-878-0	01	1	0810-1001			●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-98153-457-0	01	1	1002-1002			●
63	BRACKET; WATER PIPE (E)	8-98153-457-0	01	1	1002-1004	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (E)	8-98153-457-0	01	1	1002-1004		●	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (E)	8-98153-457-0	01	1	1005-1101			●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98153-457-0	01	1	1102-			●
63	BRACKET; WATER PIPE (A)	8-98046-784-0	01	1	0803-0809	●
63	BRACKET; WATER PIPE (A)	8-98046-784-0	01	1	0810-1101	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-98046-784-0	01	1	0810-1101		●	●
63	BRACKET; WATER PIPE (A)	8-98046-784-0	01	1	1102-	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98046-784-0	01	1	1102-		●	●
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	0809-	●	●
89	PIPE; WATER,AIR CMPR,IN BRK SYSTEM FULL AIR DUAL CIRC(Z06)	8-97610-086-0	01	1	0809-			●
89	PIPE; WATER,AIR CMPR,IN	8-97610-086-0	01	1	0803-0808	●
89	PIPE; WATER,AIR CMPR,IN BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05)	8-97611-095-0	01	1	0809-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0803-0808	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0809-	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0803-0808	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X28	8-94383-489-0	01	1	0809-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0803-0808	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1312	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0803-0808	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0809-	●	●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	1102-		●	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94396-860-0	01	1	1102-		●	●
94	CLIP; WATER PIPE (B)	8-94396-860-0	01	1	0809-0809		●	●
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2> (B)	8-94396-860-0	01	1	0810-1101		●	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-97605-129-1	04	1	1102-		●	●
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0803-0809	●
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	0810-1101	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> (A)	8-97605-129-1	08	1	0810-1101		●	●
94	CLIP; WATER PIPE (A)	8-97605-129-1	08	1	1102-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97605-129-1	08	1	1102-		●	●
115	HOSE; RUBBER (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0809-0809		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0810-1101		●	●
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1102-		●	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	1102-		●	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0803-0809	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=320 SERVICED BY L=3000	0-03566-300-0	01	1	1102-		●	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0803-0809	●
115	HOSE; RUBBER (B)	8-97606-735-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (B)	8-97606-735-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (B)	8-97606-735-1	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97606-735-1	01	1	1102-		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0803-0809	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	0810-1101	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> (C)	8-98043-192-0	01	1	0810-1101		●	●
115	HOSE; RUBBER (C)	8-98043-192-0	01	1	1102-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98043-192-0	01	1	1102-		●	●
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0803-0809	●
115	HOSE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0810-	●
115	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-97618-843-0	01	1	0810-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0809-0809		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	0810-1101		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1102-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1102-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=16.2	1-09630-086-0	04	1	0809-0809		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> (D) ID=16.2	1-09630-086-0	04	1	0810-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0803-0809	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	06	1	0810-1101	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0810-1101		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-085-0	06	1	1102-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	1102-1312		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	8-98251-345-0	06	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-		●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0803-0809	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	02	1	0810-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B) ID=16.2	1-09630-086-0	02	1	0810-		●	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0809-0809		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0810-1101		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1102-		●	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	1102-		●	●
127	BOLT; EYE (D) M16X25	5-09675-028-2	01	1	0809-0809		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (D) M16X25	5-09675-028-2	01	1	0810-1101		●	●
127	BOLT; EYE EURO2 SPECIFICATION<NT2> (D) M16X25	5-09675-028-2	01	1	1102-		●	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (D) M16X25	5-09675-028-2	01	1	1102-		●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0803-0809	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0810-1101	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0810-1101		●	●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1102-	●
127	BOLT; EYE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	1102-		●	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0803-0808	●
127	BOLT; EYE (B) M16X28	8-94383-489-0	01	1	0809-	●	●	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	05	1	0809-0809		●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	0810-1101		●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	05	1	1102-		●	●
129	BOLT; WATER PIPE TO BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE	0-28050-816-0	05	1	1102-		●	●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 FLANGE	0-28151-220-0	01	1	0809-0809		●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	0810-1101		●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<NT2> (B) M12X20 FLANGE	0-28151-220-0	01	1	1102-		●	●
129	BOLT; WATER PIPE TO BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M12X20 FLANGE	0-28151-220-0	01	1	1102-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
