0-31 — THERMOSTAT AND HOUSING (#67910) — 59 parça

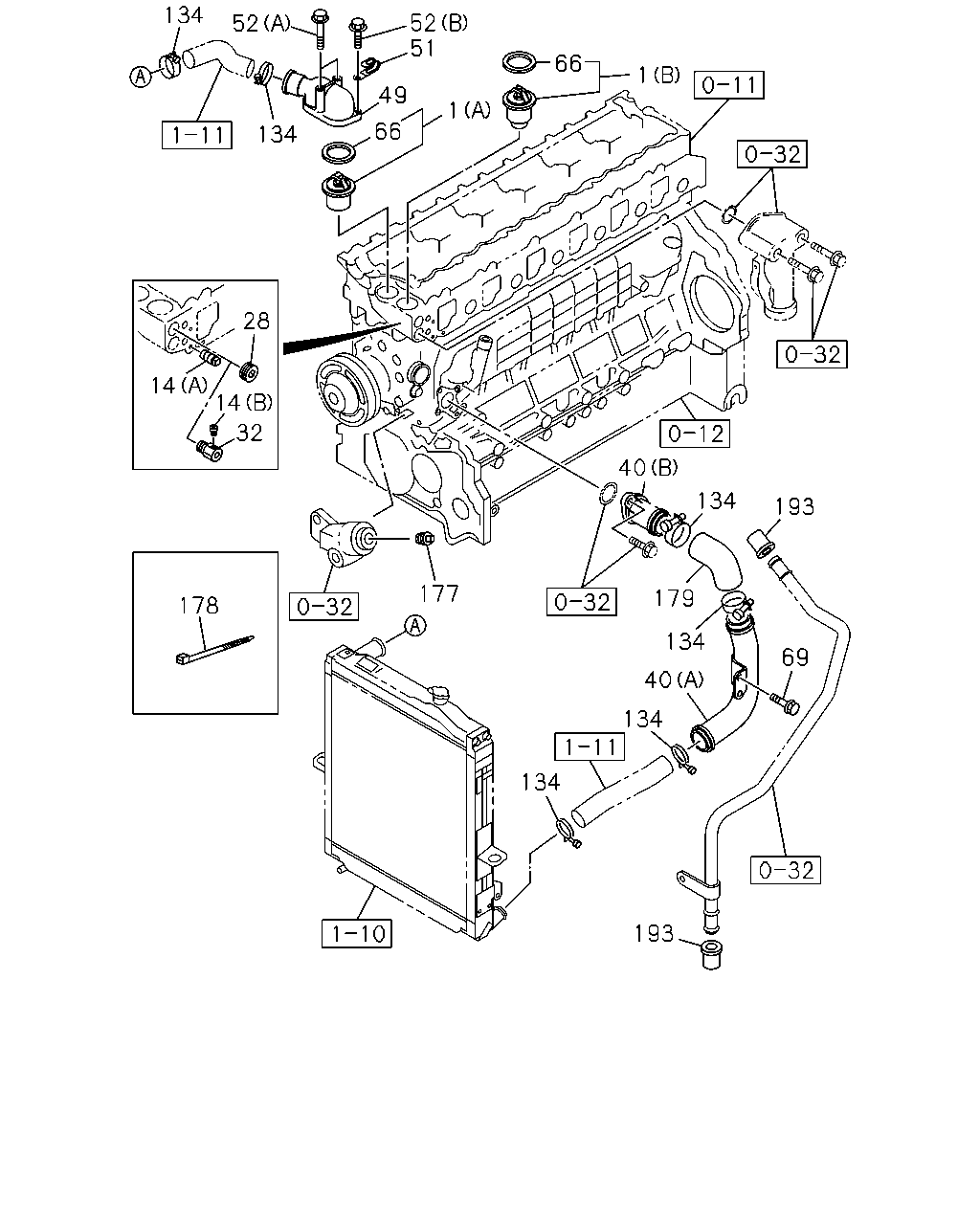

çizim 42153
134 52 52 51 49 134 66 1 66 1 40 134 193 177 178 14 28 14 32 179 134 69 40 134 193 134
BalonParca AdiParca NoAdetTipApplied Date A B C
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-2 01 1 0803-0808 ●
1 THERMOSTAT
(A) 82 CELSIUS 		8-97602-048-3 01 1 0809- ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0803-0808 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0809-1501 ● ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ● ● ●
14 PLUG; SW
(A) PT3/8 		8-94397-338-0 01 1 0803-0808 ●
14 PLUG; SW
(B) PT1/4 		1-09605-019-0 01 1 0809-0809 ● ●
14 PLUG; SW
EURO2 SPECIFICATION<NT2> (B) PT1/4 		1-09605-019-0 01 1 0810-1008 ● ●
14 PLUG; SW
(A) PT3/8 		8-94397-338-0 01 1 0809- ● ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0803-0809 ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 0810-1101 ●
28 PLUG; HTR
EURO3 SPECIFICATION<NT3> PT3/4 		1-09605-020-0 01 1 0810-1101 ● ●
28 PLUG; HTR
PT3/4 		1-09605-020-0 01 1 1102- ●
28 PLUG; HTR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> PT3/4 		1-09605-020-0 01 1 1102- ● ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 0809-0809 ● ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2> 		8-94395-851-1 01 1 0810-1008 ● ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2> 		8-98177-501-0 01 1 1009-1101 ● ●
32 CONNECTOR; HTR
EURO2 SPECIFICATION<NT2> 		8-98177-501-0 01 1 1102- ● ●
32 CONNECTOR; HTR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98177-501-0 01 1 1102- ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 0803-0808 ●
40 DUCT; WATER,SUCTION
(B) 		8-94391-091-1 01 1 0809- ● ● ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 0803-0808 ●
40 DUCT; WATER,SUCTION
(A) 		8-94394-404-1 01 1 0809- ● ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0803-0808 ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0809- ● ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0803-0808 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0809- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0809- ● ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0803-0808 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X80 FLANGE 		0-28050-880-0 02 1 0809-0809 ● ●
52 BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<NT2> (A) M8X80 FLANGE 		0-28050-880-0 02 1 0810-1101 ● ●
52 BOLT; JOINT,THERMOSTAT
EURO2 SPECIFICATION<NT2> (A) M8X80 FLANGE 		0-28050-880-0 02 1 1102- ● ●
52 BOLT; JOINT,THERMOSTAT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X80 FLANGE 		0-28050-880-0 02 1 1102- ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 0803-0809 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 0810-1101 ●
52 BOLT; JOINT,THERMOSTAT
EURO3 SPECIFICATION<NT3> (A) M8X85 FLANGE 		8-97023-062-0 02 1 0810-1101 ● ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X85 FLANGE 		8-97023-062-0 02 1 1102- ●
52 BOLT; JOINT,THERMOSTAT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X85 FLANGE 		8-97023-062-0 02 1 1102- ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0803-0808 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0809-1501 ● ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0803-0808 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0803-0808 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0809- ● ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 04 1 0803-0809 ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 04 1 0810- ● ● ●
177 PLUG; PIPE,WATER DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 0809-0809 ● ●
177 PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 0810-1101 ● ●
177 PLUG; PIPE,WATER DUCT
EURO2 SPECIFICATION<NT2> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 1102- ● ●
177 PLUG; PIPE,WATER DUCT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT1/2 		9-09204-521-0 01 1 1102- ● ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 01 1 0803-0809 ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 01 1 0810-1205 ●
178 CLIP; BAND,HARNESS
EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 01 1 0810-1205 ● ●
178 CLIP; BAND,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		8-98216-430-0 01 1 1206- ●
178 CLIP; BAND,HARNESS
EURO3 SPECIFICATION<NT3> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		8-98216-430-0 01 1 1206- ● ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 0803-0808 ●
179 HOSE; RUBBER,WATER DUCT 8-94390-400-3 01 1 0809- ● ● ●
193 CAP; RUBBER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-94107-678-0 02 1 1102- ● ●
