Sayfa 0-28 - Isuzu EPC

0-28 — VENTILATION SYSTEM (#67908) — 230 parça

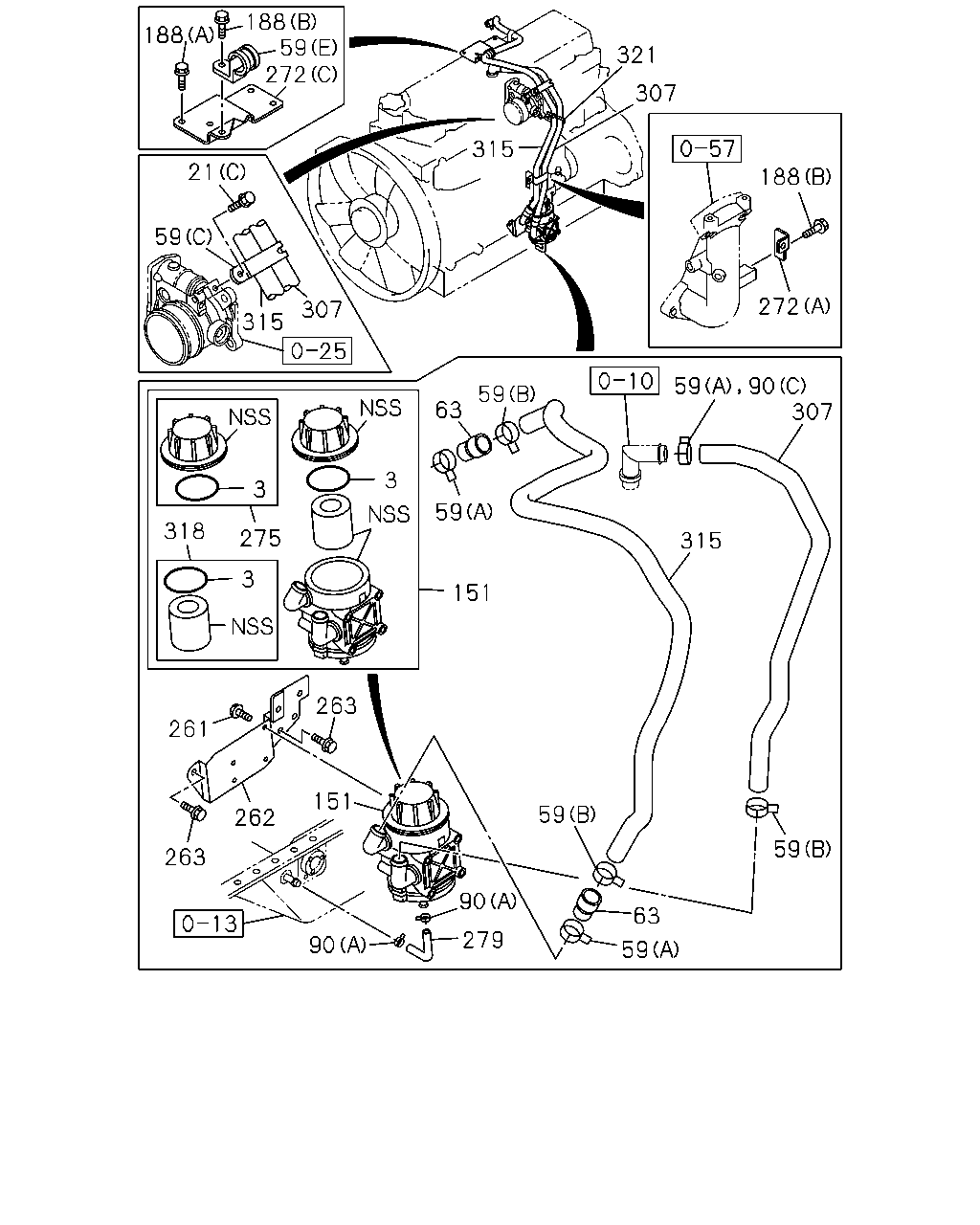

21 59 315 307 321 21 272 21 59 307 59 315 59 3 151 275 3 318 3 261 262 263 151 263 90 90 279 59 59 321 307 315 272 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0803-0809	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0810-	●
3	GASKET; BODY TO CAP EURO3 SPECIFICATION<NT3>	8-97385-921-0	01	1	0810-		●	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X12 FLANGE	0-28050-612-0	01	1	1102-		●	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0803-0809	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0810-1101	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	02	1	0810-1101		●	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	1102-	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X12 FLANGE	0-28050-812-0	02	1	1102-		●	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0809	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0810-1101	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	0810-1101		●	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1102-	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	01	1	1201-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) ID=30X2 L=28	1-09701-266-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	01	1	1102-1211		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	03	1	1212-		●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0803-0809	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (D) ID=35 L=33	1-09700-945-0	02	1	0810-1101		●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=35 L=33	1-09700-945-0	02	1	1102-		●	●
59	CLIP; HOSE (E) ID=30X2 L=28	1-09701-266-0	01	1	0803-0809	●
59	CLIP; HOSE (E) ID=30X2 L=28	1-09701-266-0	01	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (E) ID=30X2 L=28	1-09701-266-0	01	1	0810-1101		●	●
59	CLIP; HOSE (E) ID=30X2 L=28	1-09701-266-0	01	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E) ID=30X2 L=28	1-09701-266-0	01	1	1102-		●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0803-0809	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (B) ID=28.5	1-09707-150-0	03	1	0810-1101		●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	03	1	1102-		●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0803-0809	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (A) ID=31.2	8-97237-146-0	01	1	0810-1101		●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=31.2	8-97237-146-0	01	1	1102-		●	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=28.5	1-09707-150-0	01	1	1102-1112		●	●
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-0809		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0810-		●	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0803-0809	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0810-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=14	1-09704-102-0	02	1	0810-		●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0803-0809	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0810-	●
151	SEPARATOR; OIL,PCV EURO3 SPECIFICATION<NT3>	8-97602-262-2	01	1	0810-		●	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	03	1	1102-		●	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28050-830-0	03	1	1102-		●	●
188	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0809	●
188	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-		●	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0803-0809	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0810-	●
261	BOLT; SEPARETOR EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	04	1	0810-		●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0803-0809	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0810-	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-97610-919-1	01	1	0810-		●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0803-0809	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0810-	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M10X25 FLANGE	0-28751-025-0	02	1	0810-		●	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97616-083-0	01	1	1102-		●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0803-0809	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0810-	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (A)	8-97607-396-1	01	1	0810-		●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0803-0809	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0810-1101	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (B)	8-97607-397-0	01	1	0810-1101		●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	1102-	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97607-397-0	01	1	1102-		●	●
275	CAP; PCV	8-97606-319-0	01	1	0803-0809	●
275	CAP; PCV	8-97606-319-0	01	1	0810-	●
275	CAP; PCV EURO3 SPECIFICATION<NT3>	8-97606-319-0	01	1	0810-		●	●
279	HOSE; RUBBER,OIL DRAIN	0-02709-190-0	01	1	0803-0809	●
279	HOSE; RUBBER,OIL DRAIN	0-02709-190-0	01	1	0810-	●
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3>	0-02709-190-0	01	1	0810-		●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-935-0	01	1	1102-		●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0803-0809	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0810-1101	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3>	8-98054-285-1	01	1	0810-1101		●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-2	01	1	1102-	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-285-2	01	1	1102-		●	●
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-937-1	01	1	1102-		●	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0803-0809	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0810-1101	●
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98054-286-1	01	1	0810-1101		●	●
315	HOSE; RUBBER	8-98054-286-2	01	1	1102-	●
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-286-2	01	1	1102-		●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0803-0809	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0810-	●
318	ELEMENT KIT; PCV EURO3 SPECIFICATION<NT3>	8-97606-318-0	01	1	0810-		●	●
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	01	1	1102-		●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0803-0809	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0810-1101	●
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> L=300	1-09707-001-1	02	1	0810-1101		●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	1102-	●
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	02	1	1102-		●	●

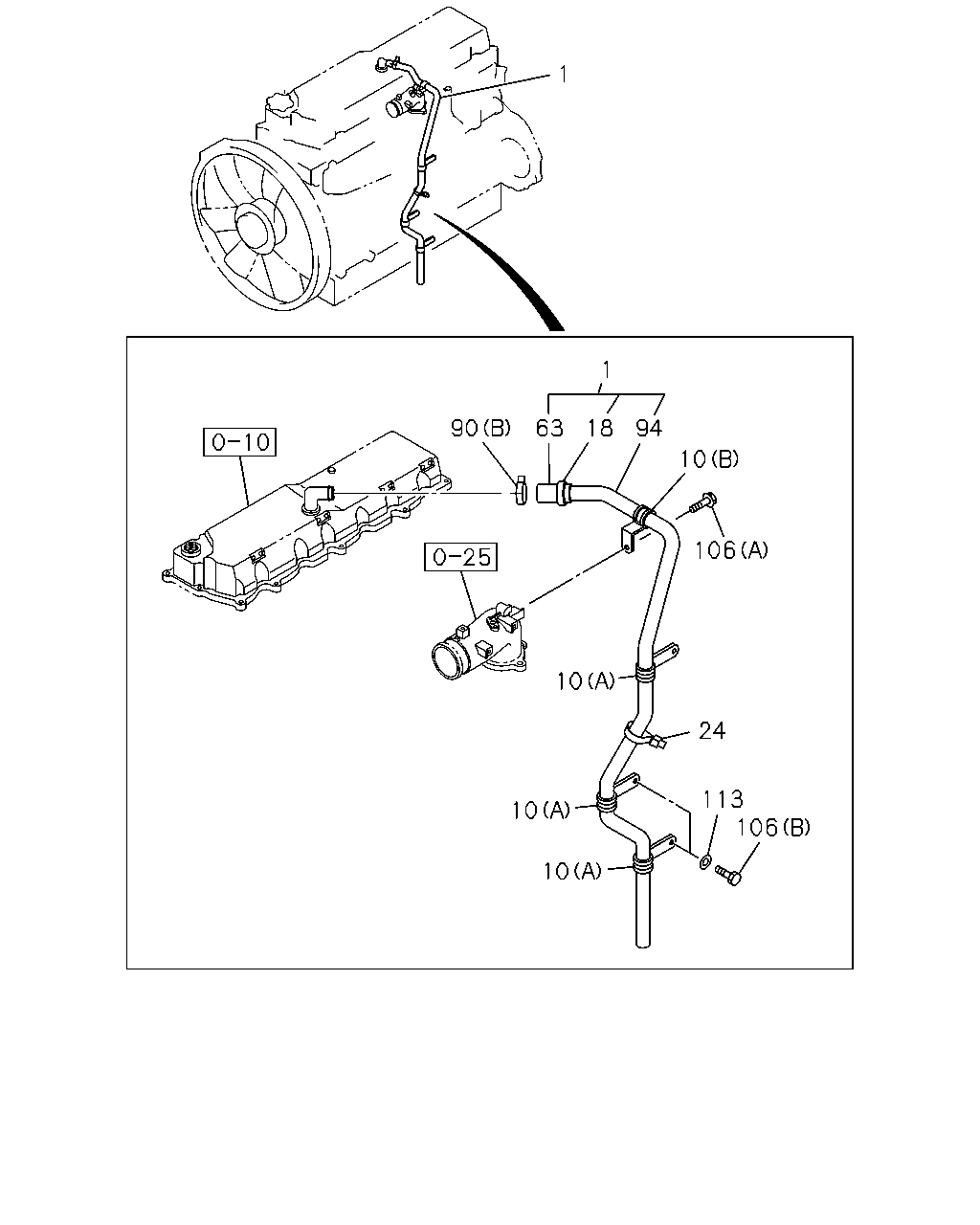

1 1 90 63 18 94 10 106 10 10 10 24 113 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BREATHER; AIR	8-94392-083-1	01	1	0809-0809		●	●
1	BREATHER; AIR EURO2 SPECIFICATION<NT2>	8-94392-083-3	01	1	0810-		●	●
10	CLIP; AIR BREATHER (A) ID=32 L=75	1-09700-704-1	03	1	0809-0809		●	●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (A) ID=32 L=75	1-09700-704-1	03	1	0810-		●	●
10	CLIP; AIR BREATHER (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-0809		●	●
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0810-		●	●
18	CLIP; RUBBER HOSE,AIR BREATHER ID=33.6	8-94362-518-0	01	1	0809-0809		●	●
18	CLIP; RUBBER HOSE,AIR BREATHER EURO2 SPECIFICATION<NT2> ID=33.6	8-94362-518-0	01	1	0810-		●	●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0903-1205		●	●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	8-98216-430-0	01	1	1206-		●	●
63	HOSE; RUBBER,AIR BREATHER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	1-09360-925-0	02	1	1212-		●	●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02828-070-0	01	1	0809-0809		●	●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02828-070-0	01	1	0810-1005		●	●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02728-070-0	01	1	1006-		●	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=28.5	1-09707-150-0	01	1	1102-1112		●	●
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-0809		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0810-		●	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0803-0809	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0810-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=14	1-09704-102-0	02	1	0810-		●	●
94	HOSE; BREATHER TO PIPE L=1260	8-94392-082-0	01	1	0809-0809		●	●
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<NT2> L=1260	8-94392-082-0	01	1	0810-		●	●
106	BOLT; DRAIN PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	0809-0809		●	●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-		●	●
106	BOLT; DRAIN PIPE (B) M10X16 FLANGE	0-28151-016-0	02	1	0809-0809		●	●
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	02	1	0810-		●	●
113	WASHER; PL,CLIP ID=10.5	0-91610-510-0	02	1	0809-0809		●	●
113	WASHER; PL,CLIP EURO2 SPECIFICATION<NT2> ID=10.5	0-91610-510-0	02	1	0810-		●	●

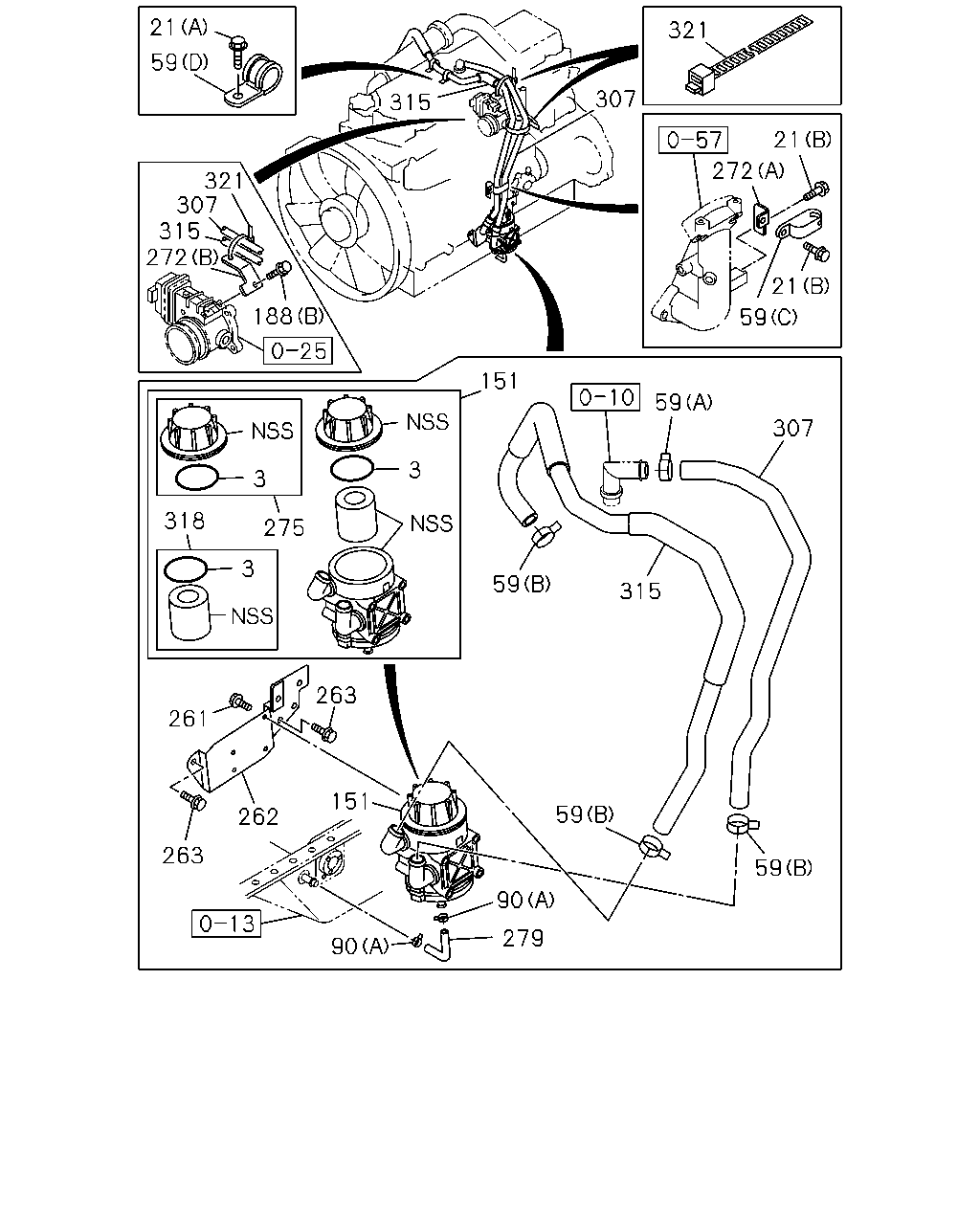

188 188 272 59 21 59 315 307 315 321 307 188 272 307 90 59 315 59 59 63 59 90 279 90 151 263 151 59 63 59 3 3 318 275 3 261 262 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0803-0809	●
3	GASKET; BODY TO CAP	8-97385-921-0	01	1	0810-	●
3	GASKET; BODY TO CAP EURO3 SPECIFICATION<NT3>	8-97385-921-0	01	1	0810-		●	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X12 FLANGE	0-28050-612-0	01	1	1102-		●	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0803-0809	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	0810-1101	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	02	1	0810-1101		●	●
21	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	02	1	1102-	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X12 FLANGE	0-28050-812-0	02	1	1102-		●	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0809	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0810-1101	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	0810-1101		●	●
21	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1102-	●
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	01	1	1201-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=31 H=30 L=35	1-09700-994-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) ID=30X2 L=28	1-09701-266-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	02	1	1102-		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	01	1	1102-1211		●	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	03	1	1212-		●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0803-0809	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (D) ID=35 L=33	1-09700-945-0	02	1	0810-1101		●	●
59	CLIP; HOSE (D) ID=35 L=33	1-09700-945-0	02	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=35 L=33	1-09700-945-0	02	1	1102-		●	●
59	CLIP; HOSE (E) ID=30X2 L=28	1-09701-266-0	01	1	0803-0809	●
59	CLIP; HOSE (E) ID=30X2 L=28	1-09701-266-0	01	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (E) ID=30X2 L=28	1-09701-266-0	01	1	0810-1101		●	●
59	CLIP; HOSE (E) ID=30X2 L=28	1-09701-266-0	01	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E) ID=30X2 L=28	1-09701-266-0	01	1	1102-		●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0803-0809	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (B) ID=28.5	1-09707-150-0	03	1	0810-1101		●	●
59	CLIP; HOSE (B) ID=28.5	1-09707-150-0	03	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	03	1	1102-		●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0803-0809	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	0810-1101	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (A) ID=31.2	8-97237-146-0	01	1	0810-1101		●	●
59	CLIP; HOSE (A) ID=31.2	8-97237-146-0	01	1	1102-	●
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=31.2	8-97237-146-0	01	1	1102-		●	●
63	HOSE; RUBBER,AIR BREATHER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	1-09360-925-0	02	1	1212-		●	●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02828-070-0	01	1	0809-0809		●	●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02828-070-0	01	1	0810-1005		●	●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02728-070-0	01	1	1006-		●	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=28.5	1-09707-150-0	01	1	1102-1112		●	●
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-0809		●	●
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0810-		●	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0803-0809	●
90	CLIP; RUBBER HOSE (A) ID=14	1-09704-102-0	02	1	0810-	●
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=14	1-09704-102-0	02	1	0810-		●	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0803-0809	●
151	SEPARATOR; OIL,PCV	8-97602-262-2	01	1	0810-	●
151	SEPARATOR; OIL,PCV EURO3 SPECIFICATION<NT3>	8-97602-262-2	01	1	0810-		●	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	03	1	1102-		●	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28050-830-0	03	1	1102-		●	●
188	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0809	●
188	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-	●
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-		●	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0803-0809	●
261	BOLT; SEPARETOR M8X16 FLANGE	0-28050-816-0	04	1	0810-	●
261	BOLT; SEPARETOR EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	04	1	0810-		●	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0803-0809	●
262	BRACKET; OIL SEPARETOR	8-97610-919-1	01	1	0810-	●
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-97610-919-1	01	1	0810-		●	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0803-0809	●
263	BOLT; BRKT,OIL SEPARETOR M10X25 FLANGE	0-28751-025-0	02	1	0810-	●
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M10X25 FLANGE	0-28751-025-0	02	1	0810-		●	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97616-083-0	01	1	1102-		●	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0803-0809	●
272	BRACKET; PIPE (A)	8-97607-396-1	01	1	0810-	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (A)	8-97607-396-1	01	1	0810-		●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0803-0809	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	0810-1101	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (B)	8-97607-397-0	01	1	0810-1101		●	●
272	BRACKET; PIPE (B)	8-97607-397-0	01	1	1102-	●
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97607-397-0	01	1	1102-		●	●
275	CAP; PCV	8-97606-319-0	01	1	0803-0809	●
275	CAP; PCV	8-97606-319-0	01	1	0810-	●
275	CAP; PCV EURO3 SPECIFICATION<NT3>	8-97606-319-0	01	1	0810-		●	●
279	HOSE; RUBBER,OIL DRAIN	0-02709-190-0	01	1	0803-0809	●
279	HOSE; RUBBER,OIL DRAIN	0-02709-190-0	01	1	0810-	●
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3>	0-02709-190-0	01	1	0810-		●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-935-0	01	1	1102-		●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0803-0809	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-1	01	1	0810-1101	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3>	8-98054-285-1	01	1	0810-1101		●	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT	8-98054-285-2	01	1	1102-	●
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-285-2	01	1	1102-		●	●
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-937-1	01	1	1102-		●	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0803-0809	●
315	HOSE; RUBBER	8-98054-286-1	01	1	0810-1101	●
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98054-286-1	01	1	0810-1101		●	●
315	HOSE; RUBBER	8-98054-286-2	01	1	1102-	●
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-286-2	01	1	1102-		●	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0803-0809	●
318	ELEMENT KIT; PCV	8-97606-318-0	01	1	0810-	●
318	ELEMENT KIT; PCV EURO3 SPECIFICATION<NT3>	8-97606-318-0	01	1	0810-		●	●
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	01	1	1102-		●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0803-0809	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	0810-1101	●
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> L=300	1-09707-001-1	02	1	0810-1101		●	●
321	CLIP; HOSE,SEPARATOR L=300	1-09707-001-1	02	1	1102-	●
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	02	1	1102-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
