0-27 — EXHAUST MANIFOLD (#67907) — 219 parça

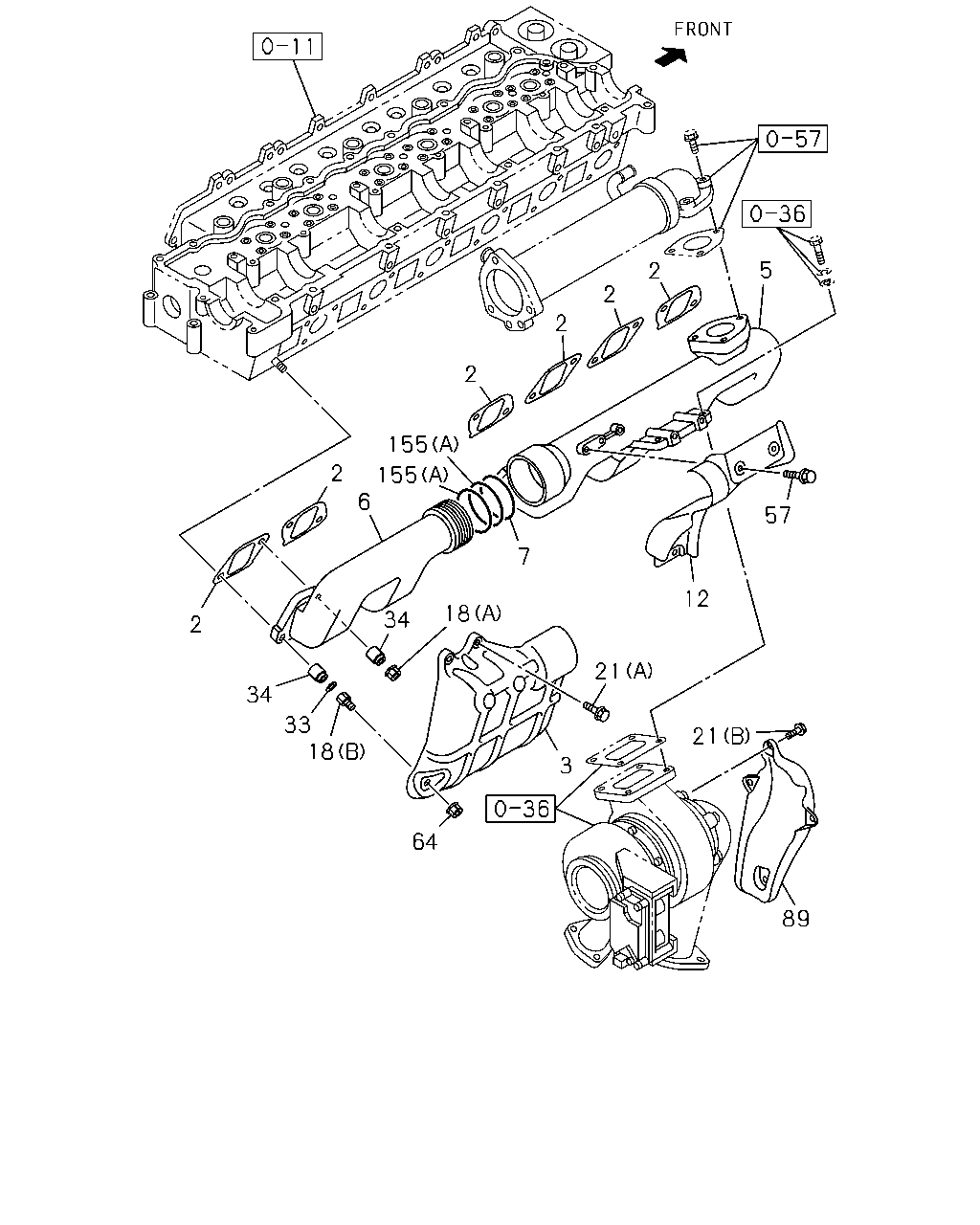

çizim 39536
89 21 21 3 64 18 34 18 33 34 2 2 7 6 12 57 155 155 2 2 2 2 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 0803-0808 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0809- ● ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0803-0809 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 0810-1101 ●
3 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> 		8-97611-986-1 01 1 0810-1101 ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-97611-986-1 01 1 1102-1202 ●
3 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97611-986-1 01 1 1102-1202 ● ●
3 PROTECTOR; HEAT,EXH MANIF 8-98205-395-0 01 1 1203- ●
3 PROTECTOR; HEAT,EXH MANIF
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98205-395-0 01 1 1203- ● ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0809-0809 ● ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 0810-1101 ● ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 1102- ● ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97602-056-0 01 1 1102- ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0803-0809 ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0810-1101 ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> 		8-97604-942-0 01 1 0810-1101 ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 1102- ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-942-1 01 1 1102- ● ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97601-630-0 01 1 1102- ● ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0809-0809 ● ●
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION<NT2> 		8-97600-970-0 01 1 0810- ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0803-0809 ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0810-1101 ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> 		8-97604-944-0 01 1 0810-1101 ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 1102- ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-944-0 01 1 1102- ● ●
7 RING; SEAL,EXH MANIF 1-14149-151-0 01 1 0803-0809 ●
7 RING; SEAL,EXH MANIF 1-14149-151-0 01 1 0810- ●
7 RING; SEAL,EXH MANIF
EURO3 SPECIFICATION<NT3> 		1-14149-151-0 01 1 0810- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97601-632-0 01 1 0809-0809 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 0810-1101 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 1102- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97601-632-0 01 1 1102- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0803-0809 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0810-1101 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> 		8-97610-717-3 01 1 0810-1101 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 1102- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97610-717-3 01 1 1102- ● ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0803-0808 ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0809- ● ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0803-0808 ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0809-1202 ● ● ●
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203- ● ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0809 ● ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803-0809 ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0803-0809 ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0810-1101 ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> (B) M8X14 FLANGE 		8-97378-075-0 04 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 1102- ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X14 FLANGE 		8-97378-075-0 04 1 1102- ● ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0803-0808 ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0809- ● ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0803-0808 ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0809- ● ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-97378-075-0 03 1 0803-0809 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-97378-075-0 03 1 0810-1101 ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO3 SPECIFICATION<NT3> M8X14 FLANGE 		8-97378-075-0 03 1 0810-1101 ● ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 FLANGE 		8-97378-075-0 03 1 1102- ●
57 BOLT; HEAT PROTECTOR,EXH MANIF
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8X14 FLANGE 		8-97378-075-0 03 1 1102- ● ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0803-0808 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0809- ● ● ●
89 PROTECTOR; HEAT 8-97611-985-2 01 1 0803-0809 ●
89 PROTECTOR; HEAT 8-97611-985-2 01 1 0810-1101 ●
89 PROTECTOR; HEAT
EURO3 SPECIFICATION<NT3> 		8-97611-985-2 01 1 0810-1101 ● ●
89 PROTECTOR; HEAT 8-97611-985-3 01 1 1102- ●
89 PROTECTOR; HEAT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97611-985-3 01 1 1102- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0809- ● ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0803-0808 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-151-0 01 1 0809-0809 ● ●
155 RING; SEAL,EXH MANIF
EURO2 SPECIFICATION<NT2> (B) 		1-14149-151-0 01 1 0810- ● ●

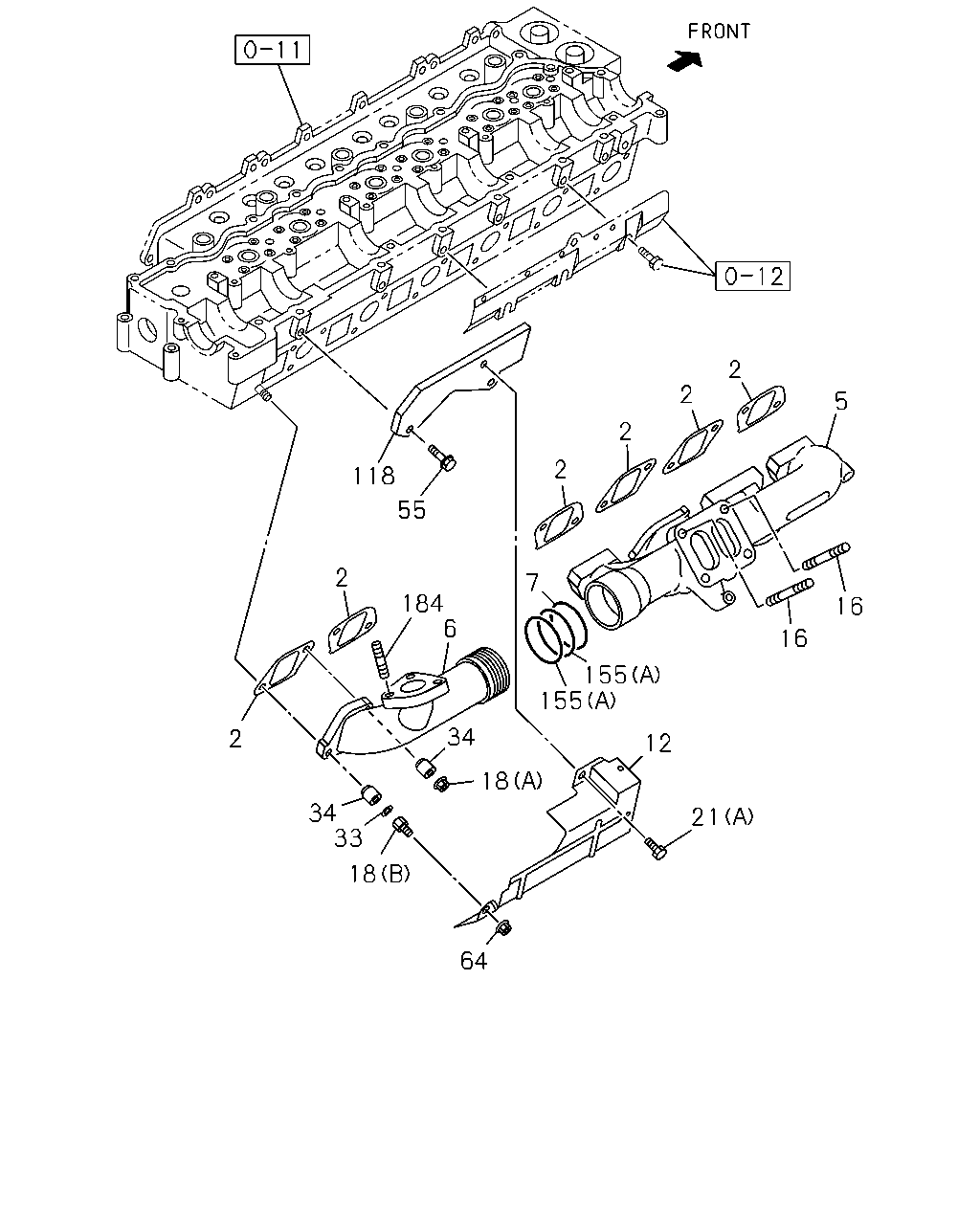

çizim 40124
16 16 5 2 2 2 2 7 155 155 12 21 18 64 34 6 184 55 118 2 2 34 33 18
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 0803-0808 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0809- ● ● ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0809-0809 ● ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 0810-1101 ● ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 1102- ● ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97602-056-0 01 1 1102- ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0803-0809 ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0810-1101 ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> 		8-97604-942-0 01 1 0810-1101 ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 1102- ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-942-1 01 1 1102- ● ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97601-630-0 01 1 1102- ● ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0809-0809 ● ●
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION<NT2> 		8-97600-970-0 01 1 0810- ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0803-0809 ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0810-1101 ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> 		8-97604-944-0 01 1 0810-1101 ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 1102- ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-944-0 01 1 1102- ● ●
7 RING; SEAL,EXH MANIF 1-14149-151-0 01 1 0803-0809 ●
7 RING; SEAL,EXH MANIF 1-14149-151-0 01 1 0810- ●
7 RING; SEAL,EXH MANIF
EURO3 SPECIFICATION<NT3> 		1-14149-151-0 01 1 0810- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97601-632-0 01 1 0809-0809 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 0810-1101 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 1102- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97601-632-0 01 1 1102- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0803-0809 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0810-1101 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> 		8-97610-717-3 01 1 0810-1101 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 1102- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97610-717-3 01 1 1102- ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 0809-0809 ● ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 0810-1101 ● ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 1102- ● ●
16 STUD; EXH PIPE TO MANIF
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10X25 L=40 		9-04731-025-0 02 1 1102- ● ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0803-0808 ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0809- ● ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0803-0808 ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0809-1202 ● ● ●
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203- ● ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0809 ● ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803-0809 ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0803-0809 ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0810-1101 ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> (B) M8X14 FLANGE 		8-97378-075-0 04 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 1102- ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X14 FLANGE 		8-97378-075-0 04 1 1102- ● ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0803-0808 ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0809- ● ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0803-0808 ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0809- ● ● ●
55 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0809-0809 ● ●
55 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ● ●
55 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
55 BOLT; BRKT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0803-0808 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0809- ● ● ●
118 BRACKET; HEAT PROTECTOR 8-97603-366-0 01 1 0809-0809 ● ●
118 BRACKET; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 		8-97603-366-0 01 1 0810-1101 ● ●
118 BRACKET; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 		8-97603-366-0 01 1 1102- ● ●
118 BRACKET; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97603-366-0 01 1 1102- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0809- ● ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0803-0808 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-151-0 01 1 0809-0809 ● ●
155 RING; SEAL,EXH MANIF
EURO2 SPECIFICATION<NT2> (B) 		1-14149-151-0 01 1 0810- ● ●
184 STUD; EXH MANIFOLD
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X25 L=36 		8-97378-062-0 03 1 1102- ● ●

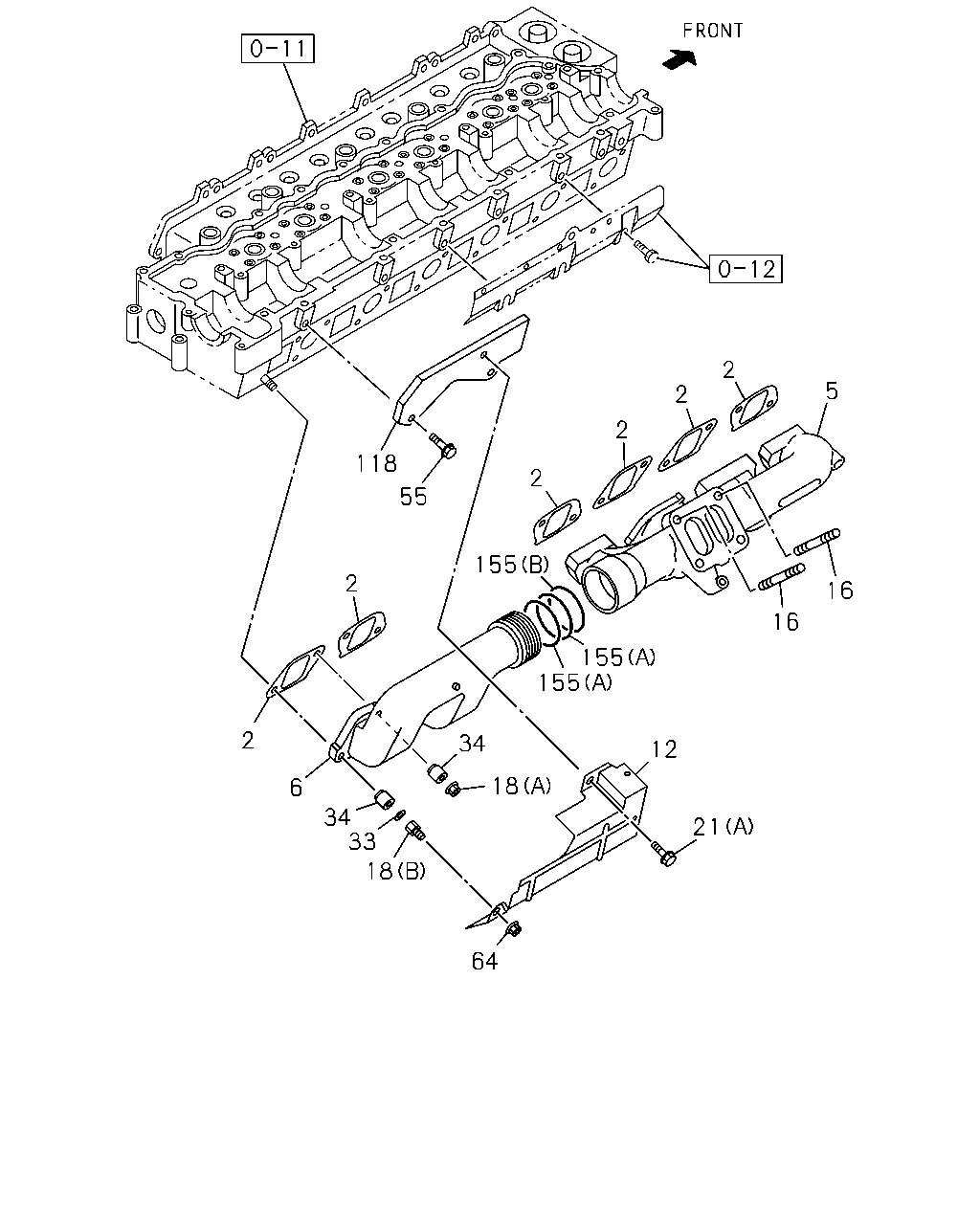

çizim 40235
118 55 2 2 6 34 33 18 2 2 2 2 5 16 16 155 155 155 34 18 12 21 64
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-2 06 1 0803-0808 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-672-4 06 1 0809- ● ● ●
5 MANIFOLD; EXH,FRT 8-97602-056-0 01 1 0809-0809 ● ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 0810-1101 ● ●
5 MANIFOLD; EXH,FRT
EURO2 SPECIFICATION<NT2> 		8-97602-056-0 01 1 1102- ● ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97602-056-0 01 1 1102- ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0803-0809 ●
5 MANIFOLD; EXH,FRT 8-97604-942-0 01 1 0810-1101 ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> 		8-97604-942-0 01 1 0810-1101 ● ●
5 MANIFOLD; EXH,FRT 8-97604-942-1 01 1 1102- ●
5 MANIFOLD; EXH,FRT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-942-1 01 1 1102- ● ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97601-630-0 01 1 1102- ● ●
6 MANIFOLD; EXH,RR 8-97600-970-0 01 1 0809-0809 ● ●
6 MANIFOLD; EXH,RR
EURO2 SPECIFICATION<NT2> 		8-97600-970-0 01 1 0810- ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0803-0809 ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 0810-1101 ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> 		8-97604-944-0 01 1 0810-1101 ● ●
6 MANIFOLD; EXH,RR 8-97604-944-0 01 1 1102- ●
6 MANIFOLD; EXH,RR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97604-944-0 01 1 1102- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97601-632-0 01 1 0809-0809 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 0810-1101 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO2 SPECIFICATION<NT2> 		8-97601-632-0 01 1 1102- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97601-632-0 01 1 1102- ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0803-0809 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 0810-1101 ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> 		8-97610-717-3 01 1 0810-1101 ● ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF 8-97610-717-3 01 1 1102- ●
12 PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97610-717-3 01 1 1102- ● ●
16 STUD; EXH PIPE TO MANIF
M10X25 L=40 		9-04731-025-0 02 1 0809-0809 ● ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 0810-1101 ● ●
16 STUD; EXH PIPE TO MANIF
EURO2 SPECIFICATION<NT2> M10X25 L=40 		9-04731-025-0 02 1 1102- ● ●
16 STUD; EXH PIPE TO MANIF
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10X25 L=40 		9-04731-025-0 02 1 1102- ● ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0803-0808 ●
18 NUT; EXH MANIF
(A) M10 LOCK NUT 		0-91370-010-0 10 1 0809- ● ● ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0803-0808 ●
18 NUT; EXH MANIF
(B) M10 L=51 		8-94394-991-1 02 1 0809-1202 ● ● ●
18 NUT; EXH MANIF
(B) M10 		8-98205-394-0 02 1 1203- ● ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-0809 ● ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0803-0809 ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0803-0809 ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 0810-1101 ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> (B) M8X14 FLANGE 		8-97378-075-0 04 1 0810-1101 ● ●
21 BOLT; HEAT PROTECTOR
(B) M8X14 FLANGE 		8-97378-075-0 04 1 1102- ●
21 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X14 FLANGE 		8-97378-075-0 04 1 1102- ● ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0803-0808 ●
33 WASHER; EXH MANIF
T=2.2 		1-09556-015-0 02 1 0809- ● ● ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0803-0808 ●
34 COLLAR; DIST,EXH MANIF
L=28 		8-97250-073-1 12 1 0809- ● ● ●
55 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0809-0809 ● ●
55 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M8X16 FLANGE 		0-28050-816-0 02 1 0810-1101 ● ●
55 BOLT; BRKT
EURO2 SPECIFICATION<NT2> M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
55 BOLT; BRKT
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X16 FLANGE 		0-28050-816-0 02 1 1102- ● ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0803-0808 ●
64 NUT; HEAT PROTECTOR
M10 FLANGE 		0-91180-210-0 02 1 0809- ● ● ●
118 BRACKET; HEAT PROTECTOR 8-97603-366-0 01 1 0809-0809 ● ●
118 BRACKET; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 		8-97603-366-0 01 1 0810-1101 ● ●
118 BRACKET; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> 		8-97603-366-0 01 1 1102- ● ●
118 BRACKET; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97603-366-0 01 1 1102- ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0809- ● ● ●
155 RING; SEAL,EXH MANIF
(A) 		1-14149-184-0 02 1 0803-0808 ●
155 RING; SEAL,EXH MANIF
(B) 		1-14149-151-0 01 1 0809-0809 ● ●
155 RING; SEAL,EXH MANIF
EURO2 SPECIFICATION<NT2> (B) 		1-14149-151-0 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
