Isuzu WW
▶
TRUCKS
▶
FVR
▶
11132 - FVR/GVR-L EURO2/3/4
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#67906) — 107 parça
Tümü
A - 6HK1-TCC ENG
B - 6HK1-TCS ENG
C - 6HK1-TCN ENG
◀

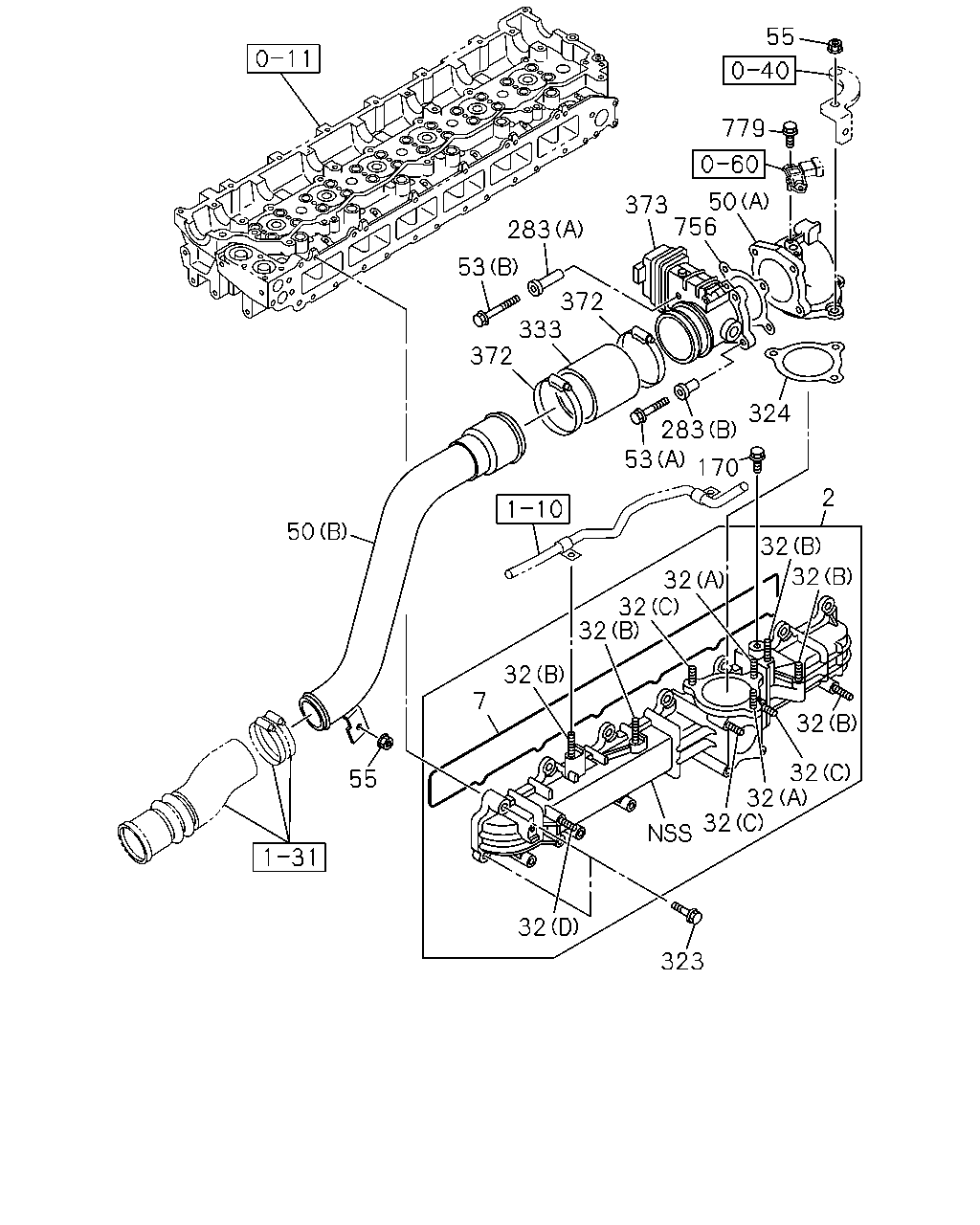

[025A] EXC.EURO2;INLET MANIF COVER AND PIPE (59 parça)

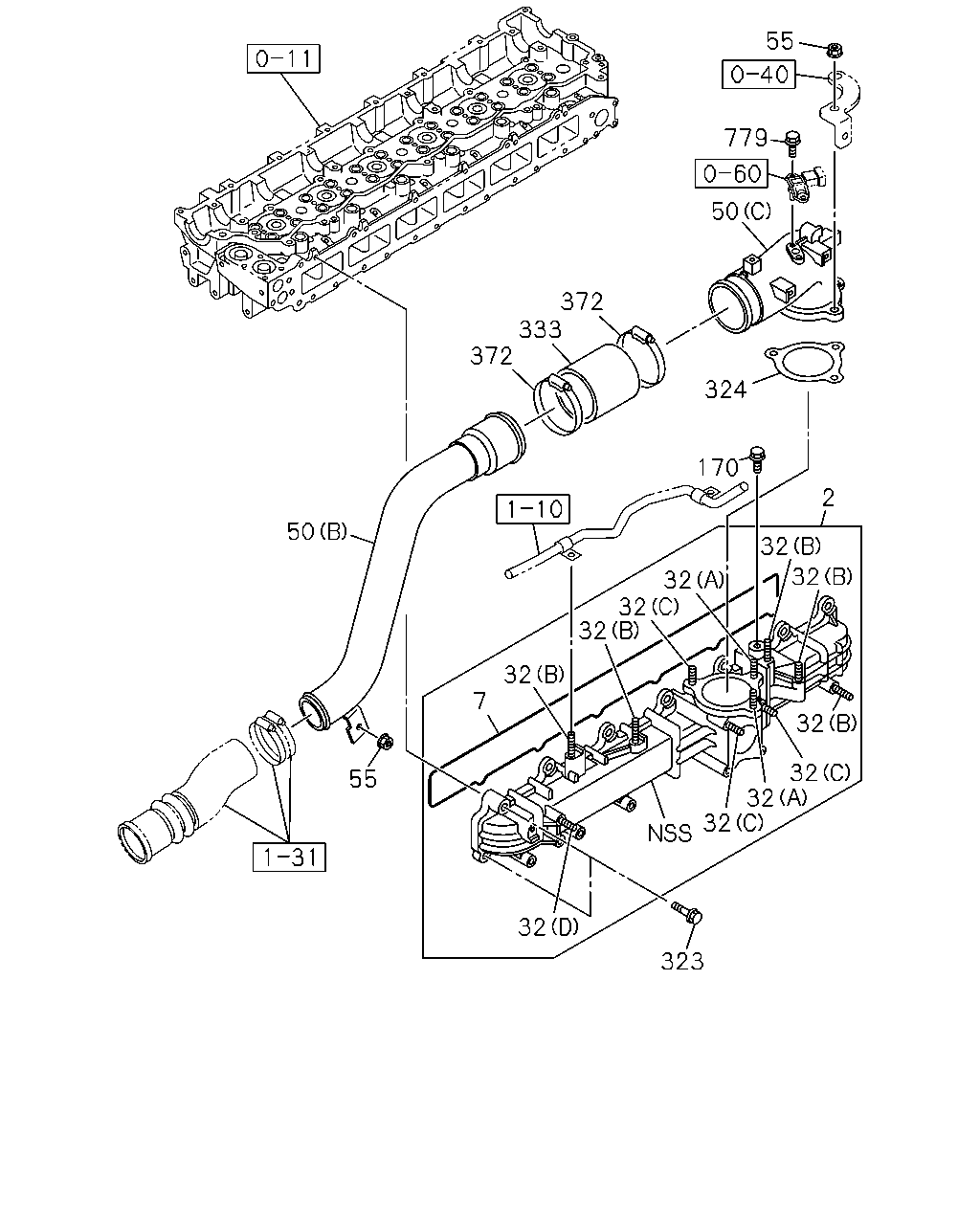

[025A] EURO2;INLET MANIF COVER AND PIPE (41 parça)
[025A] EXC.EURO2;GASKET;INTAKE DUCT (2 parça)
[025A] SPACER;INL COVER (5 parça)
▶
55
779
50
373
756
283
53
372
333
372
283
324
53
170
50
55
32
7
32
32
32
32
32
32
32
32
32
323
32
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
COVER; INL
8-98061-091-0
01
1
0803-0808
●
2
COVER; INL
8-98061-091-0
01
1
0809-
●
●
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
0803-0808
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
0809-
●
●
●
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
0803-0808
●
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
0809-
●
●
●
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
0803-0808
●
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
0809-
●
●
●
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
0803-0808
●
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
0809-
●
●
●
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
0803-0808
●
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
0809-
●
●
●
50
PIPE; INL
(A)
8-97604-940-0
01
1
0803-0809
●
50
PIPE; INL
(A)
8-97604-940-0
01
1
0810-1305
●
50
PIPE; INL
EURO3 SPECIFICATION<NT3> (A)
8-97604-940-0
01
1
0810-1305
●
●
50
PIPE; INL
(A)
8-98239-524-0
01
1
1306-
●
50
PIPE; INL
EURO3 SPECIFICATION<NT3> (A)
8-98239-524-0
01
1
1306-
●
●
50
PIPE; INL
(B)
8-97607-412-2
01
1
0803-0808
●
50
PIPE; INL
(C)
8-98061-804-0
01
1
0809-0809
●
●
50
PIPE; INL
EURO2 SPECIFICATION<NT2> (C)
8-98061-804-1
01
1
0810-
●
●
50
PIPE; INL
(B)
8-97607-412-2
01
1
0809-
●
●
●
53
BOLT; INL PIPE
(A) M8X30 FLANGE
0-28050-830-0
02
1
0803-0809
●
53
BOLT; INL PIPE
(A) M8X30 FLANGE
0-28050-830-0
02
1
0810-
●
53
BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE
0-28050-830-0
02
1
0810-
●
●
53
BOLT; INL PIPE
(B) M8X70 FLANGE
0-28050-870-0
02
1
0803-0809
●
53
BOLT; INL PIPE
(B) M8X70 FLANGE
0-28050-870-0
02
1
0810-
●
53
BOLT; INL PIPE
EURO3 SPECIFICATION<NT3> (B) M8X70 FLANGE
0-28050-870-0
02
1
0810-
●
●
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
04
1
0803-0808
●
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
04
1
0809-
●
●
●
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
0803-0808
●
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
0809-
●
●
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
0803-0809
●
283
RUBBER
(B) L=18
8-97219-650-0
02
1
0810-
●
283
RUBBER
EURO3 SPECIFICATION<NT3> (B) L=18
8-97219-650-0
02
1
0810-
●
●
283
RUBBER
(A) L=58
8-97387-995-0
02
1
0803-0809
●
283
RUBBER
(A) L=58
8-97387-995-1
02
1
0810-
●
283
RUBBER
EURO3 SPECIFICATION<NT3> (A) L=58
8-97387-995-1
02
1
0810-
●
●
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
0803-0808
●
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
0809-
●
●
●
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
0803-0808
●
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
0809-
●
●
●
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
0803-0808
●
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
0809-
●
●
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-777-0
01
1
0803-0808
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-777-0
01
1
0809-
●
●
●
333
HOSE; RUBBER,INL PIPE
8-97611-306-0
01
1
0803-0808
●
333
HOSE; RUBBER,INL PIPE
8-97611-306-0
01
1
0809-
●
●
●
372
CLIP; HOSE
ID=77-95
1-09707-198-0
02
1
0803-0808
●
372
CLIP; HOSE
ID=77-95
1-09707-198-0
02
1
0809-0810
●
●
●
372
CLIP; HOSE
ID=75-95
8-98133-357-0
02
1
0811-0902
●
●
●
372
CLIP; HOSE
ID=77-99
1-09707-141-0
02
1
0903-
●
●
●
373
THROTTLE ASM; INT
8-98061-061-1
01
1
0803-0809
●
373
THROTTLE ASM; INT
8-98061-061-3
01
1
0810-
●
373
THROTTLE ASM; INT
EURO3 SPECIFICATION<NT3>
8-98061-061-3
01
1
0810-
●
●
756
GASKET; INTAKE,THROTTLE
ID=88
8-97387-009-0
01
1
0803-0809
●
756
GASKET; INTAKE,THROTTLE
ID=88
8-97387-009-0
01
1
0810-
●
756
GASKET; INTAKE,THROTTLE
EURO3 SPECIFICATION<NT3> ID=88
8-97387-009-0
01
1
0810-
●
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
0803-0808
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
0809-
●
●
●
55
779
50
372
333
372
324
170
2
50
55
32
323
32
32
32
32
32
32
32
32
32
32
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
COVER; INL
8-98061-091-0
01
1
0803-0808
●
2
COVER; INL
8-98061-091-0
01
1
0809-
●
●
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
0803-0808
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-775-0
01
1
0809-
●
●
●
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
0803-0808
●
32
STUD; INL PIPE
(B) M6X30 L=38
0-41010-630-0
05
1
0809-
●
●
●
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
0803-0808
●
32
STUD; INL PIPE
(C) M8X28 L=40
0-41010-828-0
03
1
0809-
●
●
●
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
0803-0808
●
32
STUD; INL PIPE
(A) M8X40 L=52
0-41010-840-0
02
1
0809-
●
●
●
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
0803-0808
●
32
STUD; INL PIPE
(D) M10X30 L=45
0-44011-030-0
01
1
0809-
●
●
●
50
PIPE; INL
(A)
8-97604-940-0
01
1
0803-0809
●
50
PIPE; INL
(A)
8-97604-940-0
01
1
0810-1305
●
50
PIPE; INL
EURO3 SPECIFICATION<NT3> (A)
8-97604-940-0
01
1
0810-1305
●
●
50
PIPE; INL
(A)
8-98239-524-0
01
1
1306-
●
50
PIPE; INL
EURO3 SPECIFICATION<NT3> (A)
8-98239-524-0
01
1
1306-
●
●
50
PIPE; INL
(B)
8-97607-412-2
01
1
0803-0808
●
50
PIPE; INL
(C)
8-98061-804-0
01
1
0809-0809
●
●
50
PIPE; INL
EURO2 SPECIFICATION<NT2> (C)
8-98061-804-1
01
1
0810-
●
●
50
PIPE; INL
(B)
8-97607-412-2
01
1
0809-
●
●
●
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
04
1
0803-0808
●
55
NUT; INL PIPE
M8 FLANGE
0-91180-108-0
04
1
0809-
●
●
●
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
0803-0808
●
170
BOLT; BRKT
M8X35 FLANGE
0-28050-835-0
01
1
0809-
●
●
●
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
0803-0808
●
323
BOLT; DUCT
M8X50 FLANGE
0-28050-850-0
06
1
0809-
●
●
●
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
0803-0808
●
323
BOLT; DUCT
M8X25 FLANGE
0-28650-825-0
06
1
0809-
●
●
●
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
0803-0808
●
323
BOLT; DUCT
M8X48 FLANGE
8-97229-317-1
02
1
0809-
●
●
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-777-0
01
1
0803-0808
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97601-777-0
01
1
0809-
●
●
●
333
HOSE; RUBBER,INL PIPE
8-97611-306-0
01
1
0803-0808
●
333
HOSE; RUBBER,INL PIPE
8-97611-306-0
01
1
0809-
●
●
●
372
CLIP; HOSE
ID=77-95
1-09707-198-0
02
1
0803-0808
●
372
CLIP; HOSE
ID=77-95
1-09707-198-0
02
1
0809-0810
●
●
●
372
CLIP; HOSE
ID=75-95
8-98133-357-0
02
1
0811-0902
●
●
●
372
CLIP; HOSE
ID=77-99
1-09707-141-0
02
1
0903-
●
●
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
0803-0808
●
779
BOLT; SENSOR
M4X10 W/PL WASHER
8-97316-615-0
02
1
0809-
●
●
●
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98196-271-0
01
1
1107-
●
8
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>
8-98196-271-0
01
1
1107-
●
●
764
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
764
SPACER; INL COVER
8-98023-639-1
01
1
0803-0809
●
764
SPACER; INL COVER
8-98023-639-2
01
1
0810-1101
●
764
SPACER; INL COVER
EURO3 SPECIFICATION<NT3>
8-98023-639-2
01
1
0810-1101
●
●
764
SPACER; INL COVER
8-98023-639-2
01
1
1102-
●
764
SPACER; INL COVER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>
8-98023-639-2
01
1
1102-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
