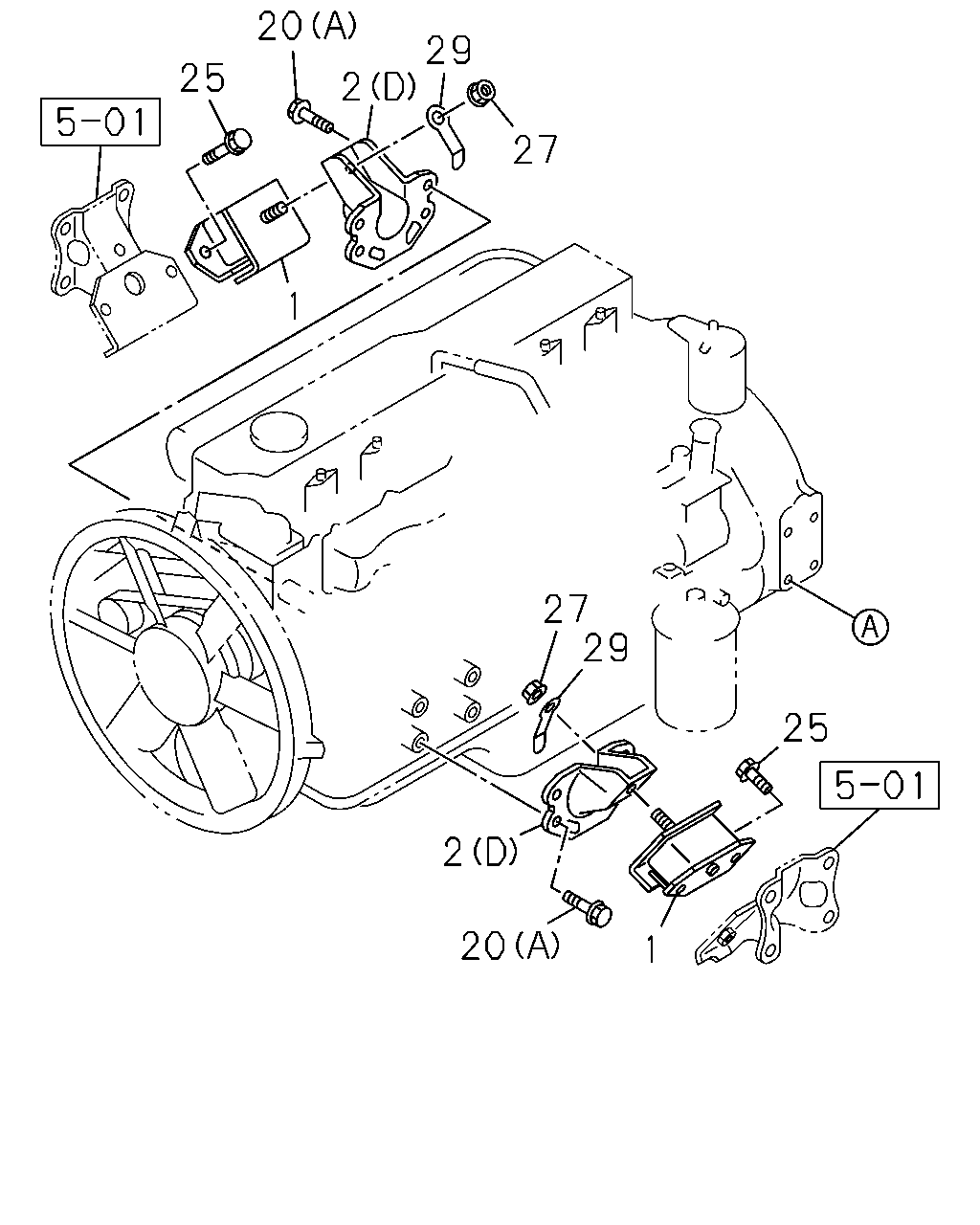

0-22 — ENGINE MOUNTING (#67905) — 122 parça

25 20 29 27 25 27 29 2 20 1 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0803-0809	●
1	RUBBER; ENG FOOT,FRT	1-53215-172-0	02	1	0810-	●	●	●
2	FOOT; ENG ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97616-617-0	01	1	0803-	●
2	FOOT; ENG ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97616-618-0	01	1	0803-	●
2	FOOT; ENG (D)	8-94392-141-3	02	1	0803-0808	●
2	FOOT; ENG (D)	8-94392-141-3	02	1	0809-1008	●	●	●
2	FOOT; ENG (D)	8-97602-589-1	02	1	1009-	●	●	●
2	FOOT; ENG MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0803-0805	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0806-0808	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0809-0809	●
2	FOOT; ENG (B)	8-97611-988-0	01	1	0809-0809			●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0810-0906	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) (B)	8-97611-988-0	01	1	0810-0906			●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0907-1207	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-97611-988-0	01	1	0907-1207			●
2	FOOT; ENG (B)	8-97611-988-0	01	1	1208-1311	●	●	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	1312-	●		●
2	FOOT; ENG MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0803-0805	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0806-0808	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0809-0809	●
2	FOOT; ENG (B)	8-97611-989-0	01	1	0809-0809			●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0810-0906	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) (B)	8-97611-989-0	01	1	0810-0906			●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0907-1207	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-97611-989-0	01	1	0907-1207			●
2	FOOT; ENG (B)	8-97611-989-0	01	1	1208-1311	●	●	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	1312-	●		●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-990-0	01	1	0803-0808	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-990-0	01	1	0809-0907	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-990-0	01	1	0908-1211	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A)	8-97611-990-0	01	1	1212-	●	●	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-991-0	01	1	0803-0808	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-991-0	01	1	0809-0907	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-991-0	01	1	0908-1211	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A)	8-97611-991-0	01	1	1212-	●	●	●
20	BOLT; ENG FOOT MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M12X50	0-16956-250-0	08	1	0803-0808	●
20	BOLT; ENG FOOT MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M12X50	0-16956-250-0	08	1	0809-0906	●		●
20	BOLT; ENG FOOT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) M12X50	0-16956-250-0	08	1	0907-	●		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0803-0808	●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0809-1008	●	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	1009-	●	●	●
20	BOLT; ENG FOOT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	0803-0808	●
20	BOLT; ENG FOOT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	0809-0907	●	●	●
20	BOLT; ENG FOOT FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	0908-1311	●	●	●
20	BOLT; ENG FOOT FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M12X55	8-94399-884-1	08	1	1312-	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0803-0809	●
25	BOLT; CUSHION RUBBER TO BRKT M12X35 FLANGE	0-28651-235-0	04	1	0810-	●	●	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0803-0809	●
27	NUT; CUSHION RUBBER TO ENG FOOT M12 FLANGE	0-91180-212-0	02	1	0810-	●	●	●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	0803-0809	●
29	PLATE; LK,CUSHION RUBBER,FRT	8-98010-312-0	02	1	0810-	●	●	●

173 52 20 45 2 84 173 45 84 173 45 52 20 20 44 2 84 45 2 45 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	FOOT; ENG ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97616-617-0	01	1	0803-	●
2	FOOT; ENG ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97616-618-0	01	1	0803-	●
2	FOOT; ENG (D)	8-94392-141-3	02	1	0803-0808	●
2	FOOT; ENG (D)	8-94392-141-3	02	1	0809-1008	●	●	●
2	FOOT; ENG (D)	8-97602-589-1	02	1	1009-	●	●	●
2	FOOT; ENG MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0803-0805	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0806-0808	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0809-0809	●
2	FOOT; ENG (B)	8-97611-988-0	01	1	0809-0809			●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0810-0906	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) (B)	8-97611-988-0	01	1	0810-0906			●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	0907-1207	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-97611-988-0	01	1	0907-1207			●
2	FOOT; ENG (B)	8-97611-988-0	01	1	1208-1311	●	●	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-988-0	01	1	1312-	●		●
2	FOOT; ENG MZX6P M/T(RSW) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0803-0805	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0806-0808	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0809-0809	●
2	FOOT; ENG (B)	8-97611-989-0	01	1	0809-0809			●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0810-0906	●
2	FOOT; ENG MZX6P M/T(RSW),MLD6W M/T(Y2C) (B)	8-97611-989-0	01	1	0810-0906			●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	0907-1207	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-97611-989-0	01	1	0907-1207			●
2	FOOT; ENG (B)	8-97611-989-0	01	1	1208-1311	●	●	●
2	FOOT; ENG MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97611-989-0	01	1	1312-	●		●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-990-0	01	1	0803-0808	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-990-0	01	1	0809-0907	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-990-0	01	1	0908-1211	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A)	8-97611-990-0	01	1	1212-	●	●	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-991-0	01	1	0803-0808	●
2	FOOT; ENG FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-991-0	01	1	0809-0907	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-97611-991-0	01	1	0908-1211	●	●	●
2	FOOT; ENG FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (A)	8-97611-991-0	01	1	1212-	●	●	●
20	BOLT; ENG FOOT MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M12X50	0-16956-250-0	08	1	0803-0808	●
20	BOLT; ENG FOOT MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M12X50	0-16956-250-0	08	1	0809-0906	●		●
20	BOLT; ENG FOOT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) M12X50	0-16956-250-0	08	1	0907-	●		●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0803-0808	●
20	BOLT; ENG FOOT (A) M10X30	8-97011-732-0	08	1	0809-1008	●	●	●
20	BOLT; ENG FOOT (A) M10X20 FLANGE	8-94395-721-0	08	1	1009-	●	●	●
20	BOLT; ENG FOOT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	0803-0808	●
20	BOLT; ENG FOOT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	0809-0907	●	●	●
20	BOLT; ENG FOOT FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M12X55	8-94399-884-1	08	1	0908-1311	●	●	●
20	BOLT; ENG FOOT FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M12X55	8-94399-884-1	08	1	1312-	●	●	●
44	WASHER; LK,ENG FOOT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.5	0-91614-512-0	08	1	0803-0808	●
44	WASHER; LK,ENG FOOT MZX6P M/T(RSW),MLD6W M/T(Y2C) ID=12.5	0-91614-512-0	08	1	0809-0906	●		●
44	WASHER; LK,ENG FOOT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.5	0-91614-512-0	08	1	0907-	●		●
45	BOLT; CUSHION RUBBER TO FRAME MZX6P M/T(RSW) (B) M18X65	8-94393-260-1	02	1	0803-0805	●
45	BOLT; CUSHION RUBBER TO FRAME MZX6P M/T(RSW),MLD6W M/T(Y2C) (B) M18X65	8-94393-260-1	02	1	0806-0906	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) M18X65	8-94393-260-1	02	1	0907-	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M16X60	0-10956-660-0	02	1	0803-0907	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M16X60	0-10956-660-0	02	1	0908-1211	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M16X60	0-10956-660-0	02	1	1212-	●	●	●
45	BOLT; CUSHION RUBBER TO FRAME (A) M14X50	0-29261-450-0	08	1	0803-0809	●
45	BOLT; CUSHION RUBBER TO FRAME (A) M14X50	0-29261-450-0	08	1	0810-	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR MZX6P M/T(RSW) (A)	8-98013-021-1	02	1	0803-0805	●
52	RUBBER; CUSHION,ENG MTG,RR MZX6P M/T(RSW),MLD6W M/T(Y2C) (A)	8-98013-021-1	02	1	0806-0906	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A)	8-98013-021-1	02	1	0907-	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98013-022-1	02	1	0803-0907	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98013-022-1	02	1	0908-1211	●	●	●
52	RUBBER; CUSHION,ENG MTG,RR FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B)	8-98013-022-1	02	1	1212-	●	●	●
84	WASHER; PL,ENG MTG RR TO FRAME MZX6P M/T(RSW) (A) ID=19 OD=36	0-91614-618-0	02	1	0803-0805	●
84	WASHER; PL,ENG MTG RR TO FRAME MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) ID=19 OD=36	0-91614-618-0	02	1	0806-0906	●	●	●
84	WASHER; PL,ENG MTG RR TO FRAME MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) ID=19 OD=36	0-91614-618-0	02	1	0907-	●	●	●
84	WASHER; PL,ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=17	9-09164-516-0	04	1	0803-0907	●	●	●
84	WASHER; PL,ENG MTG RR TO FRAME FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) ID=17	9-09164-516-0	04	1	0908-1211	●	●	●
84	WASHER; PL,ENG MTG RR TO FRAME FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) ID=17	9-09164-516-0	04	1	1212-	●	●	●
173	NUT; ENG MTG RR TO FRAME FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M16	0-91110-516-0	02	1	0803-0907	●	●	●
173	NUT; ENG MTG RR TO FRAME FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M16	0-91110-516-0	02	1	0908-1211	●	●	●
173	NUT; ENG MTG RR TO FRAME FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E),FULLER ES11109 DD M/T(Y5N) (B) M16	0-91110-516-0	02	1	1212-	●	●	●
173	NUT; ENG MTG RR TO FRAME (A) M14 FLANGE	0-91180-214-0	08	1	0803-0809	●
173	NUT; ENG MTG RR TO FRAME (A) M14 FLANGE	0-91180-214-0	08	1	0810-	●	●	●
