0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#67903) — 75 parça

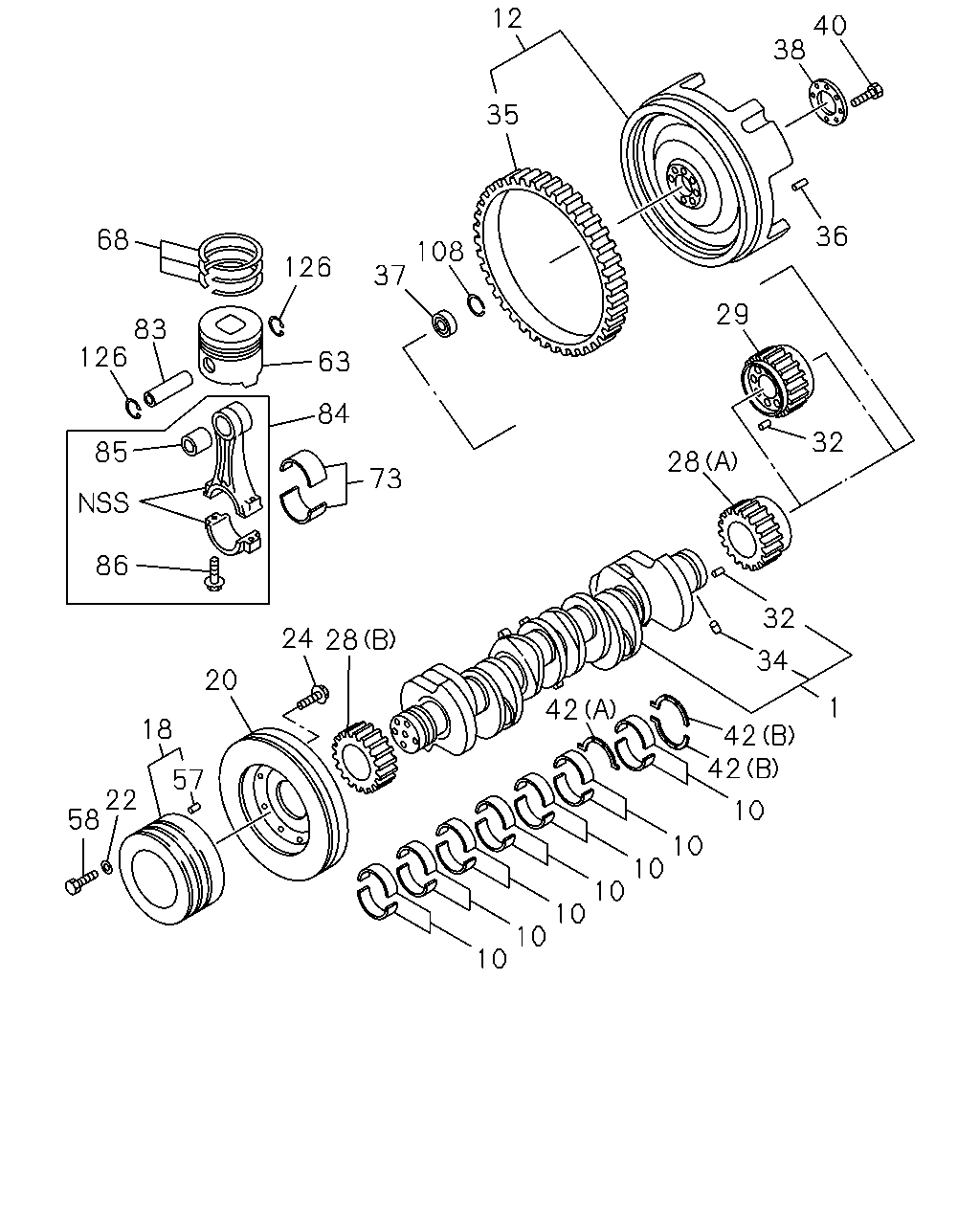

çizim 193717
40 38 36 29 32 28 32 34 1 42 42 10 10 10 10 10 10 10 28 24 20 18 57 22 58 73 84 63 126 108 12 35 37 83 68 126 85 86 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CRANKSHAFT 8-97603-004-0 01 1 0803-0808 ●
1 CRANKSHAFT 8-97603-004-0 01 1 0809- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 07 1 0803-0808 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 07 1 0809- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 07 1 0803-0808 ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 07 1 0809- ● ● ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 07 1 0803-0808 ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 07 1 0809- ● ● ●
12 FLYWHEEL 8-97602-463-0 01 1 0803-0808 ●
12 FLYWHEEL 8-97602-463-2 01 1 0809- ● ● ●
18 PULLEY; CR/SHF
3-GROOVE 		8-97606-944-0 01 1 0803-0808 ●
18 PULLEY; CR/SHF
3-GROOVE 		8-97606-944-0 01 1 0809- ● ● ●
20 DAMPER; CR/SHF 8-94392-276-2 01 1 0803-0808 ●
20 DAMPER; CR/SHF 8-97613-696-0 01 1 0809-1004 ●
20 DAMPER; CR/SHF 8-97613-696-1 01 1 1005- ● ● ●
20 DAMPER; CR/SHF 8-94392-276-2 01 1 0809-1004 ● ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0803-0808 ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 0809- ● ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28151-016-0 06 1 0803-0808 ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28151-016-0 06 1 0809- ● ● ●
28 GEAR; CR/SHF
(A) Z=42 		8-94392-255-1 01 1 0803-0808 ●
28 GEAR; CR/SHF
(A) Z=42 		8-94392-255-1 01 1 0809- ● ● ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 0803-0808 ●
28 GEAR; CR/SHF
(B) Z=41 		8-94396-954-2 01 1 0809- ● ● ●
29 GEAR; CR/SHF,PTO
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> Z=42 		8-98011-443-1 01 1 0803- ●
32 PIN; FLYWHEEL
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> OD=8 L=16 		9-08150-816-0 01 1 0803- ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 0803-0808 ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 0809- ● ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0803-0808 ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0809- ● ● ●
35 GEAR; RING
Z=140 		8-94396-784-0 01 1 0803-0808 ●
35 GEAR; RING
Z=140 		8-94396-784-1 01 1 0809- ● ● ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0803-0808 ●
36 PIN; FLYWHEEL
OD=10 L=22 		9-08151-022-0 02 1 0809- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 0803-0808 ●
37 BEARING; PILOT,TOP GEAR SHAFT 8-94392-288-0 01 1 0809- ● ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS 		1-87610-157-0 01 1 0810- ● ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0803-0808 ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0809- ● ● ●
40 BOLT; FLYWHEEL
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16X119 		8-94393-071-2 08 1 0803- ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16X62 		8-94393-070-2 08 1 0803-0808 ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16X62 		8-94393-070-2 08 1 0809-0910 ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 0809-0910 ● ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16X62 		8-94393-070-2 08 1 0911-1101 ●
40 BOLT; FLYWHEEL
EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M16X62 		8-94393-070-2 08 1 1102- ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-2 08 1 1102- ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0803-0808 ●
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0809- ● ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0803-0808 ●
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0809- ● ● ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 0803-0808 ●
57 PIN; PULLEY
OD=8 L=16 		8-94391-156-0 01 1 0809- ● ● ●
58 BOLT; CR/SHF PULLEY
M16X50 		0-20951-650-0 04 1 0803-0808 ●
58 BOLT; CR/SHF PULLEY
M16X50 		0-20951-650-0 04 1 0809- ● ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98041-141-0 06 1 0803-0808 ●
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98041-141-2 06 1 0809- ● ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-98040-125-0 06 1 0803-0808 ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-98040-125-0 06 1 0809- ● ● ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-97616-358-0 06 1 0803-0808 ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-97616-358-0 06 1 0809- ● ● ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97616-359-0 06 1 0803-0808 ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97616-359-0 06 1 0809- ● ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-98018-863-1 06 1 0803-0808 ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-98018-863-1 06 1 0809- ● ● ●
84 ROD ASM; CONN 8-98018-425-0 06 1 0803-0808 ●
84 ROD ASM; CONN 8-98018-425-3 06 1 0809- ● ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-0 06 1 0803-0808 ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 06 1 0809- ● ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0803-0808 ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 0809-1004 ● ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 12 1 1005- ● ● ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0803-0808 ●
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0809- ● ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7 		8-98006-828-0 12 1 0803-0808 ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7 		8-98006-828-0 12 1 0809- ● ● ●
