Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#67901) — 212 parça

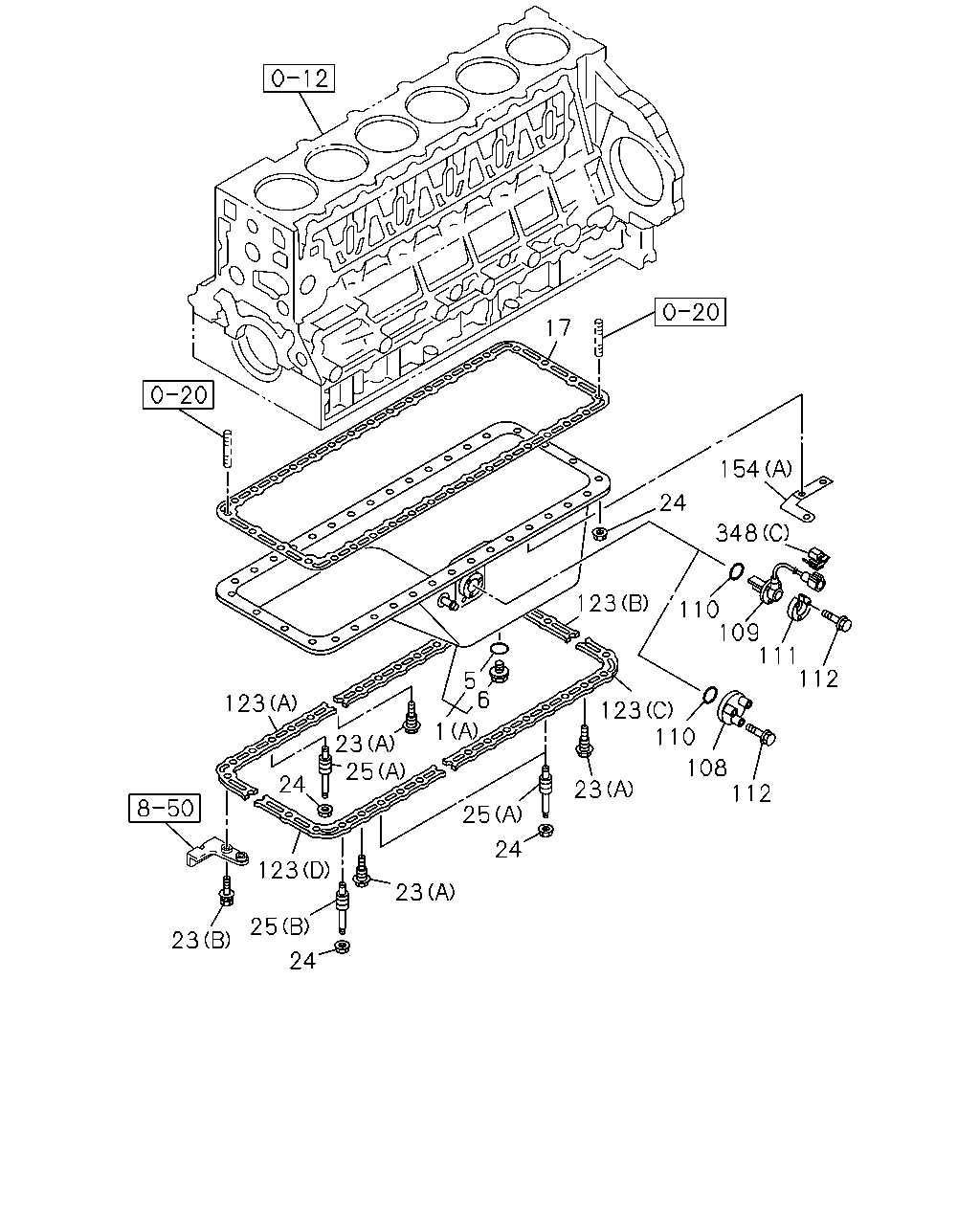

123 23 25 123 24 24 23 25 23 1 5 6 25 24 23 123 123 24 154 348 110 109 111 112 112 108 110 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98252-601-0	01	1	1403-	●	●
1	PAN ASM; OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-98061-363-0	01	1	0909-0910	●	●
1	PAN ASM; OIL (A)	8-97602-326-2	01	1	0809-0809	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-97602-326-2	01	1	0810-0908	●	●
1	PAN ASM; OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A)	8-97602-326-2	01	1	0909-0910	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-97602-326-2	01	1	0909-0910	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-97602-326-2	01	1	0911-1010	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98179-005-0	01	1	1011-	●	●
1	PAN ASM; OIL ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98021-317-0	01	1	0803-			●
1	PAN ASM; OIL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98061-544-0	01	1	0803-0809			●
1	PAN ASM; OIL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98061-544-0	01	1	0810-1402			●
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> (A)	8-98061-544-0	01	1	0810-1402	●	●
1	PAN ASM; OIL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98061-544-0	01	1	1403-			●
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98061-544-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=24.5	8-94399-398-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0803-0808			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0809-0908	●	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	0909-0910			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) ID=24.4	1-09623-057-0	01	1	0909-0910	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	0909-0910	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=24.4	1-09623-057-0	01	1	0909-0910		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0911-1402	●	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	1403-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=24.4	1-09623-057-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=24.5	8-94399-398-0	01	1	0909-0910	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=24.5	8-94399-398-0	01	1	0911-	●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0803-0808			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0809-0908	●	●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1312-	●	●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0909-	●	●	●
17	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E)	8-94390-617-0	01	1	0909-0910	●	●
23	BOLT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0909-0910	●	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0803-0808			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0809-0908	●	●	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910			●
23	BOLT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910	●	●
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910	●	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0911-	●	●	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0803-0808			●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0809-0908	●	●	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910			●
23	BOLT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910	●	●
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910	●	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0911-	●	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0909-0910			●
24	NUT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M8 FLANGE	0-91180-108-0	04	1	0909-0910	●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	04	1	0909-0910	●	●
24	NUT; OIL PAN EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	0909-0910	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0803-0808			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0809-0908	●	●	●
24	NUT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	12	1	0909-0910	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0911-	●	●	●
25	STUD; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	0909-0910	●	●
25	STUD; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	01	1	0909-0910	●	●
108	COVER; OIL PAN EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97609-994-0	01	1	1102-1402	●	●
108	COVER; OIL PAN	8-97609-994-0	01	1	0809-0809	●	●
108	COVER; OIL PAN EURO2 SPECIFICATION<NT2>	8-97609-994-0	01	1	0810-0908	●	●
108	COVER; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-97609-994-0	01	1	0909-0910	●	●
108	COVER; OIL PAN EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7)	8-97609-994-0	01	1	0909-0910	●	●
108	COVER; OIL PAN EURO2 SPECIFICATION<NT2>	8-97609-994-0	01	1	0911-1010	●	●
109	SWITCH; OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97601-121-0	01	1	0803-0809			●
109	SWITCH; OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97601-121-0	01	1	0810-1101			●
109	SWITCH; OIL LEVEL EURO3 SPECIFICATION<NT3>	8-97601-121-0	01	1	0810-1101	●	●
109	SWITCH; OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97601-121-0	01	1	1102-			●
109	SWITCH; OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97601-121-0	01	1	1102-	●	●
110	GASKET; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27	8-98056-488-0	01	1	0803-0808			●
110	GASKET; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27	8-98056-488-0	01	1	0809-0908			●
110	GASKET; SW,OIL LEVEL ID=27	8-98056-488-0	01	1	0809-0908	●	●
110	GASKET; SW,OIL LEVEL EXC. FIRE TRUCK CHASSIS(V4F) ID=27	8-98056-488-0	01	1	0909-1010			●
110	GASKET; SW,OIL LEVEL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=27	8-98056-488-0	01	1	0909-1010	●	●
110	GASKET; SW,OIL LEVEL EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) ID=27	8-98056-488-0	01	1	0909-1010	●	●
110	GASKET; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> ID=27	8-98056-488-0	01	1	0909-1010	●	●
110	GASKET; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27	8-98056-488-0	01	1	1011-1402			●
110	GASKET; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> ID=27	8-98056-488-0	01	1	1011-1402	●	●
110	GASKET; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27	8-98056-488-0	01	1	1403-			●
110	GASKET; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=27	8-98056-488-0	01	1	1403-	●	●
111	SPACER; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	5-11369-072-0	01	1	0803-0809			●
111	SPACER; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	5-11369-072-0	01	1	0810-1101			●
111	SPACER; SW,OIL LEVEL EURO3 SPECIFICATION<NT3>	5-11369-072-0	01	1	0810-1101	●	●
111	SPACER; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	5-11369-072-0	01	1	1102-			●
111	SPACER; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	5-11369-072-0	01	1	1102-	●	●
112	BOLT; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6X25 FLANGE	0-28050-625-0	03	1	0803-0808			●
112	BOLT; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6X25 FLANGE	0-28050-625-0	03	1	0809-0908			●
112	BOLT; SW,OIL LEVEL M6X25 FLANGE	0-28050-625-0	03	1	0809-0908	●	●
112	BOLT; SW,OIL LEVEL EXC. FIRE TRUCK CHASSIS(V4F) M6X25 FLANGE	0-28050-625-0	03	1	0909-1010			●
112	BOLT; SW,OIL LEVEL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M6X25 FLANGE	0-28050-625-0	03	1	0909-1010	●	●
112	BOLT; SW,OIL LEVEL EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) M6X25 FLANGE	0-28050-625-0	03	1	0909-1010	●	●
112	BOLT; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> M6X25 FLANGE	0-28050-625-0	03	1	0909-1010	●	●
112	BOLT; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6X25 FLANGE	0-28050-625-0	03	1	1011-1402			●
112	BOLT; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> M6X25 FLANGE	0-28050-625-0	03	1	1011-1402	●	●
112	BOLT; SW,OIL LEVEL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> M6X25 FLANGE	0-28050-625-0	03	1	1403-			●
112	BOLT; SW,OIL LEVEL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M6X25 FLANGE	0-28050-625-0	03	1	1403-	●	●
123	RUBBER; SEAL OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-94391-755-0	01	1	0909-0910	●	●
123	RUBBER; SEAL OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-94391-757-0	01	1	0909-0910	●	●
123	RUBBER; SEAL OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-94391-758-0	01	1	0909-0910	●	●
123	RUBBER; SEAL OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D)	8-94392-548-0	01	1	0909-0910	●	●
154	BRACKET; CLIP,ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97600-762-0	01	1	0803-0803			●
154	BRACKET; CLIP,ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97600-763-0	01	1	0803-0803			●
154	BRACKET; CLIP,ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97600-763-0	02	1	0804-			●
154	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98064-103-0	01	1	0803-0809			●
154	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98064-103-0	01	1	0810-1101			●
154	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	8-98064-103-0	01	1	0810-1101	●	●
154	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98064-103-0	01	1	1102-			●
154	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98064-103-0	01	1	1102-	●	●
348	CONNECTOR ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) OD=58	8-97049-549-0	01	1	0803-			●
348	CONNECTOR ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97603-024-0	01	1	0803-			●
348	CONNECTOR EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) OD=9 H=6	1-09709-178-0	01	1	0803-0809			●
348	CONNECTOR EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) OD=9 H=6	1-09709-178-0	01	1	0810-1101			●
348	CONNECTOR EURO3 SPECIFICATION<NT3> (C) OD=9 H=6	1-09709-178-0	01	1	0810-1101	●	●
348	CONNECTOR EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) OD=9 H=6	1-09709-178-0	01	1	1102-			●
348	CONNECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) OD=9 H=6	1-09709-178-0	01	1	1102-	●	●

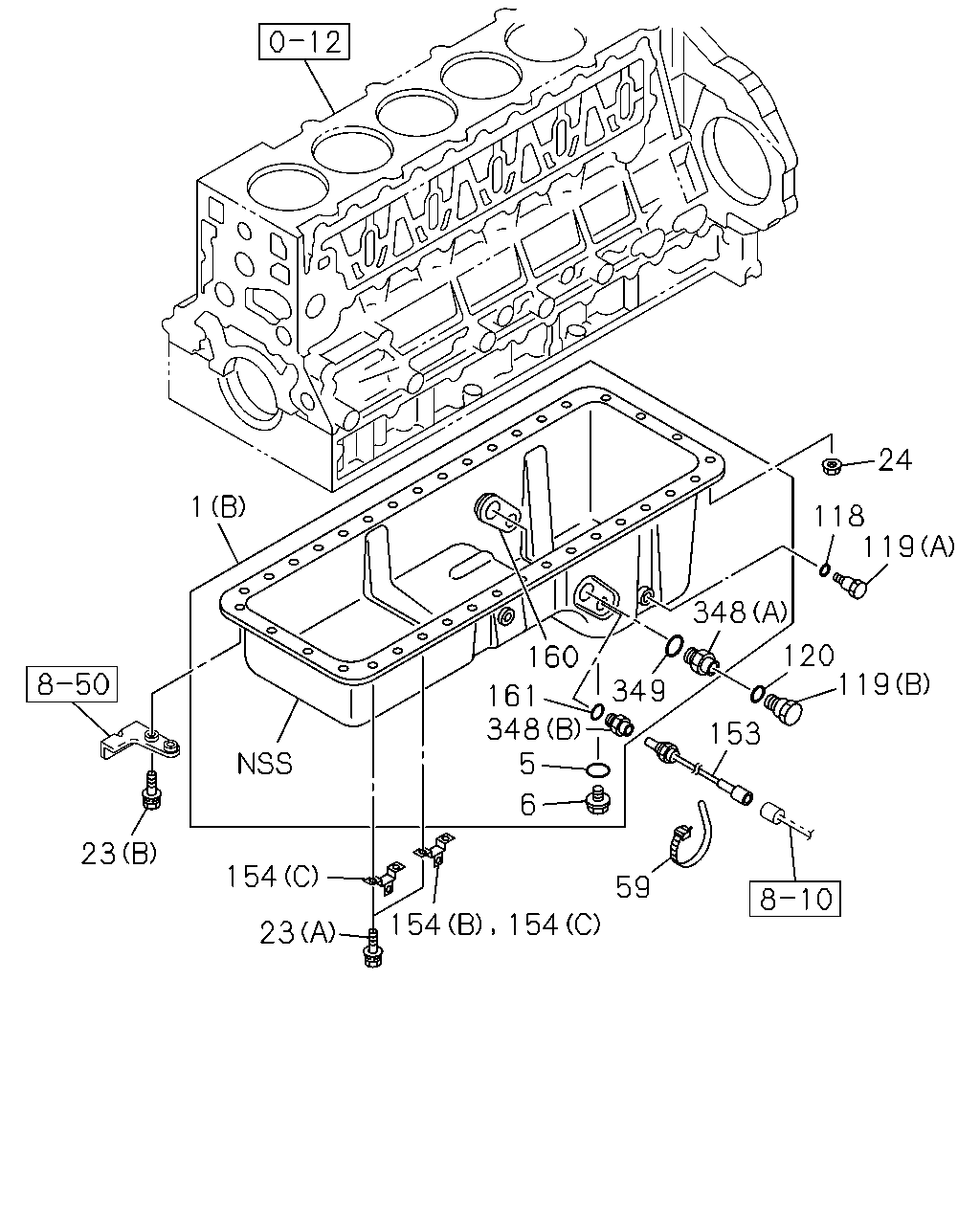

1 23 154 23 154 154 6 5 348 161 160 349 153 348 120 119 119 118 24 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-98252-601-0	01	1	1403-	●	●
1	PAN ASM; OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-98061-363-0	01	1	0909-0910	●	●
1	PAN ASM; OIL (A)	8-97602-326-2	01	1	0809-0809	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-97602-326-2	01	1	0810-0908	●	●
1	PAN ASM; OIL COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A)	8-97602-326-2	01	1	0909-0910	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) (A)	8-97602-326-2	01	1	0909-0910	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-97602-326-2	01	1	0911-1010	●	●
1	PAN ASM; OIL EURO2 SPECIFICATION<NT2> (A)	8-98179-005-0	01	1	1011-	●	●
1	PAN ASM; OIL ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-98021-317-0	01	1	0803-			●
1	PAN ASM; OIL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98061-544-0	01	1	0803-0809			●
1	PAN ASM; OIL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98061-544-0	01	1	0810-1402			●
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> (A)	8-98061-544-0	01	1	0810-1402	●	●
1	PAN ASM; OIL EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98061-544-0	01	1	1403-			●
1	PAN ASM; OIL EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98061-544-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=24.5	8-94399-398-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0803-0808			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0809-0908	●	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	0909-0910			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) ID=24.4	1-09623-057-0	01	1	0909-0910	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> ID=24.4	1-09623-057-0	01	1	0909-0910	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=24.4	1-09623-057-0	01	1	0909-0910		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	0911-1402	●	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-057-0	01	1	1403-			●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=24.4	1-09623-057-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1403-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=24.5	8-94399-398-0	01	1	0909-0910	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=24.5	8-94399-398-0	01	1	0911-	●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0803-0808			●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0809-0908	●	●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	1312-	●	●	●
6	PLUG; OIL DRAIN M20X16.5	9-09662-012-0	01	1	0909-	●	●	●
23	BOLT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97087-634-0	22	1	0909-0910	●	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0803-0808			●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0809-0908	●	●	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910			●
23	BOLT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910	●	●
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> (A) M8X18 FLANGE	0-28080-818-0	28	1	0909-0910	●	●
23	BOLT; OIL PAN (A) M8X18 FLANGE	0-28080-818-0	28	1	0911-	●	●	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0803-0808			●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0809-0908	●	●	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910			●
23	BOLT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910	●	●
23	BOLT; OIL PAN EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910	●	●
23	BOLT; OIL PAN EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-97329-626-0	02	1	0909-0910	●	●
23	BOLT; OIL PAN (B) M8X28 FLANGE	8-97329-626-0	02	1	0911-	●	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0909-0910			●
24	NUT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M8 FLANGE	0-91180-108-0	04	1	0909-0910	●	●
24	NUT; OIL PAN EURO2 SPECIFICATION<NT2> EXC. COLOMBIA EQUIPMENT(CB7) M8 FLANGE	0-91180-108-0	04	1	0909-0910	●	●
24	NUT; OIL PAN EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	04	1	0909-0910	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0803-0808			●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0809-0908	●	●	●
24	NUT; OIL PAN COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION<NT2> FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	12	1	0909-0910	●	●
24	NUT; OIL PAN M8 FLANGE	0-91180-108-0	04	1	0911-	●	●	●
59	CLIP; HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=180	1-09707-162-1	01	1	0803-0803			●
59	CLIP; HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=140	5-09707-031-1	01	1	0804-1205			●
59	CLIP; HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> L=140	8-98216-431-0	01	1	1206-			●
118	GASKET; PLUG,OIL HTR ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=16.2 OD=24	9-09571-416-0	01	1	0803-			●
119	PLUG; OIL HTR BLIND ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	5-09600-009-0	01	1	0803-			●
119	PLUG; OIL HTR BLIND ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	5-09600-010-0	01	1	0803-			●
120	GASKET; PLUG,OIL HTR BLIND ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=36.5 OD=44	9-09571-436-0	01	1	0803-			●
153	THERMOMETER UNIT; OIL ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-97114-383-0	01	1	0803-			●
154	BRACKET; CLIP,ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97600-762-0	01	1	0803-0803			●
154	BRACKET; CLIP,ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97600-763-0	01	1	0803-0803			●
154	BRACKET; CLIP,ENG HARNESS ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C)	8-97600-763-0	02	1	0804-			●
154	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98064-103-0	01	1	0803-0809			●
154	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98064-103-0	01	1	0810-1101			●
154	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	8-98064-103-0	01	1	0810-1101	●	●
154	BRACKET; CLIP,ENG HARNESS EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A)	8-98064-103-0	01	1	1102-			●
154	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98064-103-0	01	1	1102-	●	●
160	ADAPTER ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW>	8-98024-556-0	01	1	0803-			●
161	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=27.7	1-09623-450-0	01	1	0803-			●
348	CONNECTOR ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (A) OD=58	8-97049-549-0	01	1	0803-			●
348	CONNECTOR ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B)	8-97603-024-0	01	1	0803-			●
348	CONNECTOR EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) OD=9 H=6	1-09709-178-0	01	1	0803-0809			●
348	CONNECTOR EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) OD=9 H=6	1-09709-178-0	01	1	0810-1101			●
348	CONNECTOR EURO3 SPECIFICATION<NT3> (C) OD=9 H=6	1-09709-178-0	01	1	0810-1101	●	●
348	CONNECTOR EXC. ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (C) OD=9 H=6	1-09709-178-0	01	1	1102-			●
348	CONNECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) OD=9 H=6	1-09709-178-0	01	1	1102-	●	●
349	GASKET; CONNECTOR ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> ID=47.7	1-09623-465-0	01	1	0803-			●

9 9 8 10 193 192 193 49 10 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	GAUGE; OIL LEVEL	8-98092-600-0	01	1	0803-0809			●
2	GAUGE; OIL LEVEL	8-98092-600-0	01	1	0810-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	0803-0808			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98063-554-0	01	1	0809-	●	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	0803-0809			●
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98084-773-0	01	1	0810-	●	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0803-0808			●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0809-	●	●	●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	0803-0808			●
10	BOLT; GUIDE TUBE (A) M10X35 FLANGE	0-28151-035-0	01	1	0809-	●	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-0809			●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-	●	●	●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	01	1	0803-0809			●
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	01	1	0810-	●	●	●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	0803-0809			●
192	HOSE; GUIDE TUBE L=463	8-98054-844-1	01	1	0810-	●	●	●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0803-0809			●
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	0810-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
