0-12 — CYLINDER BLOCK (#67900) — 189 parça

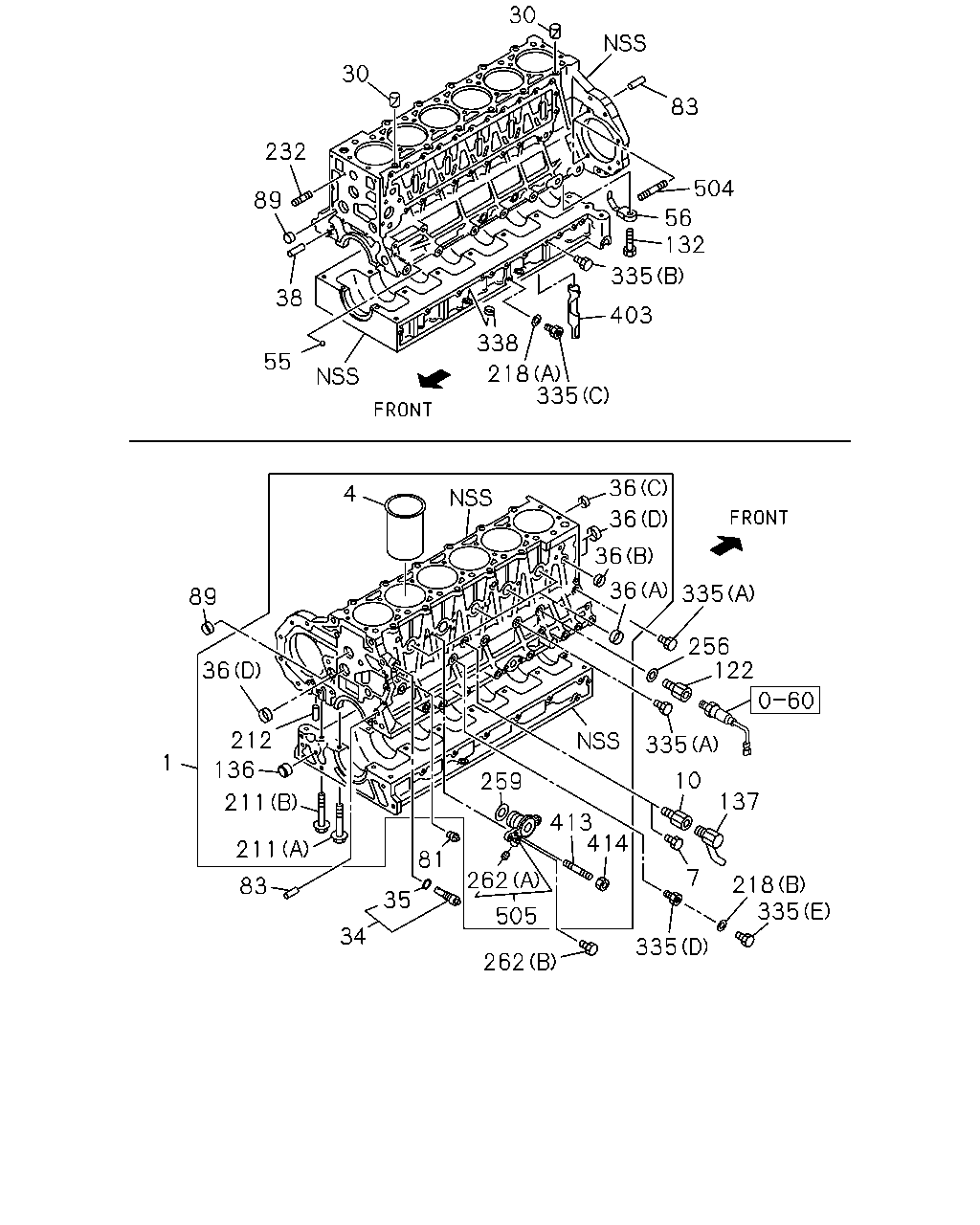

çizim 193709
335 256 122 335 10 137 7 218 335 335 36 36 36 36 259 413 414 262 505 262 81 35 34 83 211 211 136 1 89 36 4 232 89 38 55 338 218 335 403 335 132 56 504 83 30 30 212
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL 8-97618-663-1 01 1 0809-0809 ● ●
1 BLOCK ASM; CYL
EURO2 SPECIFICATION<NT2> 		8-97618-663-3 01 1 0810-1209 ● ●
1 BLOCK ASM; CYL
EURO2 SPECIFICATION<NT2> 		8-98206-966-0 01 1 1210- ● ●
1 BLOCK ASM; CYL 8-97618-664-0 01 1 0803-0809 ●
1 BLOCK ASM; CYL 8-97618-664-3 01 1 0810-1209 ●
1 BLOCK ASM; CYL
EURO3 SPECIFICATION<NT3> 		8-97618-664-3 01 1 0810-1209 ● ●
1 BLOCK ASM; CYL 8-98206-967-0 01 1 1210- ●
1 BLOCK ASM; CYL
EURO3 SPECIFICATION<NT3> 		8-98206-967-0 01 1 1210- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. 		8-98014-046-1 06 1 1102- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1102- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. 		8-98014-047-1 06 1 1102- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1102- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-0 06 1 0803-0808 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 0809-1101 ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2> OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1102- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-0 06 1 0803-0808 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 0809-1101 ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2> OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1102- ● ●
7 PLUG; WATER DRAIN
EURO2 SPECIFICATION<NT2> M14X16.5 		8-97329-617-0 01 1 1101-1101 ● ●
7 PLUG; WATER DRAIN
EURO2 SPECIFICATION<NT2> M14X16.5 		8-97329-617-0 01 1 1102- ● ●
7 PLUG; WATER DRAIN
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M14X16.5 		8-97329-617-0 01 1 1102- ● ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 0803-0808 ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 0809-1012 ● ● ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 1101-1101 ●
10 CONNECTOR; WATER DRAIN
EURO3 SPECIFICATION<NT3> 		8-94396-378-0 01 1 1101-1101 ● ●
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 1102- ●
10 CONNECTOR; WATER DRAIN
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-94396-378-0 01 1 1102- ● ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0803-0808 ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0809- ● ● ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0803-0808 ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0809- ● ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0803-0808 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0809- ● ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 1102- ●
36 CUP; SEALING,WATER JACKET
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) OD=45 		1-09600-005-2 04 1 1102- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 1102- ●
36 CUP; SEALING,WATER JACKET
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) OD=25 		1-09600-016-0 01 1 1102- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 1102- ●
36 CUP; SEALING,WATER JACKET
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (C) OD=25 		8-94399-005-0 01 1 1102- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 1102- ●
36 CUP; SEALING,WATER JACKET
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (D) OD=40 		8-97096-824-0 04 1 1102- ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0803-0808 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0809-1101 ● ● ●
36 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<NT2> (A) OD=45 		1-09600-005-2 04 1 1102- ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0803-0808 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0809-1101 ● ● ●
36 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<NT2> (B) OD=25 		1-09600-016-0 01 1 1102- ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 0803-0808 ●
36 CUP; SEALING,WATER JACKET
(C) OD=25 		8-94399-005-0 01 1 0809-1101 ● ● ●
36 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<NT2> (C) OD=25 		8-94399-005-0 01 1 1102- ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 0803-0808 ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		8-97096-824-0 04 1 0809-1101 ● ● ●
36 CUP; SEALING,WATER JACKET
EURO2 SPECIFICATION<NT2> (D) OD=40 		8-97096-824-0 04 1 1102- ● ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 0803-0808 ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 0809- ● ● ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 0803-0808 ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 01 1 0809- ● ● ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 06 1 0803-0808 ●
56 JET; OIL,PISTON COOLING 8-98020-649-0 06 1 0809-1007 ● ● ●
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1008- ● ● ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 0803-0808 ●
81 PLUG; WATER JACKET
PT3/8 		8-94397-338-0 01 1 0809- ● ● ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0803-0808 ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0809- ● ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0803-0808 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0809-0908 ● ● ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0909- ● ● ●
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 0803-0808 ●
122 ADAPTER; OIL PRESSURE SWITCH 8-97603-667-0 01 1 0809- ● ● ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 0803-0808 ●
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 0809- ● ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1102- ●
136 BUSHING; DRIVE SHAFT,OIL PUMP
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> 		8-98091-566-0 02 1 1102- ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0803-0808 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0809-0812 ● ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901-1101 ● ● ●
136 BUSHING; DRIVE SHAFT,OIL PUMP
EURO2 SPECIFICATION<NT2> 		8-98091-566-0 02 1 1102- ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 0803-0808 ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 0809-1012 ● ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 1101-1101 ●
137 COCK; DRAIN,WATER
EURO3 SPECIFICATION<NT3> 		8-94393-716-1 01 1 1101-1101 ● ●
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 1102- ●
137 COCK; DRAIN,WATER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-94393-716-1 01 1 1102- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 1102- ●
211 BOLT; CRANKCASE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (B) M10X82 		8-94399-553-2 25 1 1102- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 1102- ●
211 BOLT; CRANKCASE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> (A) M14X115 W/FLANGE 		8-97077-638-0 14 1 1102- ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0803-0808 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0809-0905 ● ● ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 0906-1101 ● ● ●
211 BOLT; CRANKCASE
EURO2 SPECIFICATION<NT2> (A) M14X115 W/FLANGE 		8-97077-638-0 14 1 1102- ● ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0803-0808 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0809-1101 ● ● ●
211 BOLT; CRANKCASE
EURO2 SPECIFICATION<NT2> (B) M10X82 		8-94399-553-2 25 1 1102- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 1102- ●
212 PIN; CRANKCASE
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> OD=10 L=20 		8-97135-423-0 02 1 1102- ● ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0803-0808 ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0809-1101 ● ● ●
212 PIN; CRANKCASE
EURO2 SPECIFICATION<NT2> OD=10 L=20 		8-97135-423-0 02 1 1102- ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (B) ID=10.2 OD=16.0 		9-09571-410-0 01 1 0803- ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 01 1 0803-0808 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 01 1 0809-1312 ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		8-98251-344-0 01 1 1401- ● ● ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0803-0808 ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0809- ● ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0803-0808 ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0809- ● ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-184-0 01 1 1102- ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> ID=38.7 		1-09623-184-0 01 1 1102- ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0803-0808 ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0809-1101 ● ● ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2> ID=38.7 		1-09623-184-0 01 1 1102- ● ●
262 PLUG; ADAPTER
(A) 		1-13163-002-0 01 1 1101- ●
262 PLUG; ADAPTER
EURO3 SPECIFICATION<NT3> (A) 		1-13163-002-0 01 1 1101- ● ●
262 PLUG; ADAPTER
(B) M14 		8-94399-225-0 01 1 1101-1101 ●
262 PLUG; ADAPTER
EURO3 SPECIFICATION<NT3> (B) M14 		8-94399-225-0 01 1 1101-1101 ● ●
262 PLUG; ADAPTER
(B) M14 		8-94399-225-0 01 1 1102- ●
262 PLUG; ADAPTER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M14 		8-94399-225-0 01 1 1102- ● ●
262 PLUG; ADAPTER
(A) M14X14 		9-09862-156-0 01 1 0809-0809 ● ●
262 PLUG; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M14X14 		9-09862-156-0 01 1 0810-1101 ● ●
262 PLUG; ADAPTER
EURO2 SPECIFICATION<NT2> (A) M14X14 		9-09862-156-0 01 1 1102- ● ●
262 PLUG; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M14X14 		9-09862-156-0 01 1 1102- ● ●
335 PLUG; C/BL,SIDE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (D) M14 M10 		8-94396-547-0 01 1 0803- ●
335 PLUG; C/BL,SIDE
ENGINE REAR PTO ELECTROMAGNETIC CLUTCH<BHW> (E) M10X7 		9-09202-310-0 01 1 0803- ●
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 0803-0808 ●
335 PLUG; C/BL,SIDE
(C) M12X10 		5-13265-001-0 01 1 0809- ● ● ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 0803-0808 ●
335 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 0809- ● ● ●
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 0803-0808 ●
335 PLUG; C/BL,SIDE
(B) M8X10 		8-98003-416-0 01 1 0809- ● ● ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0803-0808 ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0809- ● ● ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0803-0808 ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0809- ● ● ●
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 1102- ●
413 STUD; ADAPTER
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8X30 L=41 		0-41010-830-0 02 1 1102- ● ●
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 0803-1101 ● ● ●
413 STUD; ADAPTER
EURO2 SPECIFICATION<NT2> M8X30 L=41 		0-41010-830-0 02 1 1102- ● ●
414 NUT; ADAPTER
M8 FLANGE 		0-91180-208-0 02 1 1102- ●
414 NUT; ADAPTER
EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> M8 FLANGE 		0-91180-208-0 02 1 1102- ● ●
414 NUT; ADAPTER
M8 FLANGE 		0-91180-208-0 02 1 0803-1101 ● ● ●
414 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		0-91180-208-0 02 1 1102- ● ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0803-0808 ●
504 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0809- ● ● ●
505 ADAPTER; WATER FEED
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97611-854-0 01 1 1102- ● ●
505 ADAPTER; WATER FEED 8-97611-854-0 01 1 0809-0809 ● ●
505 ADAPTER; WATER FEED
EURO2 SPECIFICATION<NT2> 		8-97611-854-0 01 1 0810- ● ●
505 ADAPTER; WATER FEED 8-97607-409-0 01 1 0803-0809 ●
505 ADAPTER; WATER FEED 8-97607-409-0 01 1 0810-1012 ●
505 ADAPTER; WATER FEED
EURO3 SPECIFICATION<NT3> 		8-97607-409-0 01 1 0810-1012 ● ●
505 ADAPTER; WATER FEED 8-98145-412-1 01 1 1101- ●
505 ADAPTER; WATER FEED
EURO3 SPECIFICATION<NT3> 		8-98145-412-1 01 1 1101- ● ●

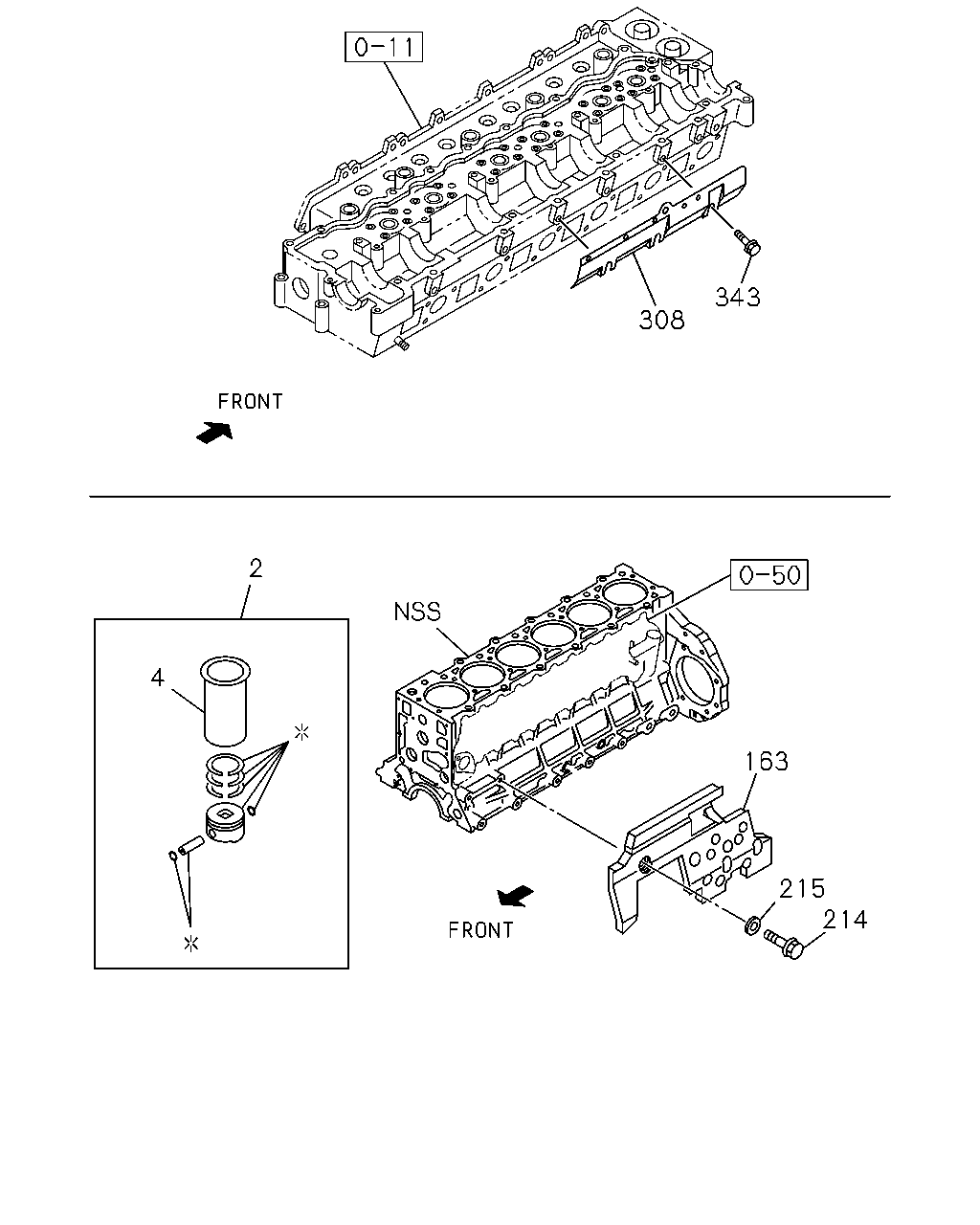

çizim 193713
343 308 163 215 214 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-1 06 1 0803-0808 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 06 1 0809- ● ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-1 06 1 0803-0808 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 06 1 0809- ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. 		8-98014-046-1 06 1 1102- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1102- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. 		8-98014-047-1 06 1 1102- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NT3>,EURO4 SPECIFICATION<NT4> OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1102- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-0 06 1 0803-0808 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 0809-1101 ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2> OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 06 1 1102- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-0 06 1 0803-0808 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 0809-1101 ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. EURO2 SPECIFICATION<NT2> OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 06 1 1102- ● ●
163 COVER ASM; C/BL SKIRT 8-97601-248-0 01 1 0803-0809 ●
163 COVER ASM; C/BL SKIRT 8-97601-248-0 01 1 0810-1101 ●
163 COVER ASM; C/BL SKIRT
EURO3 SPECIFICATION<NT3> 		8-97601-248-0 01 1 0810-1101 ● ●
163 COVER ASM; C/BL SKIRT 8-97601-248-0 01 1 1102- ●
163 COVER ASM; C/BL SKIRT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97601-248-0 01 1 1102- ● ●
214 BOLT; NOISE COVER
M10X16 FLANGE 		0-28151-016-0 03 1 0803-0809 ●
214 BOLT; NOISE COVER
M10X16 FLANGE 		0-28151-016-0 03 1 0810-1101 ●
214 BOLT; NOISE COVER
EURO3 SPECIFICATION<NT3> M10X16 FLANGE 		0-28151-016-0 03 1 0810-1101 ● ●
214 BOLT; NOISE COVER
M10X16 FLANGE 		0-28151-016-0 03 1 1102- ●
214 BOLT; NOISE COVER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M10X16 FLANGE 		0-28151-016-0 03 1 1102- ● ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		0-91614-810-0 02 1 0803-0809 ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		0-91614-810-0 02 1 0810-1101 ●
215 WASHER; PL,NOISE COVER
EURO3 SPECIFICATION<NT3> ID=10.5 OD=32 		0-91614-810-0 02 1 0810-1101 ● ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		0-91614-810-0 02 1 1102- ●
215 WASHER; PL,NOISE COVER
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=32 		0-91614-810-0 02 1 1102- ● ●
308 PROTECTOR; HEAT,HD COVER 8-94390-997-0 01 1 0809-0809 ● ●
308 PROTECTOR; HEAT,HD COVER
EURO2 SPECIFICATION<NT2> 		8-94390-997-0 01 1 0810-1101 ● ●
308 PROTECTOR; HEAT,HD COVER
EURO2 SPECIFICATION<NT2> 		8-94390-997-0 01 1 1102- ● ●
308 PROTECTOR; HEAT,HD COVER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-94390-997-0 01 1 1102- ● ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 03 1 0809-0809 ● ●
343 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> M8X12 FLANGE 		0-28050-812-0 03 1 0810-1101 ● ●
343 BOLT; HEAT PROTECTOR
EURO2 SPECIFICATION<NT2> M8X12 FLANGE 		0-28050-812-0 03 1 1102- ● ●
343 BOLT; HEAT PROTECTOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X12 FLANGE 		0-28050-812-0 03 1 1102- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
