0-11 — CYLINDER HEAD (#679) — 127 parça

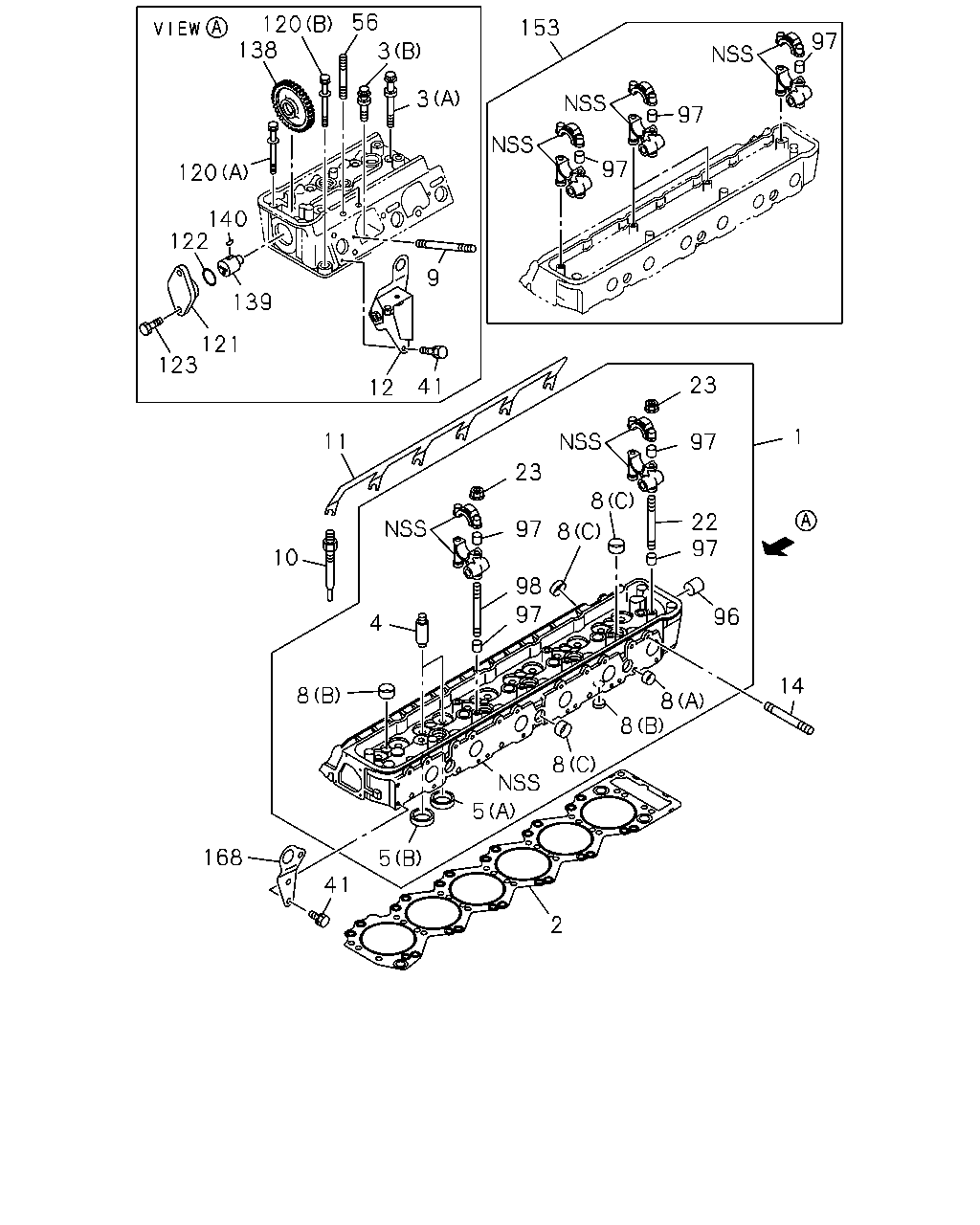

çizim 26938
56 120 138 153 97 3 3 97 97 120 140 122 9 139 121 123 23 41 12 1 11 97 23 8 22 97 97 8 10 98 97 96 4 14 8 8 8 8 5 168 5 41 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-699-1 01 1 9204- ●
1 HEAD ASM; CYL 1-11110-704-1 01 1 9204- ●
1 HEAD ASM; CYL 8-94394-918-4 01 1 9505- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-161-0 01 1 9204- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-220-0 01 1 9204- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-334-0 01 1 9505- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9204- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9204- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9505- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9204- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9505- ●
5 SEAT; VLV INSERT
(B) 		1-11715-046-0 06 1 9204- ●
5 SEAT; VLV INSERT
(A) ID=40 		1-11711-041-0 06 1 9204-9210 ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 9211- ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-070-0 06 1 9204- ●
5 SEAT; VLV INSERT
(B) 		8-94396-171-0 06 1 9505- ●
5 SEAT; VLV INSERT
(A) 		8-94396-172-0 06 1 9505- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9204- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9204- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9204- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9505- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9505- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9505- ●
9 STUD; INL MANIF
M8X50 L=62 		9-04110-850-0 02 1 9204- ●
9 STUD; INL MANIF
M8X85 L=100 		9-09830-177-0 04 1 9204-9504 ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 9204-9504 ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 9505- ● ●
9 STUD; INL MANIF
M8X161 		9-09830-150-0 01 1 9204- ●
10 PLUG; GLOW 9-82513-928-8 06 1 9204- ● ● ●
11 CONNECTOR; GLOW PLUG 1-19732-011-0 01 1 9204- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9505- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9505- ●
12 HANGER; ENG,RR 1-11777-099-0 01 1 9204- ● ●
12 HANGER; ENG,RR 8-94399-405-0 01 1 9505- ●
14 STUD; EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X104 L=119 		1-09302-104-1 07 1 9204- ● ●
14 STUD; EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X135 M10X135 L=150 		1-09302-159-0 05 1 9204- ● ●
14 STUD; EXH MANIF
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X104 L=119 		1-09302-104-1 12 1 9204- ● ●
14 STUD; EXH MANIF
M10X93 L=108 		8-94396-123-0 10 1 9505- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9505- ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 9204- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9204- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9505- ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50051-020-0 05 1 9204- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9505- ●
41 BOLT; ENG HANGER
(B) M12X22 FLANGE 		0-28181-222-0 01 1 9505- ●
41 BOLT; ENG HANGER
(C) M12X28 FLANGE 		0-28181-228-0 02 1 9505- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9204- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9505- ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 9204- ● ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 9204- ● ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 9204- ● ●
98 STUD; CAM BRKT
M8X54 L=79 		8-94322-512-2 02 1 9505- ●
98 STUD; CAM BRKT
M8X41 L=66 		8-94322-513-2 12 1 9505- ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9204- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9204- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X73 		8-94399-554-0 01 1 9505- ●
120 BOLT; CYL HD TO HSG
(A) M10X43 		8-94399-555-0 01 1 9505- ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 9204- ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 9204- ● ●
123 BOLT; COVER
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 9204- ● ●
138 GEAR; IDLE
Z=39 		1-12523-111-1 01 1 9204- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9505- ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9204- ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9505- ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 9204- ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-125-1 01 1 9204- ● ●
168 HANGER; ENG,FRT 1-11777-096-0 01 1 9204- ● ●
168 HANGER; ENG,FRT 8-94399-403-0 01 1 9505- ●

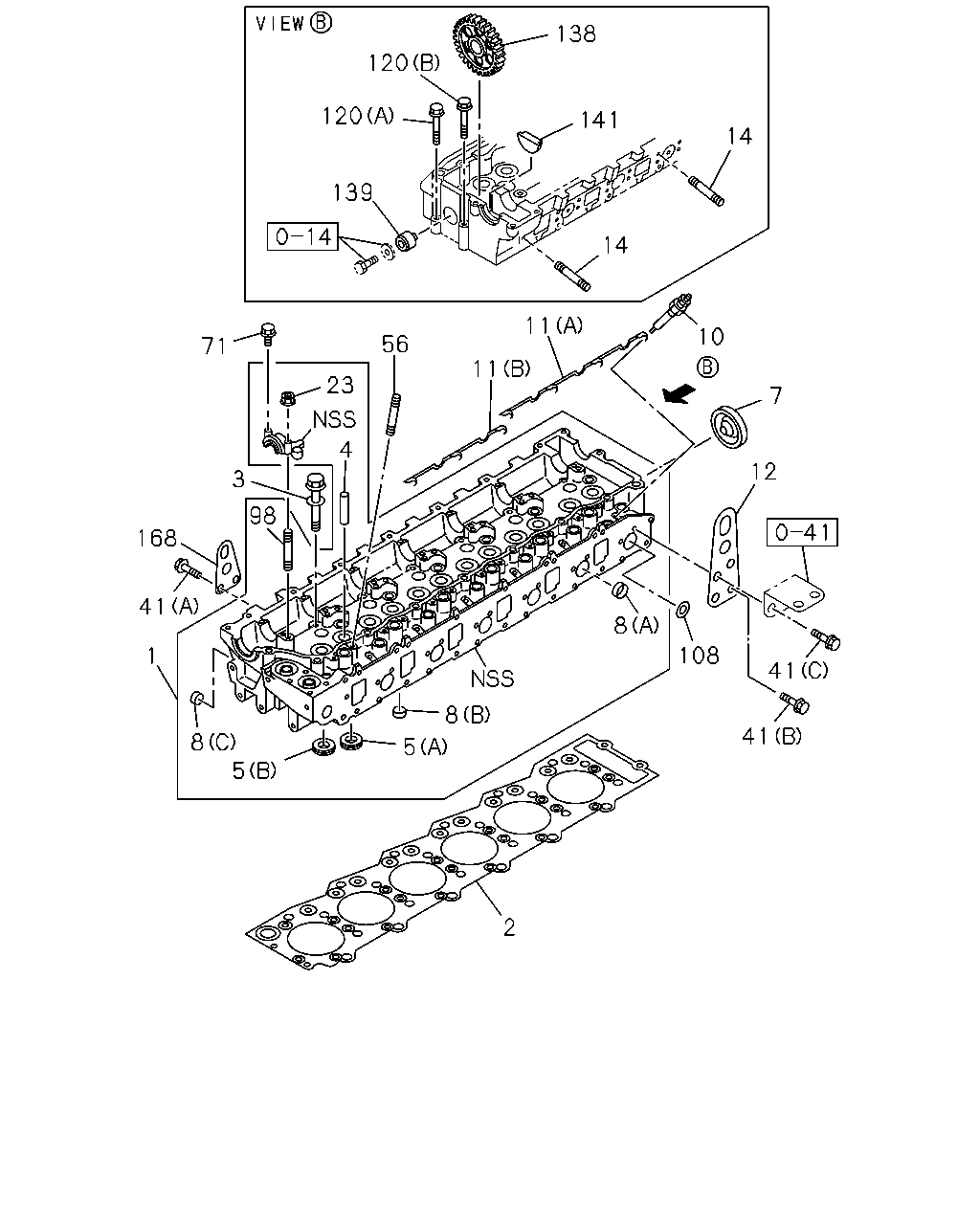

çizim 94106
138 120 120 141 14 139 14 11 10 56 71 11 23 7 4 12 3 98 168 41 8 108 1 41 8 41 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEAD ASM; CYL 1-11110-699-1 01 1 9204- ●
1 HEAD ASM; CYL 1-11110-704-1 01 1 9204- ●
1 HEAD ASM; CYL 8-94394-918-4 01 1 9505- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-161-0 01 1 9204- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-220-0 01 1 9204- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-334-0 01 1 9505- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9204- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9204- ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-1 26 1 9505- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9204- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9505- ●
5 SEAT; VLV INSERT
(B) 		1-11715-046-0 06 1 9204- ●
5 SEAT; VLV INSERT
(A) ID=40 		1-11711-041-0 06 1 9204-9210 ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 9211- ● ●
5 SEAT; VLV INSERT
(B) 		1-11715-070-0 06 1 9204- ●
5 SEAT; VLV INSERT
(B) 		8-94396-171-0 06 1 9505- ●
5 SEAT; VLV INSERT
(A) 		8-94396-172-0 06 1 9505- ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9505- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9204- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9204- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9204- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9505- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9505- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9505- ●
10 PLUG; GLOW 9-82513-928-8 06 1 9204- ● ● ●
11 CONNECTOR; GLOW PLUG 1-19732-011-0 01 1 9204- ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9505- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9505- ●
12 HANGER; ENG,RR 1-11777-099-0 01 1 9204- ● ●
12 HANGER; ENG,RR 8-94399-405-0 01 1 9505- ●
14 STUD; EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X104 L=119 		1-09302-104-1 07 1 9204- ● ●
14 STUD; EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X135 M10X135 L=150 		1-09302-159-0 05 1 9204- ● ●
14 STUD; EXH MANIF
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X104 L=119 		1-09302-104-1 12 1 9204- ● ●
14 STUD; EXH MANIF
M10X93 L=108 		8-94396-123-0 10 1 9505- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9505- ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9204- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9505- ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50051-020-0 05 1 9204- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9505- ●
41 BOLT; ENG HANGER
(B) M12X22 FLANGE 		0-28181-222-0 01 1 9505- ●
41 BOLT; ENG HANGER
(C) M12X28 FLANGE 		0-28181-228-0 02 1 9505- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9204- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 9505- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9505- ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 9204- ● ●
98 STUD; CAM BRKT
M8X54 L=79 		8-94322-512-2 02 1 9505- ●
98 STUD; CAM BRKT
M8X41 L=66 		8-94322-513-2 12 1 9505- ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 9505- ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9204- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9204- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X73 		8-94399-554-0 01 1 9505- ●
120 BOLT; CYL HD TO HSG
(A) M10X43 		8-94399-555-0 01 1 9505- ●
138 GEAR; IDLE
Z=39 		1-12523-111-1 01 1 9204- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9505- ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9204- ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9505- ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9505- ●
168 HANGER; ENG,FRT 1-11777-096-0 01 1 9204- ● ●
168 HANGER; ENG,FRT 8-94399-403-0 01 1 9505- ●
