0-35 — ENGINE CONTROL VALVE AND LEVER (#6789) — 7 parça

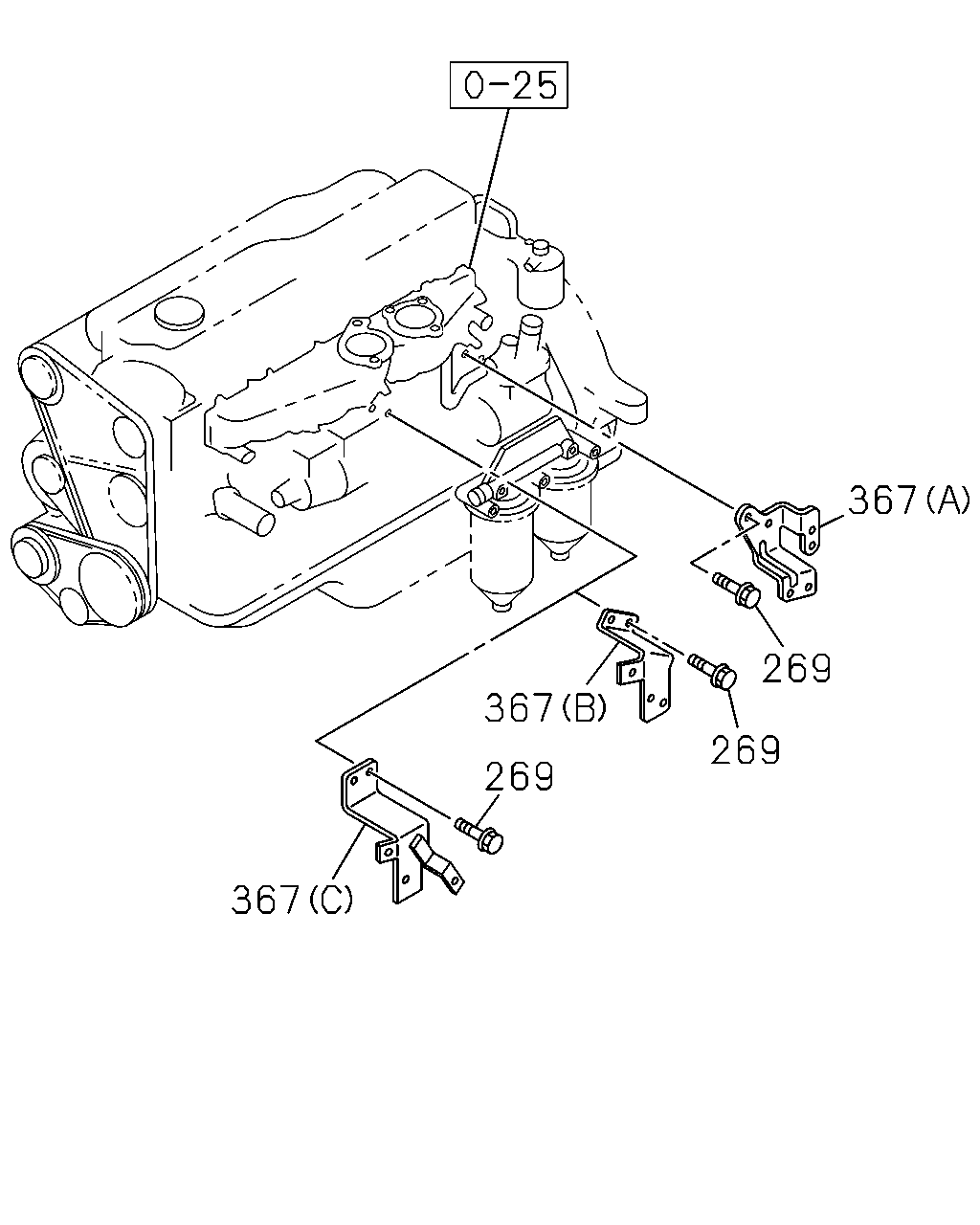

çizim 99534
367 269 367 269 269 367
BalonParca AdiParca NoAdetTipApplied Date
269 BOLT; BRKT FIX
M8X14 FLANGE 		0-28080-814-0 04 1 9806-9911
367 BRACKET; ENG CONT WIRE,INL PIPE
(A) 		8-94395-123-0 01 1 9806-9806
367 BRACKET; ENG CONT WIRE,INL PIPE
EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (A) 		8-94395-123-0 01 1 9807-9911
367 BRACKET; ENG CONT WIRE,INL PIPE
(B) 		8-94395-125-0 01 1 9806-9806
367 BRACKET; ENG CONT WIRE,INL PIPE
EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (B) 		8-94395-125-0 01 1 9807-9911
367 BRACKET; ENG CONT WIRE,INL PIPE
EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (A) 		8-94395-525-0 01 1 9807-9911
367 BRACKET; ENG CONT WIRE,INL PIPE
EXC. EMIS SYSTEM FEDERAL REQUIREMENT<NA5> (C) 		8-94396-658-1 01 1 9807-9911
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
