◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#67885) — 38 parça

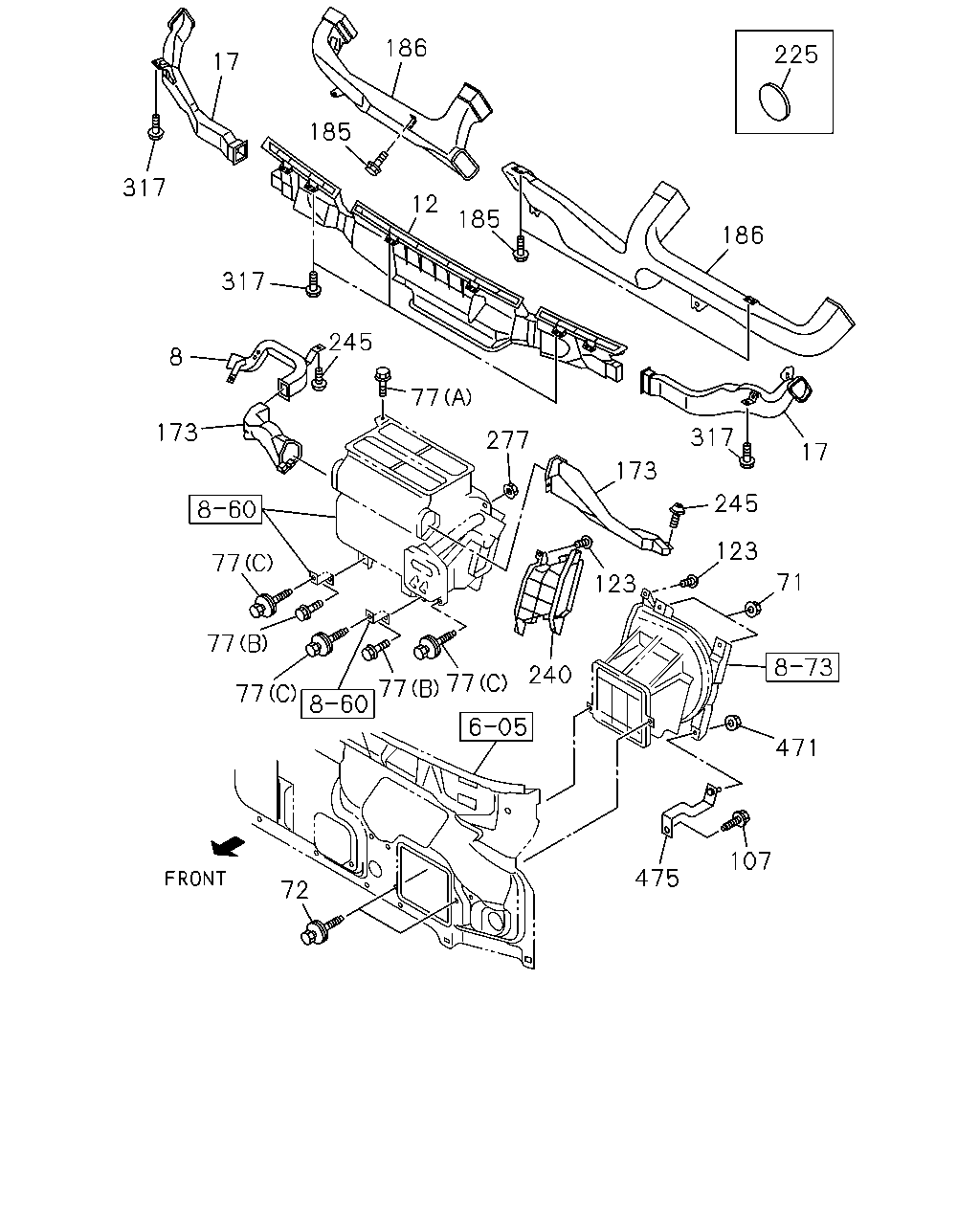

çizim 143560
225 186 186 17 185 12 185 17 317 245 123 71 471 107 475 72 77 77 77 77 77 240 123 173 277 77 245 173 8 317 317
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 8-97585-499-1 01 1 0807-1410
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1411-
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 0807-
17 NOZZLE; DEFROSTER,SIDE 8-98040-013-1 01 1 0807-
17 NOZZLE; DEFROSTER,SIDE 8-98040-018-1 01 1 0807-
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA 		0-91180-106-0 02 1 0807-
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0807-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 0807-1301
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1302-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0807-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0807-
107 BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0807-
123 SCREW; DUCT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0807-
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 0807-
173 DUCT; FOOT,HTR 8-98036-922-2 01 1 0807-1410
173 DUCT; FOOT,HTR 8-98290-097-0 01 1 1411-
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 05 1 0807-1008
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-
186 DUCT; VENTILATOR 8-97585-489-4 01 1 0807-1410
186 DUCT; VENTILATOR 8-98285-574-0 01 1 1411-
186 DUCT; VENTILATOR 8-98035-579-2 01 1 0807-1007
186 DUCT; VENTILATOR 8-98174-737-0 01 1 1008-1410
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1411-
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK THA 		1-76798-019-0 01 1 1305-
240 DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-402-1 01 1 0807-
245 CLIP; FOOT DUCT 8-98056-059-0 03 1 0807-1410
245 CLIP; FOOT DUCT 8-98056-059-0 04 1 1411-
277 NUT; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA 		0-91180-106-0 01 1 0807-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0807-
471 NUT; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA 		0-91180-106-0 01 1 0807-
475 BRACKET; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98043-500-1 01 1 0807-
çizim 193502
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR
THA 		8-97925-112-0 01 1 0911-
50 VALVE ASM; HTR 8-98080-998-1 01 1 0807-0910
206 GROMMET; A/C PIPE TO BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98019-649-0 01 1 0807-
206 GROMMET; A/C PIPE TO BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97037-392-0 01 1 0807-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 0807-
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-758-0 01 1 0807-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 0807-
