Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#67884) — 72 parça

56 52 54 51 45 44 50 51 44 45 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

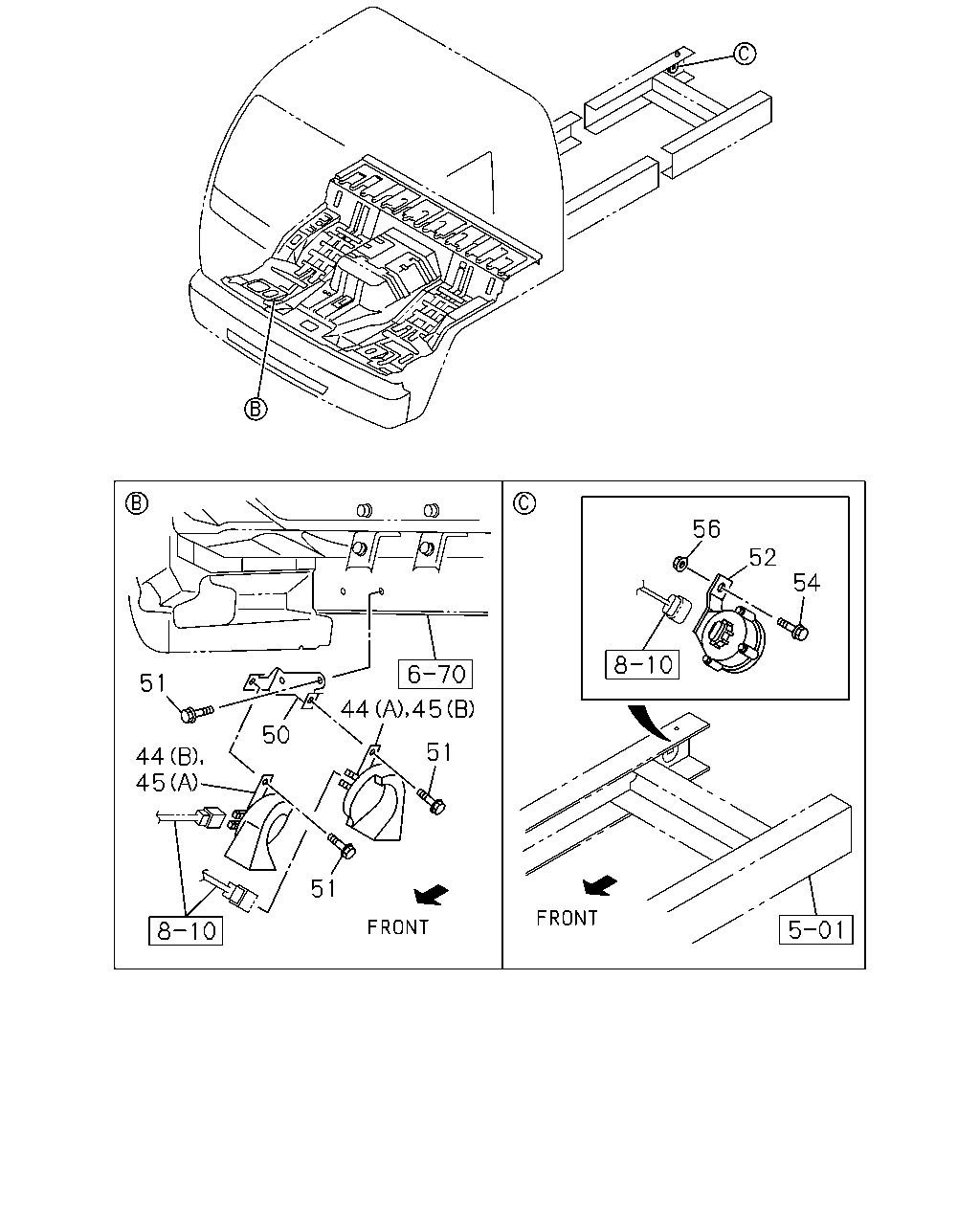

44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> (B) THA	8-97925-171-0	01	1	1109-
44	HORN; HIGH NOTE ELECTRICAL HORN<WB7> (A)	8-97611-677-2	01	1	0807-1003
44	HORN; HIGH NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-022-0	01	1	0807-1003
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> (B)	8-98022-022-0	01	1	1004-
45	HORN; LOW NOTE (B) THA	8-97925-172-0	01	1	1109-
45	HORN; LOW NOTE ELECTRICAL HORN<WB7> (A)	8-97611-676-2	01	1	0807-1003
45	HORN; LOW NOTE EXC. ELECTRICAL HORN<WB7> (B)	8-98022-023-0	01	1	0807-1003
45	HORN; LOW NOTE (B)	8-98022-023-0	01	1	1004-
50	BRACKET; HORN	8-97613-300-2	01	1	0807-
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1004-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0807-1003
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1004-
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1004-
52	BUZZER; BACK	8-97617-027-0	01	1	0807-
54	BOLT; BACK BUZZER M10X30 FLANGE THA	0-28651-030-0	01	1	0807-
56	NUT; BACK BUZZER M10 FLANGE THA	0-91180-210-0	01	1	0807-

41 90 89 36 89 34 34 40 261 34 34 34 36 34 39 33 284 210 33 602 35 34 34 210 285 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

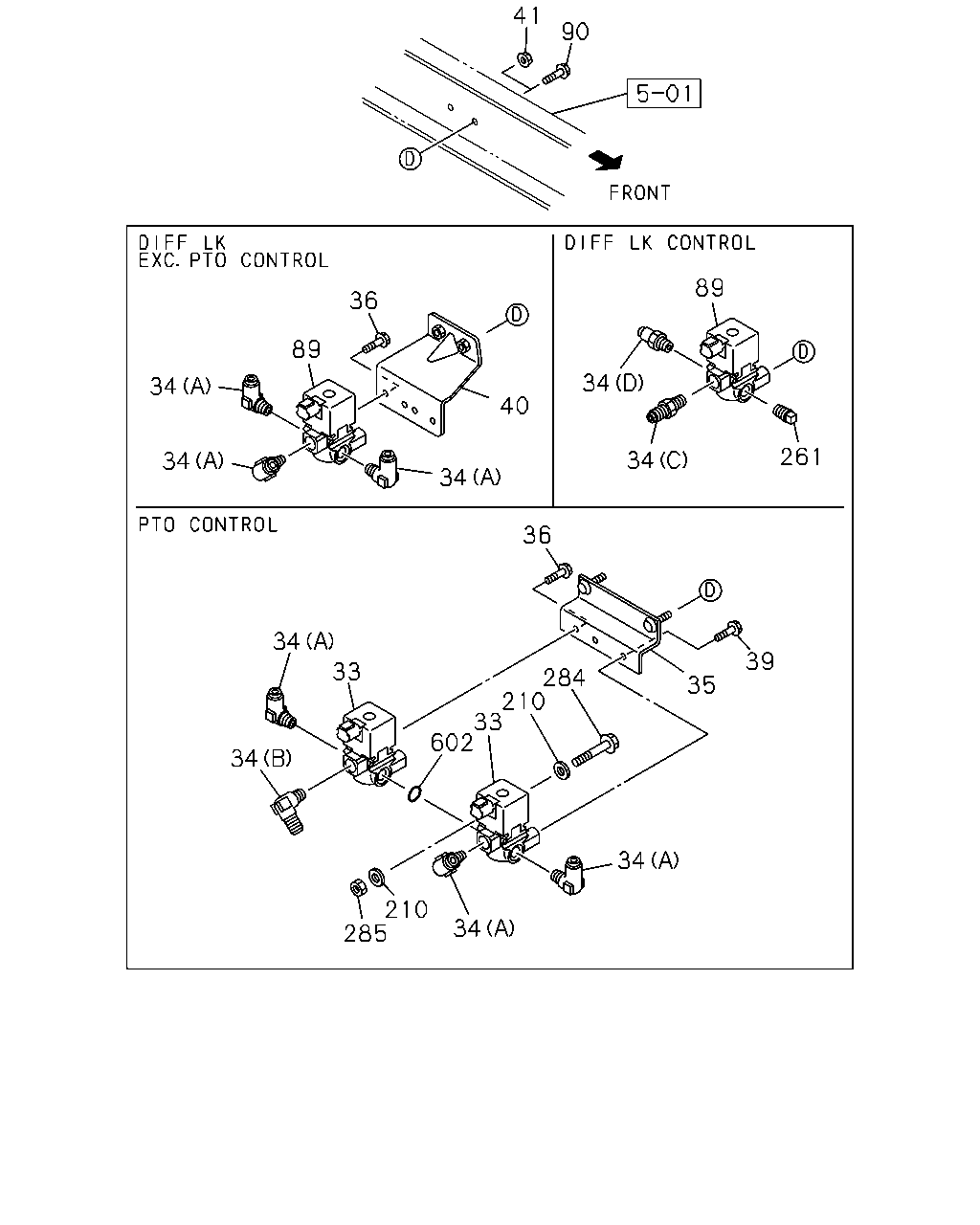

33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-871-2	01	1	1206-1306
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> THA	8-97948-152-0	01	1	1307-
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	8-97641-594-0	01	1	1206-1308
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> THA	8-97948-256-0	01	1	1309-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	1206-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	03	1	1206-
34	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	0807-0812
34	CONNECTOR; MAG VLV,INL PORT (D) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	0807-0812
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0807-1203
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	03	1	0807-1203
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> THA	8-98101-296-0	01	1	1206-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	8-98098-592-1	01	1	0807-1102
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> THA	8-98101-296-0	01	1	1103-1203
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE THA	0-28650-820-0	02	1	1206-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE THA	0-28650-820-0	02	1	0807-1203
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE THA	0-28650-835-0	02	1	1103-
40	BRACKET; MAG VLV EXC. PTO CONTROL<SV6>	8-98049-370-0	01	1	0807-0812
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE THA	0-91180-108-0	02	1	0807-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0807-0812
89	VALVE; MAG,DIFF LOCK EXC. PTO CONTROL<SV6>	1-82563-871-2	01	1	0807-0812
90	BOLT; MAG VLV EXC. PTO CONTROL<SV6> M10X35 FLANGE THA	0-28651-035-0	02	1	0807-0812
210	WASHER; PL,BRKT PTO CONTROL<SV6> THA	1-82569-266-0	02	1	1206-
210	WASHER; PL,BRKT PTO CONTROL<SV6> THA	1-82569-266-0	02	1	0807-1203
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	0807-0812
284	BOLT; MAG VLV PTO CONTROL<SV6> M6X50 FLANGE THA	0-28050-650-0	01	1	1206-
284	BOLT; MAG VLV PTO CONTROL<SV6> M6X50 FLANGE THA	0-28050-650-0	01	1	0807-1203
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE THA	0-91180-106-0	01	1	1206-
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE THA	0-91180-106-0	01	1	0807-1203
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8 THA	9-09565-117-0	01	1	1206-
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8 THA	9-09565-117-0	01	1	0807-1203

22 615 754 21 754

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

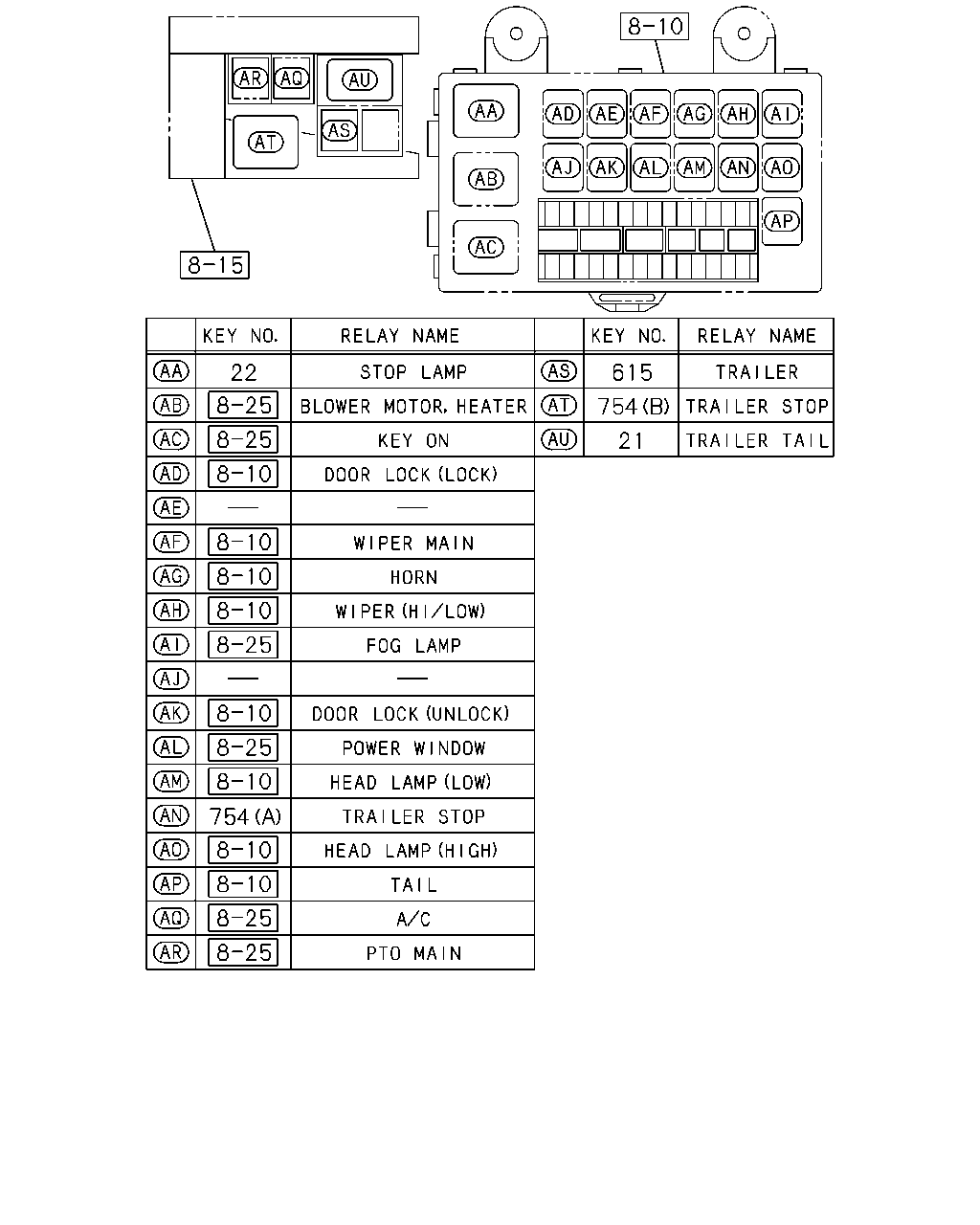

21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-
615	RELAY; TRAILER 24V 10A PANASONIC THA	8-97173-035-1	01	1	0807-0807
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0807-0807
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0808-
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	0808-
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0807-

540 711 422 2 4 762 385 573 761 1 352 2 265 265 676

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

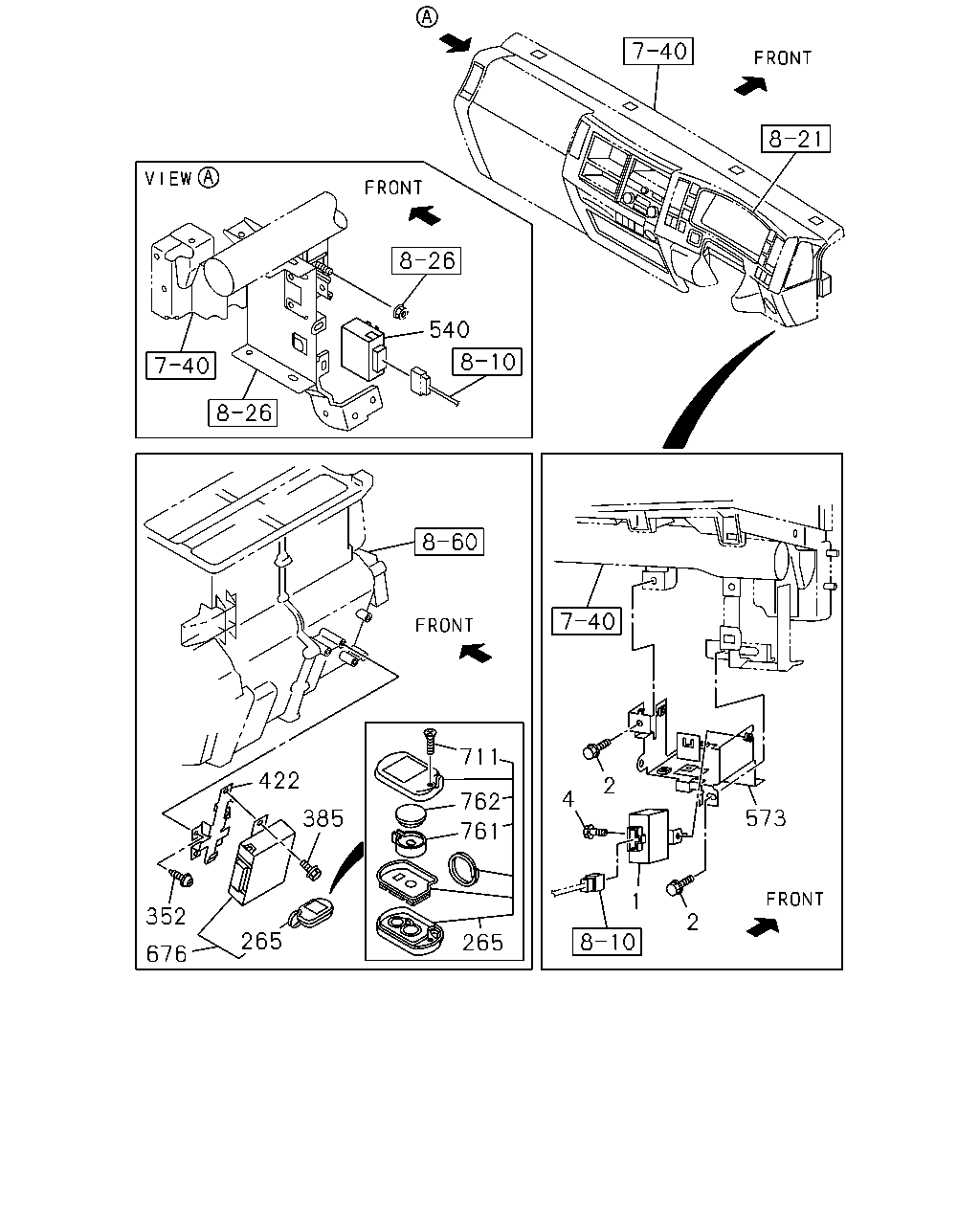

1	UNIT; FLASHER	8-98025-533-1	01	1	0807-
2	BOLT; FLASHER UNIT M6X16 FLANGE THA	0-28650-616-0	02	1	0807-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	0807-
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0807-1003
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0807-1003
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER THA	0-52000-612-0	01	1	0807-1003
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0807-1003
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0807-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0807-
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98017-258-1	01	1	0807-1003
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0807-1003
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0807-1003
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0807-1003

584 744 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
290	NUT M10 FLANGE THA	0-91180-110-0	02	1	0807-0907
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0807-
744	NUT; SENSOR M6 FLANGE THA	0-91180-106-0	02	1	0807-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0807-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
