◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#67883) — 32 parça

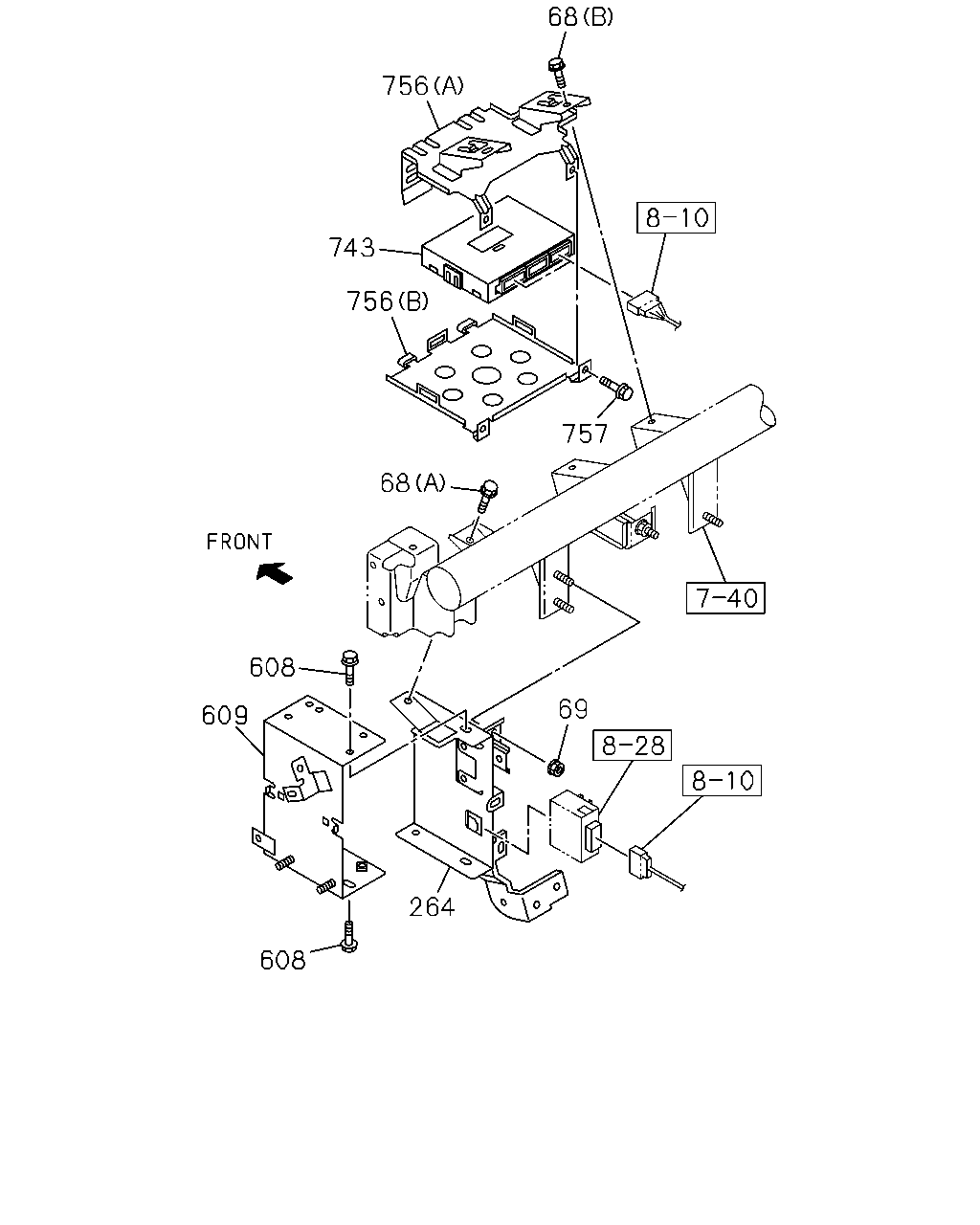

çizim 138057
68 756 743 756 757 68 608 69 609 264 608
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1205-
68 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0807-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 0807-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 0807-
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE THA 		0-28650-616-0 05 1 0807-
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0807-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309-
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98182-026-3 01 1 1205-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A) 		8-98056-411-3 01 1 1205-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) 		8-98111-836-1 01 1 1205-
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1205-

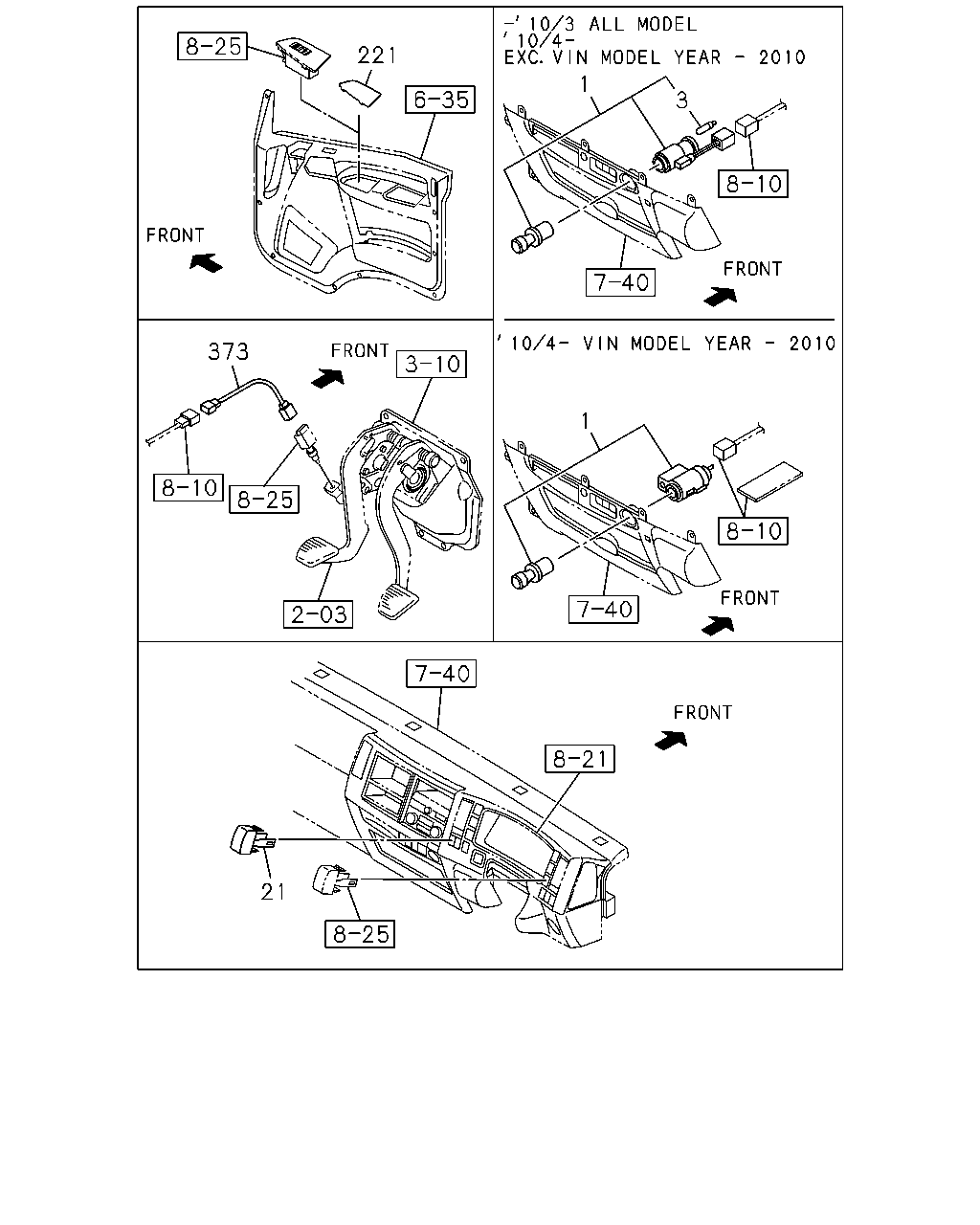

çizim 138341
1 221 3 373 1 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR
VIN MODEL YEAR 2010<VZA> 		8-98142-962-0 01 1 1004-1102
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1103-
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0807-1003
1 LIGHTER; CIGAR
EXC. VIN MODEL YEAR 2010<VZA> 		8-98076-255-0 01 1 1004-1102
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0807-1003
3 BULB; CIGAR LIGHTER
EXC. VIN MODEL YEAR 2010<VZA> 28V 1.8W 		8-97173-159-0 01 1 1004-1102
21 COVER; HOLE 8-98025-954-1 01 1 0807-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0807-1003
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1004-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0807-1003
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1004-
373 HARNESS; CLU SWITCH 8-98059-419-1 01 1 0807-1003
373 HARNESS; CLU SWITCH
EXC. VIN MODEL YEAR 2010<VZA> 		8-98059-419-1 01 1 1004-1102

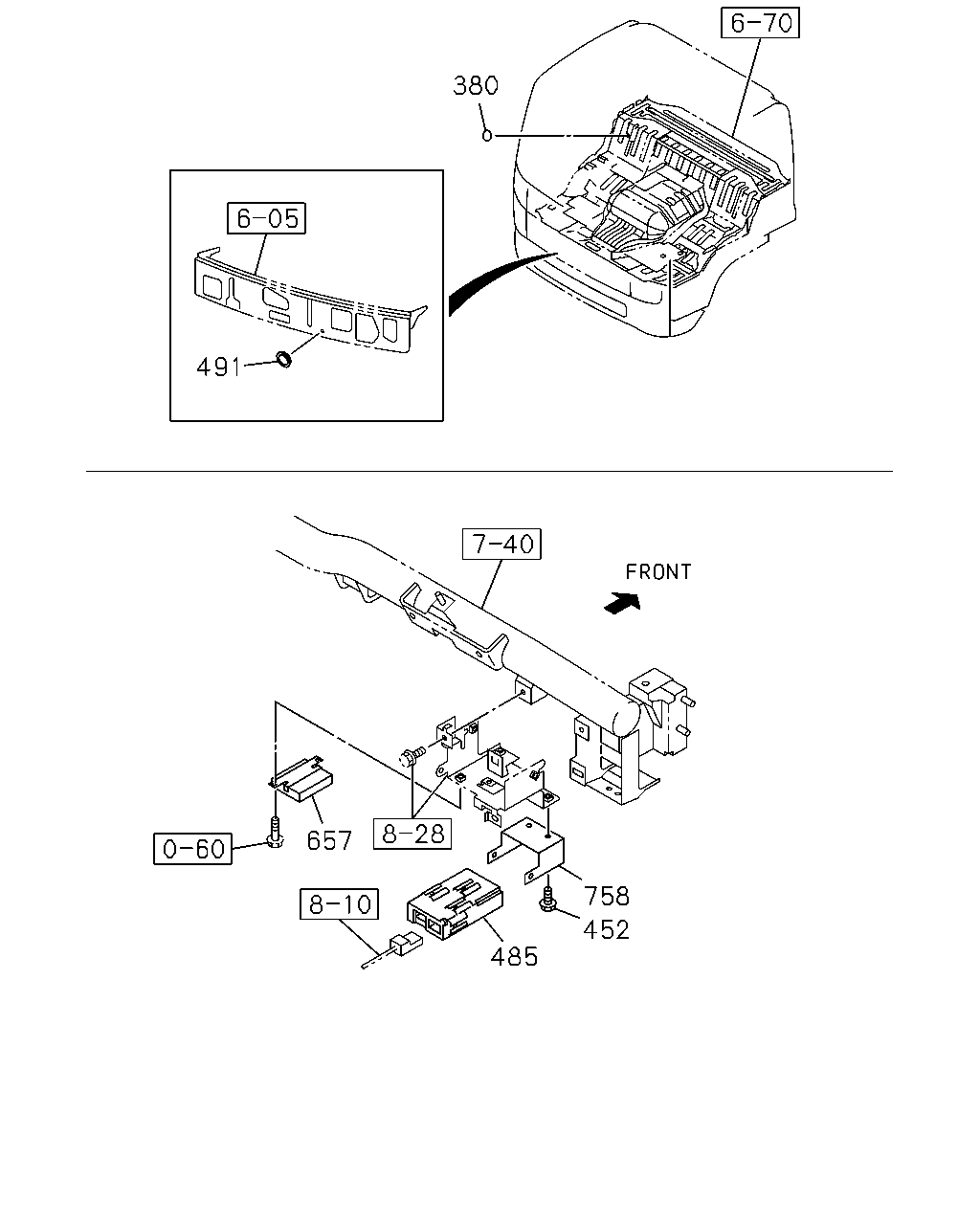

çizim 193484
380 491 657 485 758 452
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 0807-
452 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 0807-
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 0807-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0807-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 0807-1204
657 CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98013-144-8 01 1 1205-1401
657 CONTROL UNIT; MIMAMORI
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98260-912-0 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0807-
