◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#67880) — 281 parça

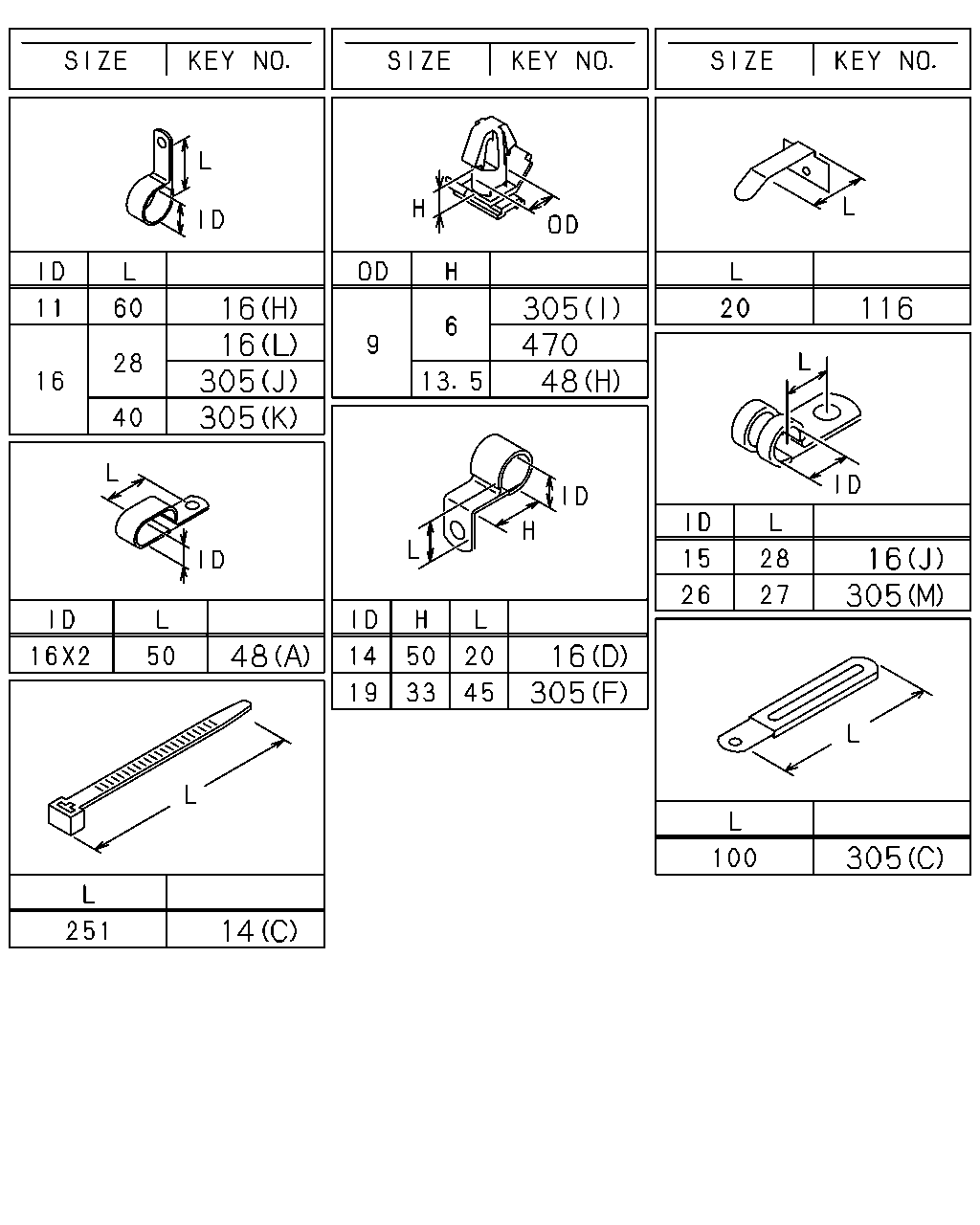

çizim 136705
16 16 305 305 305 470 48 116 16 305 16 305 48 305 14
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 0910-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 14 1 0807-0909
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 13 1 0910-1102
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 12 1 1103-1104
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 13 1 1105-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0807-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 		1-09700-403-0 02 1 0807-
16 CLIP; HARNESS
(H) ID=11 L=60 		0-95235-096-0 01 1 0807-0807
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 		1-09700-843-0 02 1 0807-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 0807-1208
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1209-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1209-
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0807-0808
16 CLIP; HARNESS
(L) ID=16 L=28 		0-95235-556-0 02 1 0809-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 05 1 0807-1102
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0807-
16 CLIP; HARNESS
(E) ID=14 L=44 		9-09917-427-0 03 1 0807-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA 		8-97173-307-0 18 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA 		8-97173-307-0 18 1 0807-1003
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1004-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (G) L=40.6 THA 		8-97229-357-0 02 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (G) L=40.6 THA 		8-97229-357-0 02 1 0807-1003
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1004-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA 		8-98052-679-0 02 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA 		8-98052-679-0 02 1 0807-1003
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1004-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0807-1102
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 		1-09700-484-0 02 1 0807-
48 CLIP; FRAME HARNESS
(A) ID=16X2 L=50 		0-95325-586-0 01 1 0807-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0807-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0807-0909
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0910-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0910-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 15 1 0807-
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0807-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0807-0909
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0910-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 		1-09700-858-0 02 1 0807-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0807-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 		1-09701-214-0 01 1 0807-
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 		1-09701-291-0 03 1 0807-1104
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 		1-09701-291-0 04 1 1105-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0807-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0807-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		5-09707-031-1 02 1 0807-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0807-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0807-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0807-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0807-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0807-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0807-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0807-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0807-1102
305 CLIP; ENG HARNESS
(L) ID=19 L=39 H=21 		1-09700-972-1 01 1 1103-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0807-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0807-1102
305 CLIP; ENG HARNESS
(M) ID=26 L=27 		1-09701-006-0 01 1 1103-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0807-1102
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0807-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0807-

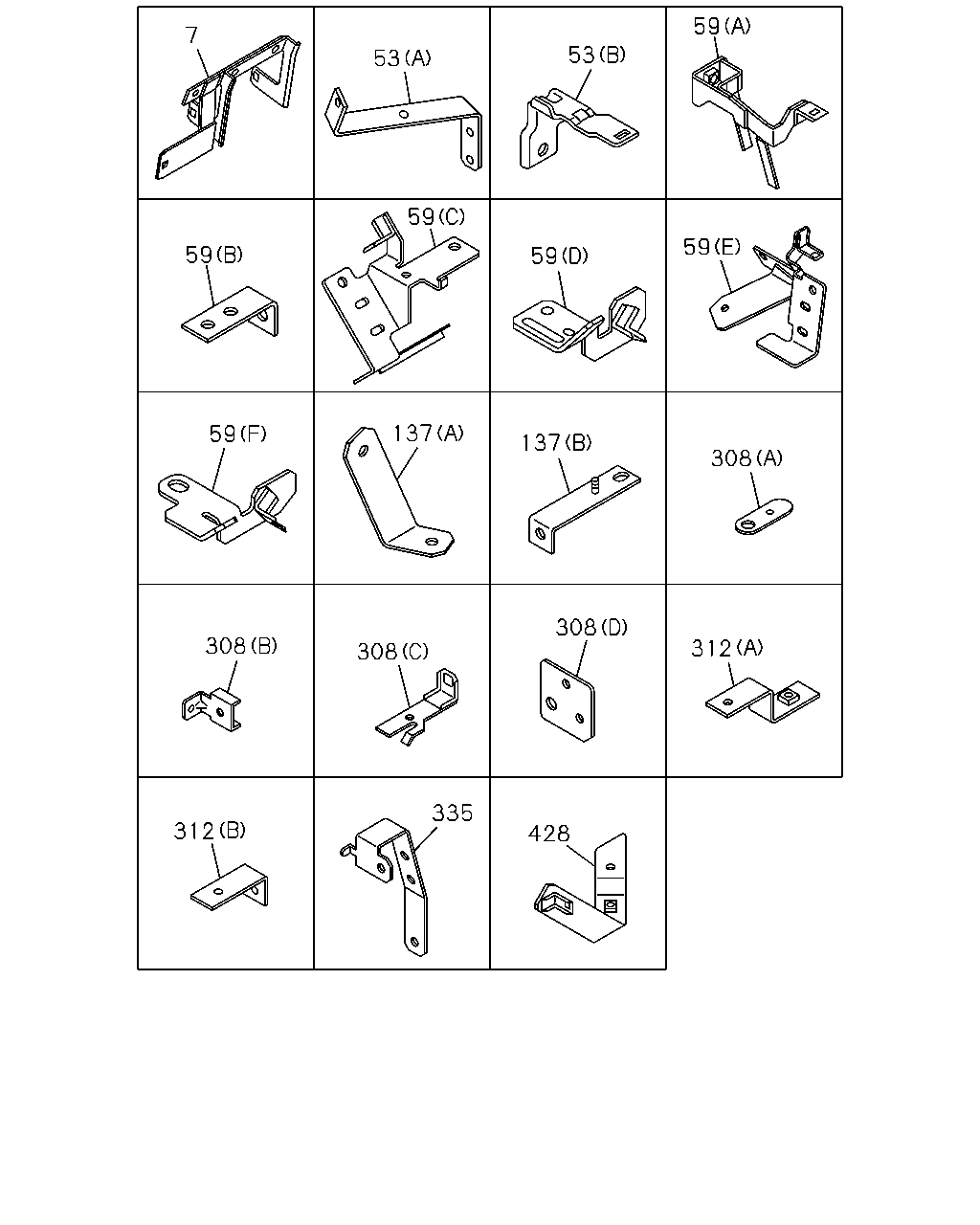

çizim 136756
7 53 53 59 59 59 59 59 59 137 137 308 308 308 308 312 312 335 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1205-
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0807-1204
53 BRACKET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (A) 		8-97622-857-0 01 1 0807-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0807-
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 0807-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0807-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0807-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0807-0905
59 BRACKET; FRAME HARNESS
(E) 		8-98107-611-0 01 1 0906-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 0807-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 0807-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0807-1010
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011-1102
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1103-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0807-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0807-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0807-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0807-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 0807-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0807-
428 BRACKET 8-97620-514-0 01 1 0807-

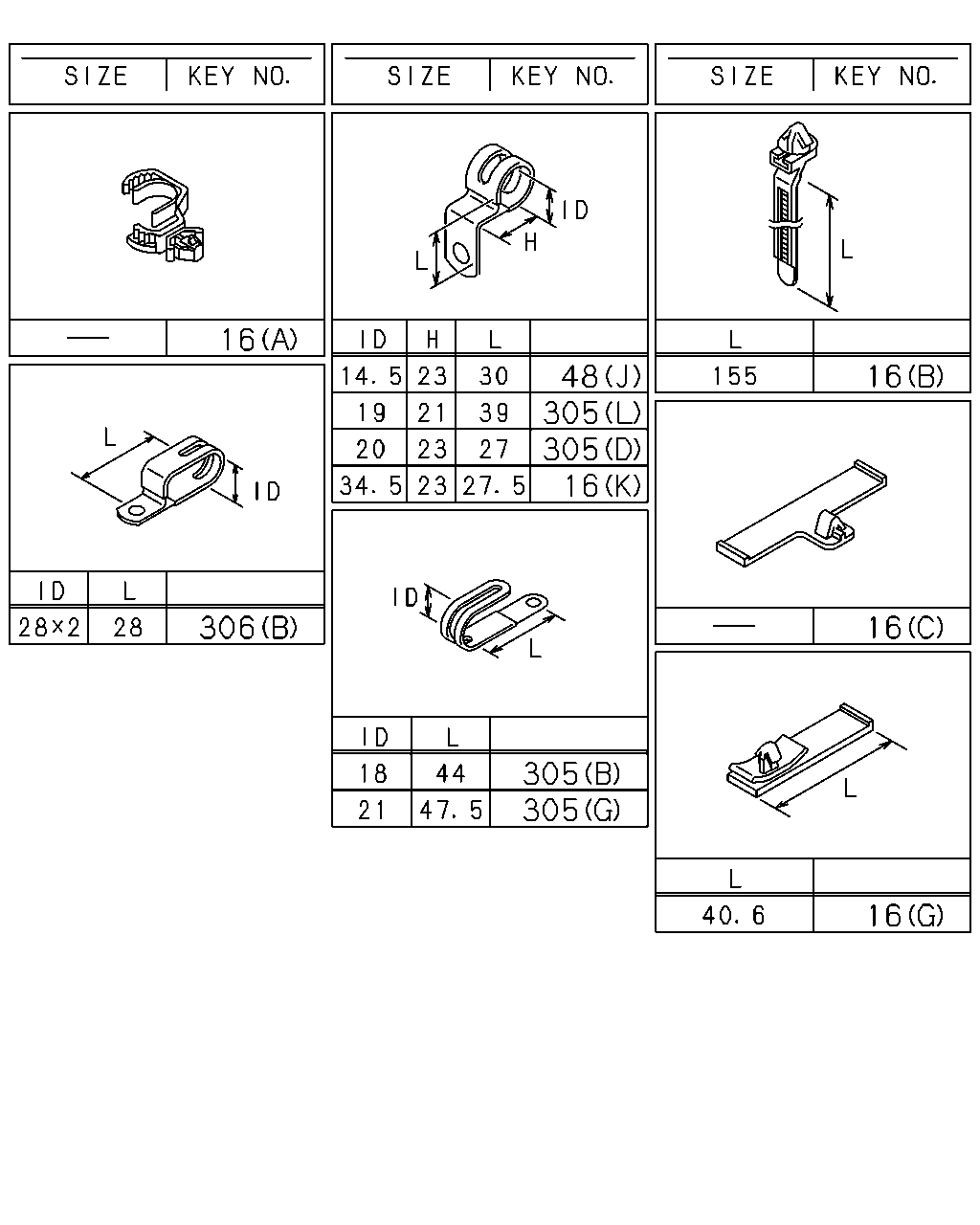

çizim 136933
16 48 305 305 16 16 306 16 305 305 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 		1-09700-403-0 02 1 0807-
16 CLIP; HARNESS
(H) ID=11 L=60 		0-95235-096-0 01 1 0807-0807
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 		1-09700-843-0 02 1 0807-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 0807-1208
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1209-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1209-
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0807-0808
16 CLIP; HARNESS
(L) ID=16 L=28 		0-95235-556-0 02 1 0809-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 05 1 0807-1102
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0807-
16 CLIP; HARNESS
(E) ID=14 L=44 		9-09917-427-0 03 1 0807-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA 		8-97173-307-0 18 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA 		8-97173-307-0 18 1 0807-1003
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1004-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (G) L=40.6 THA 		8-97229-357-0 02 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (G) L=40.6 THA 		8-97229-357-0 02 1 0807-1003
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1004-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA 		8-98052-679-0 02 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA 		8-98052-679-0 02 1 0807-1003
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1004-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0807-1102
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 		1-09700-484-0 02 1 0807-
48 CLIP; FRAME HARNESS
(A) ID=16X2 L=50 		0-95325-586-0 01 1 0807-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0807-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0807-0909
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0910-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0910-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 15 1 0807-
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0807-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0807-0909
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0910-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 		1-09700-858-0 02 1 0807-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0807-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 		1-09701-214-0 01 1 0807-
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 		1-09701-291-0 03 1 0807-1104
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 		1-09701-291-0 04 1 1105-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0807-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0807-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		5-09707-031-1 02 1 0807-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0807-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0807-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0807-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0807-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0807-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0807-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0807-1102
305 CLIP; ENG HARNESS
(L) ID=19 L=39 H=21 		1-09700-972-1 01 1 1103-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0807-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0807-1102
305 CLIP; ENG HARNESS
(M) ID=26 L=27 		1-09701-006-0 01 1 1103-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0807-1102
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0807-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0807-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0807-

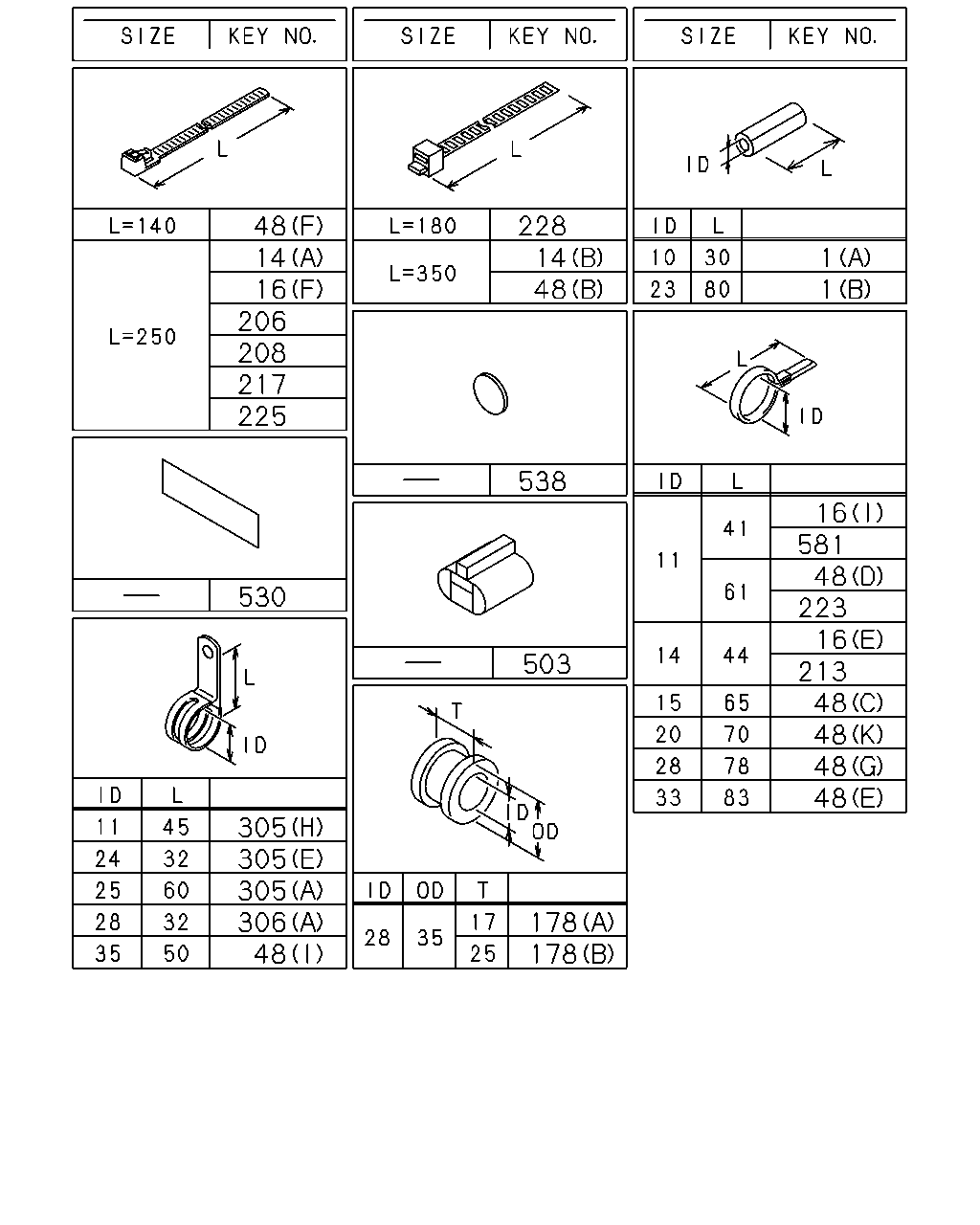

çizim 137223
48 14 16 206 208 217 225 228 14 48 1 1 538 16 581 48 223 16 213 48 48 48 48 530 503 305 305 305 306 48 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0807-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0807-
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 0910-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 14 1 0807-0909
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 13 1 0910-1102
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 12 1 1103-1104
14 CLIP; BAND,HARNESS
(A) L=250 THA 		5-09707-030-1 13 1 1105-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 0807-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41 		1-09700-403-0 02 1 0807-
16 CLIP; HARNESS
(H) ID=11 L=60 		0-95235-096-0 01 1 0807-0807
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 		1-09700-843-0 02 1 0807-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 04 1 0807-1208
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1209-
16 CLIP; HARNESS
(K) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1209-
16 CLIP; HARNESS
(J) ID=15 L=28 		1-09701-216-0 02 1 0807-0808
16 CLIP; HARNESS
(L) ID=16 L=28 		0-95235-556-0 02 1 0809-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 05 1 0807-1102
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1103-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0807-
16 CLIP; HARNESS
(E) ID=14 L=44 		9-09917-427-0 03 1 0807-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA 		8-97173-307-0 18 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA 		8-97173-307-0 18 1 0807-1003
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1004-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (G) L=40.6 THA 		8-97229-357-0 02 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (G) L=40.6 THA 		8-97229-357-0 02 1 0807-1003
16 CLIP; HARNESS
(G) L=40.6 THA 		8-97229-357-0 02 1 1004-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA 		8-98052-679-0 02 1 0807-1003
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA 		8-98052-679-0 02 1 0807-1003
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1004-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 04 1 0807-1102
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61 		1-09700-484-0 02 1 0807-
48 CLIP; FRAME HARNESS
(A) ID=16X2 L=50 		0-95325-586-0 01 1 0807-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0807-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0807-0909
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0910-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 0910-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 15 1 0807-
48 CLIP; FRAME HARNESS
(D) ID=11 L=61 		1-09700-484-0 01 1 0807-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 0807-0909
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0910-
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 		1-09700-858-0 02 1 0807-
48 CLIP; FRAME HARNESS
(J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0807-
48 CLIP; FRAME HARNESS
(I) ID=35 L=50 		1-09701-214-0 01 1 0807-
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 		1-09701-291-0 03 1 0807-1104
48 CLIP; FRAME HARNESS
(E) ID=33 L=83 		1-09701-291-0 04 1 1105-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 0807-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0807-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		5-09707-031-1 02 1 0807-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0807-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0807-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0807-
206 CLIP; FUEL TANK HARNESS
L=250 THA 		5-09707-030-1 02 1 0807-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL<SV6> L=250 THA 		5-09707-030-1 01 1 0807-
208 CLIP; HARNESS,MAG VLV
L=250 THA 		5-09707-030-1 01 1 0807-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0807-
217 CLIP; RR BODY HARNESS
L=250 THA 		5-09707-030-1 02 1 0807-
223 CLIP; AIR TANK HARNESS
ID=11 L=61 		1-09700-484-0 01 1 0807-1102
225 CLIP; AIR TANK HARNESS
L=250 THA 		5-09707-030-1 04 1 0807-1102
225 CLIP; AIR TANK HARNESS
L=250 THA 		5-09707-030-1 08 1 1103-
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0807-0807
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) ID=21 L=47.5 		8-94178-108-0 01 1 0807-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0807-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0807-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0807-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0807-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0807-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0807-1102
305 CLIP; ENG HARNESS
(L) ID=19 L=39 H=21 		1-09700-972-1 01 1 1103-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0807-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0807-1102
305 CLIP; ENG HARNESS
(M) ID=26 L=27 		1-09701-006-0 01 1 1103-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0807-1102
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0807-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0807-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0807-
503 CONNECTOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-82690-668-0 01 1 0807-1104
503 CONNECTOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		1-82690-668-0 01 1 1105-
503 CONNECTOR 1-82690-668-0 01 1 1105-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
530 SEAL; HARNESS
180X40 		1-72498-019-1 19 1 0807-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 0807-
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 0807-

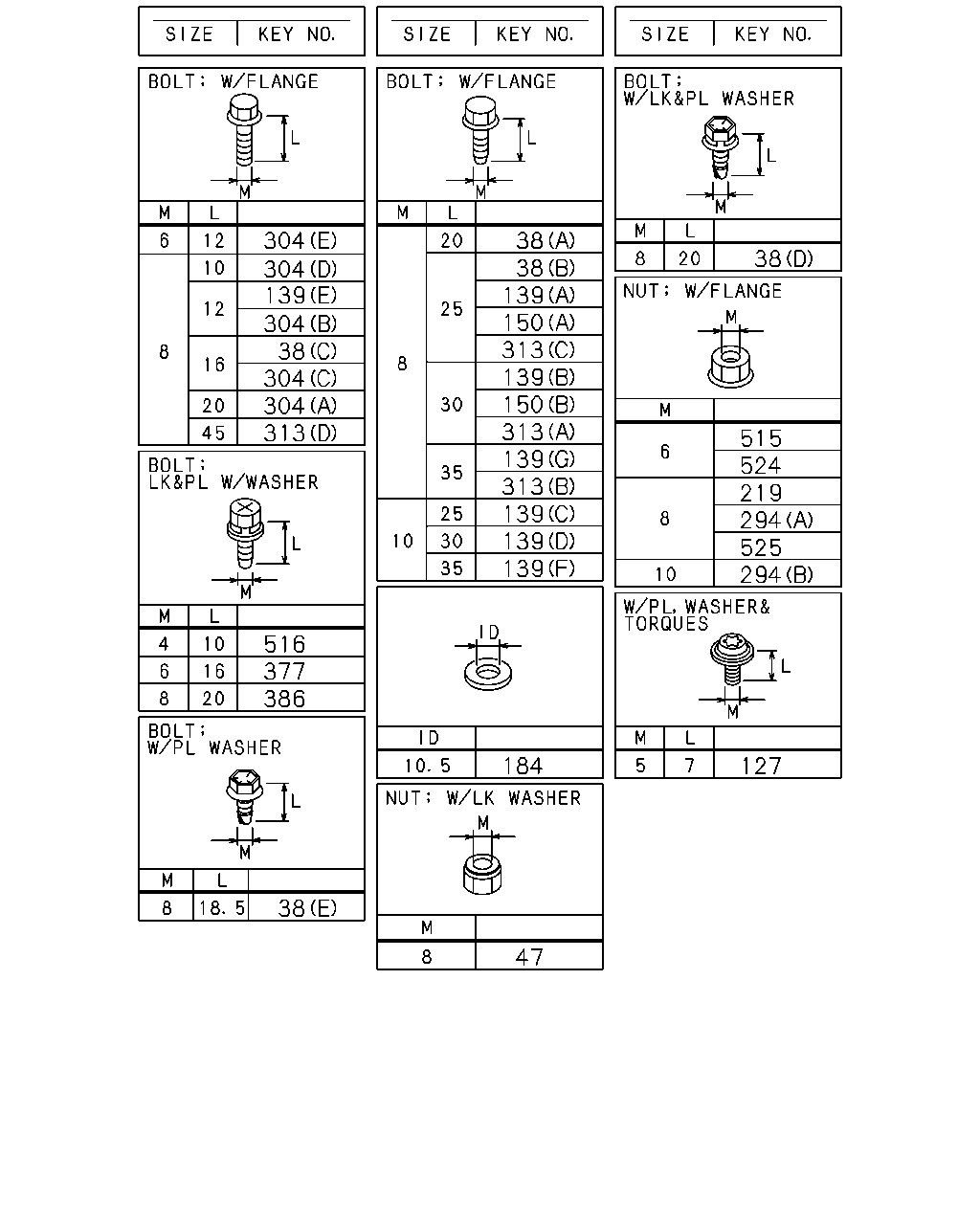

çizim 193485
304 139 304 304 304 38 304 313 516 377 386 38 38 139 38 150 139 313 150 139 313 313 139 139 139 184 47 38 515 219 524 525 294 294 127
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0807-1202
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1203-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 0807-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0807-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 06 1 0807-1207
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1208-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1208-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1209-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1209-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0807-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 0807-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 0807-
139 BOLT; BRKT
(G) M8X35 FLANGE THA 		0-28650-835-0 01 1 0807-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 0807-
139 BOLT; BRKT
(D) M10X30 FLANGE THA 		0-28651-030-0 01 1 0807-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 0807-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 0807-1102
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 0807-1102
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
150 BOLT; CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 0807-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 0807-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0807-1102
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1103-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1103-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 0807-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 0807-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0807-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-1102
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-1102
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 0807-1102
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1103-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1103-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1103-
294 NUT
POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1103-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 1103-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE THA 		0-28050-612-0 01 1 0807-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 0807-1010
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 03 1 0807-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 03 1 0807-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 01 1 0807-1102
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1103-
313 BOLT; BRKT
(D) M8X45 FLANGE THA 		0-28050-845-0 01 1 0807-
313 BOLT; BRKT
POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE THA 		0-28650-835-0 01 1 0807-
313 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28650-825-0 01 1 0807-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0807-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 0807-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0807-
386 BOLT; GRAND HARNESS
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0807-
515 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 0807-0809
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 01 1 0807-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 0807-
525 NUT; CLIP
T=8.5 M8 FLANGE THA 		5-09440-010-0 01 1 0807-1102
525 NUT; CLIP
T=8.0 M8 FLANGE THA 		0-91180-108-0 01 1 0807-
525 NUT; CLIP
T=8.0 M8 FLANGE THA 		0-91180-108-0 02 1 0807-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
