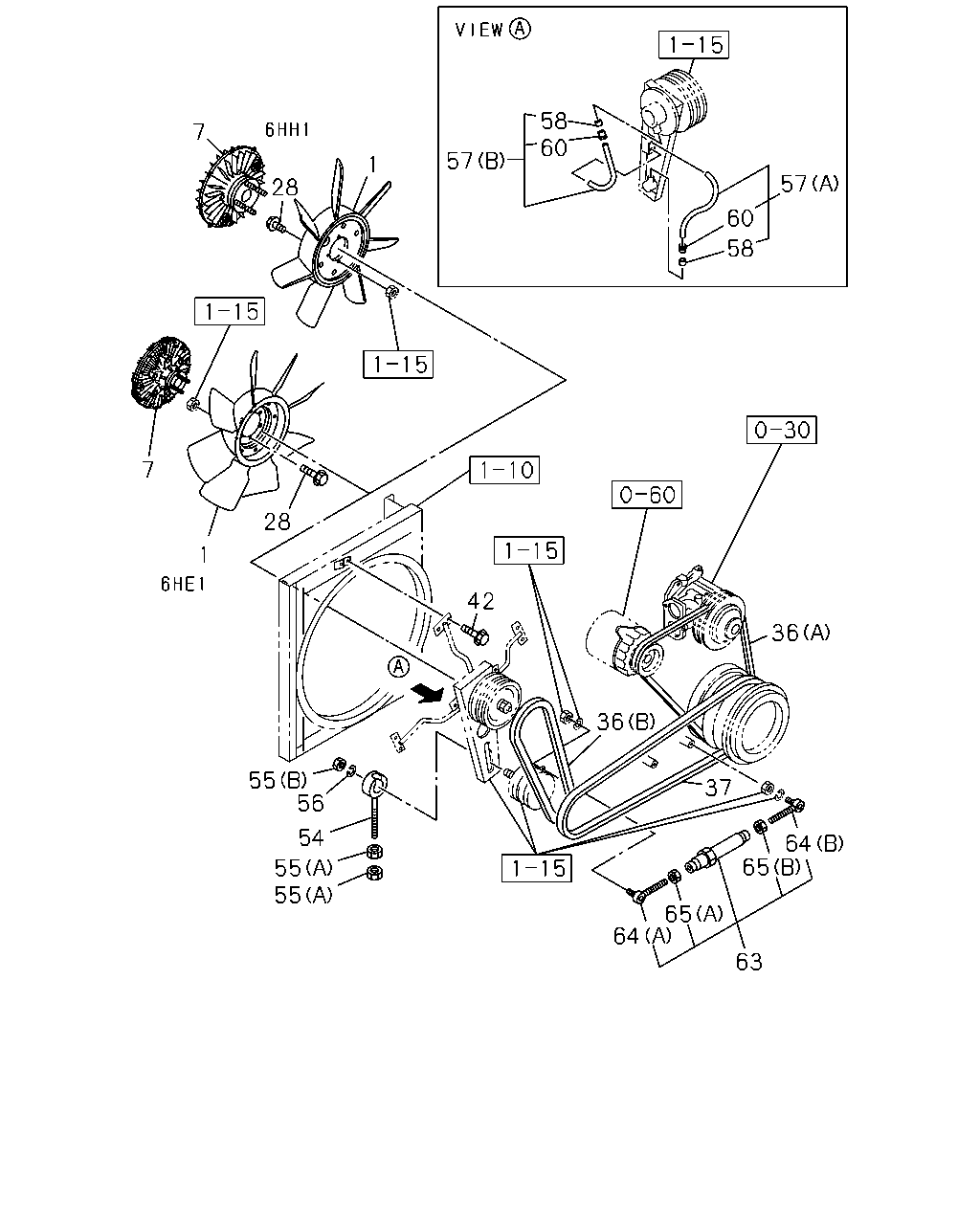

0-33 — FAN AND FAN BELT (#6788) — 100 parça

58 60 7 57 1 57 28 60 58 7 28 1 42 36 36 37 55 56 54 64 65 55 55 65 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FAN; COOLING 8-BLADE OD=880	1-13660-288-0	01	1	9806-9911	●
1	FAN; COOLING 8-BLADE OD=880	1-13660-277-2	01	1	9912-		●
1	FAN; COOLING 7-BLADE OD=320	1-13660-150-0	01	1	9806-9911			●
7	COUPLING; FAN OD=248	1-21650-193-1	01	1	9806-9911	●
7	COUPLING; FAN OD=248	1-21650-194-0	01	1	9912-0210		●
7	COUPLING; FAN OD=248	1-21650-193-1	01	1	0211-0505		●
7	COUPLING; FAN	1-21650-194-1	01	1	0506-		●
7	COUPLING; FAN OD=204	1-21650-191-0	01	1	9806-9911			●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28181-016-0	06	1	9806-9911	●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28181-016-0	06	1	9912-0512		●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28151-016-0	06	1	0601-		●
28	BOLT; COOLING FAN M8X12 FLANGE	0-28080-812-0	04	1	9806-9911			●
36	BELT; COOLING FAN (B) L=1048 IDLE-FAN 1 SET=2 PIECE(9136713160) MITSUBOSHI	1-13671-323-0	01	1	9806-9911	●
36	BELT; COOLING FAN (B) L=1726 1 SET=2 PIECE(1136711530) MITSUBOSHI	1-13671-152-0	01	1	9912-		●
36	BELT; COOLING FAN (A) L=1186 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9806-9911	●
36	BELT; COOLING FAN EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) L=1186 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9806-9911			●
36	BELT; COOLING FAN (B) L=1003 IDLE-FAN 1 SET=2 PIECE(9136713440) MITSUBOSHI	1-13671-315-0	01	1	9806-9911			●
36	BELT; COOLING FAN OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	9806-9911			●
36	BELT; COOLING FAN (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	9912-		●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE L=2149	1-13671-324-1	01	1	9806-9911	●		●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE L=1726 1 SET=2 PIECE(1136711530) MITSUBOSHI	1-13671-152-0	01	1	9912-		●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28681-035-0	08	1	9806-9911	●		●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28681-035-0	08	1	9912-0512		●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28651-035-0	08	1	0601-		●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	9806-9911	●		●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-078-0	01	1	9912-		●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	9806-9911	●		●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	9912-0512		●
55	NUT; IDLE PULLEY RET (A) M10	0-91110-510-0	02	1	0601-		●
55	NUT; IDLE PULLEY RET (B) M24	9-99111-524-0	01	1	9806-9911	●		●
56	WASHER; LK,IDLE PULLEY TO SPINDLE ID=24.5	9-09150-524-0	01	1	9806-9911	●		●
57	PIPE; GREASE,IDLE PULLEY (A) L=180	1-59461-674-0	01	1	9806-9911	●		●
57	PIPE; GREASE,IDLE PULLEY (B) L=135	1-59461-675-0	01	1	9806-9911	●		●
58	SLEEVE; GREASE PIPE,FAN & IDLE PULLEY ID=6.1 T=6	9-83765-027-0	02	1	9806-9911	●		●
60	NIPPLE; SLEEVE,GREASE PIPE	9-83765-026-0	02	1	9806-9911	●		●
63	LINK ASM; ADJ,COOLING FAN DRIVE PULLEY	1-21629-034-4	01	1	9806-9911	●		●
64	ROD ASM; END,SWING ARM,FAN DRIVE (A) RH THREAD	1-09760-040-2	01	1	9806-9911	●		●
64	ROD ASM; END,SWING ARM,FAN DRIVE (B) LH THREAD	1-09760-041-2	01	1	9806-9911	●		●
65	NUT; LK,ADJ LINK,FAN PULLEY (B) M12	9-99111-412-0	01	1	9806-9911	●		●
65	NUT; LK,ADJ LINK,FAN PULLEY (A) M12 LH THREAD	9-99111-462-0	01	1	9806-9909	●		●
65	NUT; LK,ADJ LINK,FAN PULLEY (A) M12 LH THREAD	9-09840-247-1	01	1	9910-9911	●		●

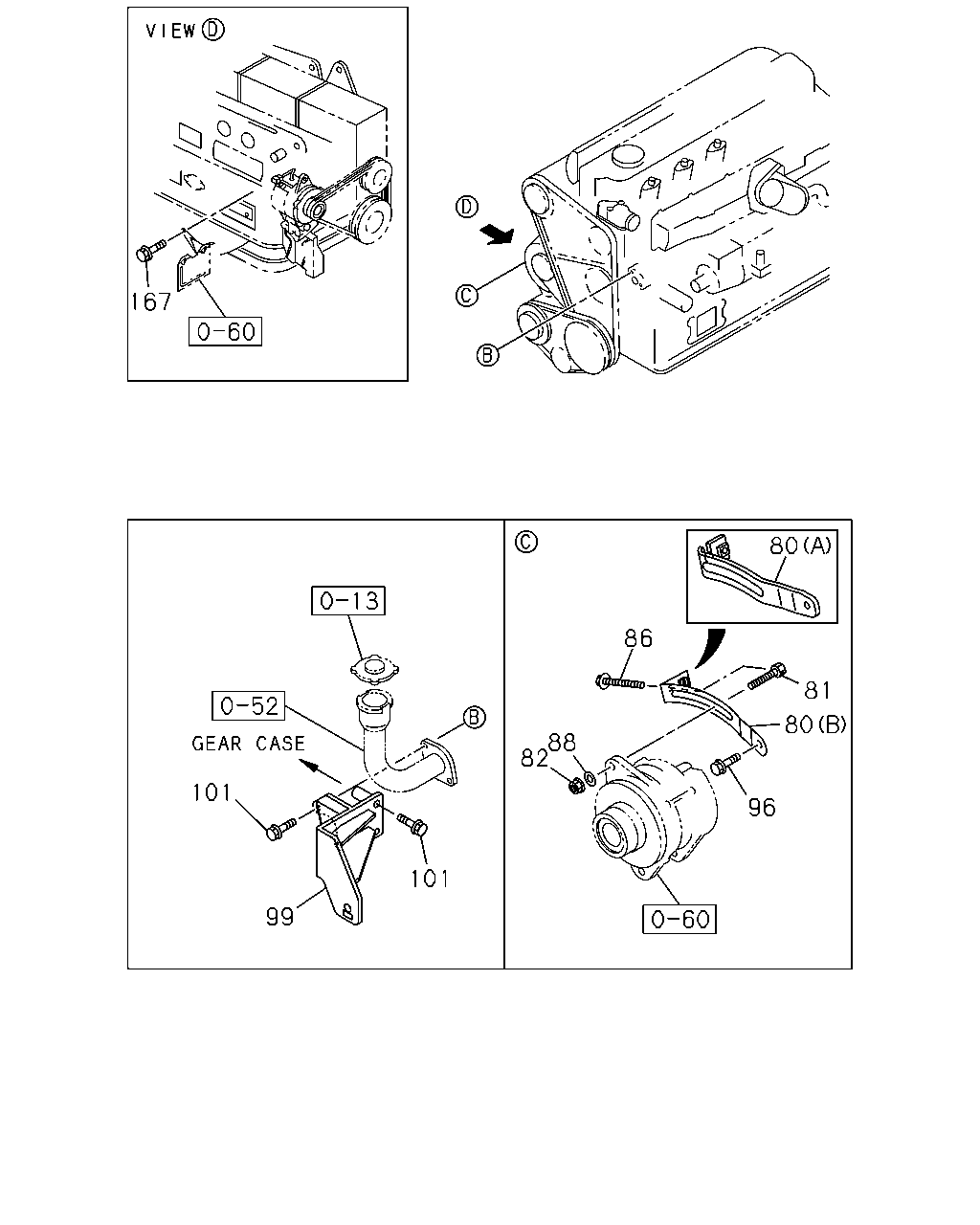

167 80 86 81 80 88 82 101 96 101 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	PLATE; ADJ (A)	8-94390-021-1	01	1	9806-9911	●
80	PLATE; ADJ EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A)	8-94390-021-1	01	1	9806-9911			●
80	PLATE; ADJ OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B)	8-94396-975-1	01	1	9806-9911			●
80	PLATE; ADJ (B)	8-94396-975-1	01	1	9912-		●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	9806-9911	●
81	PIECE; SLIDING EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X45	1-13674-160-0	01	1	9806-9911			●
81	PIECE; SLIDING OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> M12X59	1-13674-161-0	01	1	9806-9911			●
81	PIECE; SLIDING M12X59	1-13674-161-0	01	1	9912-		●
82	NUT; ADJ PLATE M12 FLANGE	0-91150-112-0	01	1	9806-9911	●		●
82	NUT; ADJ PLATE M12 FLANGE	0-91150-112-0	01	1	9912-0602		●
82	NUT; ADJ PLATE M12 FLANGE	0-91180-112-0	01	1	0603-		●
86	BOLT; ADJ M10X155 FLANGE	1-09009-114-1	01	1	9806-9911	●		●
86	BOLT; ADJ M10X155 FLANGE	1-09009-114-1	01	1	9912-		●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	9-09164-712-0	01	1	9806-9911	●		●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	9-09164-712-0	01	1	9912-0605		●
88	WASHER; PL,ADJ PLATE ID=12.5 OD=32	0-91614-712-0	01	1	0606-		●
96	BOLT; ADJ PLATE M10X45 FLANGE	0-28181-045-0	01	1	9806-9911	●		●
96	BOLT; ADJ PLATE M10X45 FLANGE	0-28181-045-0	01	1	9912-0512		●
96	BOLT; ADJ PLATE M10X45 FLANGE	0-28151-045-0	01	1	0601-		●
99	BRACKET; ADJ LINK ROD,FAN BELT	8-94395-233-0	01	1	9806-9911	●		●
101	BOLT; BRKT,ADJ LINK ROD OIL FILLER FIX M8X60 FLANGE	0-28090-860-0	02	1	9806-9911	●		●
101	BOLT; BRKT,ADJ LINK ROD TO GEAR CASE M10X60 FLANGE	0-28191-060-0	01	1	9806-9911	●		●
101	BOLT; BRKT,ADJ LINK ROD TO GEAR CASE M10X25 FLANGE	0-28791-025-0	01	1	9806-9911	●		●
167	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28080-825-0	02	1	9806-9911			●
167	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	01	1	9912-0512		●
167	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	01	1	0601-		●

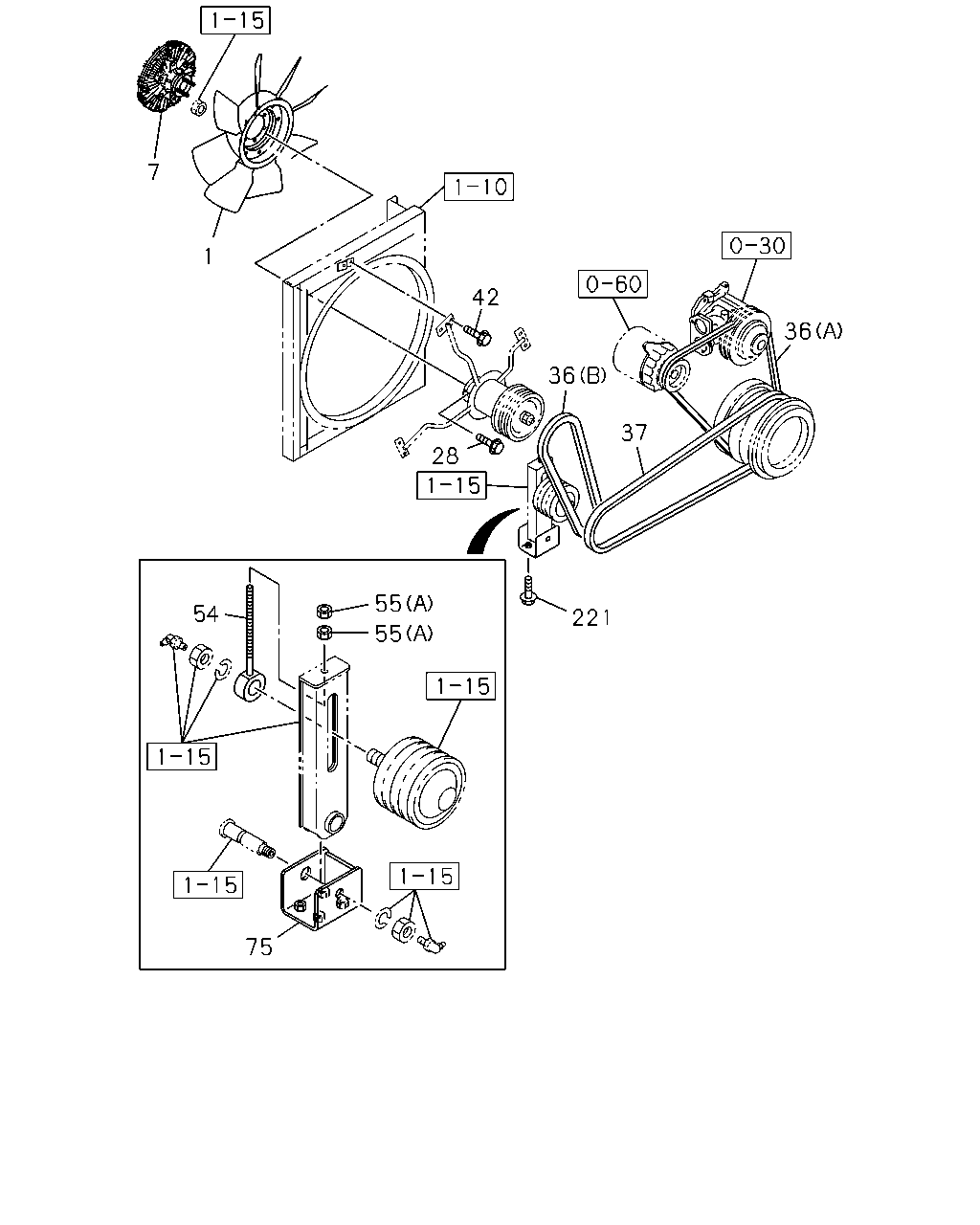

7 1 42 36 36 37 28 55 54 221 55 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FAN; COOLING 8-BLADE OD=880	1-13660-288-0	01	1	9806-9911	●
1	FAN; COOLING 8-BLADE OD=880	1-13660-277-2	01	1	9912-		●
1	FAN; COOLING 7-BLADE OD=320	1-13660-150-0	01	1	9806-9911			●
7	COUPLING; FAN OD=248	1-21650-193-1	01	1	9806-9911	●
7	COUPLING; FAN OD=248	1-21650-194-0	01	1	9912-0210		●
7	COUPLING; FAN OD=248	1-21650-193-1	01	1	0211-0505		●
7	COUPLING; FAN	1-21650-194-1	01	1	0506-		●
7	COUPLING; FAN OD=204	1-21650-191-0	01	1	9806-9911			●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28181-016-0	06	1	9806-9911	●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28181-016-0	06	1	9912-0512		●
28	BOLT; COOLING FAN M10X16 FLANGE	0-28151-016-0	06	1	0601-		●
28	BOLT; COOLING FAN M8X12 FLANGE	0-28080-812-0	04	1	9806-9911			●
36	BELT; COOLING FAN (B) L=1048 IDLE-FAN 1 SET=2 PIECE(9136713160) MITSUBOSHI	1-13671-323-0	01	1	9806-9911	●
36	BELT; COOLING FAN (B) L=1726 1 SET=2 PIECE(1136711530) MITSUBOSHI	1-13671-152-0	01	1	9912-		●
36	BELT; COOLING FAN (A) L=1186 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9806-9911	●
36	BELT; COOLING FAN EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) L=1186 1 SET=2 PIECE(1136713270) MITSUBOSHI	1-13671-328-0	01	1	9806-9911			●
36	BELT; COOLING FAN (B) L=1003 IDLE-FAN 1 SET=2 PIECE(9136713440) MITSUBOSHI	1-13671-315-0	01	1	9806-9911			●
36	BELT; COOLING FAN OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	9806-9911			●
36	BELT; COOLING FAN (A) L=1255 1 SET=3 PIECE(5136710231) MITSUBOSHI	8-94399-340-0	01	1	9912-		●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE L=2149	1-13671-324-1	01	1	9806-9911	●		●
37	BELT; COOLING FAN,CR/SHF TO IDLE PULLE L=1726 1 SET=2 PIECE(1136711530) MITSUBOSHI	1-13671-152-0	01	1	9912-		●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28681-035-0	08	1	9806-9911	●		●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28681-035-0	08	1	9912-0512		●
42	BOLT; FAN DRIVE M10X35 FLANGE	0-28651-035-0	08	1	0601-		●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-036-0	01	1	9806-9911	●		●
54	RETAINER; IDLE PULLEY,COOLING FAN	1-21625-078-0	01	1	9912-		●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	9806-9911	●		●
55	NUT; IDLE PULLEY RET (A) M10	9-09110-510-0	02	1	9912-0512		●
55	NUT; IDLE PULLEY RET (A) M10	0-91110-510-0	02	1	0601-		●
55	NUT; IDLE PULLEY RET (B) M24	9-99111-524-0	01	1	9806-9911	●		●
75	BRACKET; IDLE PULLEY	1-21625-076-0	01	1	9912-		●
221	BOLT; IDLE PULLEY M10X25 FLANGE	0-28681-025-0	04	1	9912-0512		●
221	BOLT; IDLE PULLEY M10X25 FLANGE	0-28651-025-0	04	1	0601-		●
