◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11130 - FVZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#67879) — 137 parça

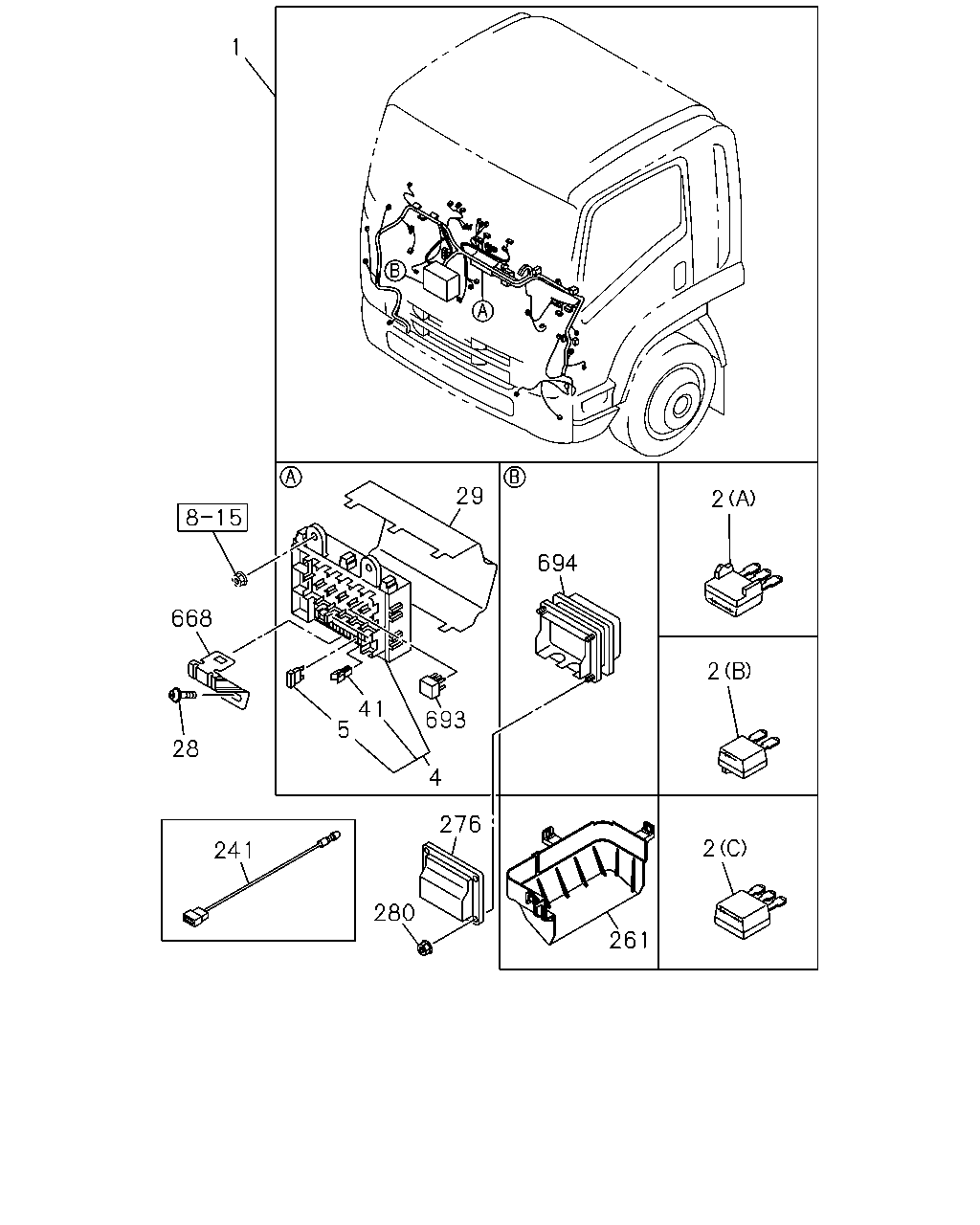

çizim 136050
1 2 668 28 241 29 41 5 693 276 280 4 261 21 2 694
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98166-076-0 01 1 1004-1006
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98177-168-0 01 1 1007-1102
1 HARNESS; CAB
THA 		8-98177-168-0 01 1 1103-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA 		8-97924-370-2 01 1 0807-0904
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-046-1 01 1 0905-1001
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-97924-369-2 01 1 0807-0904
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-045-1 01 1 0905-1001
1 HARNESS; CAB
THA 		8-98145-045-1 01 1 1002-1003
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98145-045-1 01 1 1004-1006
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98177-167-0 01 1 1007-1102
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A THA 		8-94416-438-1 01 1 0807-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 02 1 0807-0904
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A THA 		8-94422-639-1 03 1 0905-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A THA 		8-94422-640-1 01 1 0807-
4 BOX ASM; FUSE,HARNESS
THA 		8-98065-666-0 01 1 0807-
5 FUSE; FACIA HARNESS
10A RED THA 		8-98054-257-0 AR 1 0807-
5 FUSE; FACIA HARNESS
15A BLUE THA 		8-98054-258-0 AR 1 0807-
5 FUSE; FACIA HARNESS
20A YELLOW THA 		8-98054-259-0 AR 1 0807-
5 FUSE; FACIA HARNESS
25A WHITE THA 		8-98062-982-0 01 1 0807-0904
5 FUSE; FACIA HARNESS
25A WHITE THA 		8-98062-982-0 02 1 0905-
28 SCREW; FUSE BOX
M6X16 FLANGE THA 		0-28650-616-0 01 1 0807-
29 COVER; FUSE BOX
THA 		8-98056-968-0 01 1 0807-
41 PULLER; FUSE
THA 		8-98054-260-0 01 1 0807-
241 HARNESS; MARKER LAMP
THA 		8-97924-671-0 01 1 0807-
261 COVER; CONNECTOR BOX
THA 		8-98065-986-1 01 1 1103-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0807-
280 NUT; BOX ASM FIX
M6 FLANGE THA 		0-91180-106-0 04 1 0807-
668 BRACKET; HARNESS 8-98095-653-2 01 1 0807-
693 RELAY; FUSE BOX
24V 10A PANASONIC THA 		8-97173-035-1 AR 1 0807-
694 BOX ASM; CONNECTOR
THA 		8-98057-771-0 01 1 1103-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 0807-1102

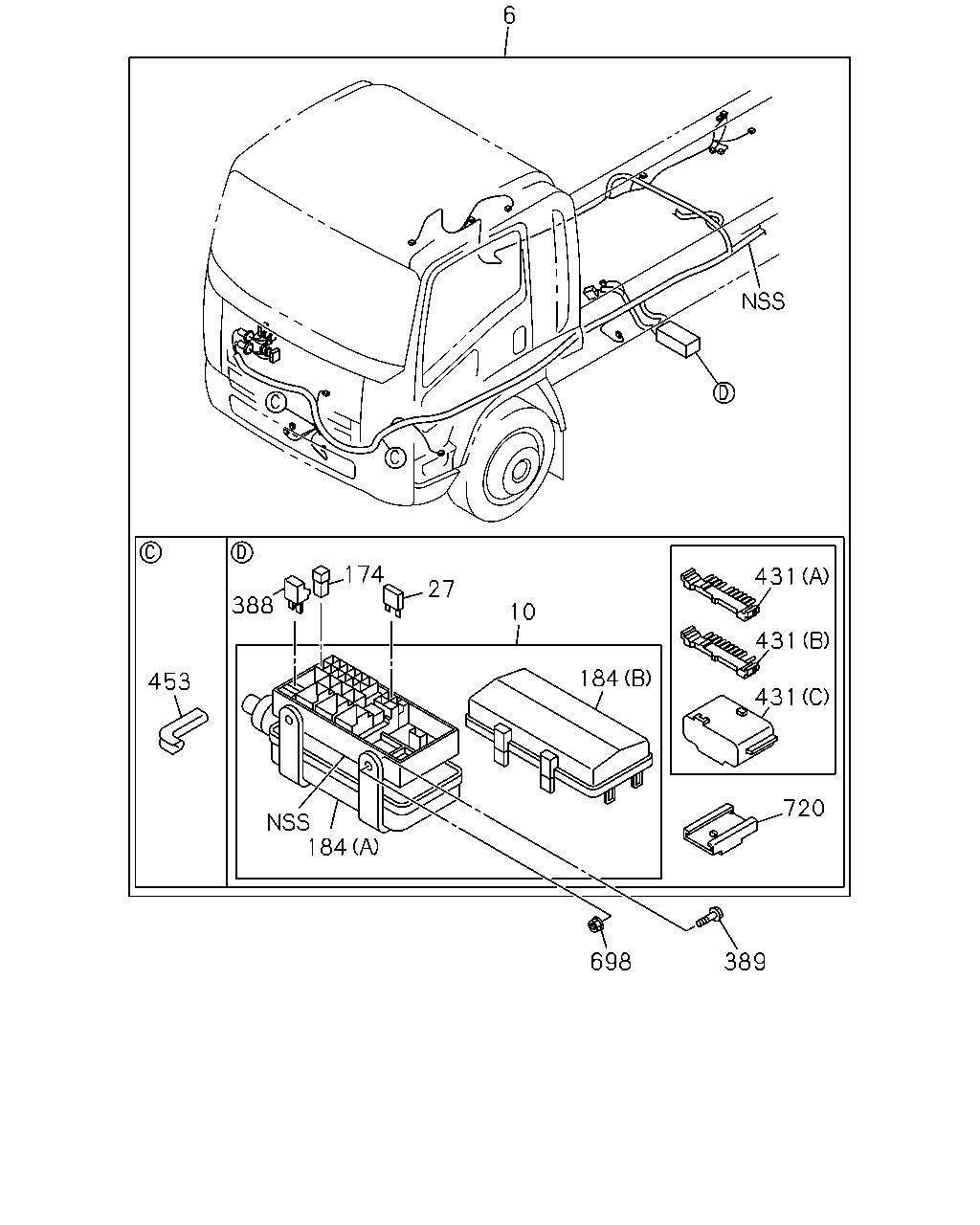

çizim 136201
6 174 431 27 388 10 431 184 453 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
THA 		8-97923-692-2 01 1 0807-1102
6 HARNESS; FRAME
THA 		8-97925-498-2 01 1 1103-
10 BOX; FUSE,HARNESS
THA 		8-98030-762-0 01 1 0807-
27 FUSE UNIT
10A RED THA 		8-98054-257-0 01 1 0807-
27 FUSE UNIT
15A BLUE THA 		8-98054-258-0 01 1 0807-
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-97219-407-0 01 1 1111-
174 FUSE; SLOW BLOW
30A PINK THA 		8-98079-191-0 01 1 0807-
174 FUSE; SLOW BLOW
40A GREEN THA 		8-98079-192-0 01 1 0807-
174 FUSE; SLOW BLOW
50A RED THA 		8-98079-193-0 04 1 0807-1102
174 FUSE; SLOW BLOW
50A RED THA 		8-98079-193-0 03 1 1103-
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-98079-194-0 02 1 0807-1102
174 FUSE; SLOW BLOW
60A YELLOW THA 		8-97219-407-0 02 1 1103-1110
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW THA 		8-97219-407-0 01 1 1111-
184 COVER; RELAY & FUSE BOX
(A) THA 		8-98030-766-0 01 1 0807-
184 COVER; RELAY & FUSE BOX
(B) THA 		8-98030-767-1 01 1 0807-
388 DIODE; RELAY BOX
BLACK 2P-1.5A THA 		8-94422-639-1 01 1 0807-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER THA 		1-09030-073-0 03 1 0807-
431 CONNECTOR; JOINT
(B) 10P GREEN THA 		1-82698-579-0 01 1 0807-1102
431 CONNECTOR; JOINT
(A) 10P BLUE THA 		1-82699-598-0 03 1 0807-1102
431 CONNECTOR; JOINT
(A) 10P BLUE THA 		1-82699-598-0 04 1 1103-
431 CONNECTOR; JOINT
(C) 6P BLACK THA 		8-97616-194-0 01 1 0807-1102
453 PROTECTOR; HARNESS
THA 		1-82699-709-0 01 1 0807-
698 NUT; COVER,RELAY BOX
M8 FLANGE THA 		0-91180-108-0 02 1 0807-
720 ATTACHMENT; CONNECTOR
THA 		1-82699-688-0 01 1 1103-
720 ATTACHMENT; CONNECTOR
THA 		1-82699-688-0 03 1 0807-1102

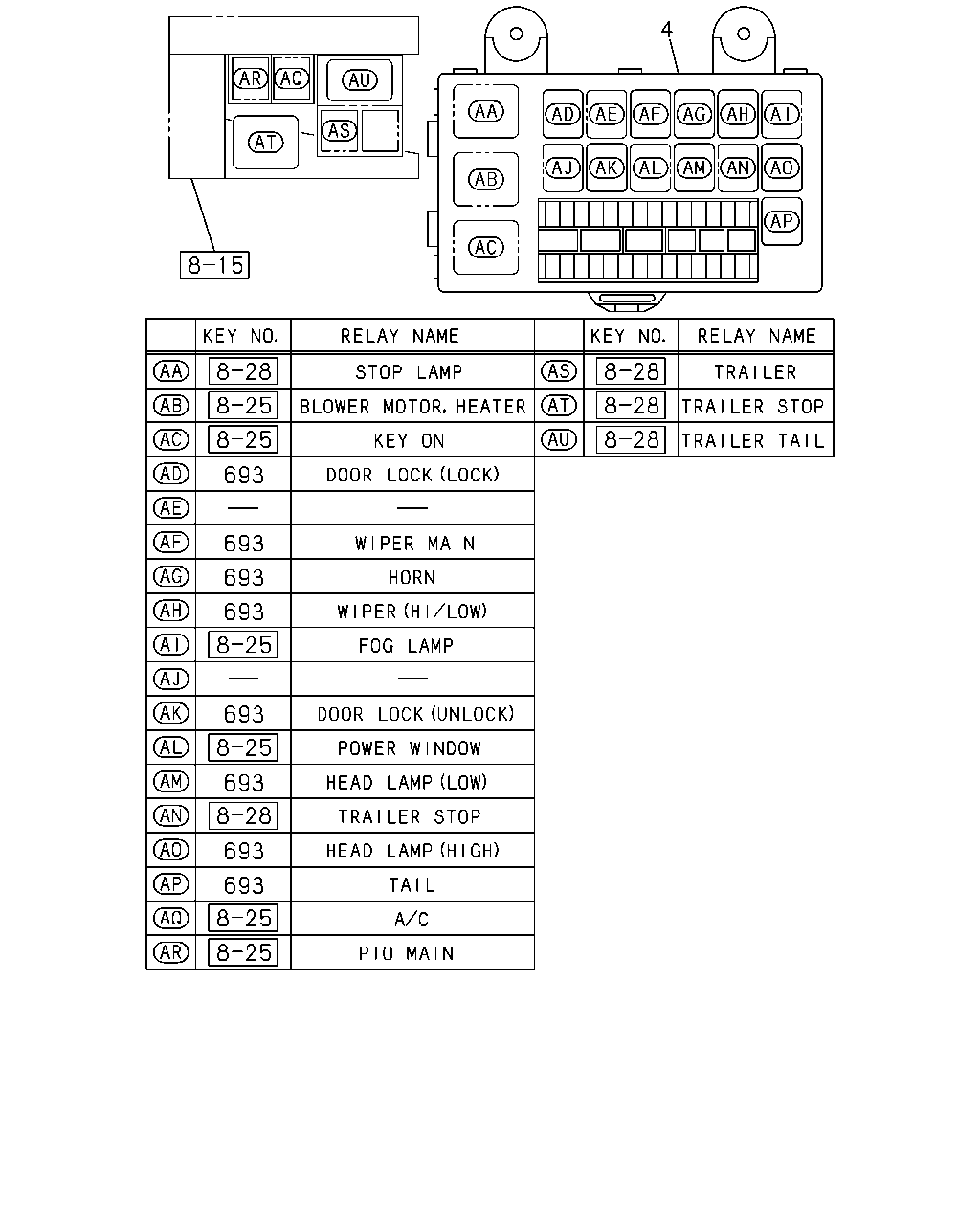

çizim 136693
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
THA 		8-98065-666-0 01 1 0807-
693 RELAY; FUSE BOX
24V 10A PANASONIC THA 		8-97173-035-1 AR 1 0807-

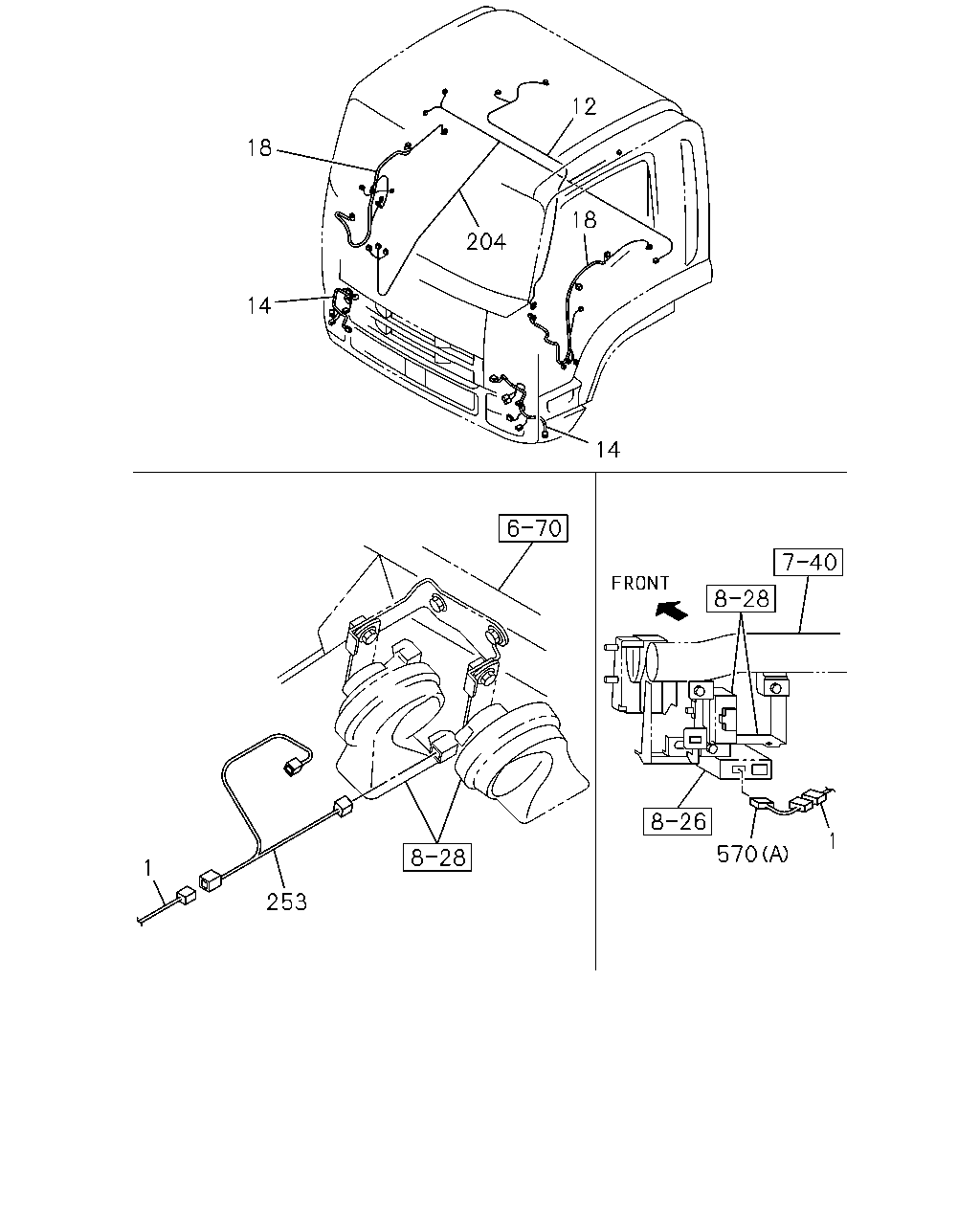

çizim 136847
12 18 18 204 14 14 1 570 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98166-076-0 01 1 1004-1006
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98177-168-0 01 1 1007-1102
1 HARNESS; CAB
THA 		8-98177-168-0 01 1 1103-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA 		8-97924-370-2 01 1 0807-0904
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-046-1 01 1 0905-1001
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-97924-369-2 01 1 0807-0904
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-045-1 01 1 0905-1001
1 HARNESS; CAB
THA 		8-98145-045-1 01 1 1002-1003
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98145-045-1 01 1 1004-1006
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98177-167-0 01 1 1007-1102
12 HARNESS; ROOF
THA 		8-97924-274-0 01 1 0807-
14 HARNESS; HEADLAMP
THA 		8-94270-986-0 02 1 1307-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 0807-1302
14 HARNESS; HEADLAMP
THA 		8-94270-986-0 02 1 1303-
18 HARNESS; DOOR
THA 		8-98076-304-3 01 1 1103-
18 HARNESS; DOOR
THA 		8-98076-305-3 01 1 1103-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> DRIVER THA 		8-98108-439-1 01 1 0807-1003
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> PASSENGER THA 		8-98108-440-1 01 1 0807-1003
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> DRIVER THA 		8-98076-304-3 01 1 0807-1003
18 HARNESS; DOOR
DRIVER THA 		8-98076-304-3 01 1 1004-1102
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> PASSENGER THA 		8-98076-305-3 01 1 0807-1003
18 HARNESS; DOOR
PASSENGER THA 		8-98076-305-3 01 1 1004-1102
204 HARNESS; CABLE,FLOOR
THA 		8-98081-206-2 01 1 0807-
253 HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN<6KK> EXC. VIN MODEL YEAR 2010<VZA> 		8-98074-080-1 01 1 1004-1102
253 HARNESS; EXT,HORN
ELECTRICAL HORN<WB7> 		8-98074-081-1 01 1 0807-1001
253 HARNESS; EXT,HORN 8-98159-227-0 01 1 1002-1003
253 HARNESS; EXT,HORN
EXC. VIN MODEL YEAR 2010<VZA>,DUAL HEAVY DUTY HORN<6KK> 		8-98159-227-0 01 1 1004-1102
253 HARNESS; EXT,HORN
EXC. ELECTRICAL HORN<WB7> 		8-98074-080-1 01 1 0807-1001
570 HARNESS; SPEED SENSOR
(B) 		1-82659-230-0 01 1 0807-1004
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1005-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 0807-1003
570 HARNESS; SPEED SENSOR
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98058-327-1 01 1 1004-1102

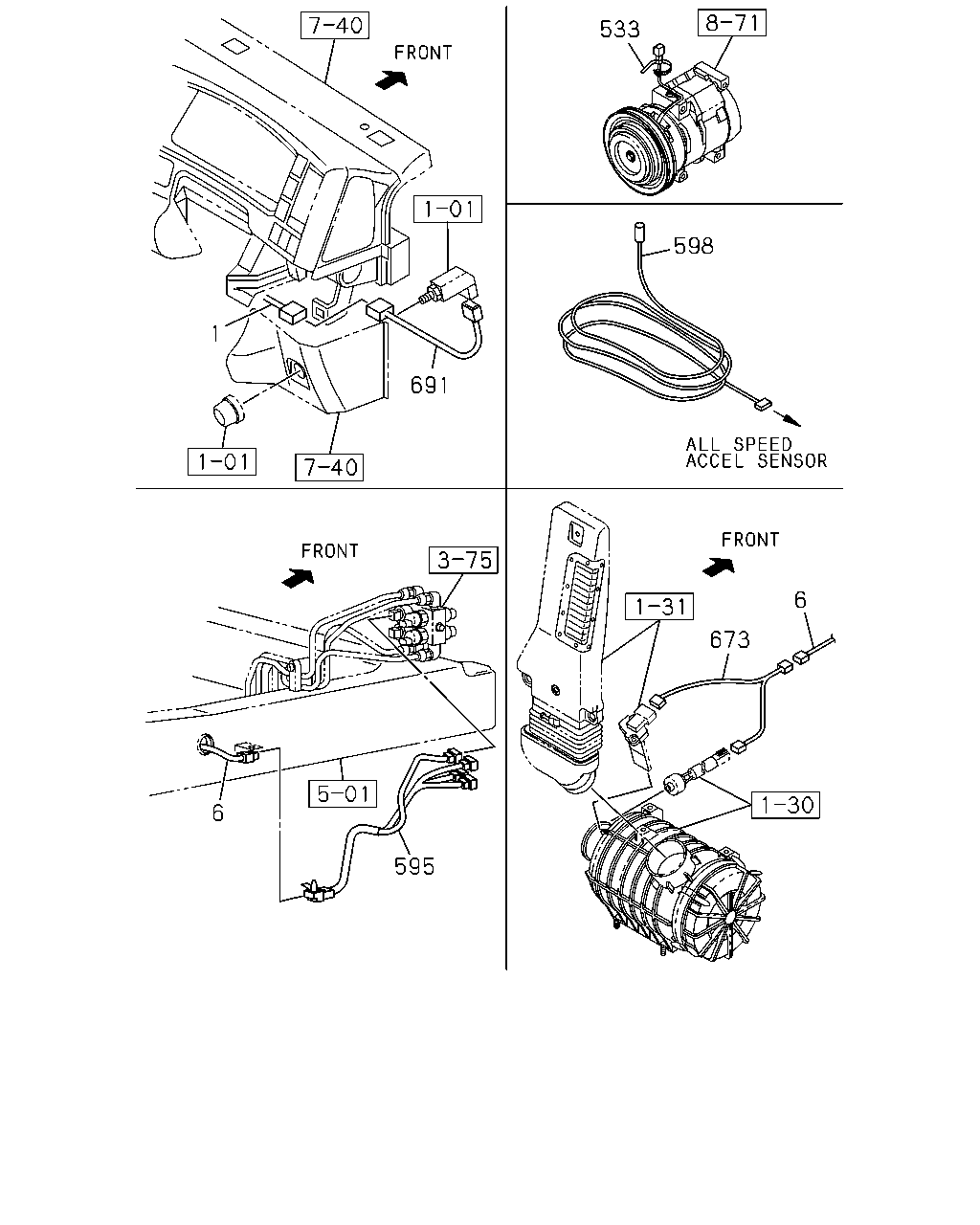

çizim 137078
533 598 1 691 6 673 6 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98166-076-0 01 1 1004-1006
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA 		8-98177-168-0 01 1 1007-1102
1 HARNESS; CAB
THA 		8-98177-168-0 01 1 1103-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA 		8-97924-370-2 01 1 0807-0904
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-046-1 01 1 0905-1001
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-97924-369-2 01 1 0807-0904
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA 		8-98145-045-1 01 1 0905-1001
1 HARNESS; CAB
THA 		8-98145-045-1 01 1 1002-1003
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98145-045-1 01 1 1004-1006
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA 		8-98177-167-0 01 1 1007-1102
6 HARNESS; FRAME
THA 		8-97923-692-2 01 1 0807-1102
6 HARNESS; FRAME
THA 		8-97925-498-2 01 1 1103-
533 CLIP
L=180 		1-09707-162-1 01 1 0808-1303
533 CLIP
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=180 		1-09707-162-1 01 1 1304-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 0807-0809
595 HARNESS; WARNING,BRK
THA 		8-97924-875-0 01 1 0810-
598 HARNESS; EXT,PTO
PTO CONTROL<SV6> 		1-82675-898-0 01 1 0904-
673 HARNESS; EXT,SENSOR 8-98098-510-0 01 1 0807-1102
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1103-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 0807-

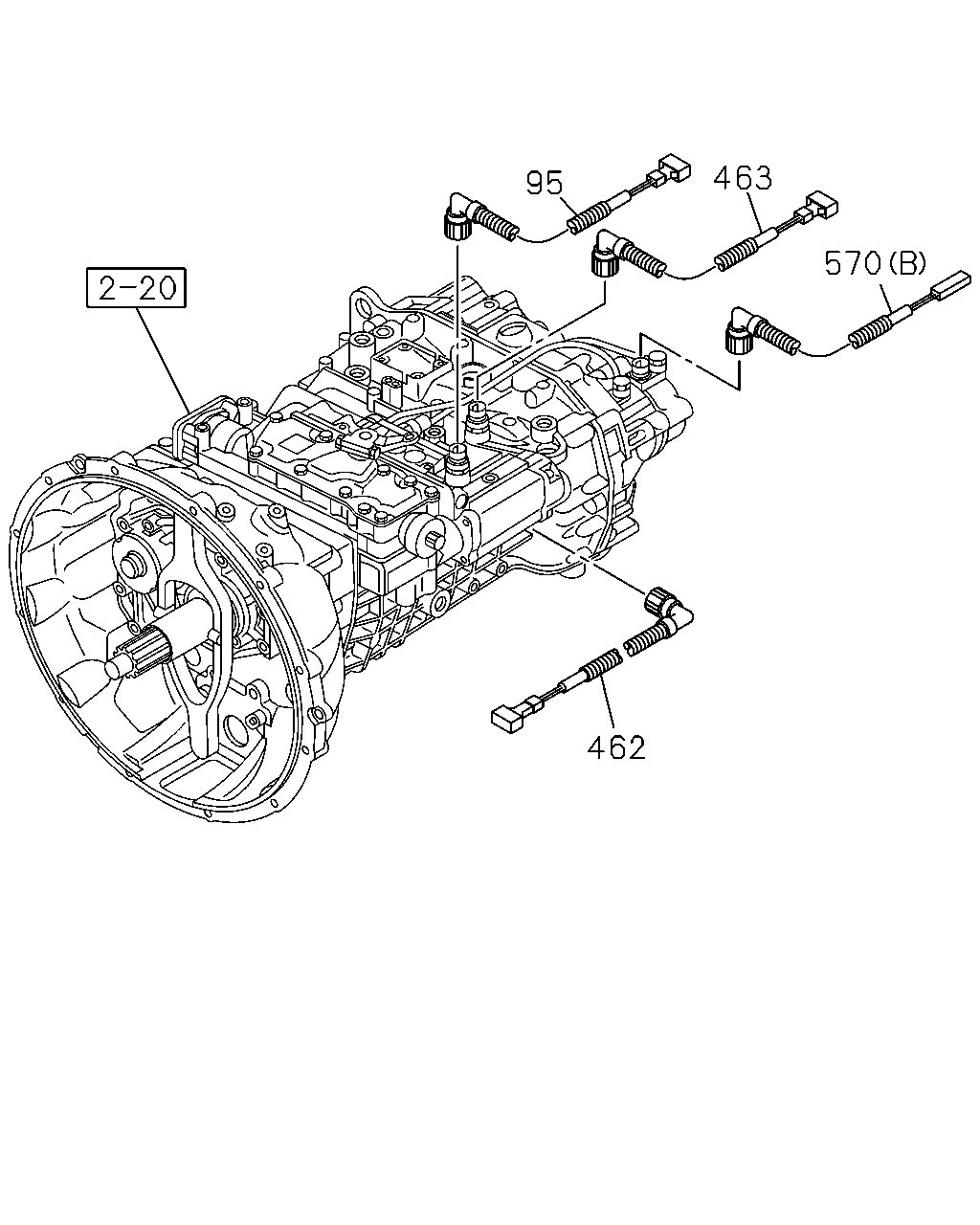

çizim 137128
463 95 570 462
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
RED 		8-98071-232-0 01 1 0807-0905
95 HARNESS; NEUTRAL SW
RED 		8-98145-855-0 01 1 0906-
462 HARNESS; SW,RANGE
BLUE 		1-82659-228-0 01 1 0807-0905
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 0906-
463 HARNESS; SW,BACK UP 1-82659-227-0 01 1 0807-0905
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 0906-
570 HARNESS; SPEED SENSOR
(B) 		1-82659-230-0 01 1 0807-1004
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1005-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 0807-1003
570 HARNESS; SPEED SENSOR
EXC. VIN MODEL YEAR 2010<VZA> (A) 		8-98058-327-1 01 1 1004-1102

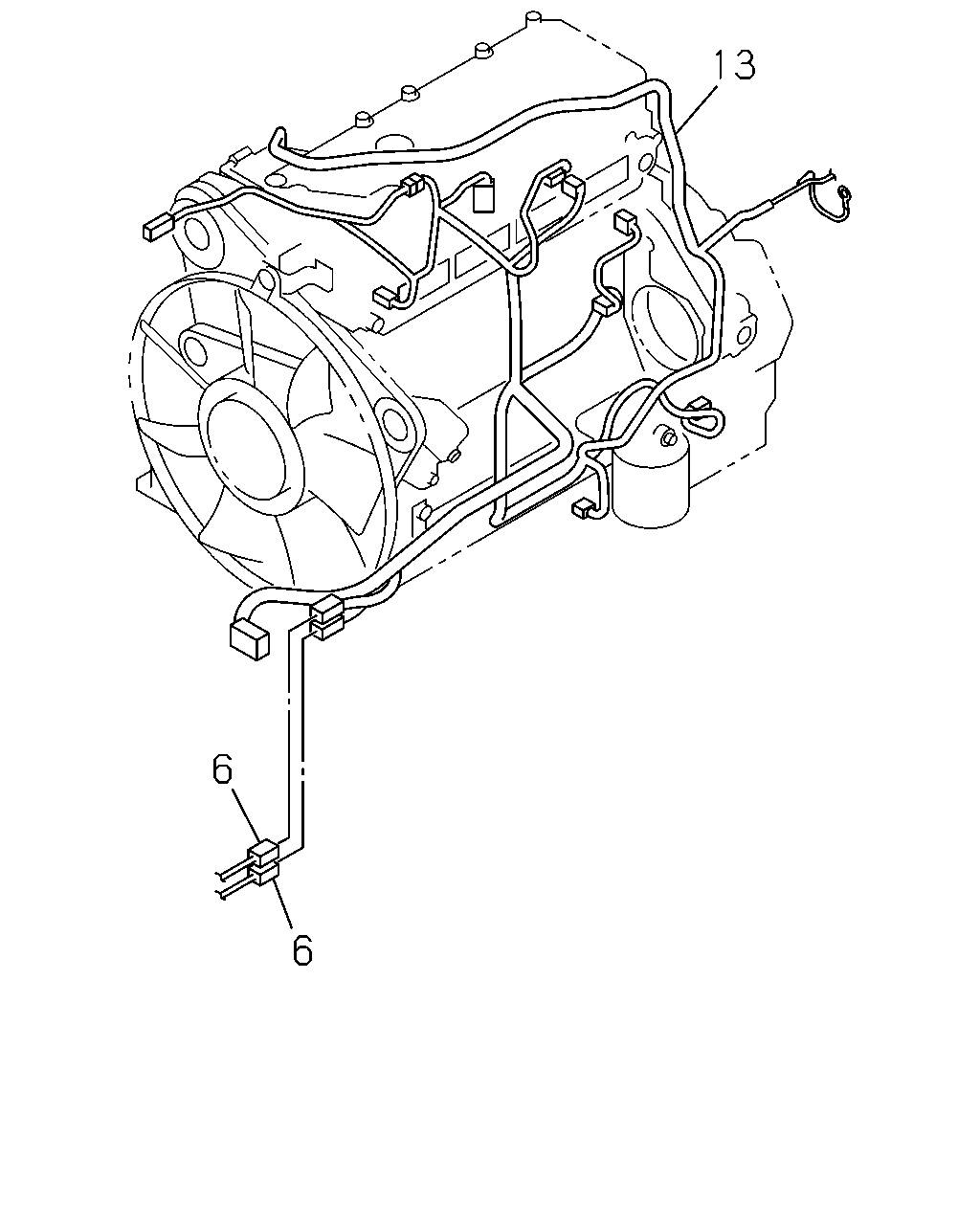

çizim 193478
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
THA 		8-97923-692-2 01 1 0807-1102
6 HARNESS; FRAME
THA 		8-97925-498-2 01 1 1103-
13 HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44> 		8-97616-797-8 01 1 0807-0909
13 HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44> 		8-98148-979-0 01 1 0910-1010
13 HARNESS; ENG
GENERATOR 24V60A<KG2>,GENERATOR 24V90A<K44> 		8-98177-188-0 01 1 1011-1102
13 HARNESS; ENG
GENERATOR 24V60A<KG2> 		8-98171-594-0 01 1 1103-
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-97616-796-8 01 1 0807-0909
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-98148-977-0 01 1 0910-1010
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-98177-187-0 01 1 1011-1102
13 HARNESS; ENG
GENERATOR 24V50A<K89> 		8-98171-593-0 01 1 1103-

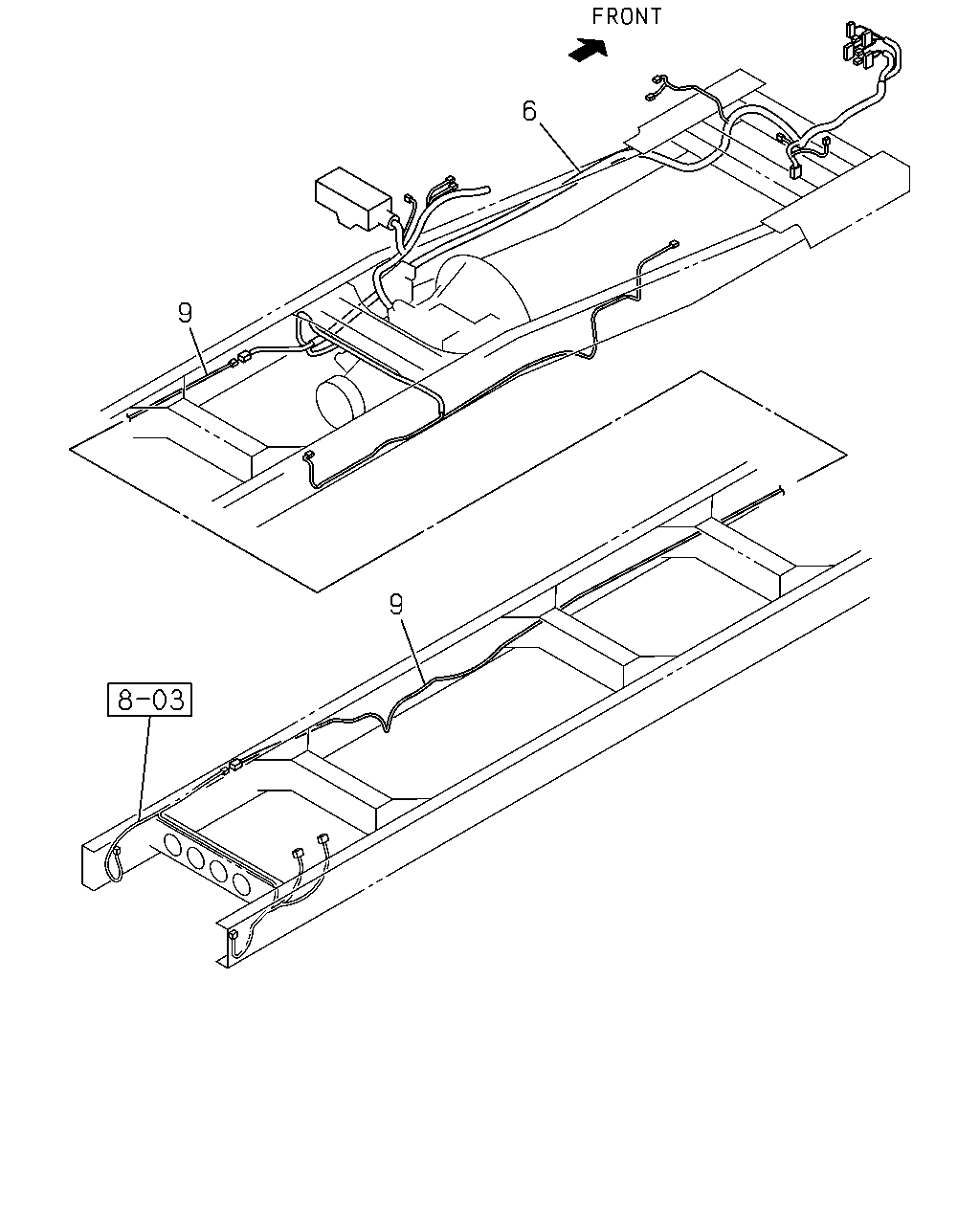

çizim 193581
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
THA 		8-97923-692-2 01 1 0807-1102
6 HARNESS; FRAME
THA 		8-97925-498-2 01 1 1103-
9 HARNESS; FRAME,RR
THA 		8-97923-705-3 01 1 0807-

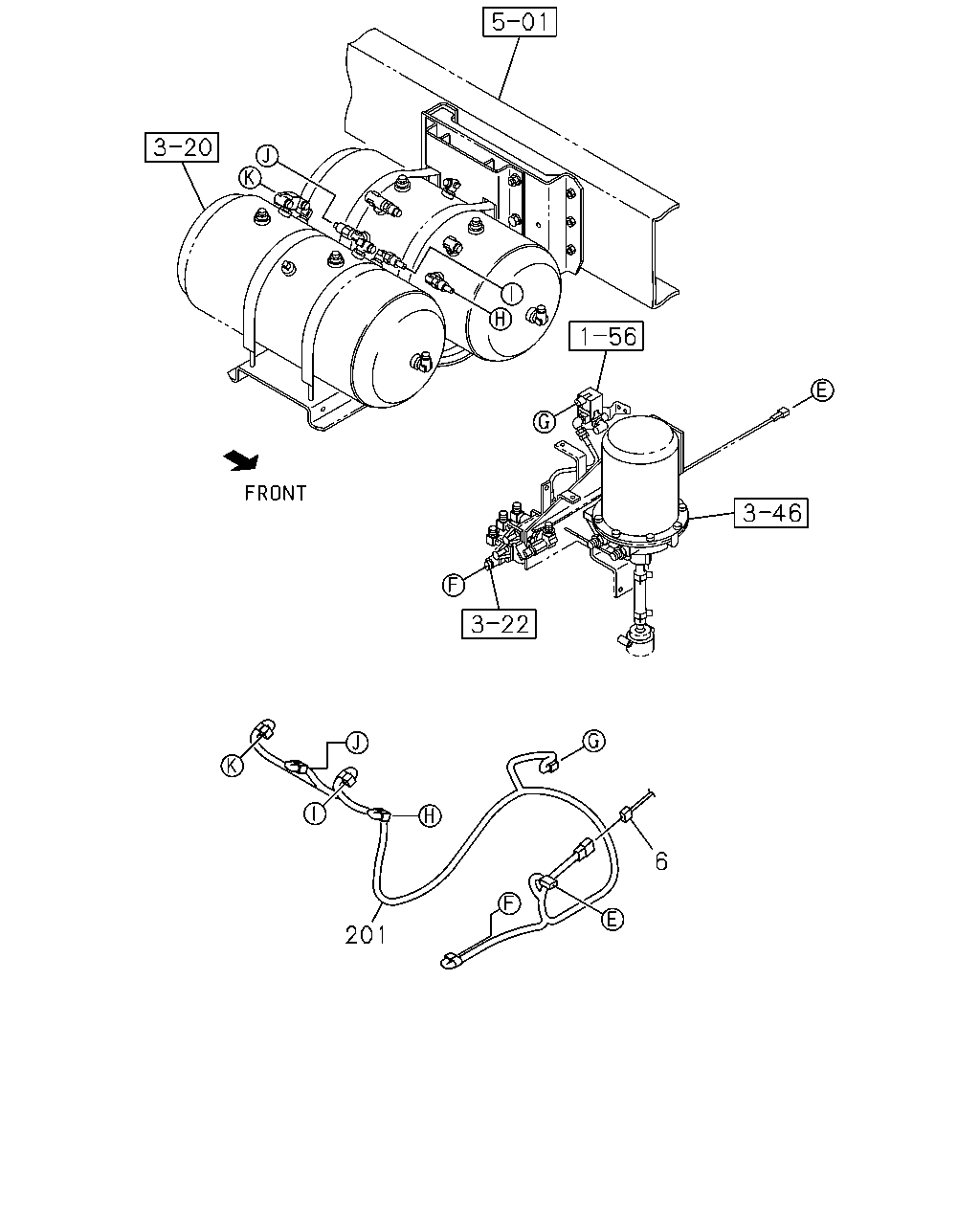

çizim 193586
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
THA 		8-97923-692-2 01 1 0807-1102
6 HARNESS; FRAME
THA 		8-97925-498-2 01 1 1103-
201 HARNESS; AIR TANK
THA 		8-98060-672-1 01 1 0807-1102
201 HARNESS; AIR TANK
THA 		8-98175-322-0 01 1 1103-
