◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11146 - FSS(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#67852) — 28 parça
çizim 113954
487 474 6 3 221 474 225 199 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=2980 		8-98112-917-2 01 1 0812-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=2980 		8-98112-917-2 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3030 		8-98112-918-3 01 1 0812-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3030 		8-98112-918-3 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=3025 		8-98122-065-2 01 1 0812-
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3060 		8-98122-053-3 01 1 0812-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3085 		8-98112-926-4 01 1 0812-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3085 		8-98112-926-4 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=3195 		8-98122-066-3 01 1 0812-
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> L=2970 		8-98122-055-4 01 1 0812-
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0812-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0812-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0812-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0812-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0812-
487 BRACKET; CONT CABLE 8-98080-013-2 01 1 0812-

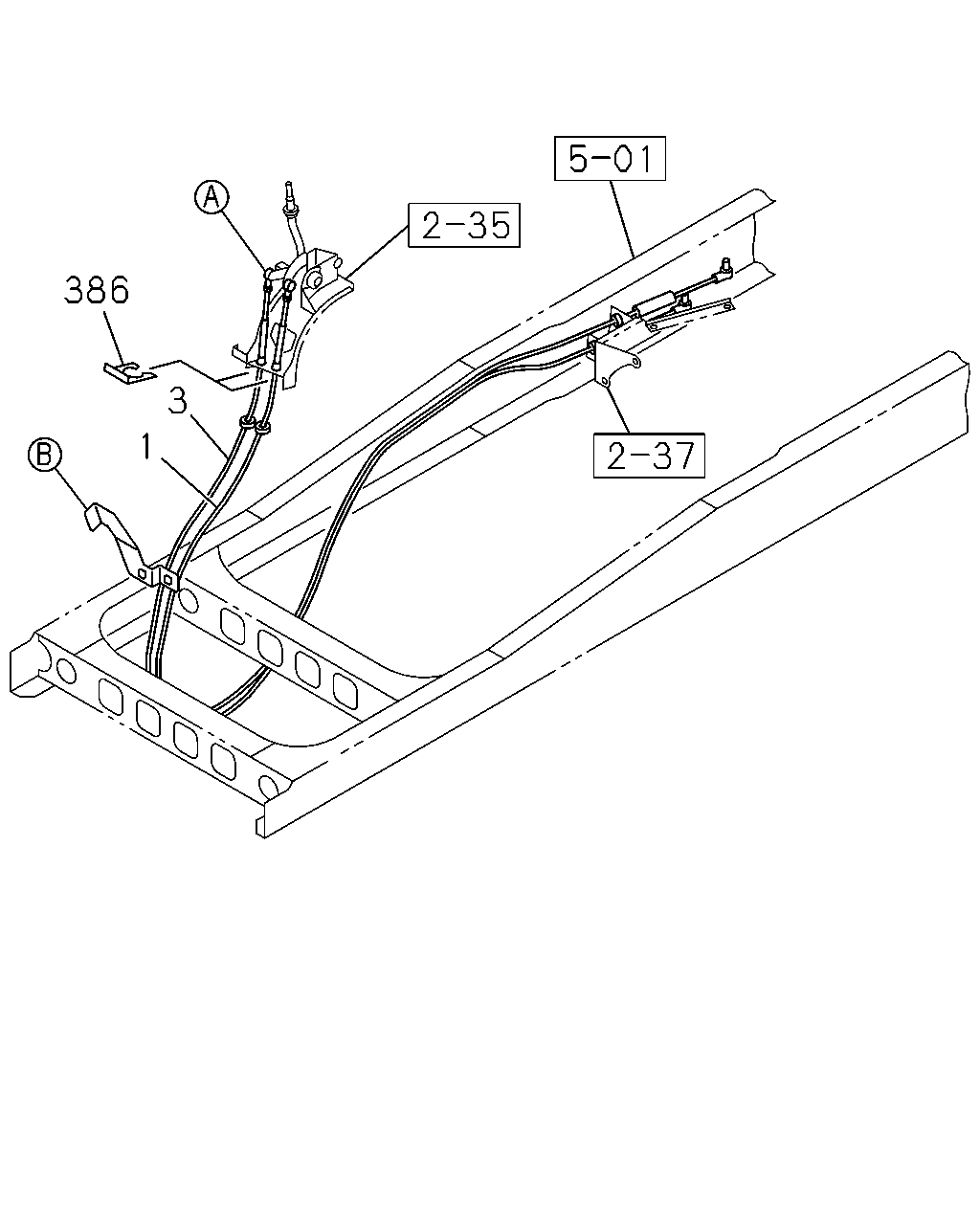

çizim 187576
386 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=2980 		8-98112-917-2 01 1 0812-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=2980 		8-98112-917-2 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3030 		8-98112-918-3 01 1 0812-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3030 		8-98112-918-3 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=3025 		8-98122-065-2 01 1 0812-
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3060 		8-98122-053-3 01 1 0812-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3085 		8-98112-926-4 01 1 0812-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3085 		8-98112-926-4 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=3195 		8-98122-066-3 01 1 0812-
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> L=2970 		8-98122-055-4 01 1 0812-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0812-
