Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#67850) — 553 parça

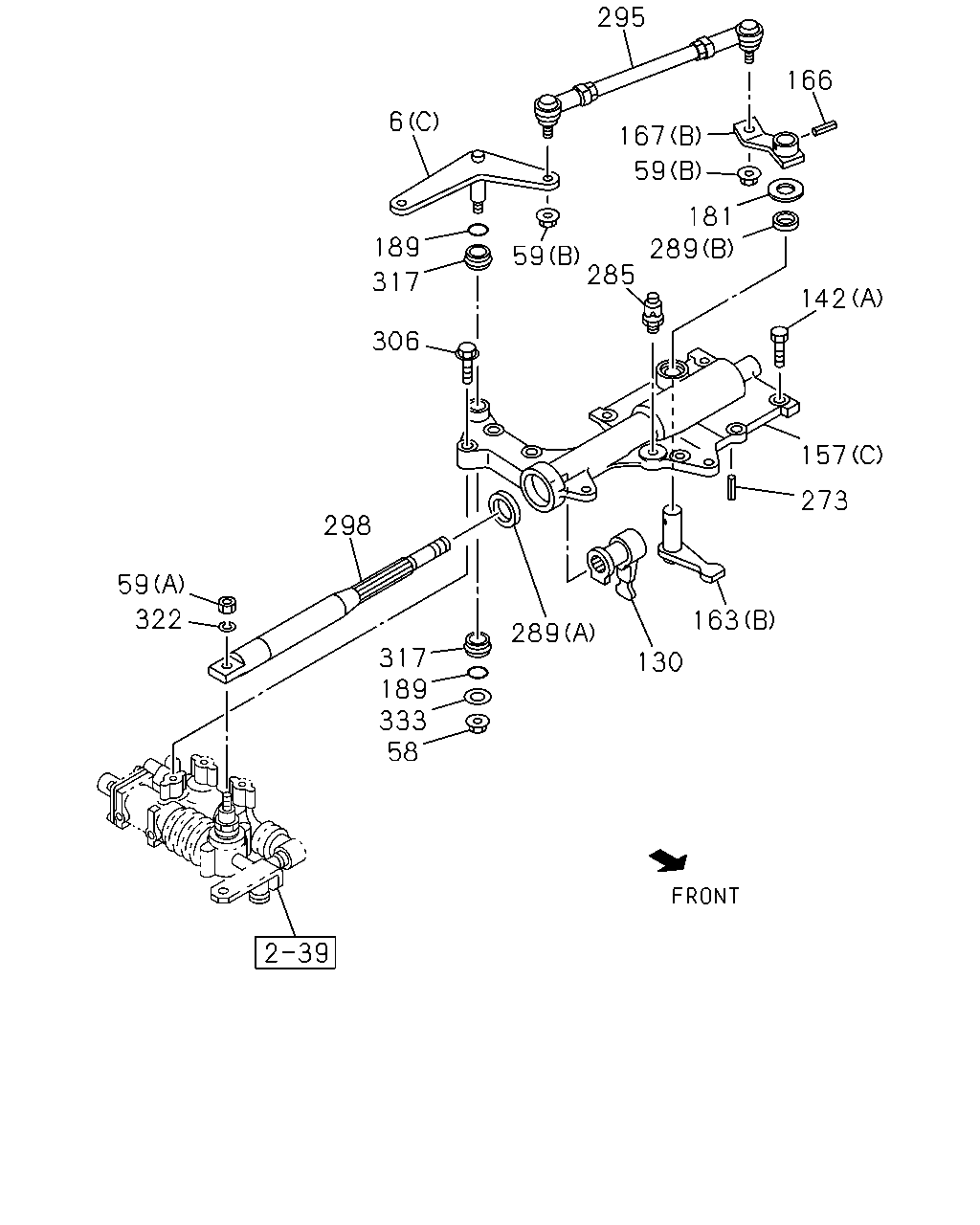

295 166 6 167 59 181 289 189 59 285 317 142 306 157 273 298 59 322 163 289 317 189 333 58 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0812-0906	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-	●	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0812-0906	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0907-	●	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (C)	8-98059-183-0	01	1	0812-			●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0812-0906			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0812-0906	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0907-			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0812-0906			●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0812-0906	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0907-			●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0812-0906	●		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-	●	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0812-0906	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98114-548-0	01	1	0812-			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0812-			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0812-0906	●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0812-			●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	01	1	0812-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	11	1	0812-			●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0812-			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0812-			●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (C)	8-98059-176-0	01	1	0812-			●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0812-0906	●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0907-	●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-153-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-041-4	01	1	0812-			●
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0812-0906	●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0907-	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98059-180-0	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33521-070-0	01	1	0812-			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0812-0906	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0907-	●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0812-			●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0812-			●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0812-0906			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0812-0906	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0907-			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0907-	●	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0812-0906	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0907-	●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0812-			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0812-1204			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1404	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0812-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0812-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0812-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0812-			●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-185-0	01	1	0812-			●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0812-			●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0812-0906	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0907-1507	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-178-0	01	1	0812-			●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98119-275-0	01	1	0812-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0812-0906	●		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0907-	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0812-0906	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0907-	●	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0812-0906	●		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0907-	●	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0812-0906			●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0812-0906	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0907-			●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0907-	●	●

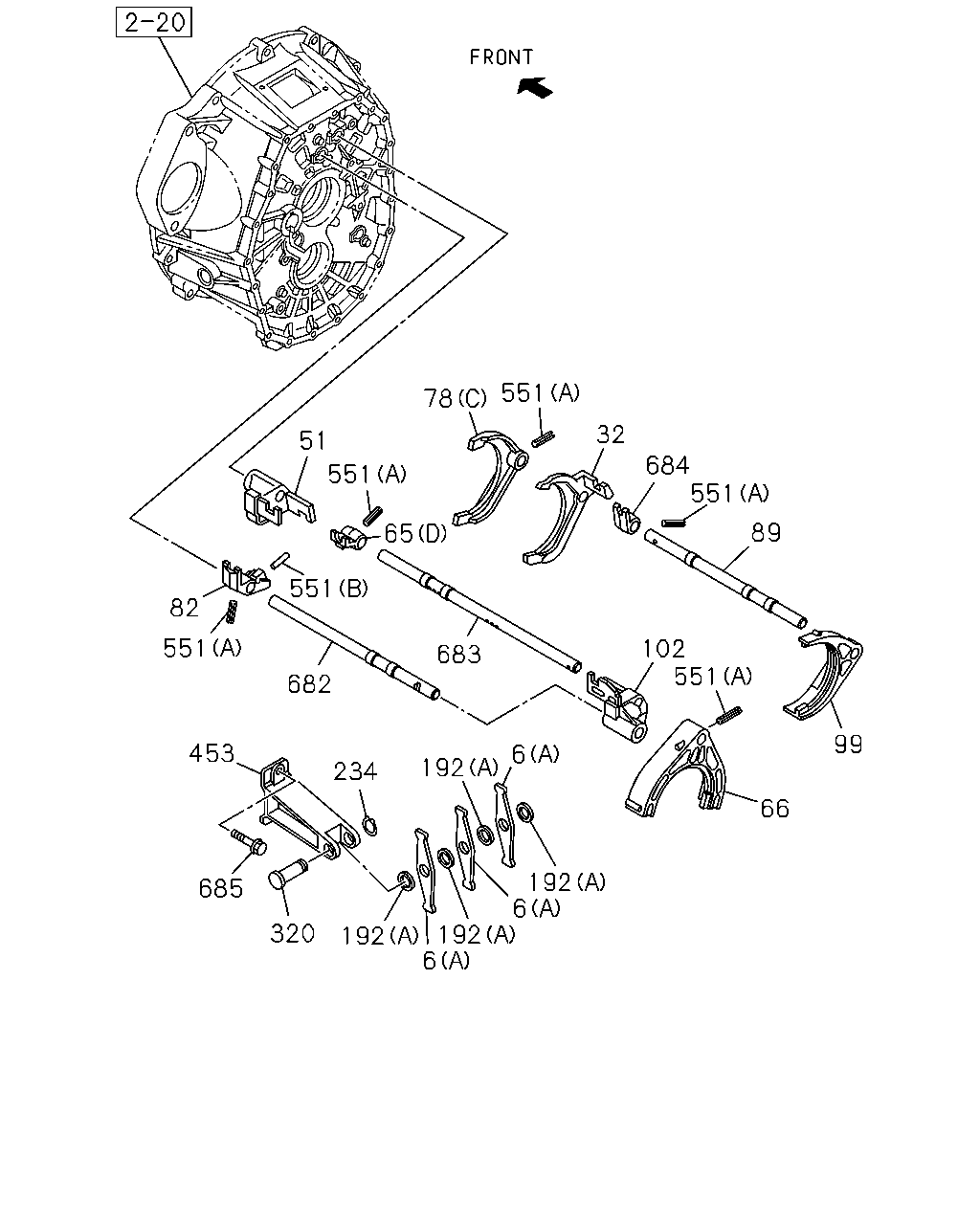

551 78 32 51 684 551 551 89 65 551 82 551 102 551 683 682 99 453 6 192 234 66 192 6 685 320 192 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0812-0906	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-	●	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0812-0906	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0907-	●	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (C)	8-98059-183-0	01	1	0812-			●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0812-0906	●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	0907-1307	●	●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-	●	●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0812-0906	●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	0907-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0812-0906	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0907-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0812-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0812-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0812-			●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0812-0906	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0907-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0812-			●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0812-0906	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0907-	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0812-			●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0812-			●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0812-0906	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0907-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0812-			●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0812-0906	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0812-1202			●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-			●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0812-0906	●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	0907-1506	●	●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-	●	●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0812-0906	●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	0907-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0812-0906	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-	●	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0812-0906	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0907-	●	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0812-0906	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	0907-	●	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0812-0906	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0907-	●	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0812-			●
453	BLOCK; RELAY LEVER	8-97377-927-0	01	1	0812-0906	●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	0907-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0812-0906	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0812-0906	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0812-0906	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-	●	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0812-0906	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	0907-	●	●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0812-0906	●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	0907-	●	●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0812-0906	●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	0907-	●	●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0812-0906	●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	0907-	●	●

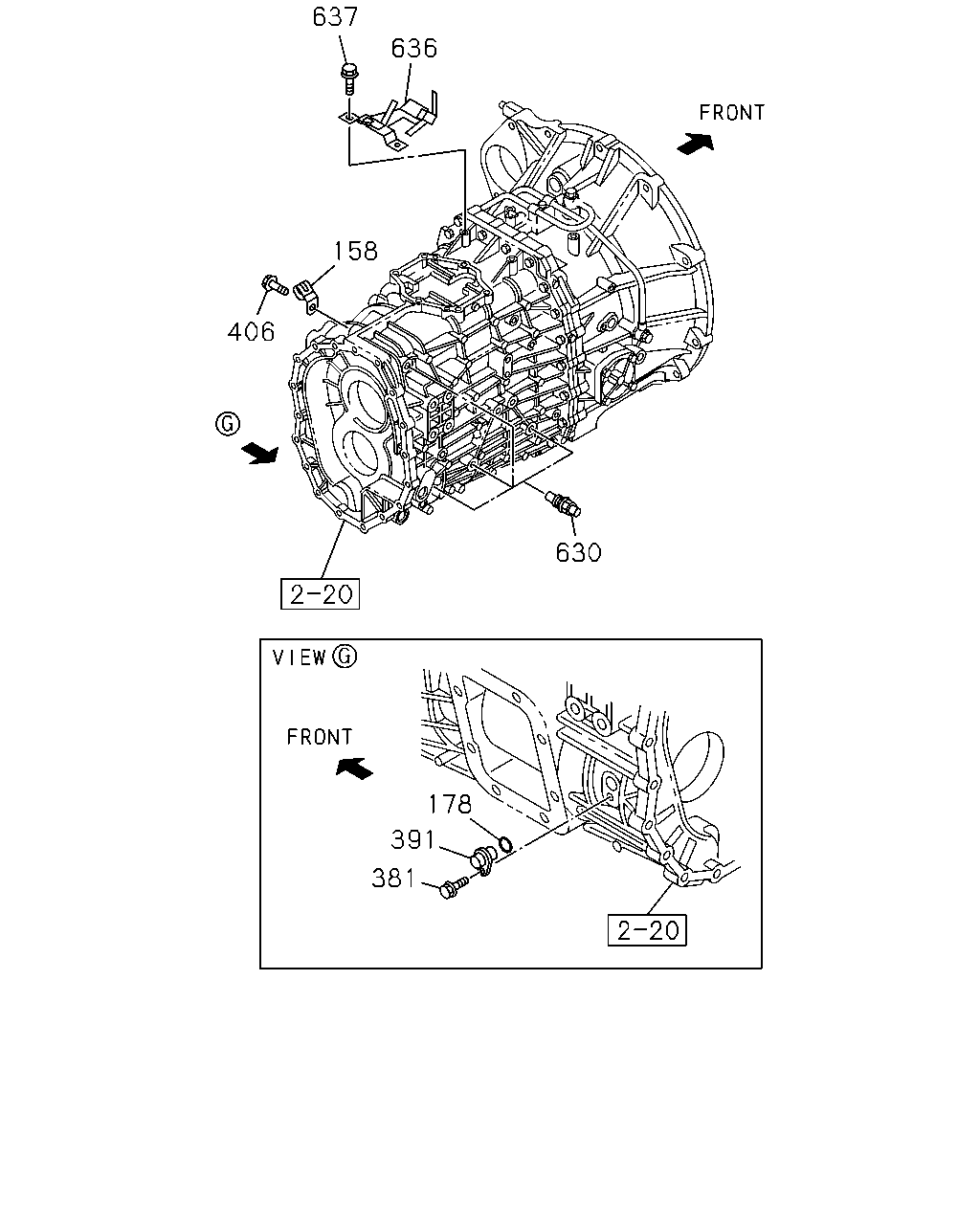

637 636 158 406 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0812-0906	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0907-	●	●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0812-			●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0812-0906	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0907-	●	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	0812-0906	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	0812-0906	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	0907-	●	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0812-0906	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
630	DETENT ASM	8-98019-536-0	04	1	0812-0906	●
630	DETENT ASM	8-98019-536-0	04	1	0907-	●	●
636	BRACKET; CLIP	8-97610-092-1	01	1	0812-0906	●
636	BRACKET; CLIP	8-97610-092-1	01	1	0907-1502	●	●
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	0812-0906	●
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	0907-1502	●	●

296 292 295 292 296 167 188 320 187 292 181 433 289 315 274 271 142 317 142 285 292 433 317 319 142 323 327 157 272 271 289 305 130 163 298 293 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0812-0906	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98114-548-0	01	1	0812-			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0812-			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0812-0906	●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0812-			●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	01	1	0812-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	11	1	0812-			●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0812-			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0812-			●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (C)	8-98059-176-0	01	1	0812-			●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0812-0906	●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0907-	●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-153-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-041-4	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0812-0906	●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0907-	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98059-180-0	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33521-070-0	01	1	0812-			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0812-0906	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0907-	●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0812-			●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0812-			●
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	0812-			●
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	0812-			●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	0812-			●
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	0812-			●
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0812-			●
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	0812-			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0812-1204			●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1404	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1405-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	0812-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	0812-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	0812-			●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	0812-			●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	0812-			●
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	0812-			●
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	0812-			●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-185-0	01	1	0812-			●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0812-			●
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	0812-			●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0812-0906	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0907-1507	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-178-0	01	1	0812-			●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98119-275-0	01	1	0812-			●
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0812-			●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98122-789-0	01	1	0812-			●
317	BUSHING; LEVER	1-09330-119-0	02	1	0812-0906	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0907-	●	●	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	0812-			●
320	SHAFT; LEVER	8-97377-928-0	01	1	0812-0906	●
320	SHAFT; LEVER	8-97377-928-0	01	1	0907-	●	●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	0812-			●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0812-			●
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0812-			●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0812-			●
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0812-			●

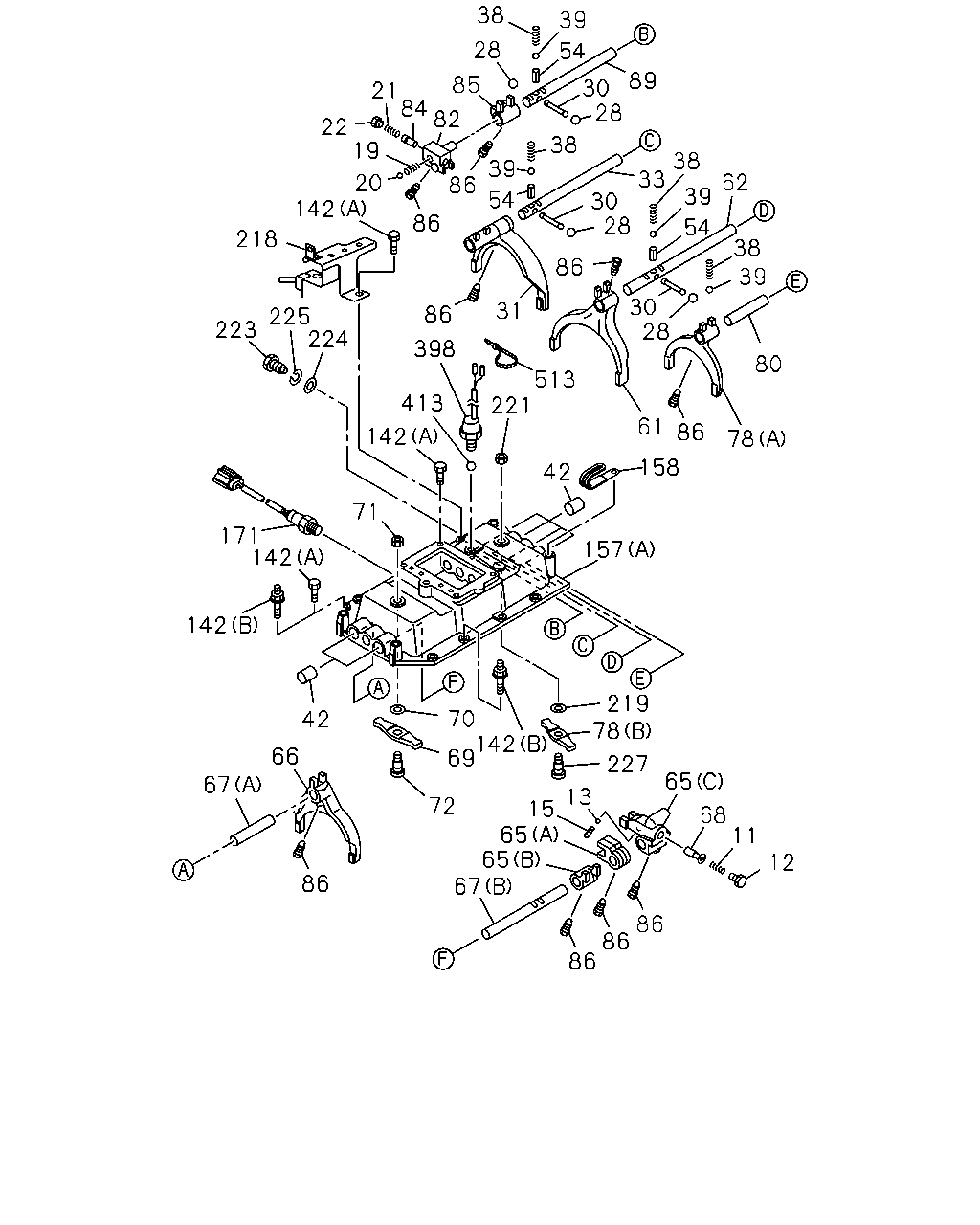

38 39 28 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 142 86 39 54 30 28 86 54 218 38 86 39 30 28 31 86 225 224 223 398 80 513 221 413 61 86 142 78 158 42 71 171 142 157 142 219 78 70 142 69 42 66 227 65 67 13 72 15 65 65 67 68 11 12 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0812-			●
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0812-			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0812-			●
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0812-			●
19	SPRING; COIL COMP	1-09580-441-0	01	1	0812-			●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0812-			●
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0812-			●
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0812-			●
28	BALL; INTER LK	9-00097-501-0	04	1	0812-			●
30	PIN; INTER LK	9-33534-003-0	03	1	0812-			●
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0812-			●
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0812-1202			●
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-			●
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	0812-			●
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	0812-			●
39	BALL; DETENT	1-09843-012-0	04	1	0812-			●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0812-			●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0812-			●
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0812-			●
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0812-1202			●
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0812-0906	●
65	BLOCK ASM; SHIFT,5TH & 6TH (D)	8-97388-980-1	01	1	0907-	●	●
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0812-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0812-			●
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0812-			●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0812-0906	●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	0907-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0812-			●
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0812-1202			●
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-			●
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0812-1202			●
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-			●
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0812-			●
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0812-			●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0812-			●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0812-			●
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0812-			●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0812-0906	●
78	ARM; SHIFT,REV (C)	8-97388-975-1	01	1	0907-	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0812-			●
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0812-			●
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0812-1202			●
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-			●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0812-0906	●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	0907-	●	●
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0812-			●
84	SLEEVE; REV	1-33516-025-0	01	1	0812-			●
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0812-			●
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0812-			●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0812-0906	●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	0907-	●	●
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0812-1202			●
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0812-0906	●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0812-			●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	01	1	0812-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	11	1	0812-			●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0812-			●
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0812-			●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (C)	8-98059-176-0	01	1	0812-			●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0812-			●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0812-0906	●
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0907-	●	●
158	CLIP; HARNESS ID=8	8-94107-659-0	02	1	0812-			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0812-0906	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0812-1104			●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109			●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-			●
218	BRACKET; HARNESS CLIP,QUAD BOX	8-98114-116-0	01	1	0812-			●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0812-			●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0812-			●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0812-			●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0812-			●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0812-			●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0812-			●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0812-0906	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0812-1209			●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-			●
413	BALL; BACK SW	9-00097-013-0	01	1	0812-			●
513	CLIP; BAND L=140	5-09707-031-1	01	1	0812-			●

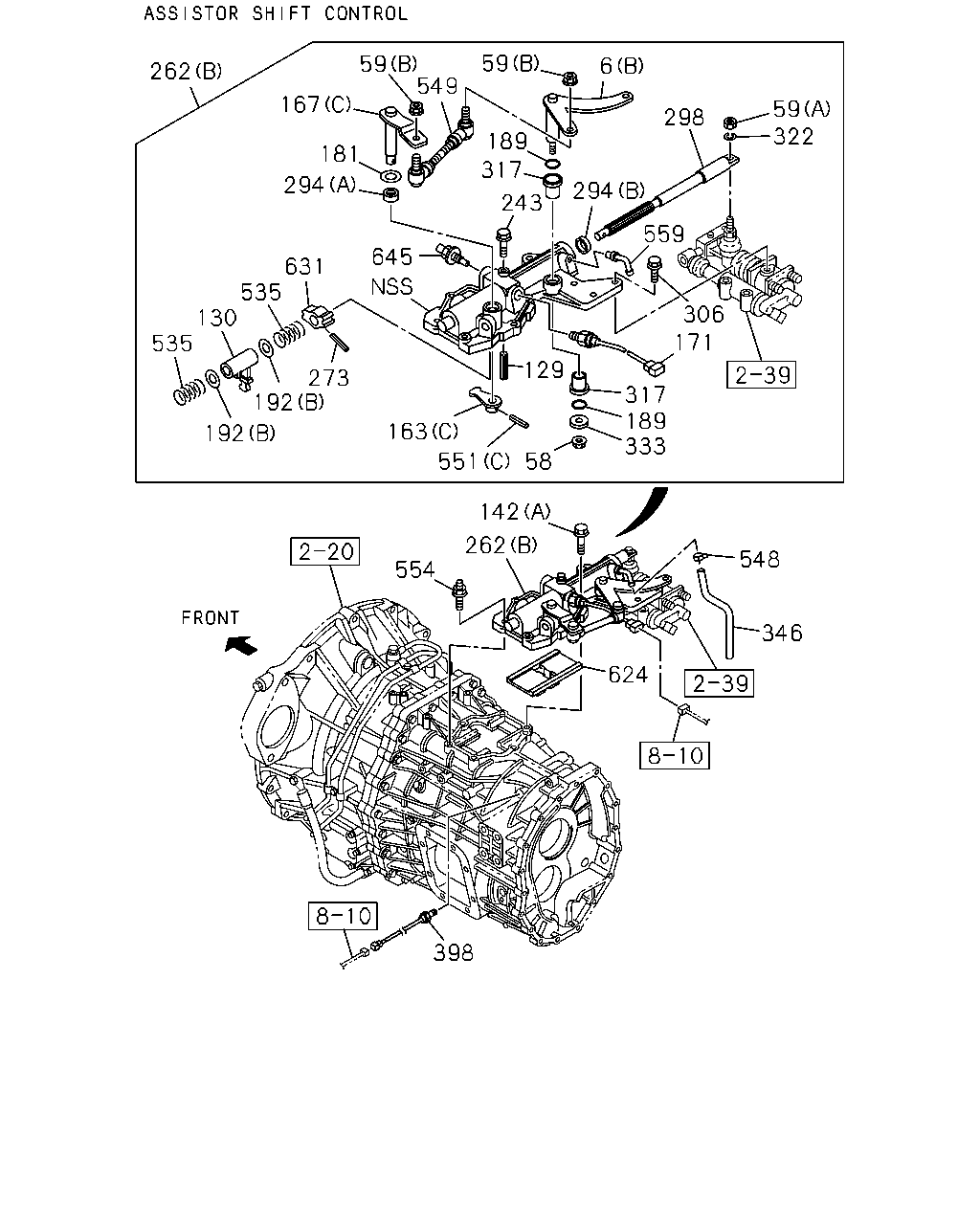

59 59 549 6 262 167 59 322 298 189 181 317 294 294 243 559 645 631 535 130 535 306 171 129 273 192 317 189 333 163 192 551 58 142 262 548 554 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0812-0906	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-	●	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0812-0906	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0907-	●	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (C)	8-98059-183-0	01	1	0812-			●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0812-0906			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0812-0906	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0907-			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0812-0906			●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0812-0906	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0907-			●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0812-0906	●		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-	●	●	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0812-0906	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0812-0906	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98114-548-0	01	1	0812-			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0812-			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0812-0906	●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0812-			●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	01	1	0812-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	11	1	0812-			●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0812-0906	●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0907-	●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-153-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-041-4	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0812-0906	●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0907-	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98059-180-0	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33521-070-0	01	1	0812-			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0812-0906	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0812-1104			●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109			●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0812-0906	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0907-	●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0812-			●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0812-			●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0812-0906			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0812-0906	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0907-			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0907-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0812-0906	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-	●	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0812-0906	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0907-	●	●
243	BOLT; COVER M6X12 FLANGE	0-28050-612-0	01	1	0812-0906	●
243	BOLT; COVER M6X12 FLANGE	0-28050-612-0	01	1	0907-0912	●	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1001-	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-473-3	01	1	0812-0906	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-473-4	01	1	0907-1204	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-563-0	01	1	1205-1306	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-038-0	01	1	1307-1312	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-998-0	01	1	1401-1404	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1405-1507	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-474-2	01	1	0812-0906	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-474-3	01	1	0907-1204	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-564-0	01	1	1205-1208	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98211-654-0	01	1	1209-1306	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-037-0	01	1	1307-1312	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98240-991-0	01	1	1401-1404	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1405-1507	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-	●	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0812-0906	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0907-	●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0812-			●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	0812-0906	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	0907-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	0812-0906	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	0907-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0812-0906	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	0907-1507	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98059-178-0	01	1	0812-			●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98119-275-0	01	1	0812-			●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0812-0906	●		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	0907-	●	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0812-0906	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0907-	●	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0812-0906	●		●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	0907-	●	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0812-0906			●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0812-0906	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0907-			●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0907-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	0812-0906	●
346	HOSE; AIR	8-97309-855-0	01	1	0907-1204	●	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0812-0906	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0812-1209			●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-			●
535	SPRING; LEVER	8-97385-713-0	02	1	0812-0906	●
535	SPRING; LEVER	8-97385-713-0	02	1	0907-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	0812-0906	●
548	CLIP; HOSE	8-97031-674-0	01	1	0907-1204	●	●
549	ROD; LINK	8-98023-095-0	01	1	0812-0906	●
549	ROD; LINK	8-98023-095-0	01	1	0907-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0812-0906	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0812-0906	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0812-0906	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-	●	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	0812-0906	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	0907-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	0812-0906	●
559	PIPE; BREATHER	8-97358-318-0	01	1	0907-1204	●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0812-0906	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0907-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	0812-0906	●
631	STOPPER; SPRING	8-98014-158-0	01	1	0907-	●	●
645	DETENT ASM	8-98019-536-0	01	1	0812-0906	●
645	DETENT ASM	8-98019-536-0	01	1	0907-	●	●

59 59 549 6 262 167 128 189 181 317 294 294 243 645 559 631 535 130 535 171 129 273 192 317 189 333 163 192 551 58 142 262 548 554 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0812-0906	●
6	LEVER; RELAY (A)	8-97241-342-0	03	1	0907-	●	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0812-0906	●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	0907-	●	●
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8> (C)	8-98059-183-0	01	1	0812-			●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0812-0906			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0812-0906	●
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0907-			●
58	NUT M10 FLANGE	0-91180-110-0	01	1	0907-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0812-0906			●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0812-0906	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	0907-			●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0812-0906	●		●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	0907-	●	●	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98096-925-0	01	1	0812-0906	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98096-925-0	01	1	0907-1208	●	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1209-1507	●	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-	●	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0812-0906	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0812-0906	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0907-	●	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	8-98114-548-0	01	1	0812-			●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	0812-			●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0812-0906	●
142	BOLT; QUAD BOX (A) M8X22 FLANGE	8-97365-376-0	04	1	0907-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0812-			●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	8-98010-334-0	01	1	0812-			●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	11	1	0812-			●
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	04	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10X60 FLANGE	0-28151-060-0	03	1	0812-			●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10X20,M10X60 L=90	1-09049-020-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0812-0906	●
163	LEVER; SELECT,INTERNAL (C)	8-97305-663-0	01	1	0907-	●	●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-153-0	01	1	0812-			●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-041-4	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0812-0906	●
167	LEVER; SELECT,EXTERNAL (C)	8-98021-489-0	01	1	0907-	●	●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8> (B)	8-98059-180-0	01	1	0812-			●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33521-070-0	01	1	0812-			●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0812-0906	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	0907-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0812-1104			●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109			●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-			●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0812-0906	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0907-	●	●
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	0812-			●
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	0812-			●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0812-0906			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0812-0906	●
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0907-			●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0907-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0812-0906	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	0907-	●	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0812-0906	●
192	WASHER; PL (B)	8-97305-661-0	02	1	0907-	●	●
243	BOLT; COVER M6X12 FLANGE	0-28050-612-0	01	1	0812-0906	●
243	BOLT; COVER M6X12 FLANGE	0-28050-612-0	01	1	0907-0912	●	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1001-	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-473-3	01	1	0812-0906	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98004-473-4	01	1	0907-1204	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-563-0	01	1	1205-1306	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-038-0	01	1	1307-1312	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-998-0	01	1	1401-1404	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1405-1507	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-474-2	01	1	0812-0906	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98004-474-3	01	1	0907-1204	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-564-0	01	1	1205-1208	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98211-654-0	01	1	1209-1306	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-037-0	01	1	1307-1312	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98240-991-0	01	1	1401-1404	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1405-1507	●	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-	●	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0812-0906	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	0907-	●	●
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	0812-			●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	0812-0906	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	0907-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	0812-0906	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	0907-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0812-0906	●		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0907-	●	●	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0812-0906			●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0812-0906	●
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	0907-			●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0907-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	0812-0906	●
346	HOSE; AIR	8-97309-855-0	01	1	0907-1204	●	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0812-0906	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	0907-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0812-1209			●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-			●
535	SPRING; LEVER	8-97385-713-0	02	1	0812-0906	●
535	SPRING; LEVER	8-97385-713-0	02	1	0907-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	0812-0906	●
548	CLIP; HOSE	8-97031-674-0	01	1	0907-1204	●	●
549	ROD; LINK	8-98023-095-0	01	1	0812-0906	●
549	ROD; LINK	8-98023-095-0	01	1	0907-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0812-0906	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	0907-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0812-0906	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	0907-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0812-0906	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	0907-	●	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	0812-0906	●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	0907-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	0812-0906	●
559	PIPE; BREATHER	8-97358-318-0	01	1	0907-1204	●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0812-0906	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	0907-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	0812-0906	●
631	STOPPER; SPRING	8-98014-158-0	01	1	0907-	●	●
645	DETENT ASM	8-98019-536-0	01	1	0812-0906	●
645	DETENT ASM	8-98019-536-0	01	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
