0-30 — WATER PUMP AND CORROSION RESISTOR (#6785) — 109 parça

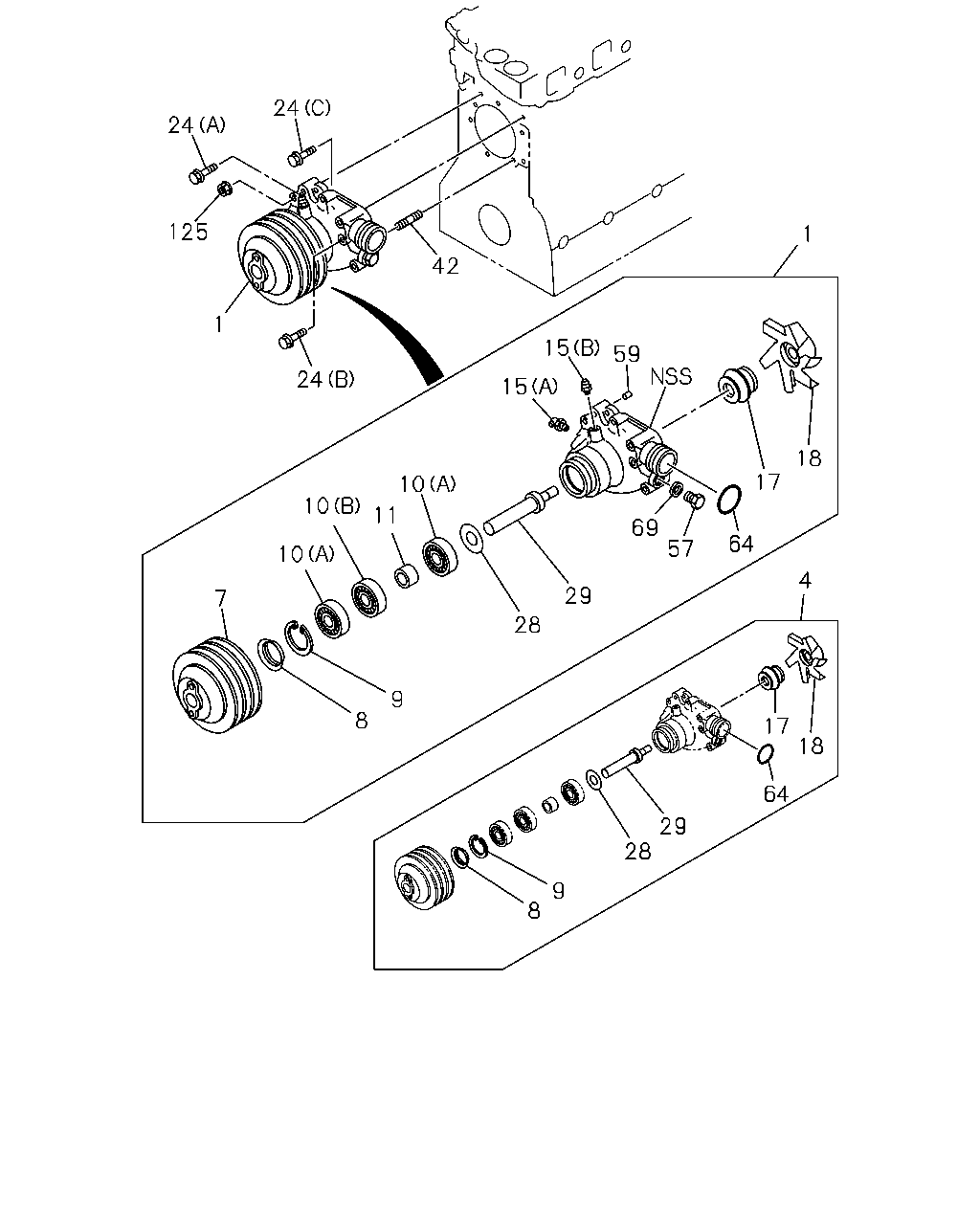

çizim 27008
24 24 125 1 42 1 15 59 24 15 18 17 10 10 11 69 64 57 10 4 29 7 28 9 8 17 18 64 29 28 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 8-94391-671-2 01 1 9806-9911 ●
1 PUMP ASM; WATER,W/GASKET 8-97600-488-3 01 1 9912-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-776-2 01 1 0302- ●
1 PUMP ASM; WATER,W/GASKET 8-94391-062-2 01 1 9806-9911 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9806-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-897-0 01 1 9912-9912 ●
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0001- ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9806-9911 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9912- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9806-9911 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9912- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9806-9911 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9912- ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9806-9911 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9912- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9806-9911 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9912- ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9806-9911 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9912- ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9806-9911 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9912- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9806-9911 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9912-0512 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9806-9911 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9912-9912 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001- ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9806-9911 ● ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 9912- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9806-9911 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9912-0512 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9806-9911 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9912- ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9806-9911 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9912- ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9806-9911 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9912- ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9806-9911 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9912- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9806-9911 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9912-0604 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9806-9911 ● ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9912- ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9806-9911 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9912- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9806-9911 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9912- ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9806-9911 ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9912- ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●

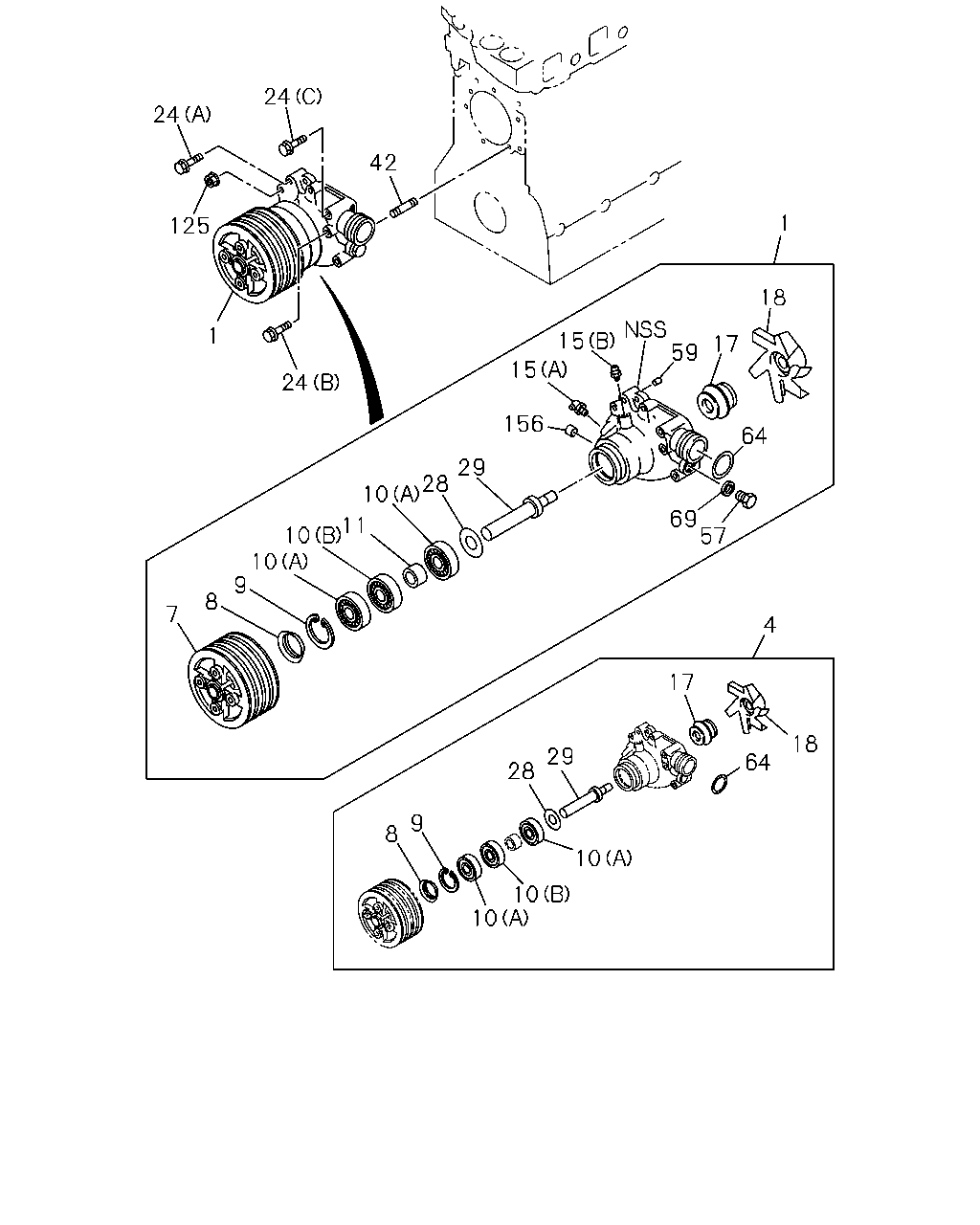

çizim 99530
24 24 42 1 125 18 15 59 1 17 15 24 156 64 29 28 10 69 57 11 10 10 9 8 7 4 17 18 29 64 28 9 8 10 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; WATER,W/GASKET 8-94391-671-2 01 1 9806-9911 ●
1 PUMP ASM; WATER,W/GASKET 8-97600-488-3 01 1 9912-0301 ●
1 PUMP ASM; WATER,W/GASKET 8-97602-776-2 01 1 0302- ●
1 PUMP ASM; WATER,W/GASKET 8-94391-062-2 01 1 9806-9911 ●
4 REPAIR KIT; WATER PUMP 1-87811-318-0 01 1 9806-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-897-0 01 1 9912-9912 ●
4 REPAIR KIT; WATER PUMP 1-87812-040-1 01 1 0001- ●
7 PULLEY; WATER PUMP
3-GROOVE 		8-94396-133-0 01 1 9806-9911 ● ●
7 PULLEY; WATER PUMP
4-GROOVE 		8-94394-927-0 01 1 9912- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9806-9911 ● ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9912- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9806-9911 ● ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9912- ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9806-9911 ● ●
10 BEARING; WATER PUMP
(A) 		8-94391-298-0 02 1 9912- ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9806-9911 ● ●
10 BEARING; WATER PUMP
(B) 		8-94391-299-0 01 1 9912- ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9806-9911 ● ●
11 SPACER; BRG,WATER PUMP 1-13634-040-0 01 1 9912- ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9806-9911 ● ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9912- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9806-9911 ● ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9912-0512 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9806-9911 ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9912-9912 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001- ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9806-9911 ● ●
18 IMPELLER; WATER PUMP 8-94392-922-0 01 1 9912- ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9806-9911 ● ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9912-0512 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9806-9911 ● ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9912- ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9806-9911 ● ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9912- ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9806-9911 ● ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9912- ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9806-9911 ● ●
29 SHAFT; WATER PUMP 8-94396-130-1 01 1 9912- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9806-9911 ● ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9912-0604 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9806-9911 ● ●
57 PLUG; HTR,WATER PUMP
M20 		9-99202-320-0 01 1 9912- ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9806-9911 ● ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 9912- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9806-9911 ● ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9912- ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9806-9911 ● ●
69 GASKET; PLUG,HTR
ID=20.5 OD=28.0 		9-09571-420-0 01 1 9912- ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9806-9911 ● ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9912-0602 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004- ●
