Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#67847) — 196 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

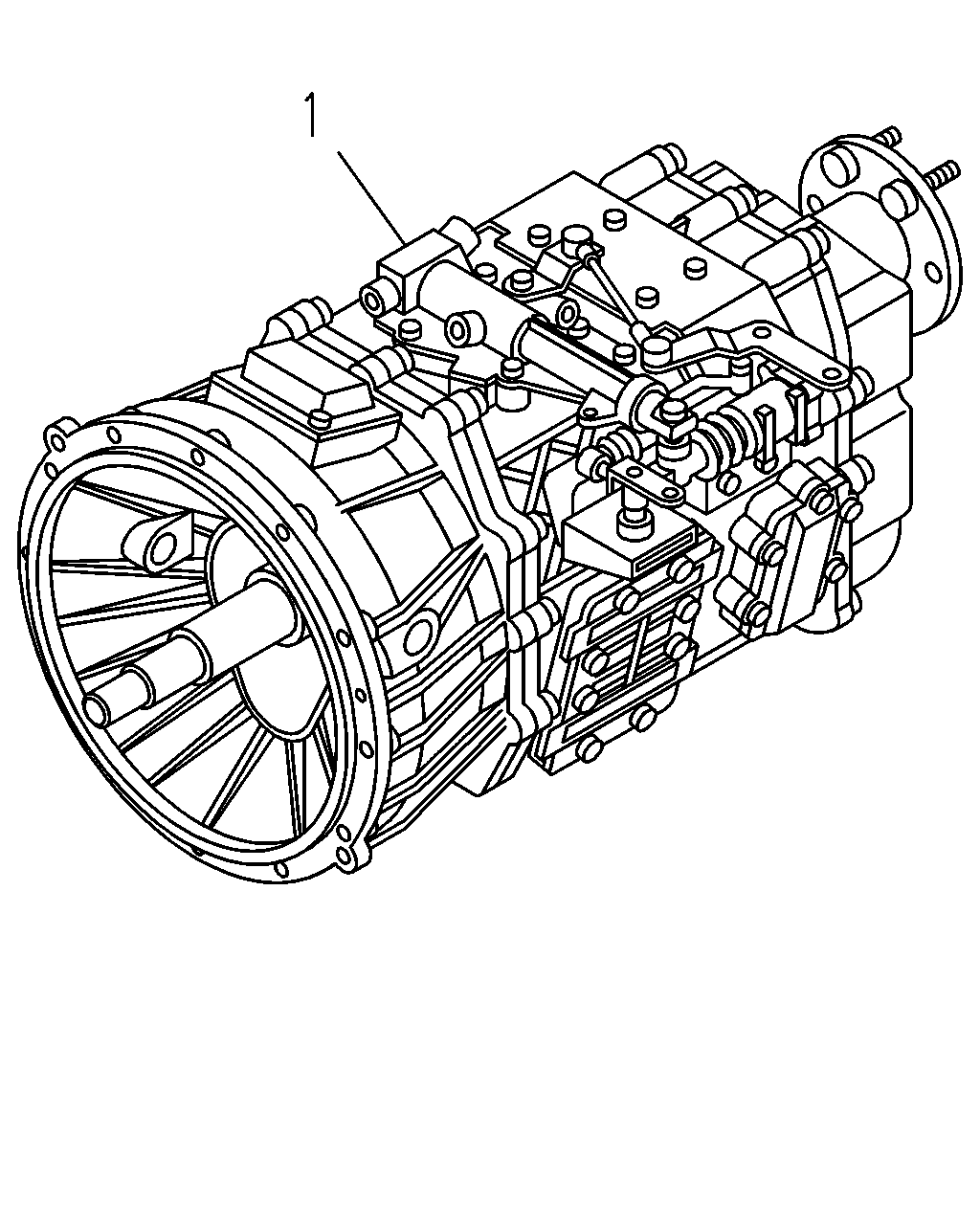

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-546-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-270-0	01	1	0812-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-271-0	01	1	0812-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-270-0	01	1	0812-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-271-0	01	1	0812-			●

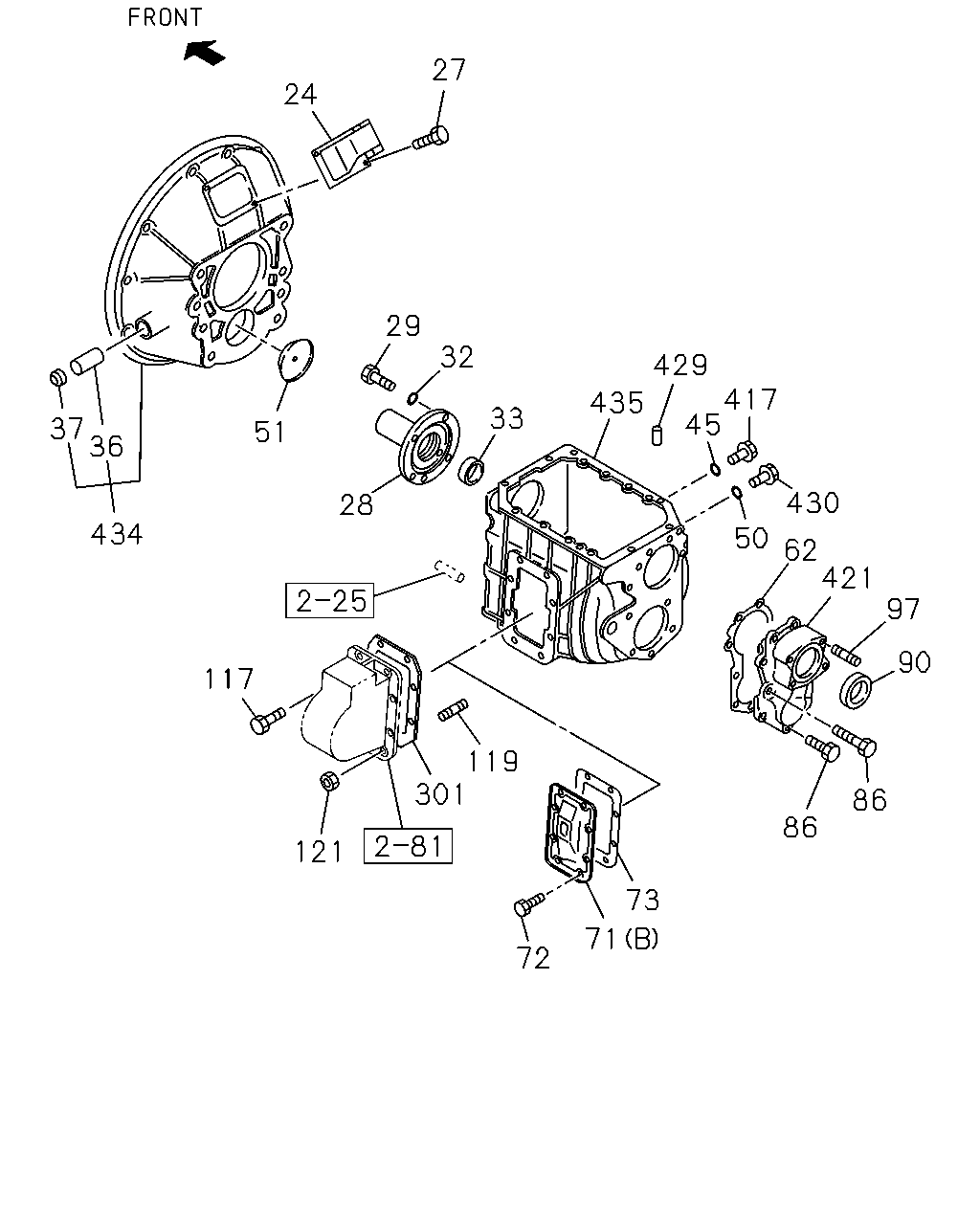

27 24 29 32 429 417 45 435 33 37 36 51 430 28 434 50 62 421 97 90 117 119 301 86 86 121 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0812-0906		●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1410	●	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0812-0906		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0812-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0812-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0812-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0812-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0812-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0812-			●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0812-			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0812-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0812-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0812-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-			●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0812-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0812-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0812-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0812-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0812-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0812-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0812-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0812-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0812-		●	●
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	0812-0906		●
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	0812-			●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	0812-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0812-0906		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0812-0906		●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0812-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0812-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0812-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0812-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0812-		●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0812-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0812-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0812-			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0812-0901		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0902-0906		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0907-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0812-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0812-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0812-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0812-			●
434	HOUSING; CLU	8-98004-507-2	01	1	0812-0906		●
434	HOUSING; CLU	8-98004-507-2	01	1	0907-	●	●
434	HOUSING; CLU	8-98114-530-2	01	1	0812-			●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	8-97388-872-4	01	1	0812-		●
435	CASE; TRANS	8-98113-243-0	01	1	0812-			●

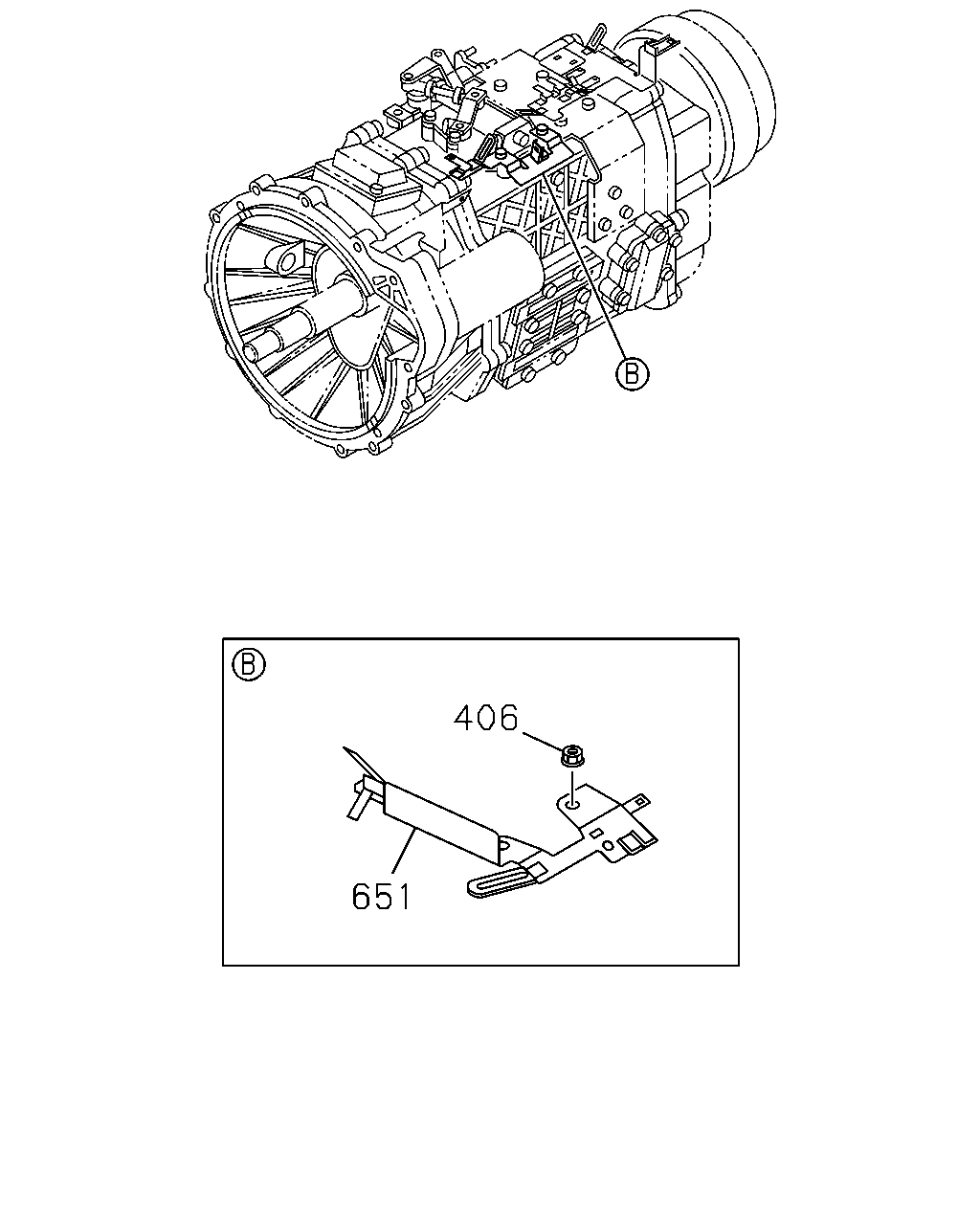

406 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-1004	●	●	●
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1005-	●	●
651	BRACKET; T/M HARNESS	8-97609-800-3	01	1	0812-0906		●
651	BRACKET; T/M HARNESS	8-97609-800-3	01	1	0907-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

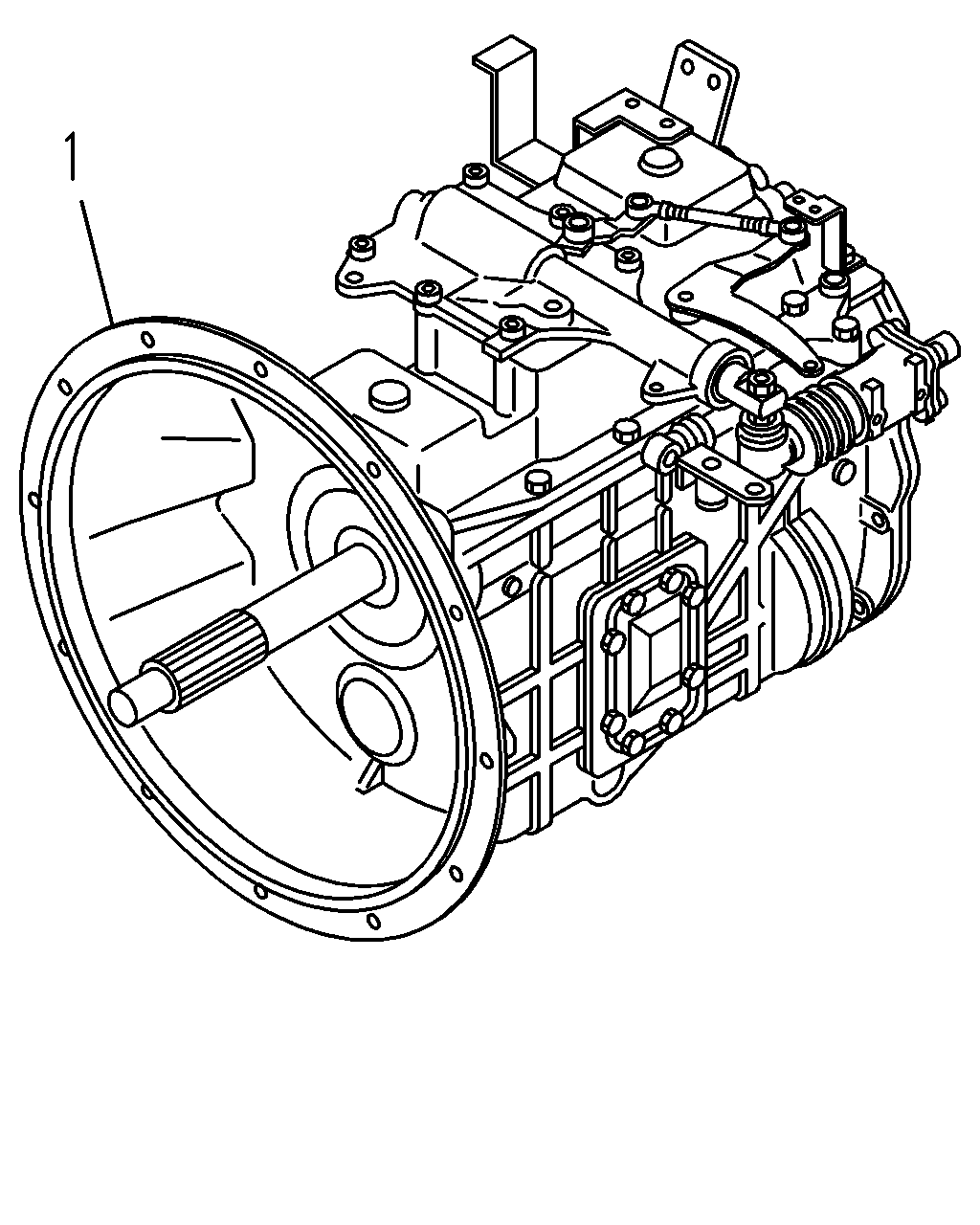

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-596-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-546-0	01	1	0812-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-270-0	01	1	0812-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-271-0	01	1	0812-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-270-0	01	1	0812-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-271-0	01	1	0812-			●

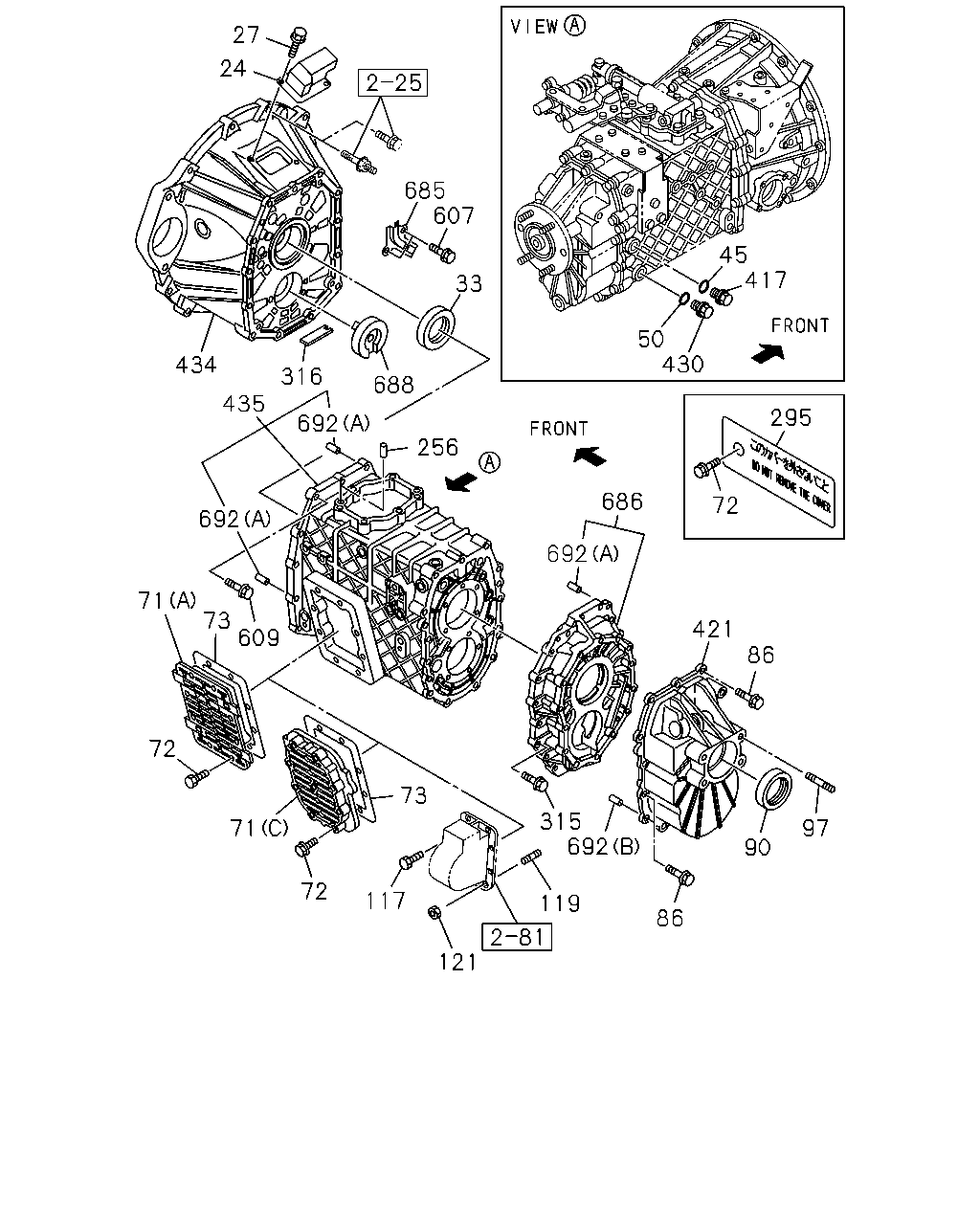

27 24 685 607 45 417 33 50 430 434 316 688 435 295 692 256 686 72 692 692 71 73 609 421 86 72 73 315 692 71 97 90 72 117 119 86 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0812-0906		●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-1410	●	●	●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0812-0906		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0812-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0812-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0812-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0812-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0812-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0812-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0812-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0812-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0812-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0812-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0812-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0812-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0812-		●	●
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	0812-0906		●
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
86	BOLT; RR COVER M17X35	1-09044-076-0	08	1	0812-			●
86	BOLT; RR COVER M12X60	1-09044-084-0	01	1	0812-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0812-0906		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0812-0906		●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0812-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0812-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0812-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0812-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0812-		●	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0812-0906		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-	●	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0812-		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0812-0906		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0812-0906		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0812-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0812-			●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0812-0901		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0902-0906		●
421	COVER; RR,TRANS	8-98051-477-0	01	1	0907-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0812-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0812-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0812-			●
434	HOUSING; CLU	8-98004-507-2	01	1	0812-0906		●
434	HOUSING; CLU	8-98004-507-2	01	1	0907-	●	●
434	HOUSING; CLU	8-98114-530-2	01	1	0812-			●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108	●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404	●
435	CASE; TRANS	8-98236-421-1	01	1	1405-	●
435	CASE; TRANS	8-97388-872-4	01	1	0812-		●
435	CASE; TRANS	8-98113-243-0	01	1	0812-			●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0812-0906		●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0812-0906		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-	●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0812-0906		●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-	●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0812-0906		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-	●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0812-0906		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110	●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0812-0906		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-	●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0812-0906		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
