◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11146 - FSS(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#67833) — 87 parça

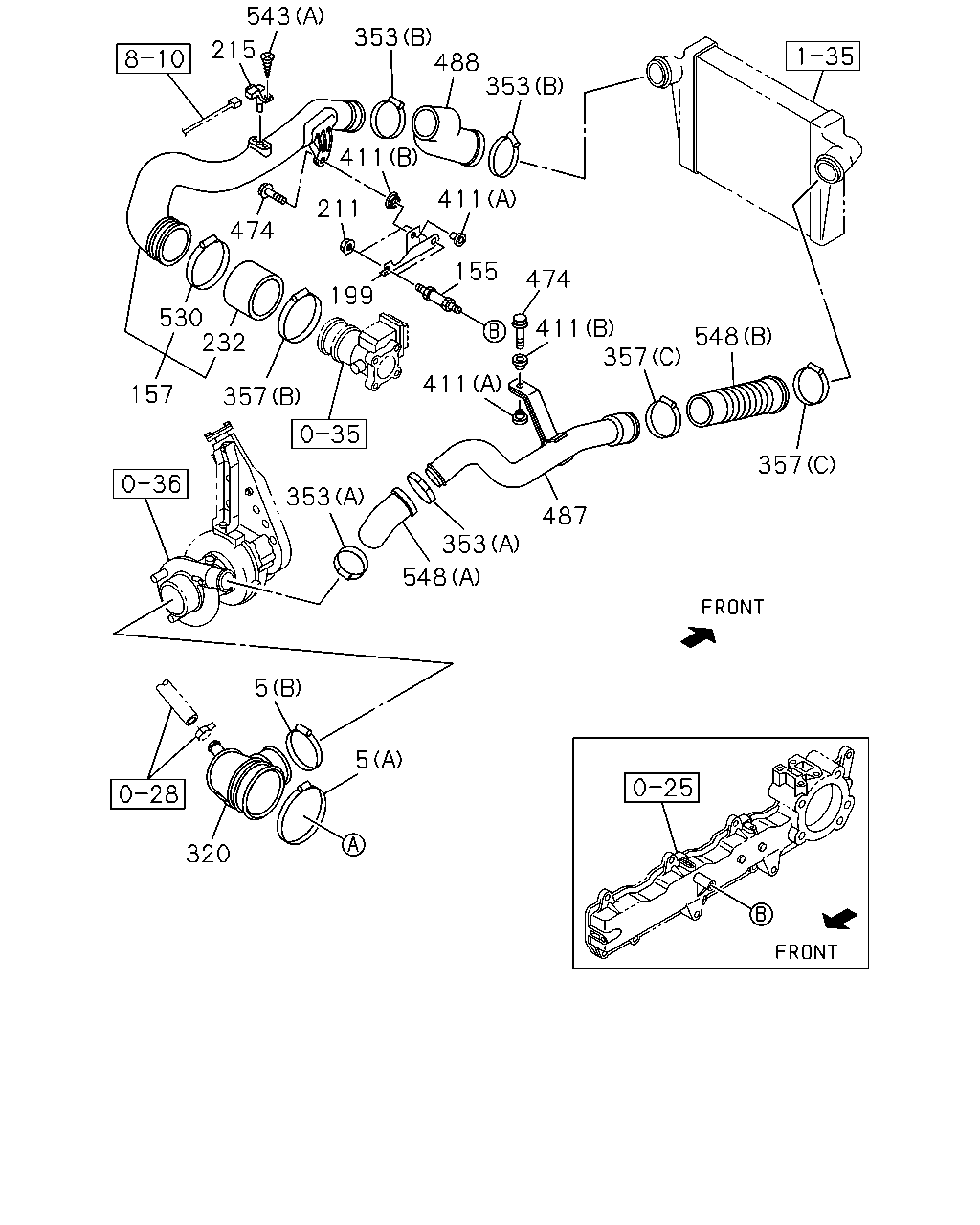

çizim 92177
543 353 488 353 215 411 411 211 474 155 474 199 530 232 411 357 548 411 157 357 357 353 487 353 548 5 5 320
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85 		8-98096-592-0 01 1 1002-
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0812-0812
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130 		8-98133-359-0 01 1 1002-
5 CLIP; AIR DUCT
(B) ID=65-85 		8-98133-350-0 01 1 0812-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=65-85 		8-98133-350-0 01 1 1002-
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 0812-
157 PIPE; AIR 8-98010-719-3 01 1 0812-
199 BRACKET; PIPE 8-97385-293-1 01 1 0812-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0812-
215 SENSOR; MAP 8-98009-418-0 01 1 0812-
232 HOSE; CONN 8-98067-929-0 01 1 0812-
320 HOSE; CONN,ACL 8-98078-983-1 01 1 0812-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79 		1-09707-136-0 02 1 1002-
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 0812-1001
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75 		8-98133-349-0 02 1 1002-
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 0812-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1002-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1002-
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-1001
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1002-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 0812-
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0812-1001
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1002-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 0812-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 0812-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 0812-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 0812-
488 HOSE; RUBBER,PIPE 8-98010-723-0 01 1 0812-
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 0812-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0812-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0812-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0812-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98061-809-1 01 1 0812-1101
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-971-1 01 1 1102-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98061-810-0 01 1 0812-1101
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98181-972-1 01 1 1102-

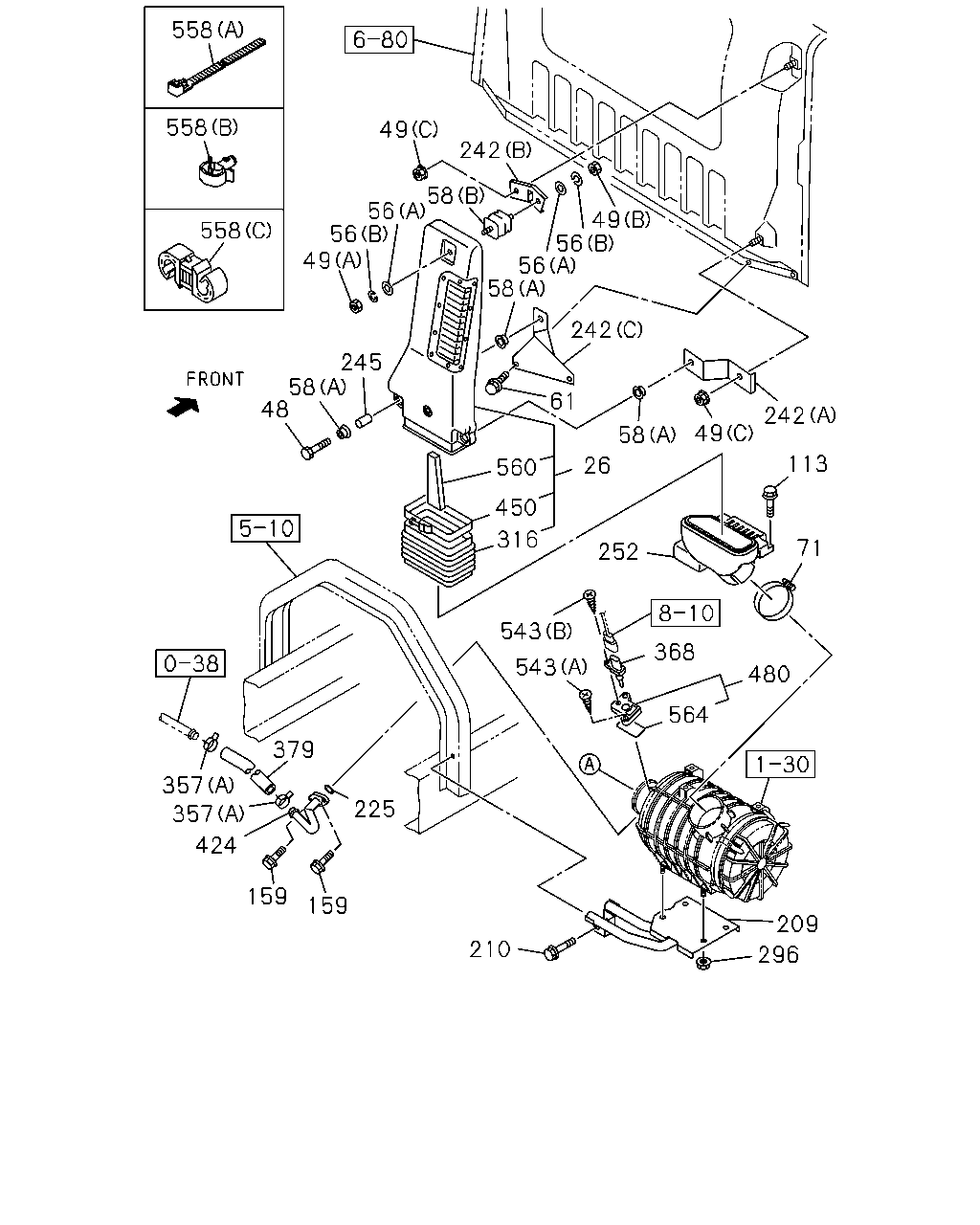

çizim 187565
296 209 210 159 159 225 379 357 357 424 252 71 480 564 368 316 450 560 26 58 49 242 113 242 61 245 58 48 58 56 56 49 242 49 58 56 56 49 558 558 558 543 543
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 0812-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0812-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0812-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0812-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0812-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0812-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0812-
58 SUPPORT; AIR INL DUCT
(B) OD=40 T=18.5 		1-14119-267-0 04 1 0812-
58 SUPPORT; AIR INL DUCT
(A) 		8-98125-944-1 01 1 0812-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0812-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0812-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
113 BOLT; RESONATOR
M6X16 W/PL WASHER 		8-98094-071-0 03 1 0812-1011
113 BOLT; RESONATOR
EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER 		8-98094-071-0 03 1 1012-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0812-
209 BRACKET; ACL 8-98099-677-0 01 1 0812-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 03 1 0812-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0812-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0812-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0812-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0812-
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 0812-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0812-
252 DUCT; AIR INT
VIN MODEL YEAR 2011<VZB> 		8-98010-640-1 01 1 1012-
252 DUCT; AIR INT 8-98095-779-0 01 1 0812-1011
252 DUCT; AIR INT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98095-779-0 01 1 1012-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0812-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79 		1-09707-136-0 02 1 1002-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1002-
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 0812-1001
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75 		8-98133-349-0 02 1 1002-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 0812-
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 0812-1001
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1002-
368 SENSOR; TEMP 8-98065-377-0 01 1 0812-
379 HOSE; RUBBER
L=502 		8-98057-034-0 01 1 0812-
424 PIPE; AIR,INL 8-98081-837-0 01 1 0812-
450 CLAMP; HOSE 9-09915-504-1 01 1 0812-
480 ADAPTER 8-98086-417-0 01 1 0812-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0812-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0812-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0812-
558 CLIP; AIR FLOW SENSOR
(C) ID=10 & 15 		1-09709-279-1 01 1 0903-
558 CLIP; AIR FLOW SENSOR
(A) L=600 		1-09707-107-1 01 1 0812-0905
558 CLIP; AIR FLOW SENSOR
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0906-
558 CLIP; AIR FLOW SENSOR
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 0812-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0812-
564 GASKET; ADAPTER 8-98071-416-0 01 1 0812-
